1u0h

STRUCTURAL BASIS FOR THE INHIBITION OF MAMMALIAN ADENYLYL CYCLASE BY MANT-GTP

Method: X-RAY DIFFRACTION D_max: 101.8 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

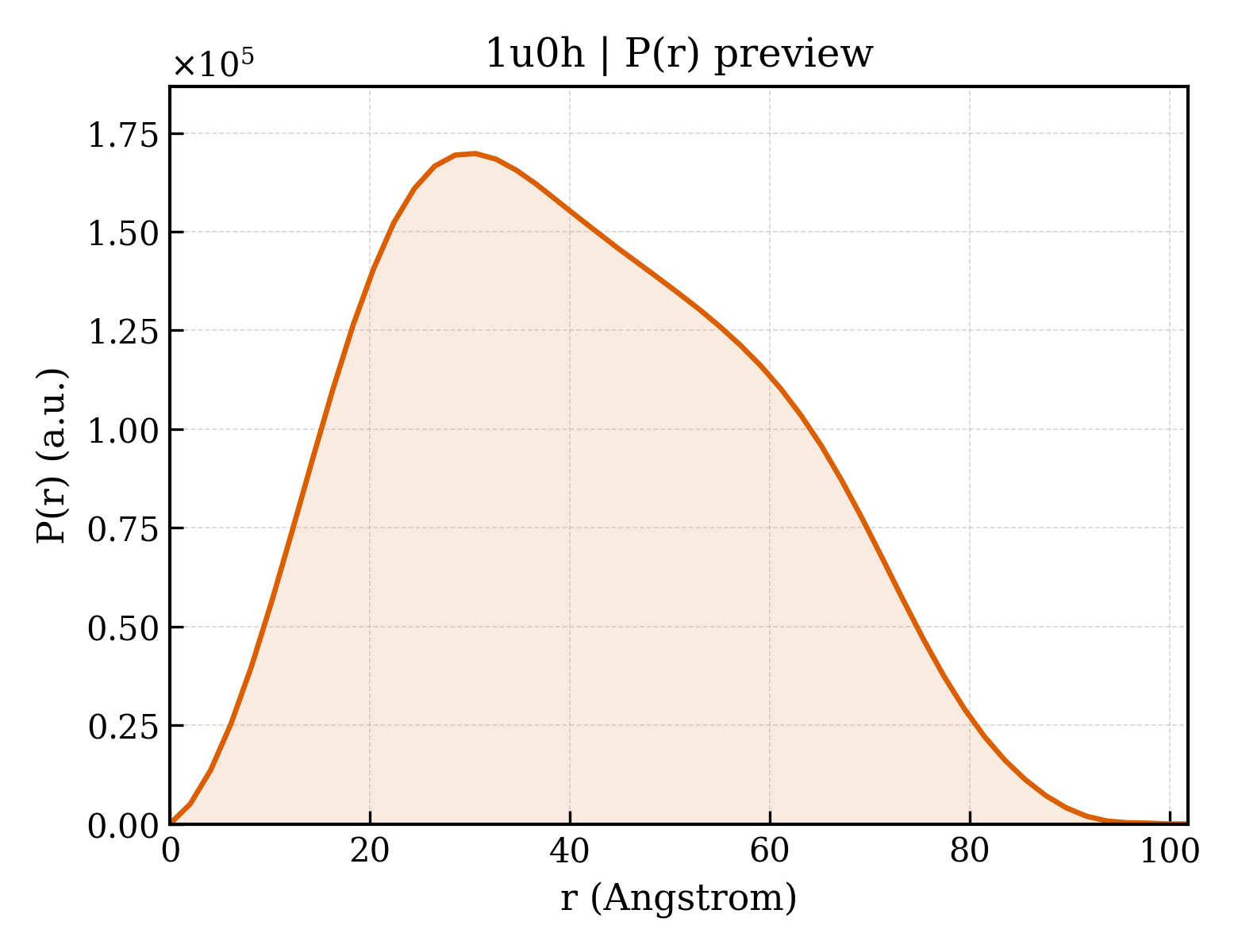

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1u0h
沉积日期 deposition_date	2004-07-13
结构标题 title	STRUCTURAL BASIS FOR THE INHIBITION OF MAMMALIAN ADENYLYL CYCLASE BY MANT-GTP
关键词 keywords	adenylyl cyclase, Gsa, MANT-GTP, LYASE; LYASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	31.86 Å
回转半径 Rg (电子) rg_electron	31.22 Å
零角强度 I(0) i0	109772000.00
分子量 molecular_weight	82089.0 kDa
排除体积 excluded_volume	102190 Å³
包络体积 envelope_volume	127390 Å³
水化壳体积 shell_volume	34199 Å³
包络直径 envelope_diameter	101.1 Å
壳层 Rg shell_rg	38.00 Å
包络 Rg envelope_rg	30.95 Å
形状 Rg shape_rg	31.21 Å
总 Rg total_rg	31.80 Å
总原子数 total_atoms	5752
残基数 n_residues	708
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	101.8 Å
Rg (实空间) rg_real	31.88 Å
Rg 误差 (实空间) rg_real_error	0.82 Å
I(0) (实空间) i0_real	1.0980e+08
I(0) 误差 (实空间) i0_real_error	1.5970e+06
Rg (倒空间) rg_reciprocal	31.87 Å
I(0) (倒空间) i0_reciprocal	109800000.0000
解质量估计 total_estimate	0.8992
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	30.6 Å
偏度 Skewness skewness	0.251
峰度 Kurtosis kurtosis	-0.724
角度范围 angular_range	— – 0.2500 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	25210000.0000
实空间数据点数 n_real_points	51
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.921; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.969; Smooth: 0.953

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (9)

Entity 1 polymer

描述 description	Adenylate cyclase, type V
分子量 formula_weight	25526.5 kDa
EC 编号 ec_number	4.6.1.1
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	5769

MHHHHHHAMEMKADINAKQEDMMFHKIYIQKHDNVSILFADIEGFTSLASQCTAQELVMTLNELFARFDKLAAENHCLRIKILGDCYYCVSGLPEARADHAHCCVEMGMDMIEAISLVREMTGVNVNMRVGIHSGRVHCGVLGLRKWQFDVWSNDVTLANHMEAGGKAGRIHITKATLSYLNGDYEVEPGCGGERNAYLKEHSIETFLILRCTQKRKEEKAMIAK

来源 Source

来源生物 organism	Canis lupus familiaris
通用名 common_name	dog
NCBI 分类编号 ncbi_taxonomy_id	9615
宿主生物 host_organism	Escherichia coli BL21

Entity 2 polymer

描述 description	Adenylate cyclase, type II
分子量 formula_weight	23717.0 kDa
EC 编号 ec_number	4.6.1.1
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B

RSLKNEELYHQSYDCVCVMFASIPDFKEFYTESDVNKEGLECLRLLNEIIADFDDLLSKPKFSGVEKIKTIGSTYMAATGLSAIPSQEHAQEPERQYMHIGTMVEFAYALVGKLDAINKHSFNDFKLRVGINHGPVIAGVIGAQKPQYDIWGNTVNVASRMDSTGVLDKIQVTEETSLILQTLGYTCTCRGIINVKGKGDLKTYFVNTEMSR

来源 Source

来源生物 organism	Rattus norvegicus
通用名 common_name	Norway rat
NCBI 分类编号 ncbi_taxonomy_id	10116
宿主生物 host_organism	Escherichia coli BL21

Entity 3 polymer

描述 description	Guanine nucleotide-binding protein G(s), alpha subunit
分子量 formula_weight	45769.5 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C

MGCLGNSKTEDQRNEEKAQREANKKIEKQLQKDKQVYRATHRLLLLGAGESGKSTIVKQMRILHVNGFNGEGGEEDPQAARSNSDGEKATKVQDIKNNLKEAIETIVAAMSNLVPPVELANPENQFRVDYILSVMNVPDFDFPPEFYEHAKALWEDEGVRACYERSNEYQLIDCAQYFLDKIDVIKQDDYVPSDQDLLRCRVLTSGIFETKFQVDKVNFHMFDVGGQRDERRKWIQCFNDVTAIIFVVASSSYNMVIREDNQTNRLQEALNLFKSIWNNRWLRTISVILFLNKQDLLAEKVLAGKSKIEDYFPEFARYTTPEDATPEPGEDPRVTRAKYFIRDEFLRISTASGDGRHYCYPHFTCAVDTENIRRVFNDCRDIIQRMHLRQYELL

来源 Source

来源生物 organism	Bos taurus
通用名 common_name	cattle
NCBI 分类编号 ncbi_taxonomy_id	9913
宿主生物 host_organism	Escherichia coli BL21

Entity 4 non-polymer

描述 description	MAGNESIUM ION
分子量 formula_weight	24.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	3

Entity 5 non-polymer

描述 description	FORSKOLIN
分子量 formula_weight	410.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 6 non-polymer

描述 description	3'-O-(N-METHYLANTHRANILOYL)-GUANOSINE-5'-TRIPHOSPHATE
分子量 formula_weight	656.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 7 non-polymer

描述 description	CHLORIDE ION
分子量 formula_weight	35.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 8 non-polymer

描述 description	5'-GUANOSINE-DIPHOSPHATE-MONOTHIOPHOSPHATE
分子量 formula_weight	539.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 9 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	17

▼

6. 折叠分类 (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

结构域编号 domain_id	d1u0ha_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.58 — Ferredoxin-like
超家族 Superfamily superfamily	d.58.29 — Nucleotide cyclase
家族 Family family	d.58.29.1 — Adenylyl and guanylyl cyclase catalytic domain

结构域编号 domain_id	d1u0hb_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.58 — Ferredoxin-like
超家族 Superfamily superfamily	d.58.29 — Nucleotide cyclase
家族 Family family	d.58.29.1 — Adenylyl and guanylyl cyclase catalytic domain

结构域编号 domain_id	d1u0hc1
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.66 — Transducin (alpha subunit), insertion domain
超家族 Superfamily superfamily	a.66.1 — Transducin (alpha subunit), insertion domain
家族 Family family	a.66.1.1 — Transducin (alpha subunit), insertion domain

结构域编号 domain_id	d1u0hc2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
超家族 Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
家族 Family family	c.37.1.8 — G proteins

CATH v4.4 (4 domains)

结构域编号 domain_id	1u0hA00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	70 — Alpha-Beta Plaits
同源超家族 H-superfamily homologous superfamily	1230 — Nucleotide cyclase, GGDEF domain

结构域编号 domain_id	1u0hB00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	70 — Alpha-Beta Plaits
同源超家族 H-superfamily homologous superfamily	1230 — Nucleotide cyclase, GGDEF domain

结构域编号 domain_id	1u0hC01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

结构域编号 domain_id	1u0hC02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	400 — GI Alpha 1, domain 2-like
同源超家族 H-superfamily homologous superfamily	10 — GI Alpha 1, domain 2-like

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	118.400 Å
晶胞边长 b length_b	133.000 Å
晶胞边长 c length_c	70.400 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	4

空间群 space_group	P 21 21 2
空间群编号 int_tables_number	18
晶系 crystal_system	—

分辨率 resolution	2.900 Å
最低分辨率 resolution_low	15.000 Å
R 因子 r_factor	—
R_work r_work	0.2455
R_free r_free	0.2798
