SAXSdb — 1wth

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Tail-associated lysozyme

Enterobacteria phage T4

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 6 PDB declaration: hexameric（6） Consistent with protein copy count	Chain A； UniProt 1–575	Mutation：S351L	Baseplate structural protein Gp27 × 3 （P17172） K POTASSIUM ION × 3 PO4 PHOSPHATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 8.5；279 K；PEG 8000, Tris, Glycerol, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 279K	Resolution 2.80 Å R-free 0.281

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1WTH	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1K28 The Structure of the Bacteriophage T4 Cell-Puncturing Device Deposited 2001-09-26	Different mutation/modification Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–575（575 aa）	Not recorded	K POTASSIUM ION × 3 PO4 PHOSPHATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；279 K；PEG 8000, Tris, Glycerol, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 279K	Resolution 2.90 Å R-free 0.280
1PDL Fitting of gp5 in the cryoEM reconstruction of the bacteriophage T4 baseplate Deposited 2003-05-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 1–575（575 aa） Chain B 1–575（575 aa） Chain C 1–575（575 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer water；pH 7；water cryo-EM vitrification conditions Cryogen ETHANE；ethane vitrification	Resolution 12.00 Å
2Z6B Crystal Structure Analysis of (gp27-gp5)3 conjugated with Fe(III) protoporphyrin Deposited 2007-07-28	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–575（575 aa）	Mutation：N7C, S351L	NEN 1-ETHYL-PYRROLIDINE-2,5-DIONE × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；285 K；PEG 8000, Tris, Glycerol, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 285K	Resolution 3.11 Å R-free 0.315
3A1M A fusion protein of a beta helix region of gene product 5 and the foldon region of bacteriophage T4 Deposited 2009-04-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 6 PDB declaration: hexameric	Chain A 490–575（86 aa） Chain B 490–575（86 aa） Chain C 490–575（86 aa） Chain D 490–575（86 aa） Chain E 490–575（86 aa） Chain F 490–575（86 aa）	Mutation：V16L Mutation：V16L Mutation：V16L Mutation：V16L Mutation：V16L Mutation：V16L	K POTASSIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；Ammonium sulfate, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.00 Å R-free 0.268
4JIV VCA0105 PAAR-repeat protein from Vibrio cholerae in complex with a VgrG-like beta-helix that is based on a fragment of T4 gp5 Deposited 2013-03-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 484–575（92 aa） Fragment：gp5G484, UNP RESIDUES 484-575 Chain B 484–575（92 aa） Fragment：gp5G484, UNP RESIDUES 484-575 Chain C 484–575（92 aa） Fragment：gp5G484, UNP RESIDUES 484-575	Mutation：T566H, D568V, R571A, D573N, I574L, G575N Mutation：T566H, D568V, R571A, D573N, I574L, G575N Mutation：T566H, D568V, R571A, D573N, I574L, G575N	MG MAGNESIUM ION × 1 PLM PALMITIC ACID × 1 STE STEARIC ACID × 1 ELA Elaidic acid × 1 ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；293 K；13-15% PEG 2000, 100mM NaAc, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.90 Å R-free 0.208
4JIW c1882 PAAR-repeat protein from Escherichia coli in complex with a VgrG-like beta-helix that is based on a fragment of T4 gp5 Deposited 2013-03-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 484–575（92 aa） Fragment：gp5G484, UNP RESIDUES 484-575 Chain B 484–575（92 aa） Fragment：gp5G484, UNP RESIDUES 484-575 Chain C 484–575（92 aa） Fragment：gp5G484, UNP RESIDUES 484-575	Mutation：T566D, D568K, S570A, R571K, D573N, I574L, G575N Mutation：T566D, D568K, S570A, R571K, D573N, I574L, G575N Mutation：T566D, D568K, S570A, R571K, D573N, I574L, G575N	MG MAGNESIUM ION × 1 ZN ZINC ION × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；100-150mM CaCl2, 13-15% PEG 3350, 100mM MES pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.40 Å R-free 0.243
4JIW c1882 PAAR-repeat protein from Escherichia coli in complex with a VgrG-like beta-helix that is based on a fragment of T4 gp5 Deposited 2013-03-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain E 484–575（92 aa） Fragment：gp5G484, UNP RESIDUES 484-575 Chain F 484–575（92 aa） Fragment：gp5G484, UNP RESIDUES 484-575 Chain G 484–575（92 aa） Fragment：gp5G484, UNP RESIDUES 484-575	Mutation：T566D, D568K, S570A, R571K, D573N, I574L, G575N Mutation：T566D, D568K, S570A, R571K, D573N, I574L, G575N Mutation：T566D, D568K, S570A, R571K, D573N, I574L, G575N	MG MAGNESIUM ION × 1 ZN ZINC ION × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；100-150mM CaCl2, 13-15% PEG 3350, 100mM MES pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.40 Å R-free 0.243
4JIW c1882 PAAR-repeat protein from Escherichia coli in complex with a VgrG-like beta-helix that is based on a fragment of T4 gp5 Deposited 2013-03-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain I 484–575（92 aa） Fragment：gp5G484, UNP RESIDUES 484-575 Chain J 484–575（92 aa） Fragment：gp5G484, UNP RESIDUES 484-575 Chain K 484–575（92 aa） Fragment：gp5G484, UNP RESIDUES 484-575	Mutation：T566D, D568K, S570A, R571K, D573N, I574L, G575N Mutation：T566D, D568K, S570A, R571K, D573N, I574L, G575N Mutation：T566D, D568K, S570A, R571K, D573N, I574L, G575N	MG MAGNESIUM ION × 1 ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；100-150mM CaCl2, 13-15% PEG 3350, 100mM MES pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.40 Å R-free 0.243
4JIW c1882 PAAR-repeat protein from Escherichia coli in complex with a VgrG-like beta-helix that is based on a fragment of T4 gp5 Deposited 2013-03-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain M 484–575（92 aa） Fragment：gp5G484, UNP RESIDUES 484-575 Chain N 484–575（92 aa） Fragment：gp5G484, UNP RESIDUES 484-575 Chain O 484–575（92 aa） Fragment：gp5G484, UNP RESIDUES 484-575	Mutation：T566D, D568K, S570A, R571K, D573N, I574L, G575N Mutation：T566D, D568K, S570A, R571K, D573N, I574L, G575N Mutation：T566D, D568K, S570A, R571K, D573N, I574L, G575N	MG MAGNESIUM ION × 1 ZN ZINC ION × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；100-150mM CaCl2, 13-15% PEG 3350, 100mM MES pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.40 Å R-free 0.243
4JJ2 High resolution structure of a C-terminal fragment of the T4 phage gp5 beta-helix Deposited 2013-03-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 483–575（93 aa） Fragment：UNP residues 483-575 Chain B 483–575（93 aa） Fragment：UNP residues 483-575 Chain C 483–575（93 aa） Fragment：UNP residues 483-575	Not recorded	MG MAGNESIUM ION × 1 ELA Elaidic acid × 1 PLM PALMITIC ACID × 1 STE STEARIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.2；293 K；0.03-0.05M CaCl2, 0.1M NaAc pH 5.2, 11-15% MPD, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.28 Å R-free 0.178
4KU0 Enterobacteria phage T4 gp5.4 PAAR repeat protein in complex with T4 gp5 beta-helix fragment Deposited 2013-05-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 484–575（92 aa） Fragment：residues 484-575 Chain B 484–575（92 aa） Fragment：residues 484-575 Chain C 484–575（92 aa） Fragment：residues 484-575	Not recorded	MG MAGNESIUM ION × 1 ELA Elaidic acid × 1 EDO 1,2-ETHANEDIOL × 4 STE STEARIC ACID × 1 PLM PALMITIC ACID × 1 FE FE (III) ION × 1 NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；23-25% PEG 3350, 100mM Tris pH=8.5, 40-100mM MgCl2, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.15 Å R-free 0.171
4OSD Dimer of a C-terminal fragment of phage T4 gp5 beta-helix Deposited 2014-02-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric	Chain A 484–575（92 aa） Fragment：C-terminal fragment, UNP RESIDUES 484-575 Chain B 484–575（92 aa） Fragment：C-terminal fragment, UNP RESIDUES 484-575 Chain C 484–575（92 aa） Fragment：C-terminal fragment, UNP RESIDUES 484-575 Chain D 484–575（92 aa） Fragment：C-terminal fragment, UNP RESIDUES 484-575 Chain E 484–575（92 aa） Fragment：C-terminal fragment, UNP RESIDUES 484-575 Chain F 484–575（92 aa） Fragment：C-terminal fragment, UNP RESIDUES 484-575	Not recorded	ELA Elaidic acid × 3 MG MAGNESIUM ION × 2 STE STEARIC ACID × 2 PLM PALMITIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；291 K；22% PEG 4000, 200mM Li2SO4, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 1.96 Å R-free 0.279
4OSD Dimer of a C-terminal fragment of phage T4 gp5 beta-helix Deposited 2014-02-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric	Chain G 484–575（92 aa） Fragment：C-terminal fragment, UNP RESIDUES 484-575 Chain H 484–575（92 aa） Fragment：C-terminal fragment, UNP RESIDUES 484-575 Chain I 484–575（92 aa） Fragment：C-terminal fragment, UNP RESIDUES 484-575 Chain J 484–575（92 aa） Fragment：C-terminal fragment, UNP RESIDUES 484-575 Chain K 484–575（92 aa） Fragment：C-terminal fragment, UNP RESIDUES 484-575 Chain L 484–575（92 aa） Fragment：C-terminal fragment, UNP RESIDUES 484-575	Not recorded	ELA Elaidic acid × 2 MG MAGNESIUM ION × 2 STE STEARIC ACID × 2 PLM PALMITIC ACID × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；291 K；22% PEG 4000, 200mM Li2SO4, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 1.96 Å R-free 0.279
4OSD Dimer of a C-terminal fragment of phage T4 gp5 beta-helix Deposited 2014-02-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric	Chain M 484–575（92 aa） Fragment：C-terminal fragment, UNP RESIDUES 484-575 Chain N 484–575（92 aa） Fragment：C-terminal fragment, UNP RESIDUES 484-575 Chain O 484–575（92 aa） Fragment：C-terminal fragment, UNP RESIDUES 484-575 Chain P 484–575（92 aa） Fragment：C-terminal fragment, UNP RESIDUES 484-575 Chain Q 484–575（92 aa） Fragment：C-terminal fragment, UNP RESIDUES 484-575 Chain R 484–575（92 aa） Fragment：C-terminal fragment, UNP RESIDUES 484-575	Not recorded	ELA Elaidic acid × 2 MG MAGNESIUM ION × 2 STE STEARIC ACID × 2 PLM PALMITIC ACID × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；291 K；22% PEG 4000, 200mM Li2SO4, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 1.96 Å R-free 0.279
5IV5 Cryo-electron microscopy structure of the hexagonal pre-attachment T4 baseplate-tail tube complex Deposited 2016-03-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 145 PDB declaration: 145-meric	Chain YA 1–575（575 aa） Chain YB 1–575（575 aa） Chain YC 1–575（575 aa）	Not recorded	ZN ZINC ION × 6 FE FE (III) ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE；Applied 3.5 ul of sample and blotting 3 seconds before plunging	Resolution 4.11 Å
6P1Z Bacteriophage phiKZ gp163.1 PAAR repeat protein in complex with the C-terminal part of the T4 gp5 beta-helical domain Deposited 2019-05-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 484–575（92 aa） Chain B 484–575（92 aa） Chain C 484–575（92 aa）	Not recorded	MG MAGNESIUM ION × 1 PLM PALMITIC ACID × 1 STE STEARIC ACID × 1 ELA Elaidic acid × 1 ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 10；293 K；47.5-50 % PEG5500 MME 100 mM Glycine pH 10 25-100 mM KBr	Resolution 2.10 Å R-free 0.251
6P1Z Bacteriophage phiKZ gp163.1 PAAR repeat protein in complex with the C-terminal part of the T4 gp5 beta-helical domain Deposited 2019-05-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain E 484–575（92 aa） Chain F 484–575（92 aa） Chain G 484–575（92 aa）	Not recorded	MG MAGNESIUM ION × 1 PLM PALMITIC ACID × 1 STE STEARIC ACID × 1 ELA Elaidic acid × 1 ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 10；293 K；47.5-50 % PEG5500 MME 100 mM Glycine pH 10 25-100 mM KBr	Resolution 2.10 Å R-free 0.251
6P20 Bacteriophage phiKZ gp163.1 PAAR repeat protein in complex with a T4 gp5 beta-helix fragment modified to mimic the phiKZ central spike gp164 Deposited 2019-05-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 484–559（76 aa） Chain B 484–559（76 aa） Chain C 484–559（76 aa）	Not recorded	MG MAGNESIUM ION × 3 STE STEARIC ACID × 1 ELA Elaidic acid × 1 EDO 1,2-ETHANEDIOL × 1 PLM PALMITIC ACID × 1 ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；20-30% PEG 3350 100 mM MES ph 6.5 200-350 mM Mg(NO3)2	Resolution 1.75 Å R-free 0.191
6P22 Photorhabdus Virulence Cassette (PVC) PAAR repeat protein Pvc10 in complex with a T4 gp5 beta-helix fragment modified to mimic Pvc8, the central spike protein of PVC Deposited 2019-05-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 484–565（82 aa） Chain B 484–565（82 aa） Chain C 484–565（82 aa）	Not recorded	MG MAGNESIUM ION × 1 STE STEARIC ACID × 1 ELA Elaidic acid × 1 PLM PALMITIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；MPD 28-34% PEG 2000 8-18% 100 mM Imidazole pH 8.0	Resolution 2.29 Å R-free 0.222
6P2A Chimera of bacteriophage OBP gp146 central spike protein and a T4 gp5 beta-helix fragment Deposited 2019-05-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 484–559（76 aa） Chain B 484–559（76 aa） Chain C 484–559（76 aa）	Not recorded	FE2 FE (II) ION × 1 STE STEARIC ACID × 1 ELA Elaidic acid × 1 PLM PALMITIC ACID × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；PEG3350 18-20% 100 mM Ammonium citrate	Resolution 1.90 Å R-free 0.158
6P2A Chimera of bacteriophage OBP gp146 central spike protein and a T4 gp5 beta-helix fragment Deposited 2019-05-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Homooligomer；Protein × 3 PDB declaration: trimeric	Chain D 484–559（76 aa） Chain E 484–559（76 aa） Chain F 484–559（76 aa）	Not recorded	FE2 FE (II) ION × 1 STE STEARIC ACID × 1 ELA Elaidic acid × 1 PLM PALMITIC ACID × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；PEG3350 18-20% 100 mM Ammonium citrate	Resolution 1.90 Å R-free 0.158
6XC0 Crystal structure of bacteriophage T4 spackle and lysozyme in monoclinic form Deposited 2020-06-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 174–342（169 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 2 EPE 4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID × 1 SIN SUCCINIC ACID × 1 CL CHLORIDE ION × 1 FMT FORMIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；35% (w/v) polyethylene glycol 3350, 20% 2-propanol, 0.1 M HEPES-NaOH pH 7.5	Resolution 1.78 Å R-free 0.198
6XC0 Crystal structure of bacteriophage T4 spackle and lysozyme in monoclinic form Deposited 2020-06-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 174–342（169 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 2 EPE 4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID × 2 CL CHLORIDE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；35% (w/v) polyethylene glycol 3350, 20% 2-propanol, 0.1 M HEPES-NaOH pH 7.5	Resolution 1.78 Å R-free 0.198
6XC1 Crystal structure of bacteriophage T4 spackle and lysozyme in orthorhombic form Deposited 2020-06-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 174–342（169 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 2 IPA ISOPROPYL ALCOHOL × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；35% (w/v) polyethylene glycol 3350, 20% 2-propanol, 0.1 M HEPES-NaOH pH 7.5	Resolution 1.92 Å R-free 0.215
7CN7 T4 phage spackle protein gp61.3 complex with lysozyme domain of gp5 tail lysozyme Deposited 2020-07-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 162–342（181 aa）	Not recorded	1PG 2-(2-{2-[2-(2-METHOXY-ETHOXY)-ETHOXY]-ETHOXY}-ETHOXY)-ETHANOL × 1 EDO 1,2-ETHANEDIOL × 4 NA SODIUM ION × 3 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；293.15 K；PEG550MME, MES, KSCN	Resolution 1.15 Å R-free 0.121

17 other PDB entries and 25 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	VG05_BPT4
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–575； UniProt 1–575

Baseplate structural protein Gp27

Enterobacteria phage T4

UniProt P17172

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 6 PDB declaration: hexameric（6） Consistent with protein copy count	Chain D； UniProt 1–391	Not recorded	Tail-associated lysozyme × 3 （P16009） K POTASSIUM ION × 3 PO4 PHOSPHATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 8.5；279 K；PEG 8000, Tris, Glycerol, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 279K	Resolution 2.80 Å R-free 0.281

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1WTH	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1K28 The Structure of the Bacteriophage T4 Cell-Puncturing Device Deposited 2001-09-26	Different mutation/modification Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain D 1–391（391 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	K POTASSIUM ION × 3 PO4 PHOSPHATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；279 K；PEG 8000, Tris, Glycerol, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 279K	Resolution 2.90 Å R-free 0.280
1PDJ Fitting of gp27 into cryoEM reconstruction of bacteriophage T4 baseplate Deposited 2003-05-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain D 1–391（391 aa） Chain E 1–391（391 aa） Chain F 1–391（391 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer water；pH 7；water cryo-EM vitrification conditions Cryogen ETHANE；ethane vitrification	Resolution 12.00 Å
2Z6B Crystal Structure Analysis of (gp27-gp5)3 conjugated with Fe(III) protoporphyrin Deposited 2007-07-28	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain D 1–391（391 aa）	Not recorded	NEN 1-ETHYL-PYRROLIDINE-2,5-DIONE × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；285 K；PEG 8000, Tris, Glycerol, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 285K	Resolution 3.11 Å R-free 0.315
5IV5 Cryo-electron microscopy structure of the hexagonal pre-attachment T4 baseplate-tail tube complex Deposited 2016-03-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 145 PDB declaration: 145-meric	Chain YD 1–391（391 aa） Chain YE 1–391（391 aa） Chain YF 1–391（391 aa）	Not recorded	ZN ZINC ION × 6 FE FE (III) ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE；Applied 3.5 ul of sample and blotting 3 seconds before plunging	Resolution 4.11 Å

4 other PDB entries and 4 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	VG27_BPT4
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain D； PDBConstruct 1–391； UniProt 1–391

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1wth
Deposition date deposition_date	2004-11-23
Structure title title	Crystal structure of gp5-S351L mutant and gp27 complex
Keywords keywords	Triple-stranded beta-helix, OB fold, pseudohexamer, T4 tail lysozyme, HUB, gp5-gp27, Hydrolase-Structural protein COMPLEX; Hydrolase/Structural protein
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	48.73 Å
Radius of gyration Rg (electron density) rg_electron	50.34 Å
Forward intensity I(0) i0	167562000.00
Molecular weight molecular_weight	103860.0 kDa
Excluded volume excluded_volume	129160 Å³
Envelope volume envelope_volume	217350 Å³
Hydration-shell volume shell_volume	39677 Å³
Envelope diameter envelope_diameter	201.2 Å
Shell Rg shell_rg	45.22 Å
Envelope Rg envelope_rg	53.55 Å
Shape Rg shape_rg	50.31 Å
Total Rg total_rg	50.19 Å
Total atoms total_atoms	7297
Residues n_residues	932
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

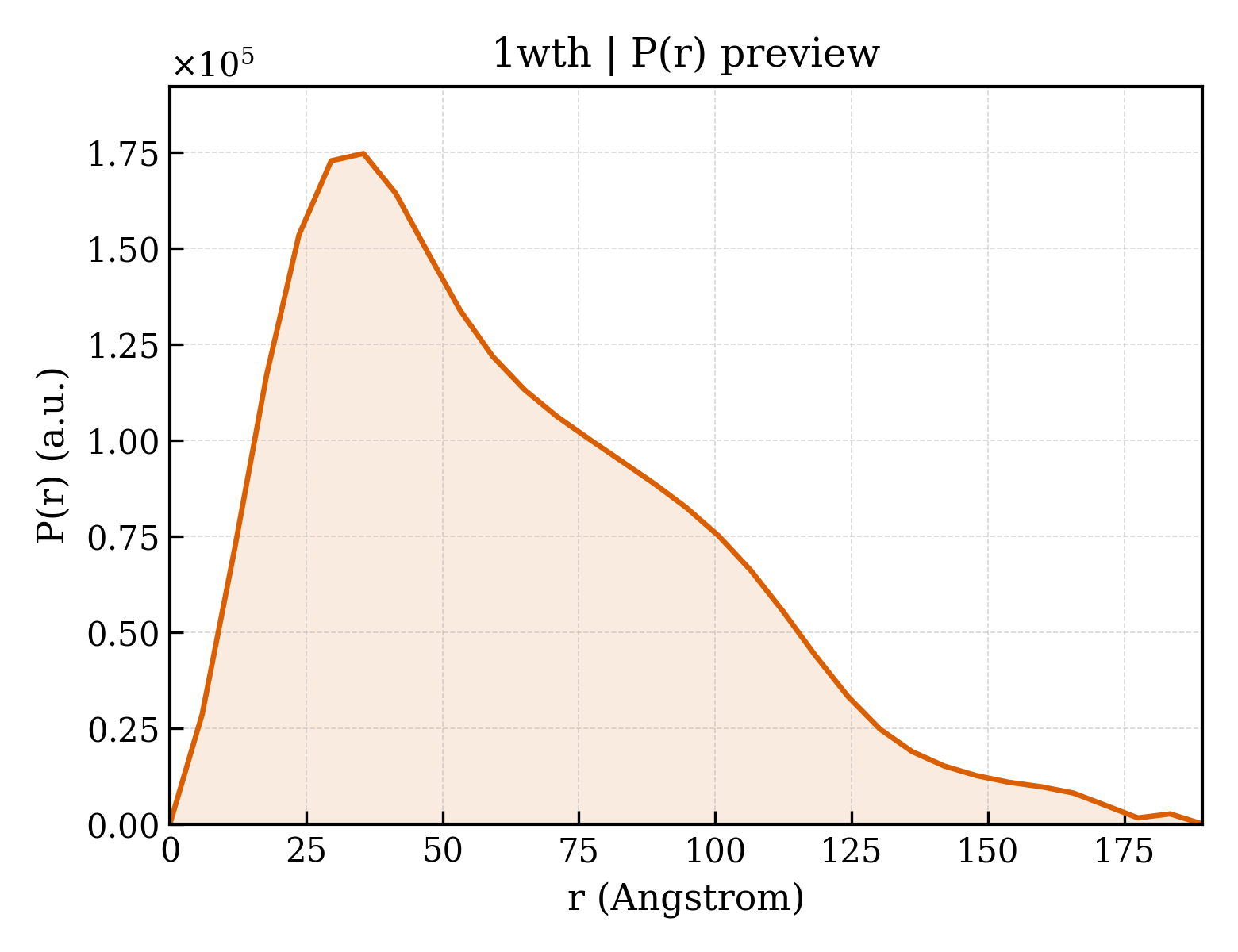

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	189.3 Å
Rg (real space) rg_real	50.09 Å
Rg uncertainty (real space) rg_real_error	3.81 Å
I(0) (real space) i0_real	1.6760e+08
I(0) uncertainty (real space) i0_real_error	3.5530e+06
Rg (reciprocal space) rg_reciprocal	48.74 Å
I(0) (reciprocal space) i0_reciprocal	167300000.0000
Solution quality estimate total_estimate	0.6606
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	35.5 Å
Skewness Skewness skewness	0.717
Kurtosis Kurtosis kurtosis	-0.031
Angular range angular_range	— – 0.1600 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	11650000.0000
Real-space data points n_real_points	33
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.264; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.119; Smooth: 0.674

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Tail-associated lysozyme
Molecular weight formula_weight	64340.0 kDa
EC 编号 ec_number	3.2.1.17
Mutation mutation	S351L
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	7575

MEMISNNLNWFVGVVEDRMDPLKLGRVRVRVVGLHPPQRAQGDVMGIPTEKLPWMSVIQPITSAAMSGIGGSVTGPVEGTRVYGHFLDKWKTNGIVLGTYGGIVREKPNRLEGFSDPTGQYPRRLGNDTNVLNQGGEVGYDSSSNVIQDSNLDTAINPDDRPLSEIPTDDNPNMSMAEMLRRDEGLRLKVYWDTEGYPTIGIGHLIMKQPVRDMAQINKVLSKQVGREITGNPGSITMEEATTLFERDLADMQRDIKSHSKVGPVWQAVNRSRQMALENMAFQMGVGGVAKFNTMLTAMLAGDWEKAYKAGRDSLWYQQTKGRASRVTMIILTGNLESYGVEVKTPARSLLAMAATVAKSSDPADPPIPNDSRILFKEPVSSYKGEYPYVHTMETESGHIQEFDDTPGQERYRLVHPTGTYEEVSPSGRRTRKTVDNLYDITNADGNFLVAGDKKTNVGGSEIYYNMDNRLHQIDGSNTIFVRGDETKTVEGNGTILVKGNVTIIVEGNADITVKGDATTLVEGNQTNTVNGNLSWKVAGTVDWDVGGDWTEKMASMSSISSGQYTIDGSRIDIGSVDHHHHHH

来源 Source

来源生物 organism	Enterobacteria phage T4
NCBI Class编号 ncbi_taxonomy_id	10665
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 polymer

Description description	Baseplate structural protein Gp27
Molecular weight formula_weight	44431.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

MSMLQRPGYPNLSVKLFDSYDAWSNNRFVELAATITTLTMRDSLYGRNEGMLQFYDSKNIHTKMDGNEIIQISVANANDINNVKTRIYGCKHFSVSVDSKGDNIIAIELGTIHSIENLKFGRPFFPDAGESIKEMLGVIYQDRTLLTPAINAINAYVPDIPWTSTFENYLSYVREVALAVGSDKFVFVWQDIMGVNMMDYDMMINQEPYPMIVGEPSLIGQFIQELKYPLAYDFVWLTKSNPHKRDPMKNATIYAHSFLDSSIPMITTGKGENSIVVSRSGAYSEMTYRNGYEEAIRLQTMAQYDGYAKCSTIGNFNLTPGVKIIFNDSKNQFKTEFYVDEVIHELSNNNSVTHLYMFTNATKLETIDPVKVKNEFKSDTTTEESSSSNKQ

来源 Source

来源生物 organism	Enterobacteria phage T4
NCBI Class编号 ncbi_taxonomy_id	10665
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 3 Entity 3 non-polymer

Description description	POTASSIUM ION
Molecular weight formula_weight	39.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	PHOSPHATE ION
Molecular weight formula_weight	95.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	278

▼

7. Fold Classification (SCOP + CATH) 9 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1wthd1
Class class	b — All beta proteins
Fold Fold fold	b.106 — Phage tail proteins
Superfamily Superfamily superfamily	b.106.1 — Phage tail proteins
Family Family family	b.106.1.1 — Baseplate protein-like

Domain ID domain_id	d1wthd2
Class class	b — All beta proteins
Fold Fold fold	b.106 — Phage tail proteins
Superfamily Superfamily superfamily	b.106.1 — Phage tail proteins
Family Family family	b.106.1.1 — Baseplate protein-like

CATH v4.4 (7 domains)

Domain ID domain_id	1wthA01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	260 — Nucleic acid-binding protein domain

Domain ID domain_id	1wthA02
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	450 — Nuclear Transport Factor 2; Chain: A,
Homologous superfamily homologous superfamily	190 —

Domain ID domain_id	1wthA03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	530 — Lysozyme
Homologous superfamily homologous superfamily	40 —

Domain ID domain_id	1wthD01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	10 — Trypsin-like serine proteases

Domain ID domain_id	1wthD02
Class class	3 — Alpha Beta
Architecture architecture	55 — 3-Layer(bab) Sandwich
Topology topology	50 — Phage tail protein beta-alpha-beta fold
Homologous superfamily homologous superfamily	20 —

Domain ID domain_id	1wthD03
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	30 — Elongation Factor Tu (Ef-tu); domain 3
Homologous superfamily homologous superfamily	150 — Bacteriophage T4, Gp27, baseplate hub, domain 3

Domain ID domain_id	1wthD04
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1920 — Phage tail proteins - 2 layer sandwich fold
Homologous superfamily homologous superfamily	40 —

▶

8. Citations (1)

▶

Unit-cell length a length_a	137.134 Å
Unit-cell length b length_b	137.134 Å
Unit-cell length c length_c	396.042 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	18

Space group space_group	H 3 2
Space-group number int_tables_number	155
Crystal system crystal_system	—

Resolution resolution	2.800 Å
Low-resolution limit resolution_low	47.550 Å
R factor r_factor	0.2170
R_work r_work	0.2170
R_free r_free	0.2810

fit	/app/data/saxs_computation/wt/1wth/1wth.fit
pddf	/app/data/pr_computation/wt/1wth/1wth.pr.out
profile	/app/data/saxs_computation/wt/1wth/1wth.dat
