4ku0

Enterobacteria phage T4 gp5.4 PAAR repeat protein in complex with T4 gp5 beta-helix fragment

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Tail-associated lysozyme

Enterobacteria phage T4

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Uncharacterized 10.2 kDa protein in segC-Gp6 intergenic region × 1 （P39234） MAGNESIUM ION × 1 Elaidic acid × 1 1,2-ETHANEDIOL × 4 STEARIC ACID × 1 PALMITIC ACID × 1 FE (III) ION × 1 SODIUM ION × 1 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	VG05_BPT4
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 5–96； UniProt 484–575 Author chain B； PDBConstruct 5–96； UniProt 484–575 Author chain C； PDBConstruct 5–96； UniProt 484–575

Uncharacterized 10.2 kDa protein in segC-Gp6 intergenic region

Enterobacteria phage T4

UniProt P39234

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Tail-associated lysozyme × 3 （P16009） MAGNESIUM ION × 1 Elaidic acid × 1 1,2-ETHANEDIOL × 4 STEARIC ACID × 1 PALMITIC ACID × 1 FE (III) ION × 1 SODIUM ION × 1 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Y08B_BPT4
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain D； PDBConstruct 1–96； UniProt 2–97

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	4ku0
Deposition date deposition_date	2013-05-21
Structure title title	Enterobacteria phage T4 gp5.4 PAAR repeat protein in complex with T4 gp5 beta-helix fragment
Keywords keywords	;PAAR-repeat motif, membrane piercing, type VI secretion system, T6SS, cell puncturing device, beta-helix, gp5-gp27 protein complex, HYDROLASE-PROTEIN BINDING complex ;; HYDROLASE/PROTEIN BINDING
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

4ku0__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

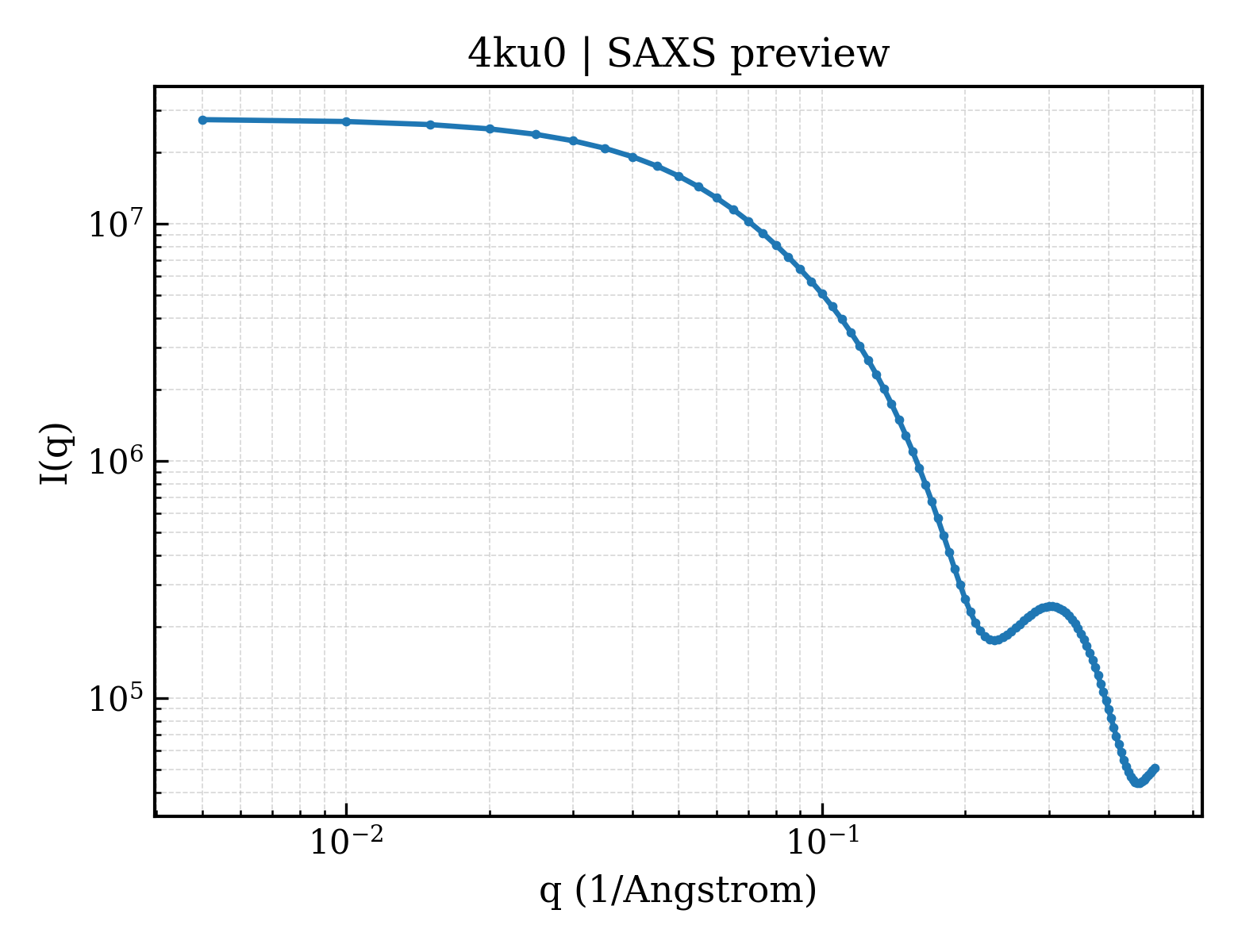

4ku0__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

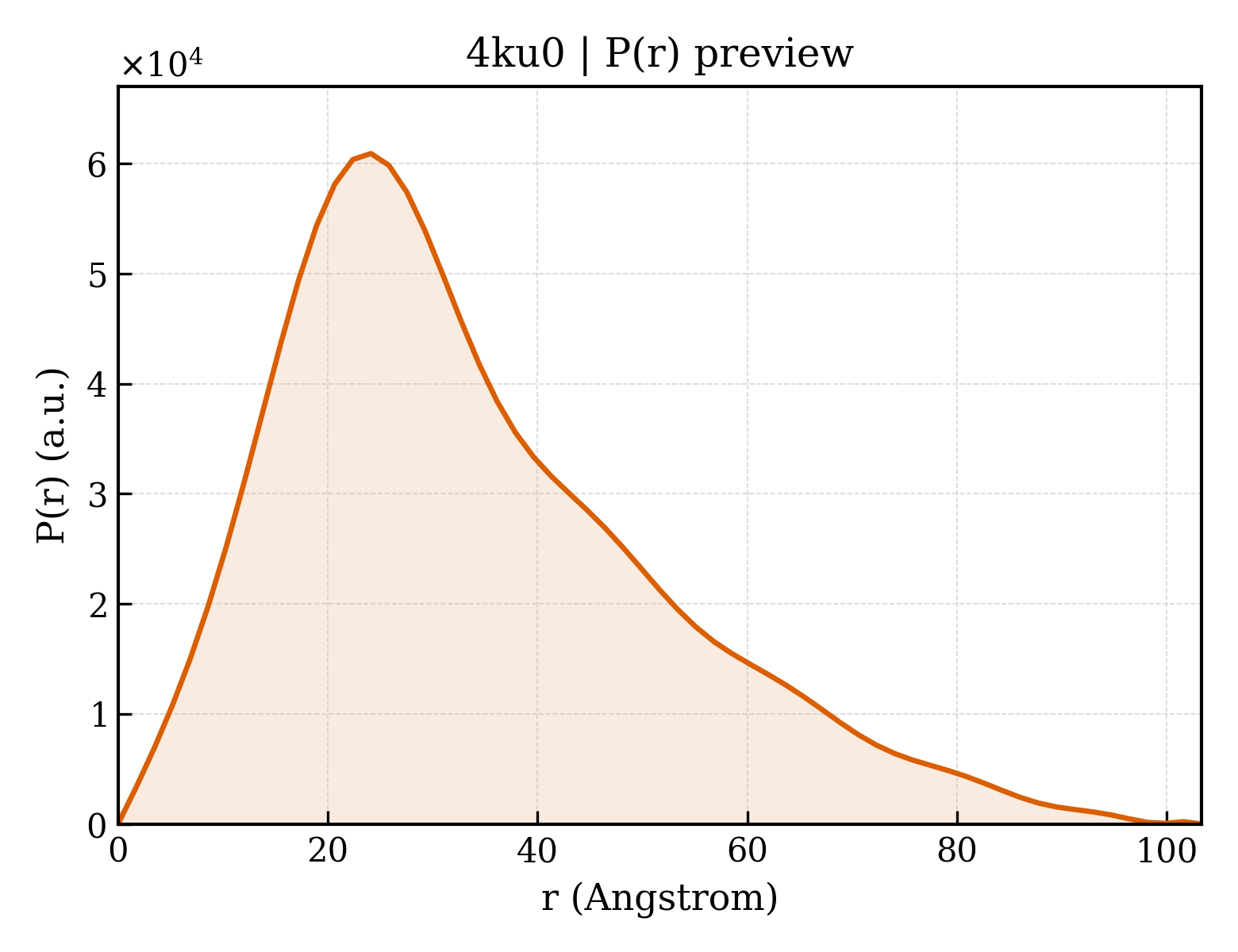

4ku0__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	26.39 Å
Rg (electron density)	26.80 Å
Total Rg	27.21 Å
Atom count	2796
Residues	372
Excluded volume	49728 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`4ku0__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (10)

Entity 1 Entity 1 polymer

Description description	Tail-associated lysozyme
Molecular weight formula_weight	9856.7 kDa
EC 编号 ec_number	3.2.1.17
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C
Atom count atom_count	3531

GSGSGDETKTVEGNGTILVKGNVTIIVEGNADITVKGDATTLVEGNQTNTVNGNLSWKVAGTVDWDVGGDWTEKMASMSSISSGQYTIDGSRIDIG

Source Source

Source organism organism	Enterobacteria phage T4
NCBI taxonomy ID ncbi_taxonomy_id	10665
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Uncharacterized 10.2 kDa protein in segC-Gp6 intergenic region
Molecular weight formula_weight	10102.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

SGLSYDKCVTAGHEAWPPTVVNATQSKVFTGGIAVLVAGDPITEHTEIKKPYETHGGVTQPRTSKVYVTGKKAVQMADPISCGDTVAQASSKVFIK

Source Source

Source organism organism	Enterobacteria phage T4
NCBI taxonomy ID ncbi_taxonomy_id	10665
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	Elaidic acid
Molecular weight formula_weight	282.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 non-polymer

Description description	1,2-ETHANEDIOL
Molecular weight formula_weight	62.1 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 6 Entity 6 non-polymer

Description description	STEARIC ACID
Molecular weight formula_weight	284.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 7 Entity 7 non-polymer

Description description	PALMITIC ACID
Molecular weight formula_weight	256.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 8 Entity 8 non-polymer

Description description	FE (III) ION
Molecular weight formula_weight	55.8 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 9 Entity 9 non-polymer

Description description	SODIUM ION
Molecular weight formula_weight	23.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 10 Entity 10 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	561

▼

6. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

Domain ID domain_id	4ku0D00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	200 — Tumour Suppressor Smad4
Homologous superfamily homologous superfamily	60 —

▶

Unit-cell length a length_a	46.302 Å
Unit-cell length b length_b	49.327 Å
Unit-cell length c length_c	84.057 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	96.19 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	1.150 Å
Low-resolution limit resolution_low	46.000 Å
R factor r_factor	0.1265
R_work r_work	—
R_free r_free	0.1710
