SAXSdb — 5m5p

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Pre-mRNA-splicing helicase BRR2

Saccharomyces cerevisiae (strain ATCC 204508 / S288c)

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Pre-mRNA-splicing factor 8 × 1 （P33334）	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	Pre-mRNA-splicing factor 8 × 1 （P33334）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	BRR2_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 5–1897； UniProt 271–2163 Author chain C； PDBConstruct 5–1897； UniProt 271–2163

Pre-mRNA-splicing factor 8

Saccharomyces cerevisiae (strain ATCC 204508 / S288c)

UniProt P33334

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Pre-mRNA-splicing helicase BRR2 × 1 （P32639）	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	Pre-mRNA-splicing helicase BRR2 × 1 （P32639）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PRP8_YEAST
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 4–270； UniProt 2147–2413 Author chain D； PDBConstruct 4–270； UniProt 2147–2413

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	5m5p
Deposition date deposition_date	2016-10-22
Structure title title	S. cerevisiae spliceosomal helicase Brr2 (271-end) in complex with the Jab/MPN domain of S. cerevisiae Prp8
Keywords keywords	splicing, helicase, complex, hydrolase; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

5m5p__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

5m5p__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

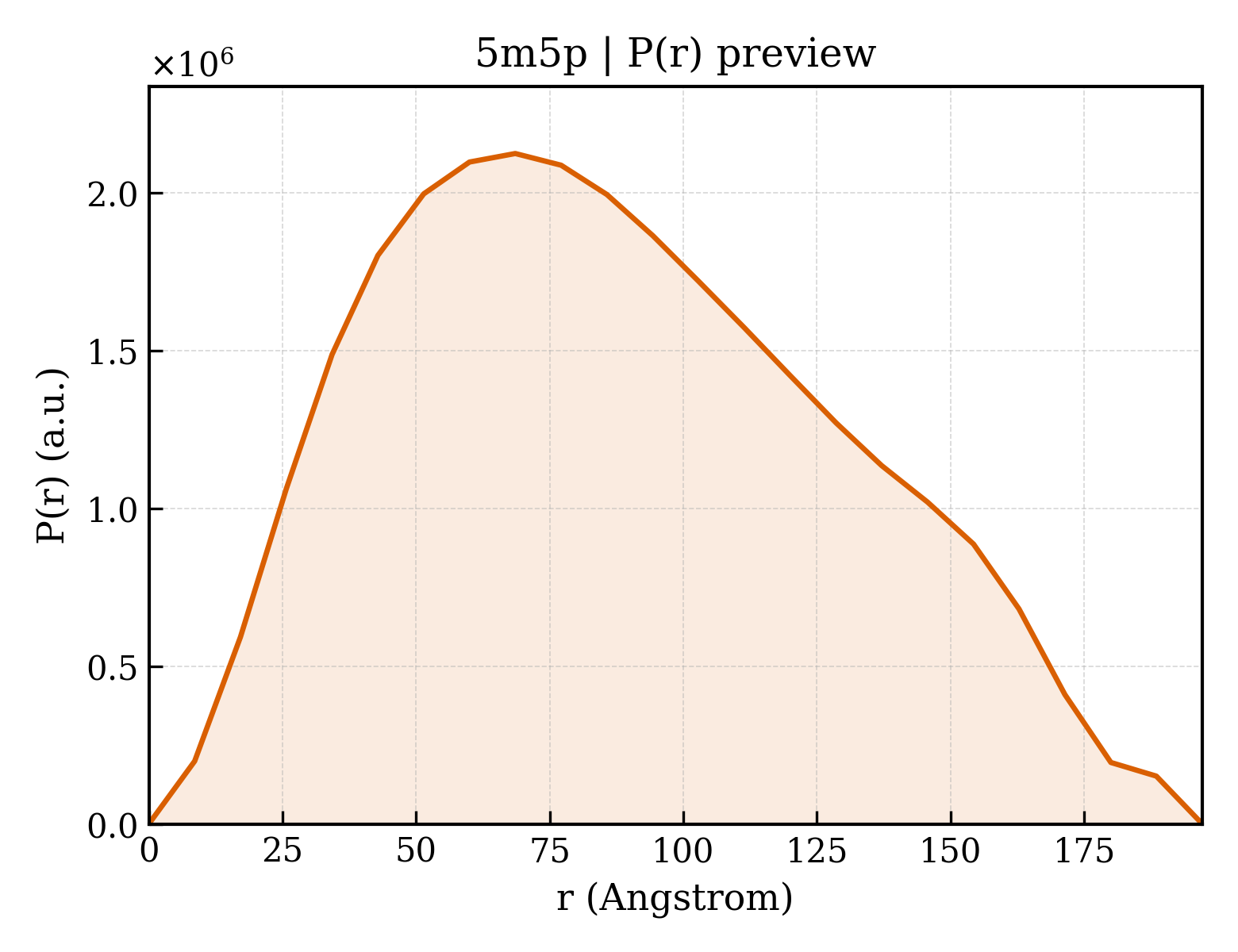

5m5p__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	44.56 Å
Rg (electron density)	43.83 Å
Total Rg	44.14 Å
Atom count	33652
Residues	2098
Excluded volume	301570 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`5m5p__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`5m5p__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	Pre-mRNA-splicing helicase BRR2
Molecular weight formula_weight	215817.0 kDa
EC 编号 ec_number	3.6.4.13
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C
Atom count atom_count	67309

GAEFKLSDSKTSNIESVPIYSIDEFFLQRKLRSELGYKDTSVIQDLSEKILNDIETLEHNPVALEQKLVDLLKFENISLAEFILKNRSTIFWGIRLAKSTENEIPNLIEKMVAKGLNDLVEQYKFRETTHSKRELDSGDDQPQSSEAKRTKFSNPAIPPVIDLEKIKFDESSKLMTVTKVSLPEGSFKRVKPQYDEIHIPAPSKPVIDYELKEITSLPDWCQEAFPSSETTSLNPIQSKVFHAAFEGDSNMLICAPTGSGKTNIALLTVLKALSHHYNPKTKKLNLSAFKIVYIAPLKALVQEQVREFQRRLAFLGIKVAELTGDSRLSRKQIDETQVLVSTPEKWDITTRNSNNLAIVELVRLLIIDEIHLLHDDRGPVLESIVARTFWASKYGQEYPRIIGLSATLPNYEDVGRFLRVPKEGLFYFDSSFRPCPLSQQFCGIKERNSLKKLKAMNDACYEKVLESINEGNQIIVFVHSRKETSRTATWLKNKFAEENITHKLTKNDAGSKQILKTEAANVLDPSLRKLIESGIGTHHAGLTRSDRSLSEDLFADGLLQVLVCTATLAWGVNLPAHTVIIKGTDVYSPEKGSWEQLSPQDVLQMLGRAGRPRYDTFGEGIIITDQSNVQYYLSVLNQQLPIESQFVSKLVDNLNAEVVAGNIKCRNDAVNWLAYTYLYVRMLASPMLYKVPDISSDGQLKKFRESLVHSALCILKEQELVLYDAENDVIEATDLGNIASSFYINHASMDVYNRELDEHTTQIDLFRIFSMSEEFKYVSVRYEEKRELKQLLEKAPIPIREDIDDPLAKVNVLLQSYFSQLKFEGFALNSDIVFIHQNAGRLLRAMFEICLKRGWGHPTRMLLNLCKSATTKMWPTNCPLRQFKTCPVEVIKRLEASTVPWGDYLQLETPAEVGRAIRSEKYGKQVYDLLKRFPKMSVTCNAQPITRSVMRFNIEIIADWIWDMNVHGSLEPFLLMLEDTDGDSILYYDVLFITPDIVGHEFTLSFTYELKQHNQNNLPPNFFLTLISENWWHSEFEIPVSFNGFKLPKKFPPPTPLLENISISTSELGNDDFSEVFEFKTFNKIQSQVFESLYNSNDSVFVGSGKGTGKTAMAELALLNHWRQNKGRAVYINPSGEKIDFLLSDWNKRFSHLAGGKIINKLGNDPSLNLKLLAKSHVLLATPVQFELLSRRWRQRKNIQSLELMIYDDAHEISQGVYGAVYETLISRMIFIATQLEKKIRFVCLSNCLANARDFGEWAGMTKSNIYNFSPSERIEPLEINIQSFKDVEHISFNFSMLQMAFEASAAAAGNRNSSSVFLPSRKDCMEVASAFMKFSKAIEWDMLNVEEEQIVPYIEKLTDGHLRAPLKHGVGILYKGMASNDERIVKRLYEYGAVSVLLISKDCSAFACKTDEVIILGTNLYDGAEHKYMPYTINELLEMVGLASGNDSMAGKVLILTSHNMKAYYKKFLIEPLPTESYLQYIIHDTLNNEIANSIIQSKQDCVDWFTYSYFYRRIHVNPSYYGVRDTSPHGISVFLSNLVETCLNDLVESSFIEIDDTEAEVTAEVNGGDDEATEIISTLSNGLIASHYGVSFFTIQSFVSSLSNTSTLKNMLYVLSTAVEFESVPLRKGDRALLVKLSKRLPLRFPEHTSSGSVSFKVFLLLQAYFSRLELPVDFQNDLKDILEKVVPLINVVVDILSANGYLNATTAMDLAQMLIQGVWDVDNPLRQIPHFNNKILEKCKEINVETVYDIMALEDEERDEILTLTDSQLAQVAAFVNNYPNVELTYSLNNSDSLISGVKQKITIQLTRDVEPENLQVTSEKYPFDKLESWWLVLGEVSKKELYAIKKVTLNKETQQYELEFDTPTSGKHNLTIWCVCDSYLDADKELSFEINVK

Source Source

Source organism organism	Saccharomyces cerevisiae (strain ATCC 204508 / S288c)
Common name common_name	;Baker's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	559292
Host organism host_organism	Trichoplusia ni

Entity 2 Entity 2 polymer

Description description	Pre-mRNA-splicing factor 8
Molecular weight formula_weight	30490.3 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D

GAMSSKNEWRKSAIANTLLYLRLKNIYVSADDFVEEQNVYVLPKNLLKKFIEISDVKIQVAAFIYGMSAKDHPKVKEIKTVVLVPQLGHVGSVQISNIPDIGDLPDTEGLELLGWIHTQTEELKFMAASEVATHSKLFADKKRDCIDISIFSTPGSVSLSAYNLTDEGYQWGEENKDIMNVLSEGFEPTFSTHAQLLLSDRITGNFIIPSGNVWNYTFMGTAFNQEGDYNFKYGIPLEFYNEMHRPVHFLQFSELAGDEELEAEQIDVFS

Source Source

Source organism organism	Saccharomyces cerevisiae (strain ATCC 204508 / S288c)
Common name common_name	;Baker's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	559292
Host organism host_organism	Escherichia coli BL21(DE3)

▶

Unit-cell length a length_a	185.970 Å
Unit-cell length b length_b	196.870 Å
Unit-cell length c length_c	191.030 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 2
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	4.200 Å
Low-resolution limit resolution_low	95.500 Å
R factor r_factor	0.3085
R_work r_work	0.3070
R_free r_free	0.3349
