6hok

Structure of Beclin1 LIR (S96E) motif bound to GABARAP

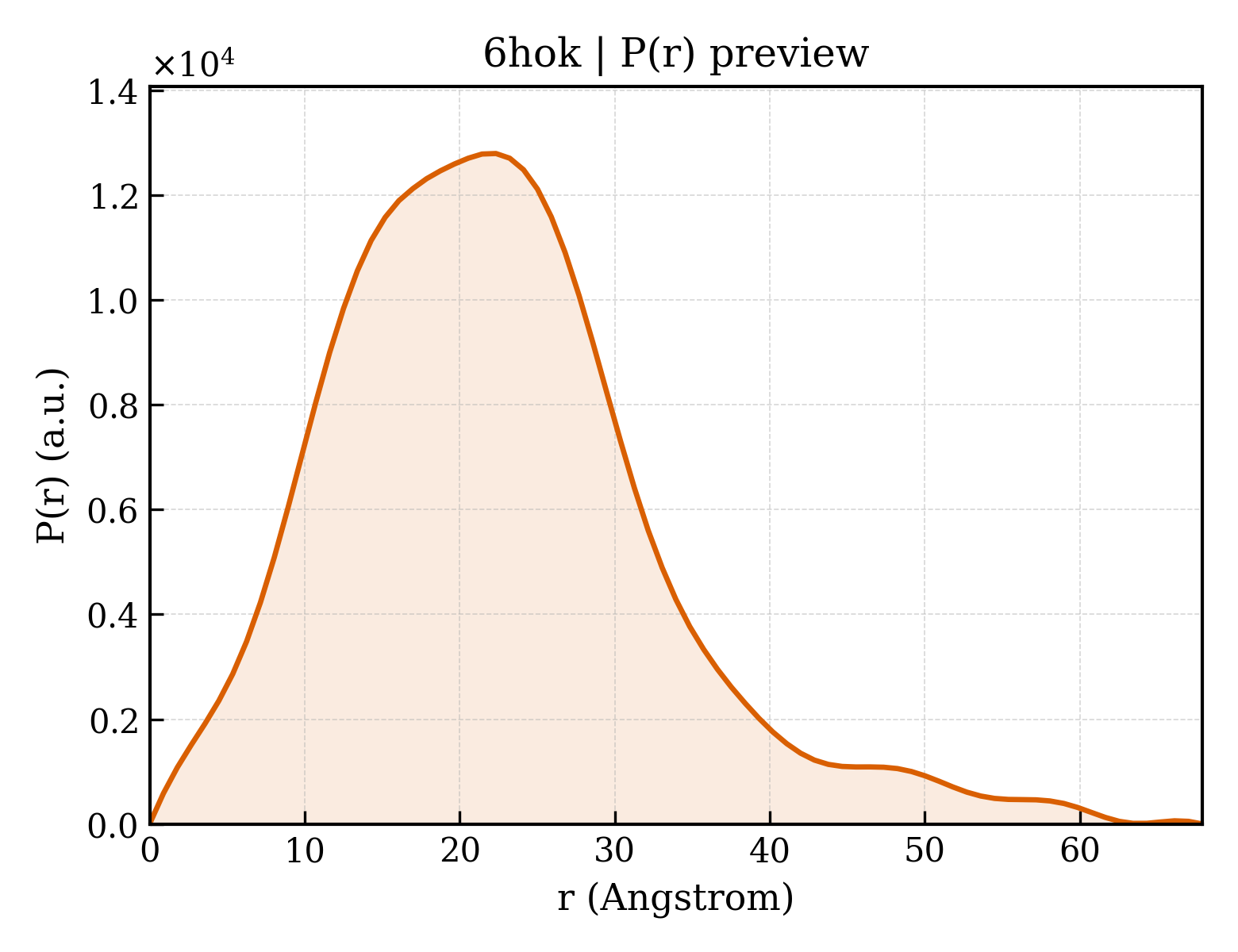

Method: X-RAY DIFFRACTION Dmax: 67.9 Å Quality: REASONABLE
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Beclin-1,Gamma-aminobutyric acid receptor-associated protein

Homo sapiens

UniProt O95166

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Insufficient information Homooligomer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count Chain A； UniProt 1–112 Not recorded EDO 1,2-ETHANEDIOL × 6 X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；293 K；1.6 M ammonium sulfate, 100 mM TRIS pH 8.5, 10 % Glycerol Resolution 1.61 Å R-free 0.198

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 6HOK Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1GNU GABA(A) receptor associated protein GABARAP Deposited 2001-10-09 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–117（117 aa）
Not recorded NI NICKEL (II) ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.5；18MG/ML GABARAP, 50MM TRIS PH8.5, 0.25M NACL,10%(W/V) PEGMONO, pH 8.50
Resolution 1.75 Å R-free 0.230
1KLV Solution Structure and Backbone Dynamics of GABARAP, GABAA Receptor associated protein Deposited 2001-12-13 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–117（117 aa）
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 6.5；298 K；Ionic strength (raw mmCIF value) 340；Pressure 1
NMR sample composition 1mM GABARAP, 20mM phosphate buffer NA, 50mM NaCl, 0.02mM NaN3, 90% H2O, 10% D2O | 90% H2O/10% D2O
NMR sample composition 1mM GABARAP, 20mM phosphate buffer NA, 50mM NaCl, 0.02mM NaN3, 100% D2O | 100% D2O
Resolution not provided
1KM7 Solution Structure and Backbone Dynamics of GABARAP, GABAA Receptor Associated Protein Deposited 2001-12-14 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–117（117 aa）
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 6.5；298 K；Ionic strength (raw mmCIF value) 340；Pressure 1
NMR sample composition 1mM GABARAP, 20mM phosphate buffer NA, 50mM NaCl, 0.02mM NaN3, 90% H2O, 10% D2O | 90% H2O/10% D2O
NMR sample composition 1mM GABARAP, 20mM phosphate buffer NA, 50mM NaCl, 0.02mM NaN3, 100% D2O | 100% D2O
Resolution not provided
1KOT Solution Structure of Human GABA Receptor Associated Protein GABARAP Deposited 2001-12-22 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–117（117 aa）
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 6.9；298 K；Ionic strength (raw mmCIF value) 100mM NaCl 100mM KCl；Pressure ambient
NMR sample composition 0.8mM GABARAP U-15N,13C; 25mM sodium oxalate, pH 6.9 100mM NaCl 100mM KCl 100uM PMSF 0.02% sodium azide 50uM EDTA 5% D2O, 95% H2O | 95% H2O/5% D2O
NMR sample composition 0.8mM GABARAP U-15N,13C; 25mM sodium phosphate, pH 6.9 100mM NaCl 100mM KCl 100uM PMSF 0.02% sodium azide 50uM EDTA 100% D2O | 100% D2O
Resolution not provided
3D32 Complex of GABA(A) receptor-associated protein (GABARAP) with a synthetic peptide Deposited 2008-05-09 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–117（117 aa）
Not recorded NA SODIUM ION × 1 CL CHLORIDE ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 5.9；285 K；30 % (w/v) PEG3350 800 mM NaCl 50 mM MES, pH 5.9, VAPOR DIFFUSION, temperature 285K
Resolution 1.30 Å R-free 0.195
3D32 Complex of GABA(A) receptor-associated protein (GABARAP) with a synthetic peptide Deposited 2008-05-09 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 1–117（117 aa）
Not recorded CL CHLORIDE ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 5.9；285 K；30 % (w/v) PEG3350 800 mM NaCl 50 mM MES, pH 5.9, VAPOR DIFFUSION, temperature 285K
Resolution 1.30 Å R-free 0.195
3DOW Complex structure of GABA type A receptor associated protein and its binding epitope on calreticulin Deposited 2008-07-07 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–117（117 aa）
Not recorded ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；290 K；0.1 M MES, 27% v/v PEG MME 550, 10 mM ZnSO4, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 290K
Resolution 2.30 Å R-free 0.270
3WIM GABARAP-LIR peptide complex Deposited 2013-09-19 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–117（117 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.4；293 K；2M ammonium sulfate, 0.1M sodium citrate, 0.2M potassium sodium tartrate, pH 5.4, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.60 Å R-free 0.296
5DPS Crystal structure of PLEKHM1 LIR-fused human GABARAP_2-117 Deposited 2015-09-14 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 2–117（116 aa） Fragment：UNP Q9Y4G2 residues 627-638, UNP O95166 residues 2-117
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；278 K；4% v/v Tacsimate pH 8.0, 12% w/v Polyethylene glycol 3,350
Resolution 2.00 Å R-free 0.223
5DPS Crystal structure of PLEKHM1 LIR-fused human GABARAP_2-117 Deposited 2015-09-14 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain B 2–117（116 aa） Fragment：UNP Q9Y4G2 residues 627-638, UNP O95166 residues 2-117
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；278 K；4% v/v Tacsimate pH 8.0, 12% w/v Polyethylene glycol 3,350
Resolution 2.00 Å R-free 0.223
5DPS Crystal structure of PLEKHM1 LIR-fused human GABARAP_2-117 Deposited 2015-09-14 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain C 2–117（116 aa） Fragment：UNP Q9Y4G2 residues 627-638, UNP O95166 residues 2-117
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；278 K；4% v/v Tacsimate pH 8.0, 12% w/v Polyethylene glycol 3,350
Resolution 2.00 Å R-free 0.223
6HB9 Crystal structure of the GABARAP in complex with the UBA5 LIR motif Deposited 2018-08-10 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 3–116（114 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；1.6 M sodium phosphate, 0.1 M HEPES, pH7.5
Resolution 1.30 Å R-free 0.213
6HOG Structure of VPS34 LIR motif bound to GABARAP Deposited 2018-09-17 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Homooligomer；Protein × 3 PDB declaration: trimeric
Chain A 1–112（112 aa）
Not recorded SO4 SULFATE ION × 6 EDO 1,2-ETHANEDIOL × 6 GOL GLYCEROL × 6 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；50 mM HEPES pH 7.1, 40% PEG 600
Resolution 1.26 Å R-free 0.181
6HOH Structure of VPS34 LIR motif (S249E) bound to GABARAP Deposited 2018-09-17 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Homooligomer；Protein × 3 PDB declaration: trimeric
Chain A 1–112（112 aa）
Not recorded PGE TRIETHYLENE GLYCOL × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；20% PEG 3350, 200 mM magnesium formate
Resolution 2.25 Å R-free 0.250
6HOH Structure of VPS34 LIR motif (S249E) bound to GABARAP Deposited 2018-09-17 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Homooligomer；Protein × 3 PDB declaration: trimeric
Chain B 1–112（112 aa）
Chain C 1–112（112 aa）
Chain D 1–112（112 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；20% PEG 3350, 200 mM magnesium formate
Resolution 2.25 Å R-free 0.250
6HOJ Structure of Beclin1 LIR motif bound to GABARAP Deposited 2018-09-17 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Homooligomer；Protein × 3 PDB declaration: trimeric
Chain A 1–112（112 aa）
Chain B 1–112（112 aa）
Chain C 1–112（112 aa）
Not recorded SO4 SULFATE ION × 1 EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；15% PEG 4000, 50 mM Bicine pH 8.8
Resolution 1.51 Å R-free 0.211
6HYL Structure of PCM1 LIR motif bound to GABARAP Deposited 2018-10-22 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–117（117 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.2 M CaCl2, 0.1 M HEPES pH 7, 20% w/v PEG 6000
Resolution 1.56 Å R-free 0.247
6HYL Structure of PCM1 LIR motif bound to GABARAP Deposited 2018-10-22 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain B 1–117（117 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.2 M CaCl2, 0.1 M HEPES pH 7, 20% w/v PEG 6000
Resolution 1.56 Å R-free 0.247
6HYM Structure of PCM1 LIR motif bound to GABARAP Deposited 2018-10-22 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–117（117 aa）
Not recorded GOL GLYCEROL × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；25% w/v PEG 1500, 0.1 M SPG pH 8.5
Resolution 1.86 Å R-free 0.217
6HYM Structure of PCM1 LIR motif bound to GABARAP Deposited 2018-10-22 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain B 1–117（117 aa）
Not recorded GOL GLYCEROL × 1 EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；25% w/v PEG 1500, 0.1 M SPG pH 8.5
Resolution 1.86 Å R-free 0.217
6HYN Structure of ATG13 LIR motif bound to GABARAP Deposited 2018-10-22 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–117（117 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.2M NaCl, 10% PEG 8000, 0.1M Na K phosphate 6.2
Resolution 1.14 Å R-free 0.185
6HYO Structure of ULK1 LIR motif bound to GABARAP Deposited 2018-10-22 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–117（117 aa）
Not recorded GOL GLYCEROL × 1 PEG DI(HYDROXYETHYL)ETHER × 6 EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.2M MgCl2. 0.1 M Na cacodylate pH 6.5, 20% PEG1000
Resolution 1.07 Å R-free 0.161
6YOP Structure of SAMM50 LIR bound to GABARAP Deposited 2020-04-14 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–117（117 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；20% v/v isopropanol, 0.1 M Na Acetate pH 5.5
Resolution 1.10 Å R-free 0.159
7AA8 Structure of SCOC LIR bound to GABARAP Deposited 2020-09-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain C 1–117（117 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 8.4；293 K；2.9% PEG 550 MME, 50 mM Bicine pH 8.4, 30% PEG 1500
Resolution 1.25 Å R-free 0.194
7BRQ Crystal structure of human FAM134B LIR fused to human GABARAP Deposited 2020-03-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–116（116 aa）
Mutation：F3S,V4T GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；293 K；1.91 M ammonium sulfate, 0.1 M sodium citrate pH 5.5, 0.18 M potassium sodium tartrate
Resolution 1.40 Å R-free 0.206
7BRT Crystal structure of Sec62 LIR fused to GABARAP Deposited 2020-03-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–116（116 aa）
Chain B 1–116（116 aa）
Mutation：T367D,F3S,V4T Mutation：T367D,F3S,V4T No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；1.5 M ammonium sulfate, 0.1 M Tris pH 8.5
Resolution 2.00 Å R-free 0.184
7BRU Crystal structure of human RTN3 LIR fused to human GABARAP Deposited 2020-03-30 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Homooligomer；Protein × 3 PDB declaration: trimeric
Chain A 1–116（116 aa）
Chain B 1–116（116 aa）
Chain C 1–116（116 aa）
Mutation：F3S,V4T Mutation：F3S,V4T Mutation：F3S,V4T PO4 PHOSPHATE ION × 6 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；0.8 M potassium phosphate monobasic, 0.8 M sodium phosphate monobasic, 0.1 M HEPES pH 7.5
Resolution 2.15 Å R-free 0.230
7BV4 Crystal structure of STX17 LIR region in complex with GABARAP Deposited 2020-04-09 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–117（117 aa）
Not recorded GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；0.12M Alcohols, 50% (v/v) Precipitant Mix 4, Buffer System 3 at pH 8.5 in Morpheus screen kit from Molecular Dimension
Resolution 2.00 Å R-free 0.225
7BV4 Crystal structure of STX17 LIR region in complex with GABARAP Deposited 2020-04-09 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 1–117（117 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；0.12M Alcohols, 50% (v/v) Precipitant Mix 4, Buffer System 3 at pH 8.5 in Morpheus screen kit from Molecular Dimension
Resolution 2.00 Å R-free 0.225
7BV4 Crystal structure of STX17 LIR region in complex with GABARAP Deposited 2020-04-09 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain E 1–117（117 aa）
Not recorded PEG DI(HYDROXYETHYL)ETHER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；0.12M Alcohols, 50% (v/v) Precipitant Mix 4, Buffer System 3 at pH 8.5 in Morpheus screen kit from Molecular Dimension
Resolution 2.00 Å R-free 0.225
7BV4 Crystal structure of STX17 LIR region in complex with GABARAP Deposited 2020-04-09 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain G 1–117（117 aa）
Not recorded PEG DI(HYDROXYETHYL)ETHER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；0.12M Alcohols, 50% (v/v) Precipitant Mix 4, Buffer System 3 at pH 8.5 in Morpheus screen kit from Molecular Dimension
Resolution 2.00 Å R-free 0.225
7EA7 crystal structure of NAP1 LIR in complex with GABARAP Deposited 2021-03-06 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–117（117 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；0.3 M sodium nitrate, 0.3 M sodium phosphate dibasic, 0.3 M ammonium sulfate, 0.1 M bicine-tris pH 8.5, 25% v/v MPD, 25% PEG1000, 25% w/v PEG3350
Resolution 2.69 Å R-free 0.271
7EA7 crystal structure of NAP1 LIR in complex with GABARAP Deposited 2021-03-06 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 1–117（117 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；0.3 M sodium nitrate, 0.3 M sodium phosphate dibasic, 0.3 M ammonium sulfate, 0.1 M bicine-tris pH 8.5, 25% v/v MPD, 25% PEG1000, 25% w/v PEG3350
Resolution 2.69 Å R-free 0.271
7LSW Structure of Full Beta-Hairpin LIR from FNIP2 Bound to GABARAP Deposited 2021-02-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–117（117 aa）
Chain C 1–117（117 aa）
Not recorded SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；291 K；2.0 M ammonium sulfate, 0.1 M HEPES pH 7.5, and 2% v/v PEG 550 MME
Resolution 3.05 Å R-free 0.247
7LSW Structure of Full Beta-Hairpin LIR from FNIP2 Bound to GABARAP Deposited 2021-02-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric
Chain B 1–117（117 aa）
Chain D 1–117（117 aa）
Not recorded SO4 SULFATE ION × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；291 K；2.0 M ammonium sulfate, 0.1 M HEPES pH 7.5, and 2% v/v PEG 550 MME
Resolution 3.05 Å R-free 0.247
7LSW Structure of Full Beta-Hairpin LIR from FNIP2 Bound to GABARAP Deposited 2021-02-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric
Chain B 1–117（117 aa）
Chain E 1–117（117 aa）
Not recorded SO4 SULFATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；291 K；2.0 M ammonium sulfate, 0.1 M HEPES pH 7.5, and 2% v/v PEG 550 MME
Resolution 3.05 Å R-free 0.247
7LSW Structure of Full Beta-Hairpin LIR from FNIP2 Bound to GABARAP Deposited 2021-02-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 4 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric
Chain C 1–117（117 aa）
Chain F 1–117（117 aa）
Not recorded SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；291 K；2.0 M ammonium sulfate, 0.1 M HEPES pH 7.5, and 2% v/v PEG 550 MME
Resolution 3.05 Å R-free 0.247
7LT6 Structure of Partial Beta-Hairpin LIR from FNIP2 Bound to GABARAP Deposited 2021-02-18 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Homooligomer；Protein × 3 PDB declaration: trimeric
Chain A 1–117（117 aa）
Chain B 1–117（117 aa）
Chain C 1–117（117 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；291 K；0.1 M magnesium acetate, 0.1 M MOPS pH 7.5, and 12% v/v PEG 8000
Resolution 1.80 Å R-free 0.273
7VEC Crystal structure of GABARAP complexed with the TEX264 LIR phosphorylated at Ser271 and Ser272 Deposited 2021-09-08 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–116（116 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；30% PEG 4000, 0.2M ammonium acetate, 0.1M bis-Tris pH 5.6
Resolution 3.00 Å R-free 0.301
7VEC Crystal structure of GABARAP complexed with the TEX264 LIR phosphorylated at Ser271 and Ser272 Deposited 2021-09-08 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 10 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain J 1–116（116 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；30% PEG 4000, 0.2M ammonium acetate, 0.1M bis-Tris pH 5.6
Resolution 3.00 Å R-free 0.301
7VEC Crystal structure of GABARAP complexed with the TEX264 LIR phosphorylated at Ser271 and Ser272 Deposited 2021-09-08 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 11 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain K 1–116（116 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；30% PEG 4000, 0.2M ammonium acetate, 0.1M bis-Tris pH 5.6
Resolution 3.00 Å R-free 0.301
7VEC Crystal structure of GABARAP complexed with the TEX264 LIR phosphorylated at Ser271 and Ser272 Deposited 2021-09-08 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 12 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain L 1–116（116 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；30% PEG 4000, 0.2M ammonium acetate, 0.1M bis-Tris pH 5.6
Resolution 3.00 Å R-free 0.301
7VEC Crystal structure of GABARAP complexed with the TEX264 LIR phosphorylated at Ser271 and Ser272 Deposited 2021-09-08 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 1–116（116 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；30% PEG 4000, 0.2M ammonium acetate, 0.1M bis-Tris pH 5.6
Resolution 3.00 Å R-free 0.301
7VEC Crystal structure of GABARAP complexed with the TEX264 LIR phosphorylated at Ser271 and Ser272 Deposited 2021-09-08 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 1–116（116 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；30% PEG 4000, 0.2M ammonium acetate, 0.1M bis-Tris pH 5.6
Resolution 3.00 Å R-free 0.301
7VEC Crystal structure of GABARAP complexed with the TEX264 LIR phosphorylated at Ser271 and Ser272 Deposited 2021-09-08 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 1–116（116 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；30% PEG 4000, 0.2M ammonium acetate, 0.1M bis-Tris pH 5.6
Resolution 3.00 Å R-free 0.301
7VEC Crystal structure of GABARAP complexed with the TEX264 LIR phosphorylated at Ser271 and Ser272 Deposited 2021-09-08 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 5 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain E 1–116（116 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；30% PEG 4000, 0.2M ammonium acetate, 0.1M bis-Tris pH 5.6
Resolution 3.00 Å R-free 0.301
7VEC Crystal structure of GABARAP complexed with the TEX264 LIR phosphorylated at Ser271 and Ser272 Deposited 2021-09-08 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 6 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain F 1–116（116 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；30% PEG 4000, 0.2M ammonium acetate, 0.1M bis-Tris pH 5.6
Resolution 3.00 Å R-free 0.301
7VEC Crystal structure of GABARAP complexed with the TEX264 LIR phosphorylated at Ser271 and Ser272 Deposited 2021-09-08 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 7 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain G 1–116（116 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；30% PEG 4000, 0.2M ammonium acetate, 0.1M bis-Tris pH 5.6
Resolution 3.00 Å R-free 0.301
7VEC Crystal structure of GABARAP complexed with the TEX264 LIR phosphorylated at Ser271 and Ser272 Deposited 2021-09-08 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 8 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain H 1–116（116 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；30% PEG 4000, 0.2M ammonium acetate, 0.1M bis-Tris pH 5.6
Resolution 3.00 Å R-free 0.301
7VEC Crystal structure of GABARAP complexed with the TEX264 LIR phosphorylated at Ser271 and Ser272 Deposited 2021-09-08 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 9 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain I 1–116（116 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；30% PEG 4000, 0.2M ammonium acetate, 0.1M bis-Tris pH 5.6
Resolution 3.00 Å R-free 0.301
7VED Crystal structure of GABARAP fused to TEX264 LIR with S272D mutation Deposited 2021-09-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–116（116 aa）
Mutation：S272D,F3S,V4T SO4 SULFATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.2M potassium sodium tartrate, 0.1M sodium citrate pH 5.6, 2.0M ammonium sulfate
Resolution 2.02 Å R-free 0.225
7VED Crystal structure of GABARAP fused to TEX264 LIR with S272D mutation Deposited 2021-09-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain B 1–116（116 aa）
Mutation：S272D,F3S,V4T SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.2M potassium sodium tartrate, 0.1M sodium citrate pH 5.6, 2.0M ammonium sulfate
Resolution 2.02 Å R-free 0.225
7YO9 Crystal structure of fusion protein of human TP53INP2 LIR and human GABARAP Deposited 2022-08-01 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–116（116 aa） Fragment：Tumor protein p53-inducible nuclear protein 2(1-15), Gamma-aminobutyric acid receptor-associated protein(16-131)
Mutation：F18S,V19T IPA ISOPROPYL ALCOHOL × 1 PO4 PHOSPHATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.2；293 K；10% 2-propanol, 0.1 M sodium phosphate/citric acid pH 4.2, 0.2 M lithium sulfate
Resolution 1.75 Å R-free 0.216
7ZKR Human GABARAP in complex with stapled peptide Pen3-ortho Deposited 2022-04-13 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–117（117 aa）
Not recorded PO4 PHOSPHATE ION × 3 CL CHLORIDE ION × 1 OXE ORTHO-XYLENE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；magnesium acetate, sodium cacodylate, PEG 8000
Resolution 1.10 Å R-free 0.167
7ZL7 Human GABARAP in complex with stapled peptide Pen8-ortho Deposited 2022-04-14 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–117（117 aa）
Not recorded CL CHLORIDE ION × 4 NA SODIUM ION × 1 OXE ORTHO-XYLENE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；293 K；sodium chloride, Tris-HCl, PEG 3000
Resolution 1.55 Å R-free 0.220
7ZL7 Human GABARAP in complex with stapled peptide Pen8-ortho Deposited 2022-04-14 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 1–117（117 aa）
Not recorded CL CHLORIDE ION × 4 OXE ORTHO-XYLENE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；293 K；sodium chloride, Tris-HCl, PEG 3000
Resolution 1.55 Å R-free 0.220
8AFI GABARAP in complex with LIR motif of HsATG3 Deposited 2022-07-18 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 2–116（115 aa）
Not recorded ACT ACETATE ION × 1 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；Sodium acetate, sodium cacodylate, PEG 8,000
Resolution 2.66 Å R-free 0.262
8AFI GABARAP in complex with LIR motif of HsATG3 Deposited 2022-07-18 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 2–116（115 aa）
Not recorded ACT ACETATE ION × 1 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；Sodium acetate, sodium cacodylate, PEG 8,000
Resolution 2.66 Å R-free 0.262
8AFI GABARAP in complex with LIR motif of HsATG3 Deposited 2022-07-18 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain E 2–116（115 aa）
Not recorded GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；Sodium acetate, sodium cacodylate, PEG 8,000
Resolution 2.66 Å R-free 0.262
8AFI GABARAP in complex with LIR motif of HsATG3 Deposited 2022-07-18 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain G 2–116（115 aa）
Not recorded GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；Sodium acetate, sodium cacodylate, PEG 8,000
Resolution 2.66 Å R-free 0.262
8AFI GABARAP in complex with LIR motif of HsATG3 Deposited 2022-07-18 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 5 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain I 2–116（115 aa）
Not recorded GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；Sodium acetate, sodium cacodylate, PEG 8,000
Resolution 2.66 Å R-free 0.262
8AFI GABARAP in complex with LIR motif of HsATG3 Deposited 2022-07-18 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 6 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain M 2–116（115 aa）
Not recorded GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；Sodium acetate, sodium cacodylate, PEG 8,000
Resolution 2.66 Å R-free 0.262
8AFI GABARAP in complex with LIR motif of HsATG3 Deposited 2022-07-18 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 7 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain O 2–116（115 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；Sodium acetate, sodium cacodylate, PEG 8,000
Resolution 2.66 Å R-free 0.262
8AFI GABARAP in complex with LIR motif of HsATG3 Deposited 2022-07-18 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 8 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain K 2–116（115 aa）
Not recorded GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；Sodium acetate, sodium cacodylate, PEG 8,000
Resolution 2.66 Å R-free 0.262
8S1M Crystal structure of human GABARAP fused to EGFR (1076-1099) Deposited 2024-02-15 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–117（117 aa）
Not recorded CL CHLORIDE ION × 1 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.6；293 K；0.17 M ammonium acetate 0.085 M sodium citrate 25.5% PEG 4000 15% Glycerol
Resolution 2.05 Å R-free 0.230
8T2M Crystal structure of GABARAP in complex with the LIR of NSs4 Deposited 2023-06-06 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–117（117 aa） Fragment：;GS is the remain of the removed expression tag. The C terminus of Nss 257-265 has been fused with Q9H492 to facilitate the crystalization. The GG is a spacer between Nss and GABARAP protein. ;
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M sodium acetate:HCl, pH 4.6, 8% PEG 4000
Resolution 1.27 Å R-free 0.178
8T2N Crystal structure of GABARAP in complex with the LIR of NSs3 Deposited 2023-06-06 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–117（117 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.2 M Potassium acetate, 20% PEG 3350
Resolution 1.88 Å R-free 0.264
8T2N Crystal structure of GABARAP in complex with the LIR of NSs3 Deposited 2023-06-06 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 1–117（117 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.2 M Potassium acetate, 20% PEG 3350
Resolution 1.88 Å R-free 0.264
8T31 Crystal structure of GABARAP in complex with the LIR of TP53INP2/DOR Deposited 2023-06-07 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–117（117 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；25% PEG3350, 0.1M Na-citrate, 5% isopropanol
Resolution 2.10 Å R-free 0.264
8T31 Crystal structure of GABARAP in complex with the LIR of TP53INP2/DOR Deposited 2023-06-07 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 1–117（117 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；25% PEG3350, 0.1M Na-citrate, 5% isopropanol
Resolution 2.10 Å R-free 0.264
8T31 Crystal structure of GABARAP in complex with the LIR of TP53INP2/DOR Deposited 2023-06-07 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain E 1–117（117 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；25% PEG3350, 0.1M Na-citrate, 5% isopropanol
Resolution 2.10 Å R-free 0.264
8T31 Crystal structure of GABARAP in complex with the LIR of TP53INP2/DOR Deposited 2023-06-07 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain G 1–117（117 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；25% PEG3350, 0.1M Na-citrate, 5% isopropanol
Resolution 2.10 Å R-free 0.264
8T31 Crystal structure of GABARAP in complex with the LIR of TP53INP2/DOR Deposited 2023-06-07 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 5 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain I 1–117（117 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；25% PEG3350, 0.1M Na-citrate, 5% isopropanol
Resolution 2.10 Å R-free 0.264
8T32 Crystal structure of K48 acetylated GABARAP in complex with the LIR of TP53INP2/DOR Deposited 2023-06-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–117（117 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) PGE TRIETHYLENE GLYCOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；28 % (w/v) PEG 2000 MME, 0.1 M Bis-Tris: HCl, pH 6.5
Resolution 2.05 Å R-free 0.271
8T33 Crystal structure of K46 acetylated GABARAP in complex with the LIR of TP53INP2/DOR Deposited 2023-06-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–117（117 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) ZN ZINC ION × 9 ACT ACETATE ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；10 % w/v PEG 3000, 0.2 M Zinc acetate dihydrate, 0.1 M Sodium acetate PH 4.5
Resolution 1.60 Å R-free 0.212
8W6A Crystal structure of TAX1BP1 LIR region in complex with GABARAP Deposited 2023-08-28 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–117（117 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；2.8 M Sodium acetate trihydrate and 0.1 M BIS-TRIS propane at pH 7.0
Resolution 1.53 Å R-free 0.187
8W6A Crystal structure of TAX1BP1 LIR region in complex with GABARAP Deposited 2023-08-28 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 1–117（117 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；2.8 M Sodium acetate trihydrate and 0.1 M BIS-TRIS propane at pH 7.0
Resolution 1.53 Å R-free 0.187
8W6A Crystal structure of TAX1BP1 LIR region in complex with GABARAP Deposited 2023-08-28 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 1–117（117 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；2.8 M Sodium acetate trihydrate and 0.1 M BIS-TRIS propane at pH 7.0
Resolution 1.53 Å R-free 0.187
8W6A Crystal structure of TAX1BP1 LIR region in complex with GABARAP Deposited 2023-08-28 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain G 1–117（117 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；2.8 M Sodium acetate trihydrate and 0.1 M BIS-TRIS propane at pH 7.0
Resolution 1.53 Å R-free 0.187
9E8P Crystal Structure of GABARAP-ATG3 conjugate Deposited 2024-11-05 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 1–116（116 aa）
Not recorded SO4 SULFATE ION × 1 EDO 1,2-ETHANEDIOL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；277.15 K；0.1 mM Tris pH8.5, 25%(w/v) PEG3550
Resolution 2.70 Å R-free 0.249
9E8P Crystal Structure of GABARAP-ATG3 conjugate Deposited 2024-11-05 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 1–116（116 aa）
Not recorded EDO 1,2-ETHANEDIOL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；277.15 K；0.1 mM Tris pH8.5, 25%(w/v) PEG3550
Resolution 2.70 Å R-free 0.249
9HGD Crystal structure of human GABARAP in complex with cyclic peptide GAB_D23 Deposited 2024-11-19 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–117（117 aa）
Not recorded CL CHLORIDE ION × 2 PGE TRIETHYLENE GLYCOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；293 K；0.1 M MES pH 5, 30% PEG 6000
Resolution 1.50 Å R-free 0.222
9HGD Crystal structure of human GABARAP in complex with cyclic peptide GAB_D23 Deposited 2024-11-19 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 1–117（117 aa）
Not recorded MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 2 TRS 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；293 K；0.1 M MES pH 5, 30% PEG 6000
Resolution 1.50 Å R-free 0.222
9I9X Human GABARAP in complex with artificial peptide IM-2 Deposited 2025-02-07 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–117（117 aa）
Not recorded GOL GLYCEROL × 3 DMS DIMETHYL SULFOXIDE × 1 SO4 SULFATE ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；ammonium sulfate, sodium cacodylate trihydrate, PEG 8000, DMSO, Tris-HCl, NaCl
Resolution 1.42 Å R-free 0.197

41 other PDB entries and 84 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name GBRAP_HUMAN
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 16–127； UniProt 1–112

Beclin-1,Gamma-aminobutyric acid receptor-associated protein

Homo sapiens

UniProt Q14457

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Insufficient information Homooligomer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count Chain A； UniProt 93–105 Not recorded EDO 1,2-ETHANEDIOL × 6 X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；293 K；1.6 M ammonium sulfate, 100 mM TRIS pH 8.5, 10 % Glycerol Resolution 1.61 Å R-free 0.198

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 6HOK Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
13BV Cryo-EM structure of human PI3KC3-C1 complex Deposited 2026-04-28 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain D 1–450（450 aa）
Not recorded MYR MYRISTIC ACID × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.77 Å
2P1L Structure of the Bcl-XL:Beclin 1 complex Deposited 2007-03-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 107–135（29 aa） Fragment：Beclin 1
Mutation：BH3 domain (residues 107-135) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；24% (w/v) PEG-400, 0.1M HEPES pH7.5, 0.2M sodium citrate, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.50 Å R-free 0.262
2P1L Structure of the Bcl-XL:Beclin 1 complex Deposited 2007-03-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 107–135（29 aa） Fragment：Beclin 1
Mutation：BH3 domain (residues 107-135) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；24% (w/v) PEG-400, 0.1M HEPES pH7.5, 0.2M sodium citrate, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.50 Å R-free 0.262
2P1L Structure of the Bcl-XL:Beclin 1 complex Deposited 2007-03-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain F 107–135（29 aa） Fragment：Beclin 1
Mutation：BH3 domain (residues 107-135) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；24% (w/v) PEG-400, 0.1M HEPES pH7.5, 0.2M sodium citrate, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.50 Å R-free 0.262
2P1L Structure of the Bcl-XL:Beclin 1 complex Deposited 2007-03-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain H 107–135（29 aa） Fragment：Beclin 1
Mutation：BH3 domain (residues 107-135) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；24% (w/v) PEG-400, 0.1M HEPES pH7.5, 0.2M sodium citrate, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.50 Å R-free 0.262
2P1L Structure of the Bcl-XL:Beclin 1 complex Deposited 2007-03-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 5 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric
Chain B 107–135（29 aa） Fragment：Beclin 1
Chain D 107–135（29 aa） Fragment：Beclin 1
Chain F 107–135（29 aa） Fragment：Beclin 1
Chain H 107–135（29 aa） Fragment：Beclin 1
Mutation：BH3 domain (residues 107-135) Mutation：BH3 domain (residues 107-135) Mutation：BH3 domain (residues 107-135) Mutation：BH3 domain (residues 107-135) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；24% (w/v) PEG-400, 0.1M HEPES pH7.5, 0.2M sodium citrate, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.50 Å R-free 0.262
2P1L Structure of the Bcl-XL:Beclin 1 complex Deposited 2007-03-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 6 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain F 107–135（29 aa） Fragment：Beclin 1
Chain H 107–135（29 aa） Fragment：Beclin 1
Mutation：BH3 domain (residues 107-135) Mutation：BH3 domain (residues 107-135) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；24% (w/v) PEG-400, 0.1M HEPES pH7.5, 0.2M sodium citrate, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.50 Å R-free 0.262
2P1L Structure of the Bcl-XL:Beclin 1 complex Deposited 2007-03-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 7 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 107–135（29 aa） Fragment：Beclin 1
Chain D 107–135（29 aa） Fragment：Beclin 1
Mutation：BH3 domain (residues 107-135) Mutation：BH3 domain (residues 107-135) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；24% (w/v) PEG-400, 0.1M HEPES pH7.5, 0.2M sodium citrate, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.50 Å R-free 0.262
2PON Solution structure of the Bcl-xL/Beclin-1 complex Deposited 2007-04-27 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–23（23 aa）
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 7；303 K；Ionic strength (raw mmCIF value) 50mM potassium phosphate；Pressure 1
NMR sample composition 1.5mM unlabelled Bcl-xL/Beclin-1 complex in 99.9% D2O; 50mM potassium phosphate | 99.9% D2O
NMR sample composition 1.5mM uniformly 15N labelled Bcl-xL/Beclin-1 complex in 90% H2O/10% D2O; 50mM potassium phosphate | 90% H2O/10% D2O
NMR sample composition 1.5mM uniformly 15N/13C labelled Bcl-xL/Beclin-1 complex in 99.9% D2O; 50mM potassium phosphate | 99.9% D2O
NMR sample composition 1.5mM 80% deuterated, uniformly 15N/13C labelled Bcl-xL/Beclin-1 complex in 90% H2O/10% D2O; 50mM potassium phosphate | 90% H2O/10% D2O
NMR sample composition 1.5mM 100% deuterated, uniformly 15N labelled Bcl-xL/Beclin-1 complex in 90% H2O/10% D2O; 50mM potassium phosphate | 90% H2O/10% D2O
Resolution not provided
3DVU Crystal structure of the complex of murine gamma-herpesvirus 68 Bcl-2 homolog M11 and the Beclin 1 BH3 domain Deposited 2008-07-20 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 105–130（26 aa） Fragment：BH3 domain, residues 105-130
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；293 K；20% PEG 3350, 0.1M sodium acetate, pH 4.5, 10mM magnesium chloride, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.50 Å R-free 0.261
3DVU Crystal structure of the complex of murine gamma-herpesvirus 68 Bcl-2 homolog M11 and the Beclin 1 BH3 domain Deposited 2008-07-20 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 105–130（26 aa） Fragment：BH3 domain, residues 105-130
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；293 K；20% PEG 3350, 0.1M sodium acetate, pH 4.5, 10mM magnesium chloride, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.50 Å R-free 0.261
4DDP crystal structure of Beclin 1 evolutionarily conserved domain(ECD) Deposited 2012-01-19 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 241–450（210 aa） Fragment：UNP residues 241-450
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；291 K；30% PEG 3350, 0.3M NaCl, 0.1M Tris pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 291K
Resolution 1.55 Å R-free 0.203
4MI8 Crystal structure of the complex of murine gamma-herpesvirus 68 Bcl-2 homolog M11 and a Beclin 1 BH3 domain-derived peptide Deposited 2013-08-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 107–130（24 aa） Fragment：UNP residues 107-130
Mutation：G120E, D121A SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；2.5 M ammonium sulfate, 8% 2-propanol, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.10 Å R-free 0.224
4MI8 Crystal structure of the complex of murine gamma-herpesvirus 68 Bcl-2 homolog M11 and a Beclin 1 BH3 domain-derived peptide Deposited 2013-08-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 107–130（24 aa） Fragment：UNP residues 107-130
Mutation：G120E, D121A SO4 SULFATE ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；2.5 M ammonium sulfate, 8% 2-propanol, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.10 Å R-free 0.224
4MI8 Crystal structure of the complex of murine gamma-herpesvirus 68 Bcl-2 homolog M11 and a Beclin 1 BH3 domain-derived peptide Deposited 2013-08-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain C 107–130（24 aa） Fragment：UNP residues 107-130
Chain D 107–130（24 aa） Fragment：UNP residues 107-130
Mutation：G120E, D121A Mutation：G120E, D121A SO4 SULFATE ION × 8 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；2.5 M ammonium sulfate, 8% 2-propanol, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.10 Å R-free 0.224
5EFM Beclin 1 Flexible-helical Domian (FHD) (141-171) Deposited 2015-10-23 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric
Chain A 141–171（31 aa）
Not recorded SO4 SULFATE ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions EVAPORATION；pH 5.6；293 K；250mM potassium sodium tartrate tetrahydrate, 2.2 M ammonium sulfate, 100mM sodium citrate tribasic dihydrate (pH 5.6)
Resolution 1.95 Å R-free 0.216
5HHE Human Beclin 1 coiled-coil domain Deposited 2016-01-10 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain D 175–265（91 aa） Fragment：UNP entries 175-265
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions EVAPORATION；pH 7.5；293 K；39% 2-methyl-2, 4-pentadiol, 9% PEG400 and 100 mM Tris buffer, pH 7.5.
Resolution 1.46 Å R-free 0.208
5HHE Human Beclin 1 coiled-coil domain Deposited 2016-01-10 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 175–265（91 aa） Fragment：UNP entries 175-265
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions EVAPORATION；pH 7.5；293 K；39% 2-methyl-2, 4-pentadiol, 9% PEG400 and 100 mM Tris buffer, pH 7.5.
Resolution 1.46 Å R-free 0.208
5VAU Bcl-2 complex with Beclin 1 BH3 domain Deposited 2017-03-28 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain E 105–130（26 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；293 K；0.1M Bis-tris chloride, pH 5.5, ).2M ammonium acetate, 25% PEG 3350
Resolution 1.75 Å R-free 0.215
5VAU Bcl-2 complex with Beclin 1 BH3 domain Deposited 2017-03-28 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain F 105–130（26 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；293 K；0.1M Bis-tris chloride, pH 5.5, ).2M ammonium acetate, 25% PEG 3350
Resolution 1.75 Å R-free 0.215
5VAU Bcl-2 complex with Beclin 1 BH3 domain Deposited 2017-03-28 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain G 105–130（26 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；293 K；0.1M Bis-tris chloride, pH 5.5, ).2M ammonium acetate, 25% PEG 3350
Resolution 1.75 Å R-free 0.215
5VAU Bcl-2 complex with Beclin 1 BH3 domain Deposited 2017-03-28 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain H 105–130（26 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；293 K；0.1M Bis-tris chloride, pH 5.5, ).2M ammonium acetate, 25% PEG 3350
Resolution 1.75 Å R-free 0.215
5VAX Bcl-2 complex with Beclin 1 BH3 domain Deposited 2017-03-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain E 105–130（26 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.5；293 K；bis-tris chloride, pH 4.5, 0.2M ammonium acetate, 25% PEG 3350
Resolution 2.00 Å R-free 0.243
5VAX Bcl-2 complex with Beclin 1 BH3 domain Deposited 2017-03-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain F 105–130（26 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.5；293 K；bis-tris chloride, pH 4.5, 0.2M ammonium acetate, 25% PEG 3350
Resolution 2.00 Å R-free 0.243
5VAX Bcl-2 complex with Beclin 1 BH3 domain Deposited 2017-03-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain G 105–130（26 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.5；293 K；bis-tris chloride, pH 4.5, 0.2M ammonium acetate, 25% PEG 3350
Resolution 2.00 Å R-free 0.243
5VAX Bcl-2 complex with Beclin 1 BH3 domain Deposited 2017-03-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain H 105–130（26 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.5；293 K；bis-tris chloride, pH 4.5, 0.2M ammonium acetate, 25% PEG 3350
Resolution 2.00 Å R-free 0.243
5VAY Bcl-2 complex with Beclin 1 T108D BH3 domain Deposited 2017-03-28 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain E 105–130（26 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；0.1M Tris, pH 6.5, 0.2M ammonium acetate, 25% PEG 3350
Resolution 1.80 Å R-free 0.228
5VAY Bcl-2 complex with Beclin 1 T108D BH3 domain Deposited 2017-03-28 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain F 105–130（26 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；0.1M Tris, pH 6.5, 0.2M ammonium acetate, 25% PEG 3350
Resolution 1.80 Å R-free 0.228
5VAY Bcl-2 complex with Beclin 1 T108D BH3 domain Deposited 2017-03-28 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain G 105–130（26 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；0.1M Tris, pH 6.5, 0.2M ammonium acetate, 25% PEG 3350
Resolution 1.80 Å R-free 0.228
5VAY Bcl-2 complex with Beclin 1 T108D BH3 domain Deposited 2017-03-28 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 4 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain H 105–130（26 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；0.1M Tris, pH 6.5, 0.2M ammonium acetate, 25% PEG 3350
Resolution 1.80 Å R-free 0.228
6DCN Bcl-xL complex with Beclin 1 BH3 domain T108pThr Deposited 2018-05-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 105–130（26 aa）
Chain D 105–130（26 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；2M NaCl, 10% glycerol
Resolution 2.44 Å R-free 0.229
6DCN Bcl-xL complex with Beclin 1 BH3 domain T108pThr Deposited 2018-05-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain C 105–130（26 aa）
Chain D 105–130（26 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；2M NaCl, 10% glycerol
Resolution 2.44 Å R-free 0.229
6DCO Bcl-xL complex with Beclin 1 BH3 domain T108D Deposited 2018-05-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 105–130（26 aa）
Chain D 105–130（26 aa）
Mutation：T108D Mutation：T108D CL CHLORIDE ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；293 K；0.1M Tris pH 7.0, 0.2M MgCl2, 2.5M NaCl
Resolution 2.20 Å R-free 0.231
6HOI Structure of Beclin1 LIR motif bound to GABARAPL1 Deposited 2018-09-17 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain G 93–102（10 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 ACT ACETATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.1M sodium acetate, 0.1M Hepes pH 7.5, 12% PEG 4000
Resolution 1.14 Å R-free 0.166
6HOI Structure of Beclin1 LIR motif bound to GABARAPL1 Deposited 2018-09-17 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain F 93–102（10 aa）
Not recorded ACT ACETATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.1M sodium acetate, 0.1M Hepes pH 7.5, 12% PEG 4000
Resolution 1.14 Å R-free 0.166
6HOJ Structure of Beclin1 LIR motif bound to GABARAP Deposited 2018-09-17 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Homooligomer；Protein × 3 PDB declaration: trimeric
Chain A 93–105（13 aa）
Chain B 93–105（13 aa）
Chain C 93–105（13 aa）
Not recorded SO4 SULFATE ION × 1 EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；15% PEG 4000, 50 mM Bicine pH 8.8
Resolution 1.51 Å R-free 0.211
7BL1 human complex II-BATS bound to membrane-attached Rab5a-GTP Deposited 2021-01-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain EEE 1–450（450 aa）
Not recorded GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE；Blot force 20, blot time 6 s
Resolution 9.80 Å
9C82 Structure of human ULK1C:PI3KC3-C1 supercomplex Deposited 2024-06-11 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain D 1–450（450 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE；added 0.05% (w/v) octylglucopyranoside as surfactant
Resolution 6.84 Å
9MHF Cryo-EM reconstruction of PI3KC3-C1 in complex with Human RAB1A(Q70L) Deposited 2024-12-11 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain D 1–450（450 aa）
Not recorded GTP GUANOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 2 MYR MYRISTIC ACID × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.73 Å
9MHG Cryo EM reconstruction of PI3KC3-C1 in complex with Human RAB1A(Q70L), VPS34 kinase domain in the inactive conformation Deposited 2024-12-11 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain D 1–450（450 aa）
Not recorded GTP GUANOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 2 MYR MYRISTIC ACID × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；OG supplemented at time of grid preparation 0.05%
cryo-EM vitrification conditions Cryogen ETHANE；100% humidity, 3 s wait time, blot force -15
Resolution 3.20 Å
9MHH PI3KC3-C1 in complex with RAB1A. VPS34 kinase domain active conformation Deposited 2024-12-11 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain D 1–450（450 aa）
Not recorded GTP GUANOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；OG supplemented at time of grid preparation 0.05%
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.50 Å
9RX5 VPS34-CII (VPS34 199-REIE-202 to 199-AAAA-202 mutant) bound to RAB5A (Q79L) Deposited 2025-07-10 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain C 1–450（450 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions Resolution 3.15 Å
9RX6 VPS34-CII (VPS34 199-REIE-202 to 199-ERIR-202 mutant) bound to RAB5A (Q79L) on the VPS15 subunit Deposited 2025-07-10 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain C 1–450（450 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions Resolution 3.52 Å
9RX8 Apo VPS34-CII (VPS34/VPS15/BECLIN1/UVRAG) Deposited 2025-07-10 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 1–450（450 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions Resolution 3.87 Å
9RX9 VPS34-CII bound to RAB5A-GTP 1-212 (C19S, C63S, Q79L) on the VPS34 subunit Deposited 2025-07-10 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain C 1–450（450 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions Resolution 3.99 Å
9RXA VPS34-CII bound to RAB5A-GTP 1-212 (C19S, C63S, Q79L) on the VPS15 subunit Deposited 2025-07-10 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain C 1–450（450 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions Resolution 4.00 Å
9RXB VPS34-CII (VPS34/VPS15/BECLIN1/UVRAG) bound to RAB5A (Q79L) on the VPS34 and VPS15 subunits Deposited 2025-07-10 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain C 1–450（450 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions Resolution 4.03 Å
9S47 Human complex II-BATS bound to membrane-attached Rab5a-GTP Deposited 2025-07-25 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain C 1–450（450 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions Resolution 9.88 Å
9ZPC Cryo-EM structure of human PI3KC3-C2 Deposited 2025-12-16 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain D 1–450（450 aa）
Not recorded GDP GUANOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.83 Å
9ZPD Cryo-EM structure of human PI3KC3-C2 in complex with Rubicon Middle Region of C terminus Deposited 2025-12-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 5 PDB declaration: pentameric
Chain D 1–450（450 aa）
Chain E 1–450（450 aa）
Not recorded GTP GUANOSINE-5'-TRIPHOSPHATE × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.38 Å

29 other PDB entries and 50 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name BECN1_HUMAN
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 1–13； UniProt 93–105

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

SAXS profile for 6hok

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 6hok
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id6hok
Deposition date deposition_date2018-09-17
Structure title titleStructure of Beclin1 LIR (S96E) motif bound to GABARAP
Keywords keywordsAutophagy, ATG8, LIR, SIGNALING PROTEIN; SIGNALING PROTEIN
Experimental Method methodX-RAY DIFFRACTION
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier17.14 Å
Radius of gyration Rg (electron density) rg_electron16.10 Å
Forward intensity I(0) i03923450.00
Molecular weight molecular_weight14524.0 kDa
Excluded volume excluded_volume18395 ų
Envelope volume envelope_volume22403 ų
Hydration-shell volume shell_volume12615 ų
Envelope diameter envelope_diameter68.4 Å
Shell Rg shell_rg20.94 Å
Envelope Rg envelope_rg17.40 Å
Shape Rg shape_rg16.09 Å
Total Rg total_rg17.12 Å
Total atoms total_atoms1030
Residues n_residues127
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax67.9 Å
Rg (real space) rg_real17.32 Å
Rg uncertainty (real space) rg_real_error0.61 Å
I(0) (real space) i0_real3.9230e+06
I(0) uncertainty (real space) i0_real_error5.6670e+04
Rg (reciprocal space) rg_reciprocal17.30 Å
I(0) (reciprocal space) i0_reciprocal3923000.0000
Solution quality estimate total_estimate0.7402
Solution quality rating solution_quality REASONABLE a REASONABLE solution
P(r) peaks n_peaks3
Primary peak position r_peak_primary22.3 Å
Skewness Skewness skewness0.799
Kurtosis Kurtosis kurtosis1.057
Angular range angular_range— – 0.4650 Å−1
Current regularization parameter α current_alpha0.0000
Highest regularization parameter α highest_alpha983200.0000
Real-space data points n_real_points77
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.329; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.649; Smooth: 0.983
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_idd6hoka_
Class classd — Alpha and beta proteins (a+b)
Fold Fold foldd.15 — beta-Grasp (ubiquitin-like)
Superfamily Superfamily superfamilyd.15.1 — Ubiquitin-like
Family Family familyd.15.1.0 — automated matches

CATH v4.4 (1 domains)

Domain ID domain_id6hokA00
Class class3 — Alpha Beta
Architecture architecture10 — Roll
Topology topology20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily90 — Phosphatidylinositol 3-kinase Catalytic Subunit; Chain A, domain 1
▶

8. Citations (1)

▶

9. Files and Curves (10)
