7blx

Photosystem I of a temperature sensitive mutant Chlamydomonas reinhardtii

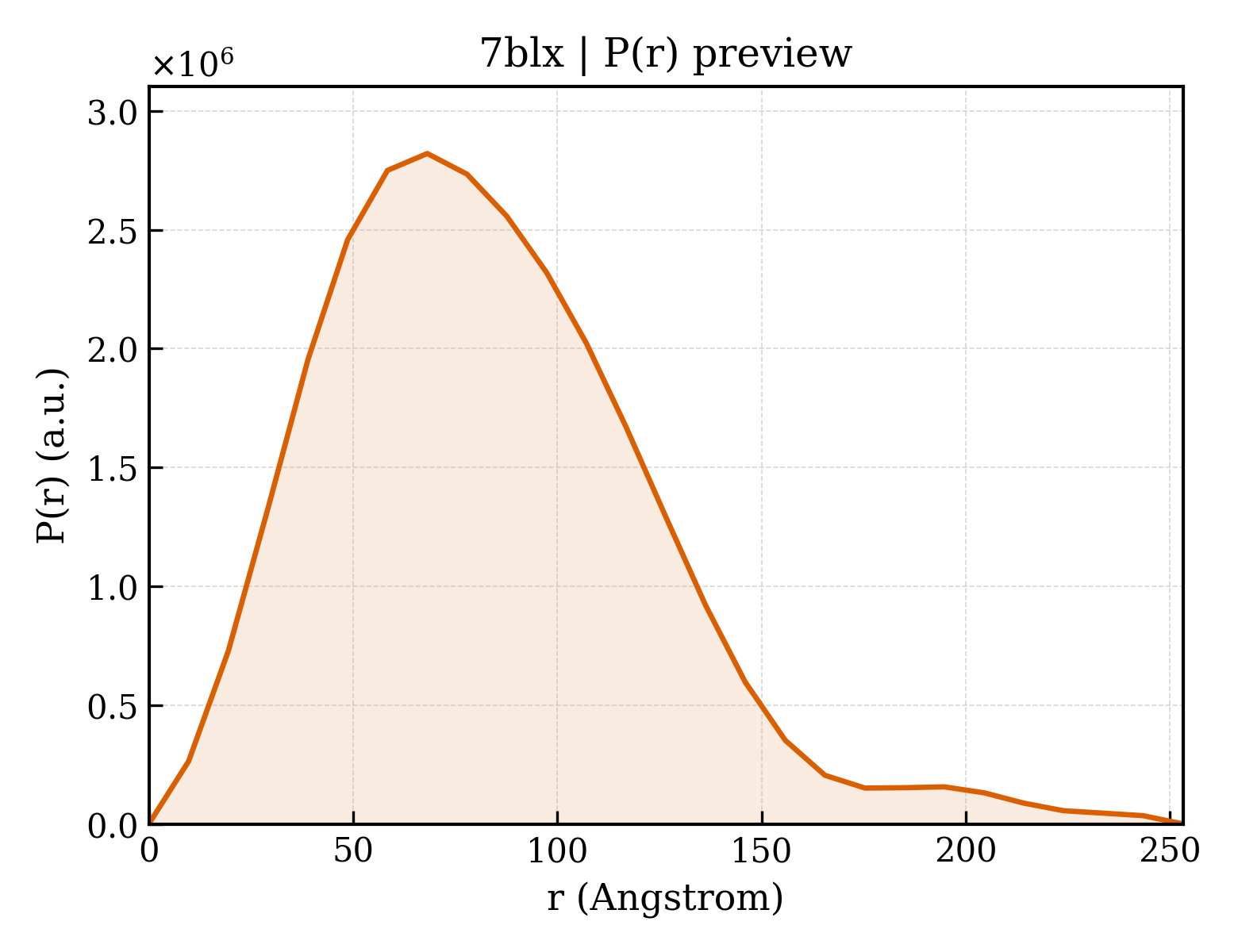

Method: ELECTRON MICROSCOPY Dmax: 253.2 Å Quality: GOOD
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Photosystem I P700 chlorophyll a apoprotein A1

OrganismNot specified

UniProt P12154

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 19 PDB declaration: nonadecameric（19） Consistent with protein copy count Chain A； UniProt 11–751 Not recorded Photosystem I P700 chlorophyll a apoprotein A2 × 1 （P09144） Photosystem I iron-sulfur center × 1 （Q00914） Photosystem I reaction center subunit II, chloroplastic × 1 （Q39615） Photosystem I reaction center subunit IV, chloroplastic × 1 （P12352） Photosystem I reaction center subunit III, chloroplastic × 1 （P12356） Photosystem I reaction center subunit V, chloroplastic × 1 （P14224） Photosystem I reaction center subunit VIII × 1 （A8IFG7） Photosystem I reaction center subunit IX × 1 （P59777） Photosystem I reaction center subunit psaK, chloroplastic × 1 （P14225） PSI subunit V × 1 （A8IL32） Chlorophyll a-b binding protein, chloroplastic × 2 （Q7DM26） Chlorophyll a-b binding protein, chloroplastic × 1 （Q75VY9） Chlorophyll a-b binding protein, chloroplastic × 1 （Q84Y02） Chlorophyll a-b binding protein, chloroplastic × 1 （Q75VY7） Chlorophyll a-b binding protein, chloroplastic × 1 （Q75VZ0） Chlorophyll a-b binding protein, chloroplastic × 1 （Q75VY8） Chlorophyll a-b binding protein, chloroplastic × 1 （Q75VY6） CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 197 PQN PHYLLOQUINONE × 2 SF4 IRON/SULFUR CLUSTER × 3 BCR BETA-CAROTENE × 31 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 14 NKP (2R)-2-hydroxy-3-(phosphonooxy)propyl (9E)-octadec-9-enoate × 3 LMT DODECYL-BETA-D-MALTOSIDE × 7 OCA OCTANOIC ACID (CAPRYLIC ACID) × 1 DAO LAURIC ACID × 1 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 2 DGA DIACYL GLYCEROL × 1 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 CA CALCIUM ION × 1 RRX (3R)-beta,beta-caroten-3-ol × 1 C7Z (1~{S})-3,5,5-trimethyl-4-[(1~{E},3~{E},5~{E},7~{E},9~{E},11~{E},13~{E},15~{E},17~{E})-3,7,12,16-tetramethyl-18-[(4~{S})-2,6,6-trimethyl-4-oxidanyl-cyclohexen-1-yl]octadeca-1,3,5,7,9,11,13,15,17-nonaenyl]cyclohex-3-en-1-ol × 3 SPH SPHINGOSINE × 3 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 17 CHL CHLOROPHYLL B × 20 SQD 1,2-DI-O-ACYL-3-O-[6-DEOXY-6-SULFO-ALPHA-D-GLUCOPYRANOSYL]-SN-GLYCEROL × 1 QTB (3~{E},5~{E},7~{E})-6-methyl-8-[(6~{R})-2,2,6-trimethylcyclohexyl]octa-3,5,7-trien-2-one × 1 3PH 1,2-DIACYL-GLYCEROL-3-SN-PHOSPHATE × 4 PLM PALMITIC ACID × 1 LPX (2S)-3-{[(R)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-hydroxypropyl hexadecanoate × 1 ELECTRON MICROSCOPY cryo-EM buffer：pH 8 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 3.15 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 7BLX Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
6JO5 Structure of the green algal photosystem I supercomplex with light-harvesting complex I Deposited 2019-03-20 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain A 1–751（751 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 218 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 12 BCR BETA-CAROTENE × 32 SF4 IRON/SULFUR CLUSTER × 3 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 2 CHL CHLOROPHYLL B × 20 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 22 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
6JO6 Structure of the green algal photosystem I supercomplex with light-harvesting complex I Deposited 2019-03-20 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 19 PDB declaration: nonadecameric
Chain A 1–751（751 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 197 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 12 BCR BETA-CAROTENE × 32 SF4 IRON/SULFUR CLUSTER × 3 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 1 CHL CHLOROPHYLL B × 18 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 18 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
7BGI Photosystem I of a temperature sensitive mutant Chlamydomonas reinhardtii Deposited 2021-01-07 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain A 11–751（741 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 217 PQN PHYLLOQUINONE × 2 SF4 IRON/SULFUR CLUSTER × 3 BCR BETA-CAROTENE × 31 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 16 NKP (2R)-2-hydroxy-3-(phosphonooxy)propyl (9E)-octadec-9-enoate × 3 LMT DODECYL-BETA-D-MALTOSIDE × 8 OCA OCTANOIC ACID (CAPRYLIC ACID) × 1 DAO LAURIC ACID × 1 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 2 DGA DIACYL GLYCEROL × 2 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 CA CALCIUM ION × 1 T7X Phosphatidylinositol × 1 RRX (3R)-beta,beta-caroten-3-ol × 1 C7Z (1~{S})-3,5,5-trimethyl-4-[(1~{E},3~{E},5~{E},7~{E},9~{E},11~{E},13~{E},15~{E},17~{E})-3,7,12,16-tetramethyl-18-[(4~{S})-2,6,6-trimethyl-4-oxidanyl-cyclohexen-1-yl]octadeca-1,3,5,7,9,11,13,15,17-nonaenyl]cyclohex-3-en-1-ol × 3 SPH SPHINGOSINE × 3 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 22 CHL CHLOROPHYLL B × 25 SQD 1,2-DI-O-ACYL-3-O-[6-DEOXY-6-SULFO-ALPHA-D-GLUCOPYRANOSYL]-SN-GLYCEROL × 2 QTB (3~{E},5~{E},7~{E})-6-methyl-8-[(6~{R})-2,2,6-trimethylcyclohexyl]octa-3,5,7-trien-2-one × 1 3PH 1,2-DIACYL-GLYCEROL-3-SN-PHOSPHATE × 5 PLM PALMITIC ACID × 1 LPX (2S)-3-{[(R)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-hydroxypropyl hexadecanoate × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.54 Å
7D0J Photosystem I-LHCI-LHCII of Chlamydomonas reinhardtii Deposited 2020-09-10 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 29 PDB declaration: 29-meric
Chain A 12–751（740 aa）
Not recorded CLA CHLOROPHYLL A × 276 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 20 BCR BETA-CAROTENE × 37 SF4 IRON/SULFUR CLUSTER × 3 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 2 SQD 1,2-DI-O-ACYL-3-O-[6-DEOXY-6-SULFO-ALPHA-D-GLUCOPYRANOSYL]-SN-GLYCEROL × 1 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 10 CHL CHLOROPHYLL B × 56 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 34 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 6 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.42 Å
7DZ7 State transition supercomplex PSI-LHCI-LHCII from double phosphatase mutant pph1;pbcp of green alga Chlamydomonas reinhardtii Deposited 2021-01-23 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 29 PDB declaration: 29-meric
Chain A 1–751（751 aa）
Not recorded CLA CHLOROPHYLL A × 298 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 27 BCR BETA-CAROTENE × 40 SF4 IRON/SULFUR CLUSTER × 3 LMU DODECYL-ALPHA-D-MALTOSIDE × 7 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 11 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 22 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 16 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 8 CHL CHLOROPHYLL B × 36 ELECTRON MICROSCOPY
cryo-EM buffer pH 6.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.84 Å
7DZ8 State transition supercomplex PSI-LHCI-LHCII from the LhcbM1 lacking mutant of Chlamydomonas reinhardtii Deposited 2021-01-23 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 29 PDB declaration: 29-meric
Chain A 1–751（751 aa）
Not recorded CLA CHLOROPHYLL A × 298 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 27 BCR BETA-CAROTENE × 40 SF4 IRON/SULFUR CLUSTER × 3 LMU DODECYL-ALPHA-D-MALTOSIDE × 7 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 11 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 22 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 16 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 8 CHL CHLOROPHYLL B × 36 ELECTRON MICROSCOPY
cryo-EM buffer pH 6.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.16 Å
7O01 Dimeric Photosystem I of a temperature sensitive mutant Chlamydomonas reinhardtii Deposited 2021-03-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 40 PDB declaration: 40-meric
Chain A 11–751（741 aa）
Chain a 11–751（741 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 17.10 Å
7R3K Chlamydomonas reinhardtii TSP9 mutant small Photosystem I complex Deposited 2022-02-07 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 18 PDB declaration: octadecameric
Chain A 1–751（751 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 186 PQN PHYLLOQUINONE × 2 SF4 IRON/SULFUR CLUSTER × 3 BCR BETA-CAROTENE × 28 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 12 LMT DODECYL-BETA-D-MALTOSIDE × 16 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 CA CALCIUM ION × 1 RRX (3R)-beta,beta-caroten-3-ol × 3 C7Z (1~{S})-3,5,5-trimethyl-4-[(1~{E},3~{E},5~{E},7~{E},9~{E},11~{E},13~{E},15~{E},17~{E})-3,7,12,16-tetramethyl-18-[(4~{S})-2,6,6-trimethyl-4-oxidanyl-cyclohexen-1-yl]octadeca-1,3,5,7,9,11,13,15,17-nonaenyl]cyclohex-3-en-1-ol × 3 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 3 DAO LAURIC ACID × 1 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 14 CHL CHLOROPHYLL B × 28 SPH SPHINGOSINE × 3 3PH 1,2-DIACYL-GLYCEROL-3-SN-PHOSPHATE × 4 DGA DIACYL GLYCEROL × 1 PLM PALMITIC ACID × 1 SQD 1,2-DI-O-ACYL-3-O-[6-DEOXY-6-SULFO-ALPHA-D-GLUCOPYRANOSYL]-SN-GLYCEROL × 1 ERG ERGOSTEROL × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE；blot for 3 seconds before plunging
Resolution 2.52 Å
7WYI Native Photosystem I of Chlamydomonas reinhardtii Deposited 2022-02-16 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 15 PDB declaration: pentadecameric
Chain A 1–751（751 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 155 PQN PHYLLOQUINONE × 2 SF4 IRON/SULFUR CLUSTER × 3 CHL CHLOROPHYLL B × 10 ELECTRON MICROSCOPY
cryo-EM buffer pH 6.5
cryo-EM vitrification conditions Cryogen ETHANE；2.6 microliter of sample were applied to cryo-grids and blotted for 4 seconds using Whatman #1 before plunge freezing.
Resolution 3.90 Å
7WZN PSI-LHCI from Chlamydomonas reinhardtii with bound ferredoxin Deposited 2022-02-18 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric
Chain A 1–751（751 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 188 PQN PHYLLOQUINONE × 2 SF4 IRON/SULFUR CLUSTER × 3 CHL CHLOROPHYLL B × 16 FES FE2/S2 (INORGANIC) CLUSTER × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 6.5
cryo-EM vitrification conditions Cryogen ETHANE；2.6 microliter of sample were applied to cryo-grids and blotted for 3.5 seconds using Whatman #1 before plunge freezing.
Resolution 4.90 Å
7ZQ9 Dimeric PSI of Chlamydomonas reinhardtii at 2.74 A resolution (symmetry expanded) Deposited 2022-04-29 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 24 PDB declaration: 24-meric
Chain A 1–751（751 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 226 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 16 BCR BETA-CAROTENE × 36 SF4 IRON/SULFUR CLUSTER × 3 LMU DODECYL-ALPHA-D-MALTOSIDE × 34 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 17 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 20 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 CHL CHLOROPHYLL B × 32 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 7 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.74 Å
7ZQC Monomeric PSI of Chlamydomonas reinhardtii at 2.31 A resolution Deposited 2022-04-29 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain A 1–751（751 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 198 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 15 BCR BETA-CAROTENE × 27 SF4 IRON/SULFUR CLUSTER × 3 LMU DODECYL-ALPHA-D-MALTOSIDE × 32 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 15 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 18 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 CHL CHLOROPHYLL B × 30 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 7 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.31 Å
7ZQD Dimeric PSI of Chlamydomonas reinhardtii at 2.97 A resolution Deposited 2022-04-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 40 PDB declaration: 40-meric
Chain A 1–751（751 aa）
Chain A2 1–751（751 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 2 CLA CHLOROPHYLL A × 396 PQN PHYLLOQUINONE × 4 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 30 BCR BETA-CAROTENE × 56 SF4 IRON/SULFUR CLUSTER × 6 LMU DODECYL-ALPHA-D-MALTOSIDE × 66 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 30 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 36 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 2 CHL CHLOROPHYLL B × 60 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 14 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.97 Å
8H2U X-ray Structure of photosystem I-LHCI super complex from Chlamydomonas reinhardtii. Deposited 2022-10-07 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain A 1–751（751 aa）
Not recorded CLA CHLOROPHYLL A × 185 SF4 IRON/SULFUR CLUSTER × 3 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 7 BCR BETA-CAROTENE × 27 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 2 LMT DODECYL-BETA-D-MALTOSIDE × 2 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 7 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 12 CHL CHLOROPHYLL B × 26 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；50 mM Tris-HCl (pH 7.0), 50 mM Li2SO4 and 4.5-7.0 % (w/v) polyethylene glycol (PEG) 6,000
Resolution 3.40 Å R-free 0.359
9SE6 Structure of Photosystem I from Chlamydomonas reinhardtii at 1.83 A resolution Deposited 2025-08-15 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 19 PDB declaration: 19-meric
Chain A 10–751（742 aa）
Not recorded CLA CHLOROPHYLL A × 188 CHL CHLOROPHYLL B × 28 BCR BETA-CAROTENE × 27 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 16 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 12 LMU DODECYL-ALPHA-D-MALTOSIDE × 27 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 7 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 14 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 2 CL0 CHLOROPHYLL A ISOMER × 1 PQN PHYLLOQUINONE × 2 SF4 IRON/SULFUR CLUSTER × 3 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；5mM HEPES, pH 7.5, 0.02% alphaDDM
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 1.83 Å
9SE7 Structure of Cytochrome C6 bound Photosystem I from Chlamydomonas reinhardtii at 2.07 A resolution Deposited 2025-08-15 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain A 10–751（742 aa）
Not recorded CLA CHLOROPHYLL A × 91 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 3 BCR BETA-CAROTENE × 15 SF4 IRON/SULFUR CLUSTER × 3 LMU DODECYL-ALPHA-D-MALTOSIDE × 3 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 5 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 2 HEC HEME C × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；5mM HEPES, pH 7.5, 0.02% alphaDDM
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.06 Å

16 other PDB entries and 16 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name PSAA_CHLRE
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 1–741； UniProt 11–751

Photosystem I P700 chlorophyll a apoprotein A2

OrganismNot specified

UniProt P09144

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 19 PDB declaration: nonadecameric（19） Consistent with protein copy count Chain B； UniProt 2–734 Not recorded Photosystem I P700 chlorophyll a apoprotein A1 × 1 （P12154） Photosystem I iron-sulfur center × 1 （Q00914） Photosystem I reaction center subunit II, chloroplastic × 1 （Q39615） Photosystem I reaction center subunit IV, chloroplastic × 1 （P12352） Photosystem I reaction center subunit III, chloroplastic × 1 （P12356） Photosystem I reaction center subunit V, chloroplastic × 1 （P14224） Photosystem I reaction center subunit VIII × 1 （A8IFG7） Photosystem I reaction center subunit IX × 1 （P59777） Photosystem I reaction center subunit psaK, chloroplastic × 1 （P14225） PSI subunit V × 1 （A8IL32） Chlorophyll a-b binding protein, chloroplastic × 2 （Q7DM26） Chlorophyll a-b binding protein, chloroplastic × 1 （Q75VY9） Chlorophyll a-b binding protein, chloroplastic × 1 （Q84Y02） Chlorophyll a-b binding protein, chloroplastic × 1 （Q75VY7） Chlorophyll a-b binding protein, chloroplastic × 1 （Q75VZ0） Chlorophyll a-b binding protein, chloroplastic × 1 （Q75VY8） Chlorophyll a-b binding protein, chloroplastic × 1 （Q75VY6） CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 197 PQN PHYLLOQUINONE × 2 SF4 IRON/SULFUR CLUSTER × 3 BCR BETA-CAROTENE × 31 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 14 NKP (2R)-2-hydroxy-3-(phosphonooxy)propyl (9E)-octadec-9-enoate × 3 LMT DODECYL-BETA-D-MALTOSIDE × 7 OCA OCTANOIC ACID (CAPRYLIC ACID) × 1 DAO LAURIC ACID × 1 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 2 DGA DIACYL GLYCEROL × 1 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 CA CALCIUM ION × 1 RRX (3R)-beta,beta-caroten-3-ol × 1 C7Z (1~{S})-3,5,5-trimethyl-4-[(1~{E},3~{E},5~{E},7~{E},9~{E},11~{E},13~{E},15~{E},17~{E})-3,7,12,16-tetramethyl-18-[(4~{S})-2,6,6-trimethyl-4-oxidanyl-cyclohexen-1-yl]octadeca-1,3,5,7,9,11,13,15,17-nonaenyl]cyclohex-3-en-1-ol × 3 SPH SPHINGOSINE × 3 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 17 CHL CHLOROPHYLL B × 20 SQD 1,2-DI-O-ACYL-3-O-[6-DEOXY-6-SULFO-ALPHA-D-GLUCOPYRANOSYL]-SN-GLYCEROL × 1 QTB (3~{E},5~{E},7~{E})-6-methyl-8-[(6~{R})-2,2,6-trimethylcyclohexyl]octa-3,5,7-trien-2-one × 1 3PH 1,2-DIACYL-GLYCEROL-3-SN-PHOSPHATE × 4 PLM PALMITIC ACID × 1 LPX (2S)-3-{[(R)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-hydroxypropyl hexadecanoate × 1 ELECTRON MICROSCOPY cryo-EM buffer：pH 8 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 3.15 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 7BLX Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
6JO5 Structure of the green algal photosystem I supercomplex with light-harvesting complex I Deposited 2019-03-20 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain B 1–735（735 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 218 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 12 BCR BETA-CAROTENE × 32 SF4 IRON/SULFUR CLUSTER × 3 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 2 CHL CHLOROPHYLL B × 20 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 22 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
6JO6 Structure of the green algal photosystem I supercomplex with light-harvesting complex I Deposited 2019-03-20 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 19 PDB declaration: nonadecameric
Chain B 1–735（735 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 197 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 12 BCR BETA-CAROTENE × 32 SF4 IRON/SULFUR CLUSTER × 3 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 1 CHL CHLOROPHYLL B × 18 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 18 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
7BGI Photosystem I of a temperature sensitive mutant Chlamydomonas reinhardtii Deposited 2021-01-07 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain B 2–734（733 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 217 PQN PHYLLOQUINONE × 2 SF4 IRON/SULFUR CLUSTER × 3 BCR BETA-CAROTENE × 31 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 16 NKP (2R)-2-hydroxy-3-(phosphonooxy)propyl (9E)-octadec-9-enoate × 3 LMT DODECYL-BETA-D-MALTOSIDE × 8 OCA OCTANOIC ACID (CAPRYLIC ACID) × 1 DAO LAURIC ACID × 1 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 2 DGA DIACYL GLYCEROL × 2 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 CA CALCIUM ION × 1 T7X Phosphatidylinositol × 1 RRX (3R)-beta,beta-caroten-3-ol × 1 C7Z (1~{S})-3,5,5-trimethyl-4-[(1~{E},3~{E},5~{E},7~{E},9~{E},11~{E},13~{E},15~{E},17~{E})-3,7,12,16-tetramethyl-18-[(4~{S})-2,6,6-trimethyl-4-oxidanyl-cyclohexen-1-yl]octadeca-1,3,5,7,9,11,13,15,17-nonaenyl]cyclohex-3-en-1-ol × 3 SPH SPHINGOSINE × 3 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 22 CHL CHLOROPHYLL B × 25 SQD 1,2-DI-O-ACYL-3-O-[6-DEOXY-6-SULFO-ALPHA-D-GLUCOPYRANOSYL]-SN-GLYCEROL × 2 QTB (3~{E},5~{E},7~{E})-6-methyl-8-[(6~{R})-2,2,6-trimethylcyclohexyl]octa-3,5,7-trien-2-one × 1 3PH 1,2-DIACYL-GLYCEROL-3-SN-PHOSPHATE × 5 PLM PALMITIC ACID × 1 LPX (2S)-3-{[(R)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-hydroxypropyl hexadecanoate × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.54 Å
7D0J Photosystem I-LHCI-LHCII of Chlamydomonas reinhardtii Deposited 2020-09-10 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 29 PDB declaration: 29-meric
Chain B 2–735（734 aa）
Not recorded CLA CHLOROPHYLL A × 276 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 20 BCR BETA-CAROTENE × 37 SF4 IRON/SULFUR CLUSTER × 3 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 2 SQD 1,2-DI-O-ACYL-3-O-[6-DEOXY-6-SULFO-ALPHA-D-GLUCOPYRANOSYL]-SN-GLYCEROL × 1 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 10 CHL CHLOROPHYLL B × 56 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 34 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 6 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.42 Å
7DZ7 State transition supercomplex PSI-LHCI-LHCII from double phosphatase mutant pph1;pbcp of green alga Chlamydomonas reinhardtii Deposited 2021-01-23 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 29 PDB declaration: 29-meric
Chain B 1–735（735 aa）
Not recorded CLA CHLOROPHYLL A × 298 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 27 BCR BETA-CAROTENE × 40 SF4 IRON/SULFUR CLUSTER × 3 LMU DODECYL-ALPHA-D-MALTOSIDE × 7 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 11 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 22 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 16 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 8 CHL CHLOROPHYLL B × 36 ELECTRON MICROSCOPY
cryo-EM buffer pH 6.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.84 Å
7DZ8 State transition supercomplex PSI-LHCI-LHCII from the LhcbM1 lacking mutant of Chlamydomonas reinhardtii Deposited 2021-01-23 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 29 PDB declaration: 29-meric
Chain B 1–735（735 aa）
Not recorded CLA CHLOROPHYLL A × 298 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 27 BCR BETA-CAROTENE × 40 SF4 IRON/SULFUR CLUSTER × 3 LMU DODECYL-ALPHA-D-MALTOSIDE × 7 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 11 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 22 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 16 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 8 CHL CHLOROPHYLL B × 36 ELECTRON MICROSCOPY
cryo-EM buffer pH 6.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.16 Å
7O01 Dimeric Photosystem I of a temperature sensitive mutant Chlamydomonas reinhardtii Deposited 2021-03-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 40 PDB declaration: 40-meric
Chain B 2–734（733 aa）
Chain b 2–734（733 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 17.10 Å
7R3K Chlamydomonas reinhardtii TSP9 mutant small Photosystem I complex Deposited 2022-02-07 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 18 PDB declaration: octadecameric
Chain B 1–735（735 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 186 PQN PHYLLOQUINONE × 2 SF4 IRON/SULFUR CLUSTER × 3 BCR BETA-CAROTENE × 28 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 12 LMT DODECYL-BETA-D-MALTOSIDE × 16 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 CA CALCIUM ION × 1 RRX (3R)-beta,beta-caroten-3-ol × 3 C7Z (1~{S})-3,5,5-trimethyl-4-[(1~{E},3~{E},5~{E},7~{E},9~{E},11~{E},13~{E},15~{E},17~{E})-3,7,12,16-tetramethyl-18-[(4~{S})-2,6,6-trimethyl-4-oxidanyl-cyclohexen-1-yl]octadeca-1,3,5,7,9,11,13,15,17-nonaenyl]cyclohex-3-en-1-ol × 3 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 3 DAO LAURIC ACID × 1 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 14 CHL CHLOROPHYLL B × 28 SPH SPHINGOSINE × 3 3PH 1,2-DIACYL-GLYCEROL-3-SN-PHOSPHATE × 4 DGA DIACYL GLYCEROL × 1 PLM PALMITIC ACID × 1 SQD 1,2-DI-O-ACYL-3-O-[6-DEOXY-6-SULFO-ALPHA-D-GLUCOPYRANOSYL]-SN-GLYCEROL × 1 ERG ERGOSTEROL × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE；blot for 3 seconds before plunging
Resolution 2.52 Å
7WYI Native Photosystem I of Chlamydomonas reinhardtii Deposited 2022-02-16 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 15 PDB declaration: pentadecameric
Chain B 1–735（735 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 155 PQN PHYLLOQUINONE × 2 SF4 IRON/SULFUR CLUSTER × 3 CHL CHLOROPHYLL B × 10 ELECTRON MICROSCOPY
cryo-EM buffer pH 6.5
cryo-EM vitrification conditions Cryogen ETHANE；2.6 microliter of sample were applied to cryo-grids and blotted for 4 seconds using Whatman #1 before plunge freezing.
Resolution 3.90 Å
7WZN PSI-LHCI from Chlamydomonas reinhardtii with bound ferredoxin Deposited 2022-02-18 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric
Chain B 1–735（735 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 188 PQN PHYLLOQUINONE × 2 SF4 IRON/SULFUR CLUSTER × 3 CHL CHLOROPHYLL B × 16 FES FE2/S2 (INORGANIC) CLUSTER × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 6.5
cryo-EM vitrification conditions Cryogen ETHANE；2.6 microliter of sample were applied to cryo-grids and blotted for 3.5 seconds using Whatman #1 before plunge freezing.
Resolution 4.90 Å
7ZQ9 Dimeric PSI of Chlamydomonas reinhardtii at 2.74 A resolution (symmetry expanded) Deposited 2022-04-29 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 24 PDB declaration: 24-meric
Chain B 1–735（735 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 226 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 16 BCR BETA-CAROTENE × 36 SF4 IRON/SULFUR CLUSTER × 3 LMU DODECYL-ALPHA-D-MALTOSIDE × 34 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 17 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 20 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 CHL CHLOROPHYLL B × 32 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 7 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.74 Å
7ZQC Monomeric PSI of Chlamydomonas reinhardtii at 2.31 A resolution Deposited 2022-04-29 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain B 1–735（735 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 198 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 15 BCR BETA-CAROTENE × 27 SF4 IRON/SULFUR CLUSTER × 3 LMU DODECYL-ALPHA-D-MALTOSIDE × 32 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 15 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 18 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 CHL CHLOROPHYLL B × 30 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 7 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.31 Å
7ZQD Dimeric PSI of Chlamydomonas reinhardtii at 2.97 A resolution Deposited 2022-04-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 40 PDB declaration: 40-meric
Chain B 1–735（735 aa）
Chain B2 1–735（735 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 2 CLA CHLOROPHYLL A × 396 PQN PHYLLOQUINONE × 4 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 30 BCR BETA-CAROTENE × 56 SF4 IRON/SULFUR CLUSTER × 6 LMU DODECYL-ALPHA-D-MALTOSIDE × 66 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 30 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 36 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 2 CHL CHLOROPHYLL B × 60 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 14 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.97 Å
8H2U X-ray Structure of photosystem I-LHCI super complex from Chlamydomonas reinhardtii. Deposited 2022-10-07 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain B 1–735（735 aa）
Not recorded CLA CHLOROPHYLL A × 185 SF4 IRON/SULFUR CLUSTER × 3 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 7 BCR BETA-CAROTENE × 27 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 2 LMT DODECYL-BETA-D-MALTOSIDE × 2 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 7 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 12 CHL CHLOROPHYLL B × 26 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；50 mM Tris-HCl (pH 7.0), 50 mM Li2SO4 and 4.5-7.0 % (w/v) polyethylene glycol (PEG) 6,000
Resolution 3.40 Å R-free 0.359
9SE6 Structure of Photosystem I from Chlamydomonas reinhardtii at 1.83 A resolution Deposited 2025-08-15 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 19 PDB declaration: 19-meric
Chain B 3–735（733 aa）
Not recorded CLA CHLOROPHYLL A × 188 CHL CHLOROPHYLL B × 28 BCR BETA-CAROTENE × 27 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 16 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 12 LMU DODECYL-ALPHA-D-MALTOSIDE × 27 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 7 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 14 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 2 CL0 CHLOROPHYLL A ISOMER × 1 PQN PHYLLOQUINONE × 2 SF4 IRON/SULFUR CLUSTER × 3 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；5mM HEPES, pH 7.5, 0.02% alphaDDM
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 1.83 Å
9SE7 Structure of Cytochrome C6 bound Photosystem I from Chlamydomonas reinhardtii at 2.07 A resolution Deposited 2025-08-15 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain B 3–735（733 aa）
Not recorded CLA CHLOROPHYLL A × 91 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 3 BCR BETA-CAROTENE × 15 SF4 IRON/SULFUR CLUSTER × 3 LMU DODECYL-ALPHA-D-MALTOSIDE × 3 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 5 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 2 HEC HEME C × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；5mM HEPES, pH 7.5, 0.02% alphaDDM
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.06 Å

16 other PDB entries and 16 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name PSAB_CHLRE
Isoform —
PDB entities 2
Chains and sequence ranges Author chain B； PDBConstruct 1–733； UniProt 2–734

Photosystem I iron-sulfur center

OrganismNot specified

UniProt Q00914

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 19 PDB declaration: nonadecameric（19） Consistent with protein copy count Chain C； UniProt 2–81 Not recorded Photosystem I P700 chlorophyll a apoprotein A1 × 1 （P12154） Photosystem I P700 chlorophyll a apoprotein A2 × 1 （P09144） Photosystem I reaction center subunit II, chloroplastic × 1 （Q39615） Photosystem I reaction center subunit IV, chloroplastic × 1 （P12352） Photosystem I reaction center subunit III, chloroplastic × 1 （P12356） Photosystem I reaction center subunit V, chloroplastic × 1 （P14224） Photosystem I reaction center subunit VIII × 1 （A8IFG7） Photosystem I reaction center subunit IX × 1 （P59777） Photosystem I reaction center subunit psaK, chloroplastic × 1 （P14225） PSI subunit V × 1 （A8IL32） Chlorophyll a-b binding protein, chloroplastic × 2 （Q7DM26） Chlorophyll a-b binding protein, chloroplastic × 1 （Q75VY9） Chlorophyll a-b binding protein, chloroplastic × 1 （Q84Y02） Chlorophyll a-b binding protein, chloroplastic × 1 （Q75VY7） Chlorophyll a-b binding protein, chloroplastic × 1 （Q75VZ0） Chlorophyll a-b binding protein, chloroplastic × 1 （Q75VY8） Chlorophyll a-b binding protein, chloroplastic × 1 （Q75VY6） CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 197 PQN PHYLLOQUINONE × 2 SF4 IRON/SULFUR CLUSTER × 3 BCR BETA-CAROTENE × 31 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 14 NKP (2R)-2-hydroxy-3-(phosphonooxy)propyl (9E)-octadec-9-enoate × 3 LMT DODECYL-BETA-D-MALTOSIDE × 7 OCA OCTANOIC ACID (CAPRYLIC ACID) × 1 DAO LAURIC ACID × 1 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 2 DGA DIACYL GLYCEROL × 1 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 CA CALCIUM ION × 1 RRX (3R)-beta,beta-caroten-3-ol × 1 C7Z (1~{S})-3,5,5-trimethyl-4-[(1~{E},3~{E},5~{E},7~{E},9~{E},11~{E},13~{E},15~{E},17~{E})-3,7,12,16-tetramethyl-18-[(4~{S})-2,6,6-trimethyl-4-oxidanyl-cyclohexen-1-yl]octadeca-1,3,5,7,9,11,13,15,17-nonaenyl]cyclohex-3-en-1-ol × 3 SPH SPHINGOSINE × 3 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 17 CHL CHLOROPHYLL B × 20 SQD 1,2-DI-O-ACYL-3-O-[6-DEOXY-6-SULFO-ALPHA-D-GLUCOPYRANOSYL]-SN-GLYCEROL × 1 QTB (3~{E},5~{E},7~{E})-6-methyl-8-[(6~{R})-2,2,6-trimethylcyclohexyl]octa-3,5,7-trien-2-one × 1 3PH 1,2-DIACYL-GLYCEROL-3-SN-PHOSPHATE × 4 PLM PALMITIC ACID × 1 LPX (2S)-3-{[(R)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-hydroxypropyl hexadecanoate × 1 ELECTRON MICROSCOPY cryo-EM buffer：pH 8 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 3.15 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 7BLX Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
6JO5 Structure of the green algal photosystem I supercomplex with light-harvesting complex I Deposited 2019-03-20 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain C 1–81（81 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 218 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 12 BCR BETA-CAROTENE × 32 SF4 IRON/SULFUR CLUSTER × 3 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 2 CHL CHLOROPHYLL B × 20 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 22 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
6JO6 Structure of the green algal photosystem I supercomplex with light-harvesting complex I Deposited 2019-03-20 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 19 PDB declaration: nonadecameric
Chain C 1–81（81 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 197 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 12 BCR BETA-CAROTENE × 32 SF4 IRON/SULFUR CLUSTER × 3 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 1 CHL CHLOROPHYLL B × 18 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 18 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
7BGI Photosystem I of a temperature sensitive mutant Chlamydomonas reinhardtii Deposited 2021-01-07 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain C 2–81（80 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 217 PQN PHYLLOQUINONE × 2 SF4 IRON/SULFUR CLUSTER × 3 BCR BETA-CAROTENE × 31 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 16 NKP (2R)-2-hydroxy-3-(phosphonooxy)propyl (9E)-octadec-9-enoate × 3 LMT DODECYL-BETA-D-MALTOSIDE × 8 OCA OCTANOIC ACID (CAPRYLIC ACID) × 1 DAO LAURIC ACID × 1 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 2 DGA DIACYL GLYCEROL × 2 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 CA CALCIUM ION × 1 T7X Phosphatidylinositol × 1 RRX (3R)-beta,beta-caroten-3-ol × 1 C7Z (1~{S})-3,5,5-trimethyl-4-[(1~{E},3~{E},5~{E},7~{E},9~{E},11~{E},13~{E},15~{E},17~{E})-3,7,12,16-tetramethyl-18-[(4~{S})-2,6,6-trimethyl-4-oxidanyl-cyclohexen-1-yl]octadeca-1,3,5,7,9,11,13,15,17-nonaenyl]cyclohex-3-en-1-ol × 3 SPH SPHINGOSINE × 3 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 22 CHL CHLOROPHYLL B × 25 SQD 1,2-DI-O-ACYL-3-O-[6-DEOXY-6-SULFO-ALPHA-D-GLUCOPYRANOSYL]-SN-GLYCEROL × 2 QTB (3~{E},5~{E},7~{E})-6-methyl-8-[(6~{R})-2,2,6-trimethylcyclohexyl]octa-3,5,7-trien-2-one × 1 3PH 1,2-DIACYL-GLYCEROL-3-SN-PHOSPHATE × 5 PLM PALMITIC ACID × 1 LPX (2S)-3-{[(R)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-hydroxypropyl hexadecanoate × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.54 Å
7D0J Photosystem I-LHCI-LHCII of Chlamydomonas reinhardtii Deposited 2020-09-10 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 29 PDB declaration: 29-meric
Chain C 2–81（80 aa）
Not recorded CLA CHLOROPHYLL A × 276 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 20 BCR BETA-CAROTENE × 37 SF4 IRON/SULFUR CLUSTER × 3 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 2 SQD 1,2-DI-O-ACYL-3-O-[6-DEOXY-6-SULFO-ALPHA-D-GLUCOPYRANOSYL]-SN-GLYCEROL × 1 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 10 CHL CHLOROPHYLL B × 56 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 34 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 6 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.42 Å
7DZ7 State transition supercomplex PSI-LHCI-LHCII from double phosphatase mutant pph1;pbcp of green alga Chlamydomonas reinhardtii Deposited 2021-01-23 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 29 PDB declaration: 29-meric
Chain C 1–81（81 aa）
Not recorded CLA CHLOROPHYLL A × 298 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 27 BCR BETA-CAROTENE × 40 SF4 IRON/SULFUR CLUSTER × 3 LMU DODECYL-ALPHA-D-MALTOSIDE × 7 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 11 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 22 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 16 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 8 CHL CHLOROPHYLL B × 36 ELECTRON MICROSCOPY
cryo-EM buffer pH 6.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.84 Å
7DZ8 State transition supercomplex PSI-LHCI-LHCII from the LhcbM1 lacking mutant of Chlamydomonas reinhardtii Deposited 2021-01-23 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 29 PDB declaration: 29-meric
Chain C 1–81（81 aa）
Not recorded CLA CHLOROPHYLL A × 298 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 27 BCR BETA-CAROTENE × 40 SF4 IRON/SULFUR CLUSTER × 3 LMU DODECYL-ALPHA-D-MALTOSIDE × 7 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 11 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 22 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 16 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 8 CHL CHLOROPHYLL B × 36 ELECTRON MICROSCOPY
cryo-EM buffer pH 6.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.16 Å
7O01 Dimeric Photosystem I of a temperature sensitive mutant Chlamydomonas reinhardtii Deposited 2021-03-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 40 PDB declaration: 40-meric
Chain C 2–81（80 aa）
Chain c 2–81（80 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 17.10 Å
7R3K Chlamydomonas reinhardtii TSP9 mutant small Photosystem I complex Deposited 2022-02-07 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 18 PDB declaration: octadecameric
Chain C 1–81（81 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 186 PQN PHYLLOQUINONE × 2 SF4 IRON/SULFUR CLUSTER × 3 BCR BETA-CAROTENE × 28 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 12 LMT DODECYL-BETA-D-MALTOSIDE × 16 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 CA CALCIUM ION × 1 RRX (3R)-beta,beta-caroten-3-ol × 3 C7Z (1~{S})-3,5,5-trimethyl-4-[(1~{E},3~{E},5~{E},7~{E},9~{E},11~{E},13~{E},15~{E},17~{E})-3,7,12,16-tetramethyl-18-[(4~{S})-2,6,6-trimethyl-4-oxidanyl-cyclohexen-1-yl]octadeca-1,3,5,7,9,11,13,15,17-nonaenyl]cyclohex-3-en-1-ol × 3 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 3 DAO LAURIC ACID × 1 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 14 CHL CHLOROPHYLL B × 28 SPH SPHINGOSINE × 3 3PH 1,2-DIACYL-GLYCEROL-3-SN-PHOSPHATE × 4 DGA DIACYL GLYCEROL × 1 PLM PALMITIC ACID × 1 SQD 1,2-DI-O-ACYL-3-O-[6-DEOXY-6-SULFO-ALPHA-D-GLUCOPYRANOSYL]-SN-GLYCEROL × 1 ERG ERGOSTEROL × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE；blot for 3 seconds before plunging
Resolution 2.52 Å
7WYI Native Photosystem I of Chlamydomonas reinhardtii Deposited 2022-02-16 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 15 PDB declaration: pentadecameric
Chain C 1–81（81 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 155 PQN PHYLLOQUINONE × 2 SF4 IRON/SULFUR CLUSTER × 3 CHL CHLOROPHYLL B × 10 ELECTRON MICROSCOPY
cryo-EM buffer pH 6.5
cryo-EM vitrification conditions Cryogen ETHANE；2.6 microliter of sample were applied to cryo-grids and blotted for 4 seconds using Whatman #1 before plunge freezing.
Resolution 3.90 Å
7WZN PSI-LHCI from Chlamydomonas reinhardtii with bound ferredoxin Deposited 2022-02-18 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric
Chain C 1–81（81 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 188 PQN PHYLLOQUINONE × 2 SF4 IRON/SULFUR CLUSTER × 3 CHL CHLOROPHYLL B × 16 FES FE2/S2 (INORGANIC) CLUSTER × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 6.5
cryo-EM vitrification conditions Cryogen ETHANE；2.6 microliter of sample were applied to cryo-grids and blotted for 3.5 seconds using Whatman #1 before plunge freezing.
Resolution 4.90 Å
7ZQ9 Dimeric PSI of Chlamydomonas reinhardtii at 2.74 A resolution (symmetry expanded) Deposited 2022-04-29 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 24 PDB declaration: 24-meric
Chain C 1–81（81 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 226 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 16 BCR BETA-CAROTENE × 36 SF4 IRON/SULFUR CLUSTER × 3 LMU DODECYL-ALPHA-D-MALTOSIDE × 34 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 17 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 20 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 CHL CHLOROPHYLL B × 32 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 7 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.74 Å
7ZQC Monomeric PSI of Chlamydomonas reinhardtii at 2.31 A resolution Deposited 2022-04-29 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain C 1–81（81 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 198 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 15 BCR BETA-CAROTENE × 27 SF4 IRON/SULFUR CLUSTER × 3 LMU DODECYL-ALPHA-D-MALTOSIDE × 32 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 15 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 18 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 CHL CHLOROPHYLL B × 30 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 7 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.31 Å
7ZQD Dimeric PSI of Chlamydomonas reinhardtii at 2.97 A resolution Deposited 2022-04-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 40 PDB declaration: 40-meric
Chain C 1–81（81 aa）
Chain C2 1–81（81 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 2 CLA CHLOROPHYLL A × 396 PQN PHYLLOQUINONE × 4 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 30 BCR BETA-CAROTENE × 56 SF4 IRON/SULFUR CLUSTER × 6 LMU DODECYL-ALPHA-D-MALTOSIDE × 66 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 30 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 36 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 2 CHL CHLOROPHYLL B × 60 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 14 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.97 Å
8H2U X-ray Structure of photosystem I-LHCI super complex from Chlamydomonas reinhardtii. Deposited 2022-10-07 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain C 1–81（81 aa）
Not recorded CLA CHLOROPHYLL A × 185 SF4 IRON/SULFUR CLUSTER × 3 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 7 BCR BETA-CAROTENE × 27 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 2 LMT DODECYL-BETA-D-MALTOSIDE × 2 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 7 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 12 CHL CHLOROPHYLL B × 26 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；50 mM Tris-HCl (pH 7.0), 50 mM Li2SO4 and 4.5-7.0 % (w/v) polyethylene glycol (PEG) 6,000
Resolution 3.40 Å R-free 0.359
9SE6 Structure of Photosystem I from Chlamydomonas reinhardtii at 1.83 A resolution Deposited 2025-08-15 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 19 PDB declaration: 19-meric
Chain C 2–81（80 aa）
Not recorded CLA CHLOROPHYLL A × 188 CHL CHLOROPHYLL B × 28 BCR BETA-CAROTENE × 27 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 16 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 12 LMU DODECYL-ALPHA-D-MALTOSIDE × 27 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 7 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 14 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 2 CL0 CHLOROPHYLL A ISOMER × 1 PQN PHYLLOQUINONE × 2 SF4 IRON/SULFUR CLUSTER × 3 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；5mM HEPES, pH 7.5, 0.02% alphaDDM
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 1.83 Å
9SE7 Structure of Cytochrome C6 bound Photosystem I from Chlamydomonas reinhardtii at 2.07 A resolution Deposited 2025-08-15 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain C 2–81（80 aa）
Not recorded CLA CHLOROPHYLL A × 91 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 3 BCR BETA-CAROTENE × 15 SF4 IRON/SULFUR CLUSTER × 3 LMU DODECYL-ALPHA-D-MALTOSIDE × 3 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 5 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 2 HEC HEME C × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；5mM HEPES, pH 7.5, 0.02% alphaDDM
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.06 Å

16 other PDB entries and 16 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name PSAC_CHLRE
Isoform —
PDB entities 3
Chains and sequence ranges Author chain C； PDBConstruct 1–80； UniProt 2–81

Photosystem I reaction center subunit II, chloroplastic

OrganismNot specified

UniProt Q39615

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 19 PDB declaration: nonadecameric（19） Consistent with protein copy count Chain D； UniProt 53–196 Non-standard monomer：Yes (specific site not provided by mmCIF) Photosystem I P700 chlorophyll a apoprotein A1 × 1 （P12154） Photosystem I P700 chlorophyll a apoprotein A2 × 1 （P09144） Photosystem I iron-sulfur center × 1 （Q00914） Photosystem I reaction center subunit IV, chloroplastic × 1 （P12352） Photosystem I reaction center subunit III, chloroplastic × 1 （P12356） Photosystem I reaction center subunit V, chloroplastic × 1 （P14224） Photosystem I reaction center subunit VIII × 1 （A8IFG7） Photosystem I reaction center subunit IX × 1 （P59777） Photosystem I reaction center subunit psaK, chloroplastic × 1 （P14225） PSI subunit V × 1 （A8IL32） Chlorophyll a-b binding protein, chloroplastic × 2 （Q7DM26） Chlorophyll a-b binding protein, chloroplastic × 1 （Q75VY9） Chlorophyll a-b binding protein, chloroplastic × 1 （Q84Y02） Chlorophyll a-b binding protein, chloroplastic × 1 （Q75VY7） Chlorophyll a-b binding protein, chloroplastic × 1 （Q75VZ0） Chlorophyll a-b binding protein, chloroplastic × 1 （Q75VY8） Chlorophyll a-b binding protein, chloroplastic × 1 （Q75VY6） CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 197 PQN PHYLLOQUINONE × 2 SF4 IRON/SULFUR CLUSTER × 3 BCR BETA-CAROTENE × 31 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 14 NKP (2R)-2-hydroxy-3-(phosphonooxy)propyl (9E)-octadec-9-enoate × 3 LMT DODECYL-BETA-D-MALTOSIDE × 7 OCA OCTANOIC ACID (CAPRYLIC ACID) × 1 DAO LAURIC ACID × 1 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 2 DGA DIACYL GLYCEROL × 1 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 CA CALCIUM ION × 1 RRX (3R)-beta,beta-caroten-3-ol × 1 C7Z (1~{S})-3,5,5-trimethyl-4-[(1~{E},3~{E},5~{E},7~{E},9~{E},11~{E},13~{E},15~{E},17~{E})-3,7,12,16-tetramethyl-18-[(4~{S})-2,6,6-trimethyl-4-oxidanyl-cyclohexen-1-yl]octadeca-1,3,5,7,9,11,13,15,17-nonaenyl]cyclohex-3-en-1-ol × 3 SPH SPHINGOSINE × 3 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 17 CHL CHLOROPHYLL B × 20 SQD 1,2-DI-O-ACYL-3-O-[6-DEOXY-6-SULFO-ALPHA-D-GLUCOPYRANOSYL]-SN-GLYCEROL × 1 QTB (3~{E},5~{E},7~{E})-6-methyl-8-[(6~{R})-2,2,6-trimethylcyclohexyl]octa-3,5,7-trien-2-one × 1 3PH 1,2-DIACYL-GLYCEROL-3-SN-PHOSPHATE × 4 PLM PALMITIC ACID × 1 LPX (2S)-3-{[(R)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-hydroxypropyl hexadecanoate × 1 ELECTRON MICROSCOPY cryo-EM buffer：pH 8 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 3.15 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 7BLX Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
6JO5 Structure of the green algal photosystem I supercomplex with light-harvesting complex I Deposited 2019-03-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain D 36–196（161 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 218 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 12 BCR BETA-CAROTENE × 32 SF4 IRON/SULFUR CLUSTER × 3 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 2 CHL CHLOROPHYLL B × 20 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 22 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
6JO6 Structure of the green algal photosystem I supercomplex with light-harvesting complex I Deposited 2019-03-20 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 19 PDB declaration: nonadecameric
Chain D 36–196（161 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 197 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 12 BCR BETA-CAROTENE × 32 SF4 IRON/SULFUR CLUSTER × 3 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 1 CHL CHLOROPHYLL B × 18 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 18 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
7BGI Photosystem I of a temperature sensitive mutant Chlamydomonas reinhardtii Deposited 2021-01-07 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain D 53–196（144 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 217 PQN PHYLLOQUINONE × 2 SF4 IRON/SULFUR CLUSTER × 3 BCR BETA-CAROTENE × 31 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 16 NKP (2R)-2-hydroxy-3-(phosphonooxy)propyl (9E)-octadec-9-enoate × 3 LMT DODECYL-BETA-D-MALTOSIDE × 8 OCA OCTANOIC ACID (CAPRYLIC ACID) × 1 DAO LAURIC ACID × 1 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 2 DGA DIACYL GLYCEROL × 2 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 CA CALCIUM ION × 1 T7X Phosphatidylinositol × 1 RRX (3R)-beta,beta-caroten-3-ol × 1 C7Z (1~{S})-3,5,5-trimethyl-4-[(1~{E},3~{E},5~{E},7~{E},9~{E},11~{E},13~{E},15~{E},17~{E})-3,7,12,16-tetramethyl-18-[(4~{S})-2,6,6-trimethyl-4-oxidanyl-cyclohexen-1-yl]octadeca-1,3,5,7,9,11,13,15,17-nonaenyl]cyclohex-3-en-1-ol × 3 SPH SPHINGOSINE × 3 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 22 CHL CHLOROPHYLL B × 25 SQD 1,2-DI-O-ACYL-3-O-[6-DEOXY-6-SULFO-ALPHA-D-GLUCOPYRANOSYL]-SN-GLYCEROL × 2 QTB (3~{E},5~{E},7~{E})-6-methyl-8-[(6~{R})-2,2,6-trimethylcyclohexyl]octa-3,5,7-trien-2-one × 1 3PH 1,2-DIACYL-GLYCEROL-3-SN-PHOSPHATE × 5 PLM PALMITIC ACID × 1 LPX (2S)-3-{[(R)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-hydroxypropyl hexadecanoate × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.54 Å
7D0J Photosystem I-LHCI-LHCII of Chlamydomonas reinhardtii Deposited 2020-09-10 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 29 PDB declaration: 29-meric
Chain D 53–196（144 aa）
Not recorded CLA CHLOROPHYLL A × 276 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 20 BCR BETA-CAROTENE × 37 SF4 IRON/SULFUR CLUSTER × 3 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 2 SQD 1,2-DI-O-ACYL-3-O-[6-DEOXY-6-SULFO-ALPHA-D-GLUCOPYRANOSYL]-SN-GLYCEROL × 1 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 10 CHL CHLOROPHYLL B × 56 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 34 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 6 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.42 Å
7DZ7 State transition supercomplex PSI-LHCI-LHCII from double phosphatase mutant pph1;pbcp of green alga Chlamydomonas reinhardtii Deposited 2021-01-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 29 PDB declaration: 29-meric
Chain D 1–196（196 aa）
Not recorded CLA CHLOROPHYLL A × 298 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 27 BCR BETA-CAROTENE × 40 SF4 IRON/SULFUR CLUSTER × 3 LMU DODECYL-ALPHA-D-MALTOSIDE × 7 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 11 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 22 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 16 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 8 CHL CHLOROPHYLL B × 36 ELECTRON MICROSCOPY
cryo-EM buffer pH 6.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.84 Å
7DZ8 State transition supercomplex PSI-LHCI-LHCII from the LhcbM1 lacking mutant of Chlamydomonas reinhardtii Deposited 2021-01-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 29 PDB declaration: 29-meric
Chain D 1–196（196 aa）
Not recorded CLA CHLOROPHYLL A × 298 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 27 BCR BETA-CAROTENE × 40 SF4 IRON/SULFUR CLUSTER × 3 LMU DODECYL-ALPHA-D-MALTOSIDE × 7 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 11 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 22 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 16 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 8 CHL CHLOROPHYLL B × 36 ELECTRON MICROSCOPY
cryo-EM buffer pH 6.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.16 Å
7O01 Dimeric Photosystem I of a temperature sensitive mutant Chlamydomonas reinhardtii Deposited 2021-03-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 40 PDB declaration: 40-meric
Chain D 53–196（144 aa）
Chain d 53–196（144 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 17.10 Å
7R3K Chlamydomonas reinhardtii TSP9 mutant small Photosystem I complex Deposited 2022-02-07 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 18 PDB declaration: octadecameric
Chain D 1–196（196 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 186 PQN PHYLLOQUINONE × 2 SF4 IRON/SULFUR CLUSTER × 3 BCR BETA-CAROTENE × 28 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 12 LMT DODECYL-BETA-D-MALTOSIDE × 16 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 CA CALCIUM ION × 1 RRX (3R)-beta,beta-caroten-3-ol × 3 C7Z (1~{S})-3,5,5-trimethyl-4-[(1~{E},3~{E},5~{E},7~{E},9~{E},11~{E},13~{E},15~{E},17~{E})-3,7,12,16-tetramethyl-18-[(4~{S})-2,6,6-trimethyl-4-oxidanyl-cyclohexen-1-yl]octadeca-1,3,5,7,9,11,13,15,17-nonaenyl]cyclohex-3-en-1-ol × 3 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 3 DAO LAURIC ACID × 1 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 14 CHL CHLOROPHYLL B × 28 SPH SPHINGOSINE × 3 3PH 1,2-DIACYL-GLYCEROL-3-SN-PHOSPHATE × 4 DGA DIACYL GLYCEROL × 1 PLM PALMITIC ACID × 1 SQD 1,2-DI-O-ACYL-3-O-[6-DEOXY-6-SULFO-ALPHA-D-GLUCOPYRANOSYL]-SN-GLYCEROL × 1 ERG ERGOSTEROL × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE；blot for 3 seconds before plunging
Resolution 2.52 Å
7WYI Native Photosystem I of Chlamydomonas reinhardtii Deposited 2022-02-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 15 PDB declaration: pentadecameric
Chain D 1–196（196 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 155 PQN PHYLLOQUINONE × 2 SF4 IRON/SULFUR CLUSTER × 3 CHL CHLOROPHYLL B × 10 ELECTRON MICROSCOPY
cryo-EM buffer pH 6.5
cryo-EM vitrification conditions Cryogen ETHANE；2.6 microliter of sample were applied to cryo-grids and blotted for 4 seconds using Whatman #1 before plunge freezing.
Resolution 3.90 Å
7WZN PSI-LHCI from Chlamydomonas reinhardtii with bound ferredoxin Deposited 2022-02-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric
Chain D 1–196（196 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 188 PQN PHYLLOQUINONE × 2 SF4 IRON/SULFUR CLUSTER × 3 CHL CHLOROPHYLL B × 16 FES FE2/S2 (INORGANIC) CLUSTER × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 6.5
cryo-EM vitrification conditions Cryogen ETHANE；2.6 microliter of sample were applied to cryo-grids and blotted for 3.5 seconds using Whatman #1 before plunge freezing.
Resolution 4.90 Å
7ZQ9 Dimeric PSI of Chlamydomonas reinhardtii at 2.74 A resolution (symmetry expanded) Deposited 2022-04-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 24 PDB declaration: 24-meric
Chain D 1–196（196 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 226 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 16 BCR BETA-CAROTENE × 36 SF4 IRON/SULFUR CLUSTER × 3 LMU DODECYL-ALPHA-D-MALTOSIDE × 34 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 17 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 20 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 CHL CHLOROPHYLL B × 32 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 7 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.74 Å
7ZQC Monomeric PSI of Chlamydomonas reinhardtii at 2.31 A resolution Deposited 2022-04-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain D 1–196（196 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 198 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 15 BCR BETA-CAROTENE × 27 SF4 IRON/SULFUR CLUSTER × 3 LMU DODECYL-ALPHA-D-MALTOSIDE × 32 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 15 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 18 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 CHL CHLOROPHYLL B × 30 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 7 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.31 Å
7ZQD Dimeric PSI of Chlamydomonas reinhardtii at 2.97 A resolution Deposited 2022-04-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 40 PDB declaration: 40-meric
Chain D 1–196（196 aa）
Chain D2 1–196（196 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 2 CLA CHLOROPHYLL A × 396 PQN PHYLLOQUINONE × 4 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 30 BCR BETA-CAROTENE × 56 SF4 IRON/SULFUR CLUSTER × 6 LMU DODECYL-ALPHA-D-MALTOSIDE × 66 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 30 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 36 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 2 CHL CHLOROPHYLL B × 60 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 14 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.97 Å
8H2U X-ray Structure of photosystem I-LHCI super complex from Chlamydomonas reinhardtii. Deposited 2022-10-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain D 1–196（196 aa）
Not recorded CLA CHLOROPHYLL A × 185 SF4 IRON/SULFUR CLUSTER × 3 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 7 BCR BETA-CAROTENE × 27 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 2 LMT DODECYL-BETA-D-MALTOSIDE × 2 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 7 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 12 CHL CHLOROPHYLL B × 26 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；50 mM Tris-HCl (pH 7.0), 50 mM Li2SO4 and 4.5-7.0 % (w/v) polyethylene glycol (PEG) 6,000
Resolution 3.40 Å R-free 0.359
9SE6 Structure of Photosystem I from Chlamydomonas reinhardtii at 1.83 A resolution Deposited 2025-08-15 Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 19 PDB declaration: 19-meric
Chain D 53–196（144 aa）
Not recorded CLA CHLOROPHYLL A × 188 CHL CHLOROPHYLL B × 28 BCR BETA-CAROTENE × 27 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 16 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 12 LMU DODECYL-ALPHA-D-MALTOSIDE × 27 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 7 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 14 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 2 CL0 CHLOROPHYLL A ISOMER × 1 PQN PHYLLOQUINONE × 2 SF4 IRON/SULFUR CLUSTER × 3 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；5mM HEPES, pH 7.5, 0.02% alphaDDM
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 1.83 Å
9SE7 Structure of Cytochrome C6 bound Photosystem I from Chlamydomonas reinhardtii at 2.07 A resolution Deposited 2025-08-15 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain D 53–196（144 aa）
Not recorded CLA CHLOROPHYLL A × 91 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 3 BCR BETA-CAROTENE × 15 SF4 IRON/SULFUR CLUSTER × 3 LMU DODECYL-ALPHA-D-MALTOSIDE × 3 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 5 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 2 HEC HEME C × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；5mM HEPES, pH 7.5, 0.02% alphaDDM
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.06 Å

16 other PDB entries and 16 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name PSAD_CHLRE
Isoform —
PDB entities 4
Chains and sequence ranges Author chain D； PDBConstruct 1–144； UniProt 53–196

Photosystem I reaction center subunit IV, chloroplastic

OrganismNot specified

UniProt P12352

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 19 PDB declaration: nonadecameric（19） Consistent with protein copy count Chain E； UniProt 34–96 Not recorded Photosystem I P700 chlorophyll a apoprotein A1 × 1 （P12154） Photosystem I P700 chlorophyll a apoprotein A2 × 1 （P09144） Photosystem I iron-sulfur center × 1 （Q00914） Photosystem I reaction center subunit II, chloroplastic × 1 （Q39615） Photosystem I reaction center subunit III, chloroplastic × 1 （P12356） Photosystem I reaction center subunit V, chloroplastic × 1 （P14224） Photosystem I reaction center subunit VIII × 1 （A8IFG7） Photosystem I reaction center subunit IX × 1 （P59777） Photosystem I reaction center subunit psaK, chloroplastic × 1 （P14225） PSI subunit V × 1 （A8IL32） Chlorophyll a-b binding protein, chloroplastic × 2 （Q7DM26） Chlorophyll a-b binding protein, chloroplastic × 1 （Q75VY9） Chlorophyll a-b binding protein, chloroplastic × 1 （Q84Y02） Chlorophyll a-b binding protein, chloroplastic × 1 （Q75VY7） Chlorophyll a-b binding protein, chloroplastic × 1 （Q75VZ0） Chlorophyll a-b binding protein, chloroplastic × 1 （Q75VY8） Chlorophyll a-b binding protein, chloroplastic × 1 （Q75VY6） CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 197 PQN PHYLLOQUINONE × 2 SF4 IRON/SULFUR CLUSTER × 3 BCR BETA-CAROTENE × 31 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 14 NKP (2R)-2-hydroxy-3-(phosphonooxy)propyl (9E)-octadec-9-enoate × 3 LMT DODECYL-BETA-D-MALTOSIDE × 7 OCA OCTANOIC ACID (CAPRYLIC ACID) × 1 DAO LAURIC ACID × 1 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 2 DGA DIACYL GLYCEROL × 1 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 CA CALCIUM ION × 1 RRX (3R)-beta,beta-caroten-3-ol × 1 C7Z (1~{S})-3,5,5-trimethyl-4-[(1~{E},3~{E},5~{E},7~{E},9~{E},11~{E},13~{E},15~{E},17~{E})-3,7,12,16-tetramethyl-18-[(4~{S})-2,6,6-trimethyl-4-oxidanyl-cyclohexen-1-yl]octadeca-1,3,5,7,9,11,13,15,17-nonaenyl]cyclohex-3-en-1-ol × 3 SPH SPHINGOSINE × 3 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 17 CHL CHLOROPHYLL B × 20 SQD 1,2-DI-O-ACYL-3-O-[6-DEOXY-6-SULFO-ALPHA-D-GLUCOPYRANOSYL]-SN-GLYCEROL × 1 QTB (3~{E},5~{E},7~{E})-6-methyl-8-[(6~{R})-2,2,6-trimethylcyclohexyl]octa-3,5,7-trien-2-one × 1 3PH 1,2-DIACYL-GLYCEROL-3-SN-PHOSPHATE × 4 PLM PALMITIC ACID × 1 LPX (2S)-3-{[(R)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-hydroxypropyl hexadecanoate × 1 ELECTRON MICROSCOPY cryo-EM buffer：pH 8 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 3.15 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 7BLX Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
6JO5 Structure of the green algal photosystem I supercomplex with light-harvesting complex I Deposited 2019-03-20 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain E 25–97（73 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 218 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 12 BCR BETA-CAROTENE × 32 SF4 IRON/SULFUR CLUSTER × 3 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 2 CHL CHLOROPHYLL B × 20 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 22 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
6JO6 Structure of the green algal photosystem I supercomplex with light-harvesting complex I Deposited 2019-03-20 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 19 PDB declaration: nonadecameric
Chain E 25–97（73 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 197 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 12 BCR BETA-CAROTENE × 32 SF4 IRON/SULFUR CLUSTER × 3 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 1 CHL CHLOROPHYLL B × 18 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 18 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
7BGI Photosystem I of a temperature sensitive mutant Chlamydomonas reinhardtii Deposited 2021-01-07 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain E 34–96（63 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 217 PQN PHYLLOQUINONE × 2 SF4 IRON/SULFUR CLUSTER × 3 BCR BETA-CAROTENE × 31 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 16 NKP (2R)-2-hydroxy-3-(phosphonooxy)propyl (9E)-octadec-9-enoate × 3 LMT DODECYL-BETA-D-MALTOSIDE × 8 OCA OCTANOIC ACID (CAPRYLIC ACID) × 1 DAO LAURIC ACID × 1 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 2 DGA DIACYL GLYCEROL × 2 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 CA CALCIUM ION × 1 T7X Phosphatidylinositol × 1 RRX (3R)-beta,beta-caroten-3-ol × 1 C7Z (1~{S})-3,5,5-trimethyl-4-[(1~{E},3~{E},5~{E},7~{E},9~{E},11~{E},13~{E},15~{E},17~{E})-3,7,12,16-tetramethyl-18-[(4~{S})-2,6,6-trimethyl-4-oxidanyl-cyclohexen-1-yl]octadeca-1,3,5,7,9,11,13,15,17-nonaenyl]cyclohex-3-en-1-ol × 3 SPH SPHINGOSINE × 3 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 22 CHL CHLOROPHYLL B × 25 SQD 1,2-DI-O-ACYL-3-O-[6-DEOXY-6-SULFO-ALPHA-D-GLUCOPYRANOSYL]-SN-GLYCEROL × 2 QTB (3~{E},5~{E},7~{E})-6-methyl-8-[(6~{R})-2,2,6-trimethylcyclohexyl]octa-3,5,7-trien-2-one × 1 3PH 1,2-DIACYL-GLYCEROL-3-SN-PHOSPHATE × 5 PLM PALMITIC ACID × 1 LPX (2S)-3-{[(R)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-hydroxypropyl hexadecanoate × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.54 Å
7D0J Photosystem I-LHCI-LHCII of Chlamydomonas reinhardtii Deposited 2020-09-10 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 29 PDB declaration: 29-meric
Chain E 34–96（63 aa）
Not recorded CLA CHLOROPHYLL A × 276 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 20 BCR BETA-CAROTENE × 37 SF4 IRON/SULFUR CLUSTER × 3 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 2 SQD 1,2-DI-O-ACYL-3-O-[6-DEOXY-6-SULFO-ALPHA-D-GLUCOPYRANOSYL]-SN-GLYCEROL × 1 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 10 CHL CHLOROPHYLL B × 56 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 34 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 6 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.42 Å
7DZ7 State transition supercomplex PSI-LHCI-LHCII from double phosphatase mutant pph1;pbcp of green alga Chlamydomonas reinhardtii Deposited 2021-01-23 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 29 PDB declaration: 29-meric
Chain E 1–97（97 aa）
Not recorded CLA CHLOROPHYLL A × 298 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 27 BCR BETA-CAROTENE × 40 SF4 IRON/SULFUR CLUSTER × 3 LMU DODECYL-ALPHA-D-MALTOSIDE × 7 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 11 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 22 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 16 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 8 CHL CHLOROPHYLL B × 36 ELECTRON MICROSCOPY
cryo-EM buffer pH 6.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.84 Å
7DZ8 State transition supercomplex PSI-LHCI-LHCII from the LhcbM1 lacking mutant of Chlamydomonas reinhardtii Deposited 2021-01-23 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 29 PDB declaration: 29-meric
Chain E 1–97（97 aa）
Not recorded CLA CHLOROPHYLL A × 298 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 27 BCR BETA-CAROTENE × 40 SF4 IRON/SULFUR CLUSTER × 3 LMU DODECYL-ALPHA-D-MALTOSIDE × 7 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 11 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 22 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 16 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 8 CHL CHLOROPHYLL B × 36 ELECTRON MICROSCOPY
cryo-EM buffer pH 6.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.16 Å
7O01 Dimeric Photosystem I of a temperature sensitive mutant Chlamydomonas reinhardtii Deposited 2021-03-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 40 PDB declaration: 40-meric
Chain E 34–96（63 aa）
Chain e 34–96（63 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 17.10 Å
7R3K Chlamydomonas reinhardtii TSP9 mutant small Photosystem I complex Deposited 2022-02-07 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 18 PDB declaration: octadecameric
Chain E 1–97（97 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 186 PQN PHYLLOQUINONE × 2 SF4 IRON/SULFUR CLUSTER × 3 BCR BETA-CAROTENE × 28 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 12 LMT DODECYL-BETA-D-MALTOSIDE × 16 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 CA CALCIUM ION × 1 RRX (3R)-beta,beta-caroten-3-ol × 3 C7Z (1~{S})-3,5,5-trimethyl-4-[(1~{E},3~{E},5~{E},7~{E},9~{E},11~{E},13~{E},15~{E},17~{E})-3,7,12,16-tetramethyl-18-[(4~{S})-2,6,6-trimethyl-4-oxidanyl-cyclohexen-1-yl]octadeca-1,3,5,7,9,11,13,15,17-nonaenyl]cyclohex-3-en-1-ol × 3 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 3 DAO LAURIC ACID × 1 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 14 CHL CHLOROPHYLL B × 28 SPH SPHINGOSINE × 3 3PH 1,2-DIACYL-GLYCEROL-3-SN-PHOSPHATE × 4 DGA DIACYL GLYCEROL × 1 PLM PALMITIC ACID × 1 SQD 1,2-DI-O-ACYL-3-O-[6-DEOXY-6-SULFO-ALPHA-D-GLUCOPYRANOSYL]-SN-GLYCEROL × 1 ERG ERGOSTEROL × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE；blot for 3 seconds before plunging
Resolution 2.52 Å
7WYI Native Photosystem I of Chlamydomonas reinhardtii Deposited 2022-02-16 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 15 PDB declaration: pentadecameric
Chain E 1–97（97 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 155 PQN PHYLLOQUINONE × 2 SF4 IRON/SULFUR CLUSTER × 3 CHL CHLOROPHYLL B × 10 ELECTRON MICROSCOPY
cryo-EM buffer pH 6.5
cryo-EM vitrification conditions Cryogen ETHANE；2.6 microliter of sample were applied to cryo-grids and blotted for 4 seconds using Whatman #1 before plunge freezing.
Resolution 3.90 Å
7WZN PSI-LHCI from Chlamydomonas reinhardtii with bound ferredoxin Deposited 2022-02-18 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric
Chain E 1–97（97 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 188 PQN PHYLLOQUINONE × 2 SF4 IRON/SULFUR CLUSTER × 3 CHL CHLOROPHYLL B × 16 FES FE2/S2 (INORGANIC) CLUSTER × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 6.5
cryo-EM vitrification conditions Cryogen ETHANE；2.6 microliter of sample were applied to cryo-grids and blotted for 3.5 seconds using Whatman #1 before plunge freezing.
Resolution 4.90 Å
7ZQ9 Dimeric PSI of Chlamydomonas reinhardtii at 2.74 A resolution (symmetry expanded) Deposited 2022-04-29 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 24 PDB declaration: 24-meric
Chain E 1–97（97 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 226 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 16 BCR BETA-CAROTENE × 36 SF4 IRON/SULFUR CLUSTER × 3 LMU DODECYL-ALPHA-D-MALTOSIDE × 34 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 17 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 20 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 CHL CHLOROPHYLL B × 32 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 7 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.74 Å
7ZQC Monomeric PSI of Chlamydomonas reinhardtii at 2.31 A resolution Deposited 2022-04-29 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain E 1–97（97 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 198 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 15 BCR BETA-CAROTENE × 27 SF4 IRON/SULFUR CLUSTER × 3 LMU DODECYL-ALPHA-D-MALTOSIDE × 32 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 15 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 18 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 CHL CHLOROPHYLL B × 30 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 7 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.31 Å
7ZQD Dimeric PSI of Chlamydomonas reinhardtii at 2.97 A resolution Deposited 2022-04-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 40 PDB declaration: 40-meric
Chain E 1–97（97 aa）
Chain E2 1–97（97 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 2 CLA CHLOROPHYLL A × 396 PQN PHYLLOQUINONE × 4 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 30 BCR BETA-CAROTENE × 56 SF4 IRON/SULFUR CLUSTER × 6 LMU DODECYL-ALPHA-D-MALTOSIDE × 66 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 30 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 36 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 2 CHL CHLOROPHYLL B × 60 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 14 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.97 Å
8H2U X-ray Structure of photosystem I-LHCI super complex from Chlamydomonas reinhardtii. Deposited 2022-10-07 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain E 1–97（97 aa）
Not recorded CLA CHLOROPHYLL A × 185 SF4 IRON/SULFUR CLUSTER × 3 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 7 BCR BETA-CAROTENE × 27 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 2 LMT DODECYL-BETA-D-MALTOSIDE × 2 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 7 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 12 CHL CHLOROPHYLL B × 26 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；50 mM Tris-HCl (pH 7.0), 50 mM Li2SO4 and 4.5-7.0 % (w/v) polyethylene glycol (PEG) 6,000
Resolution 3.40 Å R-free 0.359
9SE6 Structure of Photosystem I from Chlamydomonas reinhardtii at 1.83 A resolution Deposited 2025-08-15 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 19 PDB declaration: 19-meric
Chain E 34–97（64 aa）
Not recorded CLA CHLOROPHYLL A × 188 CHL CHLOROPHYLL B × 28 BCR BETA-CAROTENE × 27 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 16 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 12 LMU DODECYL-ALPHA-D-MALTOSIDE × 27 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 7 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 14 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 2 CL0 CHLOROPHYLL A ISOMER × 1 PQN PHYLLOQUINONE × 2 SF4 IRON/SULFUR CLUSTER × 3 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；5mM HEPES, pH 7.5, 0.02% alphaDDM
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 1.83 Å
9SE7 Structure of Cytochrome C6 bound Photosystem I from Chlamydomonas reinhardtii at 2.07 A resolution Deposited 2025-08-15 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain E 34–97（64 aa）
Not recorded CLA CHLOROPHYLL A × 91 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 3 BCR BETA-CAROTENE × 15 SF4 IRON/SULFUR CLUSTER × 3 LMU DODECYL-ALPHA-D-MALTOSIDE × 3 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 5 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 2 HEC HEME C × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；5mM HEPES, pH 7.5, 0.02% alphaDDM
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.06 Å

16 other PDB entries and 16 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name PSAE_CHLRE
Isoform —
PDB entities 5
Chains and sequence ranges Author chain E； PDBConstruct 1–63； UniProt 34–96

Photosystem I reaction center subunit III, chloroplastic

OrganismNot specified

UniProt P12356

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 19 PDB declaration: nonadecameric（19） Consistent with protein copy count Chain F； UniProt 63–227 Not recorded Photosystem I P700 chlorophyll a apoprotein A1 × 1 （P12154） Photosystem I P700 chlorophyll a apoprotein A2 × 1 （P09144） Photosystem I iron-sulfur center × 1 （Q00914） Photosystem I reaction center subunit II, chloroplastic × 1 （Q39615） Photosystem I reaction center subunit IV, chloroplastic × 1 （P12352） Photosystem I reaction center subunit V, chloroplastic × 1 （P14224） Photosystem I reaction center subunit VIII × 1 （A8IFG7） Photosystem I reaction center subunit IX × 1 （P59777） Photosystem I reaction center subunit psaK, chloroplastic × 1 （P14225） PSI subunit V × 1 （A8IL32） Chlorophyll a-b binding protein, chloroplastic × 2 （Q7DM26） Chlorophyll a-b binding protein, chloroplastic × 1 （Q75VY9） Chlorophyll a-b binding protein, chloroplastic × 1 （Q84Y02） Chlorophyll a-b binding protein, chloroplastic × 1 （Q75VY7） Chlorophyll a-b binding protein, chloroplastic × 1 （Q75VZ0） Chlorophyll a-b binding protein, chloroplastic × 1 （Q75VY8） Chlorophyll a-b binding protein, chloroplastic × 1 （Q75VY6） CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 197 PQN PHYLLOQUINONE × 2 SF4 IRON/SULFUR CLUSTER × 3 BCR BETA-CAROTENE × 31 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 14 NKP (2R)-2-hydroxy-3-(phosphonooxy)propyl (9E)-octadec-9-enoate × 3 LMT DODECYL-BETA-D-MALTOSIDE × 7 OCA OCTANOIC ACID (CAPRYLIC ACID) × 1 DAO LAURIC ACID × 1 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 2 DGA DIACYL GLYCEROL × 1 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 CA CALCIUM ION × 1 RRX (3R)-beta,beta-caroten-3-ol × 1 C7Z (1~{S})-3,5,5-trimethyl-4-[(1~{E},3~{E},5~{E},7~{E},9~{E},11~{E},13~{E},15~{E},17~{E})-3,7,12,16-tetramethyl-18-[(4~{S})-2,6,6-trimethyl-4-oxidanyl-cyclohexen-1-yl]octadeca-1,3,5,7,9,11,13,15,17-nonaenyl]cyclohex-3-en-1-ol × 3 SPH SPHINGOSINE × 3 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 17 CHL CHLOROPHYLL B × 20 SQD 1,2-DI-O-ACYL-3-O-[6-DEOXY-6-SULFO-ALPHA-D-GLUCOPYRANOSYL]-SN-GLYCEROL × 1 QTB (3~{E},5~{E},7~{E})-6-methyl-8-[(6~{R})-2,2,6-trimethylcyclohexyl]octa-3,5,7-trien-2-one × 1 3PH 1,2-DIACYL-GLYCEROL-3-SN-PHOSPHATE × 4 PLM PALMITIC ACID × 1 LPX (2S)-3-{[(R)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-hydroxypropyl hexadecanoate × 1 ELECTRON MICROSCOPY cryo-EM buffer：pH 8 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 3.15 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 7BLX Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
6JO5 Structure of the green algal photosystem I supercomplex with light-harvesting complex I Deposited 2019-03-20 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain F 63–227（165 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 218 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 12 BCR BETA-CAROTENE × 32 SF4 IRON/SULFUR CLUSTER × 3 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 2 CHL CHLOROPHYLL B × 20 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 22 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
6JO6 Structure of the green algal photosystem I supercomplex with light-harvesting complex I Deposited 2019-03-20 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 19 PDB declaration: nonadecameric
Chain F 63–227（165 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 197 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 12 BCR BETA-CAROTENE × 32 SF4 IRON/SULFUR CLUSTER × 3 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 1 CHL CHLOROPHYLL B × 18 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 18 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
7BGI Photosystem I of a temperature sensitive mutant Chlamydomonas reinhardtii Deposited 2021-01-07 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain F 63–227（165 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 217 PQN PHYLLOQUINONE × 2 SF4 IRON/SULFUR CLUSTER × 3 BCR BETA-CAROTENE × 31 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 16 NKP (2R)-2-hydroxy-3-(phosphonooxy)propyl (9E)-octadec-9-enoate × 3 LMT DODECYL-BETA-D-MALTOSIDE × 8 OCA OCTANOIC ACID (CAPRYLIC ACID) × 1 DAO LAURIC ACID × 1 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 2 DGA DIACYL GLYCEROL × 2 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 CA CALCIUM ION × 1 T7X Phosphatidylinositol × 1 RRX (3R)-beta,beta-caroten-3-ol × 1 C7Z (1~{S})-3,5,5-trimethyl-4-[(1~{E},3~{E},5~{E},7~{E},9~{E},11~{E},13~{E},15~{E},17~{E})-3,7,12,16-tetramethyl-18-[(4~{S})-2,6,6-trimethyl-4-oxidanyl-cyclohexen-1-yl]octadeca-1,3,5,7,9,11,13,15,17-nonaenyl]cyclohex-3-en-1-ol × 3 SPH SPHINGOSINE × 3 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 22 CHL CHLOROPHYLL B × 25 SQD 1,2-DI-O-ACYL-3-O-[6-DEOXY-6-SULFO-ALPHA-D-GLUCOPYRANOSYL]-SN-GLYCEROL × 2 QTB (3~{E},5~{E},7~{E})-6-methyl-8-[(6~{R})-2,2,6-trimethylcyclohexyl]octa-3,5,7-trien-2-one × 1 3PH 1,2-DIACYL-GLYCEROL-3-SN-PHOSPHATE × 5 PLM PALMITIC ACID × 1 LPX (2S)-3-{[(R)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-hydroxypropyl hexadecanoate × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.54 Å
7D0J Photosystem I-LHCI-LHCII of Chlamydomonas reinhardtii Deposited 2020-09-10 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 29 PDB declaration: 29-meric
Chain F 63–227（165 aa）
Not recorded CLA CHLOROPHYLL A × 276 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 20 BCR BETA-CAROTENE × 37 SF4 IRON/SULFUR CLUSTER × 3 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 2 SQD 1,2-DI-O-ACYL-3-O-[6-DEOXY-6-SULFO-ALPHA-D-GLUCOPYRANOSYL]-SN-GLYCEROL × 1 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 10 CHL CHLOROPHYLL B × 56 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 34 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 6 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.42 Å
7DZ7 State transition supercomplex PSI-LHCI-LHCII from double phosphatase mutant pph1;pbcp of green alga Chlamydomonas reinhardtii Deposited 2021-01-23 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 29 PDB declaration: 29-meric
Chain F 1–227（227 aa）
Not recorded CLA CHLOROPHYLL A × 298 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 27 BCR BETA-CAROTENE × 40 SF4 IRON/SULFUR CLUSTER × 3 LMU DODECYL-ALPHA-D-MALTOSIDE × 7 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 11 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 22 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 16 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 8 CHL CHLOROPHYLL B × 36 ELECTRON MICROSCOPY
cryo-EM buffer pH 6.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.84 Å
7DZ8 State transition supercomplex PSI-LHCI-LHCII from the LhcbM1 lacking mutant of Chlamydomonas reinhardtii Deposited 2021-01-23 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 29 PDB declaration: 29-meric
Chain F 1–227（227 aa）
Not recorded CLA CHLOROPHYLL A × 298 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 27 BCR BETA-CAROTENE × 40 SF4 IRON/SULFUR CLUSTER × 3 LMU DODECYL-ALPHA-D-MALTOSIDE × 7 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 11 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 22 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 16 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 8 CHL CHLOROPHYLL B × 36 ELECTRON MICROSCOPY
cryo-EM buffer pH 6.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.16 Å
7O01 Dimeric Photosystem I of a temperature sensitive mutant Chlamydomonas reinhardtii Deposited 2021-03-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 40 PDB declaration: 40-meric
Chain F 63–227（165 aa）
Chain f 63–227（165 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 17.10 Å
7R3K Chlamydomonas reinhardtii TSP9 mutant small Photosystem I complex Deposited 2022-02-07 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 18 PDB declaration: octadecameric
Chain F 1–227（227 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 186 PQN PHYLLOQUINONE × 2 SF4 IRON/SULFUR CLUSTER × 3 BCR BETA-CAROTENE × 28 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 12 LMT DODECYL-BETA-D-MALTOSIDE × 16 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 CA CALCIUM ION × 1 RRX (3R)-beta,beta-caroten-3-ol × 3 C7Z (1~{S})-3,5,5-trimethyl-4-[(1~{E},3~{E},5~{E},7~{E},9~{E},11~{E},13~{E},15~{E},17~{E})-3,7,12,16-tetramethyl-18-[(4~{S})-2,6,6-trimethyl-4-oxidanyl-cyclohexen-1-yl]octadeca-1,3,5,7,9,11,13,15,17-nonaenyl]cyclohex-3-en-1-ol × 3 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 3 DAO LAURIC ACID × 1 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 14 CHL CHLOROPHYLL B × 28 SPH SPHINGOSINE × 3 3PH 1,2-DIACYL-GLYCEROL-3-SN-PHOSPHATE × 4 DGA DIACYL GLYCEROL × 1 PLM PALMITIC ACID × 1 SQD 1,2-DI-O-ACYL-3-O-[6-DEOXY-6-SULFO-ALPHA-D-GLUCOPYRANOSYL]-SN-GLYCEROL × 1 ERG ERGOSTEROL × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE；blot for 3 seconds before plunging
Resolution 2.52 Å
7WYI Native Photosystem I of Chlamydomonas reinhardtii Deposited 2022-02-16 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 15 PDB declaration: pentadecameric
Chain F 1–227（227 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 155 PQN PHYLLOQUINONE × 2 SF4 IRON/SULFUR CLUSTER × 3 CHL CHLOROPHYLL B × 10 ELECTRON MICROSCOPY
cryo-EM buffer pH 6.5
cryo-EM vitrification conditions Cryogen ETHANE；2.6 microliter of sample were applied to cryo-grids and blotted for 4 seconds using Whatman #1 before plunge freezing.
Resolution 3.90 Å
7WZN PSI-LHCI from Chlamydomonas reinhardtii with bound ferredoxin Deposited 2022-02-18 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric
Chain F 1–227（227 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 188 PQN PHYLLOQUINONE × 2 SF4 IRON/SULFUR CLUSTER × 3 CHL CHLOROPHYLL B × 16 FES FE2/S2 (INORGANIC) CLUSTER × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 6.5
cryo-EM vitrification conditions Cryogen ETHANE；2.6 microliter of sample were applied to cryo-grids and blotted for 3.5 seconds using Whatman #1 before plunge freezing.
Resolution 4.90 Å
7ZQ9 Dimeric PSI of Chlamydomonas reinhardtii at 2.74 A resolution (symmetry expanded) Deposited 2022-04-29 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 24 PDB declaration: 24-meric
Chain F 1–227（227 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 226 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 16 BCR BETA-CAROTENE × 36 SF4 IRON/SULFUR CLUSTER × 3 LMU DODECYL-ALPHA-D-MALTOSIDE × 34 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 17 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 20 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 CHL CHLOROPHYLL B × 32 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 7 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.74 Å
7ZQC Monomeric PSI of Chlamydomonas reinhardtii at 2.31 A resolution Deposited 2022-04-29 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain F 1–227（227 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 198 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 15 BCR BETA-CAROTENE × 27 SF4 IRON/SULFUR CLUSTER × 3 LMU DODECYL-ALPHA-D-MALTOSIDE × 32 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 15 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 18 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 CHL CHLOROPHYLL B × 30 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 7 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.31 Å
7ZQD Dimeric PSI of Chlamydomonas reinhardtii at 2.97 A resolution Deposited 2022-04-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 40 PDB declaration: 40-meric
Chain F 1–227（227 aa）
Chain F2 1–227（227 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 2 CLA CHLOROPHYLL A × 396 PQN PHYLLOQUINONE × 4 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 30 BCR BETA-CAROTENE × 56 SF4 IRON/SULFUR CLUSTER × 6 LMU DODECYL-ALPHA-D-MALTOSIDE × 66 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 30 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 36 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 2 CHL CHLOROPHYLL B × 60 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 14 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.97 Å
8H2U X-ray Structure of photosystem I-LHCI super complex from Chlamydomonas reinhardtii. Deposited 2022-10-07 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain F 1–227（227 aa）
Not recorded CLA CHLOROPHYLL A × 185 SF4 IRON/SULFUR CLUSTER × 3 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 7 BCR BETA-CAROTENE × 27 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 2 LMT DODECYL-BETA-D-MALTOSIDE × 2 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 7 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 12 CHL CHLOROPHYLL B × 26 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；50 mM Tris-HCl (pH 7.0), 50 mM Li2SO4 and 4.5-7.0 % (w/v) polyethylene glycol (PEG) 6,000
Resolution 3.40 Å R-free 0.359
9SE6 Structure of Photosystem I from Chlamydomonas reinhardtii at 1.83 A resolution Deposited 2025-08-15 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 19 PDB declaration: 19-meric
Chain F 63–227（165 aa）
Not recorded CLA CHLOROPHYLL A × 188 CHL CHLOROPHYLL B × 28 BCR BETA-CAROTENE × 27 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 16 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 12 LMU DODECYL-ALPHA-D-MALTOSIDE × 27 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 7 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 14 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 2 CL0 CHLOROPHYLL A ISOMER × 1 PQN PHYLLOQUINONE × 2 SF4 IRON/SULFUR CLUSTER × 3 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；5mM HEPES, pH 7.5, 0.02% alphaDDM
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 1.83 Å
9SE7 Structure of Cytochrome C6 bound Photosystem I from Chlamydomonas reinhardtii at 2.07 A resolution Deposited 2025-08-15 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain F 63–227（165 aa）
Not recorded CLA CHLOROPHYLL A × 91 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 3 BCR BETA-CAROTENE × 15 SF4 IRON/SULFUR CLUSTER × 3 LMU DODECYL-ALPHA-D-MALTOSIDE × 3 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 5 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 2 HEC HEME C × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；5mM HEPES, pH 7.5, 0.02% alphaDDM
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.06 Å

16 other PDB entries and 16 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name PSAF_CHLRE
Isoform —
PDB entities 6
Chains and sequence ranges Author chain F； PDBConstruct 1–165； UniProt 63–227

Photosystem I reaction center subunit V, chloroplastic

OrganismNot specified

UniProt P14224

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 19 PDB declaration: nonadecameric（19） Consistent with protein copy count Chain G； UniProt 32–122 Not recorded Photosystem I P700 chlorophyll a apoprotein A1 × 1 （P12154） Photosystem I P700 chlorophyll a apoprotein A2 × 1 （P09144） Photosystem I iron-sulfur center × 1 （Q00914） Photosystem I reaction center subunit II, chloroplastic × 1 （Q39615） Photosystem I reaction center subunit IV, chloroplastic × 1 （P12352） Photosystem I reaction center subunit III, chloroplastic × 1 （P12356） Photosystem I reaction center subunit VIII × 1 （A8IFG7） Photosystem I reaction center subunit IX × 1 （P59777） Photosystem I reaction center subunit psaK, chloroplastic × 1 （P14225） PSI subunit V × 1 （A8IL32） Chlorophyll a-b binding protein, chloroplastic × 2 （Q7DM26） Chlorophyll a-b binding protein, chloroplastic × 1 （Q75VY9） Chlorophyll a-b binding protein, chloroplastic × 1 （Q84Y02） Chlorophyll a-b binding protein, chloroplastic × 1 （Q75VY7） Chlorophyll a-b binding protein, chloroplastic × 1 （Q75VZ0） Chlorophyll a-b binding protein, chloroplastic × 1 （Q75VY8） Chlorophyll a-b binding protein, chloroplastic × 1 （Q75VY6） CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 197 PQN PHYLLOQUINONE × 2 SF4 IRON/SULFUR CLUSTER × 3 BCR BETA-CAROTENE × 31 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 14 NKP (2R)-2-hydroxy-3-(phosphonooxy)propyl (9E)-octadec-9-enoate × 3 LMT DODECYL-BETA-D-MALTOSIDE × 7 OCA OCTANOIC ACID (CAPRYLIC ACID) × 1 DAO LAURIC ACID × 1 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 2 DGA DIACYL GLYCEROL × 1 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 CA CALCIUM ION × 1 RRX (3R)-beta,beta-caroten-3-ol × 1 C7Z (1~{S})-3,5,5-trimethyl-4-[(1~{E},3~{E},5~{E},7~{E},9~{E},11~{E},13~{E},15~{E},17~{E})-3,7,12,16-tetramethyl-18-[(4~{S})-2,6,6-trimethyl-4-oxidanyl-cyclohexen-1-yl]octadeca-1,3,5,7,9,11,13,15,17-nonaenyl]cyclohex-3-en-1-ol × 3 SPH SPHINGOSINE × 3 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 17 CHL CHLOROPHYLL B × 20 SQD 1,2-DI-O-ACYL-3-O-[6-DEOXY-6-SULFO-ALPHA-D-GLUCOPYRANOSYL]-SN-GLYCEROL × 1 QTB (3~{E},5~{E},7~{E})-6-methyl-8-[(6~{R})-2,2,6-trimethylcyclohexyl]octa-3,5,7-trien-2-one × 1 3PH 1,2-DIACYL-GLYCEROL-3-SN-PHOSPHATE × 4 PLM PALMITIC ACID × 1 LPX (2S)-3-{[(R)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-hydroxypropyl hexadecanoate × 1 ELECTRON MICROSCOPY cryo-EM buffer：pH 8 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 3.15 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 7BLX Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
6JO5 Structure of the green algal photosystem I supercomplex with light-harvesting complex I Deposited 2019-03-20 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain G 31–124（94 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 218 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 12 BCR BETA-CAROTENE × 32 SF4 IRON/SULFUR CLUSTER × 3 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 2 CHL CHLOROPHYLL B × 20 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 22 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
6JO6 Structure of the green algal photosystem I supercomplex with light-harvesting complex I Deposited 2019-03-20 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 19 PDB declaration: nonadecameric
Chain G 31–124（94 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 197 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 12 BCR BETA-CAROTENE × 32 SF4 IRON/SULFUR CLUSTER × 3 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 1 CHL CHLOROPHYLL B × 18 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 18 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
7BGI Photosystem I of a temperature sensitive mutant Chlamydomonas reinhardtii Deposited 2021-01-07 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain G 32–122（91 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 217 PQN PHYLLOQUINONE × 2 SF4 IRON/SULFUR CLUSTER × 3 BCR BETA-CAROTENE × 31 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 16 NKP (2R)-2-hydroxy-3-(phosphonooxy)propyl (9E)-octadec-9-enoate × 3 LMT DODECYL-BETA-D-MALTOSIDE × 8 OCA OCTANOIC ACID (CAPRYLIC ACID) × 1 DAO LAURIC ACID × 1 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 2 DGA DIACYL GLYCEROL × 2 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 CA CALCIUM ION × 1 T7X Phosphatidylinositol × 1 RRX (3R)-beta,beta-caroten-3-ol × 1 C7Z (1~{S})-3,5,5-trimethyl-4-[(1~{E},3~{E},5~{E},7~{E},9~{E},11~{E},13~{E},15~{E},17~{E})-3,7,12,16-tetramethyl-18-[(4~{S})-2,6,6-trimethyl-4-oxidanyl-cyclohexen-1-yl]octadeca-1,3,5,7,9,11,13,15,17-nonaenyl]cyclohex-3-en-1-ol × 3 SPH SPHINGOSINE × 3 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 22 CHL CHLOROPHYLL B × 25 SQD 1,2-DI-O-ACYL-3-O-[6-DEOXY-6-SULFO-ALPHA-D-GLUCOPYRANOSYL]-SN-GLYCEROL × 2 QTB (3~{E},5~{E},7~{E})-6-methyl-8-[(6~{R})-2,2,6-trimethylcyclohexyl]octa-3,5,7-trien-2-one × 1 3PH 1,2-DIACYL-GLYCEROL-3-SN-PHOSPHATE × 5 PLM PALMITIC ACID × 1 LPX (2S)-3-{[(R)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-hydroxypropyl hexadecanoate × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.54 Å
7D0J Photosystem I-LHCI-LHCII of Chlamydomonas reinhardtii Deposited 2020-09-10 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 29 PDB declaration: 29-meric
Chain G 32–122（91 aa）
Not recorded CLA CHLOROPHYLL A × 276 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 20 BCR BETA-CAROTENE × 37 SF4 IRON/SULFUR CLUSTER × 3 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 2 SQD 1,2-DI-O-ACYL-3-O-[6-DEOXY-6-SULFO-ALPHA-D-GLUCOPYRANOSYL]-SN-GLYCEROL × 1 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 10 CHL CHLOROPHYLL B × 56 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 34 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 6 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.42 Å
7DZ7 State transition supercomplex PSI-LHCI-LHCII from double phosphatase mutant pph1;pbcp of green alga Chlamydomonas reinhardtii Deposited 2021-01-23 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 29 PDB declaration: 29-meric
Chain G 1–126（126 aa）
Not recorded CLA CHLOROPHYLL A × 298 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 27 BCR BETA-CAROTENE × 40 SF4 IRON/SULFUR CLUSTER × 3 LMU DODECYL-ALPHA-D-MALTOSIDE × 7 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 11 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 22 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 16 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 8 CHL CHLOROPHYLL B × 36 ELECTRON MICROSCOPY
cryo-EM buffer pH 6.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.84 Å
7DZ8 State transition supercomplex PSI-LHCI-LHCII from the LhcbM1 lacking mutant of Chlamydomonas reinhardtii Deposited 2021-01-23 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 29 PDB declaration: 29-meric
Chain G 1–126（126 aa）
Not recorded CLA CHLOROPHYLL A × 298 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 27 BCR BETA-CAROTENE × 40 SF4 IRON/SULFUR CLUSTER × 3 LMU DODECYL-ALPHA-D-MALTOSIDE × 7 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 11 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 22 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 16 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 8 CHL CHLOROPHYLL B × 36 ELECTRON MICROSCOPY
cryo-EM buffer pH 6.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.16 Å
7O01 Dimeric Photosystem I of a temperature sensitive mutant Chlamydomonas reinhardtii Deposited 2021-03-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 40 PDB declaration: 40-meric
Chain G 32–122（91 aa）
Chain g 32–122（91 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 17.10 Å
7R3K Chlamydomonas reinhardtii TSP9 mutant small Photosystem I complex Deposited 2022-02-07 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 18 PDB declaration: octadecameric
Chain G 1–126（126 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 186 PQN PHYLLOQUINONE × 2 SF4 IRON/SULFUR CLUSTER × 3 BCR BETA-CAROTENE × 28 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 12 LMT DODECYL-BETA-D-MALTOSIDE × 16 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 CA CALCIUM ION × 1 RRX (3R)-beta,beta-caroten-3-ol × 3 C7Z (1~{S})-3,5,5-trimethyl-4-[(1~{E},3~{E},5~{E},7~{E},9~{E},11~{E},13~{E},15~{E},17~{E})-3,7,12,16-tetramethyl-18-[(4~{S})-2,6,6-trimethyl-4-oxidanyl-cyclohexen-1-yl]octadeca-1,3,5,7,9,11,13,15,17-nonaenyl]cyclohex-3-en-1-ol × 3 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 3 DAO LAURIC ACID × 1 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 14 CHL CHLOROPHYLL B × 28 SPH SPHINGOSINE × 3 3PH 1,2-DIACYL-GLYCEROL-3-SN-PHOSPHATE × 4 DGA DIACYL GLYCEROL × 1 PLM PALMITIC ACID × 1 SQD 1,2-DI-O-ACYL-3-O-[6-DEOXY-6-SULFO-ALPHA-D-GLUCOPYRANOSYL]-SN-GLYCEROL × 1 ERG ERGOSTEROL × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE；blot for 3 seconds before plunging
Resolution 2.52 Å
7ZQ9 Dimeric PSI of Chlamydomonas reinhardtii at 2.74 A resolution (symmetry expanded) Deposited 2022-04-29 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 24 PDB declaration: 24-meric
Chain G 1–126（126 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 226 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 16 BCR BETA-CAROTENE × 36 SF4 IRON/SULFUR CLUSTER × 3 LMU DODECYL-ALPHA-D-MALTOSIDE × 34 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 17 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 20 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 CHL CHLOROPHYLL B × 32 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 7 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.74 Å
7ZQC Monomeric PSI of Chlamydomonas reinhardtii at 2.31 A resolution Deposited 2022-04-29 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain G 1–126（126 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 198 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 15 BCR BETA-CAROTENE × 27 SF4 IRON/SULFUR CLUSTER × 3 LMU DODECYL-ALPHA-D-MALTOSIDE × 32 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 15 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 18 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 CHL CHLOROPHYLL B × 30 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 7 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.31 Å
7ZQD Dimeric PSI of Chlamydomonas reinhardtii at 2.97 A resolution Deposited 2022-04-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 40 PDB declaration: 40-meric
Chain G 1–126（126 aa）
Chain G2 1–126（126 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 2 CLA CHLOROPHYLL A × 396 PQN PHYLLOQUINONE × 4 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 30 BCR BETA-CAROTENE × 56 SF4 IRON/SULFUR CLUSTER × 6 LMU DODECYL-ALPHA-D-MALTOSIDE × 66 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 30 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 36 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 2 CHL CHLOROPHYLL B × 60 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 14 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.97 Å
8H2U X-ray Structure of photosystem I-LHCI super complex from Chlamydomonas reinhardtii. Deposited 2022-10-07 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain G 1–126（126 aa）
Not recorded CLA CHLOROPHYLL A × 185 SF4 IRON/SULFUR CLUSTER × 3 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 7 BCR BETA-CAROTENE × 27 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 2 LMT DODECYL-BETA-D-MALTOSIDE × 2 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 7 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 12 CHL CHLOROPHYLL B × 26 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；50 mM Tris-HCl (pH 7.0), 50 mM Li2SO4 and 4.5-7.0 % (w/v) polyethylene glycol (PEG) 6,000
Resolution 3.40 Å R-free 0.359
9SE6 Structure of Photosystem I from Chlamydomonas reinhardtii at 1.83 A resolution Deposited 2025-08-15 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 19 PDB declaration: 19-meric
Chain G 32–126（95 aa）
Not recorded CLA CHLOROPHYLL A × 188 CHL CHLOROPHYLL B × 28 BCR BETA-CAROTENE × 27 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 16 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 12 LMU DODECYL-ALPHA-D-MALTOSIDE × 27 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 7 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 14 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 2 CL0 CHLOROPHYLL A ISOMER × 1 PQN PHYLLOQUINONE × 2 SF4 IRON/SULFUR CLUSTER × 3 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；5mM HEPES, pH 7.5, 0.02% alphaDDM
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 1.83 Å

13 other PDB entries and 13 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name PSAG_CHLRE
Isoform —
PDB entities 7
Chains and sequence ranges Author chain G； PDBConstruct 1–91； UniProt 32–122

Photosystem I reaction center subunit VIII

OrganismNot specified

UniProt A8IFG7

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 19 PDB declaration: nonadecameric（19） Consistent with protein copy count Chain I； UniProt 68–104 Not recorded Photosystem I P700 chlorophyll a apoprotein A1 × 1 （P12154） Photosystem I P700 chlorophyll a apoprotein A2 × 1 （P09144） Photosystem I iron-sulfur center × 1 （Q00914） Photosystem I reaction center subunit II, chloroplastic × 1 （Q39615） Photosystem I reaction center subunit IV, chloroplastic × 1 （P12352） Photosystem I reaction center subunit III, chloroplastic × 1 （P12356） Photosystem I reaction center subunit V, chloroplastic × 1 （P14224） Photosystem I reaction center subunit IX × 1 （P59777） Photosystem I reaction center subunit psaK, chloroplastic × 1 （P14225） PSI subunit V × 1 （A8IL32） Chlorophyll a-b binding protein, chloroplastic × 2 （Q7DM26） Chlorophyll a-b binding protein, chloroplastic × 1 （Q75VY9） Chlorophyll a-b binding protein, chloroplastic × 1 （Q84Y02） Chlorophyll a-b binding protein, chloroplastic × 1 （Q75VY7） Chlorophyll a-b binding protein, chloroplastic × 1 （Q75VZ0） Chlorophyll a-b binding protein, chloroplastic × 1 （Q75VY8） Chlorophyll a-b binding protein, chloroplastic × 1 （Q75VY6） CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 197 PQN PHYLLOQUINONE × 2 SF4 IRON/SULFUR CLUSTER × 3 BCR BETA-CAROTENE × 31 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 14 NKP (2R)-2-hydroxy-3-(phosphonooxy)propyl (9E)-octadec-9-enoate × 3 LMT DODECYL-BETA-D-MALTOSIDE × 7 OCA OCTANOIC ACID (CAPRYLIC ACID) × 1 DAO LAURIC ACID × 1 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 2 DGA DIACYL GLYCEROL × 1 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 CA CALCIUM ION × 1 RRX (3R)-beta,beta-caroten-3-ol × 1 C7Z (1~{S})-3,5,5-trimethyl-4-[(1~{E},3~{E},5~{E},7~{E},9~{E},11~{E},13~{E},15~{E},17~{E})-3,7,12,16-tetramethyl-18-[(4~{S})-2,6,6-trimethyl-4-oxidanyl-cyclohexen-1-yl]octadeca-1,3,5,7,9,11,13,15,17-nonaenyl]cyclohex-3-en-1-ol × 3 SPH SPHINGOSINE × 3 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 17 CHL CHLOROPHYLL B × 20 SQD 1,2-DI-O-ACYL-3-O-[6-DEOXY-6-SULFO-ALPHA-D-GLUCOPYRANOSYL]-SN-GLYCEROL × 1 QTB (3~{E},5~{E},7~{E})-6-methyl-8-[(6~{R})-2,2,6-trimethylcyclohexyl]octa-3,5,7-trien-2-one × 1 3PH 1,2-DIACYL-GLYCEROL-3-SN-PHOSPHATE × 4 PLM PALMITIC ACID × 1 LPX (2S)-3-{[(R)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-hydroxypropyl hexadecanoate × 1 ELECTRON MICROSCOPY cryo-EM buffer：pH 8 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 3.15 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 7BLX Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
6JO5 Structure of the green algal photosystem I supercomplex with light-harvesting complex I Deposited 2019-03-20 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain I 1–106（106 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 218 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 12 BCR BETA-CAROTENE × 32 SF4 IRON/SULFUR CLUSTER × 3 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 2 CHL CHLOROPHYLL B × 20 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 22 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
6JO6 Structure of the green algal photosystem I supercomplex with light-harvesting complex I Deposited 2019-03-20 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 19 PDB declaration: nonadecameric
Chain I 1–106（106 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 197 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 12 BCR BETA-CAROTENE × 32 SF4 IRON/SULFUR CLUSTER × 3 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 1 CHL CHLOROPHYLL B × 18 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 18 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
7BGI Photosystem I of a temperature sensitive mutant Chlamydomonas reinhardtii Deposited 2021-01-07 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain I 68–104（37 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 217 PQN PHYLLOQUINONE × 2 SF4 IRON/SULFUR CLUSTER × 3 BCR BETA-CAROTENE × 31 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 16 NKP (2R)-2-hydroxy-3-(phosphonooxy)propyl (9E)-octadec-9-enoate × 3 LMT DODECYL-BETA-D-MALTOSIDE × 8 OCA OCTANOIC ACID (CAPRYLIC ACID) × 1 DAO LAURIC ACID × 1 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 2 DGA DIACYL GLYCEROL × 2 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 CA CALCIUM ION × 1 T7X Phosphatidylinositol × 1 RRX (3R)-beta,beta-caroten-3-ol × 1 C7Z (1~{S})-3,5,5-trimethyl-4-[(1~{E},3~{E},5~{E},7~{E},9~{E},11~{E},13~{E},15~{E},17~{E})-3,7,12,16-tetramethyl-18-[(4~{S})-2,6,6-trimethyl-4-oxidanyl-cyclohexen-1-yl]octadeca-1,3,5,7,9,11,13,15,17-nonaenyl]cyclohex-3-en-1-ol × 3 SPH SPHINGOSINE × 3 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 22 CHL CHLOROPHYLL B × 25 SQD 1,2-DI-O-ACYL-3-O-[6-DEOXY-6-SULFO-ALPHA-D-GLUCOPYRANOSYL]-SN-GLYCEROL × 2 QTB (3~{E},5~{E},7~{E})-6-methyl-8-[(6~{R})-2,2,6-trimethylcyclohexyl]octa-3,5,7-trien-2-one × 1 3PH 1,2-DIACYL-GLYCEROL-3-SN-PHOSPHATE × 5 PLM PALMITIC ACID × 1 LPX (2S)-3-{[(R)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-hydroxypropyl hexadecanoate × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.54 Å
7D0J Photosystem I-LHCI-LHCII of Chlamydomonas reinhardtii Deposited 2020-09-10 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 29 PDB declaration: 29-meric
Chain I 68–104（37 aa）
Not recorded CLA CHLOROPHYLL A × 276 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 20 BCR BETA-CAROTENE × 37 SF4 IRON/SULFUR CLUSTER × 3 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 2 SQD 1,2-DI-O-ACYL-3-O-[6-DEOXY-6-SULFO-ALPHA-D-GLUCOPYRANOSYL]-SN-GLYCEROL × 1 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 10 CHL CHLOROPHYLL B × 56 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 34 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 6 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.42 Å
7DZ7 State transition supercomplex PSI-LHCI-LHCII from double phosphatase mutant pph1;pbcp of green alga Chlamydomonas reinhardtii Deposited 2021-01-23 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 29 PDB declaration: 29-meric
Chain I 1–106（106 aa）
Not recorded CLA CHLOROPHYLL A × 298 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 27 BCR BETA-CAROTENE × 40 SF4 IRON/SULFUR CLUSTER × 3 LMU DODECYL-ALPHA-D-MALTOSIDE × 7 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 11 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 22 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 16 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 8 CHL CHLOROPHYLL B × 36 ELECTRON MICROSCOPY
cryo-EM buffer pH 6.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.84 Å
7DZ8 State transition supercomplex PSI-LHCI-LHCII from the LhcbM1 lacking mutant of Chlamydomonas reinhardtii Deposited 2021-01-23 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 29 PDB declaration: 29-meric
Chain I 1–106（106 aa）
Not recorded CLA CHLOROPHYLL A × 298 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 27 BCR BETA-CAROTENE × 40 SF4 IRON/SULFUR CLUSTER × 3 LMU DODECYL-ALPHA-D-MALTOSIDE × 7 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 11 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 22 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 16 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 8 CHL CHLOROPHYLL B × 36 ELECTRON MICROSCOPY
cryo-EM buffer pH 6.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.16 Å
7O01 Dimeric Photosystem I of a temperature sensitive mutant Chlamydomonas reinhardtii Deposited 2021-03-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 40 PDB declaration: 40-meric
Chain I 68–104（37 aa）
Chain i 68–104（37 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 17.10 Å
7R3K Chlamydomonas reinhardtii TSP9 mutant small Photosystem I complex Deposited 2022-02-07 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 18 PDB declaration: octadecameric
Chain I 1–106（106 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 186 PQN PHYLLOQUINONE × 2 SF4 IRON/SULFUR CLUSTER × 3 BCR BETA-CAROTENE × 28 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 12 LMT DODECYL-BETA-D-MALTOSIDE × 16 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 CA CALCIUM ION × 1 RRX (3R)-beta,beta-caroten-3-ol × 3 C7Z (1~{S})-3,5,5-trimethyl-4-[(1~{E},3~{E},5~{E},7~{E},9~{E},11~{E},13~{E},15~{E},17~{E})-3,7,12,16-tetramethyl-18-[(4~{S})-2,6,6-trimethyl-4-oxidanyl-cyclohexen-1-yl]octadeca-1,3,5,7,9,11,13,15,17-nonaenyl]cyclohex-3-en-1-ol × 3 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 3 DAO LAURIC ACID × 1 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 14 CHL CHLOROPHYLL B × 28 SPH SPHINGOSINE × 3 3PH 1,2-DIACYL-GLYCEROL-3-SN-PHOSPHATE × 4 DGA DIACYL GLYCEROL × 1 PLM PALMITIC ACID × 1 SQD 1,2-DI-O-ACYL-3-O-[6-DEOXY-6-SULFO-ALPHA-D-GLUCOPYRANOSYL]-SN-GLYCEROL × 1 ERG ERGOSTEROL × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE；blot for 3 seconds before plunging
Resolution 2.52 Å
7ZQ9 Dimeric PSI of Chlamydomonas reinhardtii at 2.74 A resolution (symmetry expanded) Deposited 2022-04-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 24 PDB declaration: 24-meric
Chain I 1–106（106 aa）
Chain I2 1–106（106 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 226 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 16 BCR BETA-CAROTENE × 36 SF4 IRON/SULFUR CLUSTER × 3 LMU DODECYL-ALPHA-D-MALTOSIDE × 34 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 17 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 20 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 CHL CHLOROPHYLL B × 32 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 7 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.74 Å
7ZQC Monomeric PSI of Chlamydomonas reinhardtii at 2.31 A resolution Deposited 2022-04-29 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain I 1–106（106 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 198 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 15 BCR BETA-CAROTENE × 27 SF4 IRON/SULFUR CLUSTER × 3 LMU DODECYL-ALPHA-D-MALTOSIDE × 32 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 15 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 18 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 CHL CHLOROPHYLL B × 30 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 7 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.31 Å
7ZQD Dimeric PSI of Chlamydomonas reinhardtii at 2.97 A resolution Deposited 2022-04-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 40 PDB declaration: 40-meric
Chain I 1–106（106 aa）
Chain I2 1–106（106 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 2 CLA CHLOROPHYLL A × 396 PQN PHYLLOQUINONE × 4 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 30 BCR BETA-CAROTENE × 56 SF4 IRON/SULFUR CLUSTER × 6 LMU DODECYL-ALPHA-D-MALTOSIDE × 66 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 30 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 36 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 2 CHL CHLOROPHYLL B × 60 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 14 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.97 Å
8H2U X-ray Structure of photosystem I-LHCI super complex from Chlamydomonas reinhardtii. Deposited 2022-10-07 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain I 1–106（106 aa）
Not recorded CLA CHLOROPHYLL A × 185 SF4 IRON/SULFUR CLUSTER × 3 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 7 BCR BETA-CAROTENE × 27 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 2 LMT DODECYL-BETA-D-MALTOSIDE × 2 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 7 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 12 CHL CHLOROPHYLL B × 26 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；50 mM Tris-HCl (pH 7.0), 50 mM Li2SO4 and 4.5-7.0 % (w/v) polyethylene glycol (PEG) 6,000
Resolution 3.40 Å R-free 0.359
9SE6 Structure of Photosystem I from Chlamydomonas reinhardtii at 1.83 A resolution Deposited 2025-08-15 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 19 PDB declaration: 19-meric
Chain I 68–104（37 aa）
Not recorded CLA CHLOROPHYLL A × 188 CHL CHLOROPHYLL B × 28 BCR BETA-CAROTENE × 27 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 16 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 12 LMU DODECYL-ALPHA-D-MALTOSIDE × 27 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 7 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 14 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 2 CL0 CHLOROPHYLL A ISOMER × 1 PQN PHYLLOQUINONE × 2 SF4 IRON/SULFUR CLUSTER × 3 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；5mM HEPES, pH 7.5, 0.02% alphaDDM
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 1.83 Å
9SE7 Structure of Cytochrome C6 bound Photosystem I from Chlamydomonas reinhardtii at 2.07 A resolution Deposited 2025-08-15 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain I 68–104（37 aa）
Not recorded CLA CHLOROPHYLL A × 91 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 3 BCR BETA-CAROTENE × 15 SF4 IRON/SULFUR CLUSTER × 3 LMU DODECYL-ALPHA-D-MALTOSIDE × 3 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 5 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 2 HEC HEME C × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；5mM HEPES, pH 7.5, 0.02% alphaDDM
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.06 Å

14 other PDB entries and 14 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name A8IFG7_CHLRE
Isoform —
PDB entities 8
Chains and sequence ranges Author chain I； PDBConstruct 1–37； UniProt 68–104

Photosystem I reaction center subunit IX

OrganismNot specified

UniProt P59777

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 19 PDB declaration: nonadecameric（19） Consistent with protein copy count Chain J； UniProt 1–39 Not recorded Photosystem I P700 chlorophyll a apoprotein A1 × 1 （P12154） Photosystem I P700 chlorophyll a apoprotein A2 × 1 （P09144） Photosystem I iron-sulfur center × 1 （Q00914） Photosystem I reaction center subunit II, chloroplastic × 1 （Q39615） Photosystem I reaction center subunit IV, chloroplastic × 1 （P12352） Photosystem I reaction center subunit III, chloroplastic × 1 （P12356） Photosystem I reaction center subunit V, chloroplastic × 1 （P14224） Photosystem I reaction center subunit VIII × 1 （A8IFG7） Photosystem I reaction center subunit psaK, chloroplastic × 1 （P14225） PSI subunit V × 1 （A8IL32） Chlorophyll a-b binding protein, chloroplastic × 2 （Q7DM26） Chlorophyll a-b binding protein, chloroplastic × 1 （Q75VY9） Chlorophyll a-b binding protein, chloroplastic × 1 （Q84Y02） Chlorophyll a-b binding protein, chloroplastic × 1 （Q75VY7） Chlorophyll a-b binding protein, chloroplastic × 1 （Q75VZ0） Chlorophyll a-b binding protein, chloroplastic × 1 （Q75VY8） Chlorophyll a-b binding protein, chloroplastic × 1 （Q75VY6） CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 197 PQN PHYLLOQUINONE × 2 SF4 IRON/SULFUR CLUSTER × 3 BCR BETA-CAROTENE × 31 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 14 NKP (2R)-2-hydroxy-3-(phosphonooxy)propyl (9E)-octadec-9-enoate × 3 LMT DODECYL-BETA-D-MALTOSIDE × 7 OCA OCTANOIC ACID (CAPRYLIC ACID) × 1 DAO LAURIC ACID × 1 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 2 DGA DIACYL GLYCEROL × 1 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 CA CALCIUM ION × 1 RRX (3R)-beta,beta-caroten-3-ol × 1 C7Z (1~{S})-3,5,5-trimethyl-4-[(1~{E},3~{E},5~{E},7~{E},9~{E},11~{E},13~{E},15~{E},17~{E})-3,7,12,16-tetramethyl-18-[(4~{S})-2,6,6-trimethyl-4-oxidanyl-cyclohexen-1-yl]octadeca-1,3,5,7,9,11,13,15,17-nonaenyl]cyclohex-3-en-1-ol × 3 SPH SPHINGOSINE × 3 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 17 CHL CHLOROPHYLL B × 20 SQD 1,2-DI-O-ACYL-3-O-[6-DEOXY-6-SULFO-ALPHA-D-GLUCOPYRANOSYL]-SN-GLYCEROL × 1 QTB (3~{E},5~{E},7~{E})-6-methyl-8-[(6~{R})-2,2,6-trimethylcyclohexyl]octa-3,5,7-trien-2-one × 1 3PH 1,2-DIACYL-GLYCEROL-3-SN-PHOSPHATE × 4 PLM PALMITIC ACID × 1 LPX (2S)-3-{[(R)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-hydroxypropyl hexadecanoate × 1 ELECTRON MICROSCOPY cryo-EM buffer：pH 8 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 3.15 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 7BLX Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
6JO5 Structure of the green algal photosystem I supercomplex with light-harvesting complex I Deposited 2019-03-20 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain J 1–41（41 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 218 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 12 BCR BETA-CAROTENE × 32 SF4 IRON/SULFUR CLUSTER × 3 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 2 CHL CHLOROPHYLL B × 20 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 22 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
6JO6 Structure of the green algal photosystem I supercomplex with light-harvesting complex I Deposited 2019-03-20 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 19 PDB declaration: nonadecameric
Chain J 1–41（41 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 197 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 12 BCR BETA-CAROTENE × 32 SF4 IRON/SULFUR CLUSTER × 3 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 1 CHL CHLOROPHYLL B × 18 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 18 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
7BGI Photosystem I of a temperature sensitive mutant Chlamydomonas reinhardtii Deposited 2021-01-07 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain J 1–39（39 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 217 PQN PHYLLOQUINONE × 2 SF4 IRON/SULFUR CLUSTER × 3 BCR BETA-CAROTENE × 31 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 16 NKP (2R)-2-hydroxy-3-(phosphonooxy)propyl (9E)-octadec-9-enoate × 3 LMT DODECYL-BETA-D-MALTOSIDE × 8 OCA OCTANOIC ACID (CAPRYLIC ACID) × 1 DAO LAURIC ACID × 1 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 2 DGA DIACYL GLYCEROL × 2 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 CA CALCIUM ION × 1 T7X Phosphatidylinositol × 1 RRX (3R)-beta,beta-caroten-3-ol × 1 C7Z (1~{S})-3,5,5-trimethyl-4-[(1~{E},3~{E},5~{E},7~{E},9~{E},11~{E},13~{E},15~{E},17~{E})-3,7,12,16-tetramethyl-18-[(4~{S})-2,6,6-trimethyl-4-oxidanyl-cyclohexen-1-yl]octadeca-1,3,5,7,9,11,13,15,17-nonaenyl]cyclohex-3-en-1-ol × 3 SPH SPHINGOSINE × 3 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 22 CHL CHLOROPHYLL B × 25 SQD 1,2-DI-O-ACYL-3-O-[6-DEOXY-6-SULFO-ALPHA-D-GLUCOPYRANOSYL]-SN-GLYCEROL × 2 QTB (3~{E},5~{E},7~{E})-6-methyl-8-[(6~{R})-2,2,6-trimethylcyclohexyl]octa-3,5,7-trien-2-one × 1 3PH 1,2-DIACYL-GLYCEROL-3-SN-PHOSPHATE × 5 PLM PALMITIC ACID × 1 LPX (2S)-3-{[(R)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-hydroxypropyl hexadecanoate × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.54 Å
7D0J Photosystem I-LHCI-LHCII of Chlamydomonas reinhardtii Deposited 2020-09-10 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 29 PDB declaration: 29-meric
Chain J 1–41（41 aa）
Not recorded CLA CHLOROPHYLL A × 276 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 20 BCR BETA-CAROTENE × 37 SF4 IRON/SULFUR CLUSTER × 3 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 2 SQD 1,2-DI-O-ACYL-3-O-[6-DEOXY-6-SULFO-ALPHA-D-GLUCOPYRANOSYL]-SN-GLYCEROL × 1 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 10 CHL CHLOROPHYLL B × 56 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 34 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 6 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.42 Å
7DZ7 State transition supercomplex PSI-LHCI-LHCII from double phosphatase mutant pph1;pbcp of green alga Chlamydomonas reinhardtii Deposited 2021-01-23 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 29 PDB declaration: 29-meric
Chain J 1–41（41 aa）
Not recorded CLA CHLOROPHYLL A × 298 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 27 BCR BETA-CAROTENE × 40 SF4 IRON/SULFUR CLUSTER × 3 LMU DODECYL-ALPHA-D-MALTOSIDE × 7 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 11 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 22 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 16 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 8 CHL CHLOROPHYLL B × 36 ELECTRON MICROSCOPY
cryo-EM buffer pH 6.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.84 Å
7DZ8 State transition supercomplex PSI-LHCI-LHCII from the LhcbM1 lacking mutant of Chlamydomonas reinhardtii Deposited 2021-01-23 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 29 PDB declaration: 29-meric
Chain J 1–41（41 aa）
Not recorded CLA CHLOROPHYLL A × 298 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 27 BCR BETA-CAROTENE × 40 SF4 IRON/SULFUR CLUSTER × 3 LMU DODECYL-ALPHA-D-MALTOSIDE × 7 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 11 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 22 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 16 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 8 CHL CHLOROPHYLL B × 36 ELECTRON MICROSCOPY
cryo-EM buffer pH 6.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.16 Å
7O01 Dimeric Photosystem I of a temperature sensitive mutant Chlamydomonas reinhardtii Deposited 2021-03-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 40 PDB declaration: 40-meric
Chain J 1–39（39 aa）
Chain j 1–39（39 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 17.10 Å
7R3K Chlamydomonas reinhardtii TSP9 mutant small Photosystem I complex Deposited 2022-02-07 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 18 PDB declaration: octadecameric
Chain J 1–41（41 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 186 PQN PHYLLOQUINONE × 2 SF4 IRON/SULFUR CLUSTER × 3 BCR BETA-CAROTENE × 28 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 12 LMT DODECYL-BETA-D-MALTOSIDE × 16 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 CA CALCIUM ION × 1 RRX (3R)-beta,beta-caroten-3-ol × 3 C7Z (1~{S})-3,5,5-trimethyl-4-[(1~{E},3~{E},5~{E},7~{E},9~{E},11~{E},13~{E},15~{E},17~{E})-3,7,12,16-tetramethyl-18-[(4~{S})-2,6,6-trimethyl-4-oxidanyl-cyclohexen-1-yl]octadeca-1,3,5,7,9,11,13,15,17-nonaenyl]cyclohex-3-en-1-ol × 3 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 3 DAO LAURIC ACID × 1 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 14 CHL CHLOROPHYLL B × 28 SPH SPHINGOSINE × 3 3PH 1,2-DIACYL-GLYCEROL-3-SN-PHOSPHATE × 4 DGA DIACYL GLYCEROL × 1 PLM PALMITIC ACID × 1 SQD 1,2-DI-O-ACYL-3-O-[6-DEOXY-6-SULFO-ALPHA-D-GLUCOPYRANOSYL]-SN-GLYCEROL × 1 ERG ERGOSTEROL × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE；blot for 3 seconds before plunging
Resolution 2.52 Å
7WYI Native Photosystem I of Chlamydomonas reinhardtii Deposited 2022-02-16 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 15 PDB declaration: pentadecameric
Chain J 1–41（41 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 155 PQN PHYLLOQUINONE × 2 SF4 IRON/SULFUR CLUSTER × 3 CHL CHLOROPHYLL B × 10 ELECTRON MICROSCOPY
cryo-EM buffer pH 6.5
cryo-EM vitrification conditions Cryogen ETHANE；2.6 microliter of sample were applied to cryo-grids and blotted for 4 seconds using Whatman #1 before plunge freezing.
Resolution 3.90 Å
7WZN PSI-LHCI from Chlamydomonas reinhardtii with bound ferredoxin Deposited 2022-02-18 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric
Chain J 1–41（41 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 188 PQN PHYLLOQUINONE × 2 SF4 IRON/SULFUR CLUSTER × 3 CHL CHLOROPHYLL B × 16 FES FE2/S2 (INORGANIC) CLUSTER × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 6.5
cryo-EM vitrification conditions Cryogen ETHANE；2.6 microliter of sample were applied to cryo-grids and blotted for 3.5 seconds using Whatman #1 before plunge freezing.
Resolution 4.90 Å
7ZQ9 Dimeric PSI of Chlamydomonas reinhardtii at 2.74 A resolution (symmetry expanded) Deposited 2022-04-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 24 PDB declaration: 24-meric
Chain J 1–40（40 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 226 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 16 BCR BETA-CAROTENE × 36 SF4 IRON/SULFUR CLUSTER × 3 LMU DODECYL-ALPHA-D-MALTOSIDE × 34 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 17 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 20 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 CHL CHLOROPHYLL B × 32 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 7 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.74 Å
7ZQC Monomeric PSI of Chlamydomonas reinhardtii at 2.31 A resolution Deposited 2022-04-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain J 1–40（40 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 198 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 15 BCR BETA-CAROTENE × 27 SF4 IRON/SULFUR CLUSTER × 3 LMU DODECYL-ALPHA-D-MALTOSIDE × 32 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 15 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 18 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 CHL CHLOROPHYLL B × 30 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 7 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.31 Å
7ZQD Dimeric PSI of Chlamydomonas reinhardtii at 2.97 A resolution Deposited 2022-04-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 40 PDB declaration: 40-meric
Chain J 1–40（40 aa）
Chain J2 1–40（40 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) CL0 CHLOROPHYLL A ISOMER × 2 CLA CHLOROPHYLL A × 396 PQN PHYLLOQUINONE × 4 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 30 BCR BETA-CAROTENE × 56 SF4 IRON/SULFUR CLUSTER × 6 LMU DODECYL-ALPHA-D-MALTOSIDE × 66 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 30 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 36 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 2 CHL CHLOROPHYLL B × 60 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 14 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.97 Å
8H2U X-ray Structure of photosystem I-LHCI super complex from Chlamydomonas reinhardtii. Deposited 2022-10-07 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain J 1–41（41 aa）
Not recorded CLA CHLOROPHYLL A × 185 SF4 IRON/SULFUR CLUSTER × 3 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 7 BCR BETA-CAROTENE × 27 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 2 LMT DODECYL-BETA-D-MALTOSIDE × 2 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 7 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 12 CHL CHLOROPHYLL B × 26 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；50 mM Tris-HCl (pH 7.0), 50 mM Li2SO4 and 4.5-7.0 % (w/v) polyethylene glycol (PEG) 6,000
Resolution 3.40 Å R-free 0.359
9SE6 Structure of Photosystem I from Chlamydomonas reinhardtii at 1.83 A resolution Deposited 2025-08-15 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 19 PDB declaration: 19-meric
Chain J 1–40（40 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) CLA CHLOROPHYLL A × 188 CHL CHLOROPHYLL B × 28 BCR BETA-CAROTENE × 27 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 16 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 12 LMU DODECYL-ALPHA-D-MALTOSIDE × 27 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 7 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 14 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 2 CL0 CHLOROPHYLL A ISOMER × 1 PQN PHYLLOQUINONE × 2 SF4 IRON/SULFUR CLUSTER × 3 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；5mM HEPES, pH 7.5, 0.02% alphaDDM
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 1.83 Å
9SE7 Structure of Cytochrome C6 bound Photosystem I from Chlamydomonas reinhardtii at 2.07 A resolution Deposited 2025-08-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain J 1–40（40 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) CLA CHLOROPHYLL A × 91 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 3 BCR BETA-CAROTENE × 15 SF4 IRON/SULFUR CLUSTER × 3 LMU DODECYL-ALPHA-D-MALTOSIDE × 3 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 5 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 2 HEC HEME C × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；5mM HEPES, pH 7.5, 0.02% alphaDDM
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.06 Å

16 other PDB entries and 16 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name PSAJ_CHLRE
Isoform —
PDB entities 9
Chains and sequence ranges Author chain J； PDBConstruct 1–39； UniProt 1–39

Photosystem I reaction center subunit psaK, chloroplastic

OrganismNot specified

UniProt P14225

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 19 PDB declaration: nonadecameric（19） Consistent with protein copy count Chain K； UniProt 29–112 Not recorded Photosystem I P700 chlorophyll a apoprotein A1 × 1 （P12154） Photosystem I P700 chlorophyll a apoprotein A2 × 1 （P09144） Photosystem I iron-sulfur center × 1 （Q00914） Photosystem I reaction center subunit II, chloroplastic × 1 （Q39615） Photosystem I reaction center subunit IV, chloroplastic × 1 （P12352） Photosystem I reaction center subunit III, chloroplastic × 1 （P12356） Photosystem I reaction center subunit V, chloroplastic × 1 （P14224） Photosystem I reaction center subunit VIII × 1 （A8IFG7） Photosystem I reaction center subunit IX × 1 （P59777） PSI subunit V × 1 （A8IL32） Chlorophyll a-b binding protein, chloroplastic × 2 （Q7DM26） Chlorophyll a-b binding protein, chloroplastic × 1 （Q75VY9） Chlorophyll a-b binding protein, chloroplastic × 1 （Q84Y02） Chlorophyll a-b binding protein, chloroplastic × 1 （Q75VY7） Chlorophyll a-b binding protein, chloroplastic × 1 （Q75VZ0） Chlorophyll a-b binding protein, chloroplastic × 1 （Q75VY8） Chlorophyll a-b binding protein, chloroplastic × 1 （Q75VY6） CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 197 PQN PHYLLOQUINONE × 2 SF4 IRON/SULFUR CLUSTER × 3 BCR BETA-CAROTENE × 31 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 14 NKP (2R)-2-hydroxy-3-(phosphonooxy)propyl (9E)-octadec-9-enoate × 3 LMT DODECYL-BETA-D-MALTOSIDE × 7 OCA OCTANOIC ACID (CAPRYLIC ACID) × 1 DAO LAURIC ACID × 1 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 2 DGA DIACYL GLYCEROL × 1 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 CA CALCIUM ION × 1 RRX (3R)-beta,beta-caroten-3-ol × 1 C7Z (1~{S})-3,5,5-trimethyl-4-[(1~{E},3~{E},5~{E},7~{E},9~{E},11~{E},13~{E},15~{E},17~{E})-3,7,12,16-tetramethyl-18-[(4~{S})-2,6,6-trimethyl-4-oxidanyl-cyclohexen-1-yl]octadeca-1,3,5,7,9,11,13,15,17-nonaenyl]cyclohex-3-en-1-ol × 3 SPH SPHINGOSINE × 3 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 17 CHL CHLOROPHYLL B × 20 SQD 1,2-DI-O-ACYL-3-O-[6-DEOXY-6-SULFO-ALPHA-D-GLUCOPYRANOSYL]-SN-GLYCEROL × 1 QTB (3~{E},5~{E},7~{E})-6-methyl-8-[(6~{R})-2,2,6-trimethylcyclohexyl]octa-3,5,7-trien-2-one × 1 3PH 1,2-DIACYL-GLYCEROL-3-SN-PHOSPHATE × 4 PLM PALMITIC ACID × 1 LPX (2S)-3-{[(R)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-hydroxypropyl hexadecanoate × 1 ELECTRON MICROSCOPY cryo-EM buffer：pH 8 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 3.15 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 7BLX Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
6JO5 Structure of the green algal photosystem I supercomplex with light-harvesting complex I Deposited 2019-03-20 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain K 27–113（87 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 218 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 12 BCR BETA-CAROTENE × 32 SF4 IRON/SULFUR CLUSTER × 3 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 2 CHL CHLOROPHYLL B × 20 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 22 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
6JO6 Structure of the green algal photosystem I supercomplex with light-harvesting complex I Deposited 2019-03-20 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 19 PDB declaration: nonadecameric
Chain K 27–113（87 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 197 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 12 BCR BETA-CAROTENE × 32 SF4 IRON/SULFUR CLUSTER × 3 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 1 CHL CHLOROPHYLL B × 18 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 18 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
7BGI Photosystem I of a temperature sensitive mutant Chlamydomonas reinhardtii Deposited 2021-01-07 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain K 29–112（84 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 217 PQN PHYLLOQUINONE × 2 SF4 IRON/SULFUR CLUSTER × 3 BCR BETA-CAROTENE × 31 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 16 NKP (2R)-2-hydroxy-3-(phosphonooxy)propyl (9E)-octadec-9-enoate × 3 LMT DODECYL-BETA-D-MALTOSIDE × 8 OCA OCTANOIC ACID (CAPRYLIC ACID) × 1 DAO LAURIC ACID × 1 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 2 DGA DIACYL GLYCEROL × 2 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 CA CALCIUM ION × 1 T7X Phosphatidylinositol × 1 RRX (3R)-beta,beta-caroten-3-ol × 1 C7Z (1~{S})-3,5,5-trimethyl-4-[(1~{E},3~{E},5~{E},7~{E},9~{E},11~{E},13~{E},15~{E},17~{E})-3,7,12,16-tetramethyl-18-[(4~{S})-2,6,6-trimethyl-4-oxidanyl-cyclohexen-1-yl]octadeca-1,3,5,7,9,11,13,15,17-nonaenyl]cyclohex-3-en-1-ol × 3 SPH SPHINGOSINE × 3 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 22 CHL CHLOROPHYLL B × 25 SQD 1,2-DI-O-ACYL-3-O-[6-DEOXY-6-SULFO-ALPHA-D-GLUCOPYRANOSYL]-SN-GLYCEROL × 2 QTB (3~{E},5~{E},7~{E})-6-methyl-8-[(6~{R})-2,2,6-trimethylcyclohexyl]octa-3,5,7-trien-2-one × 1 3PH 1,2-DIACYL-GLYCEROL-3-SN-PHOSPHATE × 5 PLM PALMITIC ACID × 1 LPX (2S)-3-{[(R)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-hydroxypropyl hexadecanoate × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.54 Å
7D0J Photosystem I-LHCI-LHCII of Chlamydomonas reinhardtii Deposited 2020-09-10 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 29 PDB declaration: 29-meric
Chain K 29–113（85 aa）
Not recorded CLA CHLOROPHYLL A × 276 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 20 BCR BETA-CAROTENE × 37 SF4 IRON/SULFUR CLUSTER × 3 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 2 SQD 1,2-DI-O-ACYL-3-O-[6-DEOXY-6-SULFO-ALPHA-D-GLUCOPYRANOSYL]-SN-GLYCEROL × 1 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 10 CHL CHLOROPHYLL B × 56 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 34 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 6 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.42 Å
7DZ7 State transition supercomplex PSI-LHCI-LHCII from double phosphatase mutant pph1;pbcp of green alga Chlamydomonas reinhardtii Deposited 2021-01-23 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 29 PDB declaration: 29-meric
Chain K 1–113（113 aa）
Not recorded CLA CHLOROPHYLL A × 298 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 27 BCR BETA-CAROTENE × 40 SF4 IRON/SULFUR CLUSTER × 3 LMU DODECYL-ALPHA-D-MALTOSIDE × 7 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 11 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 22 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 16 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 8 CHL CHLOROPHYLL B × 36 ELECTRON MICROSCOPY
cryo-EM buffer pH 6.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.84 Å
7DZ8 State transition supercomplex PSI-LHCI-LHCII from the LhcbM1 lacking mutant of Chlamydomonas reinhardtii Deposited 2021-01-23 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 29 PDB declaration: 29-meric
Chain K 1–113（113 aa）
Not recorded CLA CHLOROPHYLL A × 298 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 27 BCR BETA-CAROTENE × 40 SF4 IRON/SULFUR CLUSTER × 3 LMU DODECYL-ALPHA-D-MALTOSIDE × 7 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 11 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 22 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 16 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 8 CHL CHLOROPHYLL B × 36 ELECTRON MICROSCOPY
cryo-EM buffer pH 6.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.16 Å
7O01 Dimeric Photosystem I of a temperature sensitive mutant Chlamydomonas reinhardtii Deposited 2021-03-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 40 PDB declaration: 40-meric
Chain K 29–112（84 aa）
Chain k 29–112（84 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 17.10 Å
7R3K Chlamydomonas reinhardtii TSP9 mutant small Photosystem I complex Deposited 2022-02-07 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 18 PDB declaration: octadecameric
Chain K 1–113（113 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 186 PQN PHYLLOQUINONE × 2 SF4 IRON/SULFUR CLUSTER × 3 BCR BETA-CAROTENE × 28 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 12 LMT DODECYL-BETA-D-MALTOSIDE × 16 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 CA CALCIUM ION × 1 RRX (3R)-beta,beta-caroten-3-ol × 3 C7Z (1~{S})-3,5,5-trimethyl-4-[(1~{E},3~{E},5~{E},7~{E},9~{E},11~{E},13~{E},15~{E},17~{E})-3,7,12,16-tetramethyl-18-[(4~{S})-2,6,6-trimethyl-4-oxidanyl-cyclohexen-1-yl]octadeca-1,3,5,7,9,11,13,15,17-nonaenyl]cyclohex-3-en-1-ol × 3 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 3 DAO LAURIC ACID × 1 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 14 CHL CHLOROPHYLL B × 28 SPH SPHINGOSINE × 3 3PH 1,2-DIACYL-GLYCEROL-3-SN-PHOSPHATE × 4 DGA DIACYL GLYCEROL × 1 PLM PALMITIC ACID × 1 SQD 1,2-DI-O-ACYL-3-O-[6-DEOXY-6-SULFO-ALPHA-D-GLUCOPYRANOSYL]-SN-GLYCEROL × 1 ERG ERGOSTEROL × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE；blot for 3 seconds before plunging
Resolution 2.52 Å
7ZQ9 Dimeric PSI of Chlamydomonas reinhardtii at 2.74 A resolution (symmetry expanded) Deposited 2022-04-29 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 24 PDB declaration: 24-meric
Chain K 1–113（113 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 226 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 16 BCR BETA-CAROTENE × 36 SF4 IRON/SULFUR CLUSTER × 3 LMU DODECYL-ALPHA-D-MALTOSIDE × 34 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 17 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 20 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 CHL CHLOROPHYLL B × 32 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 7 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.74 Å
7ZQC Monomeric PSI of Chlamydomonas reinhardtii at 2.31 A resolution Deposited 2022-04-29 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain K 1–113（113 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 198 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 15 BCR BETA-CAROTENE × 27 SF4 IRON/SULFUR CLUSTER × 3 LMU DODECYL-ALPHA-D-MALTOSIDE × 32 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 15 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 18 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 CHL CHLOROPHYLL B × 30 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 7 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.31 Å
7ZQD Dimeric PSI of Chlamydomonas reinhardtii at 2.97 A resolution Deposited 2022-04-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 40 PDB declaration: 40-meric
Chain K 1–113（113 aa）
Chain K2 1–113（113 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 2 CLA CHLOROPHYLL A × 396 PQN PHYLLOQUINONE × 4 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 30 BCR BETA-CAROTENE × 56 SF4 IRON/SULFUR CLUSTER × 6 LMU DODECYL-ALPHA-D-MALTOSIDE × 66 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 30 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 36 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 2 CHL CHLOROPHYLL B × 60 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 14 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.97 Å
8H2U X-ray Structure of photosystem I-LHCI super complex from Chlamydomonas reinhardtii. Deposited 2022-10-07 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain K 1–113（113 aa）
Not recorded CLA CHLOROPHYLL A × 185 SF4 IRON/SULFUR CLUSTER × 3 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 7 BCR BETA-CAROTENE × 27 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 2 LMT DODECYL-BETA-D-MALTOSIDE × 2 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 7 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 12 CHL CHLOROPHYLL B × 26 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；50 mM Tris-HCl (pH 7.0), 50 mM Li2SO4 and 4.5-7.0 % (w/v) polyethylene glycol (PEG) 6,000
Resolution 3.40 Å R-free 0.359
9SE6 Structure of Photosystem I from Chlamydomonas reinhardtii at 1.83 A resolution Deposited 2025-08-15 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 19 PDB declaration: 19-meric
Chain K 28–113（86 aa）
Not recorded CLA CHLOROPHYLL A × 188 CHL CHLOROPHYLL B × 28 BCR BETA-CAROTENE × 27 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 16 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 12 LMU DODECYL-ALPHA-D-MALTOSIDE × 27 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 7 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 14 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 2 CL0 CHLOROPHYLL A ISOMER × 1 PQN PHYLLOQUINONE × 2 SF4 IRON/SULFUR CLUSTER × 3 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；5mM HEPES, pH 7.5, 0.02% alphaDDM
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 1.83 Å

13 other PDB entries and 13 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name PSAK_CHLRE
Isoform —
PDB entities 10
Chains and sequence ranges Author chain K； PDBConstruct 1–84； UniProt 29–112

PSI subunit V

OrganismNot specified

UniProt A8IL32

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 19 PDB declaration: nonadecameric（19） Consistent with protein copy count Chain L； UniProt 53–190 Not recorded Photosystem I P700 chlorophyll a apoprotein A1 × 1 （P12154） Photosystem I P700 chlorophyll a apoprotein A2 × 1 （P09144） Photosystem I iron-sulfur center × 1 （Q00914） Photosystem I reaction center subunit II, chloroplastic × 1 （Q39615） Photosystem I reaction center subunit IV, chloroplastic × 1 （P12352） Photosystem I reaction center subunit III, chloroplastic × 1 （P12356） Photosystem I reaction center subunit V, chloroplastic × 1 （P14224） Photosystem I reaction center subunit VIII × 1 （A8IFG7） Photosystem I reaction center subunit IX × 1 （P59777） Photosystem I reaction center subunit psaK, chloroplastic × 1 （P14225） Chlorophyll a-b binding protein, chloroplastic × 2 （Q7DM26） Chlorophyll a-b binding protein, chloroplastic × 1 （Q75VY9） Chlorophyll a-b binding protein, chloroplastic × 1 （Q84Y02） Chlorophyll a-b binding protein, chloroplastic × 1 （Q75VY7） Chlorophyll a-b binding protein, chloroplastic × 1 （Q75VZ0） Chlorophyll a-b binding protein, chloroplastic × 1 （Q75VY8） Chlorophyll a-b binding protein, chloroplastic × 1 （Q75VY6） CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 197 PQN PHYLLOQUINONE × 2 SF4 IRON/SULFUR CLUSTER × 3 BCR BETA-CAROTENE × 31 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 14 NKP (2R)-2-hydroxy-3-(phosphonooxy)propyl (9E)-octadec-9-enoate × 3 LMT DODECYL-BETA-D-MALTOSIDE × 7 OCA OCTANOIC ACID (CAPRYLIC ACID) × 1 DAO LAURIC ACID × 1 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 2 DGA DIACYL GLYCEROL × 1 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 CA CALCIUM ION × 1 RRX (3R)-beta,beta-caroten-3-ol × 1 C7Z (1~{S})-3,5,5-trimethyl-4-[(1~{E},3~{E},5~{E},7~{E},9~{E},11~{E},13~{E},15~{E},17~{E})-3,7,12,16-tetramethyl-18-[(4~{S})-2,6,6-trimethyl-4-oxidanyl-cyclohexen-1-yl]octadeca-1,3,5,7,9,11,13,15,17-nonaenyl]cyclohex-3-en-1-ol × 3 SPH SPHINGOSINE × 3 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 17 CHL CHLOROPHYLL B × 20 SQD 1,2-DI-O-ACYL-3-O-[6-DEOXY-6-SULFO-ALPHA-D-GLUCOPYRANOSYL]-SN-GLYCEROL × 1 QTB (3~{E},5~{E},7~{E})-6-methyl-8-[(6~{R})-2,2,6-trimethylcyclohexyl]octa-3,5,7-trien-2-one × 1 3PH 1,2-DIACYL-GLYCEROL-3-SN-PHOSPHATE × 4 PLM PALMITIC ACID × 1 LPX (2S)-3-{[(R)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-hydroxypropyl hexadecanoate × 1 ELECTRON MICROSCOPY cryo-EM buffer：pH 8 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 3.15 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 7BLX Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
6JO5 Structure of the green algal photosystem I supercomplex with light-harvesting complex I Deposited 2019-03-20 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain L 41–196（156 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 218 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 12 BCR BETA-CAROTENE × 32 SF4 IRON/SULFUR CLUSTER × 3 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 2 CHL CHLOROPHYLL B × 20 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 22 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
6JO6 Structure of the green algal photosystem I supercomplex with light-harvesting complex I Deposited 2019-03-20 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 19 PDB declaration: nonadecameric
Chain L 41–196（156 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 197 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 12 BCR BETA-CAROTENE × 32 SF4 IRON/SULFUR CLUSTER × 3 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 1 CHL CHLOROPHYLL B × 18 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 18 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
7BGI Photosystem I of a temperature sensitive mutant Chlamydomonas reinhardtii Deposited 2021-01-07 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain L 53–190（138 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 217 PQN PHYLLOQUINONE × 2 SF4 IRON/SULFUR CLUSTER × 3 BCR BETA-CAROTENE × 31 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 16 NKP (2R)-2-hydroxy-3-(phosphonooxy)propyl (9E)-octadec-9-enoate × 3 LMT DODECYL-BETA-D-MALTOSIDE × 8 OCA OCTANOIC ACID (CAPRYLIC ACID) × 1 DAO LAURIC ACID × 1 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 2 DGA DIACYL GLYCEROL × 2 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 CA CALCIUM ION × 1 T7X Phosphatidylinositol × 1 RRX (3R)-beta,beta-caroten-3-ol × 1 C7Z (1~{S})-3,5,5-trimethyl-4-[(1~{E},3~{E},5~{E},7~{E},9~{E},11~{E},13~{E},15~{E},17~{E})-3,7,12,16-tetramethyl-18-[(4~{S})-2,6,6-trimethyl-4-oxidanyl-cyclohexen-1-yl]octadeca-1,3,5,7,9,11,13,15,17-nonaenyl]cyclohex-3-en-1-ol × 3 SPH SPHINGOSINE × 3 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 22 CHL CHLOROPHYLL B × 25 SQD 1,2-DI-O-ACYL-3-O-[6-DEOXY-6-SULFO-ALPHA-D-GLUCOPYRANOSYL]-SN-GLYCEROL × 2 QTB (3~{E},5~{E},7~{E})-6-methyl-8-[(6~{R})-2,2,6-trimethylcyclohexyl]octa-3,5,7-trien-2-one × 1 3PH 1,2-DIACYL-GLYCEROL-3-SN-PHOSPHATE × 5 PLM PALMITIC ACID × 1 LPX (2S)-3-{[(R)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-hydroxypropyl hexadecanoate × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.54 Å
7D0J Photosystem I-LHCI-LHCII of Chlamydomonas reinhardtii Deposited 2020-09-10 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 29 PDB declaration: 29-meric
Chain L 38–196（159 aa）
Not recorded CLA CHLOROPHYLL A × 276 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 20 BCR BETA-CAROTENE × 37 SF4 IRON/SULFUR CLUSTER × 3 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 2 SQD 1,2-DI-O-ACYL-3-O-[6-DEOXY-6-SULFO-ALPHA-D-GLUCOPYRANOSYL]-SN-GLYCEROL × 1 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 10 CHL CHLOROPHYLL B × 56 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 34 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 6 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.42 Å
7DZ7 State transition supercomplex PSI-LHCI-LHCII from double phosphatase mutant pph1;pbcp of green alga Chlamydomonas reinhardtii Deposited 2021-01-23 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 29 PDB declaration: 29-meric
Chain L 1–196（196 aa）
Not recorded CLA CHLOROPHYLL A × 298 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 27 BCR BETA-CAROTENE × 40 SF4 IRON/SULFUR CLUSTER × 3 LMU DODECYL-ALPHA-D-MALTOSIDE × 7 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 11 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 22 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 16 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 8 CHL CHLOROPHYLL B × 36 ELECTRON MICROSCOPY
cryo-EM buffer pH 6.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.84 Å
7DZ8 State transition supercomplex PSI-LHCI-LHCII from the LhcbM1 lacking mutant of Chlamydomonas reinhardtii Deposited 2021-01-23 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 29 PDB declaration: 29-meric
Chain L 1–196（196 aa）
Not recorded CLA CHLOROPHYLL A × 298 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 27 BCR BETA-CAROTENE × 40 SF4 IRON/SULFUR CLUSTER × 3 LMU DODECYL-ALPHA-D-MALTOSIDE × 7 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 11 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 22 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 16 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 8 CHL CHLOROPHYLL B × 36 ELECTRON MICROSCOPY
cryo-EM buffer pH 6.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.16 Å
7O01 Dimeric Photosystem I of a temperature sensitive mutant Chlamydomonas reinhardtii Deposited 2021-03-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 40 PDB declaration: 40-meric
Chain L 53–190（138 aa）
Chain l 53–190（138 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 17.10 Å
7ZQ9 Dimeric PSI of Chlamydomonas reinhardtii at 2.74 A resolution (symmetry expanded) Deposited 2022-04-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 24 PDB declaration: 24-meric
Chain L 1–196（196 aa）
Chain L2 1–196（196 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 226 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 16 BCR BETA-CAROTENE × 36 SF4 IRON/SULFUR CLUSTER × 3 LMU DODECYL-ALPHA-D-MALTOSIDE × 34 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 17 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 20 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 CHL CHLOROPHYLL B × 32 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 7 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.74 Å
7ZQC Monomeric PSI of Chlamydomonas reinhardtii at 2.31 A resolution Deposited 2022-04-29 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain L 1–196（196 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 198 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 15 BCR BETA-CAROTENE × 27 SF4 IRON/SULFUR CLUSTER × 3 LMU DODECYL-ALPHA-D-MALTOSIDE × 32 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 15 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 18 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 CHL CHLOROPHYLL B × 30 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 7 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.31 Å
7ZQD Dimeric PSI of Chlamydomonas reinhardtii at 2.97 A resolution Deposited 2022-04-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 40 PDB declaration: 40-meric
Chain L 1–196（196 aa）
Chain L2 1–196（196 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 2 CLA CHLOROPHYLL A × 396 PQN PHYLLOQUINONE × 4 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 30 BCR BETA-CAROTENE × 56 SF4 IRON/SULFUR CLUSTER × 6 LMU DODECYL-ALPHA-D-MALTOSIDE × 66 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 30 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 36 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 2 CHL CHLOROPHYLL B × 60 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 14 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.97 Å
8H2U X-ray Structure of photosystem I-LHCI super complex from Chlamydomonas reinhardtii. Deposited 2022-10-07 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain L 1–196（196 aa）
Not recorded CLA CHLOROPHYLL A × 185 SF4 IRON/SULFUR CLUSTER × 3 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 7 BCR BETA-CAROTENE × 27 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 2 LMT DODECYL-BETA-D-MALTOSIDE × 2 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 7 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 12 CHL CHLOROPHYLL B × 26 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；50 mM Tris-HCl (pH 7.0), 50 mM Li2SO4 and 4.5-7.0 % (w/v) polyethylene glycol (PEG) 6,000
Resolution 3.40 Å R-free 0.359
9SE7 Structure of Cytochrome C6 bound Photosystem I from Chlamydomonas reinhardtii at 2.07 A resolution Deposited 2025-08-15 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain L 53–190（138 aa）
Not recorded CLA CHLOROPHYLL A × 91 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 3 BCR BETA-CAROTENE × 15 SF4 IRON/SULFUR CLUSTER × 3 LMU DODECYL-ALPHA-D-MALTOSIDE × 3 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 5 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 2 HEC HEME C × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；5mM HEPES, pH 7.5, 0.02% alphaDDM
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.06 Å

12 other PDB entries and 12 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name A8IL32_CHLRE
Isoform —
PDB entities 11
Chains and sequence ranges Author chain L； PDBConstruct 1–126； UniProt 53–190

Chlorophyll a-b binding protein, chloroplastic

OrganismNot specified

UniProt Q7DM26

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 19 PDB declaration: nonadecameric（19） Consistent with protein copy count Chain 1； UniProt 31–224 Chain Z； UniProt 31–224 Not recorded Photosystem I P700 chlorophyll a apoprotein A1 × 1 （P12154） Photosystem I P700 chlorophyll a apoprotein A2 × 1 （P09144） Photosystem I iron-sulfur center × 1 （Q00914） Photosystem I reaction center subunit II, chloroplastic × 1 （Q39615） Photosystem I reaction center subunit IV, chloroplastic × 1 （P12352） Photosystem I reaction center subunit III, chloroplastic × 1 （P12356） Photosystem I reaction center subunit V, chloroplastic × 1 （P14224） Photosystem I reaction center subunit VIII × 1 （A8IFG7） Photosystem I reaction center subunit IX × 1 （P59777） Photosystem I reaction center subunit psaK, chloroplastic × 1 （P14225） PSI subunit V × 1 （A8IL32） Chlorophyll a-b binding protein, chloroplastic × 1 （Q75VY9） Chlorophyll a-b binding protein, chloroplastic × 1 （Q84Y02） Chlorophyll a-b binding protein, chloroplastic × 1 （Q75VY7） Chlorophyll a-b binding protein, chloroplastic × 1 （Q75VZ0） Chlorophyll a-b binding protein, chloroplastic × 1 （Q75VY8） Chlorophyll a-b binding protein, chloroplastic × 1 （Q75VY6） CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 197 PQN PHYLLOQUINONE × 2 SF4 IRON/SULFUR CLUSTER × 3 BCR BETA-CAROTENE × 31 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 14 NKP (2R)-2-hydroxy-3-(phosphonooxy)propyl (9E)-octadec-9-enoate × 3 LMT DODECYL-BETA-D-MALTOSIDE × 7 OCA OCTANOIC ACID (CAPRYLIC ACID) × 1 DAO LAURIC ACID × 1 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 2 DGA DIACYL GLYCEROL × 1 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 CA CALCIUM ION × 1 RRX (3R)-beta,beta-caroten-3-ol × 1 C7Z (1~{S})-3,5,5-trimethyl-4-[(1~{E},3~{E},5~{E},7~{E},9~{E},11~{E},13~{E},15~{E},17~{E})-3,7,12,16-tetramethyl-18-[(4~{S})-2,6,6-trimethyl-4-oxidanyl-cyclohexen-1-yl]octadeca-1,3,5,7,9,11,13,15,17-nonaenyl]cyclohex-3-en-1-ol × 3 SPH SPHINGOSINE × 3 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 17 CHL CHLOROPHYLL B × 20 SQD 1,2-DI-O-ACYL-3-O-[6-DEOXY-6-SULFO-ALPHA-D-GLUCOPYRANOSYL]-SN-GLYCEROL × 1 QTB (3~{E},5~{E},7~{E})-6-methyl-8-[(6~{R})-2,2,6-trimethylcyclohexyl]octa-3,5,7-trien-2-one × 1 3PH 1,2-DIACYL-GLYCEROL-3-SN-PHOSPHATE × 4 PLM PALMITIC ACID × 1 LPX (2S)-3-{[(R)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-hydroxypropyl hexadecanoate × 1 ELECTRON MICROSCOPY cryo-EM buffer：pH 8 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 3.15 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 7BLX Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
6JO5 Structure of the green algal photosystem I supercomplex with light-harvesting complex I Deposited 2019-03-20 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain 1 31–224（194 aa）
Chain Z 31–224（194 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 218 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 12 BCR BETA-CAROTENE × 32 SF4 IRON/SULFUR CLUSTER × 3 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 2 CHL CHLOROPHYLL B × 20 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 22 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
6JO6 Structure of the green algal photosystem I supercomplex with light-harvesting complex I Deposited 2019-03-20 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 19 PDB declaration: nonadecameric
Chain 1 31–224（194 aa）
Chain Z 31–224（194 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 197 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 12 BCR BETA-CAROTENE × 32 SF4 IRON/SULFUR CLUSTER × 3 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 1 CHL CHLOROPHYLL B × 18 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 18 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
7BGI Photosystem I of a temperature sensitive mutant Chlamydomonas reinhardtii Deposited 2021-01-07 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain 1 31–224（194 aa）
Chain Z 31–224（194 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 217 PQN PHYLLOQUINONE × 2 SF4 IRON/SULFUR CLUSTER × 3 BCR BETA-CAROTENE × 31 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 16 NKP (2R)-2-hydroxy-3-(phosphonooxy)propyl (9E)-octadec-9-enoate × 3 LMT DODECYL-BETA-D-MALTOSIDE × 8 OCA OCTANOIC ACID (CAPRYLIC ACID) × 1 DAO LAURIC ACID × 1 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 2 DGA DIACYL GLYCEROL × 2 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 CA CALCIUM ION × 1 T7X Phosphatidylinositol × 1 RRX (3R)-beta,beta-caroten-3-ol × 1 C7Z (1~{S})-3,5,5-trimethyl-4-[(1~{E},3~{E},5~{E},7~{E},9~{E},11~{E},13~{E},15~{E},17~{E})-3,7,12,16-tetramethyl-18-[(4~{S})-2,6,6-trimethyl-4-oxidanyl-cyclohexen-1-yl]octadeca-1,3,5,7,9,11,13,15,17-nonaenyl]cyclohex-3-en-1-ol × 3 SPH SPHINGOSINE × 3 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 22 CHL CHLOROPHYLL B × 25 SQD 1,2-DI-O-ACYL-3-O-[6-DEOXY-6-SULFO-ALPHA-D-GLUCOPYRANOSYL]-SN-GLYCEROL × 2 QTB (3~{E},5~{E},7~{E})-6-methyl-8-[(6~{R})-2,2,6-trimethylcyclohexyl]octa-3,5,7-trien-2-one × 1 3PH 1,2-DIACYL-GLYCEROL-3-SN-PHOSPHATE × 5 PLM PALMITIC ACID × 1 LPX (2S)-3-{[(R)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-hydroxypropyl hexadecanoate × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.54 Å
7D0J Photosystem I-LHCI-LHCII of Chlamydomonas reinhardtii Deposited 2020-09-10 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 29 PDB declaration: 29-meric
Chain 1 31–224（194 aa）
Chain a 31–224（194 aa）
Not recorded CLA CHLOROPHYLL A × 276 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 20 BCR BETA-CAROTENE × 37 SF4 IRON/SULFUR CLUSTER × 3 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 2 SQD 1,2-DI-O-ACYL-3-O-[6-DEOXY-6-SULFO-ALPHA-D-GLUCOPYRANOSYL]-SN-GLYCEROL × 1 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 10 CHL CHLOROPHYLL B × 56 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 34 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 6 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.42 Å
7O01 Dimeric Photosystem I of a temperature sensitive mutant Chlamydomonas reinhardtii Deposited 2021-03-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 40 PDB declaration: 40-meric
Chain 1 31–224（194 aa）
Chain Z 31–224（194 aa）
Chain p 31–224（194 aa）
Chain z 31–224（194 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 17.10 Å
7WYI Native Photosystem I of Chlamydomonas reinhardtii Deposited 2022-02-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 15 PDB declaration: pentadecameric
Chain 1 1–224（224 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 155 PQN PHYLLOQUINONE × 2 SF4 IRON/SULFUR CLUSTER × 3 CHL CHLOROPHYLL B × 10 ELECTRON MICROSCOPY
cryo-EM buffer pH 6.5
cryo-EM vitrification conditions Cryogen ETHANE；2.6 microliter of sample were applied to cryo-grids and blotted for 4 seconds using Whatman #1 before plunge freezing.
Resolution 3.90 Å
7WZN PSI-LHCI from Chlamydomonas reinhardtii with bound ferredoxin Deposited 2022-02-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric
Chain 1 1–224（224 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 188 PQN PHYLLOQUINONE × 2 SF4 IRON/SULFUR CLUSTER × 3 CHL CHLOROPHYLL B × 16 FES FE2/S2 (INORGANIC) CLUSTER × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 6.5
cryo-EM vitrification conditions Cryogen ETHANE；2.6 microliter of sample were applied to cryo-grids and blotted for 3.5 seconds using Whatman #1 before plunge freezing.
Resolution 4.90 Å
9SE6 Structure of Photosystem I from Chlamydomonas reinhardtii at 1.83 A resolution Deposited 2025-08-15 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 19 PDB declaration: 19-meric
Chain 1 31–224（194 aa）
Chain Z 31–224（194 aa）
Not recorded CLA CHLOROPHYLL A × 188 CHL CHLOROPHYLL B × 28 BCR BETA-CAROTENE × 27 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 16 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 12 LMU DODECYL-ALPHA-D-MALTOSIDE × 27 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 7 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 14 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 2 CL0 CHLOROPHYLL A ISOMER × 1 PQN PHYLLOQUINONE × 2 SF4 IRON/SULFUR CLUSTER × 3 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；5mM HEPES, pH 7.5, 0.02% alphaDDM
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 1.83 Å

8 other PDB entries and 8 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name Q7DM26_CHLRE
Isoform —
PDB entities 12
Chains and sequence ranges Author chain 1； PDBConstruct 1–194； UniProt 31–224 Author chain Z； PDBConstruct 1–194； UniProt 31–224

Chlorophyll a-b binding protein, chloroplastic

OrganismNot specified

UniProt Q75VY9

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 19 PDB declaration: nonadecameric（19） Consistent with protein copy count Chain 3； UniProt 45–263 Not recorded Photosystem I P700 chlorophyll a apoprotein A1 × 1 （P12154） Photosystem I P700 chlorophyll a apoprotein A2 × 1 （P09144） Photosystem I iron-sulfur center × 1 （Q00914） Photosystem I reaction center subunit II, chloroplastic × 1 （Q39615） Photosystem I reaction center subunit IV, chloroplastic × 1 （P12352） Photosystem I reaction center subunit III, chloroplastic × 1 （P12356） Photosystem I reaction center subunit V, chloroplastic × 1 （P14224） Photosystem I reaction center subunit VIII × 1 （A8IFG7） Photosystem I reaction center subunit IX × 1 （P59777） Photosystem I reaction center subunit psaK, chloroplastic × 1 （P14225） PSI subunit V × 1 （A8IL32） Chlorophyll a-b binding protein, chloroplastic × 2 （Q7DM26） Chlorophyll a-b binding protein, chloroplastic × 1 （Q84Y02） Chlorophyll a-b binding protein, chloroplastic × 1 （Q75VY7） Chlorophyll a-b binding protein, chloroplastic × 1 （Q75VZ0） Chlorophyll a-b binding protein, chloroplastic × 1 （Q75VY8） Chlorophyll a-b binding protein, chloroplastic × 1 （Q75VY6） CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 197 PQN PHYLLOQUINONE × 2 SF4 IRON/SULFUR CLUSTER × 3 BCR BETA-CAROTENE × 31 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 14 NKP (2R)-2-hydroxy-3-(phosphonooxy)propyl (9E)-octadec-9-enoate × 3 LMT DODECYL-BETA-D-MALTOSIDE × 7 OCA OCTANOIC ACID (CAPRYLIC ACID) × 1 DAO LAURIC ACID × 1 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 2 DGA DIACYL GLYCEROL × 1 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 CA CALCIUM ION × 1 RRX (3R)-beta,beta-caroten-3-ol × 1 C7Z (1~{S})-3,5,5-trimethyl-4-[(1~{E},3~{E},5~{E},7~{E},9~{E},11~{E},13~{E},15~{E},17~{E})-3,7,12,16-tetramethyl-18-[(4~{S})-2,6,6-trimethyl-4-oxidanyl-cyclohexen-1-yl]octadeca-1,3,5,7,9,11,13,15,17-nonaenyl]cyclohex-3-en-1-ol × 3 SPH SPHINGOSINE × 3 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 17 CHL CHLOROPHYLL B × 20 SQD 1,2-DI-O-ACYL-3-O-[6-DEOXY-6-SULFO-ALPHA-D-GLUCOPYRANOSYL]-SN-GLYCEROL × 1 QTB (3~{E},5~{E},7~{E})-6-methyl-8-[(6~{R})-2,2,6-trimethylcyclohexyl]octa-3,5,7-trien-2-one × 1 3PH 1,2-DIACYL-GLYCEROL-3-SN-PHOSPHATE × 4 PLM PALMITIC ACID × 1 LPX (2S)-3-{[(R)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-hydroxypropyl hexadecanoate × 1 ELECTRON MICROSCOPY cryo-EM buffer：pH 8 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 3.15 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 7BLX Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
7BGI Photosystem I of a temperature sensitive mutant Chlamydomonas reinhardtii Deposited 2021-01-07 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain 3 45–263（219 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 217 PQN PHYLLOQUINONE × 2 SF4 IRON/SULFUR CLUSTER × 3 BCR BETA-CAROTENE × 31 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 16 NKP (2R)-2-hydroxy-3-(phosphonooxy)propyl (9E)-octadec-9-enoate × 3 LMT DODECYL-BETA-D-MALTOSIDE × 8 OCA OCTANOIC ACID (CAPRYLIC ACID) × 1 DAO LAURIC ACID × 1 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 2 DGA DIACYL GLYCEROL × 2 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 CA CALCIUM ION × 1 T7X Phosphatidylinositol × 1 RRX (3R)-beta,beta-caroten-3-ol × 1 C7Z (1~{S})-3,5,5-trimethyl-4-[(1~{E},3~{E},5~{E},7~{E},9~{E},11~{E},13~{E},15~{E},17~{E})-3,7,12,16-tetramethyl-18-[(4~{S})-2,6,6-trimethyl-4-oxidanyl-cyclohexen-1-yl]octadeca-1,3,5,7,9,11,13,15,17-nonaenyl]cyclohex-3-en-1-ol × 3 SPH SPHINGOSINE × 3 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 22 CHL CHLOROPHYLL B × 25 SQD 1,2-DI-O-ACYL-3-O-[6-DEOXY-6-SULFO-ALPHA-D-GLUCOPYRANOSYL]-SN-GLYCEROL × 2 QTB (3~{E},5~{E},7~{E})-6-methyl-8-[(6~{R})-2,2,6-trimethylcyclohexyl]octa-3,5,7-trien-2-one × 1 3PH 1,2-DIACYL-GLYCEROL-3-SN-PHOSPHATE × 5 PLM PALMITIC ACID × 1 LPX (2S)-3-{[(R)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-hydroxypropyl hexadecanoate × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.54 Å
7O01 Dimeric Photosystem I of a temperature sensitive mutant Chlamydomonas reinhardtii Deposited 2021-03-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 40 PDB declaration: 40-meric
Chain 3 45–263（219 aa）
Chain q 45–263（219 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 17.10 Å

2 other PDB entries and 2 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name Q75VY9_CHLRE
Isoform —
PDB entities 13
Chains and sequence ranges Author chain 3； PDBConstruct 1–219； UniProt 45–263

Chlorophyll a-b binding protein, chloroplastic

OrganismNot specified

UniProt Q84Y02

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 19 PDB declaration: nonadecameric（19） Consistent with protein copy count Chain 7； UniProt 29–241 Not recorded Photosystem I P700 chlorophyll a apoprotein A1 × 1 （P12154） Photosystem I P700 chlorophyll a apoprotein A2 × 1 （P09144） Photosystem I iron-sulfur center × 1 （Q00914） Photosystem I reaction center subunit II, chloroplastic × 1 （Q39615） Photosystem I reaction center subunit IV, chloroplastic × 1 （P12352） Photosystem I reaction center subunit III, chloroplastic × 1 （P12356） Photosystem I reaction center subunit V, chloroplastic × 1 （P14224） Photosystem I reaction center subunit VIII × 1 （A8IFG7） Photosystem I reaction center subunit IX × 1 （P59777） Photosystem I reaction center subunit psaK, chloroplastic × 1 （P14225） PSI subunit V × 1 （A8IL32） Chlorophyll a-b binding protein, chloroplastic × 2 （Q7DM26） Chlorophyll a-b binding protein, chloroplastic × 1 （Q75VY9） Chlorophyll a-b binding protein, chloroplastic × 1 （Q75VY7） Chlorophyll a-b binding protein, chloroplastic × 1 （Q75VZ0） Chlorophyll a-b binding protein, chloroplastic × 1 （Q75VY8） Chlorophyll a-b binding protein, chloroplastic × 1 （Q75VY6） CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 197 PQN PHYLLOQUINONE × 2 SF4 IRON/SULFUR CLUSTER × 3 BCR BETA-CAROTENE × 31 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 14 NKP (2R)-2-hydroxy-3-(phosphonooxy)propyl (9E)-octadec-9-enoate × 3 LMT DODECYL-BETA-D-MALTOSIDE × 7 OCA OCTANOIC ACID (CAPRYLIC ACID) × 1 DAO LAURIC ACID × 1 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 2 DGA DIACYL GLYCEROL × 1 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 CA CALCIUM ION × 1 RRX (3R)-beta,beta-caroten-3-ol × 1 C7Z (1~{S})-3,5,5-trimethyl-4-[(1~{E},3~{E},5~{E},7~{E},9~{E},11~{E},13~{E},15~{E},17~{E})-3,7,12,16-tetramethyl-18-[(4~{S})-2,6,6-trimethyl-4-oxidanyl-cyclohexen-1-yl]octadeca-1,3,5,7,9,11,13,15,17-nonaenyl]cyclohex-3-en-1-ol × 3 SPH SPHINGOSINE × 3 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 17 CHL CHLOROPHYLL B × 20 SQD 1,2-DI-O-ACYL-3-O-[6-DEOXY-6-SULFO-ALPHA-D-GLUCOPYRANOSYL]-SN-GLYCEROL × 1 QTB (3~{E},5~{E},7~{E})-6-methyl-8-[(6~{R})-2,2,6-trimethylcyclohexyl]octa-3,5,7-trien-2-one × 1 3PH 1,2-DIACYL-GLYCEROL-3-SN-PHOSPHATE × 4 PLM PALMITIC ACID × 1 LPX (2S)-3-{[(R)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-hydroxypropyl hexadecanoate × 1 ELECTRON MICROSCOPY cryo-EM buffer：pH 8 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 3.15 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 7BLX Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
6JO5 Structure of the green algal photosystem I supercomplex with light-harvesting complex I Deposited 2019-03-20 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain 7 27–241（215 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 218 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 12 BCR BETA-CAROTENE × 32 SF4 IRON/SULFUR CLUSTER × 3 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 2 CHL CHLOROPHYLL B × 20 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 22 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
6JO6 Structure of the green algal photosystem I supercomplex with light-harvesting complex I Deposited 2019-03-20 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 19 PDB declaration: nonadecameric
Chain 7 27–241（215 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 197 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 12 BCR BETA-CAROTENE × 32 SF4 IRON/SULFUR CLUSTER × 3 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 1 CHL CHLOROPHYLL B × 18 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 18 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
7BGI Photosystem I of a temperature sensitive mutant Chlamydomonas reinhardtii Deposited 2021-01-07 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain 7 29–241（213 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 217 PQN PHYLLOQUINONE × 2 SF4 IRON/SULFUR CLUSTER × 3 BCR BETA-CAROTENE × 31 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 16 NKP (2R)-2-hydroxy-3-(phosphonooxy)propyl (9E)-octadec-9-enoate × 3 LMT DODECYL-BETA-D-MALTOSIDE × 8 OCA OCTANOIC ACID (CAPRYLIC ACID) × 1 DAO LAURIC ACID × 1 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 2 DGA DIACYL GLYCEROL × 2 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 CA CALCIUM ION × 1 T7X Phosphatidylinositol × 1 RRX (3R)-beta,beta-caroten-3-ol × 1 C7Z (1~{S})-3,5,5-trimethyl-4-[(1~{E},3~{E},5~{E},7~{E},9~{E},11~{E},13~{E},15~{E},17~{E})-3,7,12,16-tetramethyl-18-[(4~{S})-2,6,6-trimethyl-4-oxidanyl-cyclohexen-1-yl]octadeca-1,3,5,7,9,11,13,15,17-nonaenyl]cyclohex-3-en-1-ol × 3 SPH SPHINGOSINE × 3 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 22 CHL CHLOROPHYLL B × 25 SQD 1,2-DI-O-ACYL-3-O-[6-DEOXY-6-SULFO-ALPHA-D-GLUCOPYRANOSYL]-SN-GLYCEROL × 2 QTB (3~{E},5~{E},7~{E})-6-methyl-8-[(6~{R})-2,2,6-trimethylcyclohexyl]octa-3,5,7-trien-2-one × 1 3PH 1,2-DIACYL-GLYCEROL-3-SN-PHOSPHATE × 5 PLM PALMITIC ACID × 1 LPX (2S)-3-{[(R)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-hydroxypropyl hexadecanoate × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.54 Å
7DZ7 State transition supercomplex PSI-LHCI-LHCII from double phosphatase mutant pph1;pbcp of green alga Chlamydomonas reinhardtii Deposited 2021-01-23 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 29 PDB declaration: 29-meric
Chain 7 1–241（241 aa）
Not recorded CLA CHLOROPHYLL A × 298 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 27 BCR BETA-CAROTENE × 40 SF4 IRON/SULFUR CLUSTER × 3 LMU DODECYL-ALPHA-D-MALTOSIDE × 7 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 11 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 22 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 16 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 8 CHL CHLOROPHYLL B × 36 ELECTRON MICROSCOPY
cryo-EM buffer pH 6.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.84 Å
7DZ8 State transition supercomplex PSI-LHCI-LHCII from the LhcbM1 lacking mutant of Chlamydomonas reinhardtii Deposited 2021-01-23 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 29 PDB declaration: 29-meric
Chain 7 1–241（241 aa）
Not recorded CLA CHLOROPHYLL A × 298 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 27 BCR BETA-CAROTENE × 40 SF4 IRON/SULFUR CLUSTER × 3 LMU DODECYL-ALPHA-D-MALTOSIDE × 7 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 11 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 22 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 16 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 8 CHL CHLOROPHYLL B × 36 ELECTRON MICROSCOPY
cryo-EM buffer pH 6.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.16 Å
7O01 Dimeric Photosystem I of a temperature sensitive mutant Chlamydomonas reinhardtii Deposited 2021-03-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 40 PDB declaration: 40-meric
Chain 7 29–241（213 aa）
Chain r 29–241（213 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 17.10 Å
7R3K Chlamydomonas reinhardtii TSP9 mutant small Photosystem I complex Deposited 2022-02-07 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 18 PDB declaration: octadecameric
Chain 7 1–241（241 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 186 PQN PHYLLOQUINONE × 2 SF4 IRON/SULFUR CLUSTER × 3 BCR BETA-CAROTENE × 28 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 12 LMT DODECYL-BETA-D-MALTOSIDE × 16 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 CA CALCIUM ION × 1 RRX (3R)-beta,beta-caroten-3-ol × 3 C7Z (1~{S})-3,5,5-trimethyl-4-[(1~{E},3~{E},5~{E},7~{E},9~{E},11~{E},13~{E},15~{E},17~{E})-3,7,12,16-tetramethyl-18-[(4~{S})-2,6,6-trimethyl-4-oxidanyl-cyclohexen-1-yl]octadeca-1,3,5,7,9,11,13,15,17-nonaenyl]cyclohex-3-en-1-ol × 3 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 3 DAO LAURIC ACID × 1 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 14 CHL CHLOROPHYLL B × 28 SPH SPHINGOSINE × 3 3PH 1,2-DIACYL-GLYCEROL-3-SN-PHOSPHATE × 4 DGA DIACYL GLYCEROL × 1 PLM PALMITIC ACID × 1 SQD 1,2-DI-O-ACYL-3-O-[6-DEOXY-6-SULFO-ALPHA-D-GLUCOPYRANOSYL]-SN-GLYCEROL × 1 ERG ERGOSTEROL × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE；blot for 3 seconds before plunging
Resolution 2.52 Å
7WYI Native Photosystem I of Chlamydomonas reinhardtii Deposited 2022-02-16 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 15 PDB declaration: pentadecameric
Chain 7 1–241（241 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 155 PQN PHYLLOQUINONE × 2 SF4 IRON/SULFUR CLUSTER × 3 CHL CHLOROPHYLL B × 10 ELECTRON MICROSCOPY
cryo-EM buffer pH 6.5
cryo-EM vitrification conditions Cryogen ETHANE；2.6 microliter of sample were applied to cryo-grids and blotted for 4 seconds using Whatman #1 before plunge freezing.
Resolution 3.90 Å
7WZN PSI-LHCI from Chlamydomonas reinhardtii with bound ferredoxin Deposited 2022-02-18 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric
Chain 7 1–241（241 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 188 PQN PHYLLOQUINONE × 2 SF4 IRON/SULFUR CLUSTER × 3 CHL CHLOROPHYLL B × 16 FES FE2/S2 (INORGANIC) CLUSTER × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 6.5
cryo-EM vitrification conditions Cryogen ETHANE；2.6 microliter of sample were applied to cryo-grids and blotted for 3.5 seconds using Whatman #1 before plunge freezing.
Resolution 4.90 Å
7ZQ9 Dimeric PSI of Chlamydomonas reinhardtii at 2.74 A resolution (symmetry expanded) Deposited 2022-04-29 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 24 PDB declaration: 24-meric
Chain 7 1–241（241 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 226 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 16 BCR BETA-CAROTENE × 36 SF4 IRON/SULFUR CLUSTER × 3 LMU DODECYL-ALPHA-D-MALTOSIDE × 34 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 17 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 20 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 CHL CHLOROPHYLL B × 32 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 7 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.74 Å
7ZQC Monomeric PSI of Chlamydomonas reinhardtii at 2.31 A resolution Deposited 2022-04-29 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain 7 1–241（241 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 198 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 15 BCR BETA-CAROTENE × 27 SF4 IRON/SULFUR CLUSTER × 3 LMU DODECYL-ALPHA-D-MALTOSIDE × 32 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 15 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 18 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 CHL CHLOROPHYLL B × 30 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 7 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.31 Å
7ZQD Dimeric PSI of Chlamydomonas reinhardtii at 2.97 A resolution Deposited 2022-04-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 40 PDB declaration: 40-meric
Chain 7 1–241（241 aa）
Chain 72 1–241（241 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 2 CLA CHLOROPHYLL A × 396 PQN PHYLLOQUINONE × 4 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 30 BCR BETA-CAROTENE × 56 SF4 IRON/SULFUR CLUSTER × 6 LMU DODECYL-ALPHA-D-MALTOSIDE × 66 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 30 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 36 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 2 CHL CHLOROPHYLL B × 60 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 14 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.97 Å
9SE6 Structure of Photosystem I from Chlamydomonas reinhardtii at 1.83 A resolution Deposited 2025-08-15 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 19 PDB declaration: 19-meric
Chain 7 29–241（213 aa）
Not recorded CLA CHLOROPHYLL A × 188 CHL CHLOROPHYLL B × 28 BCR BETA-CAROTENE × 27 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 16 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 12 LMU DODECYL-ALPHA-D-MALTOSIDE × 27 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 7 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 14 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 2 CL0 CHLOROPHYLL A ISOMER × 1 PQN PHYLLOQUINONE × 2 SF4 IRON/SULFUR CLUSTER × 3 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；5mM HEPES, pH 7.5, 0.02% alphaDDM
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 1.83 Å

13 other PDB entries and 13 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name Q84Y02_CHLRE
Isoform —
PDB entities 14
Chains and sequence ranges Author chain 7； PDBConstruct 1–213； UniProt 29–241

Chlorophyll a-b binding protein, chloroplastic

OrganismNot specified

UniProt Q75VY7

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 19 PDB declaration: nonadecameric（19） Consistent with protein copy count Chain 8； UniProt 27–243 Not recorded Photosystem I P700 chlorophyll a apoprotein A1 × 1 （P12154） Photosystem I P700 chlorophyll a apoprotein A2 × 1 （P09144） Photosystem I iron-sulfur center × 1 （Q00914） Photosystem I reaction center subunit II, chloroplastic × 1 （Q39615） Photosystem I reaction center subunit IV, chloroplastic × 1 （P12352） Photosystem I reaction center subunit III, chloroplastic × 1 （P12356） Photosystem I reaction center subunit V, chloroplastic × 1 （P14224） Photosystem I reaction center subunit VIII × 1 （A8IFG7） Photosystem I reaction center subunit IX × 1 （P59777） Photosystem I reaction center subunit psaK, chloroplastic × 1 （P14225） PSI subunit V × 1 （A8IL32） Chlorophyll a-b binding protein, chloroplastic × 2 （Q7DM26） Chlorophyll a-b binding protein, chloroplastic × 1 （Q75VY9） Chlorophyll a-b binding protein, chloroplastic × 1 （Q84Y02） Chlorophyll a-b binding protein, chloroplastic × 1 （Q75VZ0） Chlorophyll a-b binding protein, chloroplastic × 1 （Q75VY8） Chlorophyll a-b binding protein, chloroplastic × 1 （Q75VY6） CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 197 PQN PHYLLOQUINONE × 2 SF4 IRON/SULFUR CLUSTER × 3 BCR BETA-CAROTENE × 31 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 14 NKP (2R)-2-hydroxy-3-(phosphonooxy)propyl (9E)-octadec-9-enoate × 3 LMT DODECYL-BETA-D-MALTOSIDE × 7 OCA OCTANOIC ACID (CAPRYLIC ACID) × 1 DAO LAURIC ACID × 1 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 2 DGA DIACYL GLYCEROL × 1 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 CA CALCIUM ION × 1 RRX (3R)-beta,beta-caroten-3-ol × 1 C7Z (1~{S})-3,5,5-trimethyl-4-[(1~{E},3~{E},5~{E},7~{E},9~{E},11~{E},13~{E},15~{E},17~{E})-3,7,12,16-tetramethyl-18-[(4~{S})-2,6,6-trimethyl-4-oxidanyl-cyclohexen-1-yl]octadeca-1,3,5,7,9,11,13,15,17-nonaenyl]cyclohex-3-en-1-ol × 3 SPH SPHINGOSINE × 3 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 17 CHL CHLOROPHYLL B × 20 SQD 1,2-DI-O-ACYL-3-O-[6-DEOXY-6-SULFO-ALPHA-D-GLUCOPYRANOSYL]-SN-GLYCEROL × 1 QTB (3~{E},5~{E},7~{E})-6-methyl-8-[(6~{R})-2,2,6-trimethylcyclohexyl]octa-3,5,7-trien-2-one × 1 3PH 1,2-DIACYL-GLYCEROL-3-SN-PHOSPHATE × 4 PLM PALMITIC ACID × 1 LPX (2S)-3-{[(R)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-hydroxypropyl hexadecanoate × 1 ELECTRON MICROSCOPY cryo-EM buffer：pH 8 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 3.15 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 7BLX Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
6JO5 Structure of the green algal photosystem I supercomplex with light-harvesting complex I Deposited 2019-03-20 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain 8 27–243（217 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 218 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 12 BCR BETA-CAROTENE × 32 SF4 IRON/SULFUR CLUSTER × 3 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 2 CHL CHLOROPHYLL B × 20 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 22 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
6JO6 Structure of the green algal photosystem I supercomplex with light-harvesting complex I Deposited 2019-03-20 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 19 PDB declaration: nonadecameric
Chain 8 27–243（217 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 197 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 12 BCR BETA-CAROTENE × 32 SF4 IRON/SULFUR CLUSTER × 3 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 1 CHL CHLOROPHYLL B × 18 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 18 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
7BGI Photosystem I of a temperature sensitive mutant Chlamydomonas reinhardtii Deposited 2021-01-07 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain 8 27–243（217 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 217 PQN PHYLLOQUINONE × 2 SF4 IRON/SULFUR CLUSTER × 3 BCR BETA-CAROTENE × 31 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 16 NKP (2R)-2-hydroxy-3-(phosphonooxy)propyl (9E)-octadec-9-enoate × 3 LMT DODECYL-BETA-D-MALTOSIDE × 8 OCA OCTANOIC ACID (CAPRYLIC ACID) × 1 DAO LAURIC ACID × 1 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 2 DGA DIACYL GLYCEROL × 2 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 CA CALCIUM ION × 1 T7X Phosphatidylinositol × 1 RRX (3R)-beta,beta-caroten-3-ol × 1 C7Z (1~{S})-3,5,5-trimethyl-4-[(1~{E},3~{E},5~{E},7~{E},9~{E},11~{E},13~{E},15~{E},17~{E})-3,7,12,16-tetramethyl-18-[(4~{S})-2,6,6-trimethyl-4-oxidanyl-cyclohexen-1-yl]octadeca-1,3,5,7,9,11,13,15,17-nonaenyl]cyclohex-3-en-1-ol × 3 SPH SPHINGOSINE × 3 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 22 CHL CHLOROPHYLL B × 25 SQD 1,2-DI-O-ACYL-3-O-[6-DEOXY-6-SULFO-ALPHA-D-GLUCOPYRANOSYL]-SN-GLYCEROL × 2 QTB (3~{E},5~{E},7~{E})-6-methyl-8-[(6~{R})-2,2,6-trimethylcyclohexyl]octa-3,5,7-trien-2-one × 1 3PH 1,2-DIACYL-GLYCEROL-3-SN-PHOSPHATE × 5 PLM PALMITIC ACID × 1 LPX (2S)-3-{[(R)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-hydroxypropyl hexadecanoate × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.54 Å
7D0J Photosystem I-LHCI-LHCII of Chlamydomonas reinhardtii Deposited 2020-09-10 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 29 PDB declaration: 29-meric
Chain 8 27–243（217 aa）
Not recorded CLA CHLOROPHYLL A × 276 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 20 BCR BETA-CAROTENE × 37 SF4 IRON/SULFUR CLUSTER × 3 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 2 SQD 1,2-DI-O-ACYL-3-O-[6-DEOXY-6-SULFO-ALPHA-D-GLUCOPYRANOSYL]-SN-GLYCEROL × 1 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 10 CHL CHLOROPHYLL B × 56 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 34 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 6 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.42 Å
7DZ7 State transition supercomplex PSI-LHCI-LHCII from double phosphatase mutant pph1;pbcp of green alga Chlamydomonas reinhardtii Deposited 2021-01-23 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 29 PDB declaration: 29-meric
Chain 8 1–243（243 aa）
Not recorded CLA CHLOROPHYLL A × 298 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 27 BCR BETA-CAROTENE × 40 SF4 IRON/SULFUR CLUSTER × 3 LMU DODECYL-ALPHA-D-MALTOSIDE × 7 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 11 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 22 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 16 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 8 CHL CHLOROPHYLL B × 36 ELECTRON MICROSCOPY
cryo-EM buffer pH 6.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.84 Å
7DZ8 State transition supercomplex PSI-LHCI-LHCII from the LhcbM1 lacking mutant of Chlamydomonas reinhardtii Deposited 2021-01-23 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 29 PDB declaration: 29-meric
Chain 8 1–243（243 aa）
Not recorded CLA CHLOROPHYLL A × 298 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 27 BCR BETA-CAROTENE × 40 SF4 IRON/SULFUR CLUSTER × 3 LMU DODECYL-ALPHA-D-MALTOSIDE × 7 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 11 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 22 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 16 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 8 CHL CHLOROPHYLL B × 36 ELECTRON MICROSCOPY
cryo-EM buffer pH 6.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.16 Å
7O01 Dimeric Photosystem I of a temperature sensitive mutant Chlamydomonas reinhardtii Deposited 2021-03-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 40 PDB declaration: 40-meric
Chain 8 27–243（217 aa）
Chain s 27–243（217 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 17.10 Å
7R3K Chlamydomonas reinhardtii TSP9 mutant small Photosystem I complex Deposited 2022-02-07 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 18 PDB declaration: octadecameric
Chain 8 1–243（243 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 186 PQN PHYLLOQUINONE × 2 SF4 IRON/SULFUR CLUSTER × 3 BCR BETA-CAROTENE × 28 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 12 LMT DODECYL-BETA-D-MALTOSIDE × 16 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 CA CALCIUM ION × 1 RRX (3R)-beta,beta-caroten-3-ol × 3 C7Z (1~{S})-3,5,5-trimethyl-4-[(1~{E},3~{E},5~{E},7~{E},9~{E},11~{E},13~{E},15~{E},17~{E})-3,7,12,16-tetramethyl-18-[(4~{S})-2,6,6-trimethyl-4-oxidanyl-cyclohexen-1-yl]octadeca-1,3,5,7,9,11,13,15,17-nonaenyl]cyclohex-3-en-1-ol × 3 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 3 DAO LAURIC ACID × 1 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 14 CHL CHLOROPHYLL B × 28 SPH SPHINGOSINE × 3 3PH 1,2-DIACYL-GLYCEROL-3-SN-PHOSPHATE × 4 DGA DIACYL GLYCEROL × 1 PLM PALMITIC ACID × 1 SQD 1,2-DI-O-ACYL-3-O-[6-DEOXY-6-SULFO-ALPHA-D-GLUCOPYRANOSYL]-SN-GLYCEROL × 1 ERG ERGOSTEROL × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE；blot for 3 seconds before plunging
Resolution 2.52 Å
7WYI Native Photosystem I of Chlamydomonas reinhardtii Deposited 2022-02-16 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 15 PDB declaration: pentadecameric
Chain 8 1–243（243 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 155 PQN PHYLLOQUINONE × 2 SF4 IRON/SULFUR CLUSTER × 3 CHL CHLOROPHYLL B × 10 ELECTRON MICROSCOPY
cryo-EM buffer pH 6.5
cryo-EM vitrification conditions Cryogen ETHANE；2.6 microliter of sample were applied to cryo-grids and blotted for 4 seconds using Whatman #1 before plunge freezing.
Resolution 3.90 Å
7WZN PSI-LHCI from Chlamydomonas reinhardtii with bound ferredoxin Deposited 2022-02-18 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric
Chain 8 1–243（243 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 188 PQN PHYLLOQUINONE × 2 SF4 IRON/SULFUR CLUSTER × 3 CHL CHLOROPHYLL B × 16 FES FE2/S2 (INORGANIC) CLUSTER × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 6.5
cryo-EM vitrification conditions Cryogen ETHANE；2.6 microliter of sample were applied to cryo-grids and blotted for 3.5 seconds using Whatman #1 before plunge freezing.
Resolution 4.90 Å
7ZQ9 Dimeric PSI of Chlamydomonas reinhardtii at 2.74 A resolution (symmetry expanded) Deposited 2022-04-29 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 24 PDB declaration: 24-meric
Chain 8 1–243（243 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 226 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 16 BCR BETA-CAROTENE × 36 SF4 IRON/SULFUR CLUSTER × 3 LMU DODECYL-ALPHA-D-MALTOSIDE × 34 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 17 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 20 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 CHL CHLOROPHYLL B × 32 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 7 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.74 Å
7ZQC Monomeric PSI of Chlamydomonas reinhardtii at 2.31 A resolution Deposited 2022-04-29 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain 8 1–243（243 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 198 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 15 BCR BETA-CAROTENE × 27 SF4 IRON/SULFUR CLUSTER × 3 LMU DODECYL-ALPHA-D-MALTOSIDE × 32 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 15 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 18 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 CHL CHLOROPHYLL B × 30 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 7 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.31 Å
7ZQD Dimeric PSI of Chlamydomonas reinhardtii at 2.97 A resolution Deposited 2022-04-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 40 PDB declaration: 40-meric
Chain 8 1–243（243 aa）
Chain 82 1–243（243 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 2 CLA CHLOROPHYLL A × 396 PQN PHYLLOQUINONE × 4 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 30 BCR BETA-CAROTENE × 56 SF4 IRON/SULFUR CLUSTER × 6 LMU DODECYL-ALPHA-D-MALTOSIDE × 66 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 30 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 36 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 2 CHL CHLOROPHYLL B × 60 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 14 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.97 Å
8H2U X-ray Structure of photosystem I-LHCI super complex from Chlamydomonas reinhardtii. Deposited 2022-10-07 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain 8 1–243（243 aa）
Not recorded CLA CHLOROPHYLL A × 185 SF4 IRON/SULFUR CLUSTER × 3 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 7 BCR BETA-CAROTENE × 27 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 2 LMT DODECYL-BETA-D-MALTOSIDE × 2 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 7 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 12 CHL CHLOROPHYLL B × 26 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；50 mM Tris-HCl (pH 7.0), 50 mM Li2SO4 and 4.5-7.0 % (w/v) polyethylene glycol (PEG) 6,000
Resolution 3.40 Å R-free 0.359
9SE6 Structure of Photosystem I from Chlamydomonas reinhardtii at 1.83 A resolution Deposited 2025-08-15 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 19 PDB declaration: 19-meric
Chain 8 27–243（217 aa）
Not recorded CLA CHLOROPHYLL A × 188 CHL CHLOROPHYLL B × 28 BCR BETA-CAROTENE × 27 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 16 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 12 LMU DODECYL-ALPHA-D-MALTOSIDE × 27 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 7 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 14 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 2 CL0 CHLOROPHYLL A ISOMER × 1 PQN PHYLLOQUINONE × 2 SF4 IRON/SULFUR CLUSTER × 3 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；5mM HEPES, pH 7.5, 0.02% alphaDDM
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 1.83 Å

15 other PDB entries and 15 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name Q75VY7_CHLRE
Isoform —
PDB entities 15
Chains and sequence ranges Author chain 8； PDBConstruct 1–217； UniProt 27–243

Chlorophyll a-b binding protein, chloroplastic

OrganismNot specified

UniProt Q75VZ0

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 19 PDB declaration: nonadecameric（19） Consistent with protein copy count Chain 4； UniProt 55–264 Not recorded Photosystem I P700 chlorophyll a apoprotein A1 × 1 （P12154） Photosystem I P700 chlorophyll a apoprotein A2 × 1 （P09144） Photosystem I iron-sulfur center × 1 （Q00914） Photosystem I reaction center subunit II, chloroplastic × 1 （Q39615） Photosystem I reaction center subunit IV, chloroplastic × 1 （P12352） Photosystem I reaction center subunit III, chloroplastic × 1 （P12356） Photosystem I reaction center subunit V, chloroplastic × 1 （P14224） Photosystem I reaction center subunit VIII × 1 （A8IFG7） Photosystem I reaction center subunit IX × 1 （P59777） Photosystem I reaction center subunit psaK, chloroplastic × 1 （P14225） PSI subunit V × 1 （A8IL32） Chlorophyll a-b binding protein, chloroplastic × 2 （Q7DM26） Chlorophyll a-b binding protein, chloroplastic × 1 （Q75VY9） Chlorophyll a-b binding protein, chloroplastic × 1 （Q84Y02） Chlorophyll a-b binding protein, chloroplastic × 1 （Q75VY7） Chlorophyll a-b binding protein, chloroplastic × 1 （Q75VY8） Chlorophyll a-b binding protein, chloroplastic × 1 （Q75VY6） CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 197 PQN PHYLLOQUINONE × 2 SF4 IRON/SULFUR CLUSTER × 3 BCR BETA-CAROTENE × 31 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 14 NKP (2R)-2-hydroxy-3-(phosphonooxy)propyl (9E)-octadec-9-enoate × 3 LMT DODECYL-BETA-D-MALTOSIDE × 7 OCA OCTANOIC ACID (CAPRYLIC ACID) × 1 DAO LAURIC ACID × 1 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 2 DGA DIACYL GLYCEROL × 1 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 CA CALCIUM ION × 1 RRX (3R)-beta,beta-caroten-3-ol × 1 C7Z (1~{S})-3,5,5-trimethyl-4-[(1~{E},3~{E},5~{E},7~{E},9~{E},11~{E},13~{E},15~{E},17~{E})-3,7,12,16-tetramethyl-18-[(4~{S})-2,6,6-trimethyl-4-oxidanyl-cyclohexen-1-yl]octadeca-1,3,5,7,9,11,13,15,17-nonaenyl]cyclohex-3-en-1-ol × 3 SPH SPHINGOSINE × 3 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 17 CHL CHLOROPHYLL B × 20 SQD 1,2-DI-O-ACYL-3-O-[6-DEOXY-6-SULFO-ALPHA-D-GLUCOPYRANOSYL]-SN-GLYCEROL × 1 QTB (3~{E},5~{E},7~{E})-6-methyl-8-[(6~{R})-2,2,6-trimethylcyclohexyl]octa-3,5,7-trien-2-one × 1 3PH 1,2-DIACYL-GLYCEROL-3-SN-PHOSPHATE × 4 PLM PALMITIC ACID × 1 LPX (2S)-3-{[(R)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-hydroxypropyl hexadecanoate × 1 ELECTRON MICROSCOPY cryo-EM buffer：pH 8 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 3.15 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 7BLX Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
6JO5 Structure of the green algal photosystem I supercomplex with light-harvesting complex I Deposited 2019-03-20 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain 4 29–264（236 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 218 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 12 BCR BETA-CAROTENE × 32 SF4 IRON/SULFUR CLUSTER × 3 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 2 CHL CHLOROPHYLL B × 20 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 22 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
6JO6 Structure of the green algal photosystem I supercomplex with light-harvesting complex I Deposited 2019-03-20 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 19 PDB declaration: nonadecameric
Chain 4 29–264（236 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 197 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 12 BCR BETA-CAROTENE × 32 SF4 IRON/SULFUR CLUSTER × 3 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 1 CHL CHLOROPHYLL B × 18 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 18 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
7BGI Photosystem I of a temperature sensitive mutant Chlamydomonas reinhardtii Deposited 2021-01-07 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain 4 55–264（210 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 217 PQN PHYLLOQUINONE × 2 SF4 IRON/SULFUR CLUSTER × 3 BCR BETA-CAROTENE × 31 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 16 NKP (2R)-2-hydroxy-3-(phosphonooxy)propyl (9E)-octadec-9-enoate × 3 LMT DODECYL-BETA-D-MALTOSIDE × 8 OCA OCTANOIC ACID (CAPRYLIC ACID) × 1 DAO LAURIC ACID × 1 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 2 DGA DIACYL GLYCEROL × 2 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 CA CALCIUM ION × 1 T7X Phosphatidylinositol × 1 RRX (3R)-beta,beta-caroten-3-ol × 1 C7Z (1~{S})-3,5,5-trimethyl-4-[(1~{E},3~{E},5~{E},7~{E},9~{E},11~{E},13~{E},15~{E},17~{E})-3,7,12,16-tetramethyl-18-[(4~{S})-2,6,6-trimethyl-4-oxidanyl-cyclohexen-1-yl]octadeca-1,3,5,7,9,11,13,15,17-nonaenyl]cyclohex-3-en-1-ol × 3 SPH SPHINGOSINE × 3 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 22 CHL CHLOROPHYLL B × 25 SQD 1,2-DI-O-ACYL-3-O-[6-DEOXY-6-SULFO-ALPHA-D-GLUCOPYRANOSYL]-SN-GLYCEROL × 2 QTB (3~{E},5~{E},7~{E})-6-methyl-8-[(6~{R})-2,2,6-trimethylcyclohexyl]octa-3,5,7-trien-2-one × 1 3PH 1,2-DIACYL-GLYCEROL-3-SN-PHOSPHATE × 5 PLM PALMITIC ACID × 1 LPX (2S)-3-{[(R)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-hydroxypropyl hexadecanoate × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.54 Å
7D0J Photosystem I-LHCI-LHCII of Chlamydomonas reinhardtii Deposited 2020-09-10 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 29 PDB declaration: 29-meric
Chain 4 58–262（205 aa）
Not recorded CLA CHLOROPHYLL A × 276 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 20 BCR BETA-CAROTENE × 37 SF4 IRON/SULFUR CLUSTER × 3 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 2 SQD 1,2-DI-O-ACYL-3-O-[6-DEOXY-6-SULFO-ALPHA-D-GLUCOPYRANOSYL]-SN-GLYCEROL × 1 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 10 CHL CHLOROPHYLL B × 56 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 34 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 6 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.42 Å
7DZ7 State transition supercomplex PSI-LHCI-LHCII from double phosphatase mutant pph1;pbcp of green alga Chlamydomonas reinhardtii Deposited 2021-01-23 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 29 PDB declaration: 29-meric
Chain 4 1–264（264 aa）
Not recorded CLA CHLOROPHYLL A × 298 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 27 BCR BETA-CAROTENE × 40 SF4 IRON/SULFUR CLUSTER × 3 LMU DODECYL-ALPHA-D-MALTOSIDE × 7 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 11 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 22 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 16 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 8 CHL CHLOROPHYLL B × 36 ELECTRON MICROSCOPY
cryo-EM buffer pH 6.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.84 Å
7DZ8 State transition supercomplex PSI-LHCI-LHCII from the LhcbM1 lacking mutant of Chlamydomonas reinhardtii Deposited 2021-01-23 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 29 PDB declaration: 29-meric
Chain 4 1–264（264 aa）
Not recorded CLA CHLOROPHYLL A × 298 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 27 BCR BETA-CAROTENE × 40 SF4 IRON/SULFUR CLUSTER × 3 LMU DODECYL-ALPHA-D-MALTOSIDE × 7 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 11 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 22 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 16 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 8 CHL CHLOROPHYLL B × 36 ELECTRON MICROSCOPY
cryo-EM buffer pH 6.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.16 Å
7O01 Dimeric Photosystem I of a temperature sensitive mutant Chlamydomonas reinhardtii Deposited 2021-03-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 40 PDB declaration: 40-meric
Chain 4 55–264（210 aa）
Chain t 55–264（210 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 17.10 Å
7R3K Chlamydomonas reinhardtii TSP9 mutant small Photosystem I complex Deposited 2022-02-07 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 18 PDB declaration: octadecameric
Chain 4 1–264（264 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 186 PQN PHYLLOQUINONE × 2 SF4 IRON/SULFUR CLUSTER × 3 BCR BETA-CAROTENE × 28 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 12 LMT DODECYL-BETA-D-MALTOSIDE × 16 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 CA CALCIUM ION × 1 RRX (3R)-beta,beta-caroten-3-ol × 3 C7Z (1~{S})-3,5,5-trimethyl-4-[(1~{E},3~{E},5~{E},7~{E},9~{E},11~{E},13~{E},15~{E},17~{E})-3,7,12,16-tetramethyl-18-[(4~{S})-2,6,6-trimethyl-4-oxidanyl-cyclohexen-1-yl]octadeca-1,3,5,7,9,11,13,15,17-nonaenyl]cyclohex-3-en-1-ol × 3 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 3 DAO LAURIC ACID × 1 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 14 CHL CHLOROPHYLL B × 28 SPH SPHINGOSINE × 3 3PH 1,2-DIACYL-GLYCEROL-3-SN-PHOSPHATE × 4 DGA DIACYL GLYCEROL × 1 PLM PALMITIC ACID × 1 SQD 1,2-DI-O-ACYL-3-O-[6-DEOXY-6-SULFO-ALPHA-D-GLUCOPYRANOSYL]-SN-GLYCEROL × 1 ERG ERGOSTEROL × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE；blot for 3 seconds before plunging
Resolution 2.52 Å
7WYI Native Photosystem I of Chlamydomonas reinhardtii Deposited 2022-02-16 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 15 PDB declaration: pentadecameric
Chain 4 1–264（264 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 155 PQN PHYLLOQUINONE × 2 SF4 IRON/SULFUR CLUSTER × 3 CHL CHLOROPHYLL B × 10 ELECTRON MICROSCOPY
cryo-EM buffer pH 6.5
cryo-EM vitrification conditions Cryogen ETHANE；2.6 microliter of sample were applied to cryo-grids and blotted for 4 seconds using Whatman #1 before plunge freezing.
Resolution 3.90 Å
7WZN PSI-LHCI from Chlamydomonas reinhardtii with bound ferredoxin Deposited 2022-02-18 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric
Chain 4 1–264（264 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 188 PQN PHYLLOQUINONE × 2 SF4 IRON/SULFUR CLUSTER × 3 CHL CHLOROPHYLL B × 16 FES FE2/S2 (INORGANIC) CLUSTER × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 6.5
cryo-EM vitrification conditions Cryogen ETHANE；2.6 microliter of sample were applied to cryo-grids and blotted for 3.5 seconds using Whatman #1 before plunge freezing.
Resolution 4.90 Å
7ZQ9 Dimeric PSI of Chlamydomonas reinhardtii at 2.74 A resolution (symmetry expanded) Deposited 2022-04-29 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 24 PDB declaration: 24-meric
Chain 4 1–264（264 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 226 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 16 BCR BETA-CAROTENE × 36 SF4 IRON/SULFUR CLUSTER × 3 LMU DODECYL-ALPHA-D-MALTOSIDE × 34 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 17 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 20 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 CHL CHLOROPHYLL B × 32 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 7 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.74 Å
7ZQC Monomeric PSI of Chlamydomonas reinhardtii at 2.31 A resolution Deposited 2022-04-29 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain 4 1–264（264 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 198 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 15 BCR BETA-CAROTENE × 27 SF4 IRON/SULFUR CLUSTER × 3 LMU DODECYL-ALPHA-D-MALTOSIDE × 32 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 15 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 18 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 CHL CHLOROPHYLL B × 30 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 7 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.31 Å
7ZQD Dimeric PSI of Chlamydomonas reinhardtii at 2.97 A resolution Deposited 2022-04-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 40 PDB declaration: 40-meric
Chain 4 1–264（264 aa）
Chain 42 1–264（264 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 2 CLA CHLOROPHYLL A × 396 PQN PHYLLOQUINONE × 4 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 30 BCR BETA-CAROTENE × 56 SF4 IRON/SULFUR CLUSTER × 6 LMU DODECYL-ALPHA-D-MALTOSIDE × 66 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 30 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 36 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 2 CHL CHLOROPHYLL B × 60 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 14 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.97 Å
8H2U X-ray Structure of photosystem I-LHCI super complex from Chlamydomonas reinhardtii. Deposited 2022-10-07 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain 4 1–264（264 aa）
Not recorded CLA CHLOROPHYLL A × 185 SF4 IRON/SULFUR CLUSTER × 3 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 7 BCR BETA-CAROTENE × 27 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 2 LMT DODECYL-BETA-D-MALTOSIDE × 2 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 7 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 12 CHL CHLOROPHYLL B × 26 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；50 mM Tris-HCl (pH 7.0), 50 mM Li2SO4 and 4.5-7.0 % (w/v) polyethylene glycol (PEG) 6,000
Resolution 3.40 Å R-free 0.359
9SE6 Structure of Photosystem I from Chlamydomonas reinhardtii at 1.83 A resolution Deposited 2025-08-15 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 19 PDB declaration: 19-meric
Chain 4 53–264（212 aa）
Not recorded CLA CHLOROPHYLL A × 188 CHL CHLOROPHYLL B × 28 BCR BETA-CAROTENE × 27 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 16 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 12 LMU DODECYL-ALPHA-D-MALTOSIDE × 27 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 7 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 14 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 2 CL0 CHLOROPHYLL A ISOMER × 1 PQN PHYLLOQUINONE × 2 SF4 IRON/SULFUR CLUSTER × 3 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；5mM HEPES, pH 7.5, 0.02% alphaDDM
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 1.83 Å

15 other PDB entries and 15 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name Q75VZ0_CHLRE
Isoform —
PDB entities 16
Chains and sequence ranges Author chain 4； PDBConstruct 1–210； UniProt 55–264

Chlorophyll a-b binding protein, chloroplastic

OrganismNot specified

UniProt Q75VY8

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 19 PDB declaration: nonadecameric（19） Consistent with protein copy count Chain 5； UniProt 31–257 Not recorded Photosystem I P700 chlorophyll a apoprotein A1 × 1 （P12154） Photosystem I P700 chlorophyll a apoprotein A2 × 1 （P09144） Photosystem I iron-sulfur center × 1 （Q00914） Photosystem I reaction center subunit II, chloroplastic × 1 （Q39615） Photosystem I reaction center subunit IV, chloroplastic × 1 （P12352） Photosystem I reaction center subunit III, chloroplastic × 1 （P12356） Photosystem I reaction center subunit V, chloroplastic × 1 （P14224） Photosystem I reaction center subunit VIII × 1 （A8IFG7） Photosystem I reaction center subunit IX × 1 （P59777） Photosystem I reaction center subunit psaK, chloroplastic × 1 （P14225） PSI subunit V × 1 （A8IL32） Chlorophyll a-b binding protein, chloroplastic × 2 （Q7DM26） Chlorophyll a-b binding protein, chloroplastic × 1 （Q75VY9） Chlorophyll a-b binding protein, chloroplastic × 1 （Q84Y02） Chlorophyll a-b binding protein, chloroplastic × 1 （Q75VY7） Chlorophyll a-b binding protein, chloroplastic × 1 （Q75VZ0） Chlorophyll a-b binding protein, chloroplastic × 1 （Q75VY6） CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 197 PQN PHYLLOQUINONE × 2 SF4 IRON/SULFUR CLUSTER × 3 BCR BETA-CAROTENE × 31 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 14 NKP (2R)-2-hydroxy-3-(phosphonooxy)propyl (9E)-octadec-9-enoate × 3 LMT DODECYL-BETA-D-MALTOSIDE × 7 OCA OCTANOIC ACID (CAPRYLIC ACID) × 1 DAO LAURIC ACID × 1 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 2 DGA DIACYL GLYCEROL × 1 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 CA CALCIUM ION × 1 RRX (3R)-beta,beta-caroten-3-ol × 1 C7Z (1~{S})-3,5,5-trimethyl-4-[(1~{E},3~{E},5~{E},7~{E},9~{E},11~{E},13~{E},15~{E},17~{E})-3,7,12,16-tetramethyl-18-[(4~{S})-2,6,6-trimethyl-4-oxidanyl-cyclohexen-1-yl]octadeca-1,3,5,7,9,11,13,15,17-nonaenyl]cyclohex-3-en-1-ol × 3 SPH SPHINGOSINE × 3 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 17 CHL CHLOROPHYLL B × 20 SQD 1,2-DI-O-ACYL-3-O-[6-DEOXY-6-SULFO-ALPHA-D-GLUCOPYRANOSYL]-SN-GLYCEROL × 1 QTB (3~{E},5~{E},7~{E})-6-methyl-8-[(6~{R})-2,2,6-trimethylcyclohexyl]octa-3,5,7-trien-2-one × 1 3PH 1,2-DIACYL-GLYCEROL-3-SN-PHOSPHATE × 4 PLM PALMITIC ACID × 1 LPX (2S)-3-{[(R)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-hydroxypropyl hexadecanoate × 1 ELECTRON MICROSCOPY cryo-EM buffer：pH 8 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 3.15 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 7BLX Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
6JO5 Structure of the green algal photosystem I supercomplex with light-harvesting complex I Deposited 2019-03-20 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain 5 29–257（229 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 218 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 12 BCR BETA-CAROTENE × 32 SF4 IRON/SULFUR CLUSTER × 3 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 2 CHL CHLOROPHYLL B × 20 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 22 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
6JO6 Structure of the green algal photosystem I supercomplex with light-harvesting complex I Deposited 2019-03-20 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 19 PDB declaration: nonadecameric
Chain 5 29–257（229 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 197 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 12 BCR BETA-CAROTENE × 32 SF4 IRON/SULFUR CLUSTER × 3 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 1 CHL CHLOROPHYLL B × 18 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 18 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
7BGI Photosystem I of a temperature sensitive mutant Chlamydomonas reinhardtii Deposited 2021-01-07 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain 5 31–257（227 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 217 PQN PHYLLOQUINONE × 2 SF4 IRON/SULFUR CLUSTER × 3 BCR BETA-CAROTENE × 31 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 16 NKP (2R)-2-hydroxy-3-(phosphonooxy)propyl (9E)-octadec-9-enoate × 3 LMT DODECYL-BETA-D-MALTOSIDE × 8 OCA OCTANOIC ACID (CAPRYLIC ACID) × 1 DAO LAURIC ACID × 1 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 2 DGA DIACYL GLYCEROL × 2 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 CA CALCIUM ION × 1 T7X Phosphatidylinositol × 1 RRX (3R)-beta,beta-caroten-3-ol × 1 C7Z (1~{S})-3,5,5-trimethyl-4-[(1~{E},3~{E},5~{E},7~{E},9~{E},11~{E},13~{E},15~{E},17~{E})-3,7,12,16-tetramethyl-18-[(4~{S})-2,6,6-trimethyl-4-oxidanyl-cyclohexen-1-yl]octadeca-1,3,5,7,9,11,13,15,17-nonaenyl]cyclohex-3-en-1-ol × 3 SPH SPHINGOSINE × 3 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 22 CHL CHLOROPHYLL B × 25 SQD 1,2-DI-O-ACYL-3-O-[6-DEOXY-6-SULFO-ALPHA-D-GLUCOPYRANOSYL]-SN-GLYCEROL × 2 QTB (3~{E},5~{E},7~{E})-6-methyl-8-[(6~{R})-2,2,6-trimethylcyclohexyl]octa-3,5,7-trien-2-one × 1 3PH 1,2-DIACYL-GLYCEROL-3-SN-PHOSPHATE × 5 PLM PALMITIC ACID × 1 LPX (2S)-3-{[(R)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-hydroxypropyl hexadecanoate × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.54 Å
7D0J Photosystem I-LHCI-LHCII of Chlamydomonas reinhardtii Deposited 2020-09-10 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 29 PDB declaration: 29-meric
Chain 5 32–256（225 aa）
Not recorded CLA CHLOROPHYLL A × 276 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 20 BCR BETA-CAROTENE × 37 SF4 IRON/SULFUR CLUSTER × 3 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 2 SQD 1,2-DI-O-ACYL-3-O-[6-DEOXY-6-SULFO-ALPHA-D-GLUCOPYRANOSYL]-SN-GLYCEROL × 1 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 10 CHL CHLOROPHYLL B × 56 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 34 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 6 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.42 Å
7DZ7 State transition supercomplex PSI-LHCI-LHCII from double phosphatase mutant pph1;pbcp of green alga Chlamydomonas reinhardtii Deposited 2021-01-23 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 29 PDB declaration: 29-meric
Chain 5 1–257（257 aa）
Not recorded CLA CHLOROPHYLL A × 298 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 27 BCR BETA-CAROTENE × 40 SF4 IRON/SULFUR CLUSTER × 3 LMU DODECYL-ALPHA-D-MALTOSIDE × 7 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 11 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 22 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 16 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 8 CHL CHLOROPHYLL B × 36 ELECTRON MICROSCOPY
cryo-EM buffer pH 6.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.84 Å
7DZ8 State transition supercomplex PSI-LHCI-LHCII from the LhcbM1 lacking mutant of Chlamydomonas reinhardtii Deposited 2021-01-23 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 29 PDB declaration: 29-meric
Chain 5 1–257（257 aa）
Not recorded CLA CHLOROPHYLL A × 298 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 27 BCR BETA-CAROTENE × 40 SF4 IRON/SULFUR CLUSTER × 3 LMU DODECYL-ALPHA-D-MALTOSIDE × 7 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 11 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 22 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 16 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 8 CHL CHLOROPHYLL B × 36 ELECTRON MICROSCOPY
cryo-EM buffer pH 6.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.16 Å
7O01 Dimeric Photosystem I of a temperature sensitive mutant Chlamydomonas reinhardtii Deposited 2021-03-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 40 PDB declaration: 40-meric
Chain 5 31–257（227 aa）
Chain u 31–257（227 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 17.10 Å
7R3K Chlamydomonas reinhardtii TSP9 mutant small Photosystem I complex Deposited 2022-02-07 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 18 PDB declaration: octadecameric
Chain 5 1–257（257 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 186 PQN PHYLLOQUINONE × 2 SF4 IRON/SULFUR CLUSTER × 3 BCR BETA-CAROTENE × 28 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 12 LMT DODECYL-BETA-D-MALTOSIDE × 16 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 CA CALCIUM ION × 1 RRX (3R)-beta,beta-caroten-3-ol × 3 C7Z (1~{S})-3,5,5-trimethyl-4-[(1~{E},3~{E},5~{E},7~{E},9~{E},11~{E},13~{E},15~{E},17~{E})-3,7,12,16-tetramethyl-18-[(4~{S})-2,6,6-trimethyl-4-oxidanyl-cyclohexen-1-yl]octadeca-1,3,5,7,9,11,13,15,17-nonaenyl]cyclohex-3-en-1-ol × 3 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 3 DAO LAURIC ACID × 1 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 14 CHL CHLOROPHYLL B × 28 SPH SPHINGOSINE × 3 3PH 1,2-DIACYL-GLYCEROL-3-SN-PHOSPHATE × 4 DGA DIACYL GLYCEROL × 1 PLM PALMITIC ACID × 1 SQD 1,2-DI-O-ACYL-3-O-[6-DEOXY-6-SULFO-ALPHA-D-GLUCOPYRANOSYL]-SN-GLYCEROL × 1 ERG ERGOSTEROL × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE；blot for 3 seconds before plunging
Resolution 2.52 Å
7WYI Native Photosystem I of Chlamydomonas reinhardtii Deposited 2022-02-16 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 15 PDB declaration: pentadecameric
Chain 5 1–257（257 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 155 PQN PHYLLOQUINONE × 2 SF4 IRON/SULFUR CLUSTER × 3 CHL CHLOROPHYLL B × 10 ELECTRON MICROSCOPY
cryo-EM buffer pH 6.5
cryo-EM vitrification conditions Cryogen ETHANE；2.6 microliter of sample were applied to cryo-grids and blotted for 4 seconds using Whatman #1 before plunge freezing.
Resolution 3.90 Å
7WZN PSI-LHCI from Chlamydomonas reinhardtii with bound ferredoxin Deposited 2022-02-18 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric
Chain 5 1–257（257 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 188 PQN PHYLLOQUINONE × 2 SF4 IRON/SULFUR CLUSTER × 3 CHL CHLOROPHYLL B × 16 FES FE2/S2 (INORGANIC) CLUSTER × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 6.5
cryo-EM vitrification conditions Cryogen ETHANE；2.6 microliter of sample were applied to cryo-grids and blotted for 3.5 seconds using Whatman #1 before plunge freezing.
Resolution 4.90 Å
7ZQ9 Dimeric PSI of Chlamydomonas reinhardtii at 2.74 A resolution (symmetry expanded) Deposited 2022-04-29 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 24 PDB declaration: 24-meric
Chain 5 1–257（257 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 226 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 16 BCR BETA-CAROTENE × 36 SF4 IRON/SULFUR CLUSTER × 3 LMU DODECYL-ALPHA-D-MALTOSIDE × 34 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 17 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 20 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 CHL CHLOROPHYLL B × 32 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 7 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.74 Å
7ZQC Monomeric PSI of Chlamydomonas reinhardtii at 2.31 A resolution Deposited 2022-04-29 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain 5 1–257（257 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 198 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 15 BCR BETA-CAROTENE × 27 SF4 IRON/SULFUR CLUSTER × 3 LMU DODECYL-ALPHA-D-MALTOSIDE × 32 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 15 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 18 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 CHL CHLOROPHYLL B × 30 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 7 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.31 Å
7ZQD Dimeric PSI of Chlamydomonas reinhardtii at 2.97 A resolution Deposited 2022-04-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 40 PDB declaration: 40-meric
Chain 5 1–257（257 aa）
Chain 52 1–257（257 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 2 CLA CHLOROPHYLL A × 396 PQN PHYLLOQUINONE × 4 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 30 BCR BETA-CAROTENE × 56 SF4 IRON/SULFUR CLUSTER × 6 LMU DODECYL-ALPHA-D-MALTOSIDE × 66 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 30 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 36 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 2 CHL CHLOROPHYLL B × 60 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 14 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.97 Å
8H2U X-ray Structure of photosystem I-LHCI super complex from Chlamydomonas reinhardtii. Deposited 2022-10-07 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain 5 1–257（257 aa）
Not recorded CLA CHLOROPHYLL A × 185 SF4 IRON/SULFUR CLUSTER × 3 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 7 BCR BETA-CAROTENE × 27 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 2 LMT DODECYL-BETA-D-MALTOSIDE × 2 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 7 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 12 CHL CHLOROPHYLL B × 26 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；50 mM Tris-HCl (pH 7.0), 50 mM Li2SO4 and 4.5-7.0 % (w/v) polyethylene glycol (PEG) 6,000
Resolution 3.40 Å R-free 0.359
9SE6 Structure of Photosystem I from Chlamydomonas reinhardtii at 1.83 A resolution Deposited 2025-08-15 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 19 PDB declaration: 19-meric
Chain 5 31–257（227 aa）
Not recorded CLA CHLOROPHYLL A × 188 CHL CHLOROPHYLL B × 28 BCR BETA-CAROTENE × 27 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 16 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 12 LMU DODECYL-ALPHA-D-MALTOSIDE × 27 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 7 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 14 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 2 CL0 CHLOROPHYLL A ISOMER × 1 PQN PHYLLOQUINONE × 2 SF4 IRON/SULFUR CLUSTER × 3 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；5mM HEPES, pH 7.5, 0.02% alphaDDM
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 1.83 Å

15 other PDB entries and 15 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name Q75VY8_CHLRE
Isoform —
PDB entities 17
Chains and sequence ranges Author chain 5； PDBConstruct 1–227； UniProt 31–257

Chlorophyll a-b binding protein, chloroplastic

OrganismNot specified

UniProt Q75VY6

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 19 PDB declaration: nonadecameric（19） Consistent with protein copy count Chain 6； UniProt 29–257 Not recorded Photosystem I P700 chlorophyll a apoprotein A1 × 1 （P12154） Photosystem I P700 chlorophyll a apoprotein A2 × 1 （P09144） Photosystem I iron-sulfur center × 1 （Q00914） Photosystem I reaction center subunit II, chloroplastic × 1 （Q39615） Photosystem I reaction center subunit IV, chloroplastic × 1 （P12352） Photosystem I reaction center subunit III, chloroplastic × 1 （P12356） Photosystem I reaction center subunit V, chloroplastic × 1 （P14224） Photosystem I reaction center subunit VIII × 1 （A8IFG7） Photosystem I reaction center subunit IX × 1 （P59777） Photosystem I reaction center subunit psaK, chloroplastic × 1 （P14225） PSI subunit V × 1 （A8IL32） Chlorophyll a-b binding protein, chloroplastic × 2 （Q7DM26） Chlorophyll a-b binding protein, chloroplastic × 1 （Q75VY9） Chlorophyll a-b binding protein, chloroplastic × 1 （Q84Y02） Chlorophyll a-b binding protein, chloroplastic × 1 （Q75VY7） Chlorophyll a-b binding protein, chloroplastic × 1 （Q75VZ0） Chlorophyll a-b binding protein, chloroplastic × 1 （Q75VY8） CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 197 PQN PHYLLOQUINONE × 2 SF4 IRON/SULFUR CLUSTER × 3 BCR BETA-CAROTENE × 31 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 14 NKP (2R)-2-hydroxy-3-(phosphonooxy)propyl (9E)-octadec-9-enoate × 3 LMT DODECYL-BETA-D-MALTOSIDE × 7 OCA OCTANOIC ACID (CAPRYLIC ACID) × 1 DAO LAURIC ACID × 1 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 2 DGA DIACYL GLYCEROL × 1 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 CA CALCIUM ION × 1 RRX (3R)-beta,beta-caroten-3-ol × 1 C7Z (1~{S})-3,5,5-trimethyl-4-[(1~{E},3~{E},5~{E},7~{E},9~{E},11~{E},13~{E},15~{E},17~{E})-3,7,12,16-tetramethyl-18-[(4~{S})-2,6,6-trimethyl-4-oxidanyl-cyclohexen-1-yl]octadeca-1,3,5,7,9,11,13,15,17-nonaenyl]cyclohex-3-en-1-ol × 3 SPH SPHINGOSINE × 3 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 17 CHL CHLOROPHYLL B × 20 SQD 1,2-DI-O-ACYL-3-O-[6-DEOXY-6-SULFO-ALPHA-D-GLUCOPYRANOSYL]-SN-GLYCEROL × 1 QTB (3~{E},5~{E},7~{E})-6-methyl-8-[(6~{R})-2,2,6-trimethylcyclohexyl]octa-3,5,7-trien-2-one × 1 3PH 1,2-DIACYL-GLYCEROL-3-SN-PHOSPHATE × 4 PLM PALMITIC ACID × 1 LPX (2S)-3-{[(R)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-hydroxypropyl hexadecanoate × 1 ELECTRON MICROSCOPY cryo-EM buffer：pH 8 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 3.15 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 7BLX Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
6JO5 Structure of the green algal photosystem I supercomplex with light-harvesting complex I Deposited 2019-03-20 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain 6 26–257（232 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 218 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 12 BCR BETA-CAROTENE × 32 SF4 IRON/SULFUR CLUSTER × 3 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 2 CHL CHLOROPHYLL B × 20 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 22 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
6JO6 Structure of the green algal photosystem I supercomplex with light-harvesting complex I Deposited 2019-03-20 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 19 PDB declaration: nonadecameric
Chain 6 26–257（232 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 197 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 12 BCR BETA-CAROTENE × 32 SF4 IRON/SULFUR CLUSTER × 3 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 1 CHL CHLOROPHYLL B × 18 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 18 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
7BGI Photosystem I of a temperature sensitive mutant Chlamydomonas reinhardtii Deposited 2021-01-07 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 21 PDB declaration: 21-meric
Chain 6 29–257（229 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 217 PQN PHYLLOQUINONE × 2 SF4 IRON/SULFUR CLUSTER × 3 BCR BETA-CAROTENE × 31 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 16 NKP (2R)-2-hydroxy-3-(phosphonooxy)propyl (9E)-octadec-9-enoate × 3 LMT DODECYL-BETA-D-MALTOSIDE × 8 OCA OCTANOIC ACID (CAPRYLIC ACID) × 1 DAO LAURIC ACID × 1 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 2 DGA DIACYL GLYCEROL × 2 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 CA CALCIUM ION × 1 T7X Phosphatidylinositol × 1 RRX (3R)-beta,beta-caroten-3-ol × 1 C7Z (1~{S})-3,5,5-trimethyl-4-[(1~{E},3~{E},5~{E},7~{E},9~{E},11~{E},13~{E},15~{E},17~{E})-3,7,12,16-tetramethyl-18-[(4~{S})-2,6,6-trimethyl-4-oxidanyl-cyclohexen-1-yl]octadeca-1,3,5,7,9,11,13,15,17-nonaenyl]cyclohex-3-en-1-ol × 3 SPH SPHINGOSINE × 3 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 22 CHL CHLOROPHYLL B × 25 SQD 1,2-DI-O-ACYL-3-O-[6-DEOXY-6-SULFO-ALPHA-D-GLUCOPYRANOSYL]-SN-GLYCEROL × 2 QTB (3~{E},5~{E},7~{E})-6-methyl-8-[(6~{R})-2,2,6-trimethylcyclohexyl]octa-3,5,7-trien-2-one × 1 3PH 1,2-DIACYL-GLYCEROL-3-SN-PHOSPHATE × 5 PLM PALMITIC ACID × 1 LPX (2S)-3-{[(R)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-hydroxypropyl hexadecanoate × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.54 Å
7D0J Photosystem I-LHCI-LHCII of Chlamydomonas reinhardtii Deposited 2020-09-10 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 29 PDB declaration: 29-meric
Chain 6 28–257（230 aa）
Not recorded CLA CHLOROPHYLL A × 276 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 20 BCR BETA-CAROTENE × 37 SF4 IRON/SULFUR CLUSTER × 3 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 2 SQD 1,2-DI-O-ACYL-3-O-[6-DEOXY-6-SULFO-ALPHA-D-GLUCOPYRANOSYL]-SN-GLYCEROL × 1 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 10 CHL CHLOROPHYLL B × 56 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 34 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 6 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.42 Å
7DZ7 State transition supercomplex PSI-LHCI-LHCII from double phosphatase mutant pph1;pbcp of green alga Chlamydomonas reinhardtii Deposited 2021-01-23 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 29 PDB declaration: 29-meric
Chain 6 1–257（257 aa）
Not recorded CLA CHLOROPHYLL A × 298 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 27 BCR BETA-CAROTENE × 40 SF4 IRON/SULFUR CLUSTER × 3 LMU DODECYL-ALPHA-D-MALTOSIDE × 7 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 11 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 22 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 16 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 8 CHL CHLOROPHYLL B × 36 ELECTRON MICROSCOPY
cryo-EM buffer pH 6.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.84 Å
7DZ8 State transition supercomplex PSI-LHCI-LHCII from the LhcbM1 lacking mutant of Chlamydomonas reinhardtii Deposited 2021-01-23 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 29 PDB declaration: 29-meric
Chain 6 1–257（257 aa）
Not recorded CLA CHLOROPHYLL A × 298 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 27 BCR BETA-CAROTENE × 40 SF4 IRON/SULFUR CLUSTER × 3 LMU DODECYL-ALPHA-D-MALTOSIDE × 7 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 11 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 22 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 16 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 8 CHL CHLOROPHYLL B × 36 ELECTRON MICROSCOPY
cryo-EM buffer pH 6.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.16 Å
7O01 Dimeric Photosystem I of a temperature sensitive mutant Chlamydomonas reinhardtii Deposited 2021-03-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 40 PDB declaration: 40-meric
Chain 6 29–257（229 aa）
Chain v 29–257（229 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 17.10 Å
7R3K Chlamydomonas reinhardtii TSP9 mutant small Photosystem I complex Deposited 2022-02-07 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 18 PDB declaration: octadecameric
Chain 6 1–257（257 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 186 PQN PHYLLOQUINONE × 2 SF4 IRON/SULFUR CLUSTER × 3 BCR BETA-CAROTENE × 28 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 12 LMT DODECYL-BETA-D-MALTOSIDE × 16 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 CA CALCIUM ION × 1 RRX (3R)-beta,beta-caroten-3-ol × 3 C7Z (1~{S})-3,5,5-trimethyl-4-[(1~{E},3~{E},5~{E},7~{E},9~{E},11~{E},13~{E},15~{E},17~{E})-3,7,12,16-tetramethyl-18-[(4~{S})-2,6,6-trimethyl-4-oxidanyl-cyclohexen-1-yl]octadeca-1,3,5,7,9,11,13,15,17-nonaenyl]cyclohex-3-en-1-ol × 3 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 3 DAO LAURIC ACID × 1 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 14 CHL CHLOROPHYLL B × 28 SPH SPHINGOSINE × 3 3PH 1,2-DIACYL-GLYCEROL-3-SN-PHOSPHATE × 4 DGA DIACYL GLYCEROL × 1 PLM PALMITIC ACID × 1 SQD 1,2-DI-O-ACYL-3-O-[6-DEOXY-6-SULFO-ALPHA-D-GLUCOPYRANOSYL]-SN-GLYCEROL × 1 ERG ERGOSTEROL × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE；blot for 3 seconds before plunging
Resolution 2.52 Å
7WYI Native Photosystem I of Chlamydomonas reinhardtii Deposited 2022-02-16 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 15 PDB declaration: pentadecameric
Chain 6 1–257（257 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 155 PQN PHYLLOQUINONE × 2 SF4 IRON/SULFUR CLUSTER × 3 CHL CHLOROPHYLL B × 10 ELECTRON MICROSCOPY
cryo-EM buffer pH 6.5
cryo-EM vitrification conditions Cryogen ETHANE；2.6 microliter of sample were applied to cryo-grids and blotted for 4 seconds using Whatman #1 before plunge freezing.
Resolution 3.90 Å
7WZN PSI-LHCI from Chlamydomonas reinhardtii with bound ferredoxin Deposited 2022-02-18 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric
Chain 6 1–257（257 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 188 PQN PHYLLOQUINONE × 2 SF4 IRON/SULFUR CLUSTER × 3 CHL CHLOROPHYLL B × 16 FES FE2/S2 (INORGANIC) CLUSTER × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 6.5
cryo-EM vitrification conditions Cryogen ETHANE；2.6 microliter of sample were applied to cryo-grids and blotted for 3.5 seconds using Whatman #1 before plunge freezing.
Resolution 4.90 Å
7ZQ9 Dimeric PSI of Chlamydomonas reinhardtii at 2.74 A resolution (symmetry expanded) Deposited 2022-04-29 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 24 PDB declaration: 24-meric
Chain 6 1–257（257 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 226 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 16 BCR BETA-CAROTENE × 36 SF4 IRON/SULFUR CLUSTER × 3 LMU DODECYL-ALPHA-D-MALTOSIDE × 34 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 17 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 20 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 CHL CHLOROPHYLL B × 32 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 7 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.74 Å
7ZQC Monomeric PSI of Chlamydomonas reinhardtii at 2.31 A resolution Deposited 2022-04-29 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain 6 1–257（257 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 1 CLA CHLOROPHYLL A × 198 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 15 BCR BETA-CAROTENE × 27 SF4 IRON/SULFUR CLUSTER × 3 LMU DODECYL-ALPHA-D-MALTOSIDE × 32 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 15 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 18 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 CHL CHLOROPHYLL B × 30 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 7 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.31 Å
7ZQD Dimeric PSI of Chlamydomonas reinhardtii at 2.97 A resolution Deposited 2022-04-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 40 PDB declaration: 40-meric
Chain 6 1–257（257 aa）
Chain 62 1–257（257 aa）
Not recorded CL0 CHLOROPHYLL A ISOMER × 2 CLA CHLOROPHYLL A × 396 PQN PHYLLOQUINONE × 4 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 30 BCR BETA-CAROTENE × 56 SF4 IRON/SULFUR CLUSTER × 6 LMU DODECYL-ALPHA-D-MALTOSIDE × 66 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 30 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 36 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 2 CHL CHLOROPHYLL B × 60 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 14 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.97 Å
8H2U X-ray Structure of photosystem I-LHCI super complex from Chlamydomonas reinhardtii. Deposited 2022-10-07 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric
Chain 6 1–257（257 aa）
Not recorded CLA CHLOROPHYLL A × 185 SF4 IRON/SULFUR CLUSTER × 3 PQN PHYLLOQUINONE × 2 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 7 BCR BETA-CAROTENE × 27 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 2 LMT DODECYL-BETA-D-MALTOSIDE × 2 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 7 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 12 CHL CHLOROPHYLL B × 26 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；50 mM Tris-HCl (pH 7.0), 50 mM Li2SO4 and 4.5-7.0 % (w/v) polyethylene glycol (PEG) 6,000
Resolution 3.40 Å R-free 0.359
9SE6 Structure of Photosystem I from Chlamydomonas reinhardtii at 1.83 A resolution Deposited 2025-08-15 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 19 PDB declaration: 19-meric
Chain 6 28–257（230 aa）
Not recorded CLA CHLOROPHYLL A × 188 CHL CHLOROPHYLL B × 28 BCR BETA-CAROTENE × 27 LUT (3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 16 LMG 1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE × 12 LMU DODECYL-ALPHA-D-MALTOSIDE × 27 XAT (3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL × 7 LHG 1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE × 14 NEX (1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL × 2 CL0 CHLOROPHYLL A ISOMER × 1 PQN PHYLLOQUINONE × 2 SF4 IRON/SULFUR CLUSTER × 3 DGD DIGALACTOSYL DIACYL GLYCEROL (DGDG) × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；5mM HEPES, pH 7.5, 0.02% alphaDDM
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 1.83 Å

15 other PDB entries and 15 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name Q75VY6_CHLRE
Isoform —
PDB entities 18
Chains and sequence ranges Author chain 6； PDBConstruct 1–229； UniProt 29–257

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

SAXS profile for 7blx

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 7blx
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id7blx
Deposition date deposition_date2021-01-19
Structure title titlePhotosystem I of a temperature sensitive mutant Chlamydomonas reinhardtii
Keywords keywordschlamydomonas, photosystem I, temperature sensitive, water molecules, PHOTOSYNTHESIS; PHOTOSYNTHESIS
Experimental Method methodELECTRON MICROSCOPY
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier59.98 Å
Radius of gyration Rg (electron density) rg_electron59.53 Å
Forward intensity I(0) i03346590000.00
Molecular weight molecular_weight661120.0 kDa
Excluded volume excluded_volume890730 ų
Envelope volume envelope_volume1070700 ų
Hydration-shell volume shell_volume142700 ų
Envelope diameter envelope_diameter191.2 Å
Shell Rg shell_rg65.24 Å
Envelope Rg envelope_rg59.25 Å
Shape Rg shape_rg59.55 Å
Total Rg total_rg59.55 Å
Total atoms total_atoms47193
Residues n_residues3988
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax253.2 Å
Rg (real space) rg_real64.91 Å
Rg uncertainty (real space) rg_real_error2.04 Å
I(0) (real space) i0_real3.4000e+09
I(0) uncertainty (real space) i0_real_error6.7990e+07
Rg (reciprocal space) rg_reciprocal60.12 Å
I(0) (reciprocal space) i0_reciprocal3348000000.0000
Solution quality estimate total_estimate0.8234
Solution quality rating solution_quality GOOD a GOOD solution
P(r) peaks n_peaks2
Primary peak position r_peak_primary68.2 Å
Skewness Skewness skewness0.785
Kurtosis Kurtosis kurtosis0.952
Angular range angular_range— – 0.1300 Å−1
Current regularization parameter α current_alpha0.6683
Highest regularization parameter α highest_alpha752100000.0000
Real-space data points n_real_points27
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.485; Stabil: 0.809; Sysdev: 1.000; Positv: 1.000; Valcen: 0.997; Smooth: 0.878
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (43)

▼

7. Fold Classification (SCOP + CATH) 5 domains

CATH v4.4 (5 domains)

Domain ID domain_id7blx401
Class class1 — Mainly Alpha
Architecture architecture10 — Orthogonal Bundle
Topology topology3460 — Chlorophyll a-b binding protein
Homologous superfamily homologous superfamily10 — Chlorophyll a/b binding protein domain
Domain ID domain_id7blx501
Class class1 — Mainly Alpha
Architecture architecture10 — Orthogonal Bundle
Topology topology3460 — Chlorophyll a-b binding protein
Homologous superfamily homologous superfamily10 — Chlorophyll a/b binding protein domain
Domain ID domain_id7blx701
Class class1 — Mainly Alpha
Architecture architecture10 — Orthogonal Bundle
Topology topology3460 — Chlorophyll a-b binding protein
Homologous superfamily homologous superfamily10 — Chlorophyll a/b binding protein domain
Domain ID domain_id7blx801
Class class1 — Mainly Alpha
Architecture architecture10 — Orthogonal Bundle
Topology topology3460 — Chlorophyll a-b binding protein
Homologous superfamily homologous superfamily10 — Chlorophyll a/b binding protein domain
Domain ID domain_id7blxL01
Class class1 — Mainly Alpha
Architecture architecture20 — Up-down Bundle
Topology topology1240 — Photosystem 1 Reaction Centre Subunit Xi; Chain: L;
Homologous superfamily homologous superfamily10 — Photosystem I PsaL, reaction centre subunit XI
▶

8. Citations (1)

▶

9. Files and Curves (10)
