8j0n

cryo-EM structure of human EMC

Method: ELECTRON MICROSCOPY D_max: 193.2 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

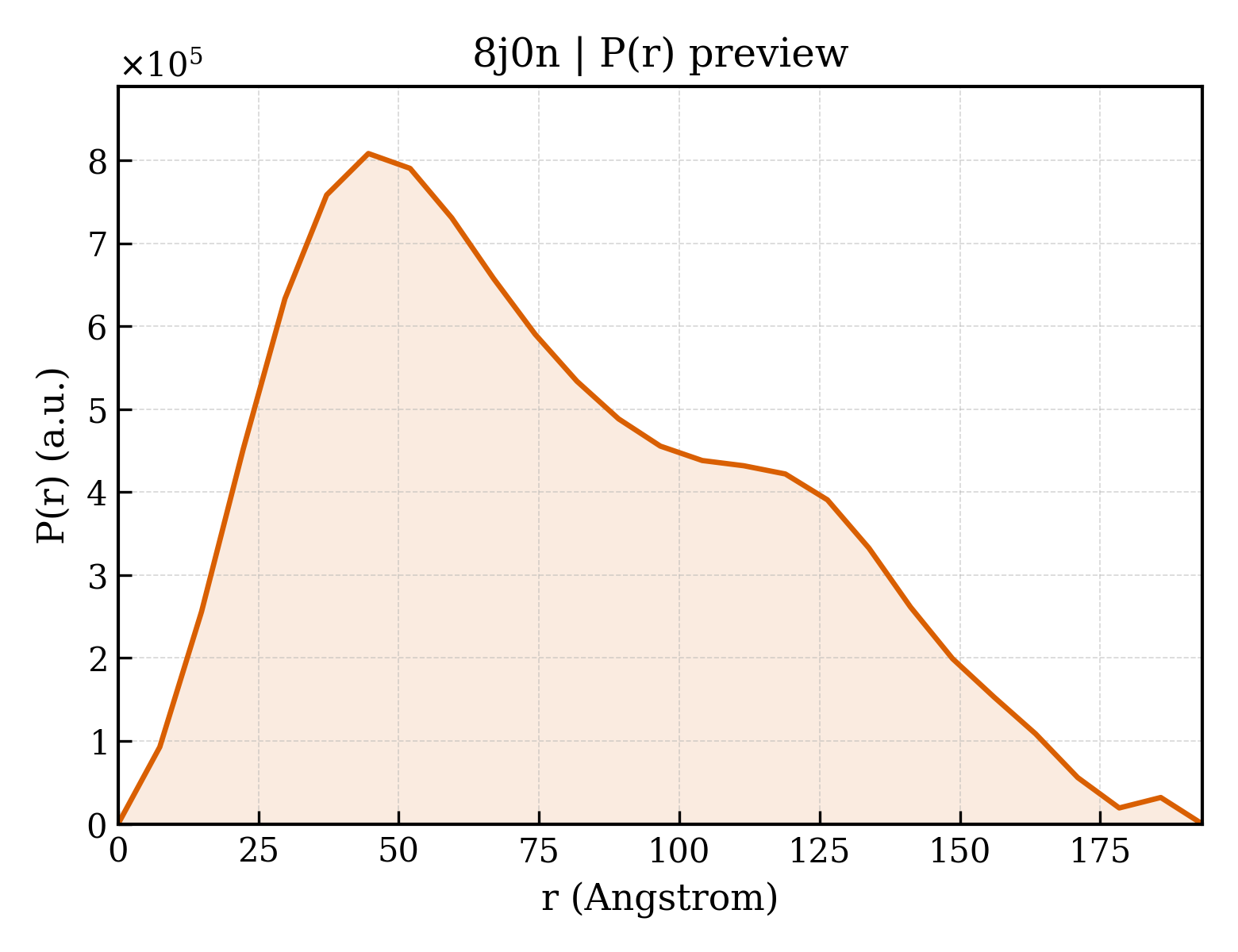

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8j0n
沉积日期 deposition_date	2023-04-11
结构标题 title	cryo-EM structure of human EMC
关键词 keywords	ER membrane protein complex, MEMBRANE PROTEIN; MEMBRANE PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	59.90 Å
回转半径 Rg (电子) rg_electron	60.17 Å
零角强度 I(0) i0	942502000.00
分子量 molecular_weight	262200.0 kDa
排除体积 excluded_volume	330760 Å³
包络体积 envelope_volume	531500 Å³
水化壳体积 shell_volume	79641 Å³
包络直径 envelope_diameter	211.8 Å
壳层 Rg shell_rg	54.50 Å
包络 Rg envelope_rg	58.57 Å
形状 Rg shape_rg	60.20 Å
总 Rg total_rg	59.90 Å
总原子数 total_atoms	18475
残基数 n_residues	2301
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	193.2 Å
Rg (实空间) rg_real	60.55 Å
Rg 误差 (实空间) rg_real_error	2.25 Å
I(0) (实空间) i0_real	9.4250e+08
I(0) 误差 (实空间) i0_real_error	1.9790e+07
Rg (倒空间) rg_reciprocal	59.29 Å
I(0) (倒空间) i0_reciprocal	940600000.0000
解质量估计 total_estimate	0.7789
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	44.6 Å
偏度 Skewness skewness	0.464
峰度 Kurtosis kurtosis	-0.659
角度范围 angular_range	— – 0.1300 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	105300000.0000
实空间数据点数 n_real_points	27
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.726; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.902; Smooth: 0.043

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (10)

Entity 1 polymer

描述 description	ER membrane protein complex subunit 1
分子量 formula_weight	111886.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	18475

MAAEWASRFWLWATLLIPAAAVYEDQVGKFDWRQQYVGKVKFASLEFSPGSKKLVVATEKNVIAALNSRTGEILWRHVDKGTAEGAVDAMLLHGQDVITVSNGGRIMRSWETNIGGLNWEITLDSGSFQALGLVGLQESVRYIAVLKKTTLALHHLSSGHLKWVEHLPESDSIHYQMVYSYGSGVVWALGVVPFSHVNIVKFNVEDGEIVQQVRVSTPWLQHLSGACGVVDEAVLVCPDPSSRSLQTLALETEWELRQIPLQSLDLEFGSGFQPRVLPTQPNPVDASRAQFFLHLSPSHYALLQYHYGTLSLLKNFPQTALVSFATTGEKTVAAVMACRNEVQKSSSSEDGSMGSFSEKSSSKDSLACFNQTYTINLYLVETGRRLLDTTITFSLEQSGTRPERLYIQVFLKKDDSVGYRALVQTEDHLLLFLQQLAGKVVLWSREESLAEVVCLEMVDLPLTGAQAELEGEFGKKADGLLGMFLKRLSSQLILLQAWTSHLWKMFYDARKPRSQIKNEINIDTLARDEFNLQKMMVMVTASGKLFGIESSSGTILWKQYLPNVKPDSSFKLMVQRTTAHFPHPPQCTLLVKDKESGMSSLYVFNPIFGKWSQVAPPVLKRPILQSLLLPVMDQDYAKVLLLIDDEYKVTAFPATRNVLRQLHELAPSIFFYLVDAEQGRLCGYRLRKDLTTELSWELTIPPEVQRIVKVKGKRSSEHVHSQGRVMGDRSVLYKSLNPNLLAVVTESTDAHHERTFIGIFLIDGVTGRIIHSSVQKKAKGPVHIVHSENWVVYQYWNTKARRNEFTVLELYEGTEQYNATAFSSLDRPQLPQVLQQSYIFPSSISAMEATITERGITSRHLLIGLPSGAILSLPKALLDPRRPEIPTEQSREENLIPYSPDVQIHAERFINYNQTVSRMRGIYTAPSGLESTCLVVAYGLDIYQTRVYPSKQFDVLKDDYDYVLISSVLFGLVFATMITKRLAQVKLLNRAWR

Entity 2 polymer

描述 description	ER membrane protein complex subunit 2
分子量 formula_weight	34882.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B

MAKVSELYDVTWEEMRDKMRKWREENSRNSEQIVEVGEELINEYASKLGDDIWIIYEQVMIAALDYGRDDLALFCLQELRRQFPGSHRVKRLTGMRFEAMERYDDAIQLYDRILQEDPTNTAARKRKIAIRKAQGKNVEAIRELNEYLEQFVGDQEAWHELAELYINEHDYAKAAFCLEELMMTNPHNHLYCQQYAEVKYTQGGLENLELSRKYFAQALKLNNRNMRALFGLYMSASHIASNPKASAKTKKDNMKYASWAASQINRAYQFAGRSKKETKYSLKAVEDMLETLQITQS

Entity 3 polymer

描述 description	ER membrane protein complex subunit 3
分子量 formula_weight	29981.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C

MAGPELLLDSNIRLWVVLPIVIITFFVGMIRHYVSILLQSDKKLTQEQVSDSQVLIRSRVLRENGKYIPKQSFLTRKYYFNNPEDGFFKKTKRKVVPPSPMTDPTMLTDMMKGNVTNVLPMILIGGWINMTFSGFVTTKVPFPLTLRFKPMLQQGIELLTLDASWVSSASWYFLNVFGLRSIYSLILGQDNAADQSRMMQEQMTGAAMAMPADTNKAFKTEWEALELTDHQWALDDVEEELMAKDLHFEGMFKKELQTSIF

Entity 4 polymer

描述 description	ER membrane protein complex subunit 4
分子量 formula_weight	20104.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D

MTAQGGLVANRGRRFKWAIELSGPGGGSRGRSDRGSGQGDSLYPVGYLDKQVPDTSVQETDRILVEKRCWDIALGPLKQIPMNLFIMYMAGNTISIFPTMMVCMMAWRPIQALMAISATFKMLESSSQKFLQGLVYLIGNLMGLALAVYKCQSMGLLPTHASDWLAFIEPPERMEFSGGGLLL

Entity 5 polymer

描述 description	ER membrane protein complex subunit 5
分子量 formula_weight	14706.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E

MAPSLWKGLVGIGLFALAHAAFSAAQHRSYMRLTEKEDESLPIDIVLQTLLAFAVTCYGIVHIAGEFKDMDATSELKNKTFDTLRNHPSFYVFNHRGRVLFRPSDTANSSNQDALSSNTSLKLRKLESLRR

Entity 6 polymer

描述 description	ER membrane protein complex subunit 6
分子量 formula_weight	12029.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	F

MAAVVAKREGPPFISEAAVRGNAAVLDYCRTSVSALSGATAGILGLTGLYGFIFYLLASVLLSLLLILKAGRRWNKYFKSRRPLFTGGLIGGLFTYVLFWTFLYGMVHVY

Entity 7 polymer

描述 description	ER membrane protein complex subunit 7
分子量 formula_weight	26501.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	G

MAAALWGFFPVLLLLLLSGDVQSSEVPGAAAEGSGGSGVGIGDRFKIEGRAVVPGVKPQDWISAARVLVDGEEHVGFLKTDGSFVVHDIPSGSYVVEVVSPAYRFDPVRVDITSKGKMRARYVNYIKTSEVVRLPYPLQMKSSGPPSYFIKRESWGWTDFLMNPMVMMMVLPLLIFVLLPKVVNTSDPDMRREMEQSMNMLNSNHELPDVSEFMTRLFSSKSSGKSSSGSSKTGKSGAGKRR

Entity 8 polymer

描述 description	ER membrane protein complex subunit 8
分子量 formula_weight	23807.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	H

MPGVKLTTQAYCKMVLHGAKYPHCAVNGLLVAEKQKPRKEHLPLGGPGAHHTLFVDCIPLFHGTLALAPMLEVALTLIDSWCKDHSYVIAGYYQANERVKDASPNQVAEKVASRIAEGFSDTALIMVDNTKFTMDCVAPTIHVYEHHENRWRCRDPHHDYCEDWPEAQRISASLLDSRSYETLVDFDNHLDDIRNDWTNPEINKAVLHLC

Entity 9 polymer

描述 description	ER membrane protein complex subunit 10
分子量 formula_weight	21781.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	J

MAAASAGATRLLLLLLMAVAAPSRARGSGCRAGTGARGAGAEGREGEACGTVGLLLEHSFEIDDSANFRKRGSLLWNQQDGTLSLSQRQLSEEERGRLRDVAALNGLYRVRIPRRPGALDGLEAGGYVSSFVPACSLVESHLSDQLTLHVDVAGNVVGVSVVTHPGGCRGHEVEDVDLELFNTSVQLQPPTTAPGPETAAFIERLEM

Entity 10 branched

描述 description	beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	586.5 kDa
来源方法 src_method	man
拷贝数 entity_count	3

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	3.47 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	693381

fit	/app/data/saxs_computation/j0/8j0n/8j0n.fit
pddf	/app/data/pr_computation/j0/8j0n/8j0n.pr.out
profile	/app/data/saxs_computation/j0/8j0n/8j0n.dat
