8eoi

Structure of a human EMC:human Cav1.2 channel complex in GDN detergent

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

ER membrane protein complex subunit 1

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 11 其他Polymer 3	ER membrane protein complex subunit 2 × 1 （Q15006） ER membrane protein complex subunit 3 × 1 （Q9P0I2） ER membrane protein complex subunit 5 × 1 （Q8N4V1） ER membrane protein complex subunit 6 × 1 （Q9BV81） ER membrane protein complex subunit 7 × 1 （Q9NPA0） ER membrane protein complex subunit 8 × 1 （O43402） ER membrane protein complex subunit 10 × 1 （Q5UCC4） Voltage-dependent L-type calcium channel subunit alpha-1C × 1 （Q13936） Voltage-dependent L-type calcium channel subunit beta-3 × 1 （P54286） ER membrane protein complex subunit 4 × 1 （Q5J8M3） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 3 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 (3beta,14beta,17beta,25R)-3-[4-methoxy-3-(methoxymethyl)butoxy]spirost-5-en × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	EMC1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–973； UniProt 21–993

ER membrane protein complex subunit 2

Homo sapiens

UniProt Q15006

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 11 其他Polymer 3	ER membrane protein complex subunit 1 × 1 （Q8N766） ER membrane protein complex subunit 3 × 1 （Q9P0I2） ER membrane protein complex subunit 5 × 1 （Q8N4V1） ER membrane protein complex subunit 6 × 1 （Q9BV81） ER membrane protein complex subunit 7 × 1 （Q9NPA0） ER membrane protein complex subunit 8 × 1 （O43402） ER membrane protein complex subunit 10 × 1 （Q5UCC4） Voltage-dependent L-type calcium channel subunit alpha-1C × 1 （Q13936） Voltage-dependent L-type calcium channel subunit beta-3 × 1 （P54286） ER membrane protein complex subunit 4 × 1 （Q5J8M3） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 3 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 (3beta,14beta,17beta,25R)-3-[4-methoxy-3-(methoxymethyl)butoxy]spirost-5-en × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	EMC2_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–291； UniProt 3–293

ER membrane protein complex subunit 3

Homo sapiens

UniProt Q9P0I2

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 11 其他Polymer 3	ER membrane protein complex subunit 1 × 1 （Q8N766） ER membrane protein complex subunit 2 × 1 （Q15006） ER membrane protein complex subunit 5 × 1 （Q8N4V1） ER membrane protein complex subunit 6 × 1 （Q9BV81） ER membrane protein complex subunit 7 × 1 （Q9NPA0） ER membrane protein complex subunit 8 × 1 （O43402） ER membrane protein complex subunit 10 × 1 （Q5UCC4） Voltage-dependent L-type calcium channel subunit alpha-1C × 1 （Q13936） Voltage-dependent L-type calcium channel subunit beta-3 × 1 （P54286） ER membrane protein complex subunit 4 × 1 （Q5J8M3） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 3 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 (3beta,14beta,17beta,25R)-3-[4-methoxy-3-(methoxymethyl)butoxy]spirost-5-en × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	EMC3_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–258； UniProt 4–261

ER membrane protein complex subunit 5

Homo sapiens

UniProt Q8N4V1

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 11 其他Polymer 3	ER membrane protein complex subunit 1 × 1 （Q8N766） ER membrane protein complex subunit 2 × 1 （Q15006） ER membrane protein complex subunit 3 × 1 （Q9P0I2） ER membrane protein complex subunit 6 × 1 （Q9BV81） ER membrane protein complex subunit 7 × 1 （Q9NPA0） ER membrane protein complex subunit 8 × 1 （O43402） ER membrane protein complex subunit 10 × 1 （Q5UCC4） Voltage-dependent L-type calcium channel subunit alpha-1C × 1 （Q13936） Voltage-dependent L-type calcium channel subunit beta-3 × 1 （P54286） ER membrane protein complex subunit 4 × 1 （Q5J8M3） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 3 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 (3beta,14beta,17beta,25R)-3-[4-methoxy-3-(methoxymethyl)butoxy]spirost-5-en × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	EMC5_HUMAN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain E； PDBConstruct 1–101； UniProt 3–103

ER membrane protein complex subunit 6

Homo sapiens

UniProt Q9BV81

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 11 其他Polymer 3	ER membrane protein complex subunit 1 × 1 （Q8N766） ER membrane protein complex subunit 2 × 1 （Q15006） ER membrane protein complex subunit 3 × 1 （Q9P0I2） ER membrane protein complex subunit 5 × 1 （Q8N4V1） ER membrane protein complex subunit 7 × 1 （Q9NPA0） ER membrane protein complex subunit 8 × 1 （O43402） ER membrane protein complex subunit 10 × 1 （Q5UCC4） Voltage-dependent L-type calcium channel subunit alpha-1C × 1 （Q13936） Voltage-dependent L-type calcium channel subunit beta-3 × 1 （P54286） ER membrane protein complex subunit 4 × 1 （Q5J8M3） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 3 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 (3beta,14beta,17beta,25R)-3-[4-methoxy-3-(methoxymethyl)butoxy]spirost-5-en × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	EMC6_HUMAN
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain F； PDBConstruct 1–100； UniProt 11–110

ER membrane protein complex subunit 7

Homo sapiens

UniProt Q9NPA0

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 11 其他Polymer 3	ER membrane protein complex subunit 1 × 1 （Q8N766） ER membrane protein complex subunit 2 × 1 （Q15006） ER membrane protein complex subunit 3 × 1 （Q9P0I2） ER membrane protein complex subunit 5 × 1 （Q8N4V1） ER membrane protein complex subunit 6 × 1 （Q9BV81） ER membrane protein complex subunit 8 × 1 （O43402） ER membrane protein complex subunit 10 × 1 （Q5UCC4） Voltage-dependent L-type calcium channel subunit alpha-1C × 1 （Q13936） Voltage-dependent L-type calcium channel subunit beta-3 × 1 （P54286） ER membrane protein complex subunit 4 × 1 （Q5J8M3） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 3 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 (3beta,14beta,17beta,25R)-3-[4-methoxy-3-(methoxymethyl)butoxy]spirost-5-en × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	EMC7_HUMAN
Isoform	—
PDB entities	6
Chains and sequence ranges	Author chain G； PDBConstruct 1–116； UniProt 43–158

ER membrane protein complex subunit 8

Homo sapiens

UniProt O43402

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 11 其他Polymer 3	ER membrane protein complex subunit 1 × 1 （Q8N766） ER membrane protein complex subunit 2 × 1 （Q15006） ER membrane protein complex subunit 3 × 1 （Q9P0I2） ER membrane protein complex subunit 5 × 1 （Q8N4V1） ER membrane protein complex subunit 6 × 1 （Q9BV81） ER membrane protein complex subunit 7 × 1 （Q9NPA0） ER membrane protein complex subunit 10 × 1 （Q5UCC4） Voltage-dependent L-type calcium channel subunit alpha-1C × 1 （Q13936） Voltage-dependent L-type calcium channel subunit beta-3 × 1 （P54286） ER membrane protein complex subunit 4 × 1 （Q5J8M3） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 3 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 (3beta,14beta,17beta,25R)-3-[4-methoxy-3-(methoxymethyl)butoxy]spirost-5-en × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	EMC8_HUMAN
Isoform	—
PDB entities	7
Chains and sequence ranges	Author chain H； PDBConstruct 1–208； UniProt 3–210

ER membrane protein complex subunit 10

Homo sapiens

UniProt Q5UCC4

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 11 其他Polymer 3	ER membrane protein complex subunit 1 × 1 （Q8N766） ER membrane protein complex subunit 2 × 1 （Q15006） ER membrane protein complex subunit 3 × 1 （Q9P0I2） ER membrane protein complex subunit 5 × 1 （Q8N4V1） ER membrane protein complex subunit 6 × 1 （Q9BV81） ER membrane protein complex subunit 7 × 1 （Q9NPA0） ER membrane protein complex subunit 8 × 1 （O43402） Voltage-dependent L-type calcium channel subunit alpha-1C × 1 （Q13936） Voltage-dependent L-type calcium channel subunit beta-3 × 1 （P54286） ER membrane protein complex subunit 4 × 1 （Q5J8M3） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 3 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 (3beta,14beta,17beta,25R)-3-[4-methoxy-3-(methoxymethyl)butoxy]spirost-5-en × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	EMC10_HUMAN
Isoform	—
PDB entities	8
Chains and sequence ranges	Author chain I； PDBConstruct 1–157； UniProt 50–206

Voltage-dependent L-type calcium channel subunit alpha-1C

Homo sapiens

UniProt Q13936

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 11 其他Polymer 3	ER membrane protein complex subunit 1 × 1 （Q8N766） ER membrane protein complex subunit 2 × 1 （Q15006） ER membrane protein complex subunit 3 × 1 （Q9P0I2） ER membrane protein complex subunit 5 × 1 （Q8N4V1） ER membrane protein complex subunit 6 × 1 （Q9BV81） ER membrane protein complex subunit 7 × 1 （Q9NPA0） ER membrane protein complex subunit 8 × 1 （O43402） ER membrane protein complex subunit 10 × 1 （Q5UCC4） Voltage-dependent L-type calcium channel subunit beta-3 × 1 （P54286） ER membrane protein complex subunit 4 × 1 （Q5J8M3） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 3 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 (3beta,14beta,17beta,25R)-3-[4-methoxy-3-(methoxymethyl)butoxy]spirost-5-en × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CAC1C_HUMAN
Isoform	—
PDB entities	9
Chains and sequence ranges	Author chain K； PDBConstruct 1–1550； UniProt 109–1658

Voltage-dependent L-type calcium channel subunit beta-3

Oryctolagus cuniculus

UniProt P54286

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 11 其他Polymer 3	ER membrane protein complex subunit 1 × 1 （Q8N766） ER membrane protein complex subunit 2 × 1 （Q15006） ER membrane protein complex subunit 3 × 1 （Q9P0I2） ER membrane protein complex subunit 5 × 1 （Q8N4V1） ER membrane protein complex subunit 6 × 1 （Q9BV81） ER membrane protein complex subunit 7 × 1 （Q9NPA0） ER membrane protein complex subunit 8 × 1 （O43402） ER membrane protein complex subunit 10 × 1 （Q5UCC4） Voltage-dependent L-type calcium channel subunit alpha-1C × 1 （Q13936） ER membrane protein complex subunit 4 × 1 （Q5J8M3） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 3 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 (3beta,14beta,17beta,25R)-3-[4-methoxy-3-(methoxymethyl)butoxy]spirost-5-en × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CACB3_RABIT
Isoform	—
PDB entities	10
Chains and sequence ranges	Author chain J； PDBConstruct 1–324； UniProt 38–361

ER membrane protein complex subunit 4

Homo sapiens

UniProt Q5J8M3

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 11 其他Polymer 3	ER membrane protein complex subunit 1 × 1 （Q8N766） ER membrane protein complex subunit 2 × 1 （Q15006） ER membrane protein complex subunit 3 × 1 （Q9P0I2） ER membrane protein complex subunit 5 × 1 （Q8N4V1） ER membrane protein complex subunit 6 × 1 （Q9BV81） ER membrane protein complex subunit 7 × 1 （Q9NPA0） ER membrane protein complex subunit 8 × 1 （O43402） ER membrane protein complex subunit 10 × 1 （Q5UCC4） Voltage-dependent L-type calcium channel subunit alpha-1C × 1 （Q13936） Voltage-dependent L-type calcium channel subunit beta-3 × 1 （P54286） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 3 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 (3beta,14beta,17beta,25R)-3-[4-methoxy-3-(methoxymethyl)butoxy]spirost-5-en × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	EMC4_HUMAN
Isoform	—
PDB entities	11
Chains and sequence ranges	Author chain D； PDBConstruct 1–170； UniProt 14–183

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8eoi
Deposition date deposition_date	2022-10-03
Structure title title	Structure of a human EMC:human Cav1.2 channel complex in GDN detergent
Keywords keywords	endoplasmic reticulum membrane protein complex, voltage-gated calcium channel, holdase, biogenesis, MEMBRANE PROTEIN; MEMBRANE PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8eoi__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8eoi__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

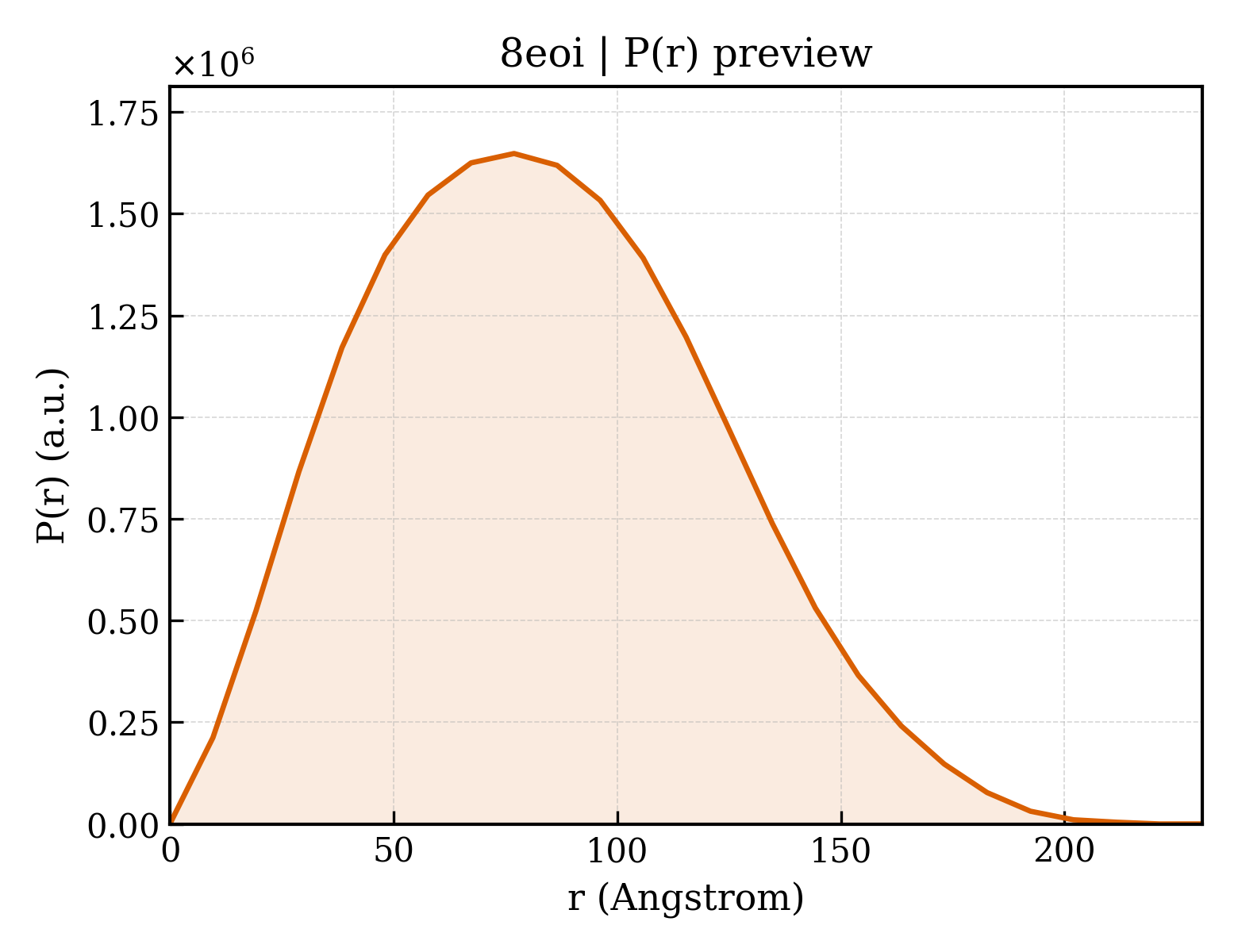

8eoi__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	64.63 Å
Rg (electron density)	64.02 Å
Total Rg	63.93 Å
Atom count	28721
Residues	3562
Excluded volume	516870 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8eoi__assembly_1__model_1`	undecameric （11）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (14)

Entity 1 Entity 1 polymer

Description description	ER membrane protein complex subunit 1
Molecular weight formula_weight	109598.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	28721

AVYEDQVGKFDWRQQYVGKVKFASLEFSPGSKKLVVATEKNVIAALNSRTGEILWRHVDKGTAEGAVDAMLLHGQDVITVSNGGRIMRSWETNIGGLNWEITLDSGSFQALGLVGLQESVRYIAVLKKTTLALHHLSSGHLKWVEHLPESDSIHYQMVYSYGSGVVWALGVVPFSHVNIVKFNVEDGEIVQQVRVSTPWLQHLSGACGVVDEAVLVCPDPSSRSLQTLALETEWELRQIPLQSLDLEFGSGFQPRVLPTQPNPVDASRAQFFLHLSPSHYALLQYHYGTLSLLKNFPQTALVSFATTGEKTVAAVMACRNEVQKSSSSEDGSMGSFSEKSSSKDSLACFNQTYTINLYLVETGRRLLDTTITFSLEQSGTRPERLYIQVFLKKDDSVGYRALVQTEDHLLLFLQQLAGKVVLWSREESLAEVVCLEMVDLPLTGAQAELEGEFGKKADGLLGMFLKRLSSQLILLQAWTSHLWKMFYDARKPRSQIKNEINIDTLARDEFNLQKMMVMVTASGKLFGIESSSGTILWKQYLPNVKPDSSFKLMVQRTTAHFPHPPQCTLLVKDKESGMSSLYVFNPIFGKWSQVAPPVLKRPILQSLLLPVMDQDYAKVLLLIDDEYKVTAFPATRNVLRQLHELAPSIFFYLVDAEQGRLCGYRLRKDLTTELSWELTIPPEVQRIVKVKGKRSSEHVHSQGRVMGDRSVLYKSLNPNLLAVVTESTDAHHERTFIGIFLIDGVTGRIIHSSVQKKAKGPVHIVHSENWVVYQYWNTKARRNEFTVLELYEGTEQYNATAFSSLDRPQLPQVLQQSYIFPSSISAMEATITERGITSRHLLIGLPSGAILSLPKALLDPRRPEIPTEQSREENLIPYSPDVQIHAERFINYNQTVSRMRGIYTAPSGLESTCLVVAYGLDIYQTRVYPSKQFDVLKDDYDYVLISSVLFGLVFATMITKRLAQVKLLNRAWR

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	ER membrane protein complex subunit 2
Molecular weight formula_weight	34250.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

KVSELYDVTWEEMRDKMRKWREENSRNSEQIVEVGEELINEYASKLGDDIWIIYEQVMIAALDYGRDDLALFCLQELRRQFPGSHRVKRLTGMRFEAMERYDDAIQLYDRILQEDPTNTAARKRKIAIRKAQGKNVEAIRELNEYLEQFVGDQEAWHELAELYINEHDYAKAAFCLEELMMTNPHNHLYCQQYAEVKYTQGGLENLELSRKYFAQALKLNNRNMRALFGLYMSASHIASNPKASAKTKKDNMKYASWAASQINRAYQFAGRSKKETKYSLKAVEDMLETLQ

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 3 Entity 3 polymer

Description description	ER membrane protein complex subunit 3
Molecular weight formula_weight	29722.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

PELLLDSNIRLWVVLPIVIITFFVGMIRHYVSILLQSDKKLTQEQVSDSQVLIRSRVLRENGKYIPKQSFLTRKYYFNNPEDGFFKKTKRKVVPPSPMTDPTMLTDMMKGNVTNVLPMILIGGWINMTFSGFVTTKVPFPLTLRFKPMLQQGIELLTLDASWVSSASWYFLNVFGLRSIYSLILGQDNAADQSRMMQEQMTGAAMAMPADTNKAFKTEWEALELTDHQWALDDVEEELMAKDLHFEGMFKKELQTSIF

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 4 Entity 4 polymer

Description description	ER membrane protein complex subunit 5
Molecular weight formula_weight	11425.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E

PSLWKGLVGIGLFALAHAAFSAAQHRSYMRLTEKEDESLPIDIVLQTLLAFAVTCYGIVHIAGEFKDMDATSELKNKTFDTLRNHPSFYVFNHRGRVLFRP

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 5 Entity 5 polymer

Description description	ER membrane protein complex subunit 6
Molecular weight formula_weight	11014.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	F

PPFISEAAVRGNAAVLDYCRTSVSALSGATAGILGLTGLYGFIFYLLASVLLSLLLILKAGRRWNKYFKSRRPLFTGGLIGGLFTYVLFWTFLYGMVHVY

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 6 Entity 6 polymer

Description description	ER membrane protein complex subunit 7
Molecular weight formula_weight	13151.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	G

DRFKIEGRAVVPGVKPQDWISAARVLVDGEEHVGFLKTDGSFVVHDIPSGSYVVEVVSPAYRFDPVRVDITSKGKMRARYVNYIKTSEVVRLPYPLQMKSSGPPSYFIKRESWGWT

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 7 Entity 7 polymer

Description description	ER membrane protein complex subunit 8
Molecular weight formula_weight	23578.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H

GVKLTTQAYCKMVLHGAKYPHCAVNGLLVAEKQKPRKEHLPLGGPGAHHTLFVDCIPLFHGTLALAPMLEVALTLIDSWCKDHSYVIAGYYQANERVKDASPNQVAEKVASRIAEGFSDTALIMVDNTKFTMDCVAPTIHVYEHHENRWRCRDPHHDYCEDWPEAQRISASLLDSRSYETLVDFDNHLDDIRNDWTNPEINKAVLHLC

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 8 Entity 8 polymer

Description description	ER membrane protein complex subunit 10
Molecular weight formula_weight	17003.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	I

GTVGLLLEHSFEIDDSANFRKRGSLLWNQQDGTLSLSQRQLSEEERGRLRDVAALNGLYRVRIPRRPGALDGLEAGGYVSSFVPACSLVESHLSDQLTLHVDVAGNVVGVSVVTHPGGCRGHEVEDVDLELFNTSVQLQPPTTAPGPETAAFIERLE

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 9 Entity 9 polymer

Description description	Voltage-dependent L-type calcium channel subunit alpha-1C
Molecular weight formula_weight	176678.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	K

LKNPIRRACISIVEWKPFEIIILLTIFANCVALAIYIPFPEDDSNATNSNLERVEYLFLIIFTVEAFLKVIAYGLLFHPNAYLRNGWNLLDFIIVVVGLFSAILEQATKADGANALGGKGAGFDVKALRAFRVLRPLRLVSGVPSLQVVLNSIIKAMVPLLHIALLVLFVIIIYAIIGLELFMGKMHKTCYNQEGIADVPAEDDPSPCALETGHGRQCQNGTVCKPGWDGPKHGITNFDNFAFAMLTVFQCITMEGWTDVLYWVNDAVGRDWPWIYFVTLIIIGSFFVLNLVLGVLSGEFSKEREKAKARGDFQKLREKQQLEEDLKGYLDWITQAEDIDPENEDEGMDEEKPRNMSMPTSETESVNTENVAGGDIEGENCGARLAHRISKSKFSRYWRRWNRFCRRKCRAAVKSNVFYWLVIFLVFLNTLTIASEHYNQPNWLTEVQDTANKALLALFTAEMLLKMYSLGLQAYFVSLFNRFDCFVVCGGILETILVETKIMSPLGISVLRCVRLLRIFKITRYWNSLSNLVASLLNSVRSIASLLLLLFLFIIIFSLLGMQLFGGKFNFDEMQTRRSTFDNFPQSLLTVFQILTGEDWNSVMYDGIMAYGGPSFPGMLVCIYFIILFICGNYILLNVFLAIAVDNLADAESLTSAQKEEEEEKERKKLARTASPEKKQELVEKPAVGESKEEKIELKSITADGESPPATKINMDDLQPNENEDKSPYPNPETTGEEDEEEPEMPVGPRPRPLSELHLKEKAVPMPEASAFFIFSSNNRFRLQCHRIVNDTIFTNLILFFILLSSISLAAEDPVQHTSFRNHILFYFDIVFTTIFTIEIALKILGNADYVFTSIFTLEIILKMTAYGAFLHKGSFCRNYFNILDLLVVSVSLISFGIQSSAINVVKILRVLRVLRPLRAINRAKGLKHVVQCVFVAIRTIGNIVIVTTLLQFMFACIGVQLFKGKLYTCSDSSKQTEAECKGNYITYKDGEVDHPIIQPRSWENSKFDFDNVLAAMMALFTVSTFEGWPELLYRSIDSHTEDKGPIYNYRVEISIFFIIYIIIIAFFMMNIFVGFVIVTFQEQGEQEYKNCELDKNQRQCVEYALKARPLRRYIPKNQHQYKVWYVVNSTYFEYLMFVLILLNTICLAMQHYGQSCLFKIAMNILNMLFTGLFTVEMILKLIAFKPKGYFSDPWNVFDFLIVIGSIIDVILSETNHYFCDAWNTFDALIVVGSIVDIAITEVNPAEHTQCSPSMNAEENSRISITFFRLFRVMRLVKLLSRGEGIRTLLWTFIKSFQALPYVALLIVMLFFIYAVIGMQVFGKIALNDTTEINRNNNFQTFPQAVLLLFRCATGEAWQDIMLACMPGKKCAPESEPSNSTEGETPCGSSFAVFYFISFYMLCAFLIINLFVAVIMDNFDYLTRDWSILGPHHLDEFKRIWAEYDPEAKGRIKHLDVVTLLRRIQPPLGFGKLCPHRVACKRLVSMNMPLNSDGTVMFNATLFALVRTALRIKTEGNLEQANEELRAIIKKIWKRTSMKLLDQVVPPAGD

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 10 Entity 10 polymer

Description description	Voltage-dependent L-type calcium channel subunit beta-3
Molecular weight formula_weight	36692.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	J

ESARREVESQAQQQLERAKHKPVAFAVRTNVSYCGVLDEECPVQGSGINFEAKDFLHIKEKYSNDWWIGRLVKEGGDIAFIPSPQRLESIRLKQEQKARRSGNPSSLSDIGNRRSPPPSLAKQKQKQAEHVPPYDVVPSMRPVVLVGPSLKGYEVTDMMQKALFDFLKHRFDGRISITRVTADLSLAKRSVLNNPGKRTIIERSSARSSIAEVQSEIERIFELAKSLQLVVLDADTINHPAQLAKTSLAPIIVFVKVSSPKVLQRLIRSRGKSQMKHLTVQMMAYDKLVQCPPESFDVILDENQLEDACEHLAEYLEVYWRATH

Source Source

Source organism organism	Oryctolagus cuniculus
Common name common_name	rabbit
NCBI taxonomy ID ncbi_taxonomy_id	9986
Host organism host_organism	Homo sapiens

Entity 11 Entity 11 polymer

Description description	ER membrane protein complex subunit 4
Molecular weight formula_weight	18790.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

RFKWAIELSGPGGGSRGRSDRGSGQGDSLYPVGYLDKQVPDTSVQETDRILVEKRCWDIALGPLKQIPMNLFIMYMAGNTISIFPTMMVCMMAWRPIQALMAISATFKMLESSSQKFLQGLVYLIGNLMGLALAVYKCQSMGLLPTHASDWLAFIEPPERMEFSGGGLLL

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 12 Entity 12 branched

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	424.4 kDa
Source method src_method	man
Copy count entity_count	3

Entity 13 Entity 13 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 14 Entity 14 non-polymer

Description description	(3beta,14beta,17beta,25R)-3-[4-methoxy-3-(methoxymethyl)butoxy]spirost-5-en
Molecular weight formula_weight	544.8 kDa
Source method src_method	syn
Copy count entity_count	1

▼

6. Fold Classification (SCOP + CATH) 3 domains

CATH v4.4 (3 domains)

Domain ID domain_id	8eoiJ01
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	30 — SH3 type barrels.
Homologous superfamily homologous superfamily	40 — SH3 Domains

Domain ID domain_id	8eoiJ02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	8eoiK01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	120 — Four Helix Bundle (Hemerythrin (Met), subunit A)
Homologous superfamily homologous superfamily	350 — Voltage-gated potassium channels. Chain C

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.40 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	487067

Structure of a human EMC:human Cav1.2 channel complex in GDN detergent

1. Protein Identity and Related Structures Protein Identity & Related Structures

ER membrane protein complex subunit 1

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

ER membrane protein complex subunit 2

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

ER membrane protein complex subunit 3

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

ER membrane protein complex subunit 5

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

ER membrane protein complex subunit 6

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

ER membrane protein complex subunit 7

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

ER membrane protein complex subunit 8

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

ER membrane protein complex subunit 10

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Voltage-dependent L-type calcium channel subunit alpha-1C

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Voltage-dependent L-type calcium channel subunit beta-3

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer
