8jho

Cryo-EM structure of the histone deacetylase complex Rpd3S in complex with di-nucleosome

Method: ELECTRON MICROSCOPY D_max: 246.2 Å Quality: GOOD

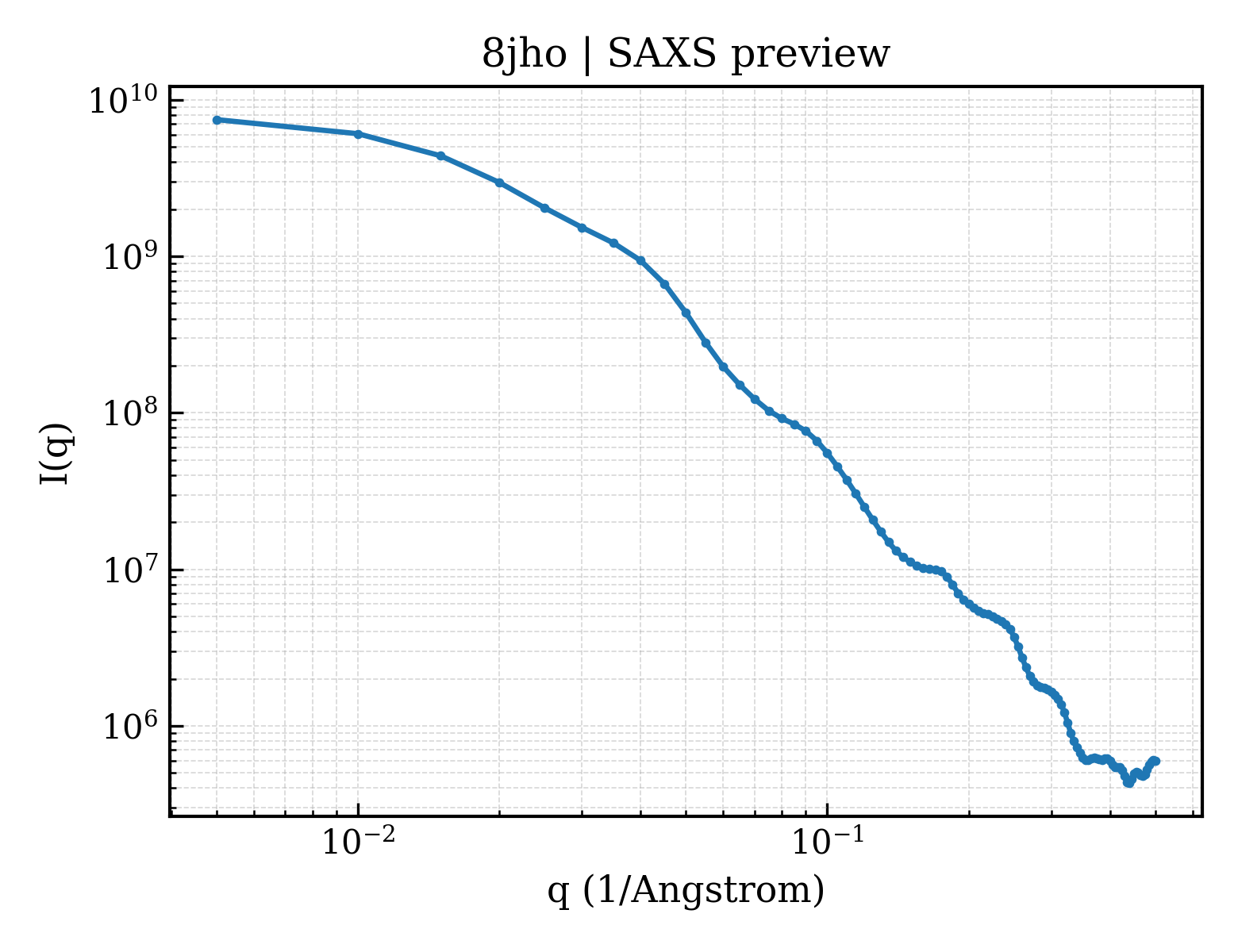

SAXS 散射曲线 SAXS Profile

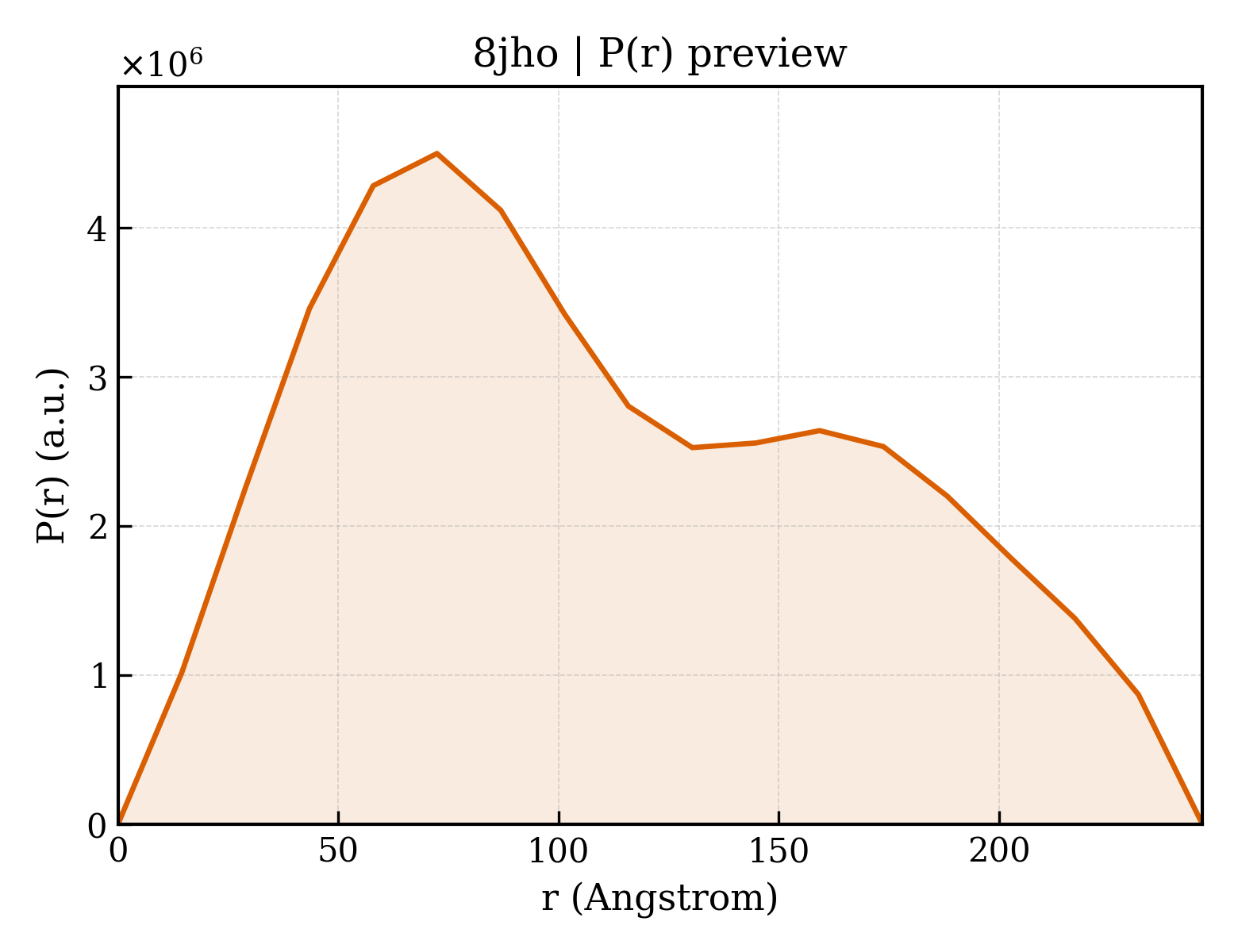

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8jho
沉积日期 deposition_date	2023-05-25
结构标题 title	Cryo-EM structure of the histone deacetylase complex Rpd3S in complex with di-nucleosome
关键词 keywords	HDAC, di-nucleosome, GENE REGULATION; GENE REGULATION
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	91.31 Å
回转半径 Rg (电子) rg_electron	90.23 Å
零角强度 I(0) i0	8020180000.00
分子量 molecular_weight	621260.0 kDa
排除体积 excluded_volume	720170 Å³
包络体积 envelope_volume	1342300 Å³
水化壳体积 shell_volume	134330 Å³
包络直径 envelope_diameter	290.7 Å
壳层 Rg shell_rg	74.92 Å
包络 Rg envelope_rg	85.38 Å
形状 Rg shape_rg	90.10 Å
总 Rg total_rg	90.42 Å
总原子数 total_atoms	42813
残基数 n_residues	4249
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	246.2 Å
Rg (实空间) rg_real	87.85 Å
Rg 误差 (实空间) rg_real_error	1.12 Å
I(0) (实空间) i0_real	7.7090e+09
I(0) 误差 (实空间) i0_real_error	1.5090e+08
Rg (倒空间) rg_reciprocal	86.50 Å
I(0) (倒空间) i0_reciprocal	7900000000.0000
解质量估计 total_estimate	0.8832
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	72.4 Å
偏度 Skewness skewness	0.344
峰度 Kurtosis kurtosis	-0.926
角度范围 angular_range	— – 0.0850 Å⁻¹
当前正则化参数 α current_alpha	1.0830
最高正则化参数 α highest_alpha	218000000.0000
实空间数据点数 n_real_points	18
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.912; Stabil: 0.957; Sysdev: 1.000; Positv: 1.000; Valcen: 0.877; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (11)

Entity 1 polymer

描述 description	Histone H3
分子量 formula_weight	15332.0 kDa
突变 mutation	C110A
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,E,a,e
原子数 atom_count	42813

ARTKQTARKSTGGKAPRKQLATKAARKSAPATGGVKKPHRYRPGTVALREIRRYQKSTELLIRKLPFQRLVREIAQDFKTDLRFQSSAVMALQEASEAYLVALFEDTNLAAIHAKRVTIMPKDIQLARRIRGERA

来源 Source

来源生物 organism	Xenopus laevis
通用名 common_name	African clawed frog
NCBI 分类编号 ncbi_taxonomy_id	8355
宿主生物 host_organism	Escherichia coli

Entity 2 polymer

描述 description	Histone H4
分子量 formula_weight	11263.2 kDa
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,F,b,f

SGRGKGGKGLGKGGAKRHRKVLRDNIQGITKPAIRRLARRGGVKRISGLIYEETRGVLKVFLENVIRDAVTYTEHAKRKTVTAMDVVYALKRQGRTLYGFGG

来源 Source

来源生物 organism	Xenopus laevis
通用名 common_name	African clawed frog
NCBI 分类编号 ncbi_taxonomy_id	8355
宿主生物 host_organism	Escherichia coli

Entity 3 polymer

描述 description	Histone H2A
分子量 formula_weight	13978.2 kDa
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C,G,c,g

SGRGKQGGKTRAKAKTRSSRAGLQFPVGRVHRLLRKGNYAERVGAGAPVYLAAVLEYLTAEILELAGNAARDNKKTRIIPRHLQLAVRNDEELNKLLGRVTIAQGGVLPNIQSVLLPKKTESSKSAKSK

来源 Source

来源生物 organism	Xenopus laevis
通用名 common_name	African clawed frog
NCBI 分类编号 ncbi_taxonomy_id	8355
宿主生物 host_organism	Escherichia coli

Entity 4 polymer

描述 description	Histone H2B
分子量 formula_weight	13524.8 kDa
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D,H,d,h

AKSAPAPKKGSKKAVTKTQKKDGKKRRKTRKESYAIYVYKVLKQVHPDTGISSKAMSIMNSFVNDVFERIAGEASRLAHYNKRSTITSREIQTAVRLLLPGELAKHAVSEGTKAVTKYTSAK

来源 Source

来源生物 organism	Xenopus laevis
通用名 common_name	African clawed frog
NCBI 分类编号 ncbi_taxonomy_id	8355
宿主生物 host_organism	Escherichia coli

Entity 5 polymer

描述 description	Di-nucleosome template foward
分子量 formula_weight	107698.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polydeoxyribonucleotide
链编号 strand_id	I

ATTCGATATCGAGAATCCCGGTGCCGAGGCCGCTCAATTGGTCGTAGACAGCTCTAGCACCGCTTAAACGCACGTACGCGCTGTCCCCCGCGTTTTAACCGCCAAGGGGATTACTCCCTAGTCTCCAGGCACGTGTCAGATATATACATCCTGTGCATGTATTGAAAGTACTGCCAGTTCTAGACTGGAGAATCCCGGTGCCGAGGCCGCTCAATTGGTCGTAGACAGCTCTAGCACCGCTTAAACGCACGTACGCGCTGTCCCCCGCGTTTTAACCGCCAAGGGGATTACTCCCTAGTCTCCAGGCACGTGTCAGATATATACATCCTGTGCATGTATTGAACAGCGAT

Entity 6 polymer

描述 description	Di-nucleosome template reverse
分子量 formula_weight	108485.9 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polydeoxyribonucleotide
链编号 strand_id	J

ATCGCTGTTCAATACATGCACAGGATGTATATATCTGACACGTGCCTGGAGACTAGGGAGTAATCCCCTTGGCGGTTAAAACGCGGGGGACAGCGCGTACGTGCGTTTAAGCGGTGCTAGAGCTGTCTACGACCAATTGAGCGGCCTCGGCACCGGGATTCTCCAGTCTAGAACTGGCAGTACTTTCAATACATGCACAGGATGTATATATCTGACACGTGCCTGGAGACTAGGGAGTAATCCCCTTGGCGGTTAAAACGCGGGGGACAGCGCGTACGTGCGTTTAAGCGGTGCTAGAGCTGTCTACGACCAATTGAGCGGCCTCGGCACCGGGATTCTCGATATCGAAT

Entity 7 polymer

描述 description	Transcriptional regulatory protein SIN3
分子量 formula_weight	175047.3 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	K

MSQVWHNSNSQSNDVATSNDATGSNERNEKEPSLQGNKPGFVQQQQRITLPSLSALSTKEEDRRDSNGQQALTSHAAHILGYPPPHSNAMPSIATDSALKQPHEYHPRPKSSSSSPSINASLMNAGPAPLPTVGAASFSLSRFDNPLPIKAPVHTEEPKSYNGLQEEEKATQRPQDCKEVPAGVQPADAPDPSSNHADANDDNNNNENSHDEDADYRPLNVKDALSYLEQVKFQFSSRPDIYNLFLDIMKDFKSQAIDTPGVIERVSTLFRGYPILIQGFNTFLPQGYRIECSSNPDDPIRVTTPMGTTTVNNNISPSGRGTTDAQELGSFPESDGNGVQQPSNVPMVPSSVYQSEQNQDQQQSLPLLATSSGLPSIQQPEMPAHRQIPQSQSLVPQEDAKKNVDVEFSQAISYVNKIKTRFADQPDIYKHFLEILQTYQREQKPINEVYAQVTHLFQNAPDLLEDFKKFLPDSSASANQQVQHAQQHAQQQHEAQMHAQAQAQAQAQAQVEQQKQQQQFLYPASGYYGHPSNRGIPQQNLPPIGSFSPPTNGSTVHEAYQDQQHMQPPHFMPLPSIVQHGPNMVHQGIANENPPLSDLRTSLTEQYAPSSIQHQQQHPQSISPIANTQYGDIPVRPEIDLDPSIVPVVPEPTEPIENNISLNEEVTFFEKAKRYIGNKHLYTEFLKILNLYSQDILDLDDLVEKVDFYLGSNKELFTWFKNFVGYQEKTKCIENIVHEKHRLDLDLCEAFGPSYKRLPKSDTFMPCSGRDDMCWEVLNDEWVGHPVWASEDSGFIAHRKNQYEETLFKIEEERHEYDFYIESNLRTIQCLETIVNKIENMTENEKANFKLPPGLGHTSMTIYKKVIRKVYDKERGFEIIDALHEHPAVTAPVVLKRLKQKDEEWRRAQREWNKVWRELEQKVFFKSLDHLGLTFKQADKKLLTTKQLISEISSIKVDQTNKKIHWLTPKPKSQLDFDFPDKNIFYDILCLADTFITHTTAYSNPDKERLKDLLKYFISLFFSISFEKIEESLYSHKQNVSESSGSDDGSSIASRKRPYQQEMSLLDILHRSRYQKLKRSNDEDGKVPQLSEPPEEEPNTIEEEELIDEEAKNPWLTGNLVEEANSQGIIQNRSIFNLFANTNIYIFFRHWTTIYERLLEIKQMNERVTKEINTRSTVTFAKDLDLLSSQLSEMGLDFVGEDAYKQVLRLSRRLINGDLEHQWFEESLRQAYNNKAFKLYTIDKVTQSLVKHAHTLMTDAKTAEIMALFVKDRNASTTSAKDQIIYRLQVRSHMSNTENMFRIEFDKRTLHVSIQYIALDDLTLKEPKADEDKWKYYVTSYALPHPTEGIPHEKLKIPFLERLIEFGQDIDGTEVDEEFSPEGISVSTLKIKIQPITYQLHIENGSYDVFTRKATNKYPTIANDNTQKGMVSQKKELISKFLDCAVGLRNNLDEAQKLSMQKKWENLKDSIAKTSAGNQGIESETEKGKITKQEQSDNLDSSTASVLPASITTVPQDDNIETTGNTESSDKGAKIQ

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;baker's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Trichoplusia ni

Entity 8 polymer

描述 description	Histone deacetylase RPD3
分子量 formula_weight	48962.0 kDa
EC 编号 ec_number	3.5.1.98
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L

MVYEATPFDPITVKPSDKRRVAYFYDADVGNYAYGAGHPMKPHRIRMAHSLIMNYGLYKKMEIYRAKPATKQEMCQFHTDEYIDFLSRVTPDNLEMFKRESVKFNVGDDCPVFDGLYEYCSISGGGSMEGAARLNRGKCDVAVNYAGGLHHAKKSEASGFCYLNDIVLGIIELLRYHPRVLYIDIDVHHGDGVEEAFYTTDRVMTCSFHKYGEFFPGTGELRDIGVGAGKNYAVNVPLRDGIDDATYRSVFEPVIKKIMEWYQPSAVVLQCGGDSLSGDRLGCFNLSMEGHANCVNYVKSFGIPMMVVGGGGYTMRNVARTWCFETGLLNNVVLDKDLPYNEYYEYYGPDYKLSVRPSNMFNVNTPEYLDKVMTNIFANLENTKYAPSVQLNHTPRDAEDLGDVEEDSAEAKDTKGGSQYARDLHVEHDNEFY

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;baker's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Trichoplusia ni

Entity 9 polymer

描述 description	Chromatin modification-related protein EAF3
分子量 formula_weight	45266.4 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	M,O

MVDLEQEFALGGRCLAFHGPLMYEAKILKIWDPSSKMYTSIPNDKPGGSSQATKEIKPQKLGEDESIPEEIINGKCFFIHYQGWKSSWDEWVGYDRIRAYNEENIAMKKRLANEAKEAKKSLLEQQKKKKLSTSLGGPSNGGKRKGDSRSNASISKSTSQSFLTSSVSGRKSGRSSANSLHPGSSLRSSSDQNGNDDRRRSSSLSPNMLHHIAGYPTPKISLQIPIKLKSVLVDDWEYVTKDKKICRLPADVTVEMVLNKYEHEVSQELESPGSQSQLSEYCAGLKLYFDKCLGNMLLYRLERLQYDELLKKSSKDQKPLVPIRIYGAIHLLRLISVLPELISSTTMDLQSCQLLIKQTEDFLVWLLMHVDEYFNDKDPNRSDDALYVNTSSQYEGVALGM

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;baker's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Trichoplusia ni

Entity 10 polymer

描述 description	RCO1 isoform 1
分子量 formula_weight	78951.3 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	N,P

MDTSKKDTTRSPSHSNSSSPSSSSLSSSSSKEKKRPKRLSSQNVNYDLKRRKIITSEGIERSFKNEHSNLAVEDNIPEEEPKELLEKDSKGNIIKLNEPSTISEDSKVSVTGLPLNKGPSEKIKRESLWNYRKNLGGQSNNSEMTLVPSKRFTQVPKNFQDLNRNDLKTFLTENMTEESNIRSTIGWNGDIINRTRDREPESDRDNKKLSNIRTKIILSTNATYDSKSKLFGQNSIKSTSNASEKIFRDKNNSTIDFENEDFCSACNQSGSFLCCDTCPKSFHFLCLDPPIDPNNLPKGDWHCNECKFKIFINNSMATLKKIESNFIKQNNNVKIFAKLLFNIDSHNPKQFQLPNYIKETFPAVKTGSRGQYSDENDKIPLTDRQLFNTSYGQSITKLDSYNPDTHIDSNSGKFLICYKCNQTRLGSWSHPENSRLIMTCDYCQTPWHLDCVPRASFKNLGSKWKCPLHSPTKVYKKIHHCQEDNSVNYKVWKKQRLINKKNQLYYEPLQKIGYQNNGNIQIIPTTSHTDYDFNQDFKITQIDENSIKYDFFDKIYKSKMVQKRKLFQFQESLIDKLVSNGSQNGNSEDNMVKDIASLIYFQVSNNDKSSNNKSASKSNNLRKLWDLKELTNVVVPNELDSIQFNDFSSDEIKHLLYLKKIIESKPKEELLKFLNIENPENQSE

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;baker's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Trichoplusia ni

Entity 11 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	7

▶

7. 引用文献 (1)

▶

分辨率 resolution	7.60 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	31310

fit	/app/data/saxs_computation/jh/8jho/8jho.fit
pddf	/app/data/pr_computation/jh/8jho/8jho.pr.out
profile	/app/data/saxs_computation/jh/8jho/8jho.dat
