9bf9

Human LAG-3-HLA-DR1 complex

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

HLA class II histocompatibility antigen, DR alpha chain

Homo sapiens

UniProt P01903

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 8 其他Polymer 2	HLA class II histocompatibility antigen DR beta chain × 2 （D7RIG0） Membrane protein × 2 （P0DTC5） Lymphocyte activation gene 3 protein × 2 （P18627） ;alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ; × 2 SULFATE ION × 6 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 DI(HYDROXYETHYL)ETHER × 2	Review required

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	DRA_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 5–181； UniProt 30–206

HLA class II histocompatibility antigen DR beta chain

Homo sapiens

UniProt D7RIG0

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 8 其他Polymer 2	HLA class II histocompatibility antigen, DR alpha chain × 2 （P01903） Membrane protein × 2 （P0DTC5） Lymphocyte activation gene 3 protein × 2 （P18627） ;alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ; × 2 SULFATE ION × 6 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 DI(HYDROXYETHYL)ETHER × 2	Review required

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	D7RIG0_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 13–211； UniProt 29–227

Membrane protein

Severe acute respiratory syndrome coronavirus 2

UniProt P0DTC5

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 8 其他Polymer 2	HLA class II histocompatibility antigen, DR alpha chain × 2 （P01903） HLA class II histocompatibility antigen DR beta chain × 2 （D7RIG0） Lymphocyte activation gene 3 protein × 2 （P18627） ;alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ; × 2 SULFATE ION × 6 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 DI(HYDROXYETHYL)ETHER × 2	Review required

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	VME1_SARS2
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain G； PDBConstruct 1–13； UniProt 177–189

Lymphocyte activation gene 3 protein

Homo sapiens

UniProt P18627

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 8 其他Polymer 2	HLA class II histocompatibility antigen, DR alpha chain × 2 （P01903） HLA class II histocompatibility antigen DR beta chain × 2 （D7RIG0） Membrane protein × 2 （P0DTC5） ;alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ; × 2 SULFATE ION × 6 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 DI(HYDROXYETHYL)ETHER × 2	Review required

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	LAG3_HUMAN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain D； PDBConstruct 3–409； UniProt 23–429

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9bf9
Deposition date deposition_date	2024-04-17
Last revision last_revision	2024-12-25
Structure title title	Human LAG-3-HLA-DR1 complex
Keywords keywords	Immune receptor complex Class II Human Leucocyte Antigen Lymphocyte activation Gene-3 IMMUNE SYSTEM, IMMUNE SYSTEM; IMMUNE SYSTEM
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9bf9__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9bf9__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

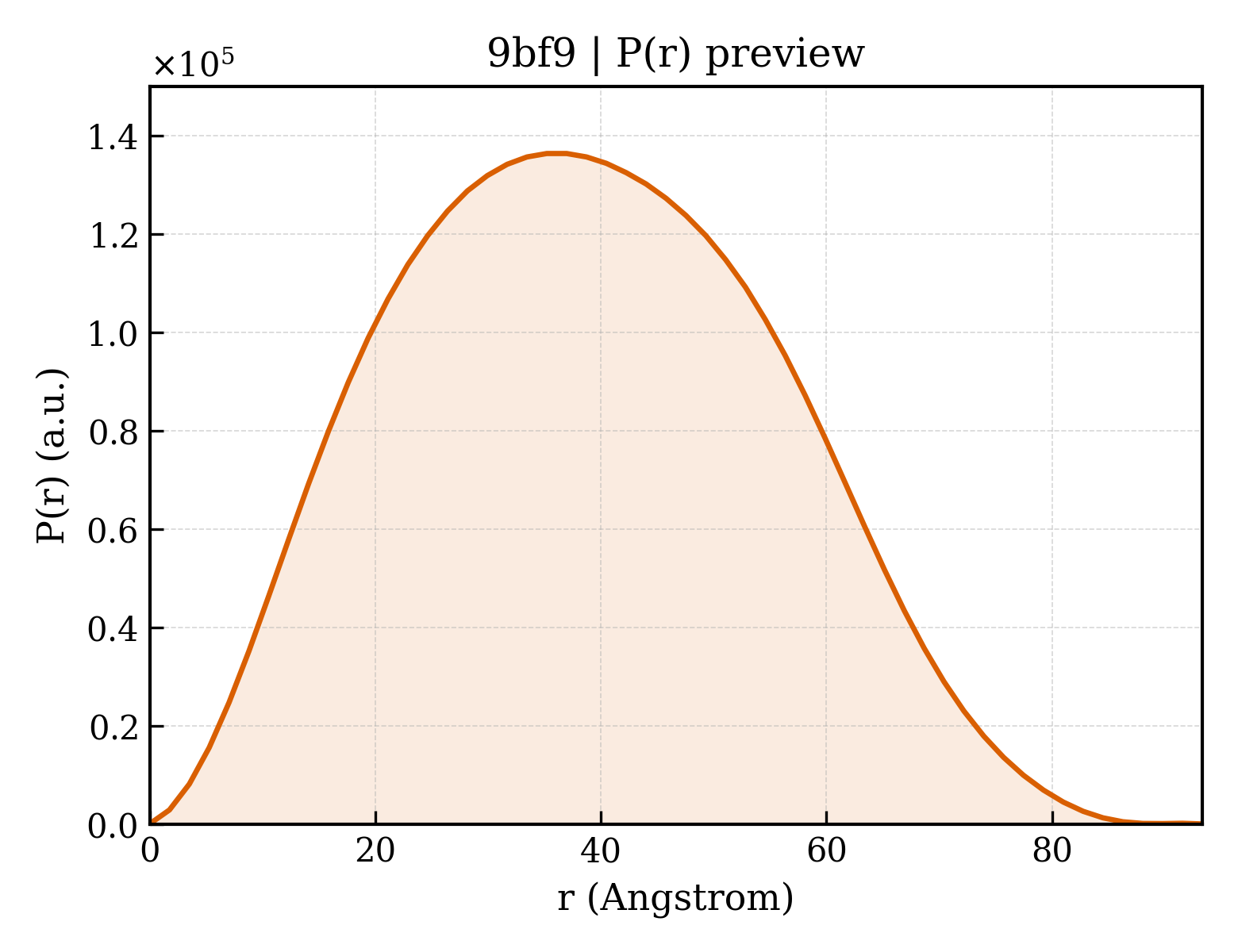

9bf9__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	50.98 Å
Rg (electron density)	51.63 Å
Total Rg	51.40 Å
Atom count	9730
Residues	1192
Excluded volume	171160 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9bf9__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (8)

Entity 1 Entity 1 polymer

Description description	HLA class II histocompatibility antigen, DR alpha chain
Molecular weight formula_weight	21919.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	4865

IKEEHVIIQAEFYLNPDQSGEFMFDFDGDEIFHVDMAKKETVWRLEEFGRFASFEAQGALANIAVDKANLEIMTKRSNYTPITNVPPEVTVLTNSPVELREPNVLICFIDKFTPPVVNVTWLRNGKPVTTGVSETVFLPREDHLFRKFHYLPFLPSTEDVYDCRVEHWGLDEPLLKHWEFDTSGDDDDK

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	HLA class II histocompatibility antigen DR beta chain
Molecular weight formula_weight	24033.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

DSGGSGSIEGRGSGDTRPRFLWQLKFECHFFNGTERVRLLERCIYNQEESVRFDSDVGEYRAVTELGRPDAEYWNSQKDLLEQRRAAVDTYCRHNYGVGESFTVQRRVEPKVTVYPSKTQPLQHHNLLVCSVSGFYPGSIEVRWFRNGQEEKAGVVSTGLIQNGDWTFQTLVMLETVPRSGEVYTCQVEHPSVTSPLTVEWRATGGDDDDK

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 3 Entity 3 polymer

Description description	Membrane protein
Molecular weight formula_weight	1401.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	G

SYYKLGASQRVAG

Source Source

Source organism organism	Severe acute respiratory syndrome coronavirus 2
NCBI taxonomy ID ncbi_taxonomy_id	2697049
Host organism host_organism	Homo sapiens

Entity 4 Entity 4 polymer

Description description	Lymphocyte activation gene 3 protein
Molecular weight formula_weight	45338.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

GSLQPGAEVPVVWAQEGAPAQLPCSPTIPLQDLSLLRRAGVTWQHQPDSGPPAAAPGHPLAPGPHPAAPSSWGPRPRRYTVLSVGPGGLRSGRLPLQPRVQLDERGRQRGDFSLWLRPARRADAGEYRAAVHLRDRALSCRLRLRLGQASMTASPPGSLRASDWVILNCSFSRPDRPASVHWFRNRGQGRVPVRESPHHHLAESFLFLPQVSPMDSGPWGCILTYRDGFNVSIMYNLTVLGLEPPTPLTVYAGAGSRVGLPCRLPAGVGTRSFLTAKWTPPGGGPDLLVTGDNGDFTLRLEDVSQAQAGTYTCHIHLQEQQLNATVTLAIITVTPKSFGSPGSLGKLLCEVTPVSGQERFVWSSLDTPSQRSFSGPWLEAQEAQLLSQPWQCQLYQGERLLGAAVYFTETGGLEVLFQ

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 5 Entity 5 branched

Description description	;alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
Molecular weight formula_weight	910.8 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 7 Entity 7 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 8 Entity 8 non-polymer

Description description	DI(HYDROXYETHYL)ETHER
Molecular weight formula_weight	106.1 kDa
Source method src_method	syn
Copy count entity_count	1

▶

Unit-cell length a length_a	97.714 Å
Unit-cell length b length_b	148.067 Å
Unit-cell length c length_c	85.586 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 2
Space-group number int_tables_number	18
Crystal system crystal_system	orthorhombic

Resolution resolution	3.400 Å
Low-resolution limit resolution_low	81.560 Å
R factor r_factor	0.2106
R_work r_work	0.2059
R_free r_free	0.2531
