SAXSdb — 8euq

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

HLA class II histocompatibility antigen, DR alpha chain

Homo sapiens

UniProt P01903

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 4 其他Polymer 1	c44H10 Fab light chain × 1 Hemagglutinin HA1 chain,HLA class II histocompatibility antigen DR beta chain × 1 （A0A1V1IGJ9,P04664） c44H10 Fab heavy chain × 1 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 SULFATE ION × 10 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	Consistent with protein count
2	Insufficient information	Heteromer	Protein 4 其他Polymer 1	c44H10 Fab light chain × 1 Hemagglutinin HA1 chain,HLA class II histocompatibility antigen DR beta chain × 1 （A0A1V1IGJ9,P04664） c44H10 Fab heavy chain × 1 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 SULFATE ION × 6 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	DRA_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–179； UniProt 28–206 Author chain F； PDBConstruct 1–179； UniProt 28–206

Hemagglutinin HA1 chain,HLA class II histocompatibility antigen DR beta chain

Homo sapiens

UniProt A0A1V1IGJ9

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 4 其他Polymer 1	HLA class II histocompatibility antigen, DR alpha chain × 1 （P01903） c44H10 Fab light chain × 1 c44H10 Fab heavy chain × 1 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 SULFATE ION × 10 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	Consistent with protein count
2	Insufficient information	Heteromer	Protein 4 其他Polymer 1	HLA class II histocompatibility antigen, DR alpha chain × 1 （P01903） c44H10 Fab light chain × 1 c44H10 Fab heavy chain × 1 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 SULFATE ION × 6 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A1V1IGJ9_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain B； PDBConstruct 28–217； UniProt 30–219 Author chain G； PDBConstruct 28–217； UniProt 30–219

Hemagglutinin HA1 chain,HLA class II histocompatibility antigen DR beta chain

Homo sapiens

UniProt P04664

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 4 其他Polymer 1	HLA class II histocompatibility antigen, DR alpha chain × 1 （P01903） c44H10 Fab light chain × 1 c44H10 Fab heavy chain × 1 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 SULFATE ION × 10 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	Consistent with protein count
2	Insufficient information	Heteromer	Protein 4 其他Polymer 1	HLA class II histocompatibility antigen, DR alpha chain × 1 （P01903） c44H10 Fab light chain × 1 c44H10 Fab heavy chain × 1 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 SULFATE ION × 6 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	HEMA_I69A0
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain B； PDBConstruct 1–15； UniProt 304–318 Author chain G； PDBConstruct 1–15； UniProt 304–318

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8euq
Deposition date deposition_date	2022-10-19
Structure title title	Crystal structure of HLA-DRA01:01/HLA-DRB104:01 in complex with c44H10 Fab
Keywords keywords	MHC class II, HLA-DR, Antibody, IMMUNE SYSTEM; IMMUNE SYSTEM
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8euq__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8euq__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

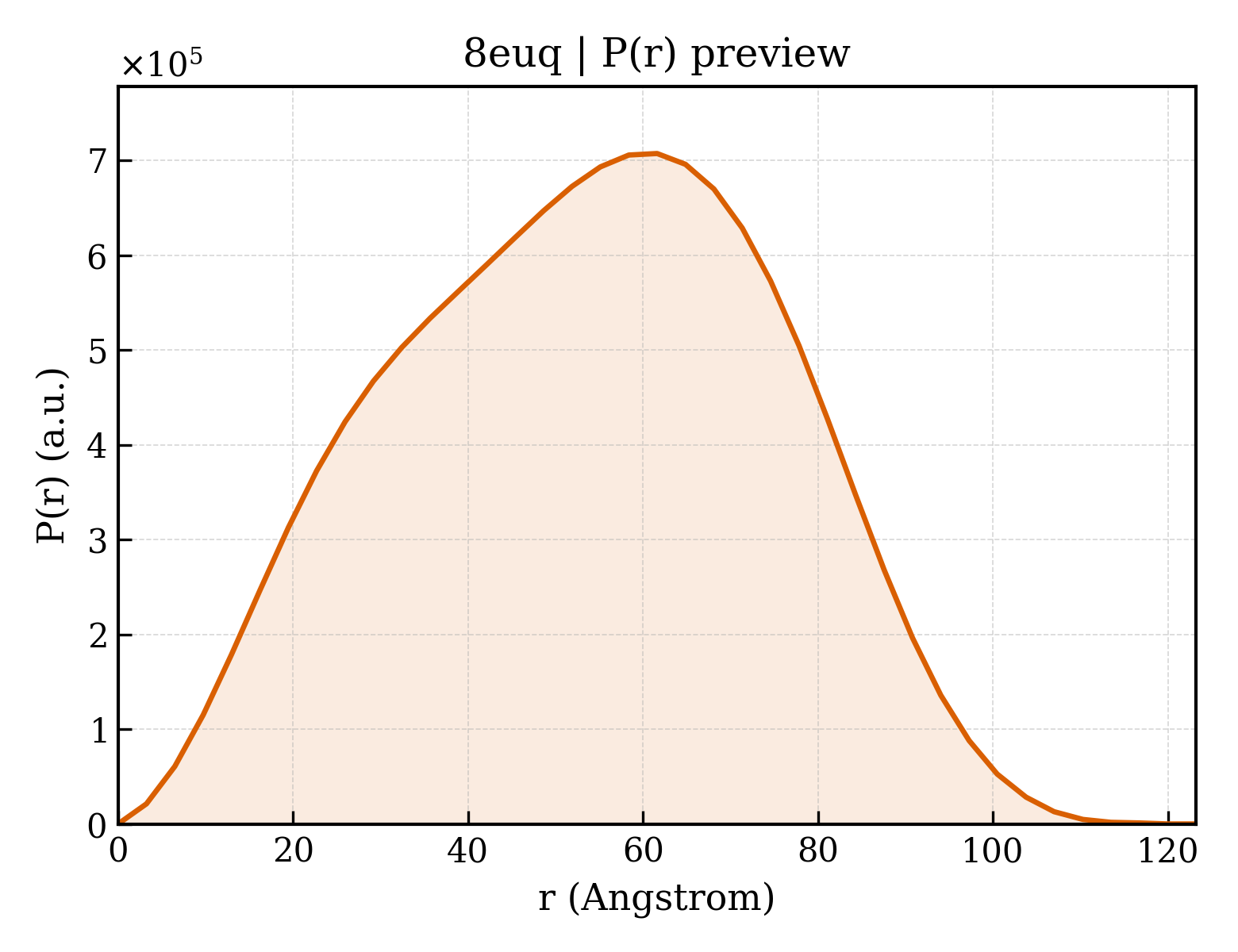

8euq__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	32.29 Å
Rg (electron density)	31.70 Å
Total Rg	32.33 Å
Atom count	6503
Residues	820
Excluded volume	114670 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8euq__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`8euq__assembly_2__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	HLA class II histocompatibility antigen, DR alpha chain
Molecular weight formula_weight	21882.6 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,F
Atom count atom_count	13053

EEHVIIQAEFYLNPDQSGEFMFDFDGDEIFHVDMAKKETVWRLEEFGRFASFEAQGALANIAVDKANLEIMTKRSNYTPITNVPPEVTVLTNSPVELREPNVLICFIDKFTPPVVNVTWLRNGKPVTTGVSETVFLPREDHLFRKFHYLPFLPSTEDVYDCRVEHWGLDEPLLKHWEFDTSGENLYFQ

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	c44H10 Fab light chain
Molecular weight formula_weight	23505.1 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,H

DIQMTQSPSSLSASLGQRVSLTCRASQEISGYLTWLQQKPDGTIKRLVYAASTLDSGVPKRFSGSRSGSDYSLTISSLESEDFADYYCLQYTNYPLTFGAGTKLELKRTVAAPSVFIFPPSDEQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRGEC

Source Source

Source organism organism	Homo sapiens
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 3 Entity 3 polymer

Description description	Hemagglutinin HA1 chain,HLA class II histocompatibility antigen DR beta chain
Molecular weight formula_weight	25935.8 kDa
Mutation mutation	A3G, C4A in the hemagglutinin peptide that was used
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,G

GAPKYVKQNTLKLATSGGSGSIEGRGSGDTRPRFLEQVKHECHFFNGTERVRFLDRYFYHQEEYVRFDSDVGEYRAVTELGRPDAEYWNSQKDLLEQKRAAVDTYCRHNYGVGESFTVQRRVYPEVTVYPAKTQPLQHHNLLVCSVNGFYPGSIEVRWFRNGQEEKTGVVSTGLIQNGDWTFQTLVMLETVPRSGEVYTCQVEHPSLTSPLTVEWRATGGENLYFQ

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 4 Entity 4 polymer

Description description	c44H10 Fab heavy chain
Molecular weight formula_weight	23668.6 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,I

QVQLKESGPGLVAPSQSLSITCTVSGFSLTSYGVHWVRQPPGKGLEWLGVIWAGGSINYNSALMSRLSISKDNFKSQVFLKMSSLQTDDTAMYYCARAYGDYVHYAMDYWGQGTSVTASSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKKVEPKSC

Source Source

Source organism organism	Homo sapiens
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 5 Entity 5 branched

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	424.4 kDa
Source method src_method	man
Copy count entity_count	2

Entity 6 Entity 6 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	16

Entity 7 Entity 7 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	man
Copy count entity_count	2

▼

6. Fold Classification (SCOP + CATH) 8 domains

CATH v4.4 (8 domains)

Domain ID domain_id	8euqC01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	8euqC02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	8euqD01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	8euqD02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	8euqH01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	8euqH02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	8euqI01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	8euqI02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

▶

Unit-cell length a length_a	169.150 Å
Unit-cell length b length_b	178.720 Å
Unit-cell length c length_c	182.040 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	I 2 2 2
Space-group number int_tables_number	23
Crystal system crystal_system	orthorhombic

Resolution resolution	3.090 Å
Low-resolution limit resolution_low	39.510 Å
R factor r_factor	0.2018
R_work r_work	0.2001
R_free r_free	0.2438

Crystal structure of HLA-DRA01:01/HLA-DRB104:01 in complex with c44H10 Fab
