9qoh

Mouse Ribosome POST translocation state

Method: ELECTRON MICROSCOPY Dmax: 237.5 Å Quality: EXCELLENT

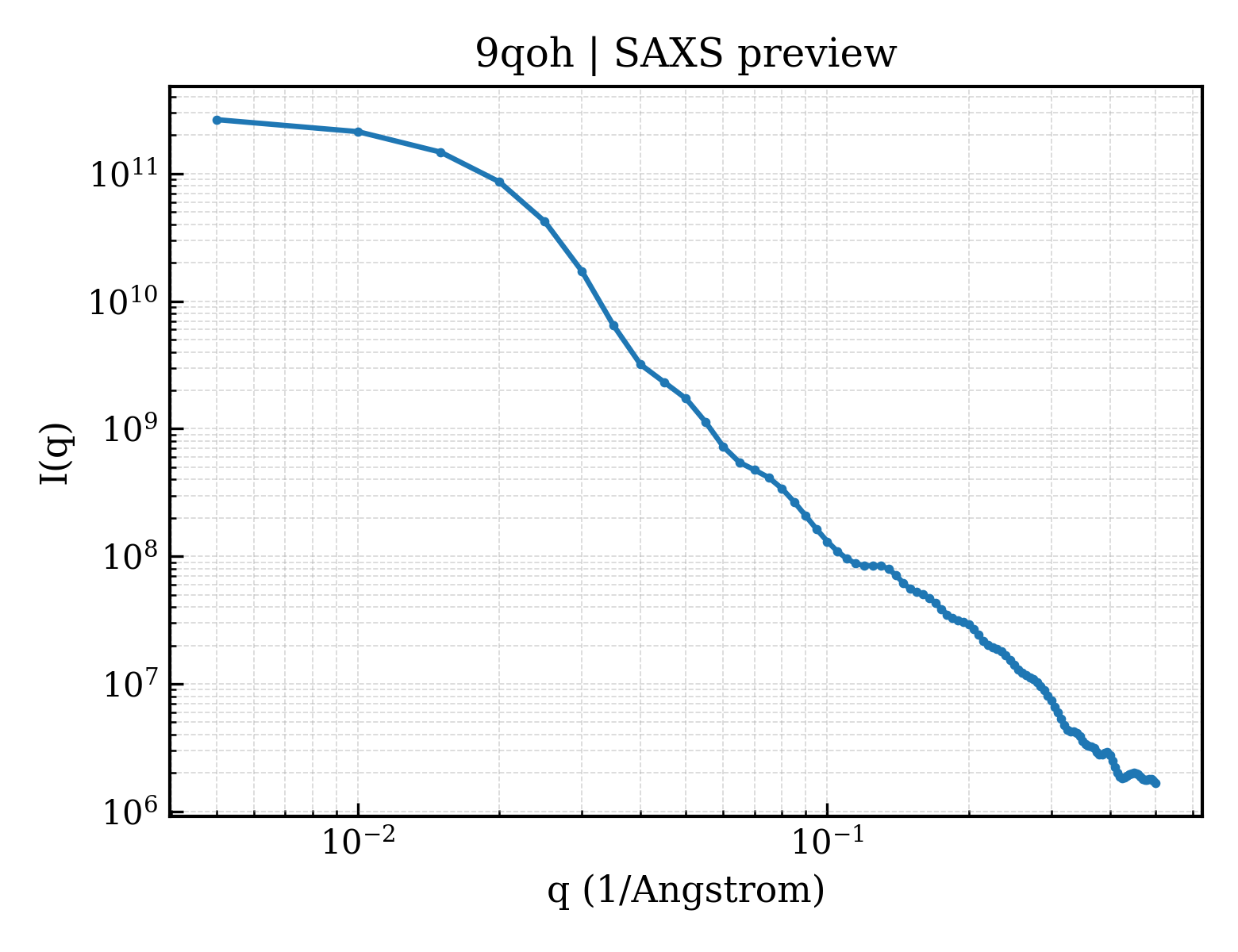

SAXS Profile

SAXS profile for 9qoh

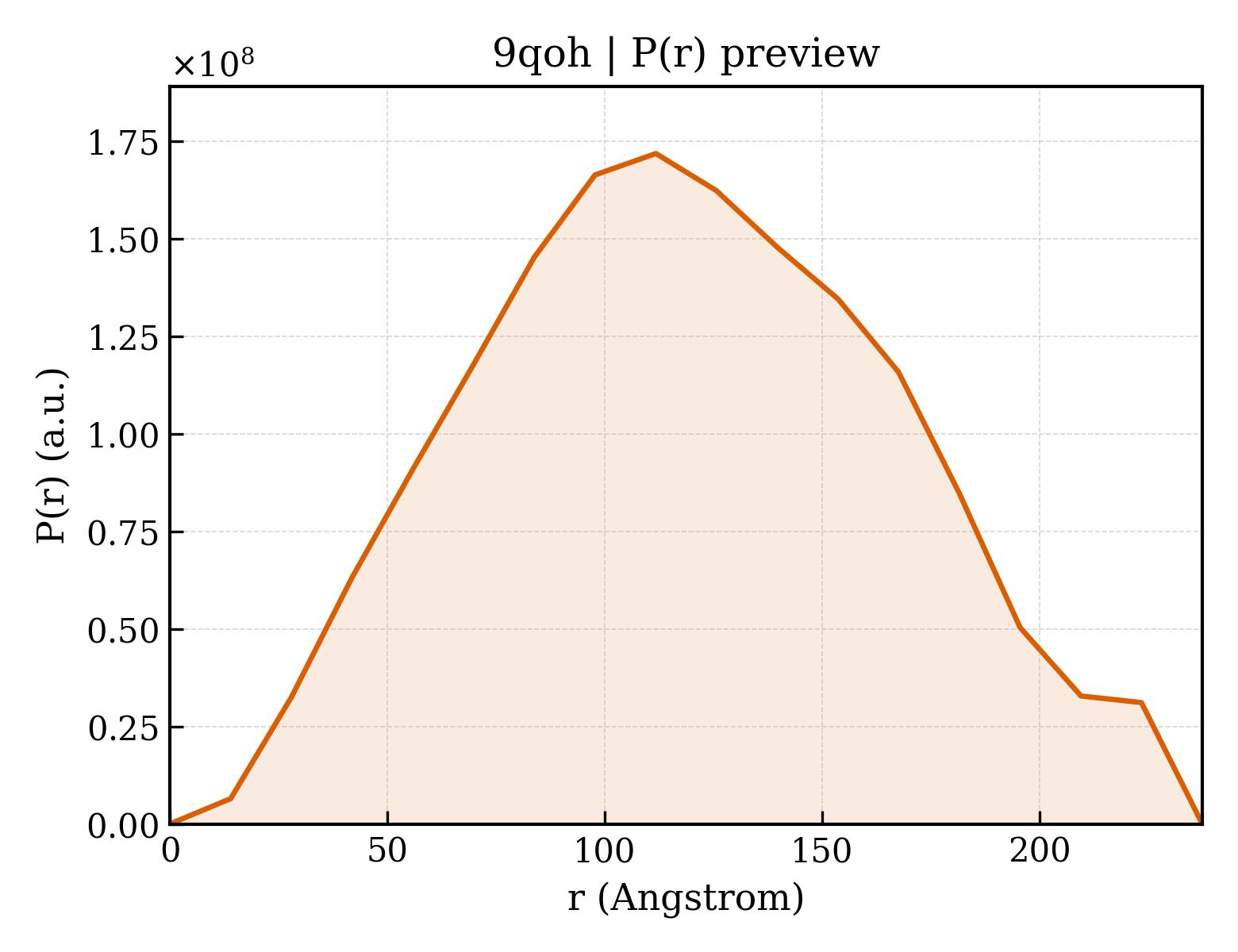

P(r) Distribution

P(r) distribution for 9qoh

1. Structure Basics

entry_id9qoh
deposition_date2025-03-26
titleMouse Ribosome POST translocation state
keywordsTranslating Ribosomes, POST state, Mouse, Ba/F3, Polysomes, RIBOSOME; RIBOSOME
methodELECTRON MICROSCOPY

Download Data

2. SAXS Parameters (CRYSOL)

rg_guinier93.01
rg_electron94.27
i0284780000000.00
molecular_weight3158500.0 kDa
excluded_volume3375700 ų
envelope_volume5617400 ų
shell_volume447820 ų
envelope_diameter309.0
shell_rg111.40
envelope_rg93.87
shape_rg94.36
total_rg94.15
total_atoms213877
n_residues17032
n_harmonics20
q_range— – 0.5000 −1
n_points101
shell_typedirectional
solvent_density0.3340 e/ų
contrast_shell0.0300 e/ų
crysol_version4.1.3

3. P(r) Analysis (GNOM)

dmax237.5
rg_real90.33
rg_real_error0.33
i0_real2.7290e+11
i0_real_error4.5820e+09
rg_reciprocal94.60
i0_reciprocal286300000000.0000
total_estimate0.9123
solution_quality EXCELLENT a EXCELLENT solution
n_peaks1
r_peak_primary111.8
skewness0.117
kurtosis-0.610
angular_range— – 0.0850 −1
current_alpha0.7094
highest_alpha19560000000.0000
n_real_points18
gnom_version4.1.3
quality_criteria AN1: 0.000; Oscil: 0.997; Stabil: 0.966; Sysdev: 1.000; Positv: 1.000; Valcen: 0.975; Smooth: 0.000

4. Crystallography & Experiment

5. Entities & Polymer Info (86)

6. Citations (1)

7. Files & Curves (10)
