9qzp

Mouse Ribosome Classical Pre translocation state

Method: ELECTRON MICROSCOPY Dmax: 236.6 Å Quality: EXCELLENT

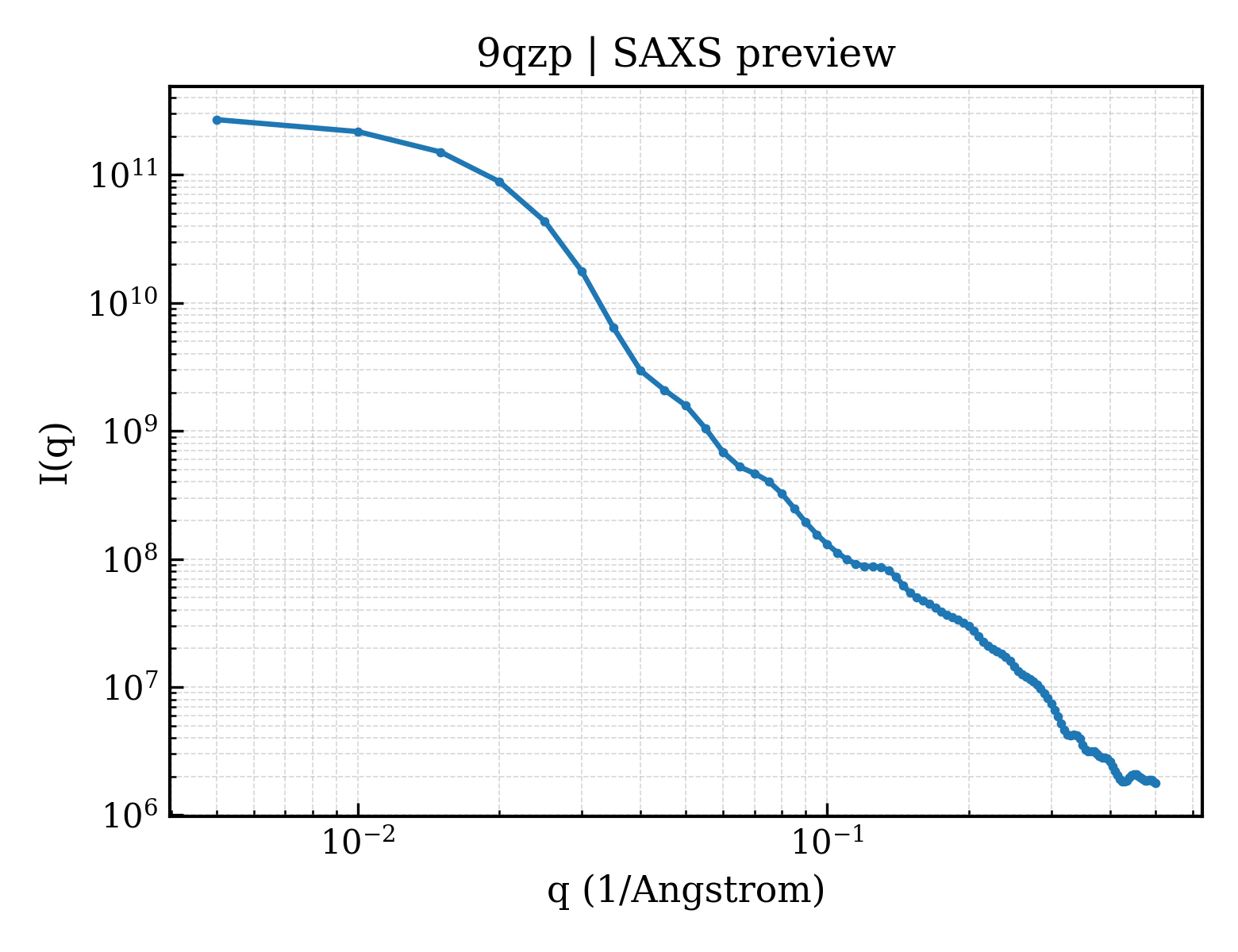

SAXS Profile

SAXS profile for 9qzp

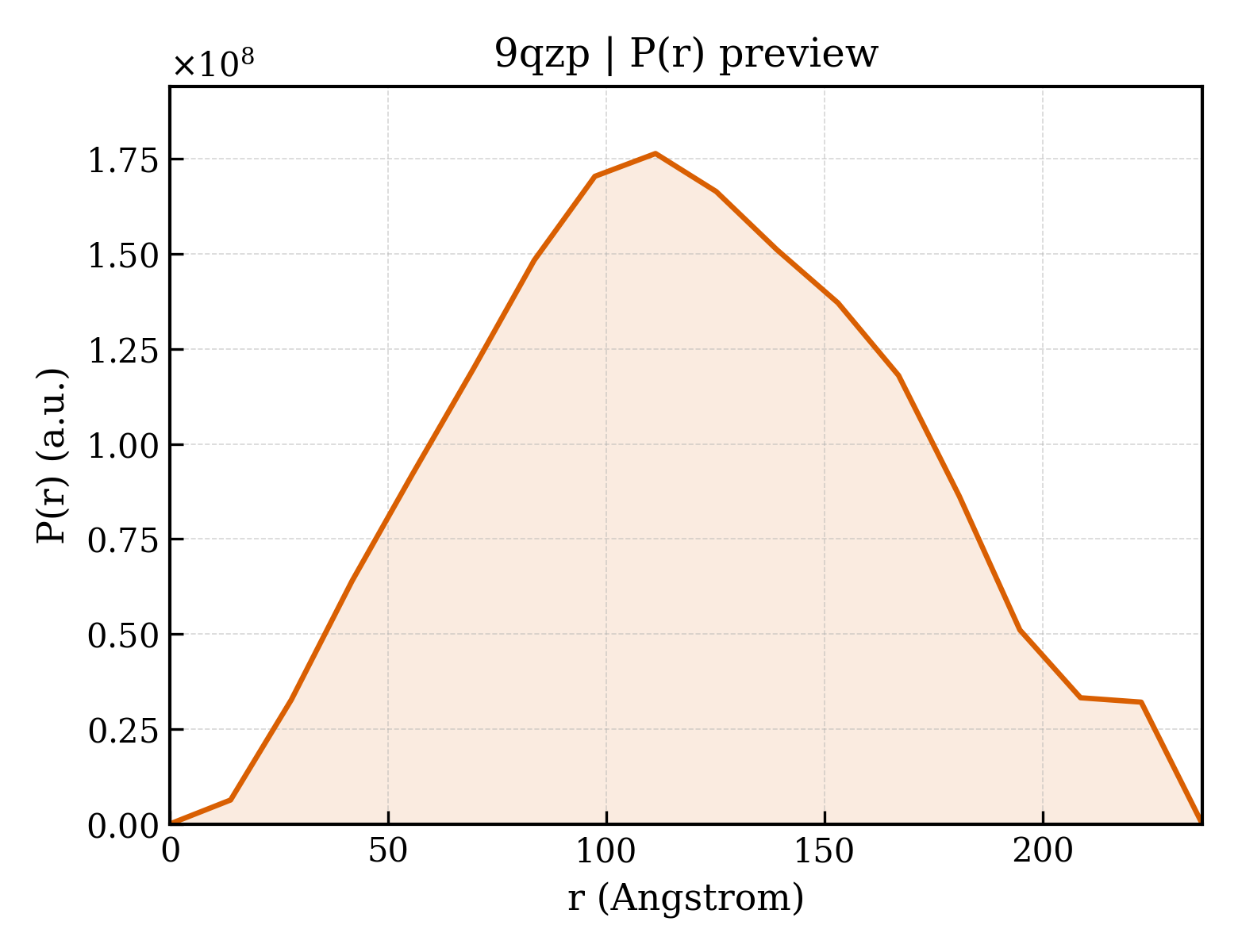

P(r) Distribution

P(r) distribution for 9qzp

1. Structure Basics

entry_id9qzp
deposition_date2025-04-23
titleMouse Ribosome Classical Pre translocation state
keywordsTranslating Ribosomes, Classical Pre state, Mouse, Ba/F3, Polysomes, RIBOSOME; RIBOSOME
methodELECTRON MICROSCOPY

Download Data

2. SAXS Parameters (CRYSOL)

rg_guinier92.64
rg_electron93.96
i0289241000000.00
molecular_weight3175000.0 kDa
excluded_volume3388600 ų
envelope_volume5620600 ų
shell_volume450320 ų
envelope_diameter314.0
shell_rg110.70
envelope_rg93.47
shape_rg94.05
total_rg93.84
total_atoms214936
n_residues17039
n_harmonics20
q_range— – 0.5000 −1
n_points101
shell_typedirectional
solvent_density0.3340 e/ų
contrast_shell0.0300 e/ų
crysol_version4.1.3

3. P(r) Analysis (GNOM)

dmax236.6
rg_real89.99
rg_real_error0.33
i0_real2.7720e+11
i0_real_error4.4340e+09
rg_reciprocal94.25
i0_reciprocal290800000000.0000
total_estimate0.9124
solution_quality EXCELLENT a EXCELLENT solution
n_peaks1
r_peak_primary111.3
skewness0.120
kurtosis-0.603
angular_range— – 0.0850 −1
current_alpha0.6845
highest_alpha22100000000.0000
n_real_points18
gnom_version4.1.3
quality_criteria AN1: 0.000; Oscil: 0.996; Stabil: 0.967; Sysdev: 1.000; Positv: 1.000; Valcen: 0.976; Smooth: 0.000

4. Crystallography & Experiment

5. Entities & Polymer Info (86)

6. Citations (1)

7. Files & Curves (10)
