9qqp

Mouse Ribosome rotated-2 PRE state

Method: ELECTRON MICROSCOPY Dmax: 236.3 Å Quality: EXCELLENT

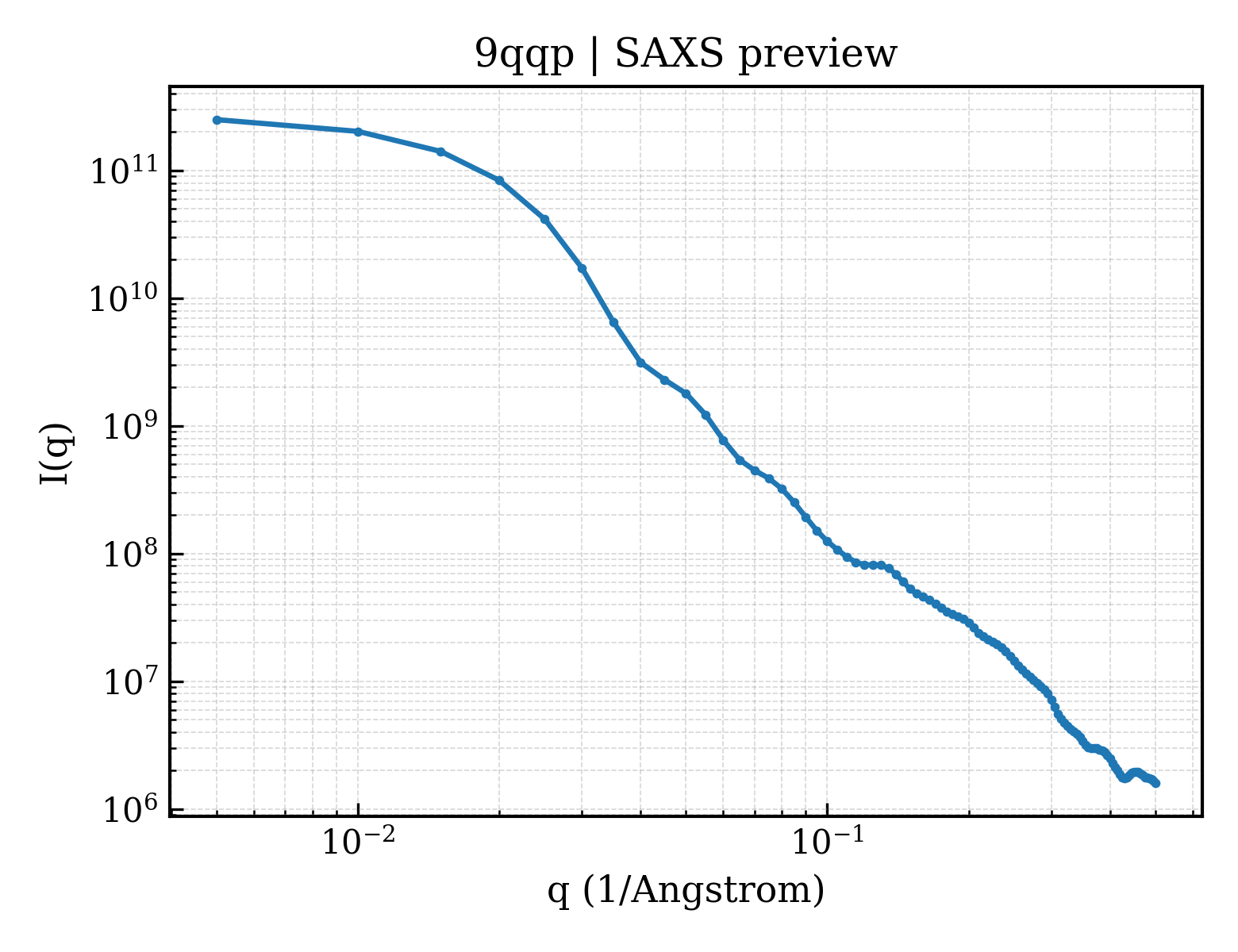

SAXS Profile

SAXS profile for 9qqp

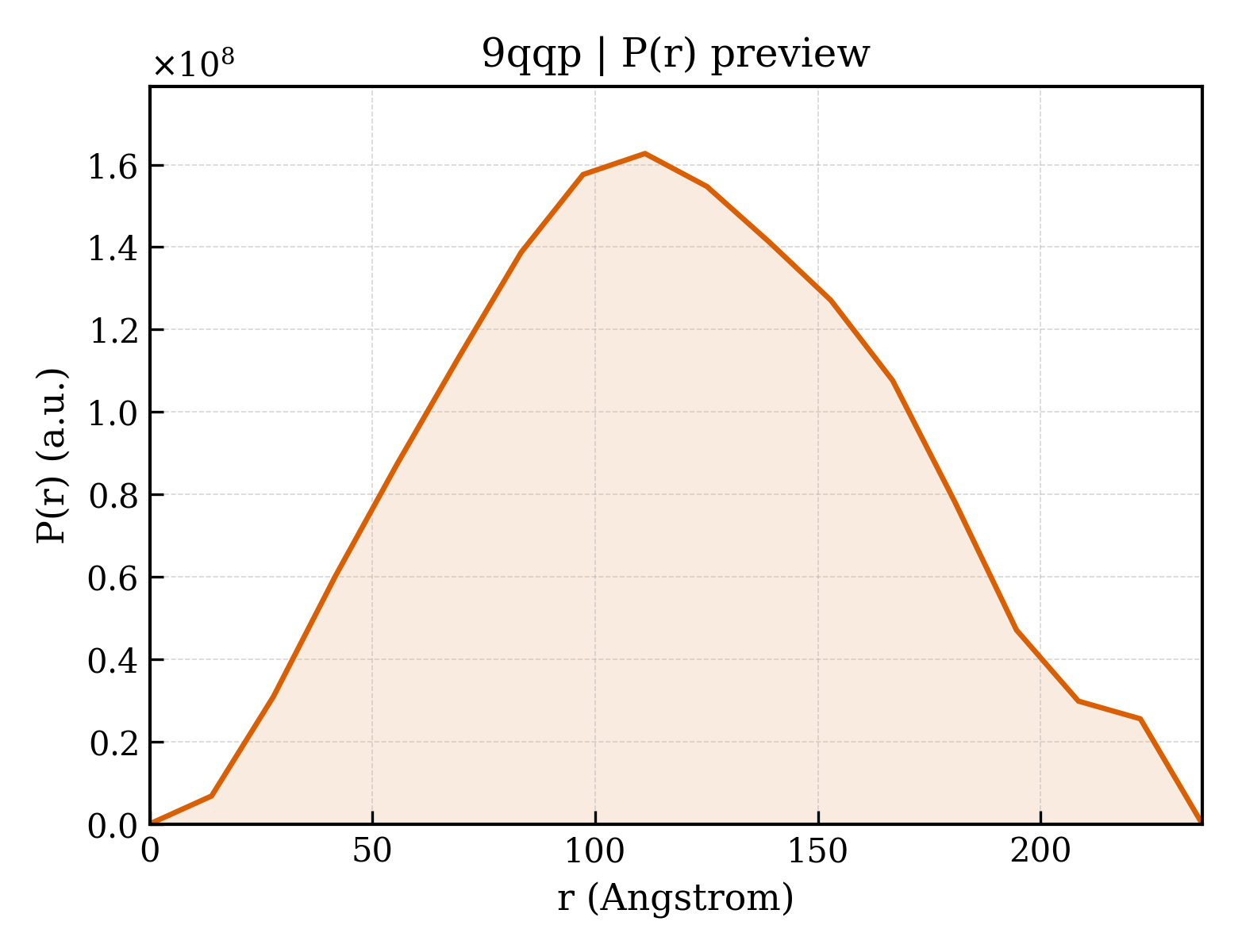

P(r) Distribution

P(r) distribution for 9qqp

1. Structure Basics

entry_id9qqp
deposition_date2025-04-01
titleMouse Ribosome rotated-2 PRE state
keywordsTranslating Ribosomes, rotated-2 PRE state, Mouse, Ba/F3, Polysomes, RIBOSOME; RIBOSOME
methodELECTRON MICROSCOPY

Download Data

2. SAXS Parameters (CRYSOL)

rg_guinier91.88
rg_electron93.16
i0268334000000.00
molecular_weight3056300.0 kDa
excluded_volume3261000 ų
envelope_volume5377900 ų
shell_volume435330 ų
envelope_diameter304.3
shell_rg109.60
envelope_rg92.51
shape_rg93.24
total_rg93.04
total_atoms206892
n_residues16390
n_harmonics20
q_range— – 0.5000 −1
n_points101
shell_typedirectional
solvent_density0.3340 e/ų
contrast_shell0.0300 e/ų
crysol_version4.1.3

3. P(r) Analysis (GNOM)

dmax236.3
rg_real89.29
rg_real_error0.36
i0_real2.5660e+11
i0_real_error4.0320e+09
rg_reciprocal93.44
i0_reciprocal269700000000.0000
total_estimate0.9109
solution_quality EXCELLENT a EXCELLENT solution
n_peaks1
r_peak_primary111.2
skewness0.113
kurtosis-0.605
angular_range— – 0.0850 −1
current_alpha0.9371
highest_alpha18590000000.0000
n_real_points18
gnom_version4.1.3
quality_criteria AN1: 0.000; Oscil: 0.999; Stabil: 0.955; Sysdev: 1.000; Positv: 1.000; Valcen: 0.983; Smooth: 0.000

4. Crystallography & Experiment

5. Entities & Polymer Info (85)

6. Citations (1)

7. Files & Curves (10)
