9qql

Mouse RPS15 P131 Mutant Ribosome POST translocation state

Method: ELECTRON MICROSCOPY Dmax: 237.4 Å Quality: EXCELLENT

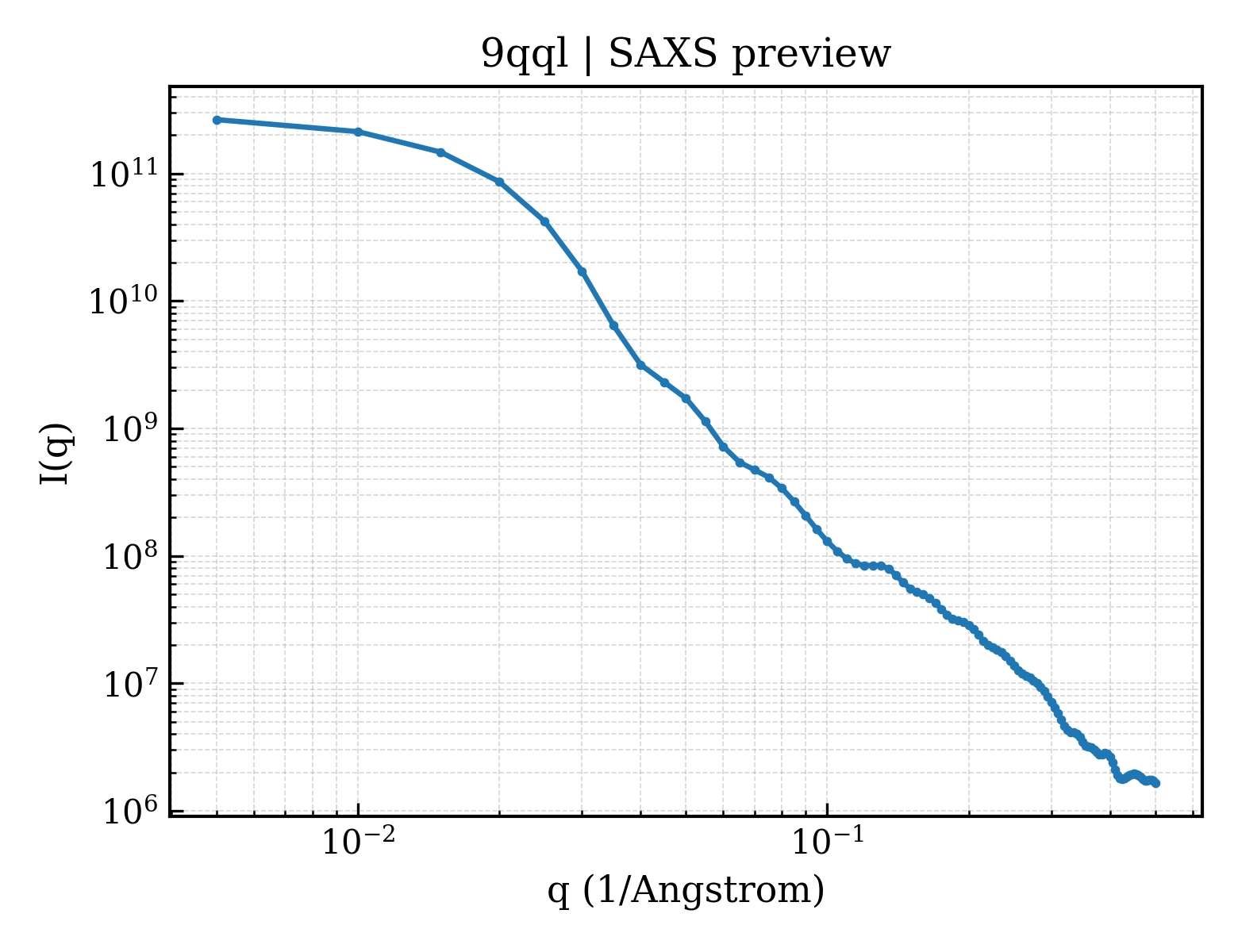

SAXS Profile

SAXS profile for 9qql

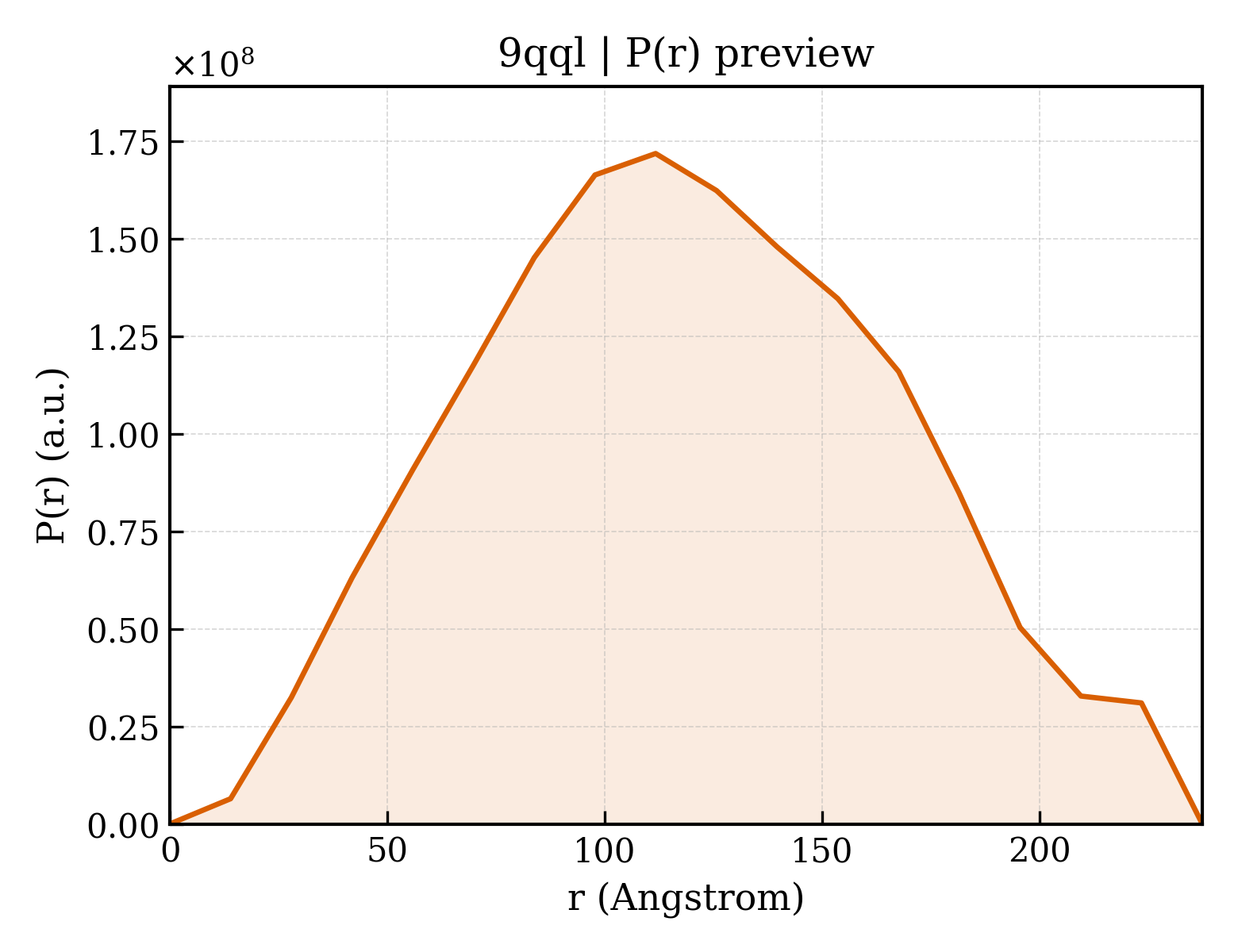

P(r) Distribution

P(r) distribution for 9qql

1. Structure Basics

entry_id9qql
deposition_date2025-04-01
titleMouse RPS15 P131 Mutant Ribosome POST translocation state
keywordsTranslating Ribosomes, POST state, Mouse, Ba/F3, P131S, Polysomes, RIBOSOME; RIBOSOME
methodELECTRON MICROSCOPY

Download Data

2. SAXS Parameters (CRYSOL)

rg_guinier92.97
rg_electron94.24
i0284482000000.00
molecular_weight3156800.0 kDa
excluded_volume3373900 ų
envelope_volume5624400 ų
shell_volume448630 ų
envelope_diameter311.5
shell_rg111.40
envelope_rg93.78
shape_rg94.32
total_rg94.12
total_atoms213761
n_residues16998
n_harmonics20
q_range— – 0.5000 −1
n_points101
shell_typedirectional
solvent_density0.3340 e/ų
contrast_shell0.0300 e/ų
crysol_version4.1.3

3. P(r) Analysis (GNOM)

dmax237.4
rg_real90.30
rg_real_error0.34
i0_real2.7260e+11
i0_real_error4.6010e+09
rg_reciprocal94.57
i0_reciprocal286000000000.0000
total_estimate0.9123
solution_quality EXCELLENT a EXCELLENT solution
n_peaks1
r_peak_primary111.7
skewness0.116
kurtosis-0.610
angular_range— – 0.0850 −1
current_alpha0.7136
highest_alpha19590000000.0000
n_real_points18
gnom_version4.1.3
quality_criteria AN1: 0.000; Oscil: 0.997; Stabil: 0.966; Sysdev: 1.000; Positv: 1.000; Valcen: 0.975; Smooth: 0.000

4. Crystallography & Experiment

5. Entities & Polymer Info (86)

6. Citations (1)

7. Files & Curves (10)
