9rlz

15S proteasome precursor complex

Method: ELECTRON MICROSCOPY Dmax: 147.9 Å Quality: GOOD

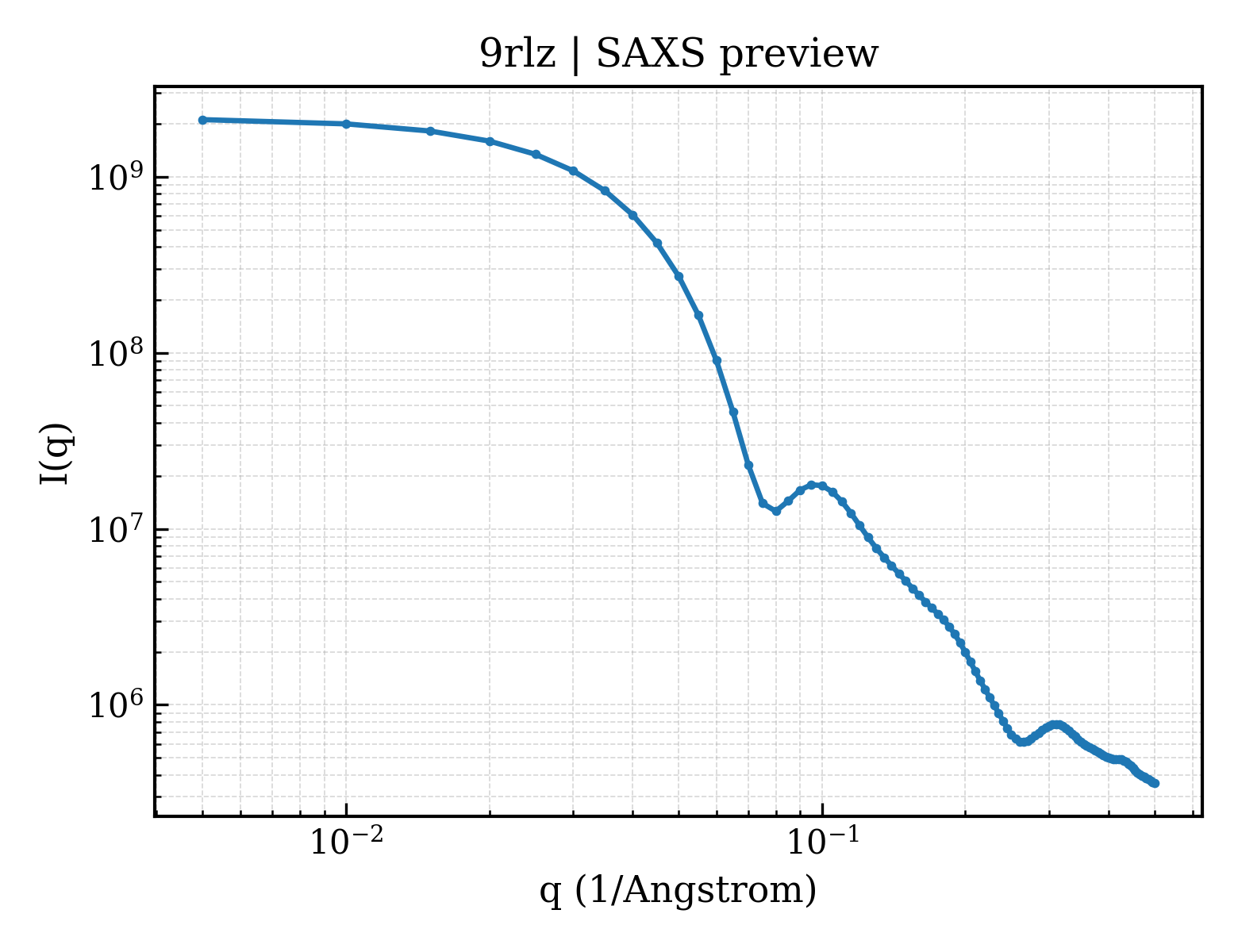

SAXS Profile

SAXS profile for 9rlz

P(r) Distribution

P(r) distribution for 9rlz

1. Structure Basics

entry_id9rlz
deposition_date2025-06-17
title15S proteasome precursor complex
keywordsproteasome biogenesis, Ump1, Pba1-2, cryo-EM, HYDROLASE; HYDROLASE
methodELECTRON MICROSCOPY

Download Data

2. SAXS Parameters (CRYSOL)

rg_guinier47.34
rg_electron46.74
i02148780000.00
molecular_weight390550.0 kDa
excluded_volume490170 ų
envelope_volume668200 ų
shell_volume111360 ų
envelope_diameter148.8
shell_rg56.47
envelope_rg46.16
shape_rg46.72
total_rg47.13
total_atoms27516
n_residues3536
n_harmonics20
q_range— – 0.5000 −1
n_points101
shell_typedirectional
solvent_density0.3340 e/ų
contrast_shell0.0300 e/ų
crysol_version4.1.3

3. P(r) Analysis (GNOM)

dmax147.9
rg_real46.95
rg_real_error0.89
i0_real2.1490e+09
i0_real_error3.6720e+07
rg_reciprocal47.33
i0_reciprocal2150000000.0000
total_estimate0.8159
solution_quality GOOD a GOOD solution
n_peaks1
r_peak_primary62.8
skewness0.077
kurtosis-0.504
angular_range— – 0.1650 −1
current_alpha0.0001
highest_alpha320300000.0000
n_real_points34
gnom_version4.1.3
quality_criteria AN1: 0.000; Oscil: 0.885; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.948; Smooth: 0.000

4. Crystallography & Experiment

5. Entities & Polymer Info (16)

6. Citations (1)

7. Files & Curves (10)
