9rm0

13S+Beta5+Beta6 proteasome precursor complex

Method: ELECTRON MICROSCOPY Dmax: 144.2 Å Quality: GOOD

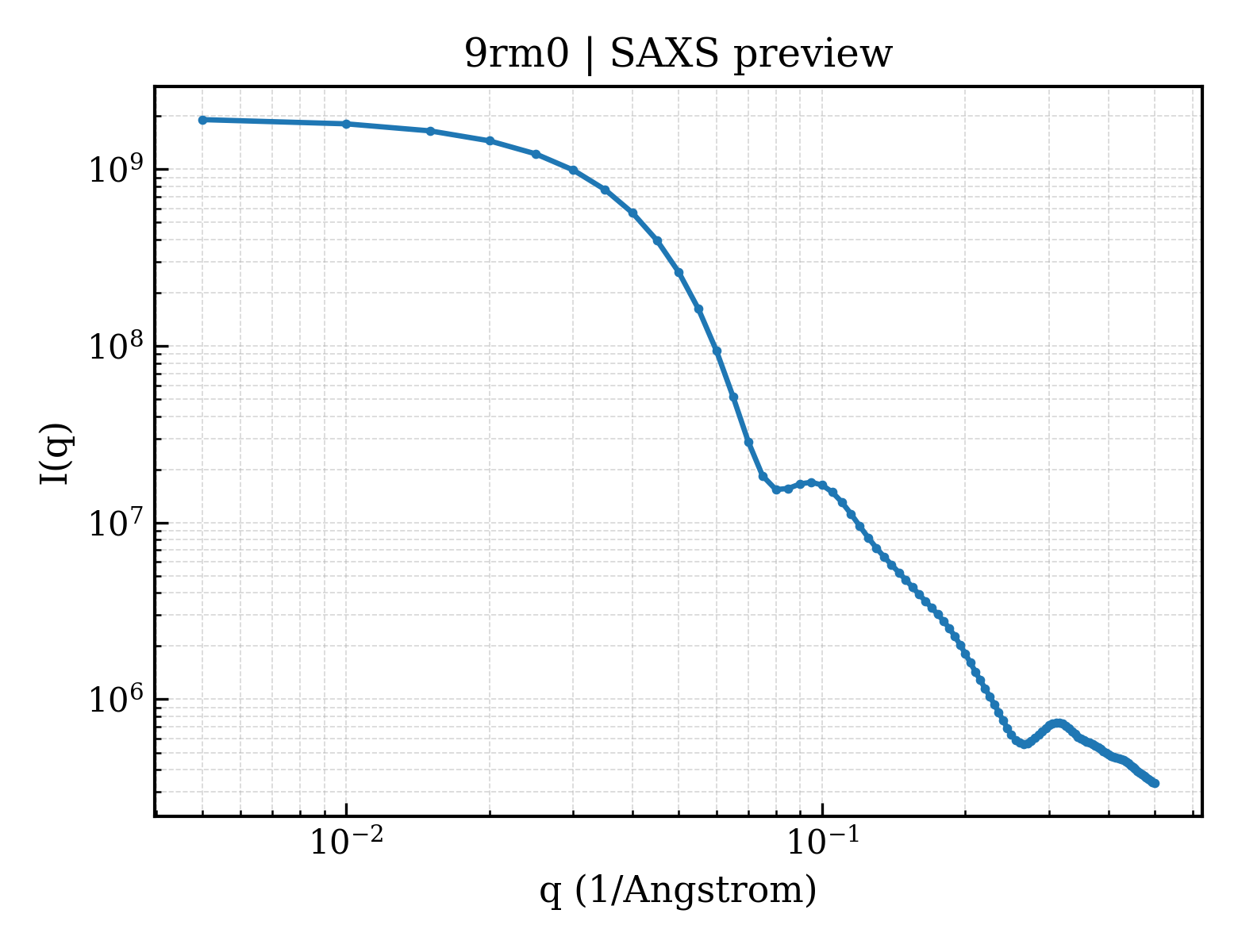

SAXS Profile

SAXS profile for 9rm0

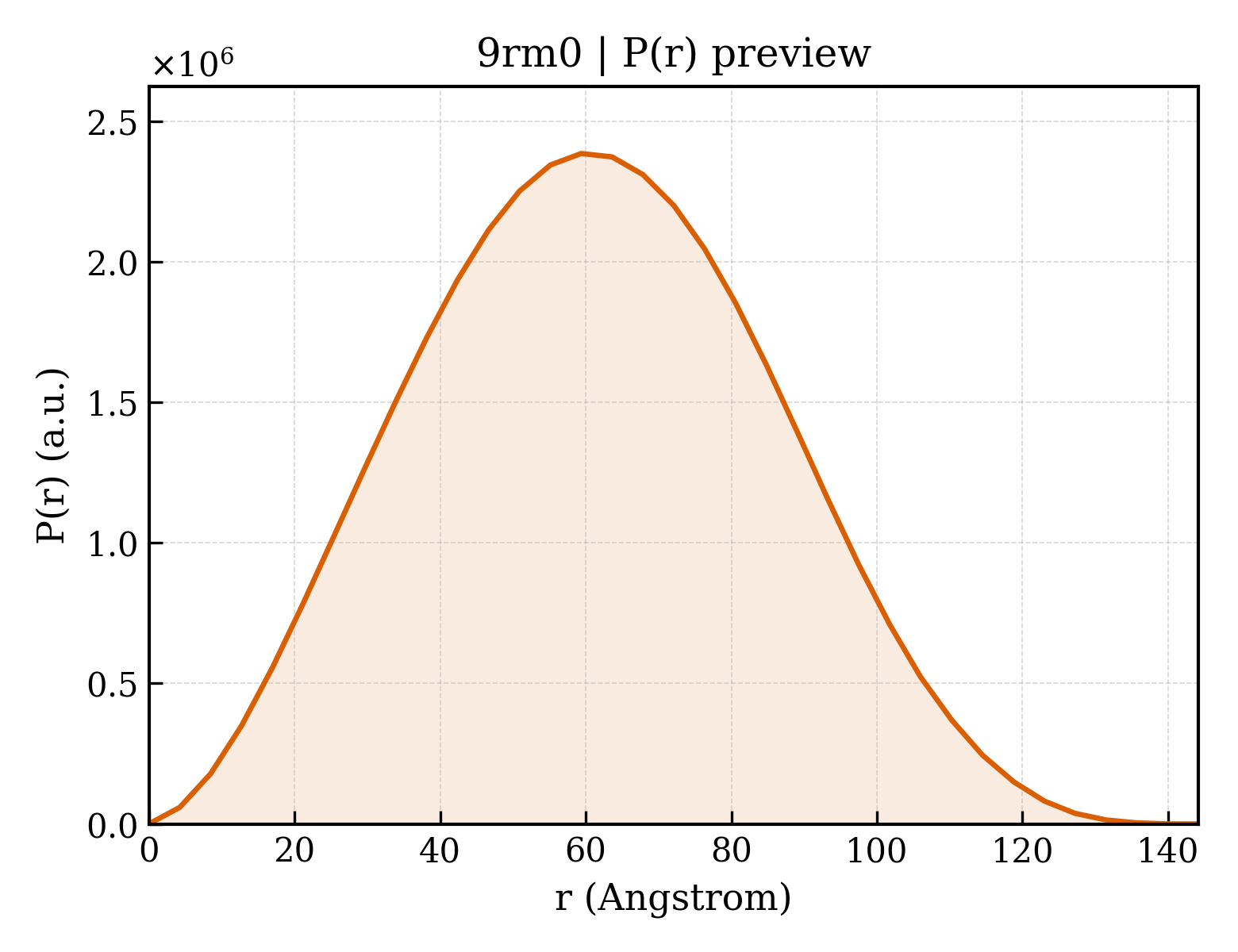

P(r) Distribution

P(r) distribution for 9rm0

1. Structure Basics

entry_id9rm0
deposition_date2025-06-17
title13S+Beta5+Beta6 proteasome precursor complex
keywordsproteasome biogenesis, Ump1, Pba1-2, cryo-EM, HYDROLASE; HYDROLASE
methodELECTRON MICROSCOPY

Download Data

2. SAXS Parameters (CRYSOL)

rg_guinier46.95
rg_electron46.33
i01946200000.00
molecular_weight370140.0 kDa
excluded_volume464120 ų
envelope_volume638150 ų
shell_volume107570 ų
envelope_diameter146.9
shell_rg55.64
envelope_rg45.89
shape_rg46.32
total_rg46.70
total_atoms26081
n_residues3356
n_harmonics20
q_range— – 0.5000 −1
n_points101
shell_typedirectional
solvent_density0.3340 e/ų
contrast_shell0.0300 e/ų
crysol_version4.1.3

3. P(r) Analysis (GNOM)

dmax144.2
rg_real46.60
rg_real_error0.68
i0_real1.9460e+09
i0_real_error3.1950e+07
rg_reciprocal46.95
i0_reciprocal1947000000.0000
total_estimate0.8860
solution_quality GOOD a GOOD solution
n_peaks1
r_peak_primary59.4
skewness0.098
kurtosis-0.504
angular_range— – 0.1700 −1
current_alpha0.0001
highest_alpha297300000.0000
n_real_points35
gnom_version4.1.3
quality_criteria AN1: 0.000; Oscil: 0.918; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.956; Smooth: 0.804

4. Crystallography & Experiment

5. Entities & Polymer Info (15)

6. Citations (1)

7. Files & Curves (10)
