9upc

Structure of human TREX-2

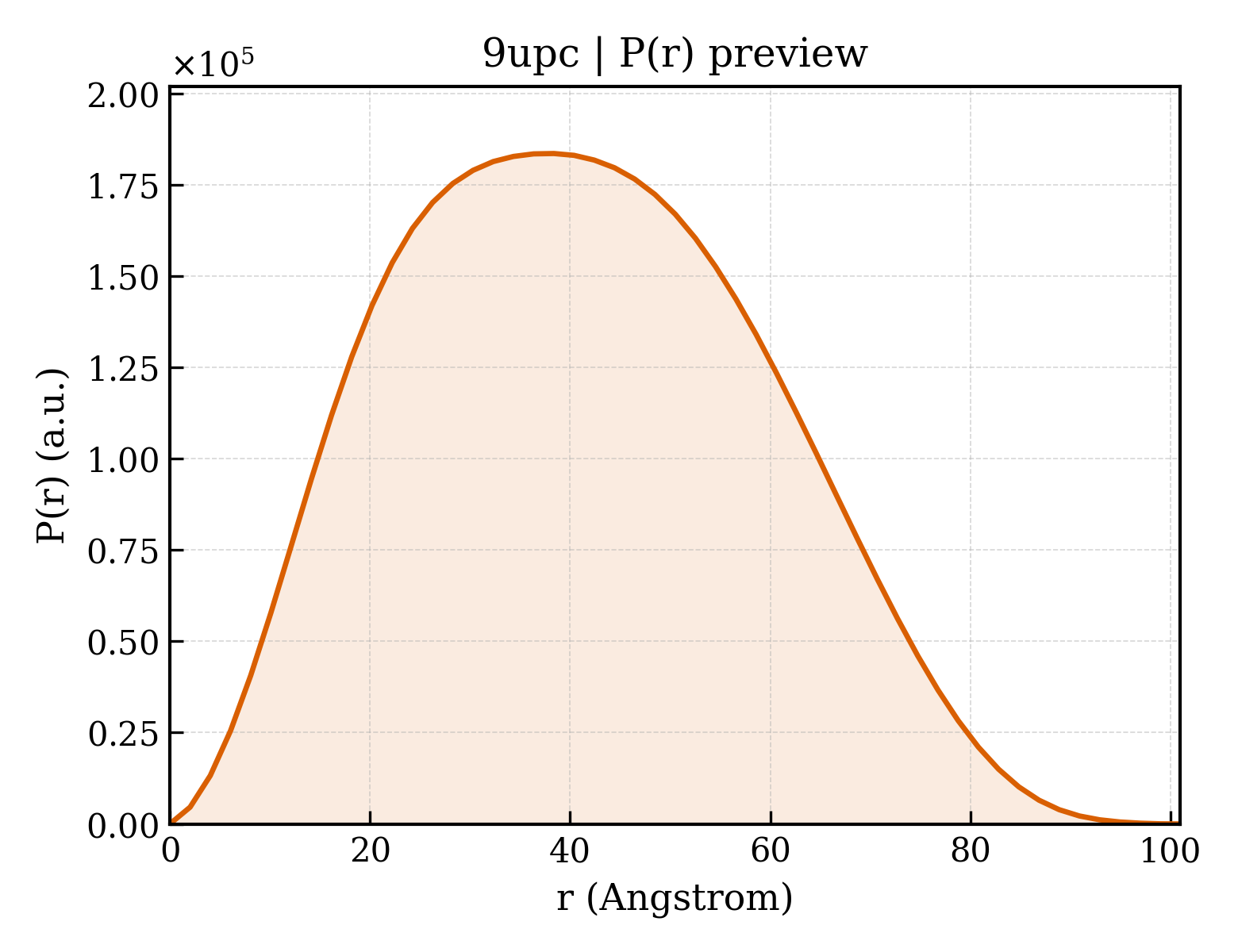

Method: ELECTRON MICROSCOPY Dmax: 101.0 Å Quality: EXCELLENT
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Germinal-center associated nuclear protein

Homo sapiens

UniProt O60318

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count Chain A； UniProt 580–1000 Not recorded PCI domain-containing protein 2 × 1 （Q5JVF3） 26S proteasome complex subunit SEM1 × 1 （P60896） ELECTRON MICROSCOPY cryo-EM buffer：pH 7.9；25 mM HEPES-KOH, pH 7.9, 150 mM NaCl, 1.5 mM MgCl2 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 3.14 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 9UPC Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
4DHX ENY2:GANP complex Deposited 2012-01-30 Different construct Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1163–1235（73 aa） Fragment：ENY2-binding region residues 1163-1235
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；11% PEG 8000, 0.2M NaOAc, 0.1M MES, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 291K
Resolution 2.10 Å R-free 0.250
4DHX ENY2:GANP complex Deposited 2012-01-30 Different construct Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1163–1235（73 aa） Fragment：ENY2-binding region residues 1163-1235
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；11% PEG 8000, 0.2M NaOAc, 0.1M MES, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 291K
Resolution 2.10 Å R-free 0.250
8R7J Cryo-EM structure of the human TREX-2 complex Deposited 2023-11-25 Different construct Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 582–1004（423 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
8R7K Cryo-EM structure of the human UAP56 - TREX-2 complex Deposited 2023-11-25 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 582–1004（423 aa）
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
9DLP Cryo-EM structure of human TREX-2 complex bound to DDX39B(UAP56) Deposited 2024-09-11 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 358–1000（643 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.79 Å
9T6N Cryo-EM structure of the human GANP-PCID2-DSS1 complex bound to UAP56 Deposited 2025-11-07 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 598–998（401 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.00 Å
9UPB Structure of the human TREX-2 bound to UAP56 Deposited 2025-04-28 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 580–1000（421 aa）
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9；25 mM HEPES-KOH, pH 7.9, 150 mM NaCl, 1.5 mM MgCl2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.41 Å

6 other PDB entries and 7 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name GANP_HUMAN
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 43–463； UniProt 580–1000

PCI domain-containing protein 2

Homo sapiens

UniProt Q5JVF3

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count Chain B； UniProt 1–399 Fragment：3XFlag-PCID2 Germinal-center associated nuclear protein × 1 （O60318） 26S proteasome complex subunit SEM1 × 1 （P60896） ELECTRON MICROSCOPY cryo-EM buffer：pH 7.9；25 mM HEPES-KOH, pH 7.9, 150 mM NaCl, 1.5 mM MgCl2 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 3.14 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 9UPC Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
3T5X PCID2:DSS1 Structure Deposited 2011-07-28 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 201–399（199 aa） Fragment：UNP residues 201-399
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；292 K；25.5 % (w/v) PEG 2K MME, 0.95 M sodium formate, and 0.1 M MES (pH 6.5), VAPOR DIFFUSION, HANGING DROP, temperature 292K
Resolution 2.12 Å R-free 0.231
8R7J Cryo-EM structure of the human TREX-2 complex Deposited 2023-11-25 Different construct Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 1–399（399 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
8R7K Cryo-EM structure of the human UAP56 - TREX-2 complex Deposited 2023-11-25 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–399（399 aa）
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
9DLP Cryo-EM structure of human TREX-2 complex bound to DDX39B(UAP56) Deposited 2024-09-11 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–399（399 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.79 Å
9DLR Cryo-EM structure of the human TREX-2.1 complex (LENG8/PCID2/DSS1) bound to the N-terminal motif of DDX39B(UAP56) Deposited 2024-09-11 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–399（399 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.08 Å
9DLV Cryo-EM structure of the human TREX-2.1 complex (LENG8/PCID2/DSS1) bound to DDX39B(UAP56) Deposited 2024-09-11 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–399（399 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.97 Å
9T6L Cryo-EM structure of the human LENG8-PCID2-DSS1 complex bound to UAP56 and RRP1B Deposited 2025-11-07 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: pentameric
Chain D 1–399（399 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 2.90 Å
9T6N Cryo-EM structure of the human GANP-PCID2-DSS1 complex bound to UAP56 Deposited 2025-11-07 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain D 1–399（399 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.00 Å
9UPB Structure of the human TREX-2 bound to UAP56 Deposited 2025-04-28 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–399（399 aa） Fragment：3XFlag-PCID2
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9；25 mM HEPES-KOH, pH 7.9, 150 mM NaCl, 1.5 mM MgCl2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.41 Å

9 other PDB entries and 9 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name PCID2_HUMAN
Isoform —
PDB entities 2
Chains and sequence ranges Author chain B； PDBConstruct 28–426； UniProt 1–399

26S proteasome complex subunit SEM1

Homo sapiens

UniProt P60896

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count Chain C； UniProt 1–70 Not recorded Germinal-center associated nuclear protein × 1 （O60318） PCI domain-containing protein 2 × 1 （Q5JVF3） ELECTRON MICROSCOPY cryo-EM buffer：pH 7.9；25 mM HEPES-KOH, pH 7.9, 150 mM NaCl, 1.5 mM MgCl2 cryo-EM vitrification conditions：Cryogen ETHANE Resolution 3.14 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 9UPC Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1IYJ STRUCTURE OF A BRCA2-DSS1 COMPLEX Deposited 2002-08-28 Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–70（70 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；277 K；Li2SO4, NH4OCOCH3, Bis-tris Propane, DTT, pH 6.8, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 3.40 Å R-free 0.295
1IYJ STRUCTURE OF A BRCA2-DSS1 COMPLEX Deposited 2002-08-28 Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 1–70（70 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；277 K；Li2SO4, NH4OCOCH3, Bis-tris Propane, DTT, pH 6.8, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 3.40 Å R-free 0.295
1MIU Structure of a BRCA2-DSS1 complex Deposited 2002-08-23 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 1–70（70 aa）
Not recorded HG MERCURY (II) ION × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；277 K；PEG 4000, Tris-HCl, CaCL2, NaCl, DTT, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 3.10 Å R-free 0.310
1MIU Structure of a BRCA2-DSS1 complex Deposited 2002-08-23 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain B 1–70（70 aa）
Not recorded HG MERCURY (II) ION × 20 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；277 K；PEG 4000, Tris-HCl, CaCL2, NaCl, DTT, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 3.10 Å R-free 0.310
1MJE STRUCTURE OF A BRCA2-DSS1-SSDNA COMPLEX Deposited 2002-08-27 Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 2 PDB declaration: trimeric
Chain B 1–70（70 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.8；277 K；Sodium Acetate, Sodium Citrate, NaCl, DTT, pH 5.8, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 3.50 Å R-free 0.278
22MM Structure of human 26S proteasome complexed with midnolin(1-111+337-468) Deposited 2026-01-16 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 46 PDB declaration: 46-meric
Chain e 1–70（70 aa）
Not recorded ZN ZINC ION × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 4 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 2 LDZ N-[(benzyloxy)carbonyl]-L-leucyl-N-[(2S)-4-methyl-1-oxopentan-2-yl]-L-leucinamide × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.42 Å
3T5X PCID2:DSS1 Structure Deposited 2011-07-28 Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 1–70（70 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；292 K；25.5 % (w/v) PEG 2K MME, 0.95 M sodium formate, and 0.1 M MES (pH 6.5), VAPOR DIFFUSION, HANGING DROP, temperature 292K
Resolution 2.12 Å R-free 0.231
5GJQ Structure of the human 26S proteasome bound to USP14-UbAl Deposited 2016-07-01 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 48 PDB declaration: 48-meric
Chain Y 1–70（70 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE；blot for 2 seconds before plunging
Resolution 4.35 Å
5GJR An atomic structure of the human 26S proteasome Deposited 2016-07-01 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 64 PDB declaration: 64-meric
Chain AB 1–70（70 aa）
Chain Y 1–70（70 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 12 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE；blot for 2 seconds before plunging
Resolution 3.50 Å
5L4K The human 26S proteasome lid Deposited 2016-05-25 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain Y 1–70（70 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.90 Å R-free 0.404
5LN3 The human 26S Proteasome at 6.8 Ang. Deposited 2016-08-03 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 32 PDB declaration: 32-meric
Chain Y 1–70（70 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.80 Å
5M32 Human 26S proteasome in complex with Oprozomib Deposited 2016-10-14 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 47 PDB declaration: 42-meric
Chain s 1–70（70 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 6.5
cryo-EM vitrification conditions Cryogen ETHANE；blot with sensor
Resolution 3.80 Å
5T0C Structural basis for dynamic regulation of the human 26S proteasome Deposited 2016-08-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 64 PDB declaration: 64-meric
Chain Ae 1–70（70 aa）
Chain Be 1–70（70 aa）
Not recorded ZN ZINC ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 8 ADP ADENOSINE-5'-DIPHOSPHATE × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
5T0G Structural basis for dynamic regulation of the human 26S proteasome Deposited 2016-08-16 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 32 PDB declaration: 32-meric
Chain e 1–70（70 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 6 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.40 Å
5T0H Structural basis for dynamic regulation of the human 26S proteasome Deposited 2016-08-16 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 32 PDB declaration: 32-meric
Chain e 1–70（70 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 6 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.80 Å
5T0I Structural basis for dynamic regulation of the human 26S proteasome Deposited 2016-08-16 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 32 PDB declaration: 32-meric
Chain e 1–70（70 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 4 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 8.00 Å
5T0J Structural basis for dynamic regulation of the human 26S proteasome Deposited 2016-08-16 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 32 PDB declaration: 32-meric
Chain e 1–70（70 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 4 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 8.00 Å
5VGZ Conformational Landscape of the p28-Bound Human Proteasome Regulatory Particle Deposited 2017-04-12 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 17 PDB declaration: heptadecameric
Chain e 1–70（70 aa）
Not recorded ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.50 Å R-free 0.447
5VHF Conformational Landscape of the p28-Bound Human Proteasome Regulatory Particle Deposited 2017-04-13 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 19 PDB declaration: nonadecameric
Chain e 1–70（70 aa）
Not recorded ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.70 Å
5VHH Conformational Landscape of the p28-Bound Human Proteasome Regulatory Particle Deposited 2017-04-13 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 19 PDB declaration: nonadecameric
Chain e 1–70（70 aa）
Not recorded ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.10 Å
5VHI Conformational Landscape of the p28-Bound Human Proteasome Regulatory Particle Deposited 2017-04-13 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 19 PDB declaration: nonadecameric
Chain e 1–70（70 aa）
Not recorded ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.80 Å
5VHS Conformational Landscape of the p28-Bound Human Proteasome Regulatory Particle Deposited 2017-04-13 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 18 PDB declaration: octadecameric
Chain e 38–70（33 aa）
Not recorded ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 8.80 Å
6MSB Cryo-EM structures and dynamics of substrate-engaged human 26S proteasome Deposited 2018-10-16 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 48 PDB declaration: 48-meric
Chain e 1–70（70 aa）
Not recorded ZN ZINC ION × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 4 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.00 Å
6MSD Cryo-EM structures and dynamics of substrate-engaged human 26S proteasome Deposited 2018-10-16 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 48 PDB declaration: 48-meric
Chain e 1–70（70 aa）
Not recorded ZN ZINC ION × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 4 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
6MSE Cryo-EM structures and dynamics of substrate-engaged human 26S proteasome Deposited 2018-10-16 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 48 PDB declaration: 48-meric
Chain e 1–70（70 aa）
Not recorded ZN ZINC ION × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 3 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
6MSG Cryo-EM structures and dynamics of substrate-engaged human 26S proteasome Deposited 2018-10-16 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 48 PDB declaration: 48-meric
Chain e 1–70（70 aa）
Not recorded ZN ZINC ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
6MSH Cryo-EM structures and dynamics of substrate-engaged human 26S proteasome Deposited 2018-10-16 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 47 PDB declaration: 47-meric
Chain e 1–70（70 aa）
Not recorded ZN ZINC ION × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 3 ADP ADENOSINE-5'-DIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.60 Å
6MSJ Cryo-EM structures and dynamics of substrate-engaged human 26S proteasome Deposited 2018-10-16 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 47 PDB declaration: 47-meric
Chain e 1–70（70 aa）
Not recorded ZN ZINC ION × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 4 MG MAGNESIUM ION × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
6MSK Cryo-EM structures and dynamics of substrate-engaged human 26S proteasome Deposited 2018-10-16 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 47 PDB declaration: 47-meric
Chain e 1–70（70 aa）
Not recorded ZN ZINC ION × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 4 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
6WJD SA-like state of human 26S Proteasome with non-cleavable M1-linked hexaubiquitin and E3 ubiquitin ligase E6AP/UBE3A Deposited 2020-04-13 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 47 PDB declaration: 47-meric
Chain e 1–70（70 aa）
Not recorded ZN ZINC ION × 1 AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 4 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；50 mM Tris, pH 7.5, 50 mM NaCl, 1.5 mM ATP-gamma-S, 5 mM MgCl2, 2 mM DTT, 10 uM zinc sulfate
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.80 Å
6WJN SD-like state of human 26S Proteasome with non-cleavable M1-linked hexaubiquitin and E3 ubiquitin ligase E6AP/UBE3A Deposited 2020-04-14 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 46 PDB declaration: 46-meric
Chain e 1–70（70 aa）
Not recorded ZN ZINC ION × 1 AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；50 mM Tris, pH 7.5, 50 mM NaCl, 1.5 mM ATP-gamma-S, 5 mM MgCl2, 2 mM DTT, 10 uM zinc sulfate
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.70 Å
7QXN Proteasome-ZFAND5 Complex Z+A state Deposited 2022-01-26 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 46 PDB declaration: 46-meric
Chain e 1–70（70 aa）
Not recorded ZN ZINC ION × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 4 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.70 Å
7QXP Proteasome-ZFAND5 Complex Z+B state Deposited 2022-01-26 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 46 PDB declaration: 46-meric
Chain e 1–70（70 aa）
Not recorded ZN ZINC ION × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 4 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.60 Å
7QXU Proteasome-ZFAND5 Complex Z+C state Deposited 2022-01-27 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 46 PDB declaration: 46-meric
Chain e 1–70（70 aa）
Not recorded ZN ZINC ION × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 4 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.30 Å
7QXW Proteasome-ZFAND5 Complex Z+D state Deposited 2022-01-27 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 47 PDB declaration: 47-meric
Chain e 1–70（70 aa）
Not recorded ZN ZINC ION × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 3 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.10 Å
7QXX Proteasome-ZFAND5 Complex Z+E state Deposited 2022-01-27 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 46 PDB declaration: 46-meric
Chain e 1–70（70 aa）
Not recorded ZN ZINC ION × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 4 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.40 Å
7QY7 Proteasome-ZFAND5 Complex Z-A state Deposited 2022-01-27 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 46 PDB declaration: 46-meric
Chain e 1–70（70 aa）
Not recorded ZN ZINC ION × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.70 Å
7QYA Proteasome-ZFAND5 Complex Z-B state Deposited 2022-01-27 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 46 PDB declaration: 46-meric
Chain e 1–70（70 aa）
Not recorded ZN ZINC ION × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.80 Å
7QYB Proteasome-ZFAND5 Complex Z-C state Deposited 2022-01-27 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 46 PDB declaration: 46-meric
Chain e 1–70（70 aa）
Not recorded ZN ZINC ION × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 4 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.10 Å
7W37 Structure of USP14-bound human 26S proteasome in state EA1_UBL Deposited 2021-11-25 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 47 PDB declaration: 47-meric
Chain e 1–70（70 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 4 MG MAGNESIUM ION × 6 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.00 Å
7W38 Structure of USP14-bound human 26S proteasome in state EA2.0_UBL Deposited 2021-11-25 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 48 PDB declaration: 48-meric
Chain e 1–70（70 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 4 MG MAGNESIUM ION × 6 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
7W39 Structure of USP14-bound human 26S proteasome in state EA2.1_UBL Deposited 2021-11-25 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 49 PDB declaration: 49-meric
Chain e 1–70（70 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 4 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
7W3A Structure of USP14-bound human 26S proteasome in substrate-engaged state ED4_USP14 Deposited 2021-11-25 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 49 PDB declaration: 49-meric
Chain e 1–70（70 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 4 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
7W3B Structure of USP14-bound human 26S proteasome in substrate-engaged state ED5_USP14 Deposited 2021-11-25 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 49 PDB declaration: 49-meric
Chain e 1–70（70 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 ADP ADENOSINE-5'-DIPHOSPHATE × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.60 Å
7W3C Structure of USP14-bound human 26S proteasome in substrate-engaged state ED0_USP14 Deposited 2021-11-25 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 49 PDB declaration: 49-meric
Chain e 1–70（70 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
7W3F Structure of USP14-bound human 26S proteasome in substrate-engaged state ED1_USP14 Deposited 2021-11-25 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 49 PDB declaration: 49-meric
Chain e 1–70（70 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
7W3G Structure of USP14-bound human 26S proteasome in substrate-engaged state ED2.0_USP14 Deposited 2021-11-25 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 49 PDB declaration: 49-meric
Chain e 1–70（70 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
7W3H Structure of USP14-bound human 26S proteasome in substrate-engaged state ED2.1_USP14 Deposited 2021-11-25 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 49 PDB declaration: 49-meric
Chain e 1–70（70 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 4 MG MAGNESIUM ION × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
7W3I Structure of USP14-bound human 26S proteasome in substrate-inhibited state SB_USP14 Deposited 2021-11-25 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 48 PDB declaration: 48-meric
Chain e 1–70（70 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
7W3J Structure of USP14-bound human 26S proteasome in substrate-inhibited state SC_USP14 Deposited 2021-11-25 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 48 PDB declaration: 48-meric
Chain e 1–70（70 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.50 Å
7W3K Structure of USP14-bound human 26S proteasome in substrate-inhibited state SD4_USP14 Deposited 2021-11-25 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 48 PDB declaration: 48-meric
Chain e 1–70（70 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.60 Å
7W3M Structure of USP14-bound human 26S proteasome in substrate-inhibited state SD5_USP14 Deposited 2021-11-25 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 48 PDB declaration: 48-meric
Chain e 1–70（70 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 ADP ADENOSINE-5'-DIPHOSPHATE × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
8CVT Human 19S-20S proteasome, state SD2 Deposited 2022-05-18 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 46 PDB declaration: 46-meric
Chain e 1–70（70 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 4 LDZ N-[(benzyloxy)carbonyl]-L-leucyl-N-[(2S)-4-methyl-1-oxopentan-2-yl]-L-leucinamide × 6 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.00 Å
8JRI Cryo-EM structure of human 26S proteasomal RP subcomplex (Ea state) without any bound substrate. Deposited 2023-06-16 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 25 PDB declaration: 25-meric
Chain e 1–70（70 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 4 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE；incubation time= 3 s blotting time= 2.5 s
Resolution 3.40 Å
8JRT Cryo-EM structure of human 26S proteasomal RP subcomplex (Ea state) bound to K11/K48-branched ubiquitin (Ub) chain composed of three Ub. Deposited 2023-06-17 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 28 PDB declaration: 28-meric
Chain e 1–70（70 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 4 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE；incubation time= 3 s blotting time= 2.5 s
Resolution 3.60 Å
8JTI Cryo-EM structure of human 26S RP (Eb state) bound to K11/K48-branched ubiquitin (Ub) chain composed of four Ub. Deposited 2023-06-21 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 29 PDB declaration: 29-meric
Chain e 1–70（70 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 4 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE；incubation time= 3 s blotting time= 2.5 s
Resolution 3.80 Å
8K0G Cryo-EM structure of human 26S RP (Ed state) bound to K11/K48-branched ubiquitin (Ub) chain composed of four Ub. Deposited 2023-07-09 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 30 PDB declaration: 30-meric
Chain e 1–70（70 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE；incubation time= 3 s blotting time= 2.5 s
Resolution 3.80 Å
8R7J Cryo-EM structure of the human TREX-2 complex Deposited 2023-11-25 Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 1–70（70 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
8R7K Cryo-EM structure of the human UAP56 - TREX-2 complex Deposited 2023-11-25 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 1–70（70 aa）
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
8USB Non-substrate-engaged human 26S proteasome with Nub1/FAT10 bound to Rpn1 Deposited 2023-10-27 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain e 1–70（70 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 6 ATP ADENOSINE-5'-TRIPHOSPHATE × 5 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；30 mM HEPES pH7.4, 25 mM NaCl, 25 mM KCl, 3% (v/v) glycerol, 5 mM MgCl2 2 mM ATP and 0.5 mM TCEP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.73 Å
8USC Nub1/Fat10-processing human 26S proteasome Deposited 2023-10-27 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 28 PDB declaration: 28-meric
Chain e 1–70（70 aa）
Not recorded MG MAGNESIUM ION × 5 ATP ADENOSINE-5'-TRIPHOSPHATE × 3 ADP ADENOSINE-5'-DIPHOSPHATE × 3 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；30 mM HEPES pH7.4, 25 mM NaCl, 25 mM KCl, 3% (v/v) glycerol, 5 mM MgCl2 2 mM ATP and 0.5 mM TCEP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
8YJB Cryo-EM structure of the human DSS1-INTAC complex Deposited 2024-03-01 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain 0 1–70（70 aa）
Not recorded ZN ZINC ION × 2 MN MANGANESE (II) ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.10 Å
9BUI M1A Midnolin-Proteasome (with Ubl) Deposited 2024-05-17 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 41 PDB declaration: 41-meric
Chain e 1–70（70 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 4 MG MAGNESIUM ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.90 Å
9BV1 M2A Midnolin-Proteasome (translocating) Deposited 2024-05-19 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 40 PDB declaration: 40-meric
Chain e 1–70（70 aa）
Not recorded ZN ZINC ION × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 4 MG MAGNESIUM ION × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
9BV2 M2B Midnolin-Proteasome (translocating) Deposited 2024-05-19 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 40 PDB declaration: 40-meric
Chain e 1–70（70 aa）
Not recorded ZN ZINC ION × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
9BV3 M1B Midnolin-Proteasome Deposited 2024-05-19 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 40 PDB declaration: 40-meric
Chain e 1–70（70 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 4 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
9BW4 TXNL1-bound proteasome Deposited 2024-05-20 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 40 PDB declaration: 40-meric
Chain e 1–70（70 aa）
Not recorded ZN ZINC ION × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
9DLP Cryo-EM structure of human TREX-2 complex bound to DDX39B(UAP56) Deposited 2024-09-11 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 1–70（70 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.79 Å
9DLR Cryo-EM structure of the human TREX-2.1 complex (LENG8/PCID2/DSS1) bound to the N-terminal motif of DDX39B(UAP56) Deposited 2024-09-11 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 1–70（70 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.08 Å
9DLV Cryo-EM structure of the human TREX-2.1 complex (LENG8/PCID2/DSS1) bound to DDX39B(UAP56) Deposited 2024-09-11 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 1–70（70 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.97 Å
9E8G Nub1/Fat10-processing human 26S proteasome bound to Txnl1 with Rpt5 at top of spiral staircase Deposited 2024-11-05 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 35 PDB declaration: 35-meric
Chain e 1–70（70 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 3 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；30 mM HEPES pH7.4, 25 mM NaCl, 25 mM KCl, 3% (v/v) glycerol, 5 mM MgCl2 2 mM ATP and 0.5 mM TCEP.
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.01 Å
9E8H Human proteasome in resting state conformation bound to TXNL1 in backward conformation Deposited 2024-11-05 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain e 1–65（65 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 5 MG MAGNESIUM ION × 6 ADP ADENOSINE-5'-DIPHOSPHATE × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；30 mM HEPES pH7.4, 25 mM NaCl, 25 mM KCl, 3% (v/v) glycerol, 5 mM MgCl2 2 mM ATP and 0.5 mM TCEP.
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
9E8I Human proteasome in resting state conformation bound to TXNL1 in Forward conformation Deposited 2024-11-05 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 27 PDB declaration: 27-meric
Chain e 1–70（70 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 5 MG MAGNESIUM ION × 6 ADP ADENOSINE-5'-DIPHOSPHATE × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；30 mM HEPES pH7.4, 25 mM NaCl, 25 mM KCl, 3% (v/v) glycerol, 5 mM MgCl2 2 mM ATP and 0.5 mM TCEP.
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.87 Å
9E8J Nub1/Fat10-processing human 26S proteasome bound to Txnl1 with Rpt1 at top of spiral staircase Deposited 2024-11-05 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 28 PDB declaration: 28-meric
Chain e 1–70（70 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 4 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；30 mM HEPES pH7.4, 25 mM NaCl, 25 mM KCl, 3% (v/v) glycerol, 5 mM MgCl2 2 mM ATP and 0.5 mM TCEP.
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.47 Å
9E8L Nub1/Fat10-processing human 26S proteasome bound to Txnl1 with Rpt4 at top of spiral staircase Deposited 2024-11-05 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 28 PDB declaration: 28-meric
Chain e 1–70（70 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 4 MG MAGNESIUM ION × 3 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；30 mM HEPES pH7.4, 25 mM NaCl, 25 mM KCl, 3% (v/v) glycerol, 5 mM MgCl2 2 mM ATP and 0.5 mM TCEP.
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.59 Å
9E8O Nub1/Fat10-processing human 26S proteasome bound to Txnl1 with Rpt2 at top of spiral staircase and partially unfolded Eos Deposited 2024-11-05 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 34 PDB declaration: 34-meric
Chain e 1–70（70 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 3 ADP ADENOSINE-5'-DIPHOSPHATE × 4 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；30 mM HEPES pH7.4, 25 mM NaCl, 25 mM KCl, 3% (v/v) glycerol, 5 mM MgCl2 2 mM ATP and 0.5 mM TCEP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
9E8Q Nub1/Fat10-processing human 26S proteasome with Rpt2 at top of spiral staircase Deposited 2024-11-05 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 33 PDB declaration: 33-meric
Chain e 1–70（70 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 4 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 3 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4；30 mM HEPES pH7.4, 25 mM NaCl, 25 mM KCl, 3% (v/v) glycerol, 5 mM MgCl2 2 mM ATP and 0.5 mM TCEP.
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.16 Å
9HEU Co-chaperone Bag1-bound human 26S proteasome in SBAG1 state Deposited 2024-11-14 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 47 PDB declaration: 47-meric
Chain e 1–70（70 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.60 Å
9K4J Structure of substrate-engaged human 26S proteasome RP-CP subcomplex in state EA1.0 Deposited 2024-10-21 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 50 PDB declaration: 50-meric
Chain e 1–70（70 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 4 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
9K4K Structure of substrate-engaged human 26S proteasome RP-CP subcomplex in state EA1.1 Deposited 2024-10-21 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 51 PDB declaration: 51-meric
Chain e 1–70（70 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 4 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
9K4L Structure of substrate-engaged 26S proteasome RP-CP subcomplex in state EA1.2 Deposited 2024-10-21 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 48 PDB declaration: 48-meric
Chain e 1–70（70 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 4 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 7.50 Å
9K4M Structure of substrate-engaged human 26S proteasome RP-CP subcomplex in state EA2.1 Deposited 2024-10-21 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 48 PDB declaration: 48-meric
Chain e 1–70（70 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 4 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
9K4O Structure of substrate-engaged human 26S proteasome RP-CP subcomplex in state EA2.2 Deposited 2024-10-21 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 50 PDB declaration: 50-meric
Chain e 1–70（70 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 4 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.00 Å
9K4P Structure of substrate-engaged human 26S proteasome RP-CP subcomplex in state EA2.3 Deposited 2024-10-21 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 49 PDB declaration: 49-meric
Chain e 1–70（70 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 4 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.80 Å
9K4R Structure of substrate-engaged human 26S proteasome RP-CP subcomplex in state EB.1 Deposited 2024-10-21 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 48 PDB declaration: 48-meric
Chain e 1–70（70 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 3 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
9K4S Structure of substrate-engaged 26S proteasome RP-CP subcomplex in state EB.2 Deposited 2024-10-21 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 50 PDB declaration: 50-meric
Chain e 1–70（70 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 3 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.70 Å
9K4T Structure of substrate-engaged human 26S proteasome RP-CP subcomplex in state EB.3 Deposited 2024-10-21 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 49 PDB declaration: 49-meric
Chain e 1–70（70 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 3 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.10 Å
9K4U Structure of substrate-engaged human 26S proteasome RP-CP subcomplex in state EC1 Deposited 2024-10-21 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 48 PDB declaration: 48-meric
Chain e 1–70（70 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 3 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
9K4V Structure of substrate-engaged human 26S proteasome RP-CP subcomplex in state EC2 Deposited 2024-10-21 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 47 PDB declaration: 47-meric
Chain e 1–70（70 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 3 ADP ADENOSINE-5'-DIPHOSPHATE × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
9K4W Structure of substrate-engaged human 26S proteasome RP-CP subcomplex in state ED0.1 Deposited 2024-10-21 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 47 PDB declaration: 47-meric
Chain e 1–70（70 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 4 MG MAGNESIUM ION × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.90 Å
9K4X Structure of substrate-engaged human 26S proteasome RP-CP subcomplex in state ED0.2 Deposited 2024-10-21 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 47 PDB declaration: 47-meric
Chain e 1–70（70 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 4 MG MAGNESIUM ION × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
9K4Y Structure of substrate-engaged human 26S proteasome RP-CP subcomplex in state ED0.3 Deposited 2024-10-21 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 47 PDB declaration: 47-meric
Chain e 1–70（70 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 4 MG MAGNESIUM ION × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
9K4Z Structure of substrate-engaged human 26S proteasome RP-CP subcomplex in state ED1.1 Deposited 2024-10-21 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 47 PDB declaration: 47-meric
Chain e 1–70（70 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 4 MG MAGNESIUM ION × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
9K50 Structure of substrate-engaged human 26S proteasome RP-CP subcomplex in state ED1.2 Deposited 2024-10-21 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 47 PDB declaration: 47-meric
Chain e 1–70（70 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 4 MG MAGNESIUM ION × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
9K51 Structure of substrate-engaged human 26S proteasome RP-CP subcomplex in state ED1.3 Deposited 2024-10-21 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 47 PDB declaration: 47-meric
Chain e 1–70（70 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 4 MG MAGNESIUM ION × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
9K53 Structure of substrate-engaged human 26S proteasome RP-CP subcomplex in state ED2.1 Deposited 2024-10-21 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 49 PDB declaration: 49-meric
Chain e 1–70（70 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 4 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.50 Å
9K54 Structure of substrate-engaged human 26S proteasome RP-CP subcomplex in state ED2.2 Deposited 2024-10-21 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 51 PDB declaration: 51-meric
Chain e 1–70（70 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 4 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.70 Å
9K55 Structure of substrate-engaged human 26S proteasome RP-CP subcomplex in state ED2.3 Deposited 2024-10-21 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 50 PDB declaration: 50-meric
Chain e 1–70（70 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 4 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 7.00 Å
9K56 Structure of substrate-engaged single-cap human proteasome in state EA1 Deposited 2024-10-21 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 47 PDB declaration: 47-meric
Chain e 1–70（70 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 4 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
9K57 Structure of substrate-engaged single-cap human proteasome in state EA2 Deposited 2024-10-21 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 48 PDB declaration: 48-meric
Chain e 1–70（70 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 4 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.10 Å
9K58 Structure of substrate-engaged single-cap human proteasome in state EB Deposited 2024-10-21 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 48 PDB declaration: 48-meric
Chain e 1–70（70 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 3 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.50 Å
9K59 Structure of substrate-engaged single-cap human proteasome in state EC1 Deposited 2024-10-21 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 48 PDB declaration: 48-meric
Chain e 1–70（70 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 3 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.30 Å
9K5A Structure of substrate-engaged single-cap human proteasome in state EC2 Deposited 2024-10-21 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 47 PDB declaration: 47-meric
Chain e 1–70（70 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 3 ADP ADENOSINE-5'-DIPHOSPHATE × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.10 Å
9K5B Structure of substrate-engaged single-cap human proteasome in state ED0 Deposited 2024-10-21 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 47 PDB declaration: 47-meric
Chain e 1–70（70 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 4 MG MAGNESIUM ION × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
9K5C Structure of substrate-engaged single-cap human proteasome in state ED1 Deposited 2024-10-21 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 47 PDB declaration: 47-meric
Chain e 1–70（70 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 4 MG MAGNESIUM ION × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
9K5D Structure of substrate-engaged single-cap human proteasome in state ED2 Deposited 2024-10-21 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 47 PDB declaration: 47-meric
Chain e 1–70（70 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 4 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.70 Å
9K5E Structure of substrate-engaged double-cap human proteasome in state EA1-EA1 Deposited 2024-10-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 68 PDB declaration: 68-meric
Chain Ae 1–70（70 aa）
Chain Be 1–70（70 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 8 MG MAGNESIUM ION × 10 ADP ADENOSINE-5'-DIPHOSPHATE × 4 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
9M2W The cryo-EM structure of 26S proteasome-Midnolin complex in the MD state Deposited 2025-02-28 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 48 PDB declaration: 48-meric
Chain e 1–70（70 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.31 Å
9MBP Substrate-engaged human 26S proteasome bound to midnolin with RPT1 at top of spiral staircase Deposited 2025-03-17 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 48 PDB declaration: 48-meric
Chain e 1–70（70 aa）
Not recorded ZN ZINC ION × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 4 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 2 LDZ N-[(benzyloxy)carbonyl]-L-leucyl-N-[(2S)-4-methyl-1-oxopentan-2-yl]-L-leucinamide × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.75 Å
9MBQ Substrate-engaged human 26S proteasome bound to midnolin with RPT5 at top of spiral staircase Deposited 2025-03-17 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 48 PDB declaration: 48-meric
Chain e 1–70（70 aa）
Not recorded ZN ZINC ION × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 4 MG MAGNESIUM ION × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 2 LDZ N-[(benzyloxy)carbonyl]-L-leucyl-N-[(2S)-4-methyl-1-oxopentan-2-yl]-L-leucinamide × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.08 Å
9NKF Structure of human substrate-free 26S proteasome in the presence of ATPgS and MG-132,SA-like state (composite map) Deposited 2025-02-28 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 46 PDB declaration: 46-meric
Chain e 1–70（70 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 4 MG MAGNESIUM ION × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 2 LDZ N-[(benzyloxy)carbonyl]-L-leucyl-N-[(2S)-4-methyl-1-oxopentan-2-yl]-L-leucinamide × 6 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6；50 mM Tris, pH 7.5, 150 mM NaCl, 20 mM KCl,5 mM MgCl2, 1 mM TECP,
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
9NKG Structure of substrate engaged MIDN-bound human 26S proteasome, EB-MIDN (Composite map) Deposited 2025-02-28 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 48 PDB declaration: 48-meric
Chain e 1–70（70 aa）
Not recorded LDZ N-[(benzyloxy)carbonyl]-L-leucyl-N-[(2S)-4-methyl-1-oxopentan-2-yl]-L-leucinamide × 6 ATP ADENOSINE-5'-TRIPHOSPHATE × 4 MG MAGNESIUM ION × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6；50 mM Tris, pH 7.5, 150 mM NaCl, 20 mM KCl,5 mM MgCl2, 1 mM TECP,
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.80 Å
9NKI Structure of substrate engaged MIDN-bound human 26S proteasome, EB MIDN_UBL state (Composite map) Deposited 2025-02-28 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 48 PDB declaration: 48-meric
Chain e 1–70（70 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 4 MG MAGNESIUM ION × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6；50 mM Tris, pH 7.5, 150 mM NaCl, 20 mM KCl,5 mM MgCl2, 1 mM TECP,
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.94 Å
9NKJ Structure of substrates-engaged MIDN-bound human 26S proteasome,ED-MIDN state (Composite map) Deposited 2025-02-28 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 47 PDB declaration: 47-meric
Chain e 1–70（70 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 4 MG MAGNESIUM ION × 3 ADP ADENOSINE-5'-DIPHOSPHATE × 1 ZN ZINC ION × 1 LDZ N-[(benzyloxy)carbonyl]-L-leucyl-N-[(2S)-4-methyl-1-oxopentan-2-yl]-L-leucinamide × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6；50 mM Tris pH 7.5, 150 mM NaCl, 20 mM KCl, 5 mM MgCl2, and 1 mM TECP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.84 Å
9SZT Co-chaperone Bag1-bound human 26S proteasome in SBAG1.2 state Deposited 2025-10-15 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 47 PDB declaration: 47-meric
Chain e 1–70（70 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
9SZV Co-chaperone Bag1-bound human 26S proteasome in SBAG1.3 state Deposited 2025-10-15 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 47 PDB declaration: 47-meric
Chain e 1–70（70 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 5 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.60 Å
9T6L Cryo-EM structure of the human LENG8-PCID2-DSS1 complex bound to UAP56 and RRP1B Deposited 2025-11-07 Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: pentameric
Chain E 1–70（70 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 2.90 Å
9T6N Cryo-EM structure of the human GANP-PCID2-DSS1 complex bound to UAP56 Deposited 2025-11-07 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain E 1–70（70 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.00 Å
9U3L Substrate-engaged human 26S proteasome bound to midnolin with RPT2 at top of spiral staircase Deposited 2025-03-18 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 47 PDB declaration: 47-meric
Chain e 1–70（70 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 3 ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 3 LDZ N-[(benzyloxy)carbonyl]-L-leucyl-N-[(2S)-4-methyl-1-oxopentan-2-yl]-L-leucinamide × 6 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.91 Å
9U4M Focused refinement of 19S in the substrate-engaged human 26S proteasome bound to midnolin with RPT6 at top of spiral staircase Deposited 2025-03-19 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 18 PDB declaration: 18-meric
Chain e 1–70（70 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 3 ZN ZINC ION × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.14 Å
9UF8 The cryo-EM structure of 26S proteasome-Midnolin complex in the MA state Deposited 2025-04-10 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 47 PDB declaration: 47-meric
Chain e 1–70（70 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.32 Å
9UG9 The cryo-EM structure of 26S proteasome-Midnolin complex MB state Deposited 2025-04-11 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 48 PDB declaration: 48-meric
Chain e 1–70（70 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 3 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
9UPB Structure of the human TREX-2 bound to UAP56 Deposited 2025-04-28 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 1–70（70 aa）
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9；25 mM HEPES-KOH, pH 7.9, 150 mM NaCl, 1.5 mM MgCl2
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.41 Å
9VD9 Cryo-EM structure of the human DSS1-INTAC-PEC complex Deposited 2025-06-07 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 35 PDB declaration: 38-meric
Chain 0 1–70（70 aa）
Not recorded ZN ZINC ION × 10 MN MANGANESE (II) ION × 2 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.60 Å
9W39 Structure of human 26S proteasome complexed with midnolin, 19S proteasome with Ubl bound Deposited 2025-07-29 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 19 PDB declaration: 19-meric
Chain e 1–70（70 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 4 ZN ZINC ION × 1 MG MAGNESIUM ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.65 Å
9WBG Structure of human 26S proteasome complexed with midnolin, 19S proteasome with Ubl and Catch domain resolved Deposited 2025-08-14 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 20 PDB declaration: 20-meric
Chain e 1–70（70 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 4 ZN ZINC ION × 1 MG MAGNESIUM ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.23 Å

124 other PDB entries and 126 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name SEM1_HUMAN
Isoform —
PDB entities 3
Chains and sequence ranges Author chain C； PDBConstruct 1–70； UniProt 1–70

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

SAXS profile for 9upc

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 9upc
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id9upc
Deposition date deposition_date2025-04-28
Structure title titleStructure of human TREX-2
Keywords keywordsmRNA nuclear export, TREX-2, UAP56, gene regulation; GENE REGULATION
Experimental Method methodELECTRON MICROSCOPY
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier31.78 Å
Radius of gyration Rg (electron density) rg_electron30.81 Å
Forward intensity I(0) i0119730000.00
Molecular weight molecular_weight87434.0 kDa
Excluded volume excluded_volume109580 ų
Envelope volume envelope_volume135120 ų
Hydration-shell volume shell_volume36730 ų
Envelope diameter envelope_diameter100.8 Å
Shell Rg shell_rg37.66 Å
Envelope Rg envelope_rg30.78 Å
Shape Rg shape_rg30.81 Å
Total Rg total_rg31.39 Å
Total atoms total_atoms6143
Residues n_residues759
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax101.0 Å
Rg (real space) rg_real31.71 Å
Rg uncertainty (real space) rg_real_error0.70 Å
I(0) (real space) i0_real1.1970e+08
I(0) uncertainty (real space) i0_real_error2.0050e+06
Rg (reciprocal space) rg_reciprocal31.74 Å
I(0) (reciprocal space) i0_reciprocal119700000.0000
Solution quality estimate total_estimate0.9074
Solution quality rating solution_quality EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks1
Primary peak position r_peak_primary38.4 Å
Skewness Skewness skewness0.188
Kurtosis Kurtosis kurtosis-0.655
Angular range angular_range— – 0.2500 Å−1
Current regularization parameter α current_alpha0.0000
Highest regularization parameter α highest_alpha29130000.0000
Real-space data points n_real_points51
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.951; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.995; Smooth: 0.946
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

▶

8. Citations (1)

▶

9. Files and Curves (10)
