9y0k

Structure of Plasmodium falciparum 20S proteasome with bound J80

Method: ELECTRON MICROSCOPY D_max: 189.0 Å Quality: GOOD

SAXS Profile

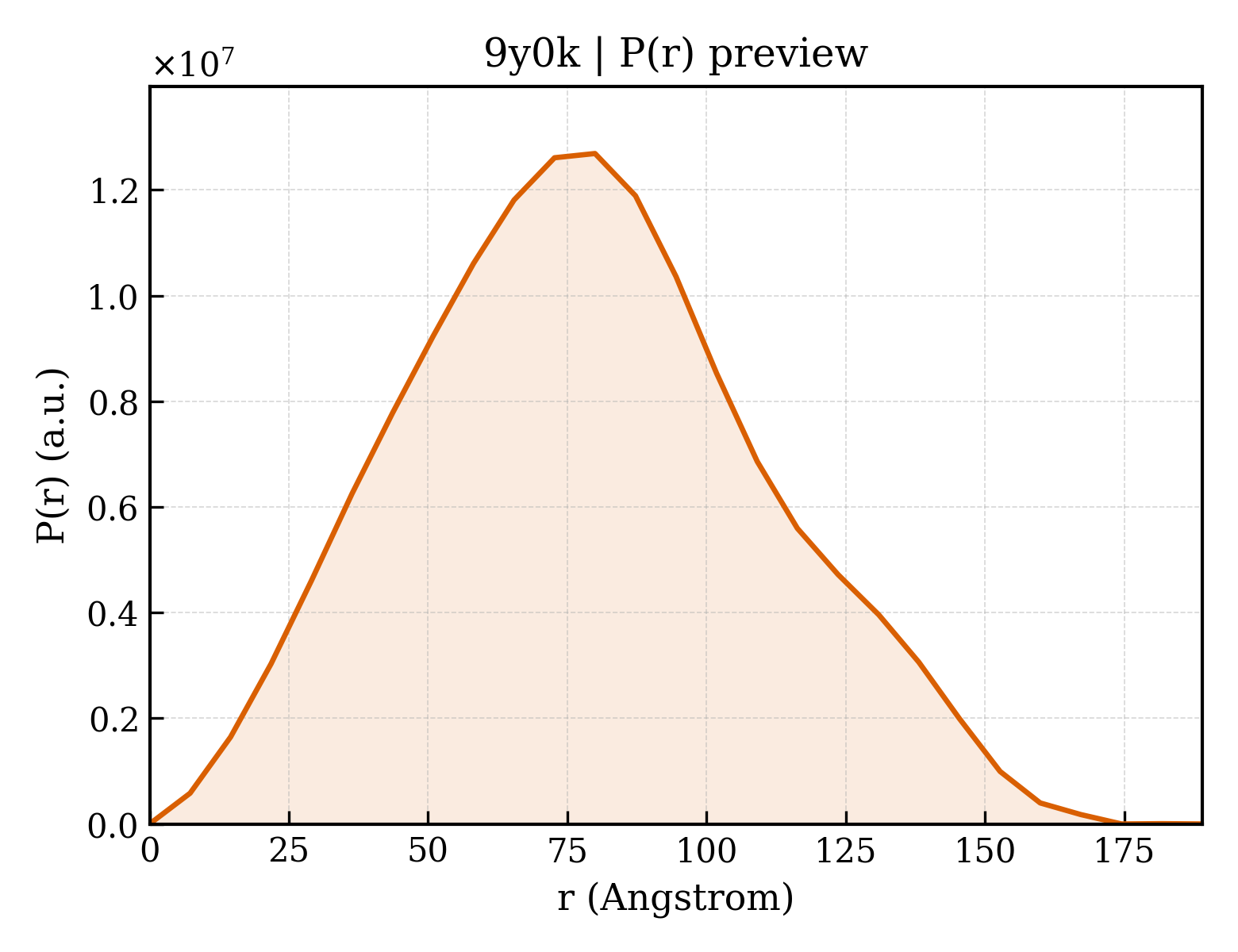

P(r) Distribution

▼

1. Structure Basics

entry_id	9y0k
deposition_date	2025-08-28
title	Structure of Plasmodium falciparum 20S proteasome with bound J80
keywords	Proteasome, 20S proteasome, Plasmodium falciparum, proteasome inhibitor, HYDROLASE-INHIBITOR complex; HYDROLASE/INHIBITOR
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	60.03 Å
rg_electron	59.58 Å
i0	12736100000.00
molecular_weight	636200.0 kDa
excluded_volume	618100 Å³
envelope_volume	1242700 Å³
shell_volume	167350 Å³
envelope_diameter	193.4 Å
shell_rg	67.59 Å
envelope_rg	57.41 Å
shape_rg	59.58 Å
total_rg	59.70 Å
total_atoms	48226
n_residues	6248
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	189.0 Å
rg_real	59.73 Å
rg_real_error	1.74 Å
i0_real	1.2740e+10
i0_real_error	2.7330e+08
rg_reciprocal	60.26 Å
i0_reciprocal	12750000000.0000
total_estimate	0.8099
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	80.0 Å
skewness	0.192
kurtosis	-0.436
angular_range	— – 0.1300 Å⁻¹
current_alpha	0.0000
highest_alpha	886000000.0000
n_real_points	27
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.855; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.961; Smooth: 0.000

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (15)

Entity 1 polymer

description	Proteasome subunit alpha type-6
formula_weight	29531.7 kDa
ec_number	3.4.25.1
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	A,O
atom_count	48226

MVRPSQSMYDRHLTIFSPDGNLYQIEYAIKAVKNTNITSVGVKGENCAVIISQKKMATQYISQDKLLDYNNITNIYNITDEIGCSMVGMPGDCLSMVYKARSEASEFLYSNGYNVNAETLCRNICDKIQVYTQHAYMRLHACSGMIIGIDENNKPELFKFDPSGFCAGYRACVIGNKEQESISVLERLLEKRKKKIQQETIDEDIRNTTILAIEALQTILAFDLKASEIEVAIVSTKNRNFTQISEKEIDNYLTYIAERD

Source

organism	Plasmodium falciparum Dd2
ncbi_taxonomy_id	57267
host_organism	Spodoptera frugiperda

Entity 2 polymer

description	Proteasome subunit alpha type-2
formula_weight	26556.4 kDa
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	B,P

MADGEYSFSLTTFSPTGKLVQIEYALNRVSSSSPALGIRAKNGVIIATEKKSPNELIEENSIFKIQQISEHIGIVYAGMPGDFRVLLKRARKEAIRYSLQYGSEILVKELVKIIASIVQEFTQTGGVRPFGLSLLICGVDVYGYHLYQIDPSGCYFNWMATCVGKDYQNNMSFLEKRYNKDIEIEDAIHTAILTLKESYEGVLNEKNIEIGVAYDNKPFKILTQNEIKDYLIEIE

Source

organism	Plasmodium falciparum Dd2
ncbi_taxonomy_id	57267
host_organism	Spodoptera frugiperda

Entity 3 polymer

description	Proteasome subunit alpha type-3
formula_weight	27977.7 kDa
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	C,Q

MARRYDSRTTTFSPEGRLYQVEYALEAINNASITIGLITKDGVILGADKVFISKLIDKANNYEKIYKIDKHIFCGVAGLNADANILINQSRLYAQRYLYNYNEVQPVSQLVVQICDIKQSYTQYGGLRPYGVSFLIGGYDTKDGYQLYHTDPSGNYSGWFATAIGTNNLTASSVLKQEWKNDMTLEEGLLLALKTLAKSTDTEIPKSEKIELAYLTNKDGEVYQKYLTEKEIEELIKLYTQKYIKE

Source

organism	Plasmodium falciparum Dd2
ncbi_taxonomy_id	57267
host_organism	Spodoptera frugiperda

Entity 4 polymer

description	Proteasome subunit alpha type-4
formula_weight	27263.3 kDa
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	D,R

MSYDRAITVFSPDGHLLQVEHALEAVKKGGCAVAIKSSNFAVLAVEKKNIPKLQNPKTTEKLIKLDEHNCLAFAGLNADARVLVNKTRLECQRYYLNMDEPAPVDYIAKYVAKVQQKFTHRGGVRPFGIATLIAGFKNNKEICIYQTEPSGIYAAWKAQAIGKNAKIVQEFLEKNYQENMEQKDCIFLALKAIFEVVELSSKNVEVALLTEKDLTFIEEQEINSMVELIDQERTKNNEQNE

Source

organism	Plasmodium falciparum Dd2
ncbi_taxonomy_id	57267
host_organism	Spodoptera frugiperda

Entity 5 polymer

description	Proteasome subunit alpha type-5
formula_weight	28417.4 kDa
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	E,S

MFSTRSEYDRGVNTFSPEGRLFQVEYALGAIKLGSTAVGICVNDGVILASERRISSTLIEKDSVEKLLSIDDHIGCAMSGLMADARTLIDYARVECNHYKFIYNENINIKSCVELISELALDFSNLSDSKRKKIMSRPFGVALLIGGVDKNGPCLWYTEPSGTNTRFSAASIGSAQEGAELLLQENYKKDMTFEQAEILALTVLRQVMEDKLSTSNVEICAIKKSDQTFYKYNTDDISRIIDVLPSPVYPTIDMTA

Source

organism	Plasmodium falciparum Dd2
ncbi_taxonomy_id	57267
host_organism	Spodoptera frugiperda

Entity 6 polymer

description	Proteasome subunit alpha type-1
formula_weight	28871.7 kDa
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	F,T

MYRNLYDTDNIIYSPEGRLYQVEYASEAIKQGTCAVAIKSKDYVVVSGLKKCISKLSFPQEKIFKIDDYIGISMSGITSDAKVLTKFMQNECLSHKFLYNENINIESLVRSVADKYQKNTQKSSKRAFGVGLMIAAYHNEPCIFETRPNGSYFEYDALSFGARSHASKTYLEKNLHLFEECSLEELILHCLKALKCSLSSESELTISNTALAVVGKNHPWQEISSLQLEEYLSKVKMDAEQEQVEENVQNEANE

Source

organism	Plasmodium falciparum Dd2
ncbi_taxonomy_id	57267
host_organism	Spodoptera frugiperda

Entity 7 polymer

description	Proteasome subunit alpha type-3
formula_weight	29324.3 kDa
ec_number	3.4.25.1
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	G,U

MAGLSAGYDLSVSTFSPDGRLYQVEYIYKSINNNNTALCLECKDGIICCCINSNMDKNKMIKKNSYNRIYHVNNNIIITYSGFDGDARNIIDRARSEANTYYYNFHTNIPLHILVNRISLYIHAYTLYWHMRPFAASIIISSFNEKDKGDIYCIEPNGACYKYSGIVIGKNKEMFKTEIEKKDYKDINVRDAIEDIYKFILTSDDHMNKNNLQNLVNFSWICKESSYEFQNIHEEILTPALNKAVEYIEKLN

Source

organism	Plasmodium falciparum Dd2
ncbi_taxonomy_id	57267
host_organism	Spodoptera frugiperda

Entity 8 polymer

description	Proteasome endopeptidase complex
formula_weight	29143.9 kDa
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	H,V

TTIIGIIYDNGVMLACDSRTSSGTFISNKCSRKINRINENLYVCRSGASAHSQKIIEIIKHYCVSMKNENRKKGRFHEGETIYDETTYDEEIDIDSINYLDYNNNNDNNLVTKNKYFYEDKFNDYNPLVENVAHITKKIIYTNNNFLSCALIFGGYDKIKKQQLYAVNLNGSIIEKHDFAVSGSGSIYIQSYLQDKYKKFMTKKECFNLILNCVKYAMHNDNSSGGLIRIVNITKSFVEEFTVVNTQMNFQY

Source

organism	Plasmodium falciparum Dd2
ncbi_taxonomy_id	57267
host_organism	Spodoptera frugiperda

Entity 9 polymer

description	Proteasome subunit beta-2
formula_weight	25104.9 kDa
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	I,W

TTICGLVCQNAVILGADTRATEGPIVADKNCSKLHYISKNIWCAGAGVAGDLEHTTLWLQHNVELHRLNTNTQPRVSMCVSRLTQELFKYQGYKVCAIVLGGVDVNGPQLYGIHPHGSSCLLPFTALGSGSLNAMAVLEAKYRDNMTIEEGKNLVCEAICAGIFNDLGSGGNVDICVITKDSYQHIRPYKEPNMRLYHLPHPTIYPKGTTPILSEKIEYIKKFISVEDA

Source

organism	Plasmodium falciparum Dd2
ncbi_taxonomy_id	57267
host_organism	Spodoptera frugiperda

Entity 10 polymer

description	Proteasome subunit beta-3
formula_weight	24533.1 kDa
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	J,X

MGSIYNYNGGCVLGMSGSNCVAIACDLRLGANTFTTVSTKFSKIFKMNNNVYVGLSGLATDIQTLYEILRYRVNLYEVRQDAEMDVECFANMLSSILYSNRFSPYFVNPIVVGFKLKHYVDEEGEKKVNYEPYLTAYDLIGAKCETRDFVVNGVTSEQLFGMCESLYVKDQDENGLFETISQCLLSALDRDCISGWGAEVLVLTPEKIIKKKLKARMD

Source

organism	Plasmodium falciparum Dd2
ncbi_taxonomy_id	57267
host_organism	Spodoptera frugiperda

Entity 11 polymer

description	Proteasome subunit beta-4
formula_weight	22889.1 kDa
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	K,Y

MDTLIGLRGNNFVVLAADTYSINSIIKLKNDDNTKFYDIHGNKCLLLGGSIGDRLQFGEFIRKNVHLYQYQNNTDMFVKSFAFFTRKNLAYYLRRNPFEVNCLIAGYDKKDGYQLYWCDYLSNMDSVNKGAHGYGAYLVSAILDKYYHENLTVDEALDIFKLCFEELKKRFLLTQINYELRIMYDNKVETQYVTV

Source

organism	Plasmodium falciparum Dd2
ncbi_taxonomy_id	57267
host_organism	Spodoptera frugiperda

Entity 12 polymer

description	Proteasome subunit beta
formula_weight	23519.5 kDa
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	L,Z

TTLAFKFKDGIIVAVDSRASMGSFISSQNVEKIIEINKNILGTMAGGAADCLYWEKYLGKIIKIYELRNNEKISVRAASTILSNILYQYKGYGLCCGIILSGYDHTGFNMFYVDDSGKKVEGNLFSCGSGSTYAYSILDSAYDYNLNLDQAVELARNAIYHATFRDGGSGGKVRVFHIHKNGYDKIIEGEDVFDLHYHYTNPEQKDQYVM

Source

organism	Plasmodium falciparum Dd2
ncbi_taxonomy_id	57267
host_organism	Spodoptera frugiperda

Entity 13 polymer

description	Proteasome subunit beta
formula_weight	27301.2 kDa
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	M,a

MDLILYNDNLTEKKTEKENVIEHGRGFKRWYPYIDNGGTVIGLTGKDYVILAADTRLSLSYSIYTRFCPKISKLTDKCIIGSSGMQSDIKTLHSLLQKKIQLFVLEHSHYPDIHVIARLLCVILYSRRFFPYYAFNILAGVDENNKGVLYNYDSVGSYCEATHSCVGSGSQLILPILDNRVEQKNQLIKNTNFNLGDDINFVKDAITSATERDIYTGDKTLIYVIDKMGINVNTLDLKQD

Source

organism	Plasmodium falciparum Dd2
ncbi_taxonomy_id	57267
host_organism	Spodoptera frugiperda

Entity 14 polymer

description	Proteasome subunit beta
formula_weight	34823.0 kDa
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	N,b

MTLGPVVTGTSVIAIKYKHGIMIAADRKASYGSYAKFQNVERIFKINNKTVMGFSGELADAQYLHELLTRKNINNLSEKKRKEDMYTPQHYHSYVSRVFYVRKNRIDPLFNNIIIAGINSQKYDNNDDNVLLYTNKNNDDEQNEYKNNEEYKEIHKDDLYIGFVDMHGTNFCDDYITTGYARYFALTLLRDHYKDNMTEEEARILINECLRILYFRDATSSNFIQIVKVTSKGVEYEEPYILPCVLNSADYVYPSTLLPPAGCMWENLYFQSSAWSHPQFEKGGGSGGGSGGSAWSHPQFEK

Source

organism	Plasmodium falciparum Dd2
ncbi_taxonomy_id	57267
host_organism	Spodoptera frugiperda

Entity 15 non-polymer

description	;N,N-diethyl-N~2~-hexanoyl-D-asparaginyl-N-{(1S)-2-(2,4-difluorophenyl)-1-[(2S,3S,5S,6S)-5-formyl-2-hydroxy-3-(hydroxymethyl)-3,6-dimethylmorpholin-2-yl]ethyl}-4-fluoro-L-phenylalaninamide ;
formula_weight	777.9 kDa
src_method	syn
entity_count	2

▶

6. Citations (1)

▶

resolution	3.00 Å
resolution_method	—
num_particles	133662

fit	/app/data/saxs_computation/y0/9y0k/9y0k.fit
pddf	/app/data/pr_computation/y0/9y0k/9y0k.pr.out
profile	/app/data/saxs_computation/y0/9y0k/9y0k.dat
