1asv
Avian sarcoma virus integrase catalytic core domain

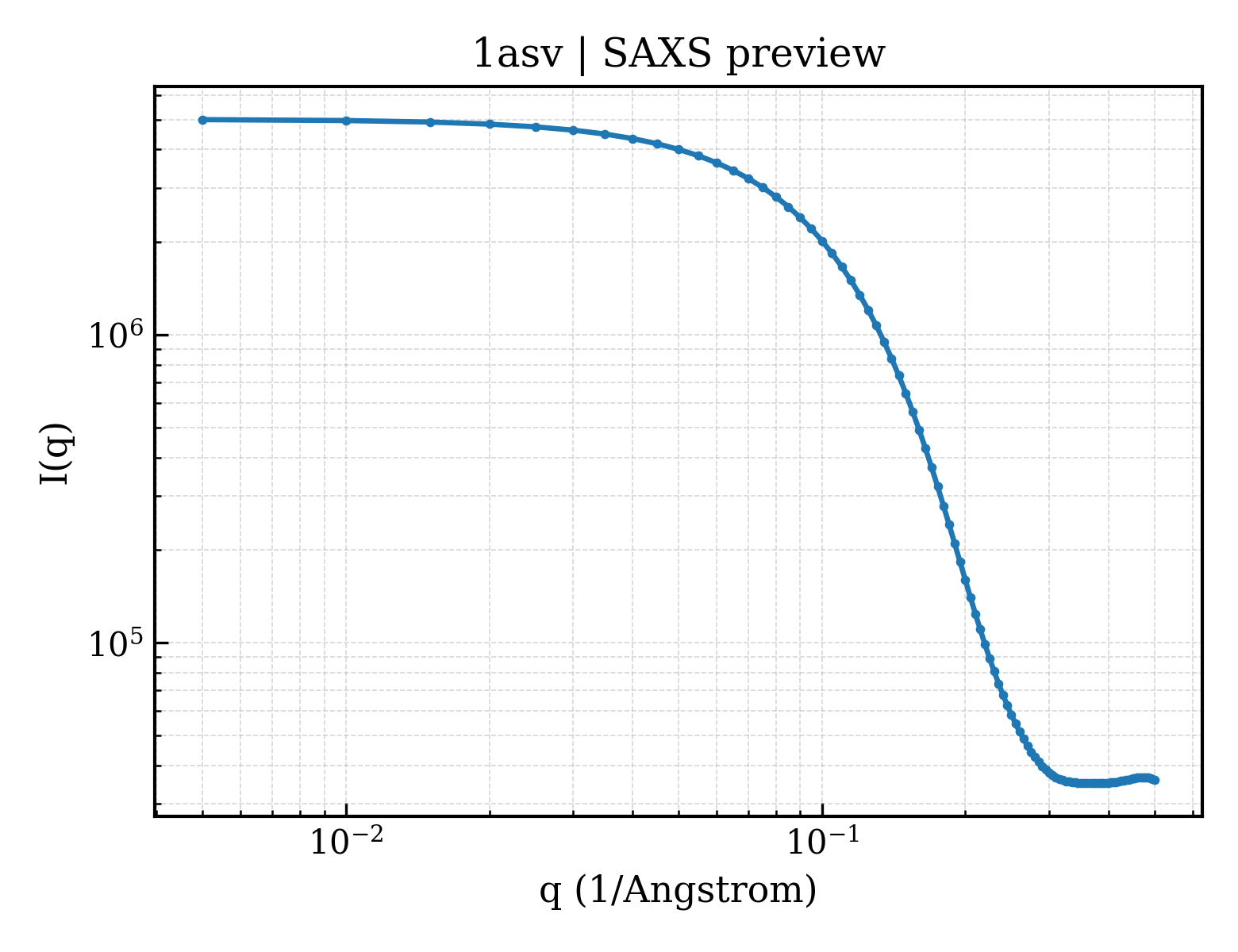

SAXS Profile

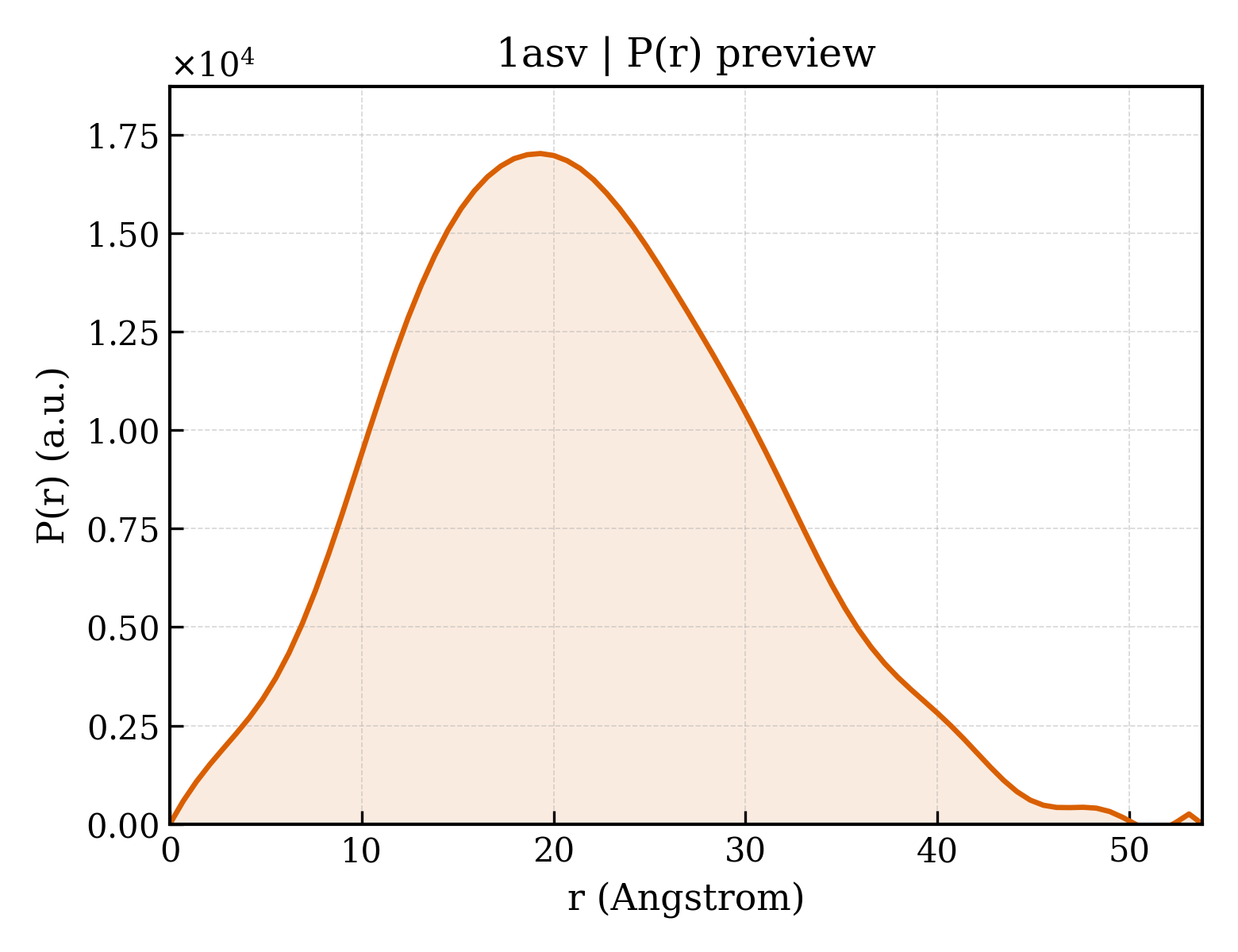

P(r) Distribution
1. Structure Basics
| entry_id | 1asv |
| deposition_date | 1995-08-25 |
| title | Avian sarcoma virus integrase catalytic core domain |
| keywords | DNA INTEGRATION; DNA INTEGRATION |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 16.44 Å |
| rg_electron | 15.44 Å |
| i0 | 5012190.00 |
| molecular_weight | 15954.0 kDa |
| excluded_volume | 19998 ų |
| envelope_volume | 22921 ų |
| shell_volume | 12917 ų |
| envelope_diameter | 56.0 Å |
| shell_rg | 20.95 Å |
| envelope_rg | 15.80 Å |
| shape_rg | 15.40 Å |
| total_rg | 16.61 Å |
| total_atoms | 1123 |
| n_residues | 145 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 53.8 Å |
| rg_real | 16.39 Å |
| rg_real_error | 0.36 Å |
| i0_real | 5.0120e+06 |
| i0_real_error | 6.0600e+04 |
| rg_reciprocal | 16.39 Å |
| i0_reciprocal | 5012000.0000 |
| total_estimate | 0.8089 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 3 |
| r_peak_primary | 19.3 Å |
| skewness | 0.275 |
| kurtosis | -0.310 |
| angular_range | — – 0.4850 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 926100.0000 |
| n_real_points | 79 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.837; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.000 |
