1c0m
CRYSTAL STRUCTURE OF RSV TWO-DOMAIN INTEGRASE

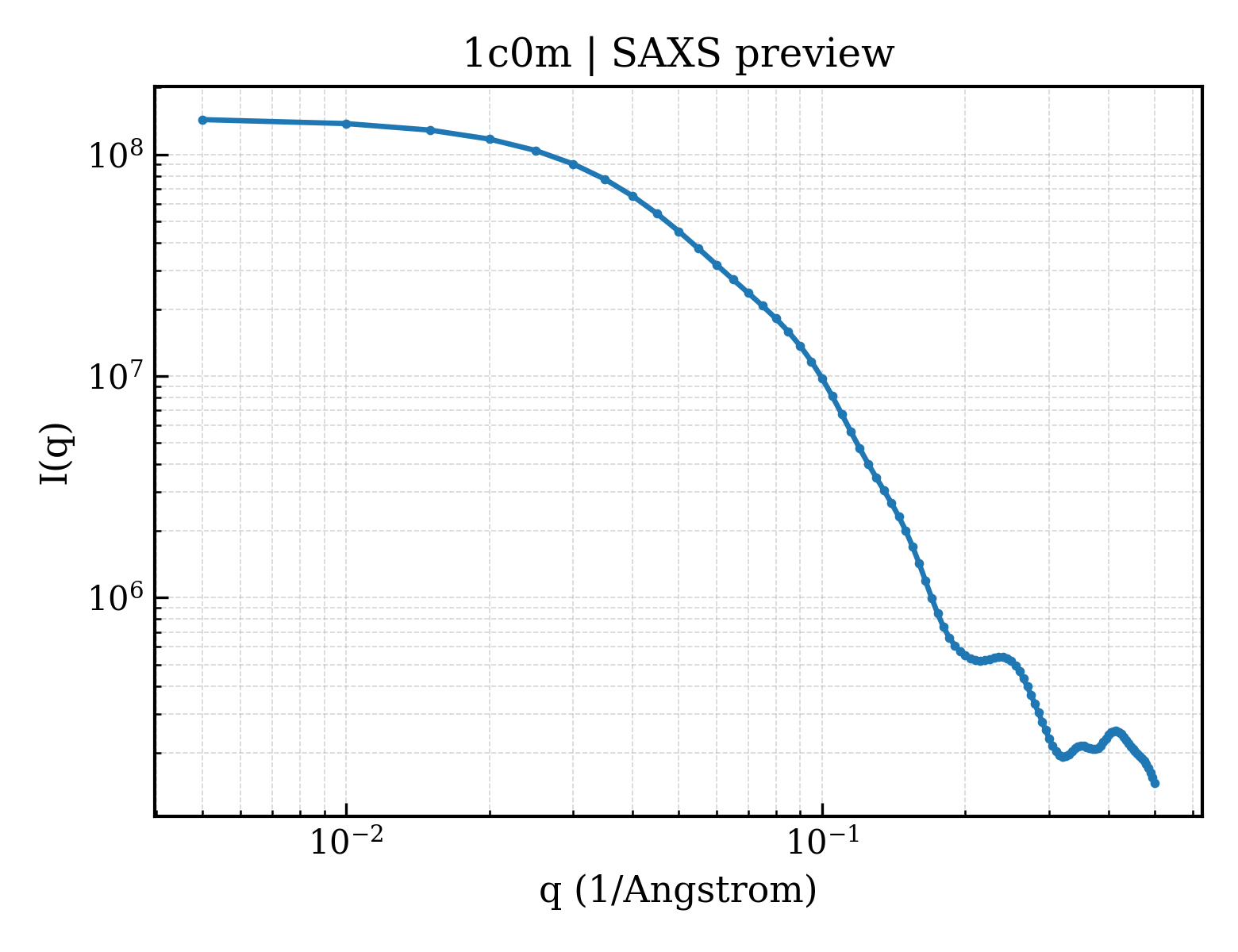

SAXS Profile

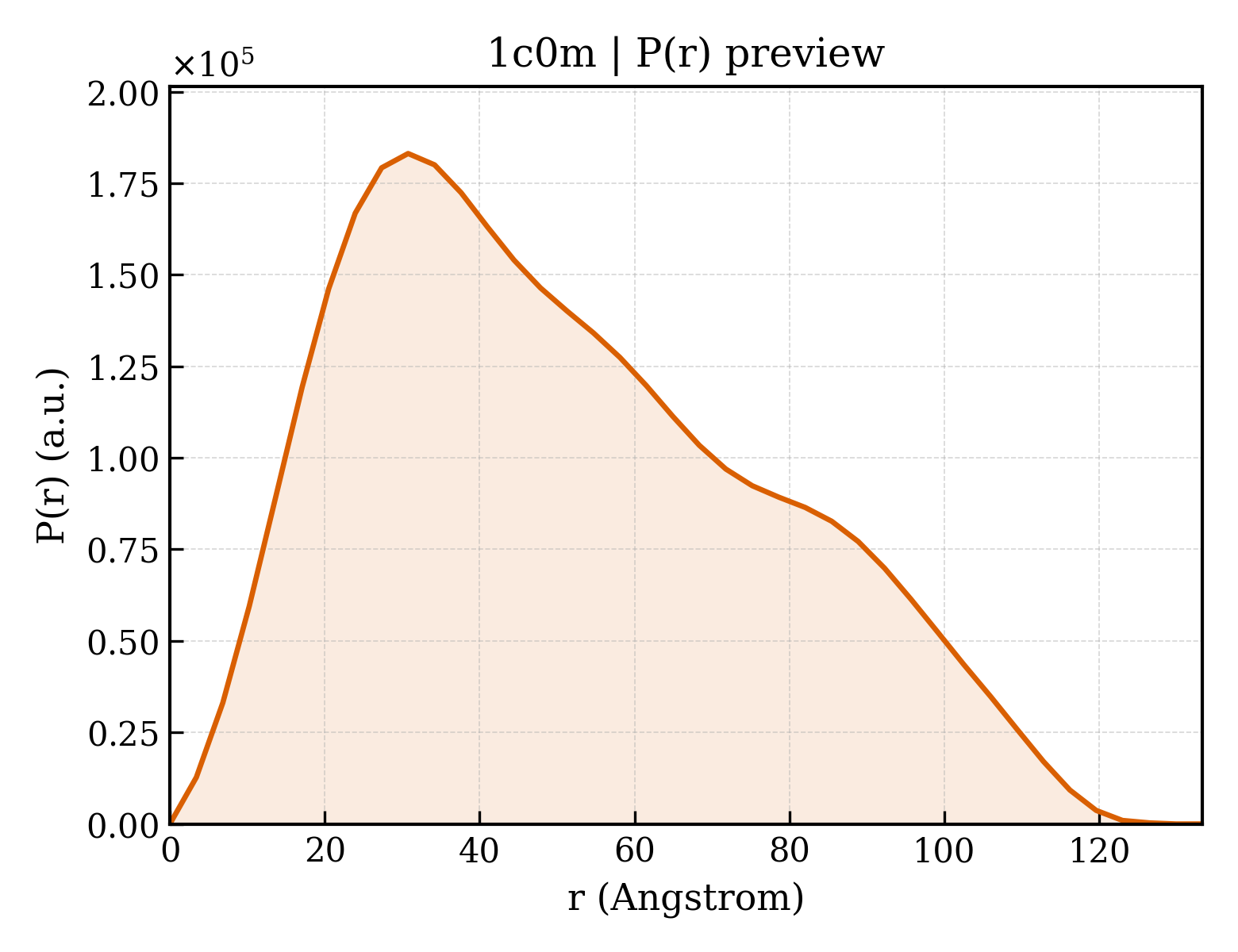

P(r) Distribution
1. Structure Basics
| entry_id | 1c0m |
| deposition_date | 1999-07-16 |
| title | CRYSTAL STRUCTURE OF RSV TWO-DOMAIN INTEGRASE |
| keywords | INTEGRASE, ROUS SARCOMA VIRUS, HIV, PROTEIN STRUCTURE, TRANSFERASE; TRANSFERASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 40.20 Å |
| rg_electron | 40.13 Å |
| i0 | 145383000.00 |
| molecular_weight | 97714.0 kDa |
| excluded_volume | 122680 ų |
| envelope_volume | 165580 ų |
| shell_volume | 37554 ų |
| envelope_diameter | 135.3 Å |
| shell_rg | 41.55 Å |
| envelope_rg | 39.01 Å |
| shape_rg | 40.09 Å |
| total_rg | 40.39 Å |
| total_atoms | 6893 |
| n_residues | 875 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 133.3 Å |
| rg_real | 40.50 Å |
| rg_real_error | 1.40 Å |
| i0_real | 1.4540e+08 |
| i0_real_error | 2.4370e+06 |
| rg_reciprocal | 40.21 Å |
| i0_reciprocal | 145300000.0000 |
| total_estimate | 0.7928 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 1 |
| r_peak_primary | 30.8 Å |
| skewness | 0.438 |
| kurtosis | -0.696 |
| angular_range | — – 0.1950 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 20620000.0000 |
| n_real_points | 40 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.732; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.561; Smooth: 0.545 |
