1cxq

ATOMIC RESOLUTION ASV INTEGRASE CORE DOMAIN FROM AMMONIUM SULFATE

Method: X-RAY DIFFRACTION D_max: 53.7 Å Quality: GOOD

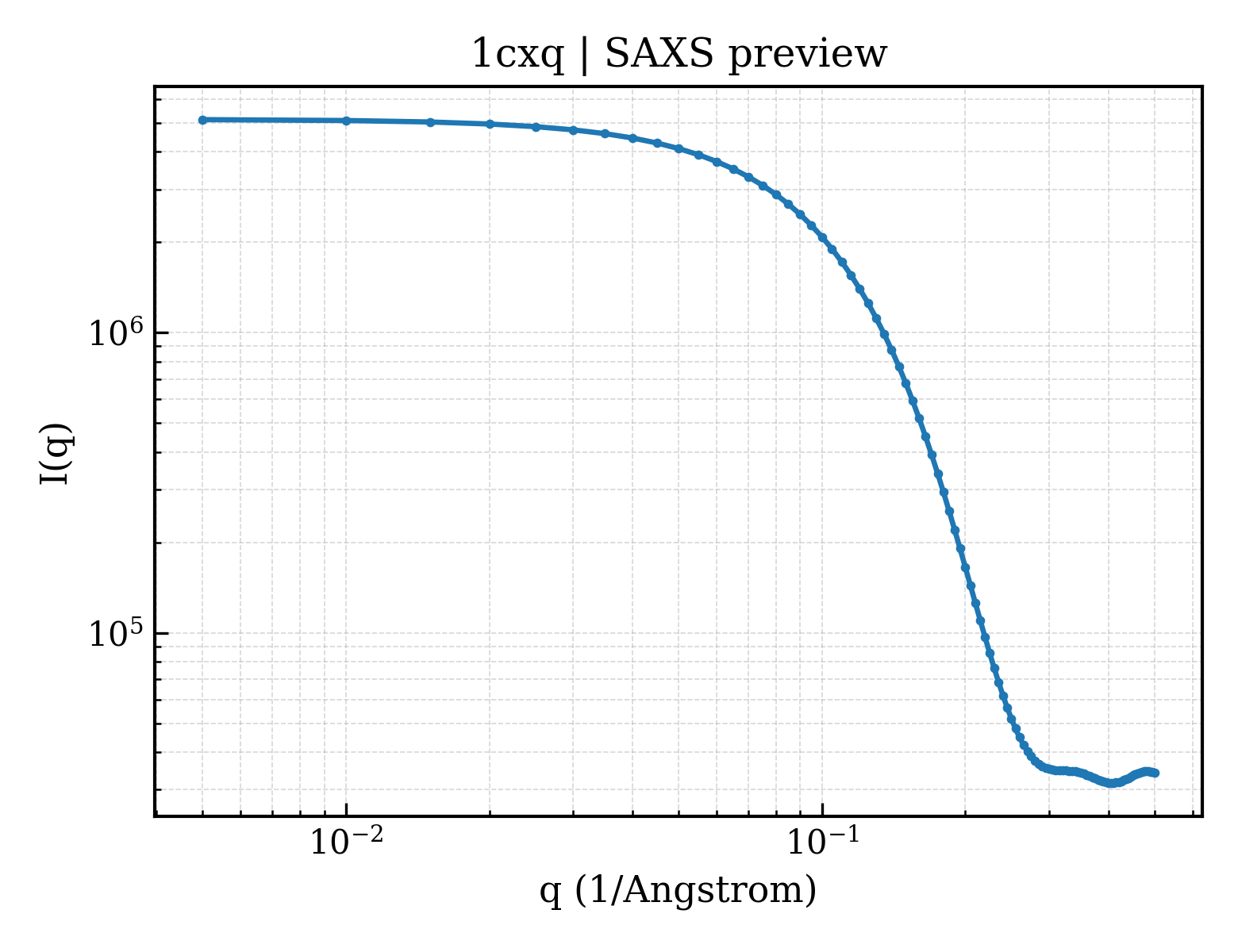

SAXS Profile

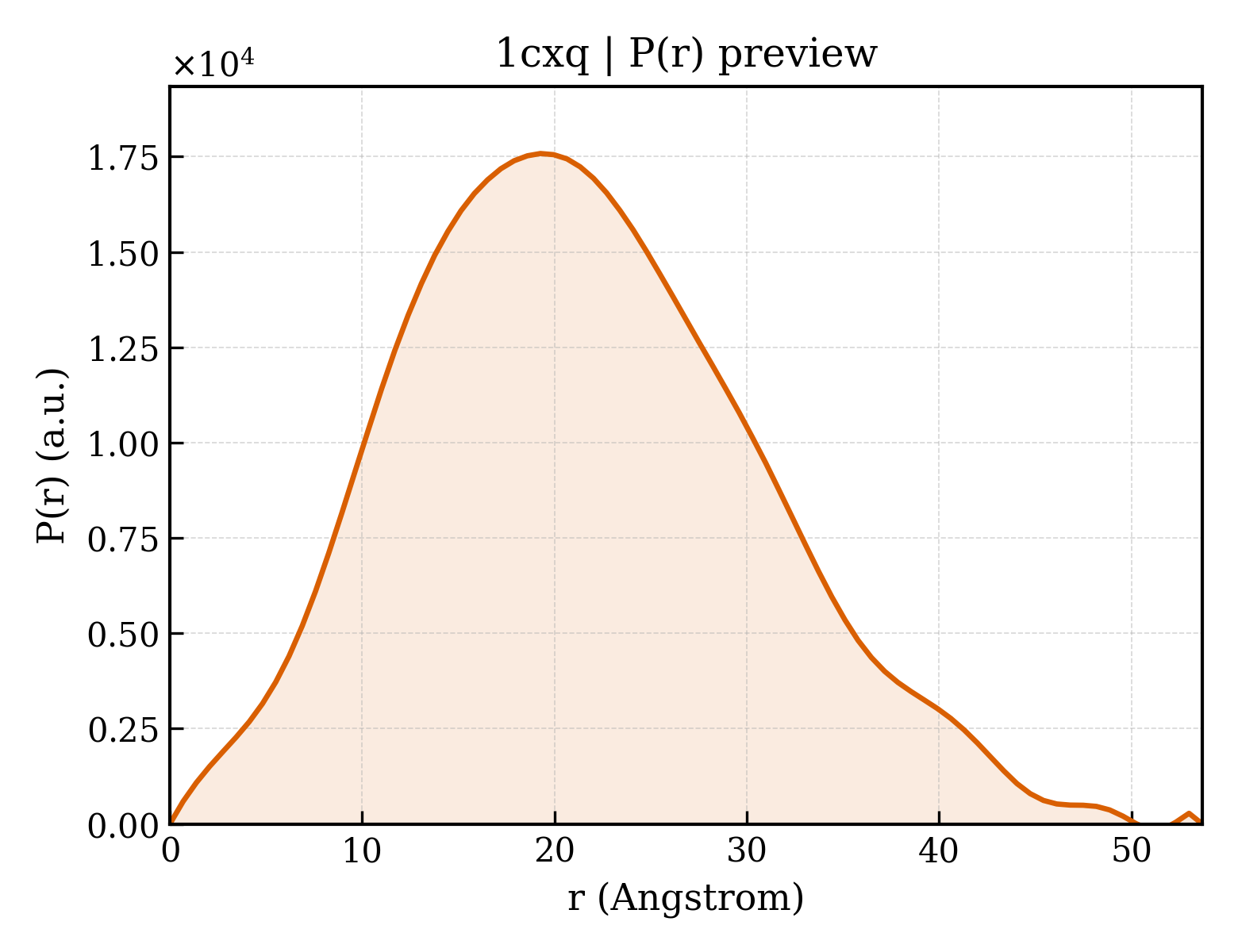

P(r) Distribution

▼

1. Structure Basics

entry_id	1cxq
deposition_date	1999-08-30
title	ATOMIC RESOLUTION ASV INTEGRASE CORE DOMAIN FROM AMMONIUM SULFATE
keywords	MIXED BETA-SHEET SURROUNDED BY ALPHA-HELICES, TRANSFERASE; TRANSFERASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	16.40 Å
rg_electron	15.39 Å
i0	5129610.00
molecular_weight	16071.0 kDa
excluded_volume	20129 Å³
envelope_volume	23199 Å³
shell_volume	13023 Å³
envelope_diameter	56.3 Å
shell_rg	20.96 Å
envelope_rg	15.90 Å
shape_rg	15.34 Å
total_rg	16.60 Å
total_atoms	1128
n_residues	143
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	53.7 Å
rg_real	16.37 Å
rg_real_error	0.35 Å
i0_real	5.1300e+06
i0_real_error	5.8770e+04
rg_reciprocal	16.37 Å
i0_reciprocal	5130000.0000
total_estimate	0.8051
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	19.3 Å
skewness	0.318
kurtosis	-0.250
angular_range	— – 0.4850 Å⁻¹
current_alpha	0.0000
highest_alpha	1125000.0000
n_real_points	79
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.821; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.000

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

Entity 1 polymer

description	AVIAN SARCOMA VIRUS INTEGRASE
formula_weight	17855.4 kDa
mutation	INS(P48, L49, R50, E51, N208, L209)
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	1373

PLREGRGLGPLQIWQTDFTLEPRMAPRSWLAVTVDTASSAIVVTQHGRVTSVAAQHHWATAIAVLGRPKAIKTDNGSCFTSKSTREWLARWGIAHTTGIPGNSQGQAMVERANRLLKDKIRVLAEGDGFMKRIPTSKQGELLAKAMYALNHFERGENTKTNL

Source

organism	Avian sarcoma virus
ncbi_taxonomy_id	11876
host_organism	Escherichia coli

Entity 2 non-polymer

description	4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID
formula_weight	238.3 kDa
src_method	syn
entity_count	1

Entity 3 non-polymer

description	GLYCEROL
formula_weight	92.1 kDa
src_method	syn
entity_count	2

Entity 4 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	192

▶

6. Citations (1)

▶

length_a	65.540 Å
length_b	65.540 Å
length_c	80.120 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	8

space_group	P 43 21 2
int_tables_number	96
crystal_system	—

resolution	1.020 Å
resolution_low	10.000 Å
r_factor	0.1290
r_work	0.1299
r_free	0.1573

fit	/app/data/saxs_computation/cx/1cxq/1cxq.fit
pddf	/app/data/pr_computation/cx/1cxq/1cxq.pr.out
profile	/app/data/saxs_computation/cx/1cxq/1cxq.dat
