;AVIAN SARCOMA VIRUS INTEGRASE CATALYTIC CORE DOMAIN CRYSTALLIZED FROM 20% PEG 4000, 10% ISOPROPANOL, HEPES PH 7.5 USING SELENOMETHIONINE SUBSTITUTED PROTEIN; DATA COLLECTED AT-165 DEGREES C ;

entry_id	1asw
deposition_date	1995-08-25
title	;AVIAN SARCOMA VIRUS INTEGRASE CATALYTIC CORE DOMAIN CRYSTALLIZED FROM 20% PEG 4000, 10% ISOPROPANOL, HEPES PH 7.5 USING SELENOMETHIONINE SUBSTITUTED PROTEIN; DATA COLLECTED AT-165 DEGREES C ;
keywords	DNA INTEGRATION; DNA INTEGRATION
method	X-RAY DIFFRACTION

rg_guinier	16.94 Å
rg_electron	15.92 Å
i0	6076430.00
molecular_weight	17282.0 kDa
excluded_volume	21404 ų
envelope_volume	24647 ų
shell_volume	13444 ų
envelope_diameter	58.6 Å
shell_rg	21.44 Å
envelope_rg	16.42 Å
shape_rg	15.87 Å
total_rg	17.04 Å
total_atoms	1201
n_residues	148
n_harmonics	20
q_range	— – 0.5000 Å−1
n_points	101
shell_type	directional
solvent_density	0.3340 e/ų
contrast_shell	0.0300 e/ų
crysol_version	4.1.3

dmax	56.7 Å
rg_real	16.91 Å
rg_real_error	0.36 Å
i0_real	6.0760e+06
i0_real_error	7.3870e+04
rg_reciprocal	16.91 Å
i0_reciprocal	6076000.0000
total_estimate	0.8017
solution_quality	GOOD a GOOD solution
n_peaks	3
r_peak_primary	20.9 Å
skewness	0.297
kurtosis	-0.255
angular_range	— – 0.4700 Å−1
current_alpha	0.0000
highest_alpha	1067000.0000
n_real_points	77
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.809; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.991; Smooth: 0.000

Unit Cell

length_a	65.400 Å
length_b	65.400 Å
length_c	80.410 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	8

Symmetry

space_group	P 43 21 2
int_tables_number	96
crystal_system	—

Refinement

resolution	1.800 Å
resolution_low	6.000 Å
r_factor	0.1390
r_work	—
r_free	0.2080

Diffraction

temperature

108.0 K

Files (7)

• pr_distribution /app/data/pr_computation/as/1asw/pr_distribution.json
• pr_output /app/data/pr_computation/as/1asw/1asw.pr.out

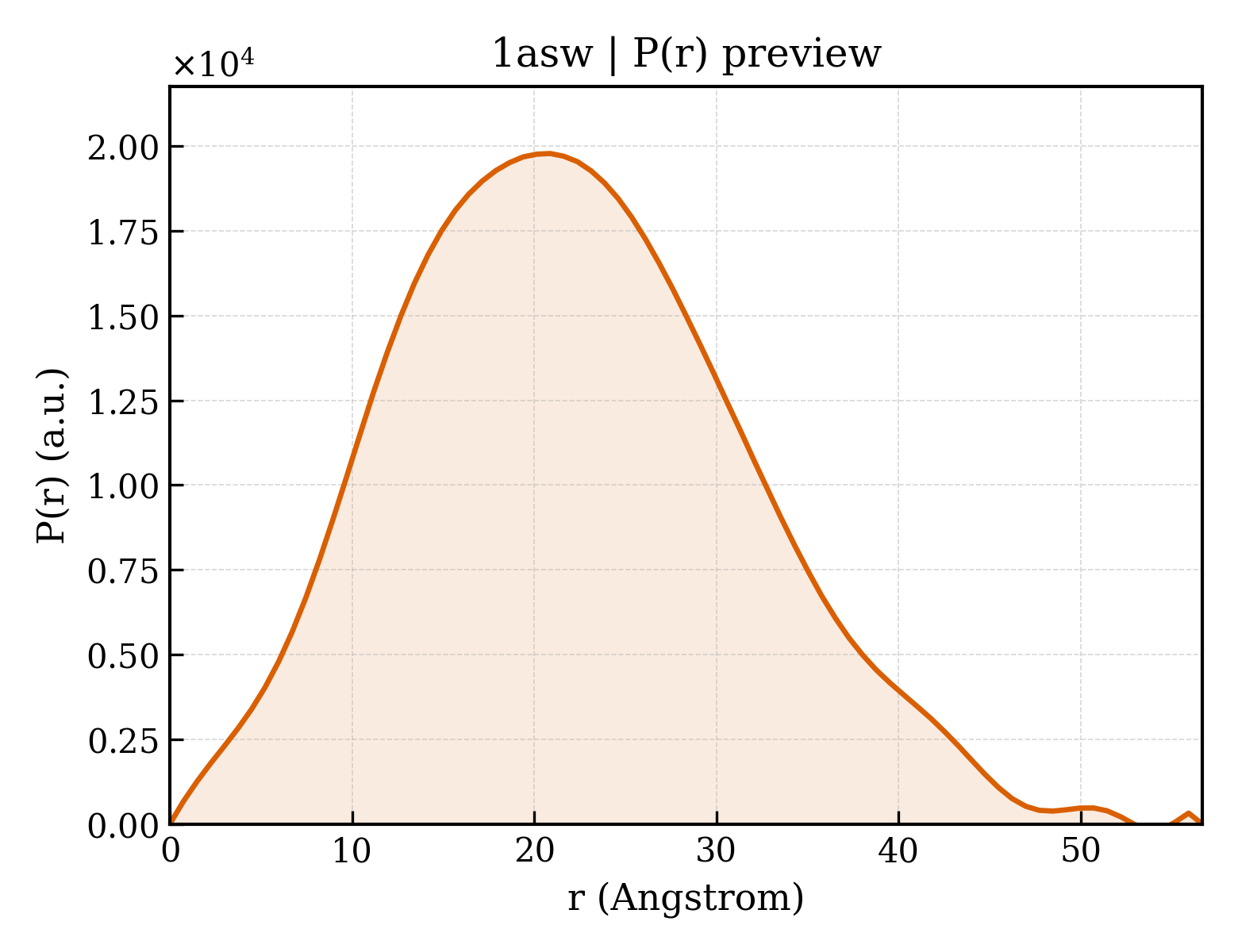

• pr_plot /app/data/visualization/pr_computation/as/1asw/1asw_pr_distribution.png
• saxs_curve_dat /app/data/saxs_computation/as/1asw/1asw.dat
• saxs_fit /app/data/saxs_computation/as/1asw/1asw.fit
• saxs_log /app/data/saxs_computation/as/1asw/1asw.log
• saxs_plot /app/data/visualization/saxs_computation/as/1asw/1asw_saxs_profile.png

Curves (3)

fit	/app/data/saxs_computation/as/1asw/1asw.fit
pddf	/app/data/pr_computation/as/1asw/1asw.pr.out
profile	/app/data/saxs_computation/as/1asw/1asw.dat
