1b0o
BOVINE BETA-LACTOGLOBULIN COMPLEXED WITH PALMITATE, LATTICE Z
SAXS Profile

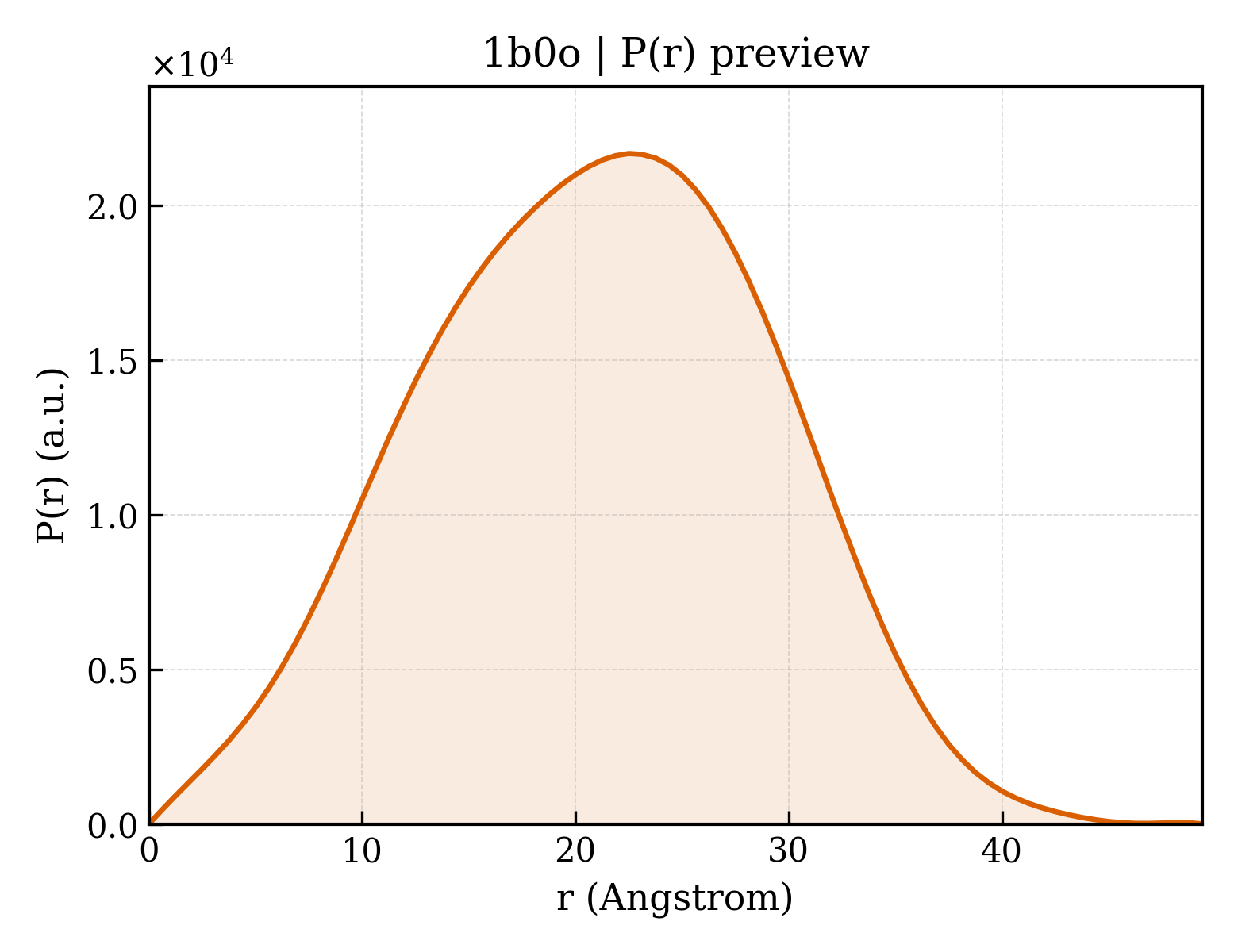

P(r) Distribution
1. Structure Basics
| entry_id | 1b0o |
| deposition_date | 1998-11-11 |
| title | BOVINE BETA-LACTOGLOBULIN COMPLEXED WITH PALMITATE, LATTICE Z |
| keywords | LIPOCALIN, MILK WHEY PROTEIN, BOVINE, PALMITATE-BINDING; LIPOCALIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 16.08 Å |
| rg_electron | 14.64 Å |
| i0 | 5967140.00 |
| molecular_weight | 18416.0 kDa |
| excluded_volume | 23414 ų |
| envelope_volume | 25349 ų |
| shell_volume | 14354 ų |
| envelope_diameter | 48.4 Å |
| shell_rg | 20.86 Å |
| envelope_rg | 14.91 Å |
| shape_rg | 14.64 Å |
| total_rg | 15.83 Å |
| total_atoms | 1290 |
| n_residues | 161 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 49.4 Å |
| rg_real | 15.92 Å |
| rg_real_error | 0.21 Å |
| i0_real | 5.9670e+06 |
| i0_real_error | 5.7440e+04 |
| rg_reciprocal | 15.94 Å |
| i0_reciprocal | 5967000.0000 |
| total_estimate | 0.8914 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 22.5 Å |
| skewness | -0.027 |
| kurtosis | -0.482 |
| angular_range | — – 0.4950 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 1250000.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.869; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.980; Smooth: 0.997 |
