1beb
BOVINE BETA-LACTOGLOBULIN, LATTICE X
SAXS Profile

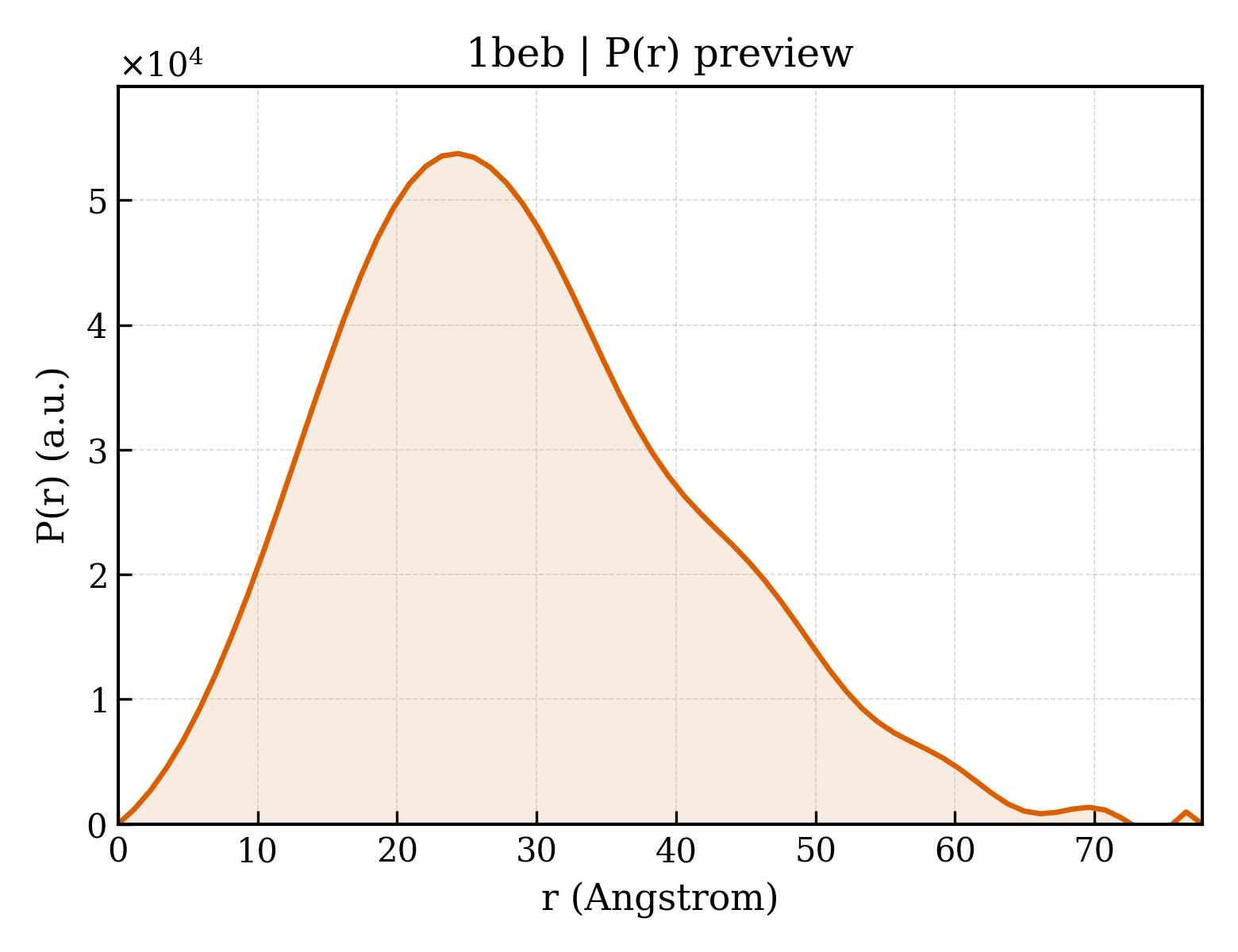

P(r) Distribution
1. Structure Basics
| entry_id | 1beb |
| deposition_date | 1996-12-20 |
| title | BOVINE BETA-LACTOGLOBULIN, LATTICE X |
| keywords | LIPOCALIN, MILK WHEY PROTEIN, BOVINE, RETINOL-BINDING; LIPOCALIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 22.06 Å |
| rg_electron | 21.48 Å |
| i0 | 20732700.00 |
| molecular_weight | 35311.0 kDa |
| excluded_volume | 44577 ų |
| envelope_volume | 52605 ų |
| shell_volume | 21079 ų |
| envelope_diameter | 82.5 Å |
| shell_rg | 27.54 Å |
| envelope_rg | 21.69 Å |
| shape_rg | 21.48 Å |
| total_rg | 22.31 Å |
| total_atoms | 2985 |
| n_residues | 312 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 77.7 Å |
| rg_real | 22.13 Å |
| rg_real_error | 0.54 Å |
| i0_real | 2.0730e+07 |
| i0_real_error | 2.7130e+05 |
| rg_reciprocal | 22.11 Å |
| i0_reciprocal | 20730000.0000 |
| total_estimate | 0.5870 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 3 |
| r_peak_primary | 24.4 Å |
| skewness | 0.485 |
| kurtosis | -0.103 |
| angular_range | — – 0.3600 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 6912000.0000 |
| n_real_points | 68 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.648; Stabil: 0.998; Sysdev: 0.262; Positv: 1.000; Valcen: 0.901; Smooth: 0.000 |
