1bso
12-BROMODODECANOIC ACID BINDS INSIDE THE CALYX OF BOVINE BETA-LACTOGLOBULIN

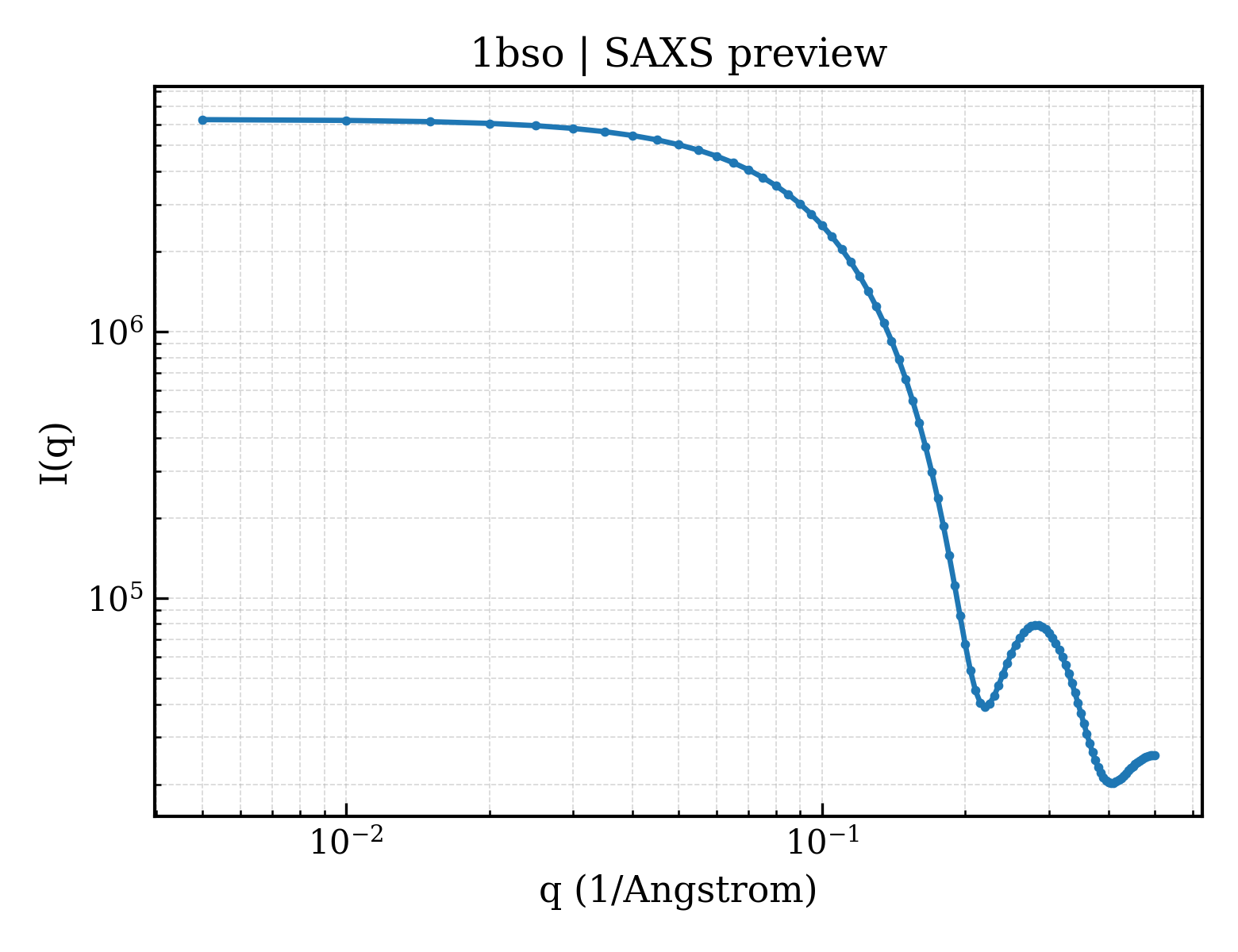

SAXS Profile

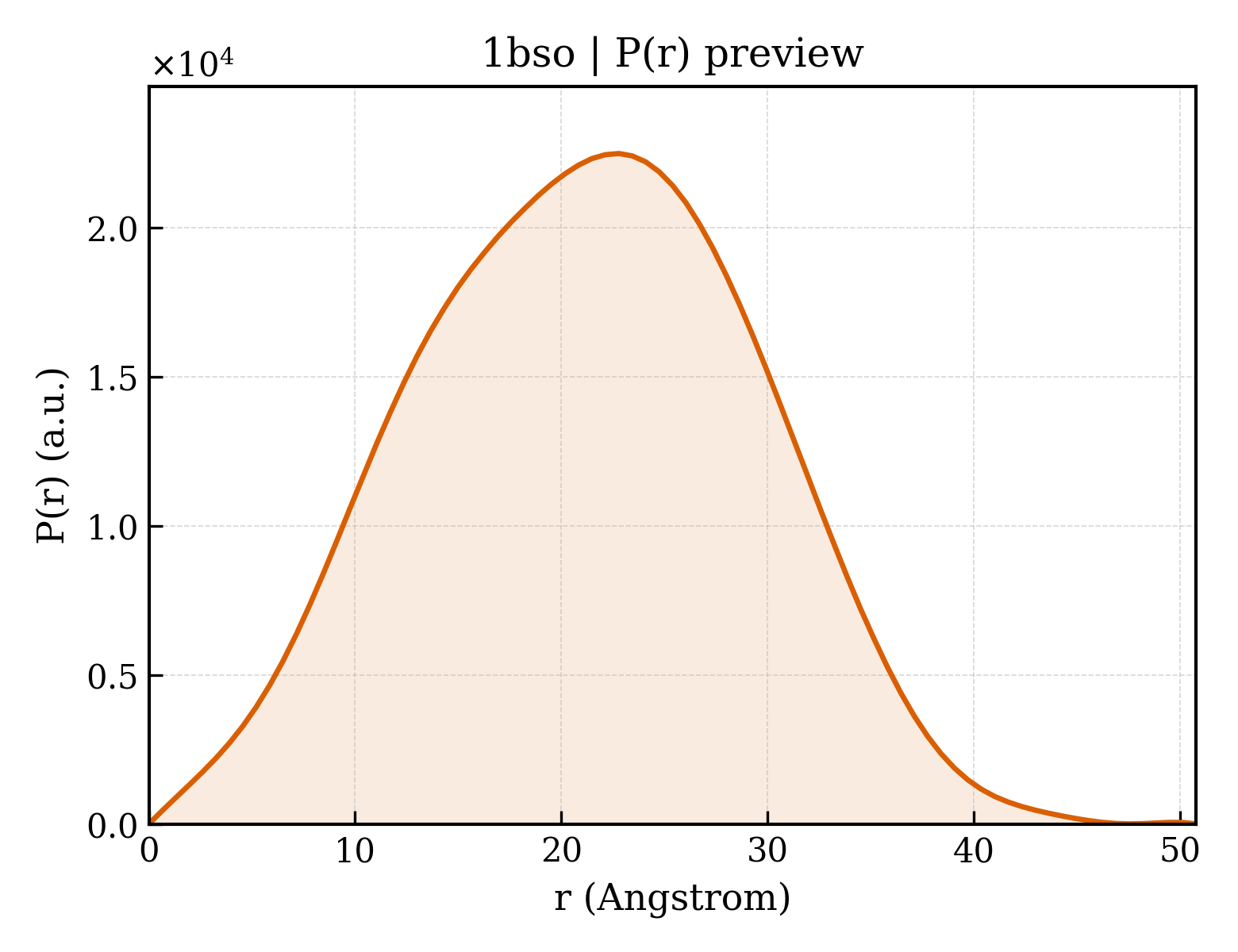

P(r) Distribution
1. Structure Basics
| entry_id | 1bso |
| deposition_date | 1998-08-29 |
| title | 12-BROMODODECANOIC ACID BINDS INSIDE THE CALYX OF BOVINE BETA-LACTOGLOBULIN |
| keywords | BETA-LACTOGLOBULIN, LIGAND BINDING, X-RAY CRYSTAL STRUCTURE, TRANSPORT PROTEIN; TRANSPORT PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 16.25 Å |
| rg_electron | 14.82 Å |
| i0 | 6256000.00 |
| molecular_weight | 18637.0 kDa |
| excluded_volume | 23606 ų |
| envelope_volume | 26711 ų |
| shell_volume | 14843 ų |
| envelope_diameter | 50.0 Å |
| shell_rg | 21.19 Å |
| envelope_rg | 15.14 Å |
| shape_rg | 14.84 Å |
| total_rg | 16.00 Å |
| total_atoms | 1301 |
| n_residues | 162 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 50.8 Å |
| rg_real | 16.09 Å |
| rg_real_error | 0.21 Å |
| i0_real | 6.2560e+06 |
| i0_real_error | 6.4300e+04 |
| rg_reciprocal | 16.11 Å |
| i0_reciprocal | 6256000.0000 |
| total_estimate | 0.7378 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 2 |
| r_peak_primary | 22.8 Å |
| skewness | 0.007 |
| kurtosis | -0.479 |
| angular_range | — – 0.4900 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 2218000.0000 |
| n_real_points | 79 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.853; Stabil: 1.000; Sysdev: 0.353; Positv: 1.000; Valcen: 0.977; Smooth: 0.993 |
