1bsq
STRUCTURAL AND FUNCTIONAL CONSEQUENCES OF POINT MUTATIONS OF VARIANTS A AND B OF BOVINE BETA-LACTOGLOBULIN

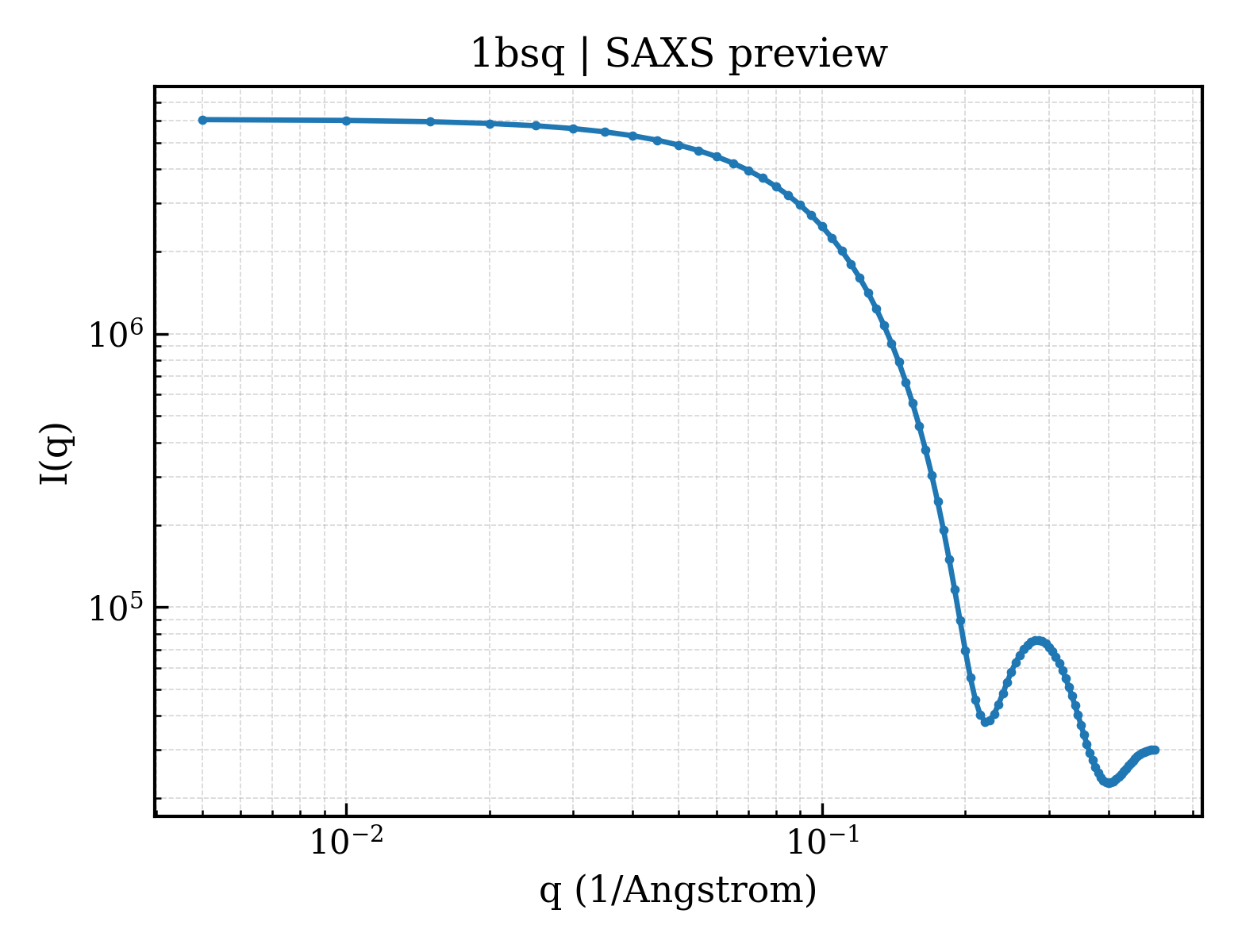

SAXS Profile

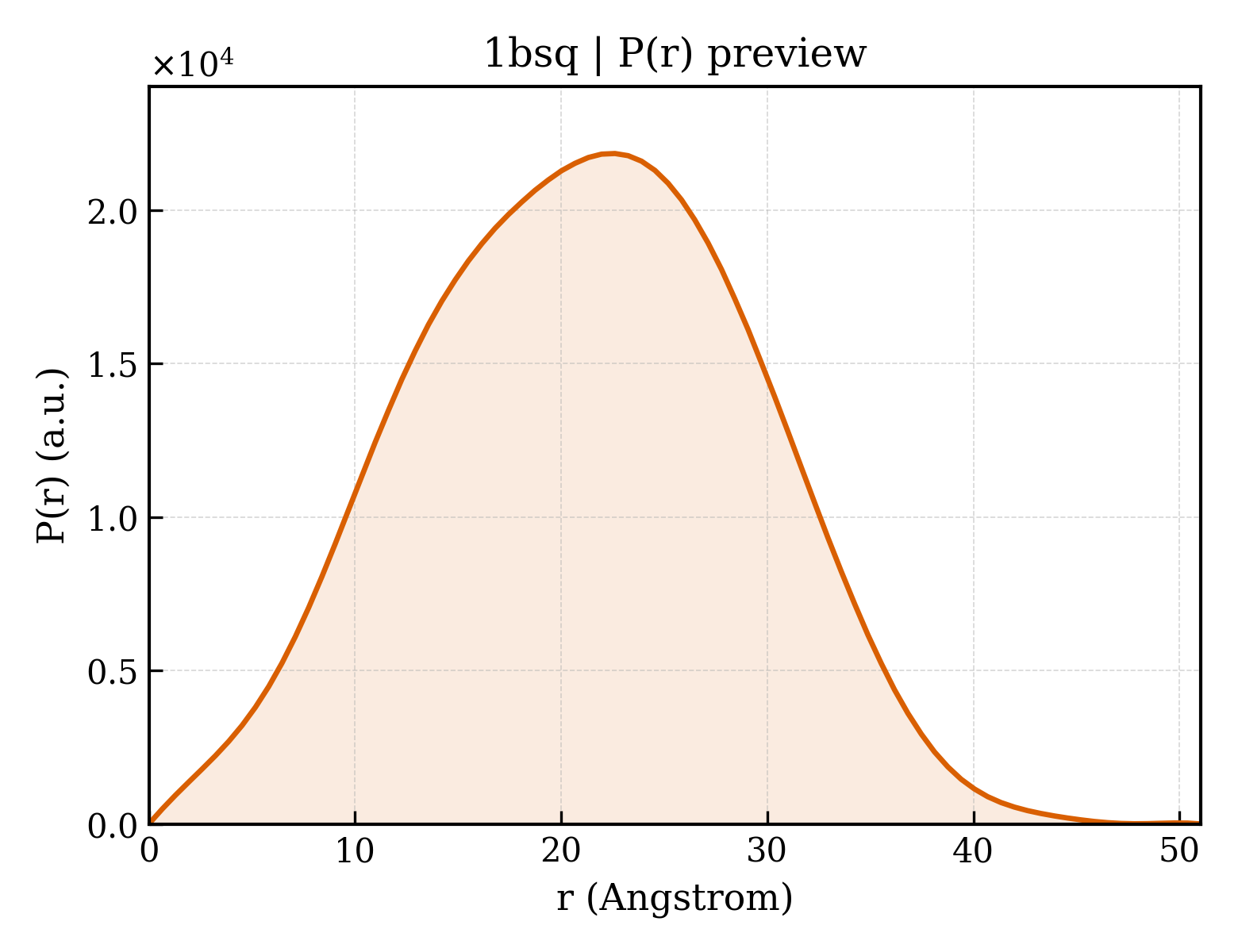

P(r) Distribution
1. Structure Basics
| entry_id | 1bsq |
| deposition_date | 1998-08-29 |
| title | STRUCTURAL AND FUNCTIONAL CONSEQUENCES OF POINT MUTATIONS OF VARIANTS A AND B OF BOVINE BETA-LACTOGLOBULIN |
| keywords | BOVINE BETA-LACTOGLOBULIN, GENETIC VARIANTS, POINT MUTATION, HYDROPHOBIC, HORMONE-GROWTH FACTOR COMPLEX; HORMONE/GROWTH FACTOR |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 16.14 Å |
| rg_electron | 14.73 Å |
| i0 | 6078890.00 |
| molecular_weight | 18273.0 kDa |
| excluded_volume | 23138 ų |
| envelope_volume | 26098 ų |
| shell_volume | 14644 ų |
| envelope_diameter | 49.6 Å |
| shell_rg | 20.99 Å |
| envelope_rg | 15.01 Å |
| shape_rg | 14.73 Å |
| total_rg | 15.96 Å |
| total_atoms | 1280 |
| n_residues | 162 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 51.0 Å |
| rg_real | 15.98 Å |
| rg_real_error | 0.23 Å |
| i0_real | 6.0790e+06 |
| i0_real_error | 6.6720e+04 |
| rg_reciprocal | 16.00 Å |
| i0_reciprocal | 6079000.0000 |
| total_estimate | 0.8843 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 22.6 Å |
| skewness | 0.004 |
| kurtosis | -0.478 |
| angular_range | — – 0.4950 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 1744000.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.835; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.989; Smooth: 0.998 |
