SAXSdb — 2akq

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Beta-lactoglobulin variant A

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	water × 2	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 2	water × 2	Consistent with protein count
3	Protein homooligomer	Homooligomer	Protein 2	water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	LACB_BOVIN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–162； UniProt 17–178 Author chain B； PDBConstruct 1–162； UniProt 17–178 Author chain C； PDBConstruct 1–162； UniProt 17–178 Author chain D； PDBConstruct 1–162； UniProt 17–178

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2akq
Deposition date deposition_date	2005-08-03
Structure title title	The structure of bovine B-lactoglobulin A in crystals grown at very low ionic strength
Keywords keywords	B-lactoglbulin, crystal lattice, low ionic strength, pseudo-merohedral twinning, TRANSPORT PROTEIN; TRANSPORT PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2akq__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2akq__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

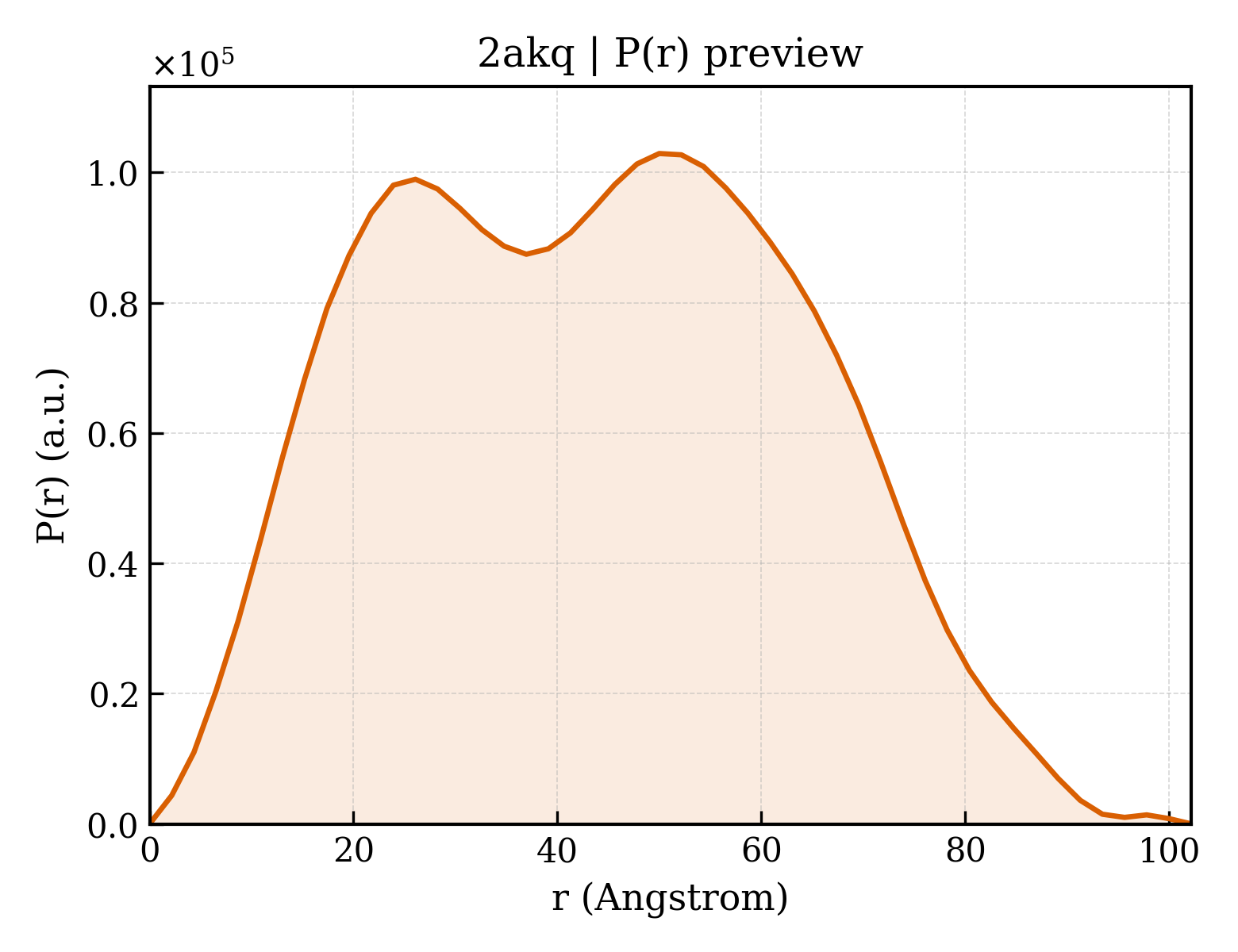

2akq__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	22.01 Å
Rg (electron density)	21.43 Å
Total Rg	22.22 Å
Atom count	2469
Residues	312
Excluded volume	44542 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2akq__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`2akq__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`2akq__assembly_3__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d2akqa_
Class class	b — All beta proteins
Fold Fold fold	b.60 — Lipocalins
Superfamily Superfamily superfamily	b.60.1 — Lipocalins
Family Family family	b.60.1.1 — Retinol binding protein-like

Domain ID domain_id	d2akqb_
Class class	b — All beta proteins
Fold Fold fold	b.60 — Lipocalins
Superfamily Superfamily superfamily	b.60.1 — Lipocalins
Family Family family	b.60.1.1 — Retinol binding protein-like

Domain ID domain_id	d2akqc_
Class class	b — All beta proteins
Fold Fold fold	b.60 — Lipocalins
Superfamily Superfamily superfamily	b.60.1 — Lipocalins
Family Family family	b.60.1.1 — Retinol binding protein-like

Domain ID domain_id	d2akqd_
Class class	b — All beta proteins
Fold Fold fold	b.60 — Lipocalins
Superfamily Superfamily superfamily	b.60.1 — Lipocalins
Family Family family	b.60.1.1 — Retinol binding protein-like

CATH v4.4 (4 domains)

Domain ID domain_id	2akqA00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	128 — Lipocalin
Homologous superfamily homologous superfamily	20 — Calycin beta-barrel core domain

Domain ID domain_id	2akqB00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	128 — Lipocalin
Homologous superfamily homologous superfamily	20 — Calycin beta-barrel core domain

Domain ID domain_id	2akqC00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	128 — Lipocalin
Homologous superfamily homologous superfamily	20 — Calycin beta-barrel core domain

Domain ID domain_id	2akqD00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	128 — Lipocalin
Homologous superfamily homologous superfamily	20 — Calycin beta-barrel core domain

▶

Unit-cell length a length_a	68.191 Å
Unit-cell length b length_b	68.231 Å
Unit-cell length c length_c	131.455 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	3.000 Å
Low-resolution limit resolution_low	10.000 Å
R factor r_factor	0.2143
R_work r_work	0.2241
R_free r_free	0.2657

Description description	Beta-lactoglobulin variant A
Molecular weight formula_weight	18387.3 kDa
Source method src_method	nat
Copy count entity_count	4

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	5055

The structure of bovine B-lactoglobulin A in crystals grown at very low ionic strength

1. Protein Identity and Related Structures Protein Identity & Related Structures

Beta-lactoglobulin variant A

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

2akq__assembly_1__model_1

2akq__assembly_1__model_1 | I(q)

2akq__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

Entity 2 Entity 2 water

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

CATH v4.4 (4 domains)

7. Citations (4)

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	68
