1cj5
BOVINE BETA-LACTOGLOBULIN A
SAXS Profile

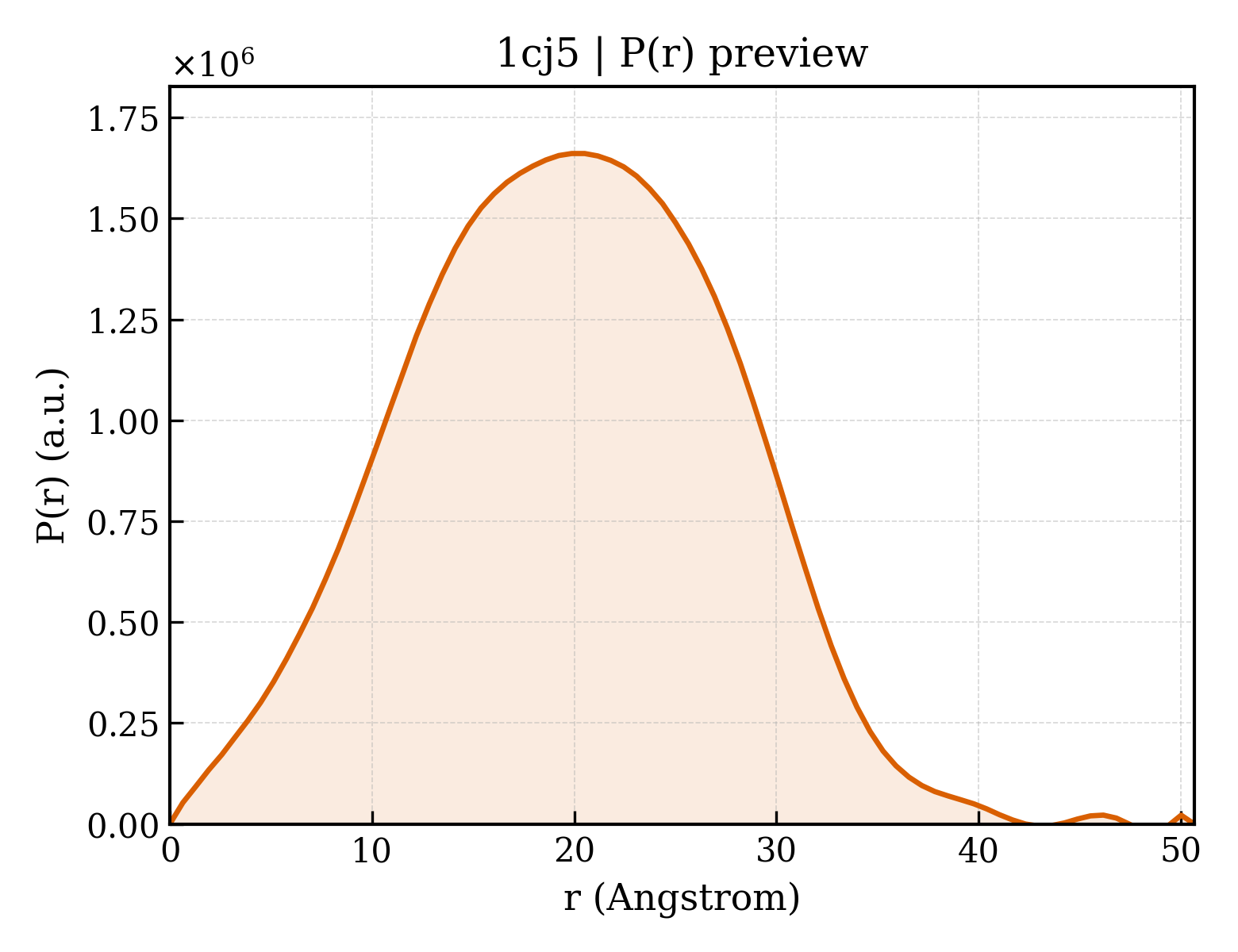

P(r) Distribution
1. Structure Basics
| entry_id | 1cj5 |
| deposition_date | 1999-04-22 |
| title | BOVINE BETA-LACTOGLOBULIN A |
| keywords | BETA-LACTOGLOBULIN A, DYNAMICS, TRANSPORT PROTEIN; TRANSPORT PROTEIN |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 15.05 Å |
| rg_electron | 14.54 Å |
| i0 | 442307000.00 |
| molecular_weight | 183330.0 kDa |
| excluded_volume | 231930 ų |
| envelope_volume | 33184 ų |
| shell_volume | 16896 ų |
| envelope_diameter | 55.9 Å |
| shell_rg | 22.65 Å |
| envelope_rg | 16.48 Å |
| shape_rg | 14.54 Å |
| total_rg | 14.73 Å |
| total_atoms | 25870 |
| n_residues | 1620 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 50.7 Å |
| rg_real | 14.91 Å |
| rg_real_error | 0.42 Å |
| i0_real | 4.4230e+08 |
| i0_real_error | 5.5760e+06 |
| rg_reciprocal | 14.92 Å |
| i0_reciprocal | 442300000.0000 |
| total_estimate | 0.7793 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 46.2 Å |
| skewness | 0.007 |
| kurtosis | -0.425 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 647000.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.711; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.999; Smooth: 0.000 |
