1b8e
HIGH RESOLUTION CRYSTAL STRUCTURE OF THE BOVINE BETA-LACTOGLOBULIN (ISOFORMS A AND B) IN ORTHOROMBIC SPACE GROUP
SAXS Profile

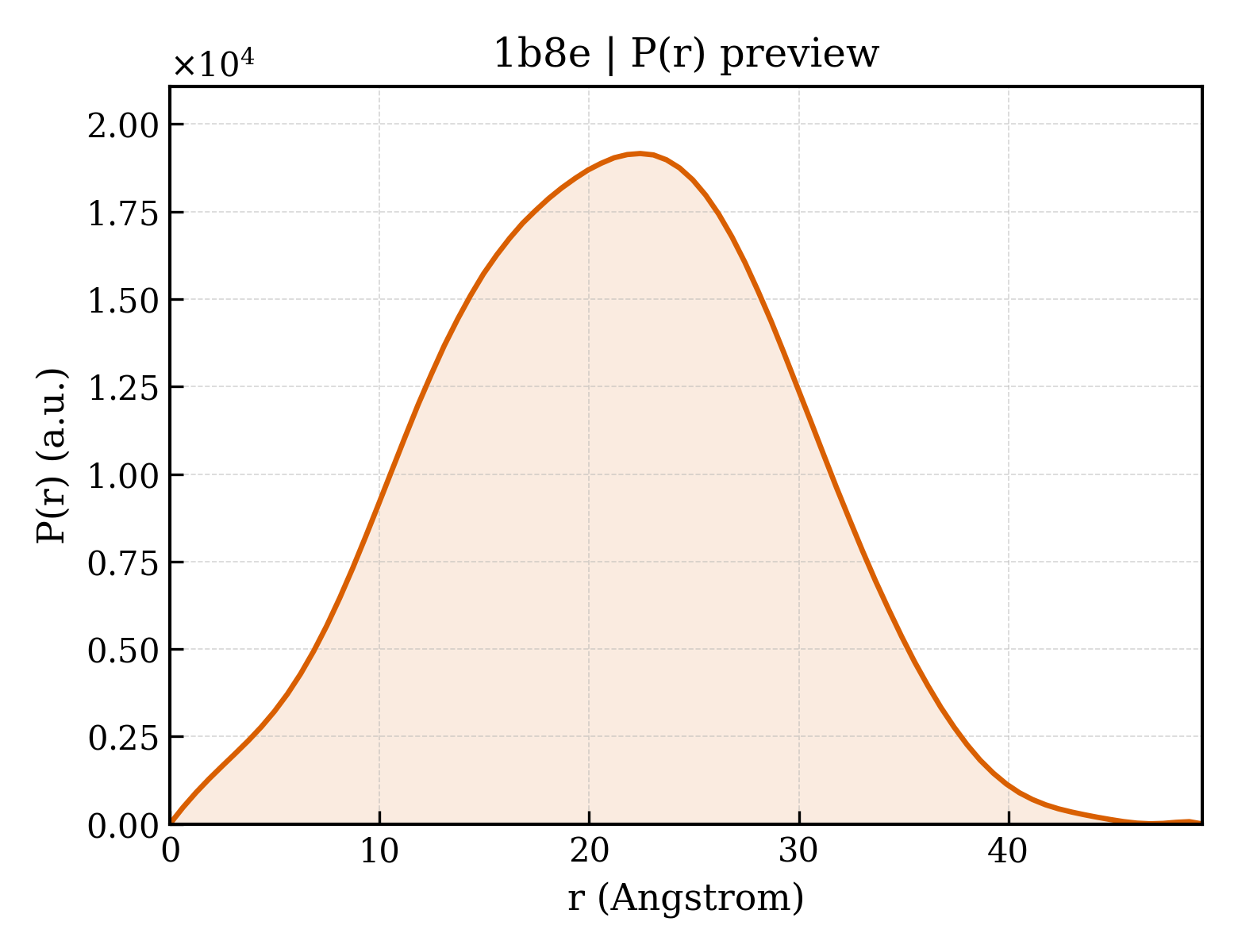

P(r) Distribution
1. Structure Basics
| entry_id | 1b8e |
| deposition_date | 1999-01-30 |
| title | HIGH RESOLUTION CRYSTAL STRUCTURE OF THE BOVINE BETA-LACTOGLOBULIN (ISOFORMS A AND B) IN ORTHOROMBIC SPACE GROUP |
| keywords | BETA-LACTOGLOBULIN, VARIANTS, LIPOCALIN, TRANSPORT PROTEIN; TRANSPORT PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 16.13 Å |
| rg_electron | 14.69 Å |
| i0 | 5306210.00 |
| molecular_weight | 17079.0 kDa |
| excluded_volume | 21700 ų |
| envelope_volume | 25001 ų |
| shell_volume | 14178 ų |
| envelope_diameter | 47.3 Å |
| shell_rg | 20.74 Å |
| envelope_rg | 14.95 Å |
| shape_rg | 14.70 Å |
| total_rg | 15.90 Å |
| total_atoms | 1197 |
| n_residues | 152 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 49.2 Å |
| rg_real | 15.98 Å |
| rg_real_error | 0.18 Å |
| i0_real | 5.3060e+06 |
| i0_real_error | 5.0420e+04 |
| rg_reciprocal | 15.99 Å |
| i0_reciprocal | 5306000.0000 |
| total_estimate | 0.8930 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 22.4 Å |
| skewness | 0.009 |
| kurtosis | -0.455 |
| angular_range | — – 0.4950 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 1195000.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.885; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.978; Smooth: 0.971 |
