BARNASE T70C/S92C DISULFIDE MUTANT

Method: X-RAY DIFFRACTION D_max: 80.2 Å Quality: EXCELLENT

SAXS Profile

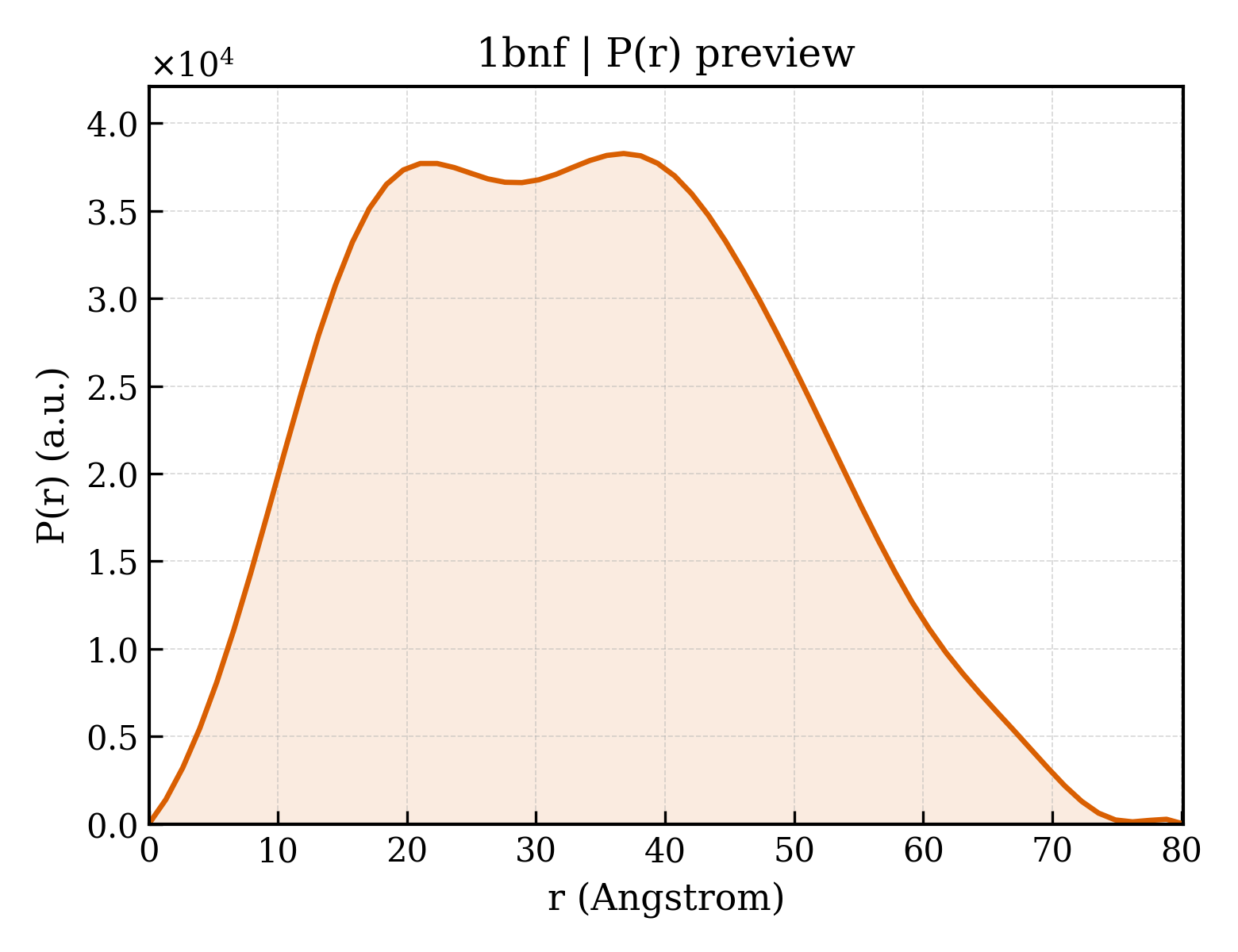

P(r) Distribution

▼

1. Structure Basics

entry_id	1bnf
deposition_date	1995-03-31
title	BARNASE T70C/S92C DISULFIDE MUTANT
keywords	ENDONUCLEASE; ENDONUCLEASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	25.85 Å
rg_electron	25.19 Å
i0	21718000.00
molecular_weight	35673.0 kDa
excluded_volume	44449 Å³
envelope_volume	56004 Å³
shell_volume	19381 Å³
envelope_diameter	82.3 Å
shell_rg	30.75 Å
envelope_rg	24.74 Å
shape_rg	25.21 Å
total_rg	25.78 Å
total_atoms	2518
n_residues	321
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	80.2 Å
rg_real	25.86 Å
rg_real_error	0.59 Å
i0_real	2.1720e+07
i0_real_error	2.9310e+05
rg_reciprocal	25.86 Å
i0_reciprocal	21720000.0000
total_estimate	0.9054
solution_quality	EXCELLENT a EXCELLENT solution
n_peaks	2
r_peak_primary	36.8 Å
skewness	0.211
kurtosis	-0.689
angular_range	— – 0.3050 Å⁻¹
current_alpha	0.0000
highest_alpha	3924000.0000
n_real_points	62
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.958; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.928; Smooth: 0.963

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (2)

▶

6. Citations (1)

▶

length_a	59.140 Å
length_b	59.140 Å
length_c	81.790 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	120.00 °
z_pdb	9

space_group	P 32
int_tables_number	145
crystal_system	—

resolution	2.000 Å
resolution_low	6.000 Å
r_factor	0.1730
r_work	—
r_free	—

description	BARNASE
formula_weight	12416.8 kDa
ec_number	3.1.27.-
src_method	man
entity_count	3

type	polypeptide(L)
strand_id	A,B,C
atom_count	2771

BARNASE T70C/S92C DISULFIDE MUTANT

SAXS Profile

P(r) Distribution

1. Structure Basics

Download Data

2. SAXS Parameters (CRYSOL)

3. P(r) Analysis (GNOM)

4. Crystallography & Experiment

Unit Cell

Symmetry

Refinement

5. Entities & Polymer Info (2)

Entity 1 polymer

Polymer

Source

Entity 2 water

6. Citations (1)

7. Files & Curves (10)

Files (7)

Curves (3)

organism	Bacillus amyloliquefaciens
ncbi_taxonomy_id	1390
host_organism	Escherichia coli

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	228

fit	/app/data/saxs_computation/bn/1bnf/1bnf.fit
pddf	/app/data/pr_computation/bn/1bnf/1bnf.pr.out
profile	/app/data/saxs_computation/bn/1bnf/1bnf.dat
