1. Protein Identity and Related Structures Protein Identity & Related Structures

Ribonuclease

Bacillus amyloliquefaciens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Barstar × 1 （P11540） water × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	Barstar × 1 （P11540） water × 2	Consistent with protein count
3	Protein heterocomplex	Heteromer	Protein 2	Barstar × 1 （P11540） water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RNBR_BACAM
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–110； UniProt 48–157 Author chain B； PDBConstruct 1–110； UniProt 48–157 Author chain C； PDBConstruct 1–110； UniProt 48–157

Barstar

Bacillus amyloliquefaciens

UniProt P11540

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Ribonuclease × 1 （P00648） water × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	Ribonuclease × 1 （P00648） water × 2	Consistent with protein count
3	Protein heterocomplex	Heteromer	Protein 2	Ribonuclease × 1 （P00648） water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	BARS_BACAM
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain D； PDBConstruct 1–90； UniProt 0–89 Author chain E； PDBConstruct 1–90； UniProt 0–89 Author chain F； PDBConstruct 1–90； UniProt 0–89

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1x1w
Deposition date deposition_date	2005-04-14
Structure title title	Water-mediate interaction at aprotein-protein interface
Keywords keywords	Rnase-inhibitor complex, Hydrolase/Hydrolase inhibitor, Hydrolase-Protein Binding COMPLEX; Hydrolase/Protein Binding
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1x1w__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1x1w__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

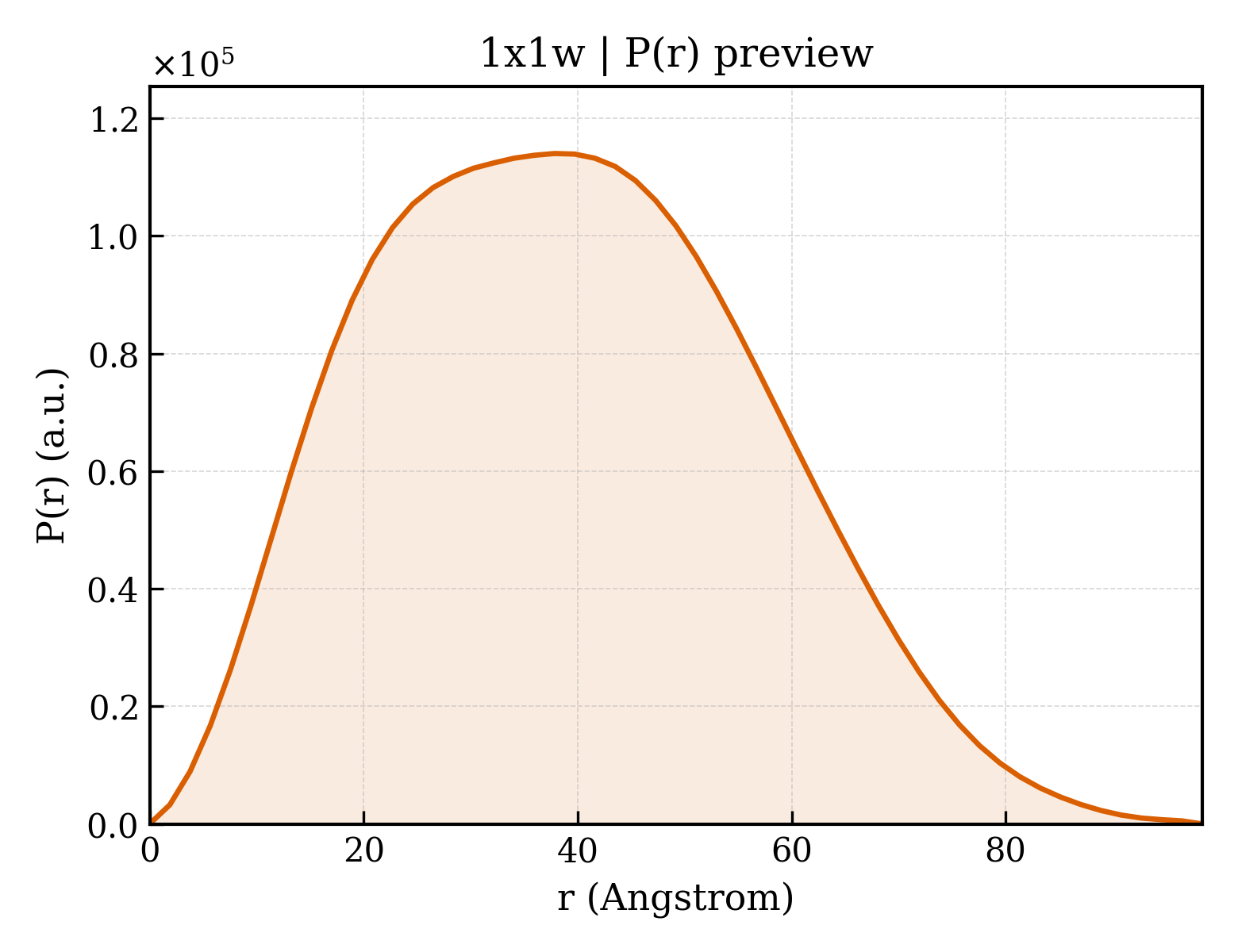

1x1w__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	18.30 Å
Rg (electron density)	17.39 Å
Total Rg	18.38 Å
Atom count	1582
Residues	198
Excluded volume	28065 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1x1w__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1x1w__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`1x1w__assembly_3__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Ribonuclease
Molecular weight formula_weight	12398.7 kDa
EC 编号 ec_number	3.1.27.-
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C
Atom count atom_count	5315

AQVINTFDGVADYLQTYHKLPDNYITKSEAQALGWVASKGNLADVAPGKSIGGDIFSNREGKLPGKSGRTWREADINYTSGFRNSDRILYSSDWLIYKTTDHYQTFTKIR

Source Source

Source organism organism	Bacillus amyloliquefaciens
NCBI taxonomy ID ncbi_taxonomy_id	1390
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Barstar
Molecular weight formula_weight	10230.6 kDa
Mutation mutation	C40A, C82A, E80A
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,E,F

MKKAVINGEQIRSISDLHQTLKKELALPEYYGENLDALWDALTGWVEYPLVLEWRQFEQSKQLTENGAESVLQVFREAKAAGADITIILS

Source Source

Source organism organism	Bacillus amyloliquefaciens
NCBI taxonomy ID ncbi_taxonomy_id	1390
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	554

▼

6. Fold Classification (SCOP + CATH) 12 domains

SCOP 2.08 (6 domains)

Domain ID domain_id	d1x1wa_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.1 — Microbial ribonucleases
Superfamily Superfamily superfamily	d.1.1 — Microbial ribonucleases
Family Family family	d.1.1.2 — Bacterial ribonucleases

Domain ID domain_id	d1x1wb_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.1 — Microbial ribonucleases
Superfamily Superfamily superfamily	d.1.1 — Microbial ribonucleases
Family Family family	d.1.1.2 — Bacterial ribonucleases

Domain ID domain_id	d1x1wc_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.1 — Microbial ribonucleases
Superfamily Superfamily superfamily	d.1.1 — Microbial ribonucleases
Family Family family	d.1.1.2 — Bacterial ribonucleases

Domain ID domain_id	d1x1wd1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.9 — Barstar-like
Superfamily Superfamily superfamily	c.9.1 — Barstar-related
Family Family family	c.9.1.1 — Barstar-related

Domain ID domain_id	d1x1we_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.9 — Barstar-like
Superfamily Superfamily superfamily	c.9.1 — Barstar-related
Family Family family	c.9.1.1 — Barstar-related

Domain ID domain_id	d1x1wf_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.9 — Barstar-like
Superfamily Superfamily superfamily	c.9.1 — Barstar-related
Family Family family	c.9.1.1 — Barstar-related

CATH v4.4 (6 domains)

Domain ID domain_id	1x1wA00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	450 — Nuclear Transport Factor 2; Chain: A,
Homologous superfamily homologous superfamily	30 — Microbial ribonucleases

Domain ID domain_id	1x1wB00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	450 — Nuclear Transport Factor 2; Chain: A,
Homologous superfamily homologous superfamily	30 — Microbial ribonucleases

Domain ID domain_id	1x1wC00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	450 — Nuclear Transport Factor 2; Chain: A,
Homologous superfamily homologous superfamily	30 — Microbial ribonucleases

Domain ID domain_id	1x1wD00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	370 — Barnase; Chain D
Homologous superfamily homologous superfamily	10 — Barstar-like

Domain ID domain_id	1x1wE00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	370 — Barnase; Chain D
Homologous superfamily homologous superfamily	10 — Barstar-like

Domain ID domain_id	1x1wF00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	370 — Barnase; Chain D
Homologous superfamily homologous superfamily	10 — Barstar-like

▶

Unit-cell length a length_a	200.807 Å
Unit-cell length b length_b	44.040 Å
Unit-cell length c length_c	83.748 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	110.36 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	2.100 Å
Low-resolution limit resolution_low	52.000 Å
R factor r_factor	0.2190
R_work r_work	0.2190
R_free r_free	0.2650
