1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1svo
沉积日期 deposition_date	2004-03-29
结构标题 title	Structure of SV40 large T antigen helicase domain
关键词 keywords	AAA+ fold, Viral protein; VIRAL PROTEIN
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	30.06 Å
回转半径 Rg (电子) rg_electron	29.09 Å
零角强度 I(0) i0	106214000.00
分子量 molecular_weight	83654.0 kDa
排除体积 excluded_volume	105960 Å³
包络体积 envelope_volume	134990 Å³
水化壳体积 shell_volume	38531 Å³
包络直径 envelope_diameter	97.5 Å
壳层 Rg shell_rg	36.45 Å
包络 Rg envelope_rg	28.64 Å
形状 Rg shape_rg	29.08 Å
总 Rg total_rg	29.87 Å
总原子数 total_atoms	5868
残基数 n_residues	724
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	90.9 Å
Rg (实空间) rg_real	29.91 Å
Rg 误差 (实空间) rg_real_error	0.46 Å
I(0) (实空间) i0_real	1.0620e+08
I(0) 误差 (实空间) i0_real_error	1.5160e+06
Rg (倒空间) rg_reciprocal	29.98 Å
I(0) (倒空间) i0_reciprocal	106200000.0000
解质量估计 total_estimate	0.9135
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	37.7 Å
偏度 Skewness skewness	0.135
峰度 Kurtosis kurtosis	-0.564
角度范围 angular_range	— – 0.2650 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	14640000.0000
实空间数据点数 n_real_points	54
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.969; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.994; Smooth: 0.972

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	large T antigen
分子量 formula_weight	43541.4 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	6056

GLKEHDFNPEEAEETKQVSWKLVTEYAMETKCDDVLLLLGMYLEFQYSFEMCLKCIKKEQPSHYKYHEKHYANAAIFADSKNQKTICQQAVDTVLAKKRVDSLQLTREQMLTNRFNDLLDRMDIMFGSTGSADIEEWMAGVAWLHCLLPKMDSVVYDFLKCMVYNIPKKRYWLFKGPIDSGKTTLAAALLELCGGKALNVNLPLDRLNFELGVAIDQFLVVFEDVKGTGGESRDLPSGQGINNLDNLRDYLDGSVKVNLEKKHLNKRTQIFPPGIVTMNEYSVPKTLQARFVKQIDFRPKDYLKHCLERSEFLLEKRIIQSGIALLLMLIWYRPVAEFAQSIQSRIVEWKERLDKEFSLSVYQKMKFNVAMGIGVLD

来源 Source

来源生物 organism	Simian virus 40
NCBI 分类编号 ncbi_taxonomy_id	10633
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 3 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	188

▼

6. 折叠分类 (SCOP + CATH) 8 domains

SCOP 2.08 (2 domains)

结构域编号 domain_id	d1svoa_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
超家族 Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
家族 Family family	c.37.1.20 — Extended AAA-ATPase domain

结构域编号 domain_id	d1svob_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
超家族 Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
家族 Family family	c.37.1.20 — Extended AAA-ATPase domain

CATH v4.4 (6 domains)

结构域编号 domain_id	1svoA01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	10 — Arc Repressor Mutant, subunit A
同源超家族 H-superfamily homologous superfamily	510 — Zinc finger, large T-antigen D1 domain

结构域编号 domain_id	1svoA02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	1050 — Glutathione S-transferase Yfyf (Class Pi); Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	70 — Large T antigen, SV40, domain 3

结构域编号 domain_id	1svoA03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

结构域编号 domain_id	1svoB01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	10 — Arc Repressor Mutant, subunit A
同源超家族 H-superfamily homologous superfamily	510 — Zinc finger, large T-antigen D1 domain

结构域编号 domain_id	1svoB02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	1050 — Glutathione S-transferase Yfyf (Class Pi); Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	70 — Large T antigen, SV40, domain 3

结构域编号 domain_id	1svoB03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	120.444 Å
晶胞边长 b length_b	120.444 Å
晶胞边长 c length_c	131.767 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	120.00 °
晶胞分子数 Z z_pdb	12

空间群 space_group	P 3 2 1
空间群编号 int_tables_number	150
晶系 crystal_system	—

分辨率 resolution	2.600 Å
最低分辨率 resolution_low	30.000 Å
R 因子 r_factor	—
R_work r_work	0.2325
R_free r_free	0.2709

fit	/app/data/saxs_computation/sv/1svo/1svo.fit
pddf	/app/data/pr_computation/sv/1svo/1svo.pr.out
profile	/app/data/saxs_computation/sv/1svo/1svo.dat

Structure of SV40 large T antigen helicase domain

SAXS 散射曲线 SAXS Profile

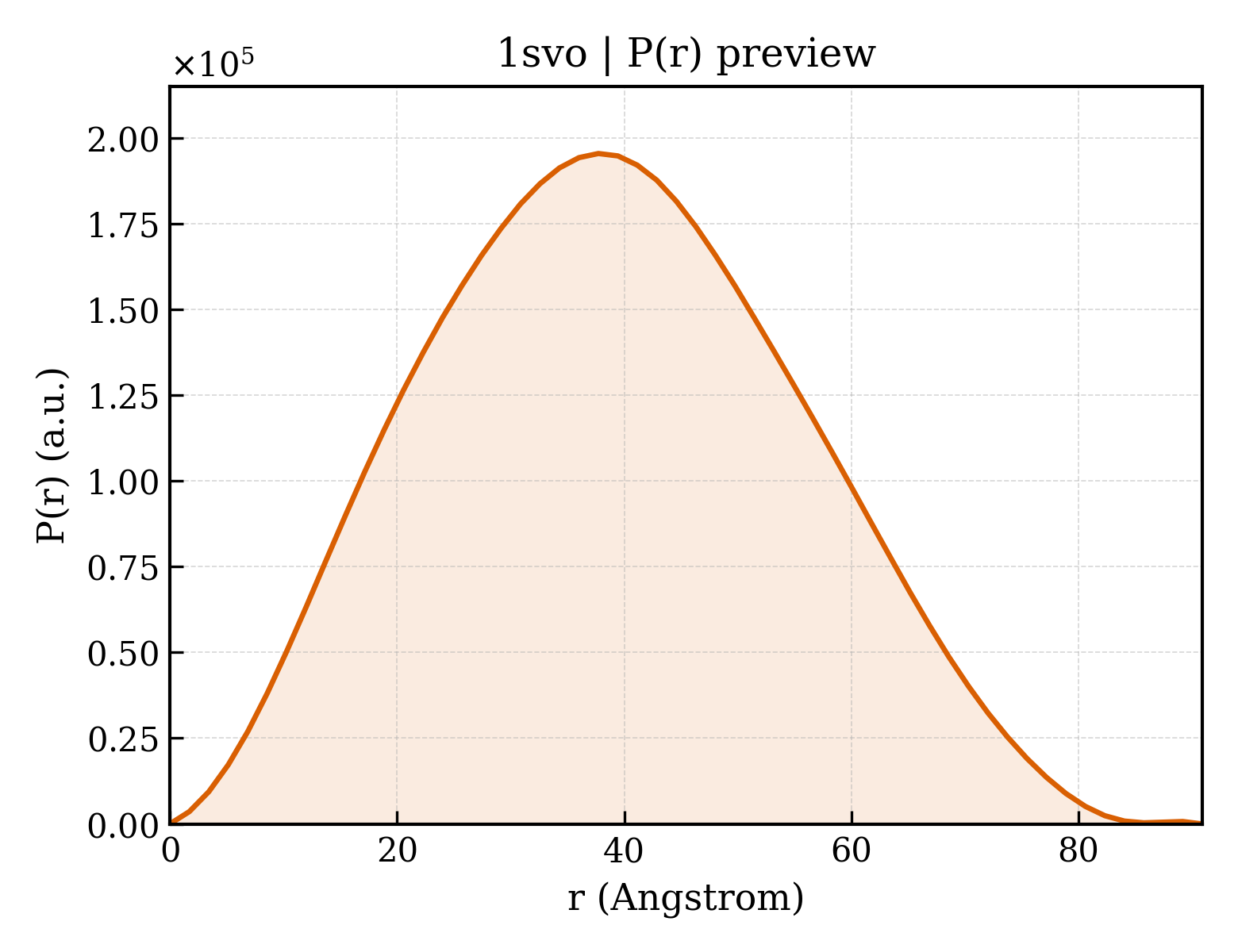

P(r) 距离分布 P(r) Distribution
