SAXSdb — 1tt2

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Thermonuclease

Staphylococcus aureus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	CALCIUM ION × 1 DIMETHYL SULFOXIDE × 2 THYMIDINE-3',5'-DIPHOSPHATE × 1 GLYCEROL × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NUC_STAAU
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–138； UniProt 83–226

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1tt2
Deposition date deposition_date	2004-06-21
Structure title title	Cryogenic crystal structure of Staphylococcal nuclease variant truncated Delta+PHS I92K
Keywords keywords	hydrolase; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1tt2__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1tt2__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

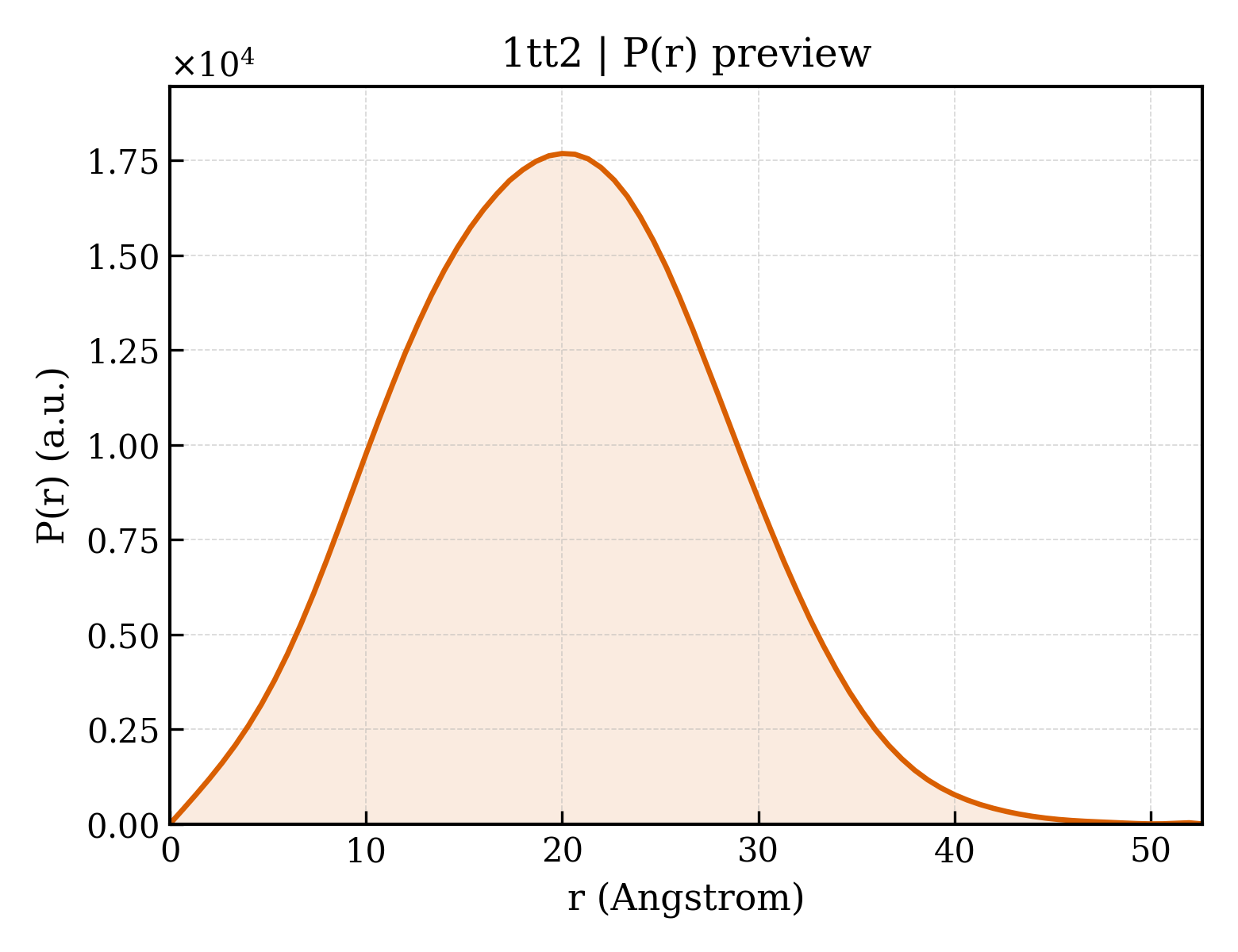

1tt2__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	15.27 Å
Rg (electron density)	14.16 Å
Total Rg	15.51 Å
Atom count	1083
Residues	130
Excluded volume	19515 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1tt2__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Thermonuclease
Molecular weight formula_weight	15701.1 kDa
EC 编号 ec_number	3.1.31.1
Mutation mutation	Deletion of residues 44-49 and 145-149; point mutations G50F, V51N, I92K, P117G, H124L, S128A
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1211

ATSTKKLHKEPATLIKAIDGDTVKLMYKGQPMTFRLLLVDTPEFNEKYGPEASAFTKKMVENAKKIEVEFDKGQRTDKYGRGLAYKYADGKMVNEALVRQGLAKVAYVYKGNNTHEQLLRKAEAQAKKEKLNIWSEDN

Source Source

Source organism organism	Staphylococcus aureus
NCBI taxonomy ID ncbi_taxonomy_id	1280
Host organism host_organism	Escherichia coli BL21

Entity 2 Entity 2 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	DIMETHYL SULFOXIDE
Molecular weight formula_weight	78.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	THYMIDINE-3',5'-DIPHOSPHATE
Molecular weight formula_weight	402.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	116

▼

6. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1tt2a_
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.1 — Staphylococcal nuclease
Family Family family	b.40.1.1 — Staphylococcal nuclease

CATH v4.4 (1 domains)

Domain ID domain_id	1tt2A00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	90 —

▶

Unit-cell length a length_a	47.368 Å
Unit-cell length b length_b	47.368 Å
Unit-cell length c length_c	63.296 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 41
Space-group number int_tables_number	76
Crystal system crystal_system	—

Resolution resolution	1.850 Å
Low-resolution limit resolution_low	23.680 Å
R factor r_factor	0.1890
R_work r_work	0.1890
R_free r_free	0.2110
