2ki4

FGF1-S100A13 complex structure: key component in non-classical path way of FGF1

Method: SOLUTION NMR
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Heparin-binding growth factor 1

Homo sapiens

UniProt P05230

State in the Current Structure

Assembly Physical composition Protein state Molecular copy count Associated components Data consistency
1 Protein heterocomplex Heteromer Protein 4 Protein S100-A13 × 1 （Q99584） Protein S100-A13 × 1 （Q99584） Consistent with protein count

Other States of the Same Protein in the Database

Monomer
1dzc 1dzd 1hkn 1hkn 1hkn 1hkn 1hkn 1hkn 1jqz 1jqz 1jt3 1jt3

187 assemblies; showing the first 12

Homodimer
1jt3 1jt3 1jt5 1jt5 3cqa 3crh

6 assemblies

Homotetramer

None

Other homooligomers

None

Heteromeric or nucleic-acid complex
1axm 1axm 1axm 1djs 1djs 1e0o 1evt 1qql 1ry7 2axm 2erm 2k4a

25 assemblies; showing the first 12

View Construct and Data Evidence
UniProt name FGF1_HUMAN
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 1–133； UniProt 23–155 Author chain D； PDBConstruct 1–133； UniProt 23–155

Protein S100-A13

Homo sapiens

UniProt Q99584

State in the Current Structure

Assembly Physical composition Protein state Molecular copy count Associated components Data consistency
1 Protein heterocomplex Heteromer Protein 4 Heparin-binding growth factor 1 × 2 （P05230） Consistent with protein count

Other States of the Same Protein in the Database

Monomer

None

Homodimer
1yur 1yus 1yut 1yuu 2egd 2h2k 2kot

7 assemblies

Homotetramer

None

Other homooligomers

None

Heteromeric or nucleic-acid complex
2k8m 2ki4 2ki6 2l5x 2le9

5 assemblies

View Construct and Data Evidence
UniProt name S10AD_HUMAN
Isoform —
PDB entities 2, 3
Chains and sequence ranges Author chain B； PDBConstruct 1–98； UniProt 1–98 Author chain C； PDBConstruct 1–98； UniProt 1–98

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id2ki4
Deposition date deposition_date2009-04-27
Structure title titleFGF1-S100A13 complex structure: key component in non-classical path way of FGF1
Keywords keywords;acidic fibroblast growth factor, S100A13, tetrameric complex, Acetylation, Alternative splicing, Angiogenesis, Developmental protein, Differentiation, Growth factor, Heparin-binding, Mitogen, Polymorphism, Calcium, PROTEIN TRANSPORT ;; PROTEIN TRANSPORT
Experimental Method methodSOLUTION NMR
▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2ki4__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

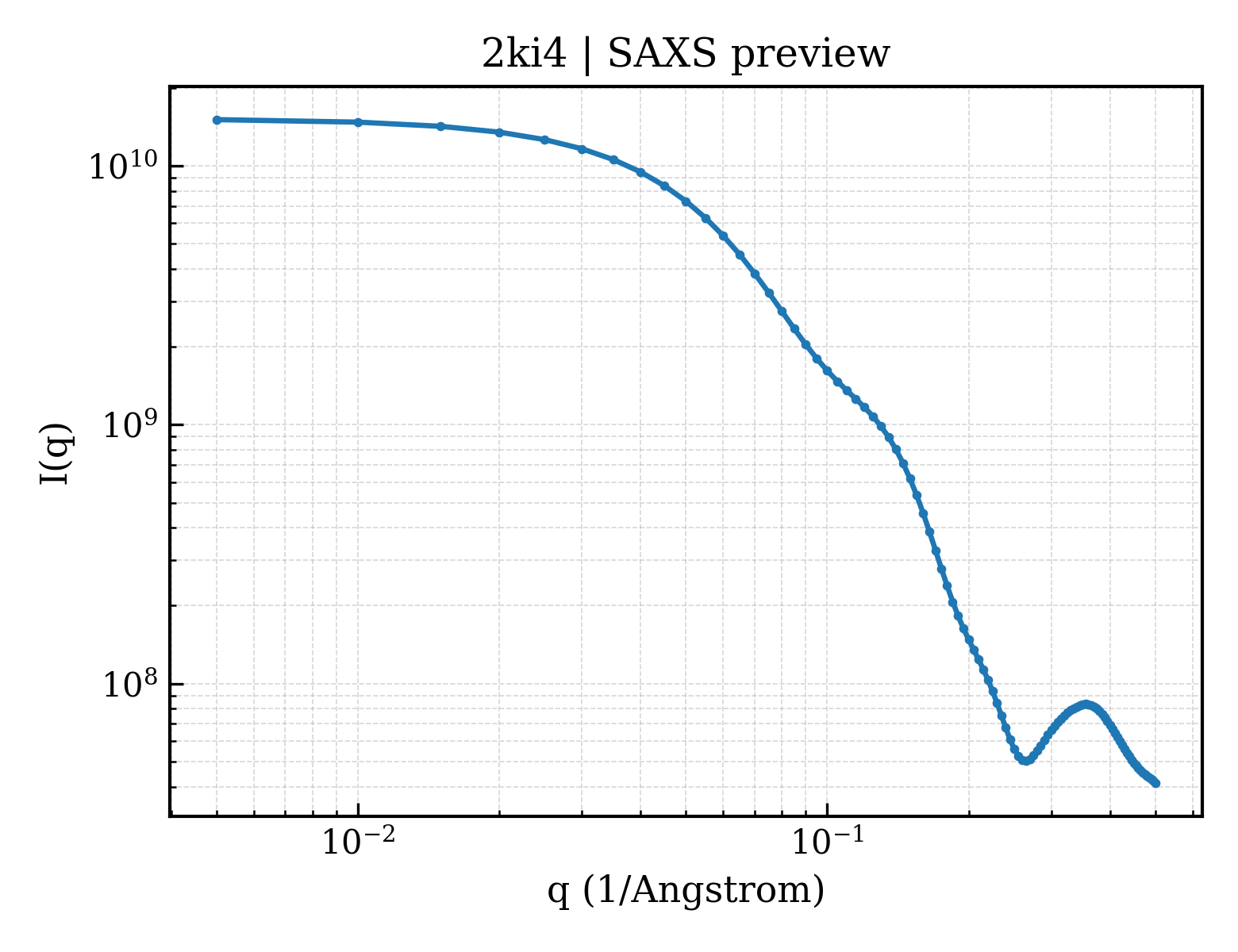

2ki4__assembly_1__model_1 | I(q)

10-2 10-1 105 106 107 q (1/Angstrom) I(q)
100 plotted points; both axes use logarithmic scales.

2ki4__assembly_1__model_1 | P(r) · Pending

The new assembly/model P(r) has not been calculated yet This placeholder does not display legacy data r (Angstrom) P(r)
P(r) will be calculated and displayed separately for the same assembly/model.
Rg（Guinier）30.30 Å
Rg (electron density)29.53 Å
Total Rg30.19 Å
Atom count7505
Residues459
Excluded volume66689 ų
Maximum q0.500 Å⁻¹
Assembly Model Structure unit Oligomeric description Status CRYSOL Actions
1 1 2ki4__assembly_1__model_1 tetrameric （4） Success 4.1.3-1-20251215 (887e7ef) View Download
1 2 2ki4__assembly_1__model_2 tetrameric （4） Success 4.1.3-1-20251215 (887e7ef) View Download
1 3 2ki4__assembly_1__model_3 tetrameric （4） Success 4.1.3-1-20251215 (887e7ef) View Download
1 4 2ki4__assembly_1__model_4 tetrameric （4） Success 4.1.3-1-20251215 (887e7ef) View Download
1 5 2ki4__assembly_1__model_5 tetrameric （4） Success 4.1.3-1-20251215 (887e7ef) View Download
1 6 2ki4__assembly_1__model_6 tetrameric （4） Success 4.1.3-1-20251215 (887e7ef) View Download
1 7 2ki4__assembly_1__model_7 tetrameric （4） Success 4.1.3-1-20251215 (887e7ef) View Download
1 8 2ki4__assembly_1__model_8 tetrameric （4） Success 4.1.3-1-20251215 (887e7ef) View Download
1 9 2ki4__assembly_1__model_9 tetrameric （4） Success 4.1.3-1-20251215 (887e7ef) View Download
1 10 2ki4__assembly_1__model_10 tetrameric （4） Success 4.1.3-1-20251215 (887e7ef) View Download
1 11 2ki4__assembly_1__model_11 tetrameric （4） Success 4.1.3-1-20251215 (887e7ef) View Download
1 12 2ki4__assembly_1__model_12 tetrameric （4） Success 4.1.3-1-20251215 (887e7ef) View Download
1 13 2ki4__assembly_1__model_13 tetrameric （4） Success 4.1.3-1-20251215 (887e7ef) View Download
1 14 2ki4__assembly_1__model_14 tetrameric （4） Success 4.1.3-1-20251215 (887e7ef) View Download
1 15 2ki4__assembly_1__model_15 tetrameric （4） Success 4.1.3-1-20251215 (887e7ef) View Download
1 16 2ki4__assembly_1__model_16 tetrameric （4） Success 4.1.3-1-20251215 (887e7ef) View Download
1 17 2ki4__assembly_1__model_17 tetrameric （4） Success 4.1.3-1-20251215 (887e7ef) View Download
1 18 2ki4__assembly_1__model_18 tetrameric （4） Success 4.1.3-1-20251215 (887e7ef) View Download
1 19 2ki4__assembly_1__model_19 tetrameric （4） Success 4.1.3-1-20251215 (887e7ef) View Download
1 20 2ki4__assembly_1__model_20 tetrameric （4） Success 4.1.3-1-20251215 (887e7ef) View Download
▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_idd2ki4a_
Class classb — All beta proteins
Fold Fold foldb.42 — beta-Trefoil
Superfamily Superfamily superfamilyb.42.1 — Cytokine
Family Family familyb.42.1.1 — Fibroblast growth factors (FGF)
Domain ID domain_idd2ki4b_
Class classa — All alpha proteins
Fold Fold folda.39 — EF Hand-like
Superfamily Superfamily superfamilya.39.1 — EF-hand
Family Family familya.39.1.0 — automated matches
Domain ID domain_idd2ki4c_
Class classa — All alpha proteins
Fold Fold folda.39 — EF Hand-like
Superfamily Superfamily superfamilya.39.1 — EF-hand
Family Family familya.39.1.0 — automated matches
Domain ID domain_idd2ki4d_
Class classb — All beta proteins
Fold Fold foldb.42 — beta-Trefoil
Superfamily Superfamily superfamilyb.42.1 — Cytokine
Family Family familyb.42.1.1 — Fibroblast growth factors (FGF)

CATH v4.4 (4 domains)

Domain ID domain_id2ki4A00
Class class2 — Mainly Beta
Architecture architecture80 — Trefoil
Topology topology10 — Trefoil (Acidic Fibroblast Growth Factor, subunit A)
Homologous superfamily homologous superfamily50 —
Domain ID domain_id2ki4B00
Class class1 — Mainly Alpha
Architecture architecture10 — Orthogonal Bundle
Topology topology238 — Recoverin; domain 1
Homologous superfamily homologous superfamily10 — EF-hand
Domain ID domain_id2ki4C00
Class class1 — Mainly Alpha
Architecture architecture10 — Orthogonal Bundle
Topology topology238 — Recoverin; domain 1
Homologous superfamily homologous superfamily10 — EF-hand
Domain ID domain_id2ki4D00
Class class2 — Mainly Beta
Architecture architecture80 — Trefoil
Topology topology10 — Trefoil (Acidic Fibroblast Growth Factor, subunit A)
Homologous superfamily homologous superfamily50 —
▶

7. Citations (1)
