6bcu

Cryo-EM structure of the activated RHEB-mTORC1 refined to 3.4 angstrom

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Serine/threonine-protein kinase mTOR,Serine/threonine-protein kinase mTOR

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 10	Target of rapamycin complex subunit LST8 × 2 （Q9BVC4） Regulatory-associated protein of mTOR,Regulatory-associated protein of mTOR × 2 （Q8N122） Eukaryotic translation initiation factor 4E-binding protein 1 × 2 （Q13541） GTP-binding protein Rheb × 2 （Q15382） ADENOSINE-5'-TRIPHOSPHATE × 2 MAGNESIUM ION × 6 GUANOSINE-5'-TRIPHOSPHATE × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MTOR_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 579–2549； UniProt 579–2549 Author chain B； PDBConstruct 579–2549； UniProt 579–2549

Target of rapamycin complex subunit LST8

Homo sapiens

UniProt Q9BVC4

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 10	Serine/threonine-protein kinase mTOR,Serine/threonine-protein kinase mTOR × 2 （P42345） Regulatory-associated protein of mTOR,Regulatory-associated protein of mTOR × 2 （Q8N122） Eukaryotic translation initiation factor 4E-binding protein 1 × 2 （Q13541） GTP-binding protein Rheb × 2 （Q15382） ADENOSINE-5'-TRIPHOSPHATE × 2 MAGNESIUM ION × 6 GUANOSINE-5'-TRIPHOSPHATE × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	LST8_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain D； PDBConstruct 1–326； UniProt 1–326 Author chain E； PDBConstruct 1–326； UniProt 1–326

Regulatory-associated protein of mTOR,Regulatory-associated protein of mTOR

Homo sapiens

UniProt Q8N122

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 10	Serine/threonine-protein kinase mTOR,Serine/threonine-protein kinase mTOR × 2 （P42345） Target of rapamycin complex subunit LST8 × 2 （Q9BVC4） Eukaryotic translation initiation factor 4E-binding protein 1 × 2 （Q13541） GTP-binding protein Rheb × 2 （Q15382） ADENOSINE-5'-TRIPHOSPHATE × 2 MAGNESIUM ION × 6 GUANOSINE-5'-TRIPHOSPHATE × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RPTOR_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain W； PDBConstruct 10–669； UniProt 2–661 Author chain W； PDBConstruct 670–1343； UniProt 504–1177 Author chain Y； PDBConstruct 10–669； UniProt 2–661 Author chain Y； PDBConstruct 670–1343； UniProt 504–1177

Eukaryotic translation initiation factor 4E-binding protein 1

Homo sapiens

UniProt Q13541

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 10	Serine/threonine-protein kinase mTOR,Serine/threonine-protein kinase mTOR × 2 （P42345） Target of rapamycin complex subunit LST8 × 2 （Q9BVC4） Regulatory-associated protein of mTOR,Regulatory-associated protein of mTOR × 2 （Q8N122） GTP-binding protein Rheb × 2 （Q15382） ADENOSINE-5'-TRIPHOSPHATE × 2 MAGNESIUM ION × 6 GUANOSINE-5'-TRIPHOSPHATE × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	4EBP1_HUMAN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain X； PDBConstruct 5–122； UniProt 1–118 Author chain Z； PDBConstruct 5–122； UniProt 1–118

GTP-binding protein Rheb

Homo sapiens

UniProt Q15382

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 10	Serine/threonine-protein kinase mTOR,Serine/threonine-protein kinase mTOR × 2 （P42345） Target of rapamycin complex subunit LST8 × 2 （Q9BVC4） Regulatory-associated protein of mTOR,Regulatory-associated protein of mTOR × 2 （Q8N122） Eukaryotic translation initiation factor 4E-binding protein 1 × 2 （Q13541） ADENOSINE-5'-TRIPHOSPHATE × 2 MAGNESIUM ION × 6 GUANOSINE-5'-TRIPHOSPHATE × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RHEB_HUMAN
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain R； PDBConstruct 5–188； UniProt 1–184 Author chain S； PDBConstruct 5–188； UniProt 1–184

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6bcu
Deposition date deposition_date	2017-10-20
Structure title title	Cryo-EM structure of the activated RHEB-mTORC1 refined to 3.4 angstrom
Keywords keywords	PIKK, TRANSFERASE; TRANSFERASE
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

6bcu__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

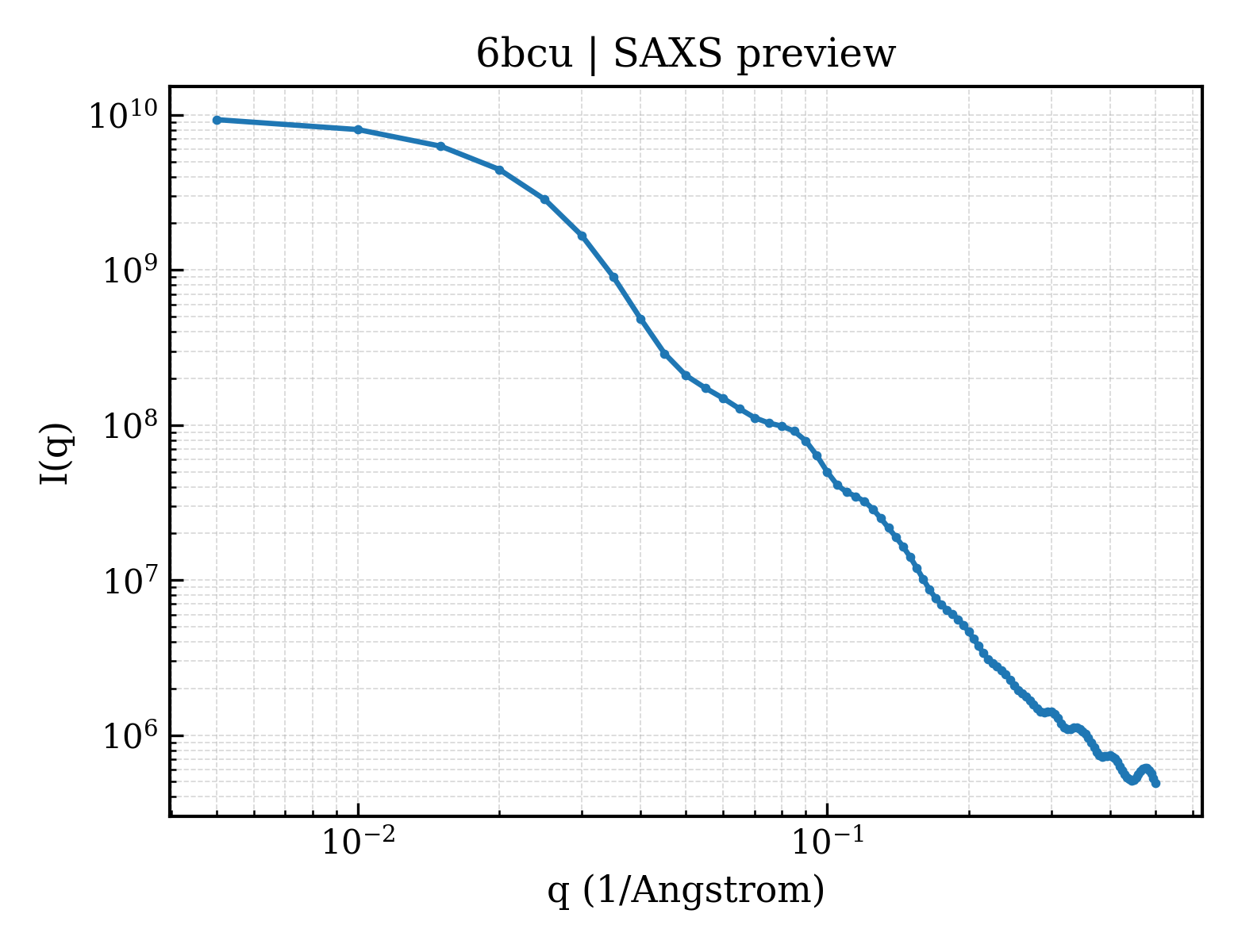

6bcu__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

6bcu__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	76.78 Å
Rg (electron density)	76.19 Å
Total Rg	76.12 Å
Atom count	119740
Residues	7494
Excluded volume	1066200 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`6bcu__assembly_1__model_1`	decameric （10）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (8)

Entity 1 Entity 1 polymer

Description description	Serine/threonine-protein kinase mTOR,Serine/threonine-protein kinase mTOR
Molecular weight formula_weight	287399.1 kDa
EC 编号 ec_number	2.7.11.1
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	119740

MLGTGPAAATTAATTSXXXXXXXXXXXXXXSRNEETXXXXXXXXXXXXXXXXXEMSQEEXTRFYDQLNHHIFELVSSSDANERKGGILAIASLIGVEGGNATRIGRFANYLRNLLPSNDPVVMEMASKAIGRLAMAGDTFTAEYVEFEVKRALEWLGADRNEGRRHAAVLVLRELAISVPTFFFQQVQPFFDNIFVAVWDPKQAIREGAVAALRACLILTTQREPKEMQKPQWYRHTFEEAEKGFDETLAKEKGMNRDDRIHGALLILNELVRISSMEGERLREEMEEITQQQLVHDKYCKDLMGFGTKPRHITPFTSFQAVQPQQSNALVGLLGYSSHQGLMGFGTSPSPAKSTXXXXXXXXXXXXXXXXXXXXXXXXXRNSKNSLIQMTILNLLPRLAAFRPSAFTDTQYLQDTMNHVLSCVKKEKERTAAFQALGLLSVAVRSEFKVYLPRVLDIIRAALPPKDFAHKRQKAMQVDATVFTCISMLARAMGPGIQQDIKELLEPMLAVGLSPALTAVLYDLSRQIPQLKKDIQDGLLKMLSLVLMXKPLRHPGMPKGLAHQLASPGLTTLPEASXVGSITLALRTLGSFEFEGHSLTQFVRHCADHFLNSEHKEIRMEAARTCSRLLTPSIHLISGHAHVVSQTAVQVVADVLSKLLVVGITDPDPDIRYCVLASLDERFDAHLAQAENLQALFVALNDQVFEIRELAICTVGRLSSMNPAFVMPFLRKMLIQILTELEHSGIGRIKEQSARMLGHLVSNAPRLIRPYMEPILKALILKLKDPDPDPNPGVINNVLATIGELAQVSGLEMRKWVDELFIIIMDMLQDSSLLAKRQVALWTLGQLVASTGYVVEPYRKYPTLLEVLLNFLKTEQNQGTRREAIRVLGLLGALDPYKHKVNIGMIDQSRDASAVSLSESKSSQDSSDYSTSEMLVNMGNLPLDEFYPAVSMVALMRIFRDQSLSHHHTMVVQAITFIFKSLGLKCVQFLPQVMPTFLNVIRVCDGAIREFLFQQLGMLVSFVKSHIRPYMDEIVTLMREFWVMNTSIQSTIILLIEQIVVALGGEFKLYLPQLIPHMLRVFMHDNSPGRIVSIKLLAAIQLFGANLDDYLHLLLPPIVKLFDAPEAPLPSRKAALETVDRLTESLDFTDYASRIIHPIVRTLDQSPELRSTAMDTLSSLVFQLGKKYQIFIPMVNKVLVRHRINHQRYDVLICRIVKGYTLADEEEDPLIYQHRMLRSGQGDALASGPVETGPMKKLHVSTINLQKAWGAARRVSKDDWLEWLRRLSLELLKDSSSPSLRSCWALAQAYNPMARDLFNAAFVSCWSELNEDQQDELIRSIELALTSQDIAEVTQTLLNLAEFMEHSDKGPLPLRDDNGIVLLGERAAKCRAYAKALHYKELEFQKGPTPAILESLISINNKLQQPEAAAGVLEYAMKHFGELEIQATWYEKLHEWEDALVAYDKKMDTNKDDPELMLGRMRCLEALGEWGQLHQQCCEKWTLVNDETQAKMARMAAAAAWGLGQWDSMEEYTCMIPRDTHDGAFYRAVLALHQDLFSLAQQCIDKARDLLDAELTAMAGESYSRAYGAMVSCHMLSELEEVIQYKLVPERREIIRQIWWERLQGCQRIVEDWQKILMVRSLVVSPHEDMRTWLKYASLCGKSGRLALAHKTLVLLLGVDPSRQLDHPLPTVHPQVTYAYMKNMWKSARKIDAFQHMQHFVQTMQQQAQHAIATEDQQHKQELHKLMARCFLKLGEWQLNLQGINESTIPKVLQYYSAATEHDRSWYKAWHAWAVMNFEAVLHYKHQNQARDEKKKLRHASGANITNATTAATTAATATTTASTEGSNSESEAESTENSPTPSPLQKKVTEDLSKTLLMYTVPAVQGFFRSISLSRGNNLQDTLRVLTLWFDYGHWPDVNEALVEGVKAIQIDTWLQVIPQLIARIDTPRPLVGRLIHQLLTDIGRYHPQALIYPLTVASKSTTTARHNAANKILKNMCEHSNTLVQQAMMVSEELIRVAILWHEMWHEGLEEASRLYFGERNVKGMFEVLEPLHAMMERGPQTLKETSFNQAYGRDLMEAQEWCRKYMKSGNVKDLTQAWDLYYHVFRRISKQLPQLTSLELQYVSPKLLMCRDLELAVPGTYDPNQPIIRIQSIAPSLQVITSKQRPRKLTLMGSNGHEFVFLLKGHEDLRQDERVMQLFGLVNTLLANDPTSLRKNLSIQRYAVIPLSTNSGLIGWVPHCDTLHALIRDYREKKKILLNIEHRIMLRMAPDYDHLTLMQKVEVFEHAVNNTAGDDLAKLLWLKSPSSEVWFDRRTNYTRSLAVMSMVGYILGLGDRHPSNLMLDRLSGKILHIDFGDCFEVAMTREKFPEKIPFRLTRMLTNAMEVTGLDGNYRITCHTVMEVLREHKDSVMAVLEAFVYDPLLNWRLMDTNTKGNKRSRTRTDSYSAGQSVEILDGVELGEPAHKKTGTTVPESIHSFIGDGLVKPEALNKKAIQIINRVRDKLTGRDFSHDDTLDVPTQVELLIKQATSHENLCQCYIGWCPFW

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	Target of rapamycin complex subunit LST8
Molecular weight formula_weight	35910.1 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,E

MNTSPGTVGSDPVILATAGYDHTVRFWQAHSGICTRTVQHQDSQVNALEVTPDRSMIAAAGYQHIRMYDLNSNNPNPIISYDGVNKNIASVGFHEDGRWMYTGGEDCTARIWDLRSRNLQCQRIFQVNAPINCVCLHPNQAELIVGDQSGAIHIWDLKTDHNEQLIPEPEVSITSAHIDPDASYMAAVNSTGNCYVWNLTGGIGDEVTQLIPKTKIPAHTRYALQCRFSPDSTLLATCSADQTCKIWRTSNFSLMTELSIKSGNPGESSRGWMWGCAFSGDSQYIVTASSDNLARLWCVETGEIKREYGGHQKAVVCLAFNDSVLG

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 3 Entity 3 polymer

Description description	Regulatory-associated protein of mTOR,Regulatory-associated protein of mTOR
Molecular weight formula_weight	150197.0 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	W,Y

MDYKDDDDKESEMLQSPLLGLGEEDEADLTDWNLPLAFMKKRHCEKIEGSKSLAQSWRMKDRMKTVSVALVLCLNVGVDPPDVVKTTPCARLECWIDPLSMGPQKALETIGANLQKQYENWQPRARYKQSLDPTVDEVKKLCTSLRRNAKEERVLFHYNGHGVPRPTVNGEVWVFNKNYTQYIPLSIYDLQTWMGSPSIFVYDCSNAGLIVKSFKQFALQREQELEVAAINPNHPLAQMPLPPSMKNCIQLAACEATELLPMIPDLPADLFTSCLTTPIKIALRWFCMQKCVSLVPGVTLDLIEKIPGRLNDRRTPLGELNWIFTAITDTIAWNVLPRDLFQKLFRQDLLVASLFRNFLLAERIMRSYNCTPVSSPRLPPTYMHAMWQAWDLAVDICLSQLPTIIEEGTAFRHSPFFAEQLTAFQVWLTMGVENRNPPEQLPIVLQVLLSQVHRLRALDLLGRFLDLGPWAVSLALSVGIFPYVLKLLQSSARELRPLLVFIWAKILAVDSSCQADLVKDNGHKYFLSVLADPYMPAEHRTMTAFILAVIVNSYHTGQEACLQGNLIAICLEQLNDPHPLLRQWVAICLGRIWQNFDSARWCGVRDSAHEKLYSLLSDPIPEVRCAAVFALGTFVGNSAERTDHSTTIDHNVAMMLAQLVSDGSPMVRKELVVALSHLVVQYESNFCTVALQFIEEEKNYALPSPATTEGGSLTPVRDSPCTPRLRSVSSYGNIRAVATARSLNKSLQNLSLTEESGGAVAFSPGNLSTSSSASSTLGSPENEEHILSFETIDKMRRASSYSSLNSLIGVSFNSVYTQIWRVLLHLAADPYPEVSDVAMKVLNSIAYKATVNARPQRVLDTSSLTQSAPASPTNKGVHIHQAGGSPPASSTSSSSLTNDVAKQPVSRDLPSGRPGTTGPAGAQYTPHSHQFPRTRKMFDKGPEQTADDADDAAGHKSFISATVQTGFCDWSARYFAQPVMKIPEEHDLESQIRKEREWRFLRNSRVRRQAQQVIQKGITRLDDQIFLNRNPGVPSVVKFHPFTPCIAVADKDSICFWDWEKGEKLDYFHNGNPRYTRVTAMEYLNGQDCSLLLTATDDGAIRVWKNFADLEKNPEMVTAWQGLSDMLPTTRGAGMVVDWEQETGLLMSSGDVRIVRIWDTDREMKVQDIPTGADSCVTSLSCDSHRSLIVAGLGDGSIRVYDRRMALSECRVMTYREHTAWVVKASLQKRPDGHIVSVSVNGDVRIFDPRMPESVNVLQIVKGLTALDIHPQADLIACGSVNQFTAIYNSSGELINNIKYYDGFMGQRVGAISCLAFHPHWPHLAVGSNDYYISVYSVEKRVR

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 4 Entity 4 polymer

Description description	Eukaryotic translation initiation factor 4E-binding protein 1
Molecular weight formula_weight	12951.3 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	X,Z

GSGRMSGGSSCSQTPSRAIPATRRVVLGDGVQLPPGDYSTTPGGTLFSTTPGGTRIIYDRKFLMECRNSPVTKTPPRDLPTIPGVTSPSSDEPPMEASQSHLRNSPEDKRAGGEESQFEMDI

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 5 Entity 5 polymer

Description description	GTP-binding protein Rheb
Molecular weight formula_weight	20877.8 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	S,R

GSGRMPQSKSRKIAILGYRSVGKSSLTIQFVEGQFVDSYDPTIENTFTKLITVNGQEYHLQLVDTAGQDEYSIFPQTYSIDINGYILVYSVTSIKSFEVIKVIHGKLLDMVGKVQIPIMLVGNKKDLHMERVISYEEGKALAESWNAAFLESSAKENQTAVDVFRRIILEAEKMDGAASQGKSSCSVM

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 6 Entity 6 non-polymer

Description description	ADENOSINE-5'-TRIPHOSPHATE
Molecular weight formula_weight	507.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 7 Entity 7 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 8 Entity 8 non-polymer

Description description	GUANOSINE-5'-TRIPHOSPHATE
Molecular weight formula_weight	523.2 kDa
Source method src_method	syn
Copy count entity_count	2

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.800 Å
Low-resolution limit resolution_low	3.800 Å
R factor r_factor	0.3244
R_work r_work	0.3244
R_free r_free	—

Resolution resolution	3.80 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	198237

Cryo-EM structure of the activated RHEB-mTORC1 refined to 3.4 angstrom
