8xi9

Crystal structure of FRB-FKBP fusion protein in complex with rapamycin

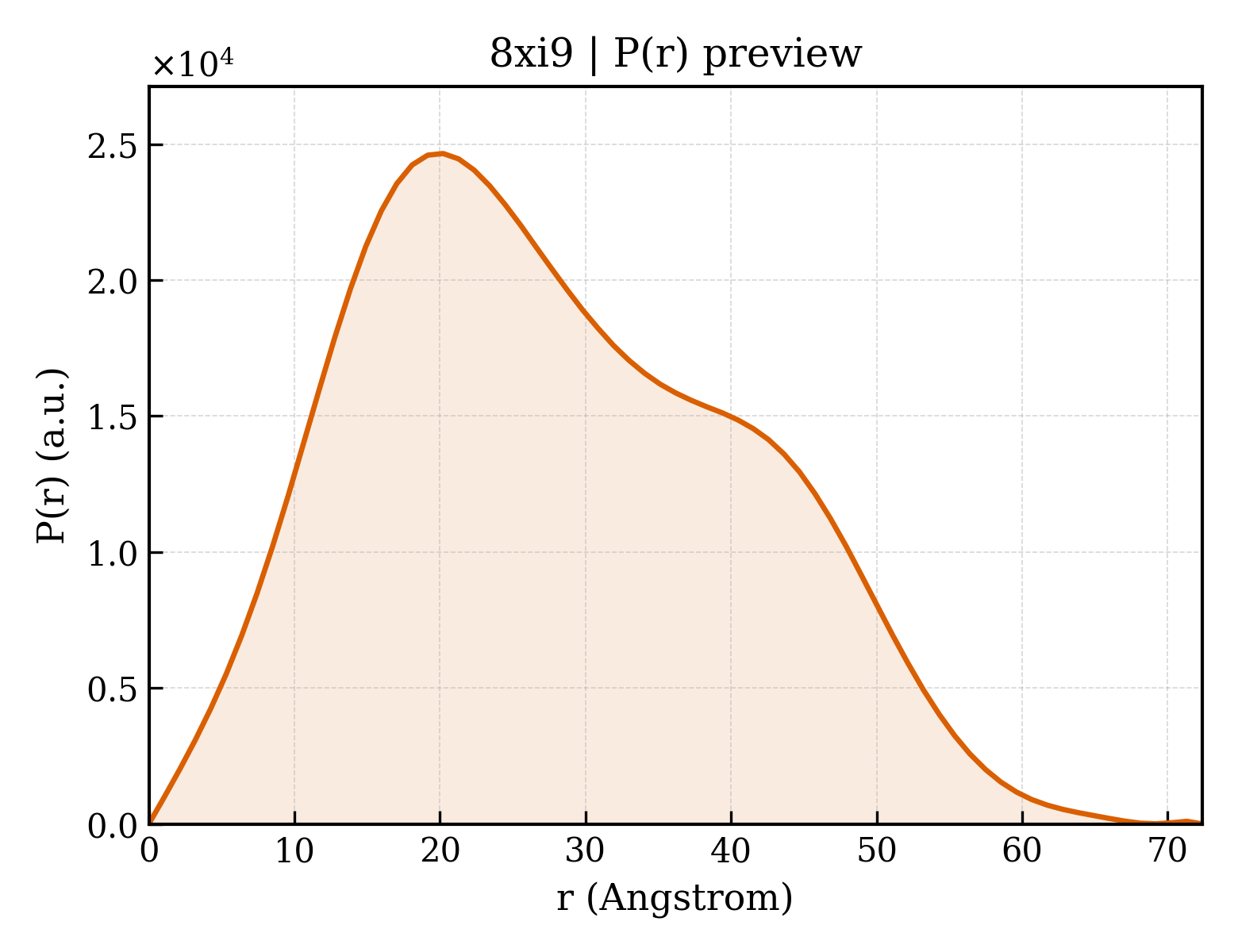

Method: X-RAY DIFFRACTION Dmax: 72.4 Å Quality: GOOD
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

FRB-FKBP fusion protein

Homo sapiens

UniProt P42345

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Insufficient information Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count Chain A； UniProt 2023–2114 Not recorded RAP RAPAMYCIN IMMUNOSUPPRESSANT DRUG × 1 X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 7.4；293 K；4.4M Sodium Acetate Resolution 1.85 Å R-free 0.218

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 8XI9 Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1AUE FKBP-RAPAMYCIN BINDING DOMAIN (FRB) OF THE FKBP-RAPAMYCIN ASSOCIATED PROTEIN Deposited 1997-08-25 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 2015–2114（100 aa） Fragment：FKBP-RAPAMYCIN BINDING DOMAIN
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；277 K；HANGING DROPS AT 4 C, pH 8.0, vapor diffusion - hanging drop, temperature 277K
Resolution 2.33 Å R-free 0.339
1AUE FKBP-RAPAMYCIN BINDING DOMAIN (FRB) OF THE FKBP-RAPAMYCIN ASSOCIATED PROTEIN Deposited 1997-08-25 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 2015–2114（100 aa） Fragment：FKBP-RAPAMYCIN BINDING DOMAIN
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；277 K；HANGING DROPS AT 4 C, pH 8.0, vapor diffusion - hanging drop, temperature 277K
Resolution 2.33 Å R-free 0.339
1FAP THE STRUCTURE OF THE IMMUNOPHILIN-IMMUNOSUPPRESSANT FKBP12-RAPAMYCIN COMPLEX INTERACTING WITH HUMAN FRAP Deposited 1996-03-15 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 2018–2112（95 aa） Fragment：FRB
Not recorded RAP RAPAMYCIN IMMUNOSUPPRESSANT DRUG × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.70 Å R-free 0.299
1NSG THE STRUCTURE OF THE IMMUNOPHILIN-IMMUNOSUPPRESSANT FKBP12-RAPAMYCIN COMPLEX INTERACTING WITH HUMAN FRAP Deposited 1997-07-01 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 2019–2112（94 aa）
Not recorded RAD C49-METHYL RAPAMYCIN × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.20 Å R-free 0.265
2FAP THE STRUCTURE OF THE IMMUNOPHILIN-IMMUNOSUPPRESSANT FKBP12-(C16)-ETHOXY RAPAMYCIN COMPLEX INTERACTING WITH HUMA Deposited 1998-09-22 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 2019–2112（94 aa） Fragment：FRB
Not recorded RAD C49-METHYL RAPAMYCIN × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.5；pH 8.5
Resolution 2.20 Å R-free 0.266
2GAQ NMR SOLUTION STRUCTURE OF THE FRB DOMAIN OF mTOR Deposited 2006-03-09 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 2015–2114（100 aa） Fragment：FRB DOMAIN
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 7.4；283 K；Ionic strength (raw mmCIF value) 20 mM PBS 1 mM DTT；Pressure ambient
NMR sample composition 0.5 mM FRB U-15N | PBS 10% D2O 90% H2O
NMR sample composition 0.5 mM FRB U-15N | PBS 100%D2O
NMR sample composition 0.6 mM FRB U-15N, U-13C | PBS 10% D2O 90% H2O
Resolution not provided
2NPU The solution structure of the rapamycin-binding domain of mTOR (FRB) Deposited 2006-10-30 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 2015–2114（100 aa） Fragment：FRB
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 7；298 K；Ionic strength (raw mmCIF value) 100mM；Pressure ambient
NMR sample composition 0.1 mM FRB domain U-15N,13C; '25mM phosphate buffer; 90% H2O, 10% D2O | 90% H2O/10% D2O
NMR sample composition 0.1 mM FRB domain U-15N; 25mM phosphate buffer, 90% H2O, 10% D2O | 90% H2O/10% D2O
NMR sample composition 0.1 mM FRB domain U-15N,13C with unlabelled aromatics; 25mM phosphate buffer, 90% H2O, 10% D2O | 90% H2O/10% D2O
Resolution not provided
2RSE NMR structure of FKBP12-mTOR FRB domain-rapamycin complex structure determined based on PCS Deposited 2012-01-25 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 2019–2112（94 aa） Fragment：UNP RESIDUES 2019-2112
Not recorded TB TERBIUM(III) ION × 2 SOLUTION NMR
NMR measurement conditions pH 7；298 K；Ionic strength (raw mmCIF value) 0.15；Pressure ambient
NMR sample composition 0.3 mM FKBP12-1, 0.3 mM [U-98% 15N] FRB-2, 90% H2O/10% D2O | 90% H2O/10% D2O
Resolution not provided
3FAP ATOMIC STRUCTURES OF THE RAPAMYCIN ANALOGS IN COMPLEX WITH BOTH HUMAN FKBP12 AND FRB DOMAIN OF FRAP Deposited 1999-05-06 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 2019–2112（94 aa） Fragment：FRB
Not recorded ARD C15-(R)-METHYLTHIENYL RAPAMYCIN × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 8；20% PEG8000, 10% MPD, 0.1 M TRIS-HCL PH 8.5, pH 8.00
Resolution 1.85 Å R-free 0.273
3JBZ Crystal structure of mTOR docked into EM map of dimeric ATM kinase Deposited 2015-11-03 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1385–2549（1165 aa） Fragment：C-terminal domain (UNP RESIDUES 1385-2020, 2119-2549)
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 2 MGF TRIFLUOROMAGNESATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer 25 mM Tris pH 8.0, 100 mM NaCl, 1 mM TCEP, 10% glycerol；pH 8；25 mM Tris, 100 mM NaCl, 1 mM TCEP, 10% glycerol
Resolution 28.00 Å
4DRH Co-crystal structure of the PPIase domain of FKBP51, Rapamycin and the FRB fragment of mTOR at low pH Deposited 2012-02-17 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 2025–2114（90 aa） Fragment：FRB domain, UNP RESIDUES 2025-2114
Not recorded RAP RAPAMYCIN IMMUNOSUPPRESSANT DRUG × 1 SO4 SULFATE ION × 11 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 3.5；293 K；0.1M citric acid 2M (NH4)2SO4, pH 3.5, vapor diffusion, temperature 293K
Resolution 2.30 Å R-free 0.226
4DRH Co-crystal structure of the PPIase domain of FKBP51, Rapamycin and the FRB fragment of mTOR at low pH Deposited 2012-02-17 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain E 2025–2114（90 aa） Fragment：FRB domain, UNP RESIDUES 2025-2114
Not recorded RAP RAPAMYCIN IMMUNOSUPPRESSANT DRUG × 1 SO4 SULFATE ION × 10 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 3.5；293 K；0.1M citric acid 2M (NH4)2SO4, pH 3.5, vapor diffusion, temperature 293K
Resolution 2.30 Å R-free 0.226
4DRI Co-crystal structure of the PPIase domain of FKBP51, Rapamycin and the FRB fragment of mTOR Deposited 2012-02-17 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 2025–2114（90 aa） Fragment：FRB domain, UNP residues 2025-2114
Not recorded RAP RAPAMYCIN IMMUNOSUPPRESSANT DRUG × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；293 K；25% PEG3350, 0.1 M NaCl, 0.1M HEPES-NaOH pH 7.5, vapor diffusion, temperature 293K
Resolution 1.45 Å R-free 0.206
4DRJ o-crystal structure of the PPIase domain of FKBP52, Rapamycin and the FRB fragment of mTOR Deposited 2012-02-17 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 2025–2114（90 aa） Fragment：FRB domain, UNP residues 2025-2114
Not recorded RAP RAPAMYCIN IMMUNOSUPPRESSANT DRUG × 1 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 6.5；293 K；0.1M BisTris, 1.95M (NH4)2SO4, pH 6.5, vapor diffusion, temperature 293K
Resolution 1.80 Å R-free 0.225
4FAP ATOMIC STRUCTURES OF THE RAPAMYCIN ANALOGS IN COMPLEX WITH BOTH HUMAN FKBP12 AND FRB DOMAIN OF FRAP Deposited 1999-05-06 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 2019–2112（94 aa） Fragment：FRB
Not recorded ARD C15-(R)-METHYLTHIENYL RAPAMYCIN × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 8；20% PEG8000, 10% MPD, 0.1 M TRIS-HCL PH 8.5, pH 8.0
Resolution 2.80 Å R-free 0.266
4JSN structure of mTORdeltaN-mLST8 complex Deposited 2013-03-22 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 1376–2549（1174 aa） Fragment：FAT FRB KINASE
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；100 mM Tris, pH 8.5, 6-8% PEG 8000, 500 mM NaCl, 10 % (v/v) Glycerol, 10 mM DTT, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 3.20 Å R-free 0.256
4JSN structure of mTORdeltaN-mLST8 complex Deposited 2013-03-22 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1376–2549（1174 aa） Fragment：FAT FRB KINASE
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；100 mM Tris, pH 8.5, 6-8% PEG 8000, 500 mM NaCl, 10 % (v/v) Glycerol, 10 mM DTT, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 3.20 Å R-free 0.256
4JSP structure of mTORDeltaN-mLST8-ATPgammaS-Mg complex Deposited 2013-03-22 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 1376–2549（1174 aa） Fragment：unp residues 1376-2549
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 1 MG MAGNESIUM ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；PEG 8000, NaCl , pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 3.30 Å R-free 0.268
4JSP structure of mTORDeltaN-mLST8-ATPgammaS-Mg complex Deposited 2013-03-22 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1376–2549（1174 aa） Fragment：unp residues 1376-2549
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 1 MG MAGNESIUM ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；PEG 8000, NaCl , pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 3.30 Å R-free 0.268
4JSV mTOR kinase structure, mechanism and regulation. Deposited 2013-03-22 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 1376–2549（1174 aa） Fragment：unp residues 1376-2549
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 2 MGF TRIFLUOROMAGNESATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions hanging drop vapor diffusion；pH 8.5；277 K；PEG 8000, NaCl, pH 8.5, hanging drop vapor diffusion, temperature 277K
Resolution 3.50 Å R-free 0.251
4JSV mTOR kinase structure, mechanism and regulation. Deposited 2013-03-22 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1376–2549（1174 aa） Fragment：unp residues 1376-2549
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 2 MGF TRIFLUOROMAGNESATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions hanging drop vapor diffusion；pH 8.5；277 K；PEG 8000, NaCl, pH 8.5, hanging drop vapor diffusion, temperature 277K
Resolution 3.50 Å R-free 0.251
4JSX structure of mTORDeltaN-mLST8-Torin2 complex Deposited 2013-03-22 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 1376–2549（1174 aa） Fragment：unp residues 1376-2549
Not recorded 17G 9-(6-aminopyridin-3-yl)-1-[3-(trifluoromethyl)phenyl]benzo[h][1,6]naphthyridin-2(1H)-one × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；PEG 8000, NaCl , pH 8.5, temperature 277K, VAPOR DIFFUSION, HANGING DROP
Resolution 3.50 Å R-free 0.257
4JSX structure of mTORDeltaN-mLST8-Torin2 complex Deposited 2013-03-22 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1376–2549（1174 aa） Fragment：unp residues 1376-2549
Not recorded 17G 9-(6-aminopyridin-3-yl)-1-[3-(trifluoromethyl)phenyl]benzo[h][1,6]naphthyridin-2(1H)-one × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；PEG 8000, NaCl , pH 8.5, temperature 277K, VAPOR DIFFUSION, HANGING DROP
Resolution 3.50 Å R-free 0.257
4JT5 mTORdeltaN-mLST8-pp242 complex Deposited 2013-03-22 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 1376–2549（1174 aa）
Not recorded P2X 2-[4-amino-1-(propan-2-yl)-1H-pyrazolo[3,4-d]pyrimidin-3-yl]-1H-indol-5-ol × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；PEG 8000, NaCl , pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 3.45 Å R-free 0.271
4JT5 mTORdeltaN-mLST8-pp242 complex Deposited 2013-03-22 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1376–2549（1174 aa）
Not recorded P2X 2-[4-amino-1-(propan-2-yl)-1H-pyrazolo[3,4-d]pyrimidin-3-yl]-1H-indol-5-ol × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；PEG 8000, NaCl , pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 3.45 Å R-free 0.271
4JT6 structure of mTORDeltaN-mLST8-PI-103 complex Deposited 2013-03-22 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 1376–2549（1174 aa） Fragment：unp residues 1376-2549
Not recorded X6K 3-(4-MORPHOLIN-4-YLPYRIDO[3',2':4,5]FURO[3,2-D]PYRIMIDIN-2-YL)PHENOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；PEG 8000, NaCl, pH 8.5, hanging drop vapor diffusion, temperature 277K, VAPOR DIFFUSION, HANGING DROP
Resolution 3.60 Å R-free 0.275
4JT6 structure of mTORDeltaN-mLST8-PI-103 complex Deposited 2013-03-22 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1376–2549（1174 aa） Fragment：unp residues 1376-2549
Not recorded X6K 3-(4-MORPHOLIN-4-YLPYRIDO[3',2':4,5]FURO[3,2-D]PYRIMIDIN-2-YL)PHENOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；277 K；PEG 8000, NaCl, pH 8.5, hanging drop vapor diffusion, temperature 277K, VAPOR DIFFUSION, HANGING DROP
Resolution 3.60 Å R-free 0.275
5FLC Architecture of human mTOR Complex 1 - 5.9 Angstrom reconstruction Deposited 2015-10-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain B 1382–2549（1168 aa） Fragment：FAT AND PIKK DOMAINS
Chain F 1382–2549（1168 aa） Fragment：FAT AND PIKK DOMAINS
Not recorded RAP RAPAMYCIN IMMUNOSUPPRESSANT DRUG × 2 ELECTRON MICROSCOPY
cryo-EM buffer 100 MM NACL, 10 MM NABICINE, 1 MM TCEP；pH 8；100 MM NACL, 10 MM NABICINE, 1 MM TCEP
cryo-EM vitrification conditions Cryogen ETHANE；VITRIFICATION 1 -- CRYOGEN- ETHANE, HUMIDITY- 100, TEMPERATURE- 120, INSTRUMENT- FEI VITROBOT MARK I, METHOD- 4 SECOND BLOTTING,
Resolution 5.90 Å
5GPG Co-crystal structure of the FK506 binding domain of human FKBP25, Rapamycin and the FRB domain of human mTOR Deposited 2016-08-02 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 2021–2112（92 aa） Fragment：UNP residues 2021-2112
Non-standard monomer：Yes (specific site not provided by mmCIF) RAP RAPAMYCIN IMMUNOSUPPRESSANT DRUG × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；30% polyethyleneglycol 8000, 100mM sodium cacodylate, 200mM sodium acetate, 10mM manganese chloride
Resolution 1.67 Å R-free 0.212
5H64 Cryo-EM structure of mTORC1 Deposited 2016-11-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain A 1–2549（2549 aa）
Chain a 1–2549（2549 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.40 Å
5WBH Structure of the FRB domain of mTOR bound to a substrate recruitment peptide of S6K1 Deposited 2017-06-29 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 2018–2114（97 aa） Fragment：residues 2018-2114
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；289 K；tacsimate
Resolution 1.75 Å R-free 0.210
5WBH Structure of the FRB domain of mTOR bound to a substrate recruitment peptide of S6K1 Deposited 2017-06-29 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 2018–2114（97 aa） Fragment：residues 2018-2114
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；289 K；tacsimate
Resolution 1.75 Å R-free 0.210
5WBH Structure of the FRB domain of mTOR bound to a substrate recruitment peptide of S6K1 Deposited 2017-06-29 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain C 2018–2114（97 aa） Fragment：residues 2018-2114
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；289 K；tacsimate
Resolution 1.75 Å R-free 0.210
5WBH Structure of the FRB domain of mTOR bound to a substrate recruitment peptide of S6K1 Deposited 2017-06-29 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 2018–2114（97 aa） Fragment：residues 2018-2114
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；289 K；tacsimate
Resolution 1.75 Å R-free 0.210
5WBH Structure of the FRB domain of mTOR bound to a substrate recruitment peptide of S6K1 Deposited 2017-06-29 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 5 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain E 2018–2114（97 aa） Fragment：residues 2018-2114
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；289 K；tacsimate
Resolution 1.75 Å R-free 0.210
5WBU Crystal structure of mTOR(deltaN)-mLST8-PRAS40(alpha-helix & beta-strand) complex Deposited 2017-06-29 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1376–2549（1174 aa） Fragment：residues 1376-2549
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；PEG 8000
Resolution 3.42 Å R-free 0.266
5WBU Crystal structure of mTOR(deltaN)-mLST8-PRAS40(alpha-helix & beta-strand) complex Deposited 2017-06-29 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1376–2549（1174 aa） Fragment：residues 1376-2549
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；PEG 8000
Resolution 3.42 Å R-free 0.266
5WBY Crystal structure of mTOR(deltaN)-mLST8-PRAS40(beta-strand) complex Deposited 2017-06-29 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 1376–2549（1174 aa） Fragment：residues 1376-2549
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；289 K；tacsimate
Resolution 3.10 Å R-free 0.276
5WBY Crystal structure of mTOR(deltaN)-mLST8-PRAS40(beta-strand) complex Deposited 2017-06-29 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1376–2549（1174 aa） Fragment：residues 1376-2549
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；289 K；tacsimate
Resolution 3.10 Å R-free 0.276
5ZCS 4.9 Angstrom Cryo-EM structure of human mTOR complex 2 Deposited 2018-02-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain A 1–2549（2549 aa）
Chain B 1–2549（2549 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.90 Å
6BCU Cryo-EM structure of the activated RHEB-mTORC1 refined to 3.4 angstrom Deposited 2017-10-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain A 579–2549（1971 aa）
Chain B 579–2549（1971 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 6 GTP GUANOSINE-5'-TRIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
6BCX mTORC1 structure refined to 3.0 angstroms Deposited 2017-10-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain A 579–2549（1971 aa）
Chain B 579–2549（1971 aa）
Not recorded ATP ADENOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.23 Å
6M4U Crystal structure of FKBP-FRB T2098L mutant in complex with rapamycin Deposited 2020-03-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 2021–2113（93 aa）
Mutation：T2098L RAP RAPAMYCIN IMMUNOSUPPRESSANT DRUG × 1 ZN ZINC ION × 8 CL CHLORIDE ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；100 mM cacodylic acid buffer (pH 6.5), 350 mM zinc acetate and 8% (w/v) isopropanol
Resolution 2.20 Å R-free 0.258
6M4U Crystal structure of FKBP-FRB T2098L mutant in complex with rapamycin Deposited 2020-03-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain F 2021–2113（93 aa）
Mutation：T2098L RAP RAPAMYCIN IMMUNOSUPPRESSANT DRUG × 1 ZN ZINC ION × 6 CL CHLORIDE ION × 3 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；100 mM cacodylic acid buffer (pH 6.5), 350 mM zinc acetate and 8% (w/v) isopropanol
Resolution 2.20 Å R-free 0.258
6M4W Crystal structure of MBP fused split FKBP-FRB T2098L mutant in complex with rapamycin Deposited 2020-03-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 2021–2113（93 aa）
Mutation：T2098L RAP RAPAMYCIN IMMUNOSUPPRESSANT DRUG × 1 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；100 mM Tris-HCl buffer (pH 7.0), 200 mM calcium acetate and 20% (w/v) PEG 3000
Resolution 3.11 Å R-free 0.278
6M4W Crystal structure of MBP fused split FKBP-FRB T2098L mutant in complex with rapamycin Deposited 2020-03-09 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric
Chain H 2021–2113（93 aa）
Mutation：T2098L RAP RAPAMYCIN IMMUNOSUPPRESSANT DRUG × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；100 mM Tris-HCl buffer (pH 7.0), 200 mM calcium acetate and 20% (w/v) PEG 3000
Resolution 3.11 Å R-free 0.278
6M4W Crystal structure of MBP fused split FKBP-FRB T2098L mutant in complex with rapamycin Deposited 2020-03-09 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 3 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric
Chain I 2021–2113（93 aa）
Mutation：T2098L RAP RAPAMYCIN IMMUNOSUPPRESSANT DRUG × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；100 mM Tris-HCl buffer (pH 7.0), 200 mM calcium acetate and 20% (w/v) PEG 3000
Resolution 3.11 Å R-free 0.278
6SB0 cryo-EM structure of mTORC1 bound to PRAS40-fused active RagA/C GTPases Deposited 2019-07-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric
Chain A 60–355（296 aa）
Chain A 381–2549（2169 aa）
Chain B 60–355（296 aa）
Chain B 381–2549（2169 aa）
Not recorded GTP GUANOSINE-5'-TRIPHOSPHATE × 2 GDP GUANOSINE-5'-DIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7；50mM HEPES pH 7.0, 100mM NaCl, 2mM MgCl2, 1mM TCEP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 5.50 Å
6SB2 cryo-EM structure of mTORC1 bound to active RagA/C GTPases Deposited 2019-07-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain A 60–355（296 aa）
Chain A 381–2549（2169 aa）
Chain B 60–355（296 aa）
Chain B 381–2549（2169 aa）
Not recorded GTP GUANOSINE-5'-TRIPHOSPHATE × 2 GDP GUANOSINE-5'-DIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7；100mM Tris-HCl pH7.0, 260mM NaCl, 5mM MgCl2, 1mM TCEP
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.20 Å
6ZWM cryo-EM structure of human mTOR complex 2, overall refinement Deposited 2020-07-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain A 1–2549（2549 aa）
Chain B 1–2549（2549 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 4 IHP INOSITOL HEXAKISPHOSPHATE × 2 ZN ZINC ION × 2 ACE ACETYL GROUP × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.20 Å
6ZWO cryo-EM structure of human mTOR complex 2, focused on one half Deposited 2020-07-28 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–2549（2549 aa）
Not recorded AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 2 IHP INOSITOL HEXAKISPHOSPHATE × 1 ZN ZINC ION × 1 ACE ACETYL GROUP × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8.5
cryo-EM vitrification conditions Cryogen ETHANE-PROPANE
Resolution 3.00 Å
7OWG human DEPTOR in a complex with mutant human mTORC1 A1459P Deposited 2021-06-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: Octameric
Chain B 1–16（16 aa）
Chain B 31–36（6 aa）
Chain B 54–355（302 aa）
Chain B 379–2549（2171 aa）
Mutation：A1459P Mutation：A1459P Mutation：A1459P Mutation：A1459P No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；50 mM HEPES, pH 7.5, 200 mM NaCl, 1 mM TCEP, 1 mM MgCl2, 500 uM AMP-PNP
cryo-EM vitrification conditions Cryogen ETHANE；blotting time of 2 s and a force of -15.
Resolution 4.70 Å
7PE7 cryo-EM structure of DEPTOR bound to human mTOR complex 2, overall refinement Deposited 2021-08-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric
Chain A 1–2549（2549 aa）
Chain B 1–2549（2549 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 2 ZN ZINC ION × 2 ACE ACETYL GROUP × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.41 Å
7PE8 cryo-EM structure of DEPTOR bound to human mTOR complex 2, focussed on one protomer Deposited 2021-08-09 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain A 1–2549（2549 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 ZN ZINC ION × 1 ACE ACETYL GROUP × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
7PE9 cryo-EM structure of DEPTOR bound to human mTOR complex 2, DEPt-bound subset local refinement Deposited 2021-08-09 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain A 1–2549（2549 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 ZN ZINC ION × 1 ACE ACETYL GROUP × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.70 Å
7PEA cryo-EM structure of DEPTOR bound to human mTOR complex 1, overall refinement Deposited 2021-08-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain A 1–16（16 aa）
Chain A 31–36（6 aa）
Chain A 54–355（302 aa）
Chain A 381–2549（2169 aa）
Chain B 1–16（16 aa）
Chain B 31–36（6 aa）
Chain B 54–355（302 aa）
Chain B 381–2549（2169 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.07 Å
7PEB cryo-EM structure of DEPTOR bound to human mTOR complex 1, focussed on one protomer Deposited 2021-08-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–16（16 aa）
Chain A 31–36（6 aa）
Chain A 54–355（302 aa）
Chain A 381–2549（2169 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.67 Å
7PEC cryo-EM structure of DEPTOR bound to human mTOR complex 1, DEPt-bound subset local refinement Deposited 2021-08-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–16（16 aa）
Chain A 31–36（6 aa）
Chain A 54–355（302 aa）
Chain A 381–2549（2169 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.24 Å
7TZO The apo structure of human mTORC2 complex Deposited 2022-02-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain A 1–2549（2549 aa）
Chain B 1–2549（2549 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.28 Å
7UXC cryo-EM structure of the mTORC1-TFEB-Rag-Ragulator complex with symmetry expansion Deposited 2022-05-05 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 18 PDB declaration: octadecameric
Chain A 1–2549（2549 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 2 GDP GUANOSINE-5'-DIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
7UXH cryo-EM structure of the mTORC1-TFEB-Rag-Ragulator complex Deposited 2022-05-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 36 PDB declaration: 36-meric
Chain A 1–2549（2549 aa）
Chain C 1–2549（2549 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 2 GTP GUANOSINE-5'-TRIPHOSPHATE × 4 MG MAGNESIUM ION × 4 GDP GUANOSINE-5'-DIPHOSPHATE × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
8ERA RMC-5552 in complex with mTORC1 and FKBP12 Deposited 2022-10-11 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–2549（2549 aa）
Not recorded XZ9 1-[6-{[(3M)-4-amino-3-(2-amino-1,3-benzoxazol-5-yl)-1H-pyrazolo[3,4-d]pyrimidin-1-yl]methyl}-3,4-dihydroisoquinolin-2(1H)-yl]-3-hydroxypropan-1-one × 1 XYU (3S,5R,6R,7E,9R,10R,12R,14S,15E,17E,19E,21S,23S,26R,27R,30R,34aS)-5,9,27-trihydroxy-3-{(2R)-1-[(1S,3R,4R)-4-hydroxy-3-methoxycyclohexyl]propan-2-yl}-10,21-dimethoxy-6,8,12,14,20,26-hexamethyl-5,6,9,10,12,13,14,21,22,23,24,25,26,27,32,33,34,34a-octadecahydro-3H-23,27-epoxypyrido[2,1-c][1,4]oxazacyclohentriacontine-1,11,28,29(4H,31H)-tetrone × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.86 Å
8PPZ Co-crystal structure of FKBP12, compound 7 and the FRB fragment of mTOR Deposited 2023-07-10 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 2025–2114（90 aa）
Not recorded 0AN (1~{S},5~{S},6~{R})-10-[3,5-bis(chloranyl)phenyl]sulfonyl-5-[(~{E})-2-(2-chlorophenyl)ethenyl]-3-(pyridin-2-ylmethyl)-3,10-diazabicyclo[4.3.1]decan-2-one × 1 CA CALCIUM ION × 4 ACT ACETATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；10% PEG8000, 0.1 M HEPES pH 7.5, 0.2 M calcium actetate
Resolution 1.85 Å R-free 0.238
8RCH CryoEM structure of mTORC1 with a paediatric kidney cancer-associated 1455-EWED-1458 duplication in mTOR, overall refinement Deposited 2023-12-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain A 1–2549（2549 aa）
Chain B 1–2549（2549 aa）
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 2 MG MAGNESIUM ION × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.00 Å
8RCK CryoEM structure of mTORC1 with a paediatric kidney cancer-associated 1455-EWED-1458 duplication in mTOR, Focused on one protomer copy. Deposited 2023-12-06 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–2549（2549 aa）
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1 MG MAGNESIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
8RCN CryoEM structure of mTORC1 with a paediatric kidney cancer-associated 1455-EWED-1458 duplication in mTOR, Focused region of mTOR and RAPTOR on one protomer copy. Deposited 2023-12-06 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 1–2549（2549 aa）
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1 MG MAGNESIUM ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
9DBO Crystal structure of a synthetic Fab (R3E9) in complex with the FRB domain of mTOR Deposited 2024-08-23 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 2021–2113（93 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293.15 K；0.2 M Calcium chloride dihydrate 16% PEG 3350
Resolution 1.55 Å R-free 0.217
9DL0 Crystal structure of a synthetic Fab (R3H8) in complex with the FRB domain of mTOR Deposited 2024-09-10 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain G 2021–2113（93 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293.15 K；0.1 M HEPES pH 7.5 4% PEG 400 2.2 M ammonium sulfate
Resolution 2.00 Å R-free 0.234
9DL0 Crystal structure of a synthetic Fab (R3H8) in complex with the FRB domain of mTOR Deposited 2024-09-10 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain I 2021–2113（93 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293.15 K；0.1 M HEPES pH 7.5 4% PEG 400 2.2 M ammonium sulfate
Resolution 2.00 Å R-free 0.234
9ED4 A composite map of mTORC1-Rag-Ragultor-4EBP1 on membrane Deposited 2024-11-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 24 PDB declaration: 24-meric
Chain A 1–2549（2549 aa）
Chain O 1–2549（2549 aa）
Not recorded GSP 5'-GUANOSINE-DIPHOSPHATE-MONOTHIOPHOSPHATE × 2 MG MAGNESIUM ION × 8 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 2 IHP INOSITOL HEXAKISPHOSPHATE × 2 GTP GUANOSINE-5'-TRIPHOSPHATE × 2 GDP GUANOSINE-5'-DIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.23 Å
9ED7 Active state of mTOR on membrane Deposited 2024-11-16 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–2549（2549 aa）
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1 MG MAGNESIUM ION × 3 IHP INOSITOL HEXAKISPHOSPHATE × 1 GSP 5'-GUANOSINE-DIPHOSPHATE-MONOTHIOPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.16 Å
9ED8 Intermediate state of mTOR on membrane Deposited 2024-11-16 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–2549（2549 aa）
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1 IHP INOSITOL HEXAKISPHOSPHATE × 1 GSP 5'-GUANOSINE-DIPHOSPHATE-MONOTHIOPHOSPHATE × 1 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.61 Å
9F44 cryo-EM structure of LST2 TOS peptide bound to human mTOR complex 1 Deposited 2024-04-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain A 1–2549（2549 aa）
Chain B 1–2549（2549 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.68 Å
9F45 cryo-EM structure of human LST2 bound to human mTOR complex 1 Deposited 2024-04-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain A 1–2549（2549 aa）
Chain B 1–2549（2549 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.74 Å
9NGT Crystal structure of CRBN-DDB1 and FPFT-2216 in complex with mTOR Deposited 2025-02-22 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 2018–2114（97 aa）
Not recorded ZN ZINC ION × 1 A1BC8 (3S)-3-[(4M)-4-(4-methoxythiophen-3-yl)-1H-1,2,3-triazol-1-yl]piperidine-2,6-dione × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；70 mM MES pH 6.0, 1.8-3.2 % (w/v) PEG 3,000, and 13-24 % (w/v) PEG 200
Resolution 2.95 Å R-free 0.260
9T7J cryo-EM structure of AKT phosphorylated mTOR complex 2, overall refinement Deposited 2025-11-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain A 1–2549（2549 aa）
Chain B 1–2549（2549 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 ZN ZINC ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.00 Å
9T92 cryo-EM structure of autophosphorylated mTOR complex 2, overall refinement Deposited 2025-11-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain A 1–2549（2549 aa）
Chain B 1–2549（2549 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 2 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.10 Å
9T93 cryo-EM structure of autophosphorylated mTOR complex 2, focused on a single protomer Deposited 2025-11-13 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–2549（2549 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.86 Å
9T94 cryo-EM structure of AKT phosphorylated mTOR complex 2, focused on a single protomer Deposited 2025-11-13 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–2549（2549 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.60 Å
9TDS cryo-EM structure of dephosphorylated mTOR complex 2, overall refinement Deposited 2025-11-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain A 1–2549（2549 aa）
Chain B 1–2549（2549 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 2 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
9TDT cryo-EM structure of dephosphorylated mTOR complex 2, focused on a single protomer Deposited 2025-11-24 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–2549（2549 aa）
Not recorded IHP INOSITOL HEXAKISPHOSPHATE × 1 ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.00 Å
9TPW cryo-ET structure of mTOR complex 2 on a PIP2-containing membrane Deposited 2025-12-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain A 1–2549（2549 aa）
Chain B 1–2549（2549 aa）
Not recorded ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.40 Å
9ZBJ Cryo-EM structure of human apo mTORC2 Deposited 2025-11-20 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 203–2549（2347 aa）
Not recorded ZN ZINC ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
9ZBK mTORC2 in complex with Akt1 Deposited 2025-11-20 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric
Chain A 80–2549（2470 aa）
Not recorded ZN ZINC ION × 1 A1AID (1M,9M)-1-{4-[4-(prop-2-enoyl)piperazin-1-yl]-3-(trifluoromethyl)phenyl}-9-(quinolin-3-yl)benzo[h][1,6]naphthyridin-2(1H)-one × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.60 Å

66 other PDB entries and 84 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name MTOR_HUMAN
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 3–94； UniProt 2023–2114

FRB-FKBP fusion protein

Homo sapiens

UniProt P62942

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Insufficient information Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count Chain A； UniProt 1–108 Not recorded RAP RAPAMYCIN IMMUNOSUPPRESSANT DRUG × 1 X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 7.4；293 K；4.4M Sodium Acetate Resolution 1.85 Å R-free 0.218

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 8XI9 Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1A7X FKBP12-FK1012 COMPLEX Deposited 1998-03-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–107（107 aa）
Chain B 1–107（107 aa）
Not recorded FKA BENZYL-CARBAMIC ACID [8-DEETHYL-ASCOMYCIN-8-YL]ETHYL ESTER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；A 10MG/ML SOLUTION OF FK1012A IN MEOH WAS ADDED IN A 1:2 MOLAR RATIO TO A 10MG/ML SOLUTION OF FKBP12 IN 10MM TRIS PH 8.2. THE SAMPLE WAS GENTLY MIXED AND ALLOWED TO INCUBATE OVERNIGHT TO ENSURE COMPLETE BINDING. CRYSTALS WERE GROWN USING THE HANGING DROP METHOD WITH 0.5ML RESERVOIR CONSISTING OF 5.1M SODIUM FORMATE AND 0.1M SODIUM ACETATE PH 4.6. THE DROPS CONSISTED OF 3UL OF PROTEIN AND 3UL OF RESERVOIR SOLUTION., vapor diffusion - hanging drop
Resolution 2.00 Å
1B6C CRYSTAL STRUCTURE OF THE CYTOPLASMIC DOMAIN OF THE TYPE I TGF-BETA RECEPTOR IN COMPLEX WITH FKBP12 Deposited 1999-01-13 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–107（107 aa）
Not recorded SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.5；pH 8.5
Resolution 2.60 Å R-free 0.269
1B6C CRYSTAL STRUCTURE OF THE CYTOPLASMIC DOMAIN OF THE TYPE I TGF-BETA RECEPTOR IN COMPLEX WITH FKBP12 Deposited 1999-01-13 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 1–107（107 aa）
Not recorded SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.5；pH 8.5
Resolution 2.60 Å R-free 0.269
1B6C CRYSTAL STRUCTURE OF THE CYTOPLASMIC DOMAIN OF THE TYPE I TGF-BETA RECEPTOR IN COMPLEX WITH FKBP12 Deposited 1999-01-13 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain E 1–107（107 aa）
Not recorded SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.5；pH 8.5
Resolution 2.60 Å R-free 0.269
1B6C CRYSTAL STRUCTURE OF THE CYTOPLASMIC DOMAIN OF THE TYPE I TGF-BETA RECEPTOR IN COMPLEX WITH FKBP12 Deposited 1999-01-13 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain G 1–107（107 aa）
Not recorded SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.5；pH 8.5
Resolution 2.60 Å R-free 0.269
1B6C CRYSTAL STRUCTURE OF THE CYTOPLASMIC DOMAIN OF THE TYPE I TGF-BETA RECEPTOR IN COMPLEX WITH FKBP12 Deposited 1999-01-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 5 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain A 1–107（107 aa）
Chain C 1–107（107 aa）
Chain E 1–107（107 aa）
Chain G 1–107（107 aa）
Not recorded SO4 SULFATE ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.5；pH 8.5
Resolution 2.60 Å R-free 0.269
1BKF FK506 BINDING PROTEIN FKBP MUTANT R42K/H87V COMPLEX WITH IMMUNOSUPPRESSANT FK506 Deposited 1995-10-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–107（107 aa）
Mutation：R42K, H87V FK5 8-DEETHYL-8-[BUT-3-ENYL]-ASCOMYCIN × 2 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.60 Å
1BL4 FKBP MUTANT F36V COMPLEXED WITH REMODELED SYNTHETIC LIGAND Deposited 1998-07-23 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric
Chain not uniquely mapped Reference range not declared
Chain A 1–107（107 aa）
Mutation：F36V Mutation：F36V AP1 {3-[3-(3,4-DIMETHOXY-PHENYL)-1-(1-{1-[2-(3,4,5-TRIMETHOXY-PHENYL)-BUTYRYL]-PIPERIDIN-2YL}-VINYLOXY)-PROPYL]-PHENOXY}-ACETIC ACID × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；VAPOR DIFFUSION IN HANGING DROPS WITH 40 MG/ML COMPLEX AND 1.2M AMMONIUM SULFATE, 0.1M SODIUM PHOSPHATE, PH 6.0 OVER RESERVOIRS OF 2.4 M AMMONIUM SULFATE, vapor diffusion - hanging drop
Resolution 1.90 Å R-free 0.230
1D6O NATIVE FKBP Deposited 1999-10-15 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–107（107 aa）
Not recorded NH4 AMMONIUM ION × 1 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions EVAPORATION；pH 8；297 K；56 % SAT. AMMONIUM SULFATE 5 % DMSO 100 MM TRIS (PH 8.0), EVAPORATION, temperature 297K
Resolution 1.85 Å R-free 0.237
1D6O NATIVE FKBP Deposited 1999-10-15 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 1–107（107 aa）
Not recorded NH4 AMMONIUM ION × 1 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions EVAPORATION；pH 8；297 K；56 % SAT. AMMONIUM SULFATE 5 % DMSO 100 MM TRIS (PH 8.0), EVAPORATION, temperature 297K
Resolution 1.85 Å R-free 0.237
1D6O NATIVE FKBP Deposited 1999-10-15 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain B 1–107（107 aa）
Not recorded NH4 AMMONIUM ION × 2 SO4 SULFATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions EVAPORATION；pH 8；297 K；56 % SAT. AMMONIUM SULFATE 5 % DMSO 100 MM TRIS (PH 8.0), EVAPORATION, temperature 297K
Resolution 1.85 Å R-free 0.237
1D6O NATIVE FKBP Deposited 1999-10-15 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 4 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–107（107 aa）
Not recorded NH4 AMMONIUM ION × 2 SO4 SULFATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions EVAPORATION；pH 8；297 K；56 % SAT. AMMONIUM SULFATE 5 % DMSO 100 MM TRIS (PH 8.0), EVAPORATION, temperature 297K
Resolution 1.85 Å R-free 0.237
1D7H FKBP COMPLEXED WITH DMSO Deposited 1999-10-18 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–107（107 aa）
Not recorded NH4 AMMONIUM ION × 1 SO4 SULFATE ION × 1 DMS DIMETHYL SULFOXIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；297 K；56 % SAT. AMMONIUM SULFATE 5 % DMSO, 100 MM TRIS (PH 8.0), VAPOR DIFFUSION, HANGING DROP, temperature 297K
Resolution 1.90 Å R-free 0.273
1D7H FKBP COMPLEXED WITH DMSO Deposited 1999-10-18 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 1–107（107 aa）
Not recorded NH4 AMMONIUM ION × 1 SO4 SULFATE ION × 1 DMS DIMETHYL SULFOXIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；297 K；56 % SAT. AMMONIUM SULFATE 5 % DMSO, 100 MM TRIS (PH 8.0), VAPOR DIFFUSION, HANGING DROP, temperature 297K
Resolution 1.90 Å R-free 0.273
1D7H FKBP COMPLEXED WITH DMSO Deposited 1999-10-18 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–107（107 aa）
Not recorded NH4 AMMONIUM ION × 2 SO4 SULFATE ION × 2 DMS DIMETHYL SULFOXIDE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；297 K；56 % SAT. AMMONIUM SULFATE 5 % DMSO, 100 MM TRIS (PH 8.0), VAPOR DIFFUSION, HANGING DROP, temperature 297K
Resolution 1.90 Å R-free 0.273
1D7H FKBP COMPLEXED WITH DMSO Deposited 1999-10-18 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 4 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain B 1–107（107 aa）
Not recorded NH4 AMMONIUM ION × 2 SO4 SULFATE ION × 2 DMS DIMETHYL SULFOXIDE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；297 K；56 % SAT. AMMONIUM SULFATE 5 % DMSO, 100 MM TRIS (PH 8.0), VAPOR DIFFUSION, HANGING DROP, temperature 297K
Resolution 1.90 Å R-free 0.273
1D7I FKBP COMPLEXED WITH METHYL METHYLSULFINYLMETHYL SULFIDE (DSS) Deposited 1999-10-18 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–107（107 aa）
Not recorded NH4 AMMONIUM ION × 1 SO4 SULFATE ION × 1 DSS METHYL METHYLSULFINYLMETHYL SULFIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；297 K；CRYSTALLIZATION CONDITIONS: 56 % SAT. AMMONIUM SULFATE 5 % METHYL SULFINYL- METHYL SULFOXIDE, 100 MM TRIS (PH 8.0), VAPOR DIFFUSION, HANGING DROP, temperature 297K
Resolution 1.90 Å R-free 0.283
1D7I FKBP COMPLEXED WITH METHYL METHYLSULFINYLMETHYL SULFIDE (DSS) Deposited 1999-10-18 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 1–107（107 aa）
Not recorded NH4 AMMONIUM ION × 1 SO4 SULFATE ION × 1 DSS METHYL METHYLSULFINYLMETHYL SULFIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；297 K；CRYSTALLIZATION CONDITIONS: 56 % SAT. AMMONIUM SULFATE 5 % METHYL SULFINYL- METHYL SULFOXIDE, 100 MM TRIS (PH 8.0), VAPOR DIFFUSION, HANGING DROP, temperature 297K
Resolution 1.90 Å R-free 0.283
1D7I FKBP COMPLEXED WITH METHYL METHYLSULFINYLMETHYL SULFIDE (DSS) Deposited 1999-10-18 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–107（107 aa）
Not recorded NH4 AMMONIUM ION × 2 SO4 SULFATE ION × 2 DSS METHYL METHYLSULFINYLMETHYL SULFIDE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；297 K；CRYSTALLIZATION CONDITIONS: 56 % SAT. AMMONIUM SULFATE 5 % METHYL SULFINYL- METHYL SULFOXIDE, 100 MM TRIS (PH 8.0), VAPOR DIFFUSION, HANGING DROP, temperature 297K
Resolution 1.90 Å R-free 0.283
1D7I FKBP COMPLEXED WITH METHYL METHYLSULFINYLMETHYL SULFIDE (DSS) Deposited 1999-10-18 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 4 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain B 1–107（107 aa）
Not recorded NH4 AMMONIUM ION × 2 SO4 SULFATE ION × 2 DSS METHYL METHYLSULFINYLMETHYL SULFIDE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；297 K；CRYSTALLIZATION CONDITIONS: 56 % SAT. AMMONIUM SULFATE 5 % METHYL SULFINYL- METHYL SULFOXIDE, 100 MM TRIS (PH 8.0), VAPOR DIFFUSION, HANGING DROP, temperature 297K
Resolution 1.90 Å R-free 0.283
1D7J FKBP COMPLEXED WITH 4-HYDROXY-2-BUTANONE Deposited 1999-10-18 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–107（107 aa）
Not recorded NH4 AMMONIUM ION × 1 SO4 SULFATE ION × 1 BUQ 4-HYDROXY-2-BUTANONE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；297 K；CRYSTALLIZATION CONDITIONS: 56 % SAT. AMMONIUM SULFATE 5 % 4-HYDROXY-2- BUTANONE 100 MM TRIS (PH 8.0), VAPOR DIFFUSION, HANGING DROP, temperature 297K
Resolution 1.85 Å R-free 0.254
1D7J FKBP COMPLEXED WITH 4-HYDROXY-2-BUTANONE Deposited 1999-10-18 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 1–107（107 aa）
Not recorded NH4 AMMONIUM ION × 1 SO4 SULFATE ION × 1 BUQ 4-HYDROXY-2-BUTANONE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；297 K；CRYSTALLIZATION CONDITIONS: 56 % SAT. AMMONIUM SULFATE 5 % 4-HYDROXY-2- BUTANONE 100 MM TRIS (PH 8.0), VAPOR DIFFUSION, HANGING DROP, temperature 297K
Resolution 1.85 Å R-free 0.254
1D7J FKBP COMPLEXED WITH 4-HYDROXY-2-BUTANONE Deposited 1999-10-18 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–107（107 aa）
Not recorded NH4 AMMONIUM ION × 2 SO4 SULFATE ION × 2 BUQ 4-HYDROXY-2-BUTANONE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；297 K；CRYSTALLIZATION CONDITIONS: 56 % SAT. AMMONIUM SULFATE 5 % 4-HYDROXY-2- BUTANONE 100 MM TRIS (PH 8.0), VAPOR DIFFUSION, HANGING DROP, temperature 297K
Resolution 1.85 Å R-free 0.254
1D7J FKBP COMPLEXED WITH 4-HYDROXY-2-BUTANONE Deposited 1999-10-18 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 4 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain B 1–107（107 aa）
Not recorded NH4 AMMONIUM ION × 2 SO4 SULFATE ION × 2 BUQ 4-HYDROXY-2-BUTANONE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；297 K；CRYSTALLIZATION CONDITIONS: 56 % SAT. AMMONIUM SULFATE 5 % 4-HYDROXY-2- BUTANONE 100 MM TRIS (PH 8.0), VAPOR DIFFUSION, HANGING DROP, temperature 297K
Resolution 1.85 Å R-free 0.254
1EYM FK506 BINDING PROTEIN MUTANT, HOMODIMERIC COMPLEX Deposited 2000-05-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 2–108（107 aa）
Chain B 2–108（107 aa）
Mutation：YES Mutation：YES No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；200 mM NaCl, 2mM EDTA, 5mM DTT, 0.02% NaN3, concentrate to ~0.75 mg/ml, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 4K
Resolution 2.00 Å R-free 0.290
1F40 SOLUTION STRUCTURE OF FKBP12 COMPLEXED WITH GPI-1046, A NEUROTROPHIC LIGAND Deposited 2000-06-07 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 2–108（107 aa）
Not recorded GPI (2S)-[3-PYRIDYL-1-PROPYL]-1-[3,3-DIMETHYL-1,2-DIOXOPENTYL]-2-PYRROLIDINECARBOXYLATE × 1 SOLUTION NMR
NMR measurement conditions pH 6.5；300 K；Ionic strength (raw mmCIF value) 100mM；Pressure ambient
NMR sample composition 0.5 mM FKBP12 U-15N; 100 mM phosphate buffer; 0.01% NaN3 | 90% H2O/10% D2O
NMR sample composition 0.5 mM FKBP12 U-15N; 1mM GPI-1046; 100 mM phosphate buffer; 0.01% NaN3 | 90% H2O/10% D2O
NMR sample composition 2mM FKBP12 U-15N,13C; 2mM GPI-1046; 100 mM phosphate buffer; 0.01% NaN3 | 90% H2O/10% D2O
Resolution not provided
1FAP THE STRUCTURE OF THE IMMUNOPHILIN-IMMUNOSUPPRESSANT FKBP12-RAPAMYCIN COMPLEX INTERACTING WITH HUMAN FRAP Deposited 1996-03-15 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–107（107 aa）
Not recorded RAP RAPAMYCIN IMMUNOSUPPRESSANT DRUG × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.70 Å R-free 0.299
1FKB ATOMIC STRUCTURE OF THE RAPAMYCIN HUMAN IMMUNOPHILIN FKBP-12 COMPLEX Deposited 1992-07-02 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–107（107 aa）
Not recorded RAP RAPAMYCIN IMMUNOSUPPRESSANT DRUG × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.70 Å
1FKD FK-506 BINDING PROTEIN: THREE-DIMENSIONAL STRUCTURE OF THE COMPLEX WITH THE ANTAGONIST L-685,818 Deposited 1992-12-02 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–107（107 aa）
Not recorded 818 18-HYDROXYASCOMYCIN × 2 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.72 Å
1FKD FK-506 BINDING PROTEIN: THREE-DIMENSIONAL STRUCTURE OF THE COMPLEX WITH THE ANTAGONIST L-685,818 Deposited 1992-12-02 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 1–107（107 aa）
Not recorded 818 18-HYDROXYASCOMYCIN × 4 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.72 Å
1FKF ATOMIC STRUCTURE OF FKBP-FK506, AN IMMUNOPHILIN-IMMUNOSUPPRESSANT COMPLEX Deposited 1991-05-07 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–107（107 aa）
Not recorded FK5 8-DEETHYL-8-[BUT-3-ENYL]-ASCOMYCIN × 2 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.70 Å
1FKG DESIGN, SYNTHESIS, AND KINETIC EVALUATION OF HIGH-AFFINITY FKBP LIGANDS, AND THE X-RAY CRYSTAL STRUCTURES OF THEIR COMPLEXES WITH FKBP12 Deposited 1993-08-05 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–107（107 aa）
Not recorded SB3 1,3-DIPHENYL-1-PROPYL-1-(3,3-DIMETHYL-1,2-DIOXYPENTYL)-2-PIPERIDINE CARBOXYLATE × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.00 Å
1FKH DESIGN, SYNTHESIS, AND KINETIC EVALUATION OF HIGH-AFFINITY FKBP LIGANDS, AND THE X-RAY CRYSTAL STRUCTURES OF THEIR COMPLEXES WITH FKBP12 Deposited 1993-08-05 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–107（107 aa）
Not recorded SBX 1-CYCLOHEXYL-3-PHENYL-1-PROPYL-1-(3,3-DIMETHYL-1,2-DIOXYPENTYL)-2-PIPERIDINE CARBOXYLATE × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.95 Å
1FKI DESIGN, SYNTHESIS, AND KINETIC EVALUATION OF HIGH-AFFINITY FKBP LIGANDS, AND THE X-RAY CRYSTAL STRUCTURES OF THEIR COMPLEXES WITH FKBP12 Deposited 1993-08-05 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–107（107 aa）
Chain B 1–107（107 aa）
Not recorded SB1 (21S)-1AZA-4,4-DIMETHYL-6,19-DIOXA-2,3,7,20-TETRAOXOBICYCLO[19.4.0] PENTACOSANE × 2 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.20 Å
1FKJ ATOMIC STRUCTURE OF FKBP12-FK506, AN IMMUNOPHILIN IMMUNOSUPPRESSANT COMPLEX Deposited 1995-08-18 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–107（107 aa）
Not recorded FK5 8-DEETHYL-8-[BUT-3-ENYL]-ASCOMYCIN × 2 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.70 Å
1FKJ ATOMIC STRUCTURE OF FKBP12-FK506, AN IMMUNOPHILIN IMMUNOSUPPRESSANT COMPLEX Deposited 1995-08-18 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 1–107（107 aa）
Not recorded FK5 8-DEETHYL-8-[BUT-3-ENYL]-ASCOMYCIN × 4 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.70 Å
1FKR SOLUTION STRUCTURE OF FKBP, A ROTAMASE ENZYME AND RECEPTOR FOR FK506 AND RAPAMYCIN Deposited 1992-03-05 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–107（107 aa）
Not recorded No recorded non-water small molecule SOLUTION NMR mmCIF provides none of the parsed conditions Resolution not provided
1FKS SOLUTION STRUCTURE OF FKBP, A ROTAMASE ENZYME AND RECEPTOR FOR FK506 AND RAPAMYCIN Deposited 1992-03-05 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–107（107 aa）
Not recorded No recorded non-water small molecule SOLUTION NMR mmCIF provides none of the parsed conditions Resolution not provided
1FKT SOLUTION STRUCTURE OF FKBP, A ROTAMASE ENZYME AND RECEPTOR FOR FK506 AND RAPAMYCIN Deposited 1992-03-05 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–107（107 aa）
Not recorded No recorded non-water small molecule SOLUTION NMR mmCIF provides none of the parsed conditions Resolution not provided
1J4H crystal structure analysis of the FKBP12 complexed with 000107 small molecule Deposited 2001-09-30 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–107（107 aa）
Not recorded SUB 3-PHENYL-2-{[4-(TOLUENE-4-SULFONYL)-THIOMORPHOLINE-3-CARBONYL]-AMINO}-PROPIONIC ACID ETHYL ESTER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions EVAPORATION；pH 6.5；291 K；PEG10000, HEPES, pH 6.5, EVAPORATION, temperature 291K
Resolution 1.80 Å R-free 0.250
1J4I crystal structure analysis of the FKBP12 complexed with 000308 small molecule Deposited 2001-09-30 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–107（107 aa）
Not recorded TST 4-METHYL-2-{[4-(TOLUENE-4-SULFONYL)-THIOMORPHOLINE-3-CARBONYL]-AMINO}-PENTANOIC ACID × 1 X-RAY DIFFRACTION
X-ray crystallization conditions EVAPORATION；pH 6.5；291 K；PEG10000, HEPES, pH 6.5, EVAPORATION, temperature 291K
Resolution 1.80 Å R-free 0.209
1J4R FK506 BINDING PROTEIN COMPLEXED WITH FKB-001 Deposited 2001-10-29 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–107（107 aa）
Not recorded 001 1-[2,2-DIFLUORO-2-(3,4,5-TRIMETHOXY-PHENYL)-ACETYL]-PIPERIDINE-2-CARBOXYLIC ACID 4-PHENYL-1-(3-PYRIDIN-3-YL-PROPYL)-BUTYL ESTER × 1 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.5；2.5 M AMMONIUM SULFATE, 0.1 M HEPES, PH 7.5, CRYOPROTECTANT 20% (V/V) GLYCEROL
Resolution 1.80 Å R-free 0.249
1J4R FK506 BINDING PROTEIN COMPLEXED WITH FKB-001 Deposited 2001-10-29 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 1–107（107 aa）
Not recorded 001 1-[2,2-DIFLUORO-2-(3,4,5-TRIMETHOXY-PHENYL)-ACETYL]-PIPERIDINE-2-CARBOXYLIC ACID 4-PHENYL-1-(3-PYRIDIN-3-YL-PROPYL)-BUTYL ESTER × 1 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.5；2.5 M AMMONIUM SULFATE, 0.1 M HEPES, PH 7.5, CRYOPROTECTANT 20% (V/V) GLYCEROL
Resolution 1.80 Å R-free 0.249
1J4R FK506 BINDING PROTEIN COMPLEXED WITH FKB-001 Deposited 2001-10-29 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain D 1–107（107 aa）
Not recorded 001 1-[2,2-DIFLUORO-2-(3,4,5-TRIMETHOXY-PHENYL)-ACETYL]-PIPERIDINE-2-CARBOXYLIC ACID 4-PHENYL-1-(3-PYRIDIN-3-YL-PROPYL)-BUTYL ESTER × 1 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 7.5；2.5 M AMMONIUM SULFATE, 0.1 M HEPES, PH 7.5, CRYOPROTECTANT 20% (V/V) GLYCEROL
Resolution 1.80 Å R-free 0.249
1NSG THE STRUCTURE OF THE IMMUNOPHILIN-IMMUNOSUPPRESSANT FKBP12-RAPAMYCIN COMPLEX INTERACTING WITH HUMAN FRAP Deposited 1997-07-01 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–107（107 aa）
Not recorded RAD C49-METHYL RAPAMYCIN × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.20 Å R-free 0.265
1QPF FK506 BINDING PROTEIN (12 KDA, HUMAN) COMPLEX WITH L-709,858 Deposited 1999-05-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–107（107 aa）
Chain D 1–107（107 aa）
Not recorded 858 C32-O-(1-ETHYL-INDOL-5-YL)ASCOMYCIN × 2 B7G heptyl beta-D-glucopyranoside × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 5.6；AMMOMIUM SULFATE, BETA-HEPTYL- D-GLUCOPYRANOSIDE, POTASSIUM PHOSPHATE, pH 5.6
Resolution 2.50 Å R-free 0.310
1QPF FK506 BINDING PROTEIN (12 KDA, HUMAN) COMPLEX WITH L-709,858 Deposited 1999-05-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 1–107（107 aa）
Chain D 1–107（107 aa）
Not recorded 858 C32-O-(1-ETHYL-INDOL-5-YL)ASCOMYCIN × 4 B7G heptyl beta-D-glucopyranoside × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 5.6；AMMOMIUM SULFATE, BETA-HEPTYL- D-GLUCOPYRANOSIDE, POTASSIUM PHOSPHATE, pH 5.6
Resolution 2.50 Å R-free 0.310
1QPF FK506 BINDING PROTEIN (12 KDA, HUMAN) COMPLEX WITH L-709,858 Deposited 1999-05-24 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–107（107 aa）
Not recorded 858 C32-O-(1-ETHYL-INDOL-5-YL)ASCOMYCIN × 2 B7G heptyl beta-D-glucopyranoside × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 5.6；AMMOMIUM SULFATE, BETA-HEPTYL- D-GLUCOPYRANOSIDE, POTASSIUM PHOSPHATE, pH 5.6
Resolution 2.50 Å R-free 0.310
1QPF FK506 BINDING PROTEIN (12 KDA, HUMAN) COMPLEX WITH L-709,858 Deposited 1999-05-24 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 4 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain D 1–107（107 aa）
Not recorded 858 C32-O-(1-ETHYL-INDOL-5-YL)ASCOMYCIN × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 5.6；AMMOMIUM SULFATE, BETA-HEPTYL- D-GLUCOPYRANOSIDE, POTASSIUM PHOSPHATE, pH 5.6
Resolution 2.50 Å R-free 0.310
1QPL FK506 BINDING PROTEIN (12 KDA, HUMAN) COMPLEX WITH L-707,587 Deposited 1999-05-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–107（107 aa）
Chain C 1–107（107 aa）
Not recorded 587 C32-O-(1-METHYL-INDOL-5-YL) 18-HYDROXY-ASCOMYCIN × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.1；AMMONIUM SULFATE, POTASSIUM PHOSPHATE, pH 6.1
Resolution 2.90 Å R-free 0.342
1TCO TERNARY COMPLEX OF A CALCINEURIN A FRAGMENT, CALCINEURIN B, FKBP12 AND THE IMMUNOSUPPRESSANT DRUG FK506 (TACROLIMUS) Deposited 1996-08-21 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 1–107（107 aa）
Not recorded ZN ZINC ION × 1 FE FE (III) ION × 1 PO4 PHOSPHATE ION × 1 CA CALCIUM ION × 4 MYR MYRISTIC ACID × 1 FK5 8-DEETHYL-8-[BUT-3-ENYL]-ASCOMYCIN × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.50 Å R-free 0.282
21KR A Wnt3a/Fzd8-CRD/LRP6-E3E4 complex with FKBP Deposited 2025-12-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 9 PDB declaration: nonameric
Chain C 2–108（107 aa）
Chain D 2–108（107 aa）
Chain G 2–108（107 aa）
Chain H 2–108（107 aa）
Chain I 2–108（107 aa）
Mutation：C178S Mutation：C178S Mutation：C178S Mutation：C178S Mutation：C178S No recorded non-water small molecule ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions Resolution 2.90 Å
21KS A Wnt3a/Fzd8-CRD/LRP6-E3E4-LA complex with FKBP Deposited 2025-12-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 9 PDB declaration: nonameric
Chain C 2–108（107 aa）
Chain D 2–108（107 aa）
Chain G 2–108（107 aa）
Chain H 2–108（107 aa）
Chain I 2–108（107 aa）
Mutation：C178S Mutation：C178S Mutation：C178S Mutation：C178S Mutation：C178S No recorded non-water small molecule ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions Resolution 3.01 Å
21KT Wnt3a signalosome extracellular complex Deposited 2025-12-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric
Chain C 2–108（107 aa）
Chain D 2–108（107 aa）
Chain G 2–108（107 aa）
Chain H 2–108（107 aa）
Mutation：Q159A,E161A,C178S,Q221A Mutation：Q159A,E161A,C178S,Q221A Mutation：Q159A,E161A,C178S,Q221A Mutation：Q159A,E161A,C178S,Q221A No recorded non-water small molecule ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions Resolution 3.33 Å
2DG3 Wildtype FK506-binding protein complexed with Rapamycin Deposited 2006-03-08 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 2–108（107 aa）
Not recorded RAP RAPAMYCIN IMMUNOSUPPRESSANT DRUG × 1 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；298 K；30% PEG MME 2000, 0.2M Ammonium sulphate, pH 4.6, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 1.70 Å R-free 0.228
2DG4 FK506-binding protein mutant WF59 complexed with Rapamycin Deposited 2006-03-08 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 2–108（107 aa）
Not recorded RAP RAPAMYCIN IMMUNOSUPPRESSANT DRUG × 1 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 4.6；298 K；30% PEG MME 2000, 0.2M Ammonium Sulphate, pH 4.6, VAPOR DIFFUSION, temperature 298K
Resolution 1.70 Å R-free 0.213
2DG9 FK506-binding protein mutant WL59 complexed with Rapamycin Deposited 2006-03-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 2–108（107 aa）
Mutation：W59L RAP RAPAMYCIN IMMUNOSUPPRESSANT DRUG × 1 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；298 K；30% PEG MME 2000, 0.2M Ammonium Sulphate, pH 4.6, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 1.70 Å R-free 0.239
2FAP THE STRUCTURE OF THE IMMUNOPHILIN-IMMUNOSUPPRESSANT FKBP12-(C16)-ETHOXY RAPAMYCIN COMPLEX INTERACTING WITH HUMA Deposited 1998-09-22 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–107（107 aa）
Not recorded RAD C49-METHYL RAPAMYCIN × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.5；pH 8.5
Resolution 2.20 Å R-free 0.266
2FKE FK-506-BINDING PROTEIN: THREE-DIMENSIONAL STRUCTURE OF THE COMPLEX WITH THE ANTAGONIST L-685,818 Deposited 1993-01-27 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–107（107 aa）
Not recorded FK5 8-DEETHYL-8-[BUT-3-ENYL]-ASCOMYCIN × 2 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.72 Å
2FKE FK-506-BINDING PROTEIN: THREE-DIMENSIONAL STRUCTURE OF THE COMPLEX WITH THE ANTAGONIST L-685,818 Deposited 1993-01-27 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 1–107（107 aa）
Not recorded FK5 8-DEETHYL-8-[BUT-3-ENYL]-ASCOMYCIN × 4 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.72 Å
2ND5 Lysine dimethylated FKBP12 Deposited 2016-05-05 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–108（108 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 6.8；303 K
NMR sample composition 1.2 mM [U-99% 13C; U-99% 15N] entity-1, 30 mM sodium chloride-2, 3 mM DTT-3, 95% H2O/5% D2O | 95% H2O/5% D2O
Resolution not provided
2PPN Crystal structure of FKBP12 Deposited 2007-04-30 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 2–108（107 aa） Fragment：fkbp12
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；1.9-2.1 M Sodium Maleonate 50 mM DMSO Slow buffer exchange into 2.5 M Sodium Maleoneate no DMSO, in 10 minute steps for freezing, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 0.92 Å R-free 0.199
2PPO Crystal structure of E60A mutant of FKBP12 Deposited 2007-04-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 2–108（107 aa）
Mutation：E61A No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；1.9-2.1 M Sodium Maleonate, 50 mM DMSO, Slow buffer exchange into 2.5 M Sodium Maleoneate no DMSO, in 10 minute steps for freezing, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 1.29 Å R-free 0.182
2PPP Crystal structure of E60Q mutant of FKBP12 Deposited 2007-04-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 2–108（107 aa）
Mutation：E61Q No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；1.9-2.1 M Sodium Maleonate, 50 mM DMSO, Slow buffer exchange into 2.5 M Sodium Maleoneate no DMSO, in 10 minute steps for freezing, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 0.94 Å R-free 0.220
2RSE NMR structure of FKBP12-mTOR FRB domain-rapamycin complex structure determined based on PCS Deposited 2012-01-25 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 2–108（107 aa）
Not recorded TB TERBIUM(III) ION × 2 SOLUTION NMR
NMR measurement conditions pH 7；298 K；Ionic strength (raw mmCIF value) 0.15；Pressure ambient
NMR sample composition 0.3 mM FKBP12-1, 0.3 mM [U-98% 15N] FRB-2, 90% H2O/10% D2O | 90% H2O/10% D2O
Resolution not provided
3FAP ATOMIC STRUCTURES OF THE RAPAMYCIN ANALOGS IN COMPLEX WITH BOTH HUMAN FKBP12 AND FRB DOMAIN OF FRAP Deposited 1999-05-06 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–107（107 aa）
Not recorded ARD C15-(R)-METHYLTHIENYL RAPAMYCIN × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 8；20% PEG8000, 10% MPD, 0.1 M TRIS-HCL PH 8.5, pH 8.00
Resolution 1.85 Å R-free 0.273
3H9R Crystal structure of the kinase domain of type I activin receptor (ACVR1) in complex with FKBP12 and dorsomorphin Deposited 2009-04-30 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 1–108（108 aa） Fragment：FKBP12
Not recorded TAK 6-[4-(2-piperidin-1-ylethoxy)phenyl]-3-pyridin-4-ylpyrazolo[1,5-a]pyrimidine × 1 SO4 SULFATE ION × 5 PG4 TETRAETHYLENE GLYCOL × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；277.15 K；30% PEG 3350; 0.25M Ammonium sulphate; 0.1M Bis-Tris, pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 277.15K
Resolution 2.35 Å R-free 0.256
3MDY Crystal structure of the cytoplasmic domain of the bone morphogenetic protein receptor type-1B (BMPR1B) in complex with FKBP12 and LDN-193189 Deposited 2010-03-31 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 1–108（108 aa） Fragment：FKBP12
Not recorded LDN 4-[6-(4-piperazin-1-ylphenyl)pyrazolo[1,5-a]pyrimidin-3-yl]quinoline × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277.15 K；20% PEG 3350, 0.2M Na Malonate, pH 7.0, VAPOR DIFFUSION, SITTING DROP, temperature 277.15K
Resolution 2.05 Å R-free 0.255
3MDY Crystal structure of the cytoplasmic domain of the bone morphogenetic protein receptor type-1B (BMPR1B) in complex with FKBP12 and LDN-193189 Deposited 2010-03-31 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 1–108（108 aa） Fragment：FKBP12
Not recorded LDN 4-[6-(4-piperazin-1-ylphenyl)pyrazolo[1,5-a]pyrimidin-3-yl]quinoline × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277.15 K；20% PEG 3350, 0.2M Na Malonate, pH 7.0, VAPOR DIFFUSION, SITTING DROP, temperature 277.15K
Resolution 2.05 Å R-free 0.255
4DH0 X-ray Crystal Structure of 28-O-Methylrapamycin complexed with FKBP12: Is the Cyclohexyl Moiety Part of the Effector Domain of Rapamycin? Deposited 2012-01-27 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 2–108（107 aa）
Not recorded MR8 28-O-Methylrapamycin × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.7；298 K；35% ammonium sulphate, 0.1M Na/K phosphate, pH 7.7, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.10 Å R-free 0.257
4FAP ATOMIC STRUCTURES OF THE RAPAMYCIN ANALOGS IN COMPLEX WITH BOTH HUMAN FKBP12 AND FRB DOMAIN OF FRAP Deposited 1999-05-06 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–107（107 aa）
Not recorded ARD C15-(R)-METHYLTHIENYL RAPAMYCIN × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 8；20% PEG8000, 10% MPD, 0.1 M TRIS-HCL PH 8.5, pH 8.0
Resolution 2.80 Å R-free 0.266
4IPX Analyzing the visible conformational substates of the FK506 binding protein FKBP12 Deposited 2013-01-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 2–108（107 aa）
Mutation：C22V, H87V MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；298 K；1.7 M sodium malonate, pH 7.0, 0.1 M HEPES, pH 7.4, 5% MPD, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 1.70 Å R-free 0.217
4N19 Structural basis of conformational transitions in the active site and 80 s loop in the FK506 binding protein FKBP12 Deposited 2013-10-03 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 2–108（107 aa）
Mutation：C22V, G89P SO4 SULFATE ION × 1 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 1.20 Å R-free 0.180
4ODP Structure of SlyD delta-IF from Thermus thermophilus in complex with S2-W23A peptide Deposited 2014-01-10 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 85–97（13 aa） Fragment：SEE REMARK 999
Not recorded CL CHLORIDE ION × 1 CA CALCIUM ION × 4 NI NICKEL (II) ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；28% PEG400, 0.1 M HEPES, pH 7.5, 0.2 M calcium chloride, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 1.75 Å R-free 0.202
4ODQ Structure of SlyD delta-IF from Thermus thermophilus in complex with S3 peptide Deposited 2014-01-10 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 85–97（13 aa） Fragment：SEE REMARK 999
Not recorded CL CHLORIDE ION × 1 CA CALCIUM ION × 4 NI NICKEL (II) ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；277 K；25% PEG6000, 0.1 M Tris-HCl, pH 8.0, 0.2 M calcium chloride, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.00 Å R-free 0.213
4ODR Structure of SlyD delta-IF from Thermus thermophilus in complex with FK506 Deposited 2014-01-10 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 85–97（13 aa） Fragment：SEE REMARK 999
Not recorded FK5 8-DEETHYL-8-[BUT-3-ENYL]-ASCOMYCIN × 1 ZN ZINC ION × 2 CL CHLORIDE ION × 1 GOL GLYCEROL × 4 ACT ACETATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；277 K；20% PEG6000, 0.1 M sodium acetate, pH 5.0, 0.2 M zinc chloride, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 1.93 Å R-free 0.170
4ODR Structure of SlyD delta-IF from Thermus thermophilus in complex with FK506 Deposited 2014-01-10 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain B 85–97（13 aa） Fragment：SEE REMARK 999
Not recorded FK5 8-DEETHYL-8-[BUT-3-ENYL]-ASCOMYCIN × 1 ZN ZINC ION × 1 CL CHLORIDE ION × 1 GOL GLYCEROL × 2 ACT ACETATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；277 K；20% PEG6000, 0.1 M sodium acetate, pH 5.0, 0.2 M zinc chloride, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 1.93 Å R-free 0.170
5I7P Crystal structure of Fkbp12-IF(SlyD), a chimeric protein of human Fkbp12 and the insert in flap domain of Ecoli SlyD Deposited 2016-02-18 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 2–84（83 aa）
Chain A 98–108（11 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；20 % PEG3350, 0.1 M MgCl2, 0.1 M Hepes pH 7.5
Resolution 2.00 Å R-free 0.248
5I7Q Crystal structure of Fkbp12-IF(SlpA), a chimeric protein of human Fkbp12 and the insert in flap domain of Ecoli SlpA Deposited 2016-02-18 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 2–84（83 aa）
Chain A 97–108（12 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；25 % PEG1500, 10 % isopropanol, 0.1 M CaCl2, 0.1 M Mes pH 6.5
Resolution 1.90 Å R-free 0.238
6I1S Crystal structure of the ACVR1 (ALK2) kinase in complex with FKBP12 and the inhibitor E6201 Deposited 2018-10-30 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 1–108（108 aa）
Not recorded E26 (4~{S},5~{R},6~{Z},9~{S},10~{S},12~{E})-16-(ethylamino)-4,5-dimethyl-9,10,18-tris(oxidanyl)-3-oxabicyclo[12.4.0]octadeca-1(14),6,12,15,17-pentaene-2,8-dione × 1 EDO 1,2-ETHANEDIOL × 7 SO4 SULFATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；0.05M ammonium sulfate, 30% pentaerythritol ethoxylate 15/4, 0.1M bis-tris pH 6.5
Resolution 1.52 Å R-free 0.193
6M4U Crystal structure of FKBP-FRB T2098L mutant in complex with rapamycin Deposited 2020-03-09 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–108（108 aa）
Not recorded RAP RAPAMYCIN IMMUNOSUPPRESSANT DRUG × 1 ZN ZINC ION × 8 CL CHLORIDE ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；100 mM cacodylic acid buffer (pH 6.5), 350 mM zinc acetate and 8% (w/v) isopropanol
Resolution 2.20 Å R-free 0.258
6M4U Crystal structure of FKBP-FRB T2098L mutant in complex with rapamycin Deposited 2020-03-09 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain E 1–108（108 aa）
Not recorded RAP RAPAMYCIN IMMUNOSUPPRESSANT DRUG × 1 ZN ZINC ION × 6 CL CHLORIDE ION × 3 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；100 mM cacodylic acid buffer (pH 6.5), 350 mM zinc acetate and 8% (w/v) isopropanol
Resolution 2.20 Å R-free 0.258
6M4V Crystal structure of MBP fused split FKBP in complex with rapamycin Deposited 2020-03-09 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–32（32 aa）
Chain B 33–108（76 aa）
Mutation：K-131A, N-197A, E-198A, K-287A, D-288A RAP RAPAMYCIN IMMUNOSUPPRESSANT DRUG × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；100 mM Na-HEPES buffer (pH 7.5), 20% (w/v) PEG 8000
Resolution 2.92 Å R-free 0.298
6M4V Crystal structure of MBP fused split FKBP in complex with rapamycin Deposited 2020-03-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 1–32（32 aa）
Chain D 33–108（76 aa）
Mutation：K-131A, N-197A, E-198A, K-287A, D-288A RAP RAPAMYCIN IMMUNOSUPPRESSANT DRUG × 1 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；100 mM Na-HEPES buffer (pH 7.5), 20% (w/v) PEG 8000
Resolution 2.92 Å R-free 0.298
6M4W Crystal structure of MBP fused split FKBP-FRB T2098L mutant in complex with rapamycin Deposited 2020-03-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–32（32 aa）
Chain D 33–108（76 aa）
Mutation：D-288A, K-287A, E-198A, N-197A, K-131A RAP RAPAMYCIN IMMUNOSUPPRESSANT DRUG × 1 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；100 mM Tris-HCl buffer (pH 7.0), 200 mM calcium acetate and 20% (w/v) PEG 3000
Resolution 3.11 Å R-free 0.278
6M4W Crystal structure of MBP fused split FKBP-FRB T2098L mutant in complex with rapamycin Deposited 2020-03-09 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 1–32（32 aa）
Chain E 33–108（76 aa）
Mutation：D-288A, K-287A, E-198A, N-197A, K-131A RAP RAPAMYCIN IMMUNOSUPPRESSANT DRUG × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；100 mM Tris-HCl buffer (pH 7.0), 200 mM calcium acetate and 20% (w/v) PEG 3000
Resolution 3.11 Å R-free 0.278
6M4W Crystal structure of MBP fused split FKBP-FRB T2098L mutant in complex with rapamycin Deposited 2020-03-09 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 3 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 1–32（32 aa）
Chain F 33–108（76 aa）
Mutation：D-288A, K-287A, E-198A, N-197A, K-131A RAP RAPAMYCIN IMMUNOSUPPRESSANT DRUG × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；100 mM Tris-HCl buffer (pH 7.0), 200 mM calcium acetate and 20% (w/v) PEG 3000
Resolution 3.11 Å R-free 0.278
6OQA Crystal structure of CEP250 bound to FKBP12 in the presence of FK506-like novel natural product Deposited 2019-04-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–108（108 aa）
Chain B 1–108（108 aa）
Not recorded 60Z (3R,4E,7E,10R,11S,12R,13S,16R,17R,24aS)-11,17-dihydroxy-10,12,16-trimethyl-3-[(2R)-1-phenylbutan-2-yl]-6,9,10,11,12,13,14,15,16,17,22,23,24,24a-tetradecahydro-3H-13,17-epoxypyrido[2,1-c][1,4]oxazacyclohenicosine-1,18,19(21H)-trione × 2 EDO 1,2-ETHANEDIOL × 13 PEG DI(HYDROXYETHYL)ETHER × 7 PE8 3,6,9,12,15,18,21-HEPTAOXATRICOSANE-1,23-DIOL × 2 PGE TRIETHYLENE GLYCOL × 3 PG4 TETRAETHYLENE GLYCOL × 3 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.1 M HEPES, pH 7.0, 0.2 M sodium malonate, 21% PEG3350
Resolution 2.20 Å R-free 0.256
6OQA Crystal structure of CEP250 bound to FKBP12 in the presence of FK506-like novel natural product Deposited 2019-04-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain E 1–108（108 aa）
Chain F 1–108（108 aa）
Not recorded 60Z (3R,4E,7E,10R,11S,12R,13S,16R,17R,24aS)-11,17-dihydroxy-10,12,16-trimethyl-3-[(2R)-1-phenylbutan-2-yl]-6,9,10,11,12,13,14,15,16,17,22,23,24,24a-tetradecahydro-3H-13,17-epoxypyrido[2,1-c][1,4]oxazacyclohenicosine-1,18,19(21H)-trione × 2 EDO 1,2-ETHANEDIOL × 3 PEG DI(HYDROXYETHYL)ETHER × 3 PGE TRIETHYLENE GLYCOL × 1 PG4 TETRAETHYLENE GLYCOL × 1 MLA MALONIC ACID × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.1 M HEPES, pH 7.0, 0.2 M sodium malonate, 21% PEG3350
Resolution 2.20 Å R-free 0.256
6VCU Homo sapiens FKBP12 protein bound with APX879 in P32 space group Deposited 2019-12-23 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–108（108 aa）
Not recorded ACT ACETATE ION × 2 R27 N'-[(3S,4R,5S,8R,9E,12S,14S,15R,16S,18R,19R,26aS)-5,19-dihydroxy-3-{(1E)-1-[(1R,3R,4R)-4-hydroxy-3-methoxycyclohexyl]prop-1-en-2-yl}-14,16-dimethoxy-4,10,12,18-tetramethyl-1,20,21-trioxo-8-(prop-2-en-1-yl)-1,3,4,5,6,8,11,12,13,14,15,16,17,18,19,20,21,23,24,25,26,26a-docosahydro-7H-15,19-epoxypyrido[2,1-c][1,4]oxazacyclotricosin-7-ylidene]acetohydrazide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；293 K；2.5M Ammonium sulfate, 0.1M Sodium acetate trihydrate
Resolution 1.69 Å R-free 0.196
6VCU Homo sapiens FKBP12 protein bound with APX879 in P32 space group Deposited 2019-12-23 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 1–108（108 aa）
Not recorded ACT ACETATE ION × 2 R27 N'-[(3S,4R,5S,8R,9E,12S,14S,15R,16S,18R,19R,26aS)-5,19-dihydroxy-3-{(1E)-1-[(1R,3R,4R)-4-hydroxy-3-methoxycyclohexyl]prop-1-en-2-yl}-14,16-dimethoxy-4,10,12,18-tetramethyl-1,20,21-trioxo-8-(prop-2-en-1-yl)-1,3,4,5,6,8,11,12,13,14,15,16,17,18,19,20,21,23,24,25,26,26a-docosahydro-7H-15,19-epoxypyrido[2,1-c][1,4]oxazacyclotricosin-7-ylidene]acetohydrazide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；293 K；2.5M Ammonium sulfate, 0.1M Sodium acetate trihydrate
Resolution 1.69 Å R-free 0.196
6VCU Homo sapiens FKBP12 protein bound with APX879 in P32 space group Deposited 2019-12-23 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain C 1–108（108 aa）
Not recorded R27 N'-[(3S,4R,5S,8R,9E,12S,14S,15R,16S,18R,19R,26aS)-5,19-dihydroxy-3-{(1E)-1-[(1R,3R,4R)-4-hydroxy-3-methoxycyclohexyl]prop-1-en-2-yl}-14,16-dimethoxy-4,10,12,18-tetramethyl-1,20,21-trioxo-8-(prop-2-en-1-yl)-1,3,4,5,6,8,11,12,13,14,15,16,17,18,19,20,21,23,24,25,26,26a-docosahydro-7H-15,19-epoxypyrido[2,1-c][1,4]oxazacyclotricosin-7-ylidene]acetohydrazide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；293 K；2.5M Ammonium sulfate, 0.1M Sodium acetate trihydrate
Resolution 1.69 Å R-free 0.196
6VCU Homo sapiens FKBP12 protein bound with APX879 in P32 space group Deposited 2019-12-23 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain D 1–108（108 aa）
Not recorded ACT ACETATE ION × 1 R27 N'-[(3S,4R,5S,8R,9E,12S,14S,15R,16S,18R,19R,26aS)-5,19-dihydroxy-3-{(1E)-1-[(1R,3R,4R)-4-hydroxy-3-methoxycyclohexyl]prop-1-en-2-yl}-14,16-dimethoxy-4,10,12,18-tetramethyl-1,20,21-trioxo-8-(prop-2-en-1-yl)-1,3,4,5,6,8,11,12,13,14,15,16,17,18,19,20,21,23,24,25,26,26a-docosahydro-7H-15,19-epoxypyrido[2,1-c][1,4]oxazacyclotricosin-7-ylidene]acetohydrazide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；293 K；2.5M Ammonium sulfate, 0.1M Sodium acetate trihydrate
Resolution 1.69 Å R-free 0.196
6YF0 FKBP12 in complex with the BMP potentiator compound 9 at 1.55 A resolution Deposited 2020-03-25 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 2–108（107 aa）
Not recorded 818 18-HYDROXYASCOMYCIN × 1 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；298 K；2.2 M AmSO4, 0.2 M NaThiocyanate
Resolution 1.55 Å R-free 0.257
6YF1 FKBP12 in complex with the BMP potentiator compound 8 at 1.12A resolution Deposited 2020-03-25 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 2–108（107 aa）
Not recorded OP8 (1aR,3R,5S,6R,7S,9R,10R,17aS,20S,21R,22S,25R,25aR)-25-Ethyl-10,22-dihydroxy-20-{(1E)-1-[(1R,3R,4R)-4-hydroxy-3-methoxycyclohexyl]prop-1-en-2-yl}-5,7-dimethoxy-1a,3,9,21-tetramethyloctadecahydro-2H-6,10-epoxyoxireno[p]pyrido[2,1-c][1,4]oxazacyclotricosine-11,12,18,24(1aH,14H)-tetrone × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；2.2 M AmSO4, 0.2 M CdCl2
Resolution 1.12 Å R-free 0.163
6YF2 FKBP12 in complex with the BMP potentiator compound 6 at 1.03A resolution Deposited 2020-03-25 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 2–108（107 aa）
Not recorded OP5 (1~{R},9~{S},12~{S},13~{R},14~{S},17~{R},18~{E},21~{S},23~{S},24~{R},25~{S},27~{R})-23,25-dimethoxy-12-[(~{E})-1-[(1~{R},3~{R},4~{R})-3-methoxy-4-oxidanyl-cyclohexyl]prop-1-en-2-yl]-13,19,21,27-tetramethyl-1,14-bis(oxidanyl)-17-(2-oxidanylidenepropyl)-11,28-dioxa-4-azatricyclo[22.3.1.0^{4,9}]octacos-18-ene-2,3,10,16-tetrone × 1 CD CADMIUM ION × 1 CL CHLORIDE ION × 2 NA SODIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；1.9 M AmSO4, 0.15 M CdCl2
Resolution 1.03 Å R-free 0.149
6YF3 FKBP12 in complex with the BMP potentiator compound 10 at 1.00A resolution Deposited 2020-03-25 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 2–108（107 aa）
Not recorded OOZ (1~{R},9~{S},12~{S},13~{R},14~{S},17~{R},18~{E},21~{S},23~{S},24~{R},25~{S},27~{R})-17-ethyl-25-methoxy-12-[(~{E})-1-[(1~{R},3~{R},4~{R})-3-methoxy-4-oxidanyl-cyclohexyl]prop-1-en-2-yl]-13,19,21,27-tetramethyl-1,14,23-tris(oxidanyl)-11,28-dioxa-4-azatricyclo[22.3.1.0^{4,9}]octacos-18-ene-2,3,10,16-tetrone × 1 CD CADMIUM ION × 1 CL CHLORIDE ION × 2 NA SODIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；2.2 M AmSO4, 0.2 M CdCl2
Resolution 1.00 Å R-free 0.158
7U8D FKBP12 mutant V55G bound to Rapa*-3Z Deposited 2022-03-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 2–108（107 aa）
Mutation：V55G LWR (3S,5Z,6R,7E,9R,10R,12R,14S,15E,17E,19E,21S,23S,26R,27R,30R,34aS)-5-(ethoxyimino)-9,27-dihydroxy-3-{(2R)-1-[(1S,3R,4R)-4-hydroxy-3-methoxycyclohexyl]propan-2-yl}-10,21-dimethoxy-6,8,12,14,20,26-hexamethyl-5,6,9,10,12,13,14,21,22,23,24,25,26,27,32,33,34,34a-octadecahydro-3H-23,27-epoxypyrido[2,1-c][1,4]oxazacyclohentriacontine-1,11,28,29(4H,31H)-tetrone × 1 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；296 K；sodium tartrate, PEG 3350
Resolution 1.39 Å R-free 0.172
7U8D FKBP12 mutant V55G bound to Rapa*-3Z Deposited 2022-03-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 2–108（107 aa）
Mutation：V55G LWR (3S,5Z,6R,7E,9R,10R,12R,14S,15E,17E,19E,21S,23S,26R,27R,30R,34aS)-5-(ethoxyimino)-9,27-dihydroxy-3-{(2R)-1-[(1S,3R,4R)-4-hydroxy-3-methoxycyclohexyl]propan-2-yl}-10,21-dimethoxy-6,8,12,14,20,26-hexamethyl-5,6,9,10,12,13,14,21,22,23,24,25,26,27,32,33,34,34a-octadecahydro-3H-23,27-epoxypyrido[2,1-c][1,4]oxazacyclohentriacontine-1,11,28,29(4H,31H)-tetrone × 1 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；296 K；sodium tartrate, PEG 3350
Resolution 1.39 Å R-free 0.172
8CHI Human FKBP12 in complex with (1S,5S,6R)-10-((S)-3,5-dichloro-N-methylphenylsulfonimidoyl)-3-(pyridin-2-ylmethyl)-5-vinyl-3,10-diazabicyclo[4.3.1]decan-2-one Deposited 2023-02-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 2–108（107 aa）
Mutation：C22V UMR (1S,5S,6R)-10-[S-[3,5-bis(chloranyl)phenyl]-N-methyl-sulfonimidoyl]-5-ethenyl-3-(pyridin-2-ylmethyl)-3,10-diazabicyclo[4.3.1]decan-2-one × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；1.4M Na/K tartrate, 0.2 M ammonium citrate, 0.1M MES pH 6.5
Resolution 1.70 Å R-free 0.214
8CHI Human FKBP12 in complex with (1S,5S,6R)-10-((S)-3,5-dichloro-N-methylphenylsulfonimidoyl)-3-(pyridin-2-ylmethyl)-5-vinyl-3,10-diazabicyclo[4.3.1]decan-2-one Deposited 2023-02-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 2–108（107 aa）
Mutation：C22V UMR (1S,5S,6R)-10-[S-[3,5-bis(chloranyl)phenyl]-N-methyl-sulfonimidoyl]-5-ethenyl-3-(pyridin-2-ylmethyl)-3,10-diazabicyclo[4.3.1]decan-2-one × 1 DMS DIMETHYL SULFOXIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；1.4M Na/K tartrate, 0.2 M ammonium citrate, 0.1M MES pH 6.5
Resolution 1.70 Å R-free 0.214
8CHJ Human FKBP12 in complex with (1S,5S,6R)-10-((R)-(3,5-dichlorophenyl)sulfonimidoyl)-3-(pyridin-2-ylmethyl)-5-vinyl-3,10-diazabicyclo[4.3.1]decan-2-one Deposited 2023-02-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 2–108（107 aa）
Mutation：C22V UQI (1S,5S,6R)-10-[[3,5-bis(chloranyl)phenyl]sulfonimidoyl]-5-ethenyl-3-(pyridin-2-ylmethyl)-3,10-diazabicyclo[4.3.1]decan-2-one × 1 DMS DIMETHYL SULFOXIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；1.32M Na-K tartrate, 0.2 M ammonium citrate, 0.1M MES pH 6.5
Resolution 1.70 Å R-free 0.205
8CHJ Human FKBP12 in complex with (1S,5S,6R)-10-((R)-(3,5-dichlorophenyl)sulfonimidoyl)-3-(pyridin-2-ylmethyl)-5-vinyl-3,10-diazabicyclo[4.3.1]decan-2-one Deposited 2023-02-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 2–108（107 aa）
Mutation：C22V UQI (1S,5S,6R)-10-[[3,5-bis(chloranyl)phenyl]sulfonimidoyl]-5-ethenyl-3-(pyridin-2-ylmethyl)-3,10-diazabicyclo[4.3.1]decan-2-one × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；1.32M Na-K tartrate, 0.2 M ammonium citrate, 0.1M MES pH 6.5
Resolution 1.70 Å R-free 0.205
8CHJ Human FKBP12 in complex with (1S,5S,6R)-10-((R)-(3,5-dichlorophenyl)sulfonimidoyl)-3-(pyridin-2-ylmethyl)-5-vinyl-3,10-diazabicyclo[4.3.1]decan-2-one Deposited 2023-02-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain C 2–108（107 aa）
Mutation：C22V UQI (1S,5S,6R)-10-[[3,5-bis(chloranyl)phenyl]sulfonimidoyl]-5-ethenyl-3-(pyridin-2-ylmethyl)-3,10-diazabicyclo[4.3.1]decan-2-one × 1 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；1.32M Na-K tartrate, 0.2 M ammonium citrate, 0.1M MES pH 6.5
Resolution 1.70 Å R-free 0.205
8CHJ Human FKBP12 in complex with (1S,5S,6R)-10-((R)-(3,5-dichlorophenyl)sulfonimidoyl)-3-(pyridin-2-ylmethyl)-5-vinyl-3,10-diazabicyclo[4.3.1]decan-2-one Deposited 2023-02-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain D 2–108（107 aa）
Mutation：C22V UQI (1S,5S,6R)-10-[[3,5-bis(chloranyl)phenyl]sulfonimidoyl]-5-ethenyl-3-(pyridin-2-ylmethyl)-3,10-diazabicyclo[4.3.1]decan-2-one × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；1.32M Na-K tartrate, 0.2 M ammonium citrate, 0.1M MES pH 6.5
Resolution 1.70 Å R-free 0.205
8CHK Human FKBP12 in complex with (1S,5S,6R)-10-((S)-(3,5-dichlorophenyl)sulfonimidoyl)-3-(pyridin-2-ylmethyl)-5-vinyl-3,10-diazabicyclo[4.3.1]decan-2-one Deposited 2023-02-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 2–108（107 aa）
Mutation：C22V UUI (1S,5S,6R)-10-[[3,5-bis(chloranyl)phenyl]sulfonimidoyl]-5-ethenyl-3-(pyridin-2-ylmethyl)-3,10-diazabicyclo[4.3.1]decan-2-one × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；1.32M Na-K tartrate, 0.2 M ammonium citrate, 0.1M MES pH 6.5
Resolution 1.55 Å R-free 0.233
8CHK Human FKBP12 in complex with (1S,5S,6R)-10-((S)-(3,5-dichlorophenyl)sulfonimidoyl)-3-(pyridin-2-ylmethyl)-5-vinyl-3,10-diazabicyclo[4.3.1]decan-2-one Deposited 2023-02-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 2–108（107 aa）
Mutation：C22V UUI (1S,5S,6R)-10-[[3,5-bis(chloranyl)phenyl]sulfonimidoyl]-5-ethenyl-3-(pyridin-2-ylmethyl)-3,10-diazabicyclo[4.3.1]decan-2-one × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；1.32M Na-K tartrate, 0.2 M ammonium citrate, 0.1M MES pH 6.5
Resolution 1.55 Å R-free 0.233
8CHK Human FKBP12 in complex with (1S,5S,6R)-10-((S)-(3,5-dichlorophenyl)sulfonimidoyl)-3-(pyridin-2-ylmethyl)-5-vinyl-3,10-diazabicyclo[4.3.1]decan-2-one Deposited 2023-02-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain C 2–108（107 aa）
Mutation：C22V UUI (1S,5S,6R)-10-[[3,5-bis(chloranyl)phenyl]sulfonimidoyl]-5-ethenyl-3-(pyridin-2-ylmethyl)-3,10-diazabicyclo[4.3.1]decan-2-one × 1 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；1.32M Na-K tartrate, 0.2 M ammonium citrate, 0.1M MES pH 6.5
Resolution 1.55 Å R-free 0.233
8CHL Human FKBP12 in complex with (1S,5S,6R)-9-((3,5-dichlorophenyl)sulfonyl)-3-(pyridin-2-ylmethyl)-5-vinyl-3,9-diazabicyclo[4.2.1]nonan-2-one Deposited 2023-02-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 2–108（107 aa）
Mutation：C22V USV (1~{S},5~{S},6~{R})-10-[3,5-bis(chloranyl)phenyl]sulfonyl-5-ethenyl-3-(pyridin-2-ylmethyl)-3,10-diazabicyclo[4.3.1]decan-2-one × 1 DMS DIMETHYL SULFOXIDE × 1 GOL GLYCEROL × 3 CD CADMIUM ION × 4 SO4 SULFATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；2.2 M ammonium sulfate, 0.2 M cadmium sulfate
Resolution 1.40 Å R-free 0.213
8CHL Human FKBP12 in complex with (1S,5S,6R)-9-((3,5-dichlorophenyl)sulfonyl)-3-(pyridin-2-ylmethyl)-5-vinyl-3,9-diazabicyclo[4.2.1]nonan-2-one Deposited 2023-02-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 2–108（107 aa）
Mutation：C22V USV (1~{S},5~{S},6~{R})-10-[3,5-bis(chloranyl)phenyl]sulfonyl-5-ethenyl-3-(pyridin-2-ylmethyl)-3,10-diazabicyclo[4.3.1]decan-2-one × 1 GOL GLYCEROL × 1 CD CADMIUM ION × 3 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；2.2 M ammonium sulfate, 0.2 M cadmium sulfate
Resolution 1.40 Å R-free 0.213
8CHM Human FKBP12 in complex with (1S,5S,6R)-10-((S)-(3,5-dichlorophenyl)sulfinyl)-3-(pyridin-2-ylmethyl)-5-vinyl-3,10-diazabicyclo[4.3.1]decan-2-one Deposited 2023-02-08 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 2–108（107 aa）
Mutation：C22V UT6 (1~{S},5~{S},6~{R})-10-[3,5-bis(chloranyl)phenyl]sulfinyl-5-ethenyl-3-(pyridin-2-ylmethyl)-3,10-diazabicyclo[4.3.1]decan-2-one × 1 DMS DIMETHYL SULFOXIDE × 1 CD CADMIUM ION × 2 CL CHLORIDE ION × 6 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；2.1 M ammonium sulfate, 0.2 M cadmium chloride, 0.1M HEPES-NaOH pH 7.5
Resolution 1.12 Å R-free 0.145
8ER6 FKBP12-FRB in Complex with Compound 11 Deposited 2022-10-11 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 2–108（107 aa）
Not recorded XYU (3S,5R,6R,7E,9R,10R,12R,14S,15E,17E,19E,21S,23S,26R,27R,30R,34aS)-5,9,27-trihydroxy-3-{(2R)-1-[(1S,3R,4R)-4-hydroxy-3-methoxycyclohexyl]propan-2-yl}-10,21-dimethoxy-6,8,12,14,20,26-hexamethyl-5,6,9,10,12,13,14,21,22,23,24,25,26,27,32,33,34,34a-octadecahydro-3H-23,27-epoxypyrido[2,1-c][1,4]oxazacyclohentriacontine-1,11,28,29(4H,31H)-tetrone × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；3.0-3.3 M sodium formate and 0.1 M HEPES pH 7.0-7.5
Resolution 2.81 Å R-free 0.224
8ER6 FKBP12-FRB in Complex with Compound 11 Deposited 2022-10-11 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 2–108（107 aa）
Not recorded XYU (3S,5R,6R,7E,9R,10R,12R,14S,15E,17E,19E,21S,23S,26R,27R,30R,34aS)-5,9,27-trihydroxy-3-{(2R)-1-[(1S,3R,4R)-4-hydroxy-3-methoxycyclohexyl]propan-2-yl}-10,21-dimethoxy-6,8,12,14,20,26-hexamethyl-5,6,9,10,12,13,14,21,22,23,24,25,26,27,32,33,34,34a-octadecahydro-3H-23,27-epoxypyrido[2,1-c][1,4]oxazacyclohentriacontine-1,11,28,29(4H,31H)-tetrone × 1 EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；3.0-3.3 M sodium formate and 0.1 M HEPES pH 7.0-7.5
Resolution 2.81 Å R-free 0.224
8ER6 FKBP12-FRB in Complex with Compound 11 Deposited 2022-10-11 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain E 2–108（107 aa）
Not recorded XYU (3S,5R,6R,7E,9R,10R,12R,14S,15E,17E,19E,21S,23S,26R,27R,30R,34aS)-5,9,27-trihydroxy-3-{(2R)-1-[(1S,3R,4R)-4-hydroxy-3-methoxycyclohexyl]propan-2-yl}-10,21-dimethoxy-6,8,12,14,20,26-hexamethyl-5,6,9,10,12,13,14,21,22,23,24,25,26,27,32,33,34,34a-octadecahydro-3H-23,27-epoxypyrido[2,1-c][1,4]oxazacyclohentriacontine-1,11,28,29(4H,31H)-tetrone × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；3.0-3.3 M sodium formate and 0.1 M HEPES pH 7.0-7.5
Resolution 2.81 Å R-free 0.224
8ER7 FKBP12-FRB in Complex with Compound 12 Deposited 2022-10-11 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 2–108（107 aa）
Not recorded XZ3 (3S,5R,6R,7E,9R,10R,12R,14S,15E,17E,19E,21S,23S,26R,27R,30R,34aS)-9,27-dihydroxy-3-{(2R)-1-[(1S,3R,4R)-4-hydroxy-3-methoxycyclohexyl]propan-2-yl}-5,10,21-trimethoxy-6,8,12,14,20,26-hexamethyl-5,6,9,10,12,13,14,21,22,23,24,25,26,27,32,33,34,34a-octadecahydro-3H-23,27-epoxypyrido[2,1-c][1,4]oxazacyclohentriacontine-1,11,28,29(4H,31H)-tetrone × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；3.0-3.3 M sodium formate and 0.1 M HEPES pH 7.0-7.5
Resolution 3.07 Å R-free 0.279
8ER7 FKBP12-FRB in Complex with Compound 12 Deposited 2022-10-11 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 2–108（107 aa）
Not recorded XZ3 (3S,5R,6R,7E,9R,10R,12R,14S,15E,17E,19E,21S,23S,26R,27R,30R,34aS)-9,27-dihydroxy-3-{(2R)-1-[(1S,3R,4R)-4-hydroxy-3-methoxycyclohexyl]propan-2-yl}-5,10,21-trimethoxy-6,8,12,14,20,26-hexamethyl-5,6,9,10,12,13,14,21,22,23,24,25,26,27,32,33,34,34a-octadecahydro-3H-23,27-epoxypyrido[2,1-c][1,4]oxazacyclohentriacontine-1,11,28,29(4H,31H)-tetrone × 1 CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；3.0-3.3 M sodium formate and 0.1 M HEPES pH 7.0-7.5
Resolution 3.07 Å R-free 0.279
8ER7 FKBP12-FRB in Complex with Compound 12 Deposited 2022-10-11 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain E 2–108（107 aa）
Not recorded XZ3 (3S,5R,6R,7E,9R,10R,12R,14S,15E,17E,19E,21S,23S,26R,27R,30R,34aS)-9,27-dihydroxy-3-{(2R)-1-[(1S,3R,4R)-4-hydroxy-3-methoxycyclohexyl]propan-2-yl}-5,10,21-trimethoxy-6,8,12,14,20,26-hexamethyl-5,6,9,10,12,13,14,21,22,23,24,25,26,27,32,33,34,34a-octadecahydro-3H-23,27-epoxypyrido[2,1-c][1,4]oxazacyclohentriacontine-1,11,28,29(4H,31H)-tetrone × 1 CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；3.0-3.3 M sodium formate and 0.1 M HEPES pH 7.0-7.5
Resolution 3.07 Å R-free 0.279
8ERA RMC-5552 in complex with mTORC1 and FKBP12 Deposited 2022-10-11 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 2–108（107 aa）
Not recorded XZ9 1-[6-{[(3M)-4-amino-3-(2-amino-1,3-benzoxazol-5-yl)-1H-pyrazolo[3,4-d]pyrimidin-1-yl]methyl}-3,4-dihydroisoquinolin-2(1H)-yl]-3-hydroxypropan-1-one × 1 XYU (3S,5R,6R,7E,9R,10R,12R,14S,15E,17E,19E,21S,23S,26R,27R,30R,34aS)-5,9,27-trihydroxy-3-{(2R)-1-[(1S,3R,4R)-4-hydroxy-3-methoxycyclohexyl]propan-2-yl}-10,21-dimethoxy-6,8,12,14,20,26-hexamethyl-5,6,9,10,12,13,14,21,22,23,24,25,26,27,32,33,34,34a-octadecahydro-3H-23,27-epoxypyrido[2,1-c][1,4]oxazacyclohentriacontine-1,11,28,29(4H,31H)-tetrone × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.86 Å
8JCU Cryo-EM structure of mGlu2-mGlu3 heterodimer in presence of LY341495 (dimerization mode I) Deposited 2023-05-12 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain 2 2–108（107 aa）
Not recorded Z99 2-[(1S,2S)-2-carboxycyclopropyl]-3-(9H-xanthen-9-yl)-D-alanine × 2 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.80 Å
8JCV Cryo-EM structure of mGlu2-mGlu3 heterodimer in presence of LY341495 (dimerization mode II) Deposited 2023-05-12 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain 2 18–108（91 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 Z99 2-[(1S,2S)-2-carboxycyclopropyl]-3-(9H-xanthen-9-yl)-D-alanine × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.40 Å
8JCW Cryo-EM structure of mGlu2-mGlu3 heterodimer in presence of LY341495 and NAM563 (dimerization mode I) Deposited 2023-05-12 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain 2 2–108（107 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 Z99 2-[(1S,2S)-2-carboxycyclopropyl]-3-(9H-xanthen-9-yl)-D-alanine × 2 CLR CHOLESTEROL × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.00 Å
8JCX Cryo-EM structure of mGlu2-mGlu3 heterodimer in presence of LY341495 and NAM563 (dimerization mode II) Deposited 2023-05-12 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain 2 2–108（107 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 Z99 2-[(1S,2S)-2-carboxycyclopropyl]-3-(9H-xanthen-9-yl)-D-alanine × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.00 Å
8JCY Cryo-EM structure of mGlu2-mGlu3 heterodimer in presence of LY341495, NAM563, and LY2389575 (dimerization mode I) Deposited 2023-05-12 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain 2 2–108（107 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 Z99 2-[(1S,2S)-2-carboxycyclopropyl]-3-(9H-xanthen-9-yl)-D-alanine × 2 CLR CHOLESTEROL × 7 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
8JCZ Cryo-EM structure of mGlu2-mGlu3 heterodimer in presence of LY341495, NAM563, and LY2389575 (dimerization mode III) Deposited 2023-05-12 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain 2 2–108（107 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 Z99 2-[(1S,2S)-2-carboxycyclopropyl]-3-(9H-xanthen-9-yl)-D-alanine × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.00 Å
8JD0 Cryo-EM structure of mGlu2-mGlu3 heterodimer in presence of NAM563 Deposited 2023-05-12 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain 2 2–108（107 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 J9R 4-(1-methylpyrazol-4-yl)-7-[[(2~{S})-2-(trifluoromethyl)morpholin-4-yl]methyl]quinoline-2-carboxamide × 1 CLR CHOLESTEROL × 9 GLU GLUTAMIC ACID × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.30 Å
8JD1 Cryo-EM structure of mGlu2-mGlu3 heterodimer in Rco state Deposited 2023-05-12 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain 2 2–108（107 aa）
Not recorded GLU GLUTAMIC ACID × 2 CLR CHOLESTEROL × 7 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.70 Å
8JD2 Cryo-EM structure of G protein-free mGlu2-mGlu3 heterodimer in Acc state Deposited 2023-05-12 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain 2 2–108（107 aa）
Not recorded GLU GLUTAMIC ACID × 2 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.80 Å
8JD4 Cryo-EM structure of G protein-free mGlu2-mGlu4 heterodimer in Acc state Deposited 2023-05-12 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain 2 2–108（107 aa）
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 GLU GLUTAMIC ACID × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.90 Å
8JGA Cryo-EM structure of Mi3 fused with FKBP Deposited 2023-05-20 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 2–108（107 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.68 Å
8PDF FKBP12 in complex with PROTAC 6a2 Deposited 2023-06-12 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 2–108（107 aa）
Mutation：C23V Y5Q (2~{S},4~{R})-1-[(2~{S})-2-[2-[2-[2-[4-[(1~{S})-1-[(1~{S},5~{S},6~{R})-10-[3,5-bis(chloranyl)phenyl]sulfonyl-5-ethenyl-2-oxidanylidene-3,10-diazabicyclo[4.3.1]decan-3-yl]ethyl]-1,2,3-triazol-1-yl]ethoxy]ethoxy]ethanoylamino]-3,3-dimethyl-butanoyl]-~{N}-[[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl]-4-oxidanyl-pyrrolidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；1.36 Na/K tartrate, 0.2M ammonium citrate, 0.1M MES pH 6.5
Resolution 1.20 Å R-free 0.176
8POD Crystal structure of the kinase domain of ACVR1 (ALK2) in complex with FKBP12 and MU1700 Deposited 2023-07-04 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 1–108（108 aa）
Not recorded 7IO 6-(4-piperazin-1-ylphenyl)-3-quinolin-4-yl-furo[3,2-b]pyridine × 1 F FLUORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；20% PEG3350, 10% ethylene glycol, 0.1M bis-tris-propane pH 7.5, 0.2M sodium fluoride
Resolution 2.59 Å R-free 0.255
8PPZ Co-crystal structure of FKBP12, compound 7 and the FRB fragment of mTOR Deposited 2023-07-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 2–108（107 aa）
Mutation：C22V 0AN (1~{S},5~{S},6~{R})-10-[3,5-bis(chloranyl)phenyl]sulfonyl-5-[(~{E})-2-(2-chlorophenyl)ethenyl]-3-(pyridin-2-ylmethyl)-3,10-diazabicyclo[4.3.1]decan-2-one × 1 CA CALCIUM ION × 4 ACT ACETATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；10% PEG8000, 0.1 M HEPES pH 7.5, 0.2 M calcium actetate
Resolution 1.85 Å R-free 0.238
8X6P Isomerase Protein Deposited 2023-11-21 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1–108（108 aa）
Not recorded SO4 SULFATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；300 K；NaCl, Ammonium Sulfate, TRIS
Resolution 1.05 Å R-free 0.224
8X6P Isomerase Protein Deposited 2023-11-21 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain B 1–108（108 aa）
Not recorded SO4 SULFATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；300 K；NaCl, Ammonium Sulfate, TRIS
Resolution 1.05 Å R-free 0.224
9CHU Cryo-EM structure of calcineurin fused beta2 adrenergic receptor in norepinephrine bound inactive state Deposited 2024-07-02 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 1–108（108 aa）
Not recorded E5E Noradrenaline × 1 FK5 8-DEETHYL-8-[BUT-3-ENYL]-ASCOMYCIN × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.49 Å
9CHV cryo-EM structure of calcineurin-fused beta2 adrenergic receptor in apo state Deposited 2024-07-02 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 1–108（108 aa）
Not recorded FK5 8-DEETHYL-8-[BUT-3-ENYL]-ASCOMYCIN × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.95 Å
9CHX cryo-EM structure of calcineurin-fused beta2 adrenergic receptor in carazolol bound inactive state Deposited 2024-07-02 Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 1–108（108 aa）
Not recorded CAU (2S)-1-(9H-Carbazol-4-yloxy)-3-(isopropylamino)propan-2-ol × 1 FK5 8-DEETHYL-8-[BUT-3-ENYL]-ASCOMYCIN × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.50 Å
9CO5 Crystal Structure of Macrocycle mediated complex of FKBP12 and MAPRE1 Deposited 2024-07-16 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 1–108（108 aa）
Not recorded A1AZI (5S,14R,16aS,21R,28S,30aR)-14-[2-(3,4-dimethoxyphenyl)ethyl]-24,24,28-trimethyl-2-methylidene-1,3,4,17,18,19,20,24,25,28,29,30a-dodecahydro-2H,14H-9,13-(metheno)dipyrido[1,2-d:1',2'-o][1,10,18,4,7,15]trioxatriazacyclotetracosine-6,16,22,23,27,30(7H,16aH)-hexone × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；1.5 M LiSO4, 0.1 M CH3COONa pH 4.6
Resolution 2.77 Å R-free 0.225
9DCW FKBP1a (FKBP12) co-crystal structure with macrocycle molecular glue Deposited 2024-08-27 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–108（108 aa）
Not recorded A1AZI (5S,14R,16aS,21R,28S,30aR)-14-[2-(3,4-dimethoxyphenyl)ethyl]-24,24,28-trimethyl-2-methylidene-1,3,4,17,18,19,20,24,25,28,29,30a-dodecahydro-2H,14H-9,13-(metheno)dipyrido[1,2-d:1',2'-o][1,10,18,4,7,15]trioxatriazacyclotetracosine-6,16,22,23,27,30(7H,16aH)-hexone × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277.15 K；0.1 M CHES, 30% PEG3K (pH 9.5)
Resolution 1.72 Å R-free 0.252
9DTW Co-crystal structure of the ternary complex of human FKBP12, QDPR and Compound 4 Deposited 2024-10-02 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 1–108（108 aa）
Not recorded GOL GLYCEROL × 1 CL CHLORIDE ION × 1 A1BB9 (2S)-N-[(2R)-1-({[(1R)-6-(4-[(4S)-5,6-dihydro[1,2,4]triazolo[1,5-a]pyrazin-7(8H)-yl]-6-{[(1S)-3-methyl-1-(1H-1,2,4-triazol-3-yl)butyl]amino}-1,3,5-triazin-2-yl)-6-azaspiro[2.5]octan-1-yl]methyl}amino)-4-(4-methoxyphenyl)-1-oxobutan-2-yl]-1-(3,3-dimethyl-2-oxopentanoyl)piperidine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；0.1 M TRIS-HCL PH 7, 0.2 M CALCIUM ACETATE HYDRATE, 20 % (W/V) PEG 3000 (MCSG SCREEN 1, CONDITION C11); 1:1:1 FKBP12:QDPR:MOTHER LIQUOR PLUS EQUIMOLAR COMPOUND IN 200-NL DROP. COMPLEX CONCENTRATED TO 10 MG/ML
Resolution 1.39 Å R-free 0.214
9DU1 Co-crystal structure of the ternary complex of human FKBP12, BRD9 bromo domain and Compound 1 Deposited 2024-10-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain A 1–108（108 aa）
Chain B 1–108（108 aa）
Chain C 1–108（108 aa）
Chain D 1–108（108 aa）
Not recorded A1BB8 4-[4-{cyclopropyl[(1-methyl-1H-pyrazol-4-yl)methyl]amino}-6-({1-[(2R)-2-{[(2S)-1-(3,3-dimethyl-2-oxopentanoyl)piperidine-2-carbonyl]amino}-4-(4-methoxyphenyl)butanoyl]piperidin-4-yl}amino)-1,3,5-triazin-2-yl]-N-ethylpiperazine-1-carboxamide × 4 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；0.1 M HEPES PH 7.5, 20% PEG 8000 (MCSG SCREEN 1, CONDITION A1); 1:1:1 FKBP12:BRD9:MOTHER LIQUOR PLUS EQUIMOLAR COMPOUND IN 200-NL DROP. COMPLEX CONCENTRATED TO 10 MG/ML
Resolution 2.01 Å R-free 0.259
9LYG Crystal structure of FKBP12 complexed with Small Molecule Anchor for Protein-201 Deposited 2025-02-20 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–108（108 aa）
Not recorded A1L7S 5-[(2~{S})-1-cyclohexylsulfonylpiperidin-2-yl]-3-[3-(3,4-dimethoxyphenyl)propyl]-1,2,4-oxadiazole × 1 GOL GLYCEROL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；277 K；0.1 M Tris-HCl (pH8.0), 3.0 M Ammonium sulfate
Resolution 1.26 Å R-free 0.188
9QW8 FKBP12 in complex with bifunctional ligand 1ad and the first bromodomain of BRD4 Deposited 2025-04-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 2–108（107 aa）
Mutation：C22V A1JAZ ~{N}-[2-[2-[4-[[(1~{S},5~{S},6~{R})-10-[3,5-bis(chloranyl)phenyl]sulfonyl-2-oxidanylidene-3-(pyridin-2-ylmethyl)-3,10-diazabicyclo[4.3.1]decan-5-yl]methoxymethyl]-1,2,3-triazol-1-yl]ethoxy]ethyl]-2-[(9~{S})-7-(4-chlorophenyl)-4,5,13-trimethyl-3-thia-1,8,11,12-tetrazatricyclo[8.3.0.0^{2,6}]trideca-2(6),4,7,10,12-pentaen-9-yl]ethanamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；22% PEG3350, 0.2 M NaCl, 0.1 M Tris-HCl pH 8.5
Resolution 1.80 Å R-free 0.243
9QW8 FKBP12 in complex with bifunctional ligand 1ad and the first bromodomain of BRD4 Deposited 2025-04-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 2–108（107 aa）
Mutation：C22V A1JAZ ~{N}-[2-[2-[4-[[(1~{S},5~{S},6~{R})-10-[3,5-bis(chloranyl)phenyl]sulfonyl-2-oxidanylidene-3-(pyridin-2-ylmethyl)-3,10-diazabicyclo[4.3.1]decan-5-yl]methoxymethyl]-1,2,3-triazol-1-yl]ethoxy]ethyl]-2-[(9~{S})-7-(4-chlorophenyl)-4,5,13-trimethyl-3-thia-1,8,11,12-tetrazatricyclo[8.3.0.0^{2,6}]trideca-2(6),4,7,10,12-pentaen-9-yl]ethanamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；22% PEG3350, 0.2 M NaCl, 0.1 M Tris-HCl pH 8.5
Resolution 1.80 Å R-free 0.243
9R5N FKBP12 in complex with binfunctional ligand b3c and the first bromodomain of BRD4 Deposited 2025-05-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 2–108（107 aa）
Mutation：C23V A1JCU ~{tert}-butyl 2-[(9~{S})-7-[4-[3-[2-[2-[4-[(1~{S},5~{S},6~{R})-10-[3,5-bis(chloranyl)phenyl]sulfonyl-2-oxidanylidene-3-(pyridin-2-ylmethyl)-3,10-diazabicyclo[4.3.1]decan-5-yl]-1,2,3-triazol-1-yl]ethoxy]ethanoylamino]prop-1-ynyl]phenyl]-4,5,13-trimethyl-3-thia-1,8,11,12-tetrazatricyclo[8.3.0.0^{2,6}]trideca-2(6),4,7,10,12-pentaen-9-yl]ethanoate × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；25% PEG3350, 0.2M ammonium thiocyanate, 0.1 M Tris-HCl pH 8.8
Resolution 3.00 Å R-free 0.312
9R5N FKBP12 in complex with binfunctional ligand b3c and the first bromodomain of BRD4 Deposited 2025-05-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 2–108（107 aa）
Mutation：C23V A1JCU ~{tert}-butyl 2-[(9~{S})-7-[4-[3-[2-[2-[4-[(1~{S},5~{S},6~{R})-10-[3,5-bis(chloranyl)phenyl]sulfonyl-2-oxidanylidene-3-(pyridin-2-ylmethyl)-3,10-diazabicyclo[4.3.1]decan-5-yl]-1,2,3-triazol-1-yl]ethoxy]ethanoylamino]prop-1-ynyl]phenyl]-4,5,13-trimethyl-3-thia-1,8,11,12-tetrazatricyclo[8.3.0.0^{2,6}]trideca-2(6),4,7,10,12-pentaen-9-yl]ethanoate × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；25% PEG3350, 0.2M ammonium thiocyanate, 0.1 M Tris-HCl pH 8.8
Resolution 3.00 Å R-free 0.312
9RDA Cocrystal structure of Zilurgisertib bound to the ALK2-FKBP12 complex Deposited 2025-06-02 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 2–108（107 aa）
Not recorded A1JFB Zilurgisertib × 1 EDO 1,2-ETHANEDIOL × 14 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；protein: reservoir 2:1 Crystallization Reservoir Solution = 0.24M Ammonium Sulphate, 0.1M Hepes pH 7.0, 28% PEG3350 Crystallization Protein Solution = Alk2-FKBP12 at 7.0 mg/ml in 50 mM Tris, 150 mM NaCl, 2 mM TCEP, pH 7.0 concentrated in the presence of 2.5 mM AMPPNP and 20 mM MgCl2 cryo condition: 10% ethyleneglycol for 2 min
Resolution 1.75 Å R-free 0.224
9W8H Isomerase Structure at 140K Deposited 2025-08-07 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–108（108 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；NaCl, Ammonium Sulfate, TRIS
Resolution 2.00 Å R-free 0.275
9W8H Isomerase Structure at 140K Deposited 2025-08-07 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 1–108（108 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；NaCl, Ammonium Sulfate, TRIS
Resolution 2.00 Å R-free 0.275
9W8I Isomerase at 160K Deposited 2025-08-07 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–108（108 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；NaCl, Ammonium Sulfate, TRIS
Resolution 2.00 Å R-free 0.280
9W8I Isomerase at 160K Deposited 2025-08-07 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 1–108（108 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；NaCl, Ammonium Sulfate, TRIS
Resolution 2.00 Å R-free 0.280
9W8K Isomerase at 180K Deposited 2025-08-07 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–108（108 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；NaCl, Ammonium Sulfate, TRIS
Resolution 2.00 Å R-free 0.279
9W8K Isomerase at 180K Deposited 2025-08-07 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 1–108（108 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；NaCl, Ammonium Sulfate, TRIS
Resolution 2.00 Å R-free 0.279
9W8L Isomerase at 200K Deposited 2025-08-07 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–108（108 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；NaCl, Ammonium Sulfate, TRIS
Resolution 2.00 Å R-free 0.311
9W8L Isomerase at 200K Deposited 2025-08-07 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 1–108（108 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；NaCl, Ammonium Sulfate, TRIS
Resolution 2.00 Å R-free 0.311
9W8M Isomerase at 240K Deposited 2025-08-07 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–108（108 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；NaCl, Ammonium Sulfate, TRIS
Resolution 2.00 Å R-free 0.270
9W8M Isomerase at 240K Deposited 2025-08-07 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 1–108（108 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；NaCl, Ammonium Sulfate, TRIS
Resolution 2.00 Å R-free 0.270
9W8N Isomerase at 290K Deposited 2025-08-07 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–108（108 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；NaCl, Ammonium Sulfate, TRIS
Resolution 2.00 Å R-free 0.262
9W8N Isomerase at 290K Deposited 2025-08-07 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 1–108（108 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；NaCl, Ammonium Sulfate, TRIS
Resolution 2.00 Å R-free 0.262
9W8O Isomerase at 285K Deposited 2025-08-07 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–108（108 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；NaCl, Ammonium Sulfate, TRIS
Resolution 2.00 Å R-free 0.261
9W8O Isomerase at 285K Deposited 2025-08-07 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 1–108（108 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；NaCl, Ammonium Sulfate, TRIS
Resolution 2.00 Å R-free 0.261
9W8P Isomerase at 260K Deposited 2025-08-07 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–108（108 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；NaCl, Ammonium Sulfate, TRIS
Resolution 2.00 Å R-free 0.246
9W8P Isomerase at 260K Deposited 2025-08-07 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 1–108（108 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；NaCl, Ammonium Sulfate, TRIS
Resolution 2.00 Å R-free 0.246
9WH0 Isomerase at 100K Deposited 2025-08-25 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–108（108 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；Ammonium Sulfate, Sodium Chloride, TRIS
Resolution 2.00 Å R-free 0.240
9WH0 Isomerase at 100K Deposited 2025-08-25 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 1–108（108 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；Ammonium Sulfate, Sodium Chloride, TRIS
Resolution 2.00 Å R-free 0.240
9WH2 Isomerase Structure at 280K Deposited 2025-08-25 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–108（108 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；NaCl, Ammonium Sulfate, TRIS
Resolution 2.00 Å R-free 0.234
9WH2 Isomerase Structure at 280K Deposited 2025-08-25 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 1–108（108 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；NaCl, Ammonium Sulfate, TRIS
Resolution 2.00 Å R-free 0.234
9WH5 Isomerase at 120K Deposited 2025-08-25 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–108（108 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；Ammonium Sulfate, Sodium Chloride, TRIS
Resolution 2.00 Å R-free 0.252
9WH5 Isomerase at 120K Deposited 2025-08-25 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 1–108（108 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；Ammonium Sulfate, Sodium Chloride, TRIS
Resolution 2.00 Å R-free 0.252
9WH6 Isomerase at 300K Deposited 2025-08-25 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–108（108 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；Ammonium Sulfate, Sodium Chloride, TRIS
Resolution 2.00 Å R-free 0.282
9WH6 Isomerase at 300K Deposited 2025-08-25 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 1–108（108 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；Ammonium Sulfate, Sodium Chloride, TRIS
Resolution 2.00 Å R-free 0.282

110 other PDB entries and 171 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name FKB1A_HUMAN
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 95–202； UniProt 1–108

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

SAXS profile for 8xi9

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 8xi9
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id8xi9
Deposition date deposition_date2023-12-19
Structure title titleCrystal structure of FRB-FKBP fusion protein in complex with rapamycin
Keywords keywordsRapamycin, SIGNALING PROTEIN; SIGNALING PROTEIN
Experimental Method methodX-RAY DIFFRACTION
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier21.60 Å
Radius of gyration Rg (electron density) rg_electron21.00 Å
Forward intensity I(0) i010203500.00
Molecular weight molecular_weight24080.0 kDa
Excluded volume excluded_volume30211 ų
Envelope volume envelope_volume36768 ų
Hydration-shell volume shell_volume15479 ų
Envelope diameter envelope_diameter72.6 Å
Shell Rg shell_rg26.16 Å
Envelope Rg envelope_rg20.85 Å
Shape Rg shape_rg20.95 Å
Total Rg total_rg21.90 Å
Total atoms total_atoms1694
Residues n_residues201
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax72.4 Å
Rg (real space) rg_real21.67 Å
Rg uncertainty (real space) rg_real_error0.56 Å
I(0) (real space) i0_real1.0200e+07
I(0) uncertainty (real space) i0_real_error1.3790e+05
Rg (reciprocal space) rg_reciprocal21.66 Å
I(0) (reciprocal space) i0_reciprocal10200000.0000
Solution quality estimate total_estimate0.8573
Solution quality rating solution_quality GOOD a GOOD solution
P(r) peaks n_peaks2
Primary peak position r_peak_primary20.2 Å
Skewness Skewness skewness0.322
Kurtosis Kurtosis kurtosis-0.652
Angular range angular_range— – 0.3700 Å−1
Current regularization parameter α current_alpha0.0000
Highest regularization parameter α highest_alpha1820000.0000
Real-space data points n_real_points69
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.792; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.825; Smooth: 0.938
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

▶

8. Citations (1)

▶

9. Files and Curves (10)
