SAXSdb — 6sd1

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Flagellar M-ring protein

Salmonella enterica subsp. enterica serovar Typhimurium

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 33	No other associated polymer	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	FLIF_SALTY
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–560； UniProt 1–560 Author chain B； PDBConstruct 1–560； UniProt 1–560 Author chain C； PDBConstruct 1–560； UniProt 1–560 Author chain D； PDBConstruct 1–560； UniProt 1–560 Author chain E； PDBConstruct 1–560； UniProt 1–560 Author chain F； PDBConstruct 1–560； UniProt 1–560 Author chain G； PDBConstruct 1–560； UniProt 1–560 Author chain H； PDBConstruct 1–560； UniProt 1–560 Author chain I； PDBConstruct 1–560； UniProt 1–560 Author chain J； PDBConstruct 1–560； UniProt 1–560 Author chain K； PDBConstruct 1–560； UniProt 1–560 Author chain L； PDBConstruct 1–560； UniProt 1–560 Author chain M； PDBConstruct 1–560； UniProt 1–560 Author chain N； PDBConstruct 1–560； UniProt 1–560 Author chain O； PDBConstruct 1–560； UniProt 1–560 Author chain P； PDBConstruct 1–560； UniProt 1–560 Author chain Q； PDBConstruct 1–560； UniProt 1–560 Author chain R； PDBConstruct 1–560； UniProt 1–560 Author chain S； PDBConstruct 1–560； UniProt 1–560 Author chain T； PDBConstruct 1–560； UniProt 1–560 Author chain U； PDBConstruct 1–560； UniProt 1–560 Author chain V； PDBConstruct 1–560； UniProt 1–560 Author chain W； PDBConstruct 1–560； UniProt 1–560 Author chain X； PDBConstruct 1–560； UniProt 1–560 Author chain Y； PDBConstruct 1–560； UniProt 1–560 Author chain Z； PDBConstruct 1–560； UniProt 1–560 Author chain a； PDBConstruct 1–560； UniProt 1–560 Author chain b； PDBConstruct 1–560； UniProt 1–560 Author chain c； PDBConstruct 1–560； UniProt 1–560 Author chain d； PDBConstruct 1–560； UniProt 1–560 Author chain e； PDBConstruct 1–560； UniProt 1–560 Author chain f； PDBConstruct 1–560； UniProt 1–560 Author chain g； PDBConstruct 1–560； UniProt 1–560

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6sd1
Deposition date deposition_date	2019-07-26
Structure title title	Structure of the RBM3/collar region of the Salmonella flagella MS-ring protein FliF with 33-fold symmetry applied
Keywords keywords	Flagella, Secretion, Rotor, MS-ring, C-ring, MOTOR PROTEIN; MOTOR PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

6sd1__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

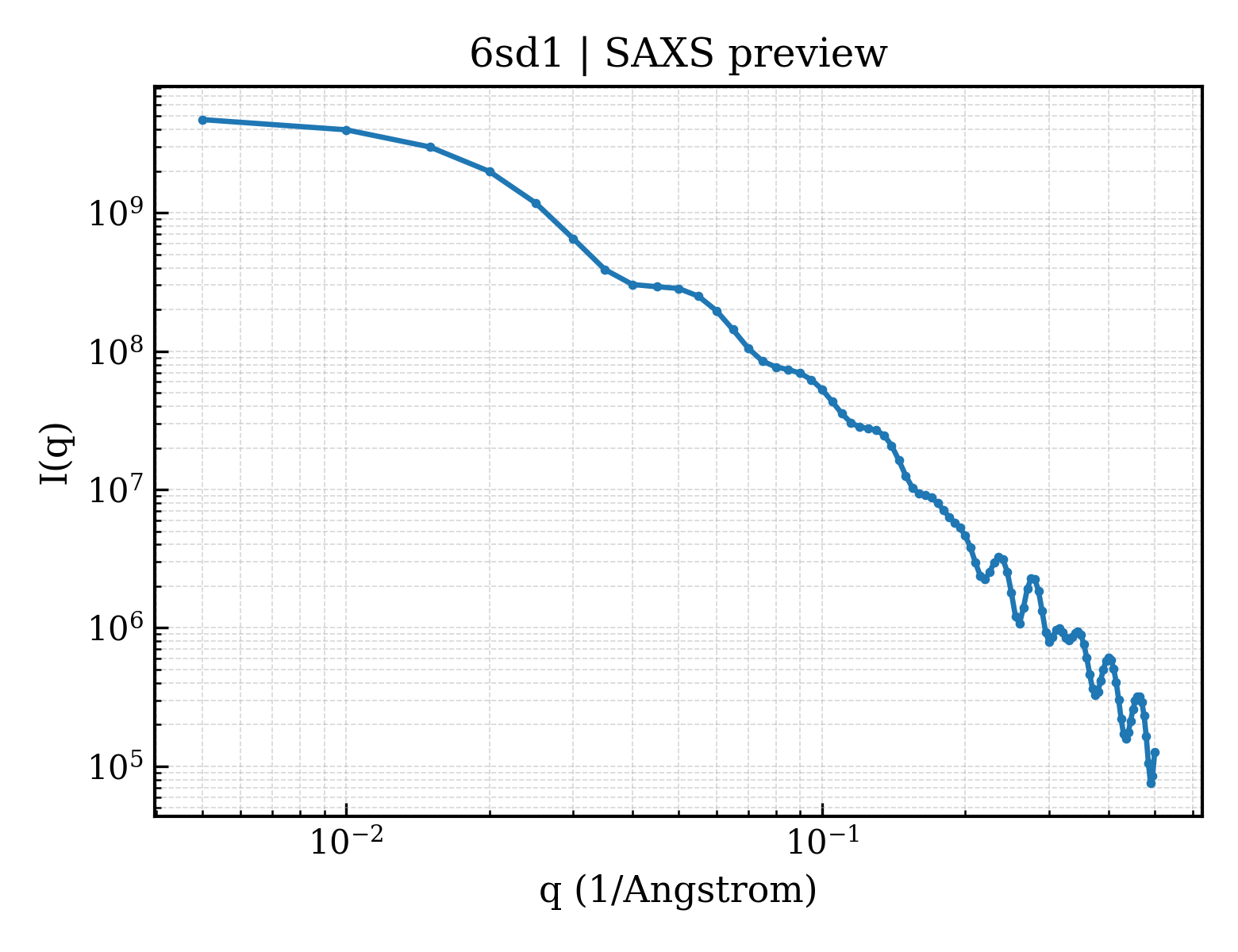

6sd1__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

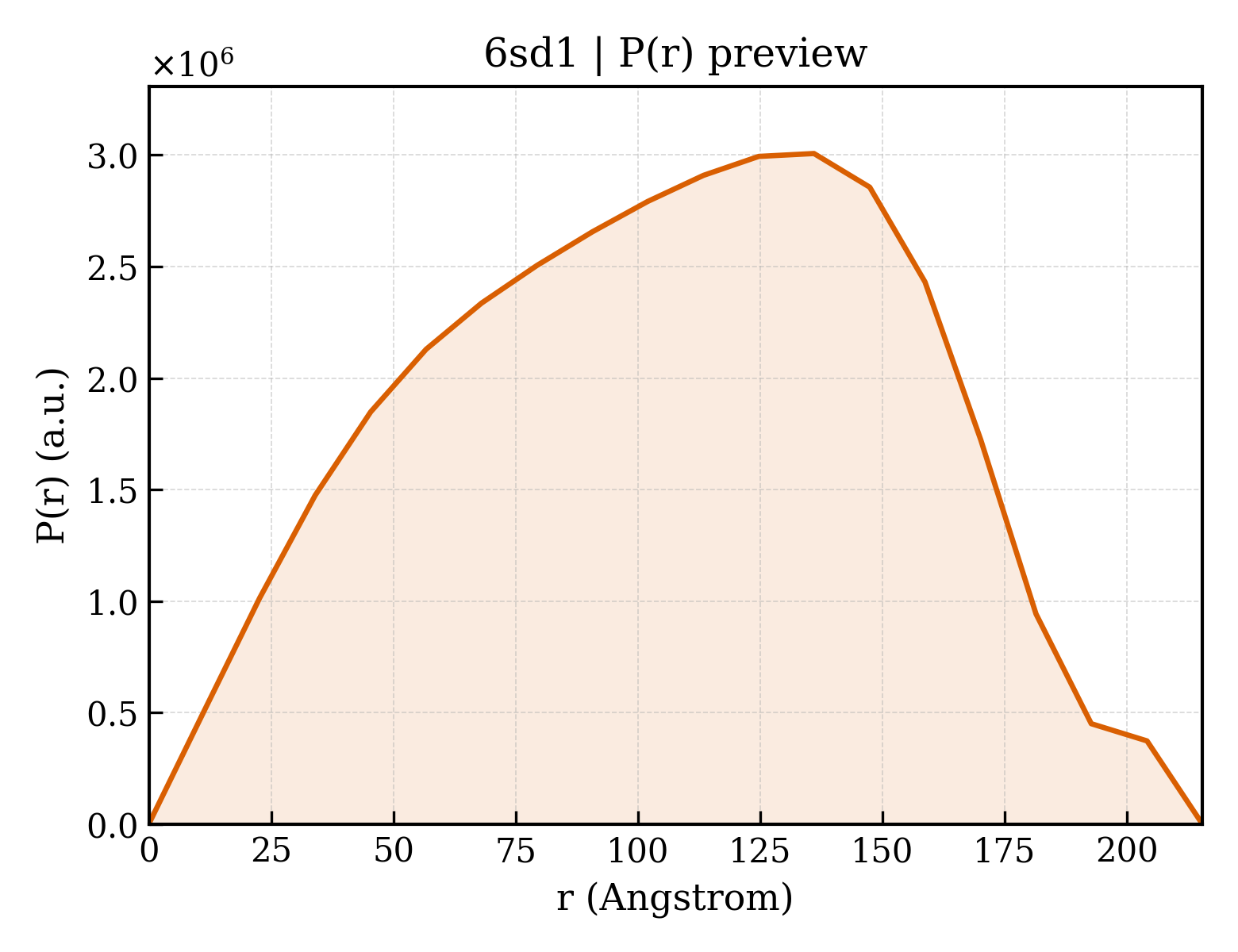

6sd1__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	82.06 Å
Rg (electron density)	82.92 Å
Total Rg	83.04 Å
Atom count	39369
Residues	4983
Excluded volume	687080 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`6sd1__assembly_1__model_1`	33-meric （33）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	1

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	triclinic

Resolution resolution	2.60 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	77849

Description description	Flagellar M-ring protein
Molecular weight formula_weight	61295.6 kDa
Source method src_method	man
Copy count entity_count	33

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F,G,H,I,J,K,L,M,N,O,P,Q,R,S,T,U,V,W,X,Y,Z,a,b,c,d,e,f,g
Atom count atom_count	39369

Structure of the RBM3/collar region of the Salmonella flagella MS-ring protein FliF with 33-fold symmetry applied

1. Protein Identity and Related Structures Protein Identity & Related Structures

Flagellar M-ring protein

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

6sd1__assembly_1__model_1

6sd1__assembly_1__model_1 | I(q)

6sd1__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

冷冻电镜 EM 3D

5. Entities and Polymers Entities & Polymers (1)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

7. Citations (1)

Source organism organism	Salmonella enterica subsp. enterica serovar Typhimurium
NCBI taxonomy ID ncbi_taxonomy_id	90371
Host organism host_organism	Escherichia coli

Structure of the RBM3/collar region of the Salmonella flagella MS-ring protein FliF with 33-fold symmetry applied
