8v84

60S ribosome biogenesis intermediate (Dbp10 catalytic structure - Overall map)

Method: ELECTRON MICROSCOPY D_max: 236.4 Å Quality: EXCELLENT

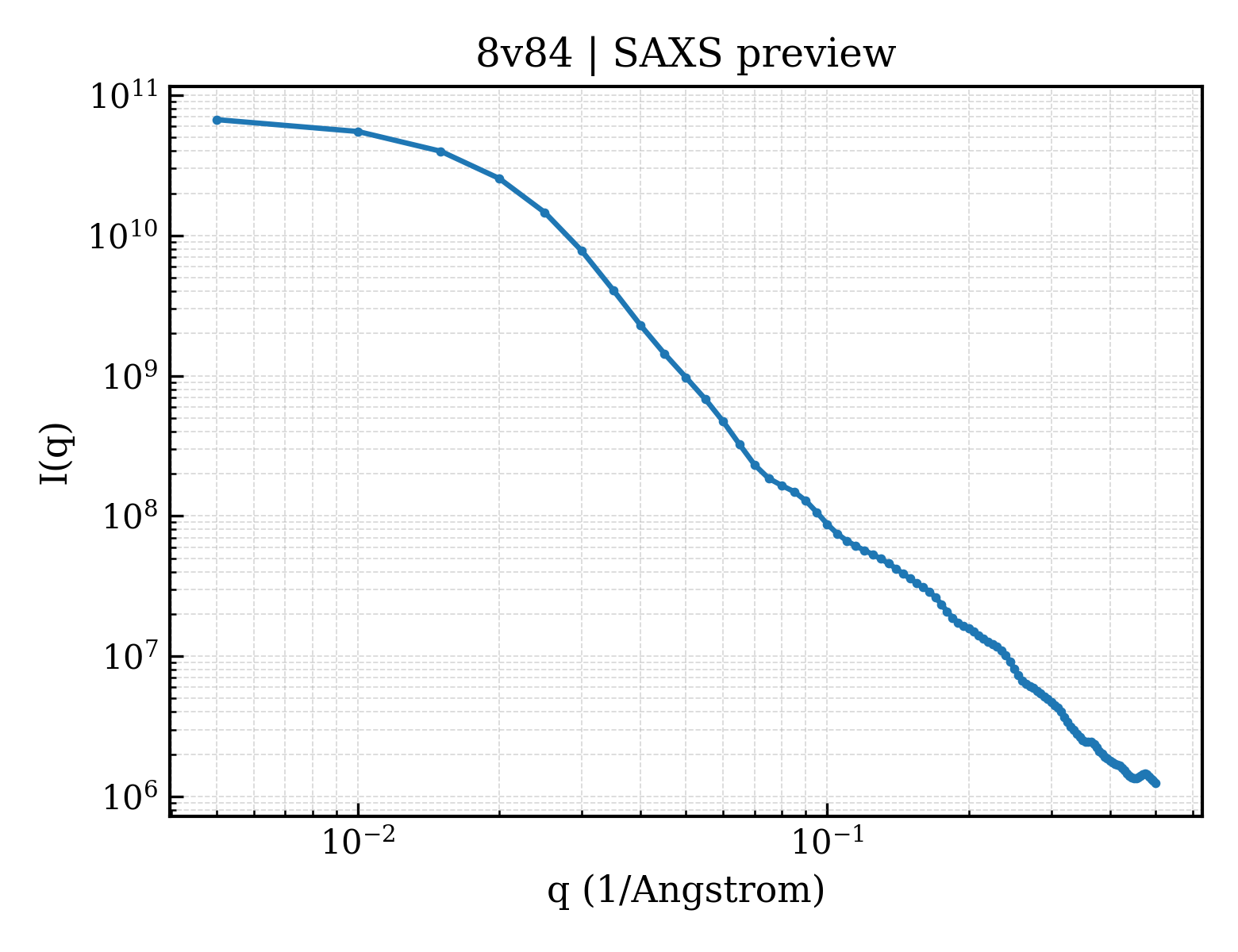

SAXS 散射曲线 SAXS Profile

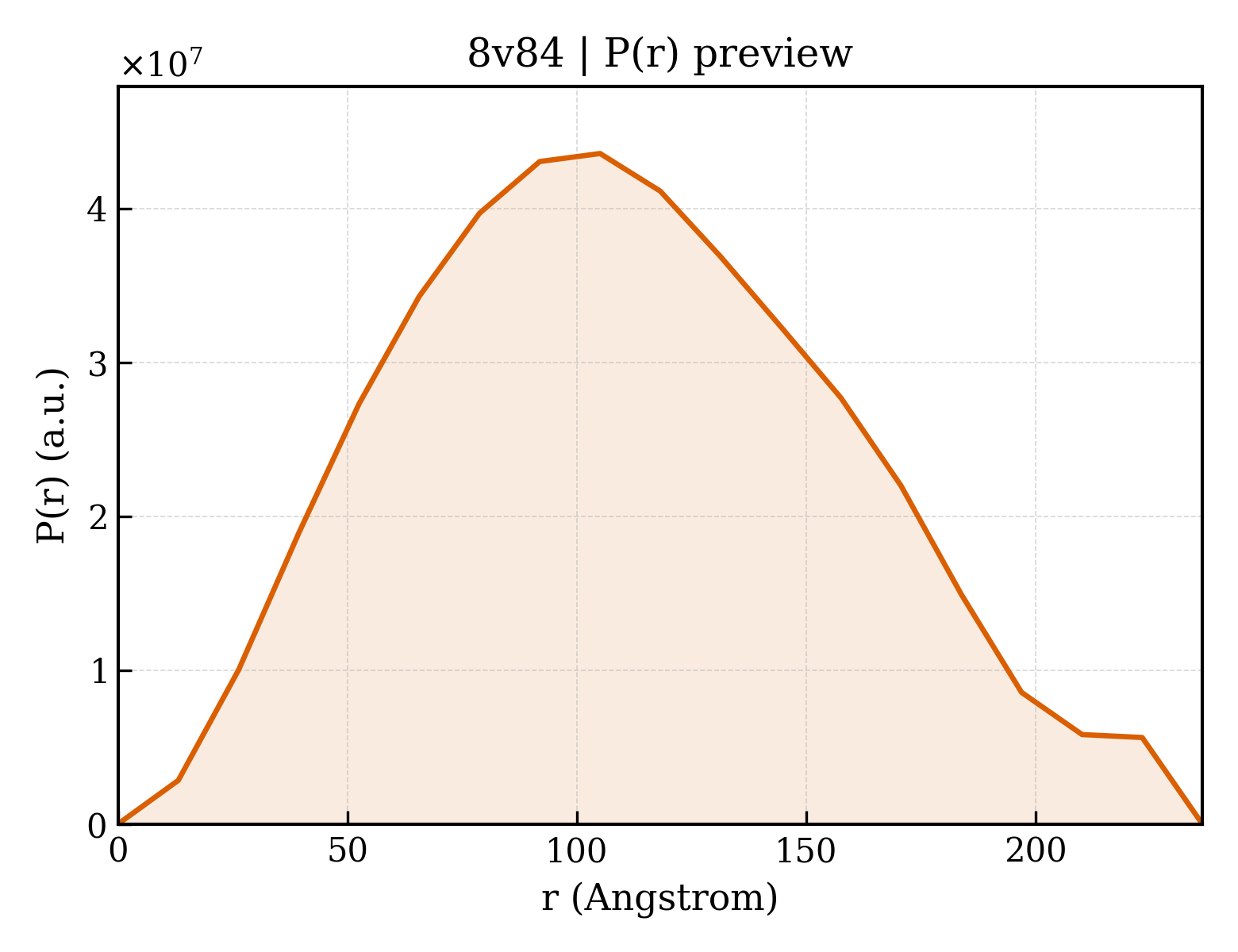

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8v84
沉积日期 deposition_date	2023-12-04
最后修订 last_revision	2024-05-01
结构标题 title	60S ribosome biogenesis intermediate (Dbp10 catalytic structure - Overall map)
关键词 keywords	Ribosome biogenesis, intermediate DEAD-box ATPase, Ribosome-RNA complex; Ribosome/RNA
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	88.27 Å
回转半径 Rg (电子) rg_electron	91.58 Å
零角强度 I(0) i0	71427700000.00
分子量 molecular_weight	1765900.0 kDa
排除体积 excluded_volume	1998700 Å³
包络体积 envelope_volume	3524500 Å³
水化壳体积 shell_volume	311500 Å³
包络直径 envelope_diameter	322.1 Å
壳层 Rg shell_rg	94.04 Å
包络 Rg envelope_rg	89.73 Å
形状 Rg shape_rg	91.72 Å
总 Rg total_rg	91.24 Å
总原子数 total_atoms	121244
残基数 n_residues	11452
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	236.4 Å
Rg (实空间) rg_real	84.63 Å
Rg 误差 (实空间) rg_real_error	0.63 Å
I(0) (实空间) i0_real	6.8440e+10
I(0) 误差 (实空间) i0_real_error	1.2490e+09
Rg (倒空间) rg_reciprocal	87.95 Å
I(0) (倒空间) i0_reciprocal	71350000000.0000
解质量估计 total_estimate	0.9173
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	105.1 Å
偏度 Skewness skewness	0.230
峰度 Kurtosis kurtosis	-0.538
角度范围 angular_range	— – 0.0900 Å⁻¹
当前正则化参数 α current_alpha	0.6033
最高正则化参数 α highest_alpha	5029000000.0000
实空间数据点数 n_real_points	19
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.996; Stabil: 0.985; Sysdev: 1.000; Positv: 1.000; Valcen: 0.982; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (52)

Entity 1 polymer

描述 description	Saccharomyces cerevisiae 25S ribosomal RNA
分子量 formula_weight	1097493.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	1
原子数 atom_count	121244

GUUUGACCUCAAAUCAGGUAGGAGUACCCGCUGAACUUAAGCAUAUCAAUAAGCGGAGGAAAAGAAACCAACCGGGAUUGCCUUAGUAACGGCGAGUGAAGCGGCAAAAGCUCAAAUUUGAAAUCUGGUACCUUCGGUGCCCGAGUUGUAAUUUGGAGAGGGCAACUUUGGGGCCGUUCCUUGUCUAUGUUCCUUGGAACAGGACGUCAUAGAGGGUGAGAAUCCCGUGUGGCGAGGAGUGCGGUUCUUUGUAAAGUGCCUUCGAAGAGUCGAGUUGUUUGGGAAUGCAGCUCUAAGUGGGUGGUAAAUUCCAUCUAAAGCUAAAUAUUGGCGAGAGACCGAUAGCGAACAAGUACAGUGAUGGAAAGAUGAAAAGAACUUUGAAAAGAGAGUGAAAAAGUACGUGAAAUUGUUGAAAGGGAAGGGCAUUUGAUCAGACAUGGUGUUUUGUGCCCUCUGCUCCUUGUGGGUAGGGGAAUCUCGCAUUUCACUGGGCCAGCAUCAGUUUUGGUGGCAGGAUAAAUCCAUAGGAAUGUAGCUUGCCUCGGUAAGUAUUAUAGCCUGUGGGAAUACUGCCAGCUGGGACUGAGGACUGCGACGUAAGUCAAGGAUGCUGGCAUAAUGGUUAUAUGCCGCCCGUCUUGAAACACGGACCAAGGAGUCUAACGUCUAUGCGAGUGUUUGGGUGUAAAACCCAUACGCGUAAUGAAAGUGAACGUAGGUUGGGGCCUCGCAAGAGGUGCACAAUCGACCGAUCCUGAUGUCUUCGGAUGGAUUUGAGUAAGAGCAUAGCUGUUGGGACCCGAAAGAUGGUGAACUAUGCCUGAAUAGGGUGAAGCCAGAGGAAACUCUGGUGGAGGCUCGUAGCGGUUCUGACGUGCAAAUCGAUCGUCGAAUUUGGGUAUAGGGGCGAAAGACUAAUCGAACCAUCUAGUAGCUGGUUCCUGCCGAAGUUUCCCUCAGGAUAGCAGAAGCUCGUAUCAGUUUUAUGAGGUAAAGCGAAUGAUUAGAGGUUCCGGGGUCGAAAUGACCUUGACCUAUUCUCAAACUUUAAAUAUGUAAGAAGUCCUUGUUACUUAAUUGAACGUGGACAUUUGAAUGAAGAGCUUUUAGUGGGCCAUUUUUGGUAAGCAGAACUGGCGAUGCGGGAUGAACCGAACGUAGAGUUAAGGUGCCGGAAUACACGCUCAUCAGACACCACAAAAGGUGUUAGUUCAUCUAGACAGCCGGACGGUGGCCAUGGAAGUCGGAAUCCGCUAAGGAGUGUGUAACAACUCACCGGCCGAAUGAACUAGCCCUGAAAAUGGAUGGCGCUCAAGCGUGUUACCUAUACUCUACCGUCAGGGUUGAUAUGAUGCCCUGACGAGUAGGCAGGCGUGGAGGUCAGUGACGAAGCCUAGACCGUAAGGUCGGGUCGAACGGCCUCUAGUGCAGAUCUUGGUGGUAGUAGCAAAUAUUCAAAUGAGAACUUUGAAGACUGAAGUGGGGAAAGGUUCCACGUCAACAGCAGUUGGACGUGGGUUAGUCGAUCCUAAGAGAUGGGGAAGCUCCGUUUCAAAGGCCUGAUUUUAUGCAGGCCACCAUCGAAAGGGAAUCCGGUUAAGAUUCCGGAACCUGGAUAUGGAUUCUUCACGGUAACGUAACUGAAUGUGGAGACGUCGGCGCGAGCCCUGGGAGGAGUUAUCUUUUCUUCUUAACAGCUUAUCACCCCGGAAUUGGUUUAUCCGGAGAUGGGGUCUUAUGGCUGGAAGAGGCCAGCACCUUUGCUGGCUCCGGUGCGCUUGUGACGGCCCGUGAAAAUCCACAGGAAGGAAUAGUUUUCAUGCCAGGUCGUACUGAUAACCGCAGCAGGUCUCCAAGGUGAACAGCCUCUAGUUGAUAGAAUAAUGUAGAUAAGGGAAGUCGGCAAAAUAGAUCCGUAACUUCGGGAUAAGGAUUGGCUCUAAGGGUCGGGUAGUGAGGGCCUUGGUCAGACGCAGCGGGCGUGCUUGUGGACUGCUUGGUGGGGCUUGCUCUGCUAGGCGGACUACUUGCGUGCCUUGUUGUAGACGGCCUUGGUAGGUCUCUUGUAGACCGUCGCUUGCUACAAUUAACGAUCAACUUAGAACUGGUACGGACAAGGGGAAUCUGACUGUCUAAUUAAAACAUAGCAUUGCGAUGGUCAGAAAGUGAUGUUGACGCAAUGUGAUUUCUGCCCAGUGCUCUGAAUGUCAAAGUGAAGAAAUUCAACCAAGCGCGGGUAAACGGCGGGAGUAACUAUGACUCUCUUAAGGUAGCCAAAUGCCUCGUCAUCUAAUUAGUGACGCGCAUGAAUGGAUUAACGAGAUUCCCACUGUCCCUAUCUACUAUCUAGCGAAACCACAGCCAAGGGAACGGGCUUGGCAGAAUCAGCGGGGAAAGAAGACCCUGUUGAGCUUGACUCUAGUUUGACAUUGUGAAGAGACAUAGAGGGUGUAGAAUAAGUGGGAGCUUCGGCGCCAGUGAAAUACCACUACCUUUAUAGUUUCUUUACUUAUUCAAUGAAGCGGAGCUGGAAUUCAUUUUCCACGUUCUAGCAUUCAAGGUCCCAUUCGGGGCUGAUCCGGGUUGAAGACAUUGUCAGGUGGGGAGUUUGGCUGGGGCGGCACAUCUGUUAAACGAUAACGCAGAUGUCCUAAGGGGGGCUCAUGGAGAACAGAAAUCUCCAGUAGAACAAAAGGGUAAAAGCCCCCUUGAUUUUGAUUUUCAGUGUGAAUACAAACCAUGAAAGUGUGGCCUAUCGAUCCUUUAGUCCCUCGGAAUUUGAGGCUAGAGGUGCCAGAAAAGUUACCACAGGGAUAACUGGCUUGUGGCAGUCAAGCGUUCAUAGCGACAUUGCUUUUUGAUUCUUCGAUGUCGGCUCUUCCUAUCAUACCGAAGCAGAAUUCGGUAAGCGUUGGAUUGUUCACCCACUAAUAGGGAACGUGAGCUGGGUUUAGACCGUCGUGAGACAGGUUAGUUUUACCCUACUGAUGAAUGUUACCGCAAUAGUAAUUGAACUUAGUACGAGAGGAACAGUUCAUUCGGAUAAUUGGUUUUUGCGGCUGUCUGAUCAGGCAUUGCCGCGAAGCUACCAUCCGCUGGAUUAUGGCUGAACGCCUCUAAGUCAGAAUCCAUGCUAGAACGCGGUGAUUUCUUUGCUCCACACAAUAUAGAUGGAUACGAAUAAGGCGUCCUUGUGGCGUCGCUGAACCAUAGCAGGCUAGCAACGGUGCACUUGGCGGAAAGGCCUUGGGUGCUUGCUGGCGAAUUGCAAUGUCAUUUUGCGUGGGGAUAAAUCAUUUGUAUACGACUUAGAUGUACAACGGGGUAUUGUAAGCAGUAGAGUAGCCUUGUUGUUACGAUCUGCUGAGAUUAAGCCUUUGUUGUCUGAUUUGU

Entity 2 polymer

描述 description	Saccharomyces cerevisiae 5.8S ribosomal RNA
分子量 formula_weight	50682.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	2

AAACUUUCAACAACGGAUCUCUUGGUUCUCGCAUCGAUGAAGAACGCAGCGAAAUGCGAUACGUAAUGUGAAUUGCAGAAUUCCGUGAAUCAUCGAAUCUUUGAACGCACAUUGCGCCCCUUGGUAUUCCAGGGGGCAUGCCUGUUUGAGCGUCAUUU

Entity 3 polymer

描述 description	ATP-dependent RNA helicase DBP10
分子量 formula_weight	113126.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	3

MAGVQKRKRDLEDQDDNGSEEDDIAFDIANEIALNDSESDANDSDSEVEADYGPNDVQDVIEYSSDEEEGVNNKKKAENKDIKKKKNSKKEIAAFPMLEMSDDENNASGKTQTGDDEDDVNEYFSTNNLEKTKHKKGSFPSFGLSKIVLNNIKRKGFRQPTPIQRKTIPLILQSRDIVGMARTGSGKTAAFILPMVEKLKSHSGKIGARAVILSPSRELAMQTFNVFKDFARGTELRSVLLTGGDSLEEQFGMMMTNPDVIIATPGRFLHLKVEMNLDLKSVEYVVFDEADRLFEMGFQEQLNELLASLPTTRQTLLFSATLPNSLVDFVKAGLVNPVLVRLDAETKVSENLEMLFLSSKNADREANLLYILQEIIKIPLATSEQLQKLQNSNNEADSDSDDENDRQKKRRNFKKEKFRKQKMPAANELPSEKATILFVPTRHHVEYISQLLRDCGYLISYIYGTLDQHARKRQLYNFRAGLTSILVVTDVAARGVDIPMLANVINYTLPGSSKIFVHRVGRTARAGNKGWAYSIVAENELPYLLDLELFLGKKILLTPMYDSLVDVMKKRWIDEGKPEYQFQPPKLSYTKRLVLGSCPRLDVEGLGDLYKNLMSSNFDLQLAKKTAMKAEKLYYRTRTSASPESLKRSKEIISSGWDAQNAFFGKNEEKEKLDFLAKLQNRRNKETVFEFTRNPDDEMAVFMKRRRKQLAPIQRKATERRELLEKERMAGLSHSIEDEILKGDDGETGYTVSEDALKEFEDADQLLEAQENENKKKKKPKSFKDPTFFLSHYAPAGDIQDKQLQITNGFANDAAQAAYDLNSDDKVQVHKQTATVKWDKKRKKYVNTQGIDNKKYIIGESGQKIAASFRSGRFDDWSKARNLKPLKVGSRETSIPSNLLEDPSQGPAANGRTVRGKFKHKQMKAPKMPDKHRDNYYSQKKKVEKALQSGISVKGYNNAPGLRSELKSTEQIRKDRIIAEKKRAKNARPSKKRKF

Entity 4 polymer

描述 description	ITS2 RNA
分子量 formula_weight	74308.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	6

CCUUCUCAAACAUUCUGUUUGGUAGUGAGUGAUACUCUUUGGAGUUAACUUGAAAUUGCUGGCCUUUUCAUUGGAUGUUUUUUUUCCAAAGAGAGGUUUCUCUGCGUGCUUGAGGUAUAAUGCAAGUACGGUCGUUUUAGGUUUUACCAACUGCGGCUAAUCUUUUUUUAUACUGAGCGUAUUGGAACGUUAUCGAUAAGAAGAGAGCGUCUAGGCGAACAAUGUUCUUAAA

Entity 5 polymer

描述 description	60S ribosomal subunit assembly/export protein LOC1
分子量 formula_weight	23652.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	7

MAPKKPSKRQNLRREVAPEVFQDSQARNQLANVPHLTEKSAQRKPSKTKVKKEQSLARLYGAKKDKKGKYSEKDLNIPTLNRAIVPGVKIRRGKKGKKFIADNDTLTLNRLITTIGDKYDDIAESKLEKARRLEEIRELKRKEIERKEALKQDKLEEKKDEIKKKSSVARTIRRKNKRDMLKSEAKASESKTEGRKVKKVSFAQ

Entity 6 polymer

描述 description	Ribosomal RNA-processing protein 14
分子量 formula_weight	50599.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	8

MSNSLEERLRANSSAFDGLLALIPAKYYYDEKSQEQWKAKKKTKEQSKNDKLKKLDPEQRDDETSSTLEVMKKKEKDAKPVVLPGEKFKHMKMQKQKEATSKVEGDSDLNVEVNDPMIIAPDEDEEEEEDIKVIFDDEGNEIPLESKKDTTEPDRSVEKKSITEEEKLQRKKNLEALRSKLQAKISDMKSKRKAPGSREAILAQRKRKEELKKRKRLESEQEQDQDEIASDSDMEDIDSDLENNSKKRFKKGKKDSEINADGVMFQNIIFDDGARATSDLQRLRKAGRTKGPAKNDVKSHLKLLEAKKNKMEAKDELEQIKQKEKEKWQKAMLQAEGIKIRDDEKLLRKAIKRKEAQKRKSAIEWSERKRVVEDTISERQKRREENLRIRKDNKGKKRNKQEKMKRKYVGSAVPKKRAGFEGRLKTGKKKGGPK

Entity 7 polymer

描述 description	Ribosome biogenesis protein BRX1
分子量 formula_weight	33585.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A

MSSIYKALAGKSKDNKSEKKQGNVKQFMNKQRTLLISSRGVNYRHRHLIQDLSGLLPHSRKEPKLDTKKDLQQLNEIAELYNCNNVLFFEARKHQDLYLWLSKPPNGPTIKFYIQNLHTMDELNFTGNCLKGSRPVLSFDQRFESSPHYQLIKELLVHNFGVPPNARKSKPFIDHVMSFSIVDDKIWVRTYEISHSTKNKEEYEDGEEDISLVEIGPRFVMTVILILEGSFGGPKIYENKQYVSPNVVRAQIKQQAAEEAKSRAEAAVERKIKRRENVLAADPLSNDALFK

Entity 8 polymer

描述 description	Large ribosomal subunit protein uL3
分子量 formula_weight	43850.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B

MSHRKYEAPRHGHLGFLPRKRAASIRARVKAFPKDDRSKPVALTSFLGYKAGMTTIVRDLDRPGSKFHKREVVEAVTVVDTPPVVVVGVVGYVETPRGLRSLTTVWAEHLSDEVKRRFYKNWYKSKKKAFTKYSAKYAQDGAGIERELARIKKYASVVRVLVHTQIRKTPLAQKKAHLAEIQLNGGSISEKVDWAREHFEKTVAVDSVFEQNEMIDAIAVTKGHGFEGVTHRWGTKKLPRKTHRGLRKVACIGAWHPAHVMWSVARAGQRGYHSRTSINHKIYRVGKGDDEANGATSFDRTKKTITPMGGFVHYGEIKNDFIMVKGCIPGNRKRIVTLRKSLYTNTSRKALEEVSLKWIDTASKFGKGRFQTPAEKHAFMGTLKKDL

Entity 9 polymer

描述 description	60S ribosomal protein L4-A
分子量 formula_weight	39159.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C

MSRPQVTVHSLTGEATANALPLPAVFSAPIRPDIVHTVFTSVNKNKRQAYAVSEKAGHQTSAESWGTGRAVARIPRVGGGGTGRSGQGAFGNMCRGGRMFAPTKTWRKWNVKVNHNEKRYATASAIAATAVASLVLARGHRVEKIPEIPLVVSTDLESIQKTKEAVAALKAVGAHSDLLKVLKSKKLRAGKGKYRNRRWTQRRGPLVVYAEDNGIVKALRNVPGVETANVASLNLLQLAPGAHLGRFVIWTEAAFTKLDQVWGSETVASSKVGYTLPSHIISTSDVTRIINSSEIQSAIRPAGQATQKRTHVLKKNPLKNKQVLLRLNPYAKVFAAEKLGSKKAEKTGTKPAAVFTETLKHD

Entity 10 polymer

描述 description	ATP-dependent RNA helicase HAS1
分子量 formula_weight	56798.3 kDa
EC 编号 ec_number	3.6.4.13
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D

MATPSNKRSRDSESTEEPVVDEKSTSKQNNAAPEGEQTTCVEKFEELKLSQPTLKAIEKMGFTTMTSVQARTIPPLLAGRDVLGAAKTGSGKTLAFLIPAIELLHSLKFKPRNGTGIIVITPTRELALQIFGVARELMEFHSQTFGIVIGGANRRQEAEKLMKGVNMLIATPGRLLDHLQNTKGFVFKNLKALIIDEADRILEIGFEDEMRQIIKILPNEDRQSMLFSATQTTKVEDLARISLRPGPLFINVVPETDNSTADGLEQGYVVCDSDKRFLLLFSFLKRNQKKKIIVFLSSCNSVKYYAELLNYIDLPVLELHGKQKQQKRTNTFFEFCNAERGILICTDVAARGLDIPAVDWIIQFDPPDDPRDYIHRVGRTARGTKGKGKSLMFLTPNELGFLRYLKASKVPLNEYEFPENKIANVQSQLEKLIKSNYYLHQTAKDGYRSYLQAYASHSLKTVYQIDKLDLAKVAKSYGFPVPPKVNITIGASGKTPNTKRRKTHK

Entity 11 polymer

描述 description	60S ribosomal protein L6-A
分子量 formula_weight	20000.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E

MSAQKAPKWYPSEDVAALKKTRKAARPQKLRASLVPGTVLILLAGRFRGKRVVYLKHLEDNTLLISGPFKVNGVPLRRVNARYVIATSTKVSVEGVNVEKFNVEYFAKEKLTKKEKKEANLFPEQQNKEIKAERVEDQKVVDKALIAEIKKTPLLKQYLSASFSLKNGDKPHMLKF

Entity 12 polymer

描述 description	60S ribosomal protein L7-A
分子量 formula_weight	27686.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	F

MAAEKILTPESQLKKSKAQQKTAEQVAAERAARKAANKEKRAIILERNAAYQKEYETAERNIIQAKRDAKAAGSYYVEAQHKLVFVVRIKGINKIPPKPRKVLQLLRLTRINSGTFVKVTKATLELLKLIEPYVAYGYPSYSTIRQLVYKRGFGKINKQRVPLSDNAIIEANLGKYGILSIDDLIHEIITVGPHFKQANNFLWPFKLSNPSGGWGVPRKFKHFIQGGSFGNREEFINKLVKSMN

Entity 13 polymer

描述 description	Large ribosomal subunit protein eL8A
分子量 formula_weight	28175.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	G

MAPGKKVAPAPFGAKSTKSNKTRNPLTHSTPKNFGIGQAVQPKRNLSRYVKWPEYVRVQRQKKILSIRLKVPPTIAQFQYTLDRNTAAETFKLFNKYRPETAAEKKERLTKEAAAVAEGKSKQDASPKPYAVKYGLNHVVALIENKKAKLVLIANDVDPIELVVFLPALCKKMGVPYAIVKGKARLGTLVNQKTSAVAALTEVRAEDEAALAKLVSTIDANFADKYDEVKKHWGGGILGNKAQAKMDKRAKNSDSA

Entity 14 polymer

描述 description	Large ribosomal subunit protein uL6A
分子量 formula_weight	21605.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	H

MKYIQTEQQIEVPEGVTVSIKSRIVKVVGPRGTLTKNLKHIDVTFTKVNNQLIKVAVHNGGRKHVAALRTVKSLVDNMITGVTKGYKYKMRYVYAHFPINVNIVEKDGAKFIEVRNFLGDKKIRNVPVRDGVTIEFSTNVKDEIVLSGNSVEDVSQNAADLQQICRVRNKDIRKFLDGIYVSHKGFITEDL

Entity 15 polymer

描述 description	Ribosome biogenesis protein NSA1
分子量 formula_weight	51982.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	I

MRLLVSCVDSGSIKEVLCNIGTDTSVQSALQPFHVAPHLAEGLKAYVDRMWVISEDEAILARNSGVVELVKISKHLKENEALQVDPKGESKNEKSLSDDLPKFDISEFEITSSVSDLFDDAKLESLSSKSVKRTKLVDGFVTLCPIKKDSSNNTFVAATKSGLLHIIKKGEDKKLIKLASLGLKAPVEFLQLYDLEDTDTDKYIFAYGGEENLIKLVEIDSSFQSLKQIWEAKNVKNDRLDMRVPVWPMALRFLEPSPGKTEKGKLNYQFAAITRWSHLTKYSTQHGRKPFAQIDLLPNREPLSQMEVFDAKGENVVSSLGNFQSETFNELNVITTDYKKNVFKFDGNGRMLGKVGRDDITGSSTYIHVHDGKYLLQGGLDRYVRIFDIKTNKMLVKVYVGSRINFIVMLDDVEIEMPLSPSAKAAKGKQKRKVTELEEDADELWNKLEGKVAASKASKKSKI

Entity 16 polymer

描述 description	rRNA-processing protein EBP2
分子量 formula_weight	49842.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	J

MAKGFKLKELLSHQKEIEKAEKLENDLKKKKSQELKKEEPTIVTASNLKKLEKKEKKADVKKEVAADTEEYQSQALSKKEKRKLKKELKKMQEQDATEAQKHMSGDEDESGDDREEEEEEEEEEEGRLDLEKLAKSDSESEDDSESENDSEEDEDVVAKEESEEKEEQEEEQDVPLSDVEFDSDADVVPHHKLTVNNTKAMKHALERVQLPWKKHSFQEHQSVTSETNTDEHIKDIYDDTERELAFYKQSLDAVLVARDELKRLKVPFKRPLDYFAEMVKSDEHMDKIKGKLIEEASDKKAREEARRQRQLKKFGKQVQNATLQKRQLEKRETLEKIKSLKNKRKHNEIDHSEFNVGVEEEVEGKRFDRGRPNGKRAAKNAKYGQGGMKRFKRKNDATSSADVSGFSSRKMKGKTNRPGKSRRARRF

Entity 17 polymer

描述 description	Proteasome-interacting protein CIC1
分子量 formula_weight	42596.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	K

MAKKSNSKKSTPVSTPSKEKKKVIEKKSSTAIPRERVIKAVNELIKFTSKPQDENNEEGNNGKKNLLEDDEEELKKDLQLIVVNNKSFTGTSKSFKLKLLNVKHSFYKPWKEASATAVKDFKVLLILKDSDIKKVSEDDLFDQLDSEGIKVDEIICGKDLKTVYKAYEARNAFISQFSLILADDSIVTSLPKLMGGKAYNKVETTPISIRTHANKEFSLTTLTNNIKKVYMNQLPVKLPRGTTLNVHLGNLEWLRPEEFVDNVELISEQLIKAYQIRSIFIKTNRSPVLPLYYNQDVLDELEAKKDKIEETHEDDMVTIDGVQVHLSTFNKGLMEIANPSELGSIFSKQINNAKKRSSSELEKESSESEAVKKAKS

Entity 18 polymer

描述 description	60S ribosomal protein L13-A
分子量 formula_weight	22604.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L

MAISKNLPILKNHFRKHWQERVKVHFDQAGKKVSRRNARATRAAKIAPRPLDLLRPVVRAPTVKYNRKVRAGRGFTLAEVKAAGLTAAYARTIGIAVDHRRQNRNQEIFDANVQRLKEYQSKIIVFPRNGKAPEAEQVLSAAATFPIAQPATDVEARAVQDNGESAFRTLRLARSEKKFRGIREKRAREKAEAEAEKKK

Entity 19 polymer

描述 description	60S ribosomal protein L14-A
分子量 formula_weight	15195.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	M

MSTDSIVKASNWRLVEVGRVVLIKKGQSAGKLAAIVEIIDQKKVLIDGPKAGVPRQAINLGQVVLTPLTFALPRGARTATVSKKWAAAAVCEKWAASSWAKKIAQRERRAALTDFERFQVMVLRKQKRYTVKKALAKA

Entity 20 polymer

描述 description	Large ribosomal subunit protein eL15A
分子量 formula_weight	24482.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	N

MGAYKYLEELQRKKQSDVLRFLQRVRVWEYRQKNVIHRAARPTRPDKARRLGYKAKQGFVIYRVRVRRGNRKRPVPKGATYGKPTNQGVNELKYQRSLRATAEERVGRRAANLRVLNSYWVNQDSTYKYFEVILVDPQHKAIRRDARYNWICDPVHKHREARGLTATGKKSRGINKGHKFNNTKAGRRKTWKRQNTLSLWRYRK

Entity 21 polymer

描述 description	Large ribosomal subunit protein uL13A
分子量 formula_weight	22247.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	O

MSVEPVVVIDGKGHLVGRLASVVAKQLLNGQKIVVVRAEELNISGEFFRNKLKYHDFLRKATAFNKTRGPFHFRAPSRIFYKALRGMVSHKTARGKAALERLKVFEGIPPPYDKKKRVVVPQALRVLRLKPGRKYTTLGKLSTSVGWKYEDVVAKLEAKRKVSSAEYYAKKRAFTKKVASANATAAESDVAKQLAALGY

Entity 22 polymer

描述 description	60S ribosomal protein L17-A
分子量 formula_weight	20589.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	P

MARYGATSTNPAKSASARGSYLRVSFKNTRETAQAINGWELTKAQKYLEQVLDHQRAIPFRRFNSSIGRTAQGKEFGVTKARWPAKSVKFVQGLLQNAAANAEAKGLDATKLYVSHIQVNQAPKQRRRTYRAHGRINKYESSPSHIELVVTEKEEAVAKAAEKKVVRLTSRQRGRIAAQKRIAA

Entity 23 polymer

描述 description	60S ribosomal protein L18-A
分子量 formula_weight	20609.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Q

MGIDHTSKQHKRSGHRTAPKSDNVYLKLLVKLYTFLARRTDAPFNKVVLKALFLSKINRPPVSVSRIARALKQEGAANKTVVVVGTVTDDARIFEFPKTTVAALRFTAGARAKIVKAGGECITLDQLAVRAPKGQNTLILRGPRNSREAVRHFGMGPHKGKAPRILSTGRKFERARGRRRSKGFKV

Entity 24 polymer

描述 description	Protein MAK16
分子量 formula_weight	35754.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	R

MSDEIVWQVINQSFCSHRIKAPNGQNFCRNEYNVTGLCTRQSCPLANSKYATVKCDNGKLYLYMKTPERAHTPAKLWERIKLSKNYTKALQQIDEHLLHWSKFFRHKCKQRFTKLTQVMITERRLALREEERHYVGVAPKVKRREQNRERKALVAAKIEKAIEKELMDRLKSGAYGDKPLNVDEKVWKKIMGQMEEENSQDEEEDWDEEEESDDGEVEYVADDGEGEYVDVDDLEKWLADSDREASSASESESDSESESDSDSDEENKNSAKRRKKGTSAKTKRPKVEIEYEEEHEVQNAEQEVAQ

Entity 25 polymer

描述 description	Large ribosomal subunit protein eL20A
分子量 formula_weight	20478.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	S

MAHFKEYQVIGRRLPTESVPEPKLFRMRIFASNEVIAKSRYWYFLQKLHKVKKASGEIVSINQINEAHPTKVKNFGVWVRYDSRSGTHNMYKEIRDVSRVAAVETLYQDMAARHRARFRSIHILKVAEIEKTADVKRQYVKQFLTKDLKFPLPHRVQKSTKTFSYKRPSTFY

Entity 26 polymer

描述 description	Ribosomal RNA-processing protein 15
分子量 formula_weight	28268.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	T

MGSKHRVDTKDKKRTRKNAEFGREKRNSGNQELSNEPEKDTIMEGDEAEEDEQNSSSDESSKIIDNEQSDAEEDDDEEEEDDDFPRKKKSKNSKHDDGSTGFSAAVNAILSSHLKAYDRKDPIMARNKKVLKQSESEKLEYKAKKALLAEKKKLLGKARKTDIIPIASGEDRSENIRKVLEKETALRKIAQKGAVKLFNAILATQVKTEKEVSENLSEIKNKEEKKELITEVSKEKFLDLVKAAAGSDNE

Entity 27 polymer

描述 description	60S ribosomal protein L23-A
分子量 formula_weight	14494.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	V

MSGNGAQGTKFRISLGLPVGAIMNCADNSGARNLYIIAVKGSGSRLNRLPAASLGDMVMATVKKGKPELRKKVMPAIVVRQAKSWRRRDGVFLYFEDNAGVIANPKGEMKGSAITGPVGKECADLWPRVASNSGVVV

Entity 28 polymer

描述 description	Ribosome assembly factor MRT4
分子量 formula_weight	27098.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	W

MPRSKRSKLVTLAQTDKKGRENKERIFDEVREALDTYRYVWVLHLDDVRTPVLQEIRTSWAGSKLIMGKRKVLQKALGEKREEEYKENLYQLSKLCSGVTGLLFTDEDVNTVKEYFKSYVRSDYSRPNTKAPLTFTIPEGIVYSRGGQIPAEEDVPMIHSLEPTMRNKFEIPTKIKAGKITIDSPYLVCTEGEKLDVRQALILKQFGIAASEFKVKVSAYYDNDSSTVESTNINME

Entity 29 polymer

描述 description	60S ribosomal protein L26-A
分子量 formula_weight	14265.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Y

MAKQSLDVSSDRRKARKAYFTAPSSQRRVLLSAPLSKELRAQYGIKALPIRRDDEVLVVRGSKKGQEGKISSVYRLKFAVQVDKVTKEKVNGASVPINLHPSKLVITKLHLDKDRKALIQRKGGKLE

Entity 30 polymer

描述 description	Ribosome biogenesis protein SSF1
分子量 formula_weight	51861.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Z

MAKRRQKKRTHAQLTPEQEQGIPKSMVIRVGQTSLANHSLNQLVKDFRQIMQPHTAIKLKERKSNKLKDFVVMCGPLGVTHLFMFTQSEKTGNVSLKIARTPQGPTVTFQVLDYSLGRDIKKFLKRPKSLNNDDVLNPPLLVLNGFSTSKRSGEDDQDVNVEKVIVSMFQNIFPPLNPARTSLNSIKRVFMINKDRETGEISMRHYFIDIREVEISRNLKRLYKAKNNLSKTVPNLHRKEDISSLILDHDLGAYTSESEIEDDAIVRVVDNQDVKAKHSQSLKSQRTPVEKKDNKEREKETEEEDVEMEEPKPSENLQPTPRKKAIKLTELGPRLTLKLVKIEEGICSGKVLHHEFVQKSSEEIKALEKRHAAKMRLKEQRKKEQEENIAKKKAVKDAKKQRKLERRKARAAEGGEGQGKDDAMSDDESSSSDSEHYGSVPEDLDSDLFSEVE

Entity 31 polymer

描述 description	Large ribosomal subunit protein uL1A
分子量 formula_weight	24524.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	a

MSKITSSQVREHVKELLKYSNETKKRNFLETVELQVGLKNYDPQRDKRFSGSLKLPNCPRPNMSICIFGDAFDVDRAKSCGVDAMSVDDLKKLNKNKKLIKKLSKKYNAFIASEVLIKQVPRLLGPQLSKAGKFPTPVSHNDDLYGKVTDVRSTIKFQLKKVLCLAVAVGNVEMEEDVLVNQILMSVNFFVSLLKKNWQNVGSLVVKSSMGPAFRLY

Entity 32 polymer

描述 description	Nucleolar GTP-binding protein 1
分子量 formula_weight	74531.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	b

MQLSWKDIPTVAPANDLLDIVLNRTQRKTPTVIRPGFKITRIRAFYMRKVKYTGEGFVEKFEDILKGFPNINDVHPFHRDLMDTLYEKNHYKISLAAISRAKSLVEQVARDYVRLLKFGQSLFQCKQLKRAALGRMATIVKKLRDPLAYLEQVRQHIGRLPSIDPNTRTLLICGYPNVGKSSFLRCITKSDVDVQPYAFTTKSLYVGHFDYKYLRFQAIDTPGILDRPTEEMNNIEMQSIYAIAHLRSCVLYFMDLSEQCGFTIEAQVKLFHSIKPLFANKSVMVVINKTDIIRPEDLDEERAQLLESVKEVPGVEIMTSSCQLEENVMEVRNKACEKLLASRIENKLKSQSRINNVLNKIHVAQPQARDDVKRTPFIPESVKNLKKYDPEDPNRRKLARDIEAENGGAGVFNVNLKDKYLLEDDEWKNDIMPEILDGKNVYDFLDPEIAAKLQALEEEEEKLENEGFYNSDDEEEIYDGFEASEVDDIKEKAAWIRNRQKTMIAEARNRKSLKNKAIMPRSKLTKSFGKMEEHMSTLGHDMSALQDKQNRAARKNRYVERGSDVVFGDQDALTASTENGVKLRQTDRLLDGVADGSMRSKADRMAKMERRERNRHAKQGESDRHNAVSLSKHLFSGKRGVGKTDFR

Entity 33 polymer

描述 description	60S ribosomal protein L32
分子量 formula_weight	14809.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	e

MASLPHPKIVKKHTKKFKRHHSDRYHRVAENWRKQKGIDSVVRRRFRGNISQPKIGYGSNKKTKFLSPSGHKTFLVANVKDLETLTMHTKTYAAEIAHNISAKNRVVILARAKALGIKVTNPKGRLALEA

Entity 34 polymer

描述 description	60S ribosomal protein L33-A
分子量 formula_weight	12177.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	f

MAESHRLYVKGKHLSYQRSKRVNNPNVSLIKIEGVATPQDAQFYLGKRIAYVYRASKEVRGSKIRVMWGKVTRTHGNSGVVRATFRNNLPAKTFGASVRIFLYPSNI

Entity 35 polymer

描述 description	60S ribosomal protein L35-A
分子量 formula_weight	13942.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	h

MAGVKAYELRTKSKEQLASQLVDLKKELAELKVQKLSRPSLPKIKTVRKSIACVLTVINEQQREAVRQLYKGKKYQPKDLRAKKTRALRRALTKFEASQVTEKQRKKQIAFPQRKYAIKA

Entity 36 polymer

描述 description	60S ribosomal protein L36-A
分子量 formula_weight	11151.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	i

MTVKTGIAIGLNKGKKVTSMTPAPKISYKKGAASNRTKFVRSLVREIAGLSPYERRLIDLIRNSGEKRARKVAKKRLGSFTRAKAKVEEMNNIIAASRRH

Entity 37 polymer

描述 description	60S ribosomal protein L37-A
分子量 formula_weight	9877.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	j

MGKGTPSFGKRHNKSHTLCNRCGRRSFHVQKKTCSSCGYPAAKTRSYNWGAKAKRRHTTGTGRMRYLKHVSRRFKNGFQTGSASKASA

Entity 38 polymer

描述 description	60S ribosome subunit biogenesis protein NIP7
分子量 formula_weight	20411.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	l

MRQLTEEETKVVFEKLAGYIGRNISFLVDNKELPHVFRLQKDRVYYVPDHVAKLATSVARPNLMSLGICLGKFTKTGKFRLHITSLTVLAKHAKYKIWIKPNGEMPFLYGNHVLKAHVGKMSDDIPEHAGVIVFAMNDVPLGFGVSAKSTSESRNMQPTGIVAFRQADIGEYLRDEDTLFT

Entity 39 polymer

描述 description	Ribosome biogenesis protein ERB1
分子量 formula_weight	91830.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	m

MMAKNNKTTEAKMSKKRAASEESDVEEDEDKLLSVDGLIDAEASESDEDDDEYESAVEEKESSSDKEAQDDSDDDSDAELNKLLAEEEGDGEEDYDSSEFSDDTTSLTDRLSGVKLQTIVDPNIYSKYADGSDRIIKPEINPVYDSDDSDAETQNTIGNIPLSAYDEMPHIGYDINGKRIMRPAKGSALDQLLDSIELPEGWTGLLDKNSGSSLNLTKEELELISKIQRNEQTDDSINPYEPLIDWFTRHEEVMPLTAVPEPKRRFVPSKNEAKRVMKIVRAIREGRIIPPKKLKEMKEKEKIENYQYDLWGDSTETNDHVMHLRAPKLPPPTNEESYNPPEEYLLSPEEKEAWENTEYSERERNFIPQKYSALRKVPGYGESIRERFERSLDLYLAPRVRKNKLNIDPNSLIPELPSPKDLRPFPIRCSTIYAGHKGKVRTLSIDPSGLWLATGSDDGTVRVWEILTGREVYRTTLIDDEENPDYHIECIEWNPDANNGILAVAVGENIHLIVPPIFGYDIENNGKTKIEDGFGYDTFGTVKKSNLEVNENGDGDEDGENESAKNAVKKQVAQWNKPSQKQLEKDICITISCKKTVKKLSWHRKGDYFVTVQPDSGNTSVLIHQVSKHLTQSPFKKSKGIIMDAKFHPFKPQLFVCSQRYVRIYDLSQQILVKKLLPGARWLSKIDIHPRGDNLIASSFDKRVLWHDLDLASTPYKTLRYHEKAVRSVNFHKKLPLFSSAADDGTIHVFHATVYDDMMKNPMIVPLKKLTGHKVINSLGVLDAIWHPREAWLFSAGADNTARLWTT

Entity 40 polymer

描述 description	Pescadillo homolog
分子量 formula_weight	69984.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	n

MRIKKKNTRGNARNFITRSQAVRKLQVSLADFRRLCIFKGIYPREPRNKKKANKGSTAPTTFYYAKDIQYLMHEPVLAKFREHKTFARKLTRALGRGEVSSAKRLEENRDSYTLDHIIKERYPSFPDAIRDIDDALNMLFLFSNLPSTNQVSSKIINDAQKICNQWLAYVAKERLVRKVFVSIKGVYYQANIKGEEVRWLVPFKFPENIPSDVDFRIMLTFLEFYSTLLHFVLYKLYTDSGLIYPPKLDLKKDKIISGLSSYILESRQEDSLLKLDPTEIEEDVKVESLDASTLKSALNADEANTDETEKEEEQEKKQEKEQEKEQNEETELDTFEDNNKNKGDILIQPSKYDSPVASLFSAFVFYVSREVPIDILEFLILSCGGNVISEAAMDQIENKKDIDMSKVTHQIVDRPVLKNKVAGRTYIQPQWIFDCINKGELVPANKYLPGEALPPHLSPWGDAIGYDPTAPVEEGEEEESESESESEDQVEEEDQEVVAGEEDDDDDEELQAQKELELEAQGIKYSETSEADKDVNKSKNKKRKVDEEEEEKKLKMIMMSNKQKKLYKKMKYSNAKKEEQAENLKKKKKQIAKQKAKLNKLDSKK

Entity 41 polymer

描述 description	Ribosome biogenesis protein 15
分子量 formula_weight	25499.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	o

MVKSTSKTSTKETVTKQPTEEKPIQEKEELALETSSSSSDEEDEKDEDEIEGLAASDDEQSGTHKIKRLNPKKQANEKKSKDKKTLEEYSGIIYVSRLPHGFHEKELSKYFAQFGDLKEVRLARNKKTGNSRHYGFLEFVNKEDAMIAQESMNNYLLMGHLLQVRVLPKGAKIEKLYKYKKRVLVEKGITKPVKQLKDNMKQKHEERIKKLAKSGIEFKW

Entity 42 polymer

描述 description	25S rRNA (cytosine(2870)-C(5))-methyltransferase
分子量 formula_weight	69912.2 kDa
EC 编号 ec_number	2.1.1.310
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	q

MGSRRHKNKQAAPPTLEEFQARKEKKANRKLEKGKRPSTTQGDEVSDRKKKKSKPFKKSRKEEEEVVEEDKDLPEVDLEELSKARKSLFDDEEDDDEAGLVDEELKDEFDLEQEYDYDEDEDNDAHPIFSDDDDEADLEELNAQNMEALSKKLDEEEAEEAEEAEMELVEAENMQPRADILPTEEQEEMMAQETPNLTSTRTRMIEIVKVLENFKTLGAEGRSRGEYVDRLLKDICEYFGYTPFLAEKLFNLFSPAEAMEFFEANEIARPITIRTNTLKTRRRDLAQTLVNRGVNLQPIGSWTKVGLQIFDSQVPIGATPEYLAGHYILQAASSFLPVIALDPHENERILDMAAAPGGKTTYISAMMKNTGCVFANDANKSRTKSLIANIHRLGCTNTIVCNYDAREFPKVIGGFDRILLDAPCSGTGVIGKDQSVKVSRTEKDFIQIPHLQKQLLLSAIDSVDCNSKHGGVIVYSTCSVAVEEDEAVIDYALRKRPNVKLVDTGLAIGKEAFTSYRGKKFHPSVKLARRYYPHTYNVDGFFVAKFQKIGPSSFDDNQASAKEKETAARKEALEEGIIHSDFATFEDEEDDKYIEKSVKNNLLKKGVNPKAKRPSNEK

Entity 43 polymer

描述 description	Ribosome biogenesis protein NSA2
分子量 formula_weight	29786.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	r

MPQNDYIERHIKQHGKRLDHEERKRKREARESHKISERAQKLTGWKGKQFAKKRYAEKVSMRKKIKAHEQSKVKGSSKPLDTDGDALPTYLLDREQNNTAKAISSSIKQKRLEKADKFSVPLPKVRGISEEEMFKVIKTGKSRSKSWKRMITKHTFVGEGFTRRPVKMERIIRPSALRQKKANVTHPELGVTVFLPILAVKKNPQSPMYTQLGVLTKGTIIEVNVSELGMVTAGGKVVWGKYAQVTNEPDRDGCVNAVLLV

Entity 44 polymer

描述 description	Ribosome biogenesis protein RLP7
分子量 formula_weight	36621.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	t

MSSTQDSKAQTLNSNPEILLRKRRNADRTRIERQELAKKKREEQIKKKRSNKNKFVRAESIVAKTLATSREKERIKRVSILEDKKAKNETQHIASGKDFILKITEKANGAEENSVDLEETEEEEDDGLIREKTTYDGKPALLFIVRVRGPLAVNIPNKAFKILSLLRLVETNTGVFVKLTKNVYPLLKVIAPYVVIGKPSLSSIRSLIQKRGRIIYKGENEAEPHEIVLNDNNIVEEQLGDHGIICVEDIIHEIATMGESFSVCNFFLQPFKLNREVSGFGSLNRLRKIKQREAESRTRQFSNAATAPVIEVDIDSLLAKLN

Entity 45 polymer

描述 description	Ribosome biogenesis protein RLP24
分子量 formula_weight	24027.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	u

MRIYQCHFCSSPCYPGHGIMFVRNDAKEFRFCRSKCHKAFKQRRNPRKLKWTKAFRKAAGKELAVDSTLTFAQRRNVPVRYNRELVATTLKAMARIEEIRQKRERAFYKNRMRGNKEKDFLRDKKLVESNPELLRIREVEIARKLAKEQERAESVSEQEESEEEEEDMEIDSDEEEEEQLEKQKILLKNRRRNTKKIAF

Entity 46 polymer

描述 description	Nucleolar protein 16
分子量 formula_weight	26954.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	v

MTSVRKRKMNRSSVGKATRRNKDKQRKINIQSNPIIAANWDYSLTMAQNYKKLGLRAKLQTPAGGKEADLSKVVKRIPLTKPVLDEDEDEDEGEDEQNDYNAATVELDENEIPEGGARIQRDKNGDVVRVVYGKKKNFDADEDVNEIKARDTTEETEVVKKLEELASRPVIRKERSQSEREEEWLEKLYKKHGDDYKKMFFDKKLNIYQQSEGDLKRRLLRWKKRNGIASK

Entity 47 polymer

描述 description	Ribosomal RNA-processing protein 1
分子量 formula_weight	33250.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	w

METSNFVKQLSSNNRKTRVNALEALKKYLTAKQFKENKQIEFNKLWKGLYYAMWFSDRPRPQQRLANELGELHGLYFDPKDNSTADELTTNDKAFIKFSRGFWKVMCFEWFNIDRYRLDKYLLLIRRVLFSQLKYLQSRNWDKKLVDEYIKKVLRWLPLSGSPKVYTGIPIHIVDILLDEWERLLKDGDEDDEDEENKEEEMRKIAESAKKTPLADVIAIFQDIVADYNNSKVLREKIKEDLFSDTRLVSWDILEGETQHNDSSNESEEEEEEEWKGF

Entity 48 polymer

描述 description	Ribosome production factor 1
分子量 formula_weight	35184.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	x

MALGNEINITNKLKRQEIFADIKHEKNKERHTMRRKRAKEERENPELREQRLKENVTQTIENTRVYDETINKEVEGDEDDLMRYFNSNSNEPPKIFLTTNVNAKKSAYEFANILIEILPNVTFVKRKFGYKLKEISDICIKRNFTDIVIINEDKKKVTGLTFIHLPEGPTFYFKLSSFVEVKKIVGHGRPTSHIPELILNNFQTRLGQTVGRLFQSILPQNPDIEGRQVITLHNQRDYIFFRRHRYVFKDNERVGLQELGPQFTLKLKRLQRGIKEETEWEHKPEMDKEKKKFYL

Entity 49 polymer

描述 description	Eukaryotic translation initiation factor 6
分子量 formula_weight	26476.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	y

MATRTQFENSNEIGVFSKLTNTYCLVAVGGSENFYSAFEAELGDAIPIVHTTIAGTRIIGRMTAGNRRGLLVPTQTTDQELQHLRNSLPDSVKIQRVEERLSALGNVICCNDYVALVHPDIDRETEELISDVLGVEVFRQTISGNILVGSYCSLSNQGGLVHPQTSVQDQEELSSLLQVPLVAGTVNRGSSVVGAGMVVNDYLAVTGLDTTAPELSVIESIFRLQDAQPESISGNLRDTLIETYS

Entity 50 non-polymer

描述 description	GUANOSINE-5'-DIPHOSPHATE
分子量 formula_weight	443.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 51 non-polymer

描述 description	MAGNESIUM ION
分子量 formula_weight	24.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 52 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	triclinic

分辨率 resolution	2.70 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	195000

fit	/app/data/saxs_computation/v8/8v84/8v84.fit
pddf	/app/data/pr_computation/v8/8v84/8v84.pr.out
profile	/app/data/saxs_computation/v8/8v84/8v84.dat

60S ribosome biogenesis intermediate (Dbp10 catalytic structure - Overall map)

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

1. 结构基本信息 1. Structure Basics

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

4. 晶体学与实验 4. Crystallography & Experiment

晶胞参数 Unit Cell

对称性 Symmetry

冷冻电镜 EM 3D

5. 实体与聚合体信息 (52)

Entity 1 polymer

聚合体 Polymer

Entity 2 polymer

聚合体 Polymer

Entity 3 polymer

聚合体 Polymer

Entity 4 polymer

聚合体 Polymer

Entity 5 polymer

聚合体 Polymer

Entity 6 polymer

聚合体 Polymer

Entity 7 polymer

聚合体 Polymer

Entity 8 polymer

聚合体 Polymer

Entity 9 polymer

聚合体 Polymer

Entity 10 polymer

聚合体 Polymer

Entity 11 polymer

聚合体 Polymer

Entity 12 polymer

聚合体 Polymer

Entity 13 polymer

聚合体 Polymer

Entity 14 polymer

聚合体 Polymer

Entity 15 polymer

聚合体 Polymer

Entity 16 polymer

聚合体 Polymer

Entity 17 polymer

聚合体 Polymer

Entity 18 polymer

聚合体 Polymer

Entity 19 polymer

聚合体 Polymer

Entity 20 polymer

聚合体 Polymer

Entity 21 polymer

聚合体 Polymer

Entity 22 polymer

聚合体 Polymer

Entity 23 polymer

聚合体 Polymer

Entity 24 polymer

聚合体 Polymer

Entity 25 polymer

聚合体 Polymer

Entity 26 polymer

聚合体 Polymer

Entity 27 polymer

聚合体 Polymer

Entity 28 polymer

聚合体 Polymer

Entity 29 polymer

聚合体 Polymer

Entity 30 polymer

聚合体 Polymer

Entity 31 polymer

聚合体 Polymer

Entity 32 polymer

聚合体 Polymer

Entity 33 polymer

聚合体 Polymer

Entity 34 polymer

聚合体 Polymer

Entity 35 polymer
