8e5t

Yeast co-transcriptional Noc1-Noc2 RNP assembly checkpoint intermediate

Method: ELECTRON MICROSCOPY D_max: 237.7 Å Quality: EXCELLENT

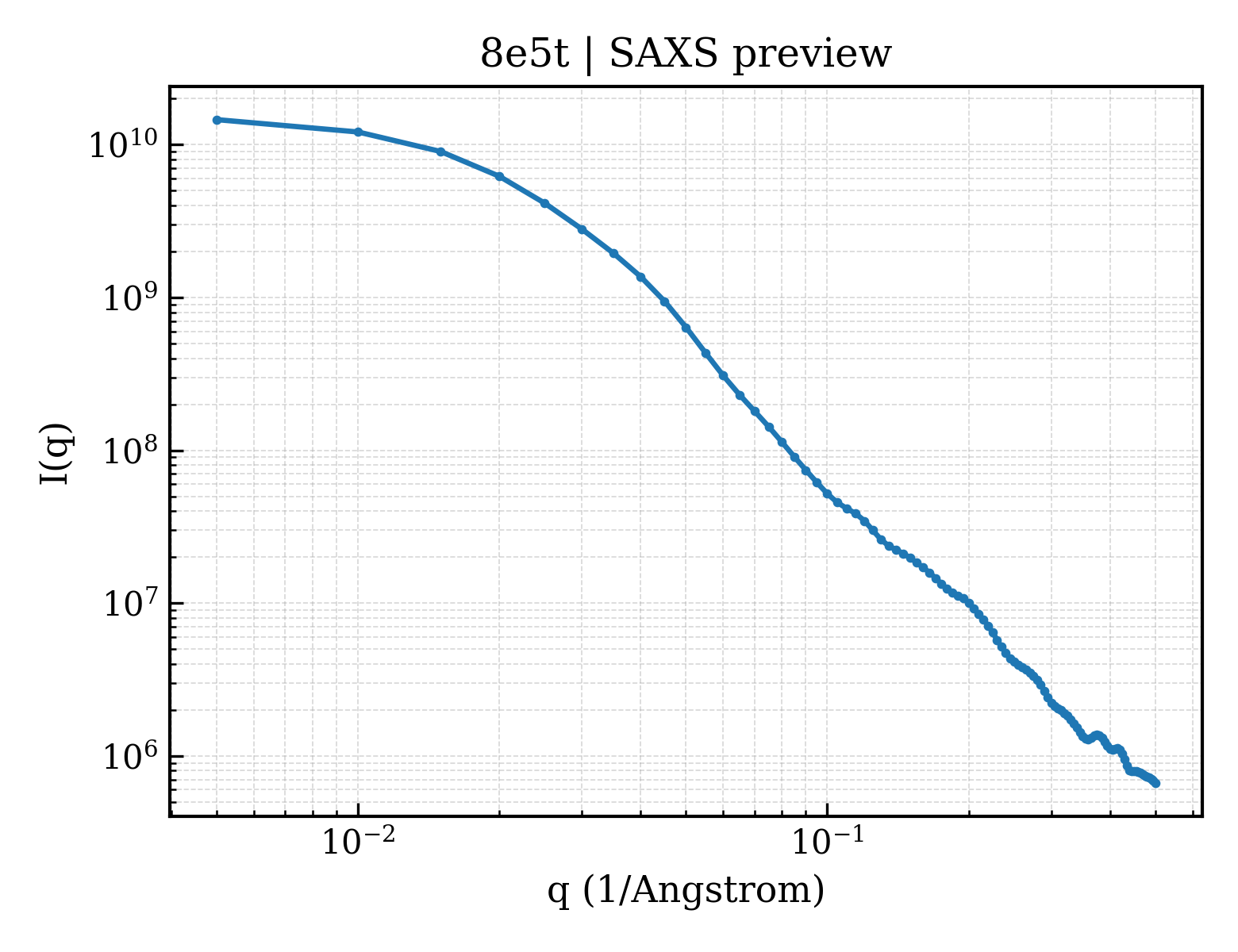

SAXS 散射曲线 SAXS Profile

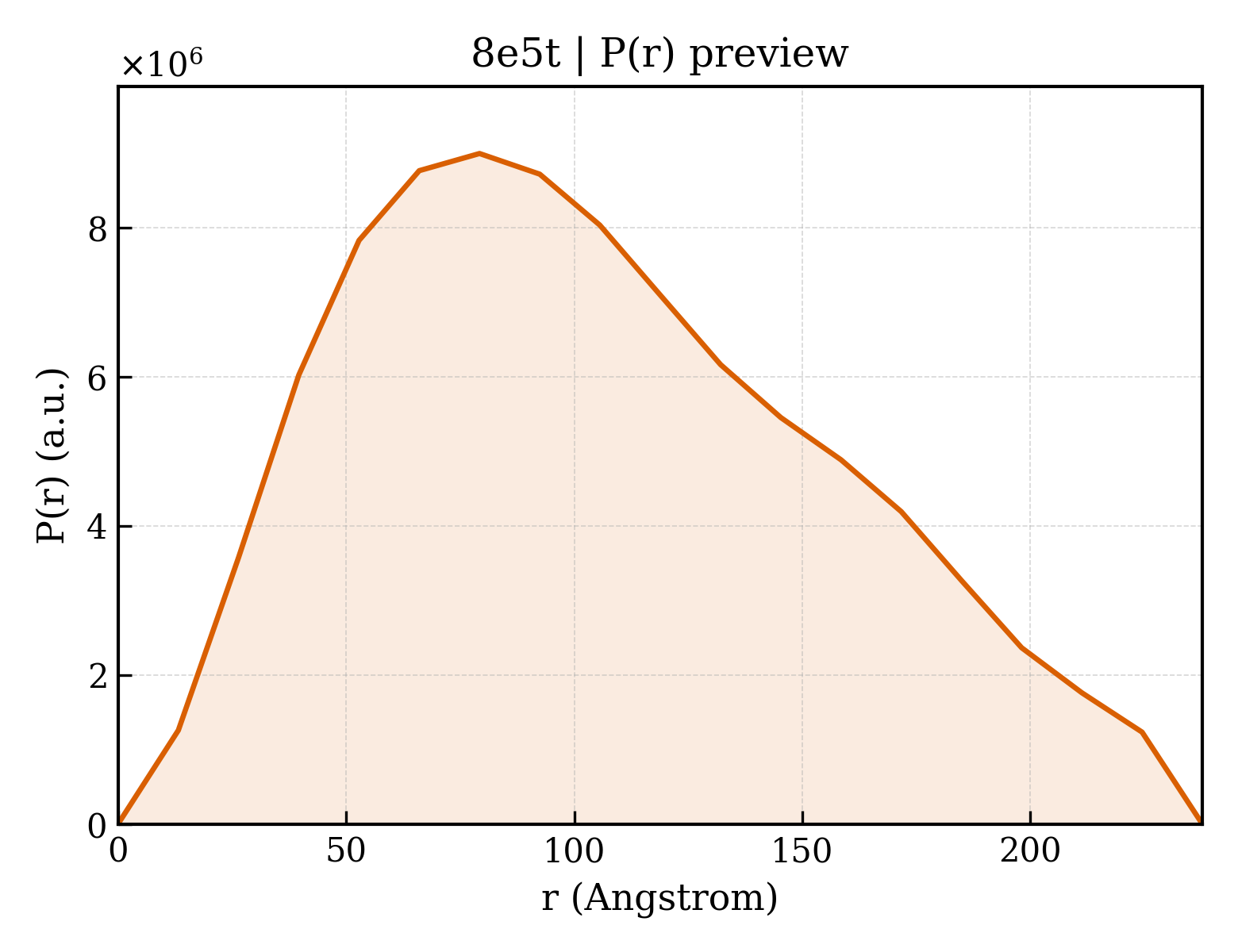

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8e5t
沉积日期 deposition_date	2022-08-22
结构标题 title	Yeast co-transcriptional Noc1-Noc2 RNP assembly checkpoint intermediate
关键词 keywords	Co-transcriptional pre-60S, ribosome biogenesis, early check-point intermediate, RIBOSOME; RIBOSOME
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	86.44 Å
回转半径 Rg (电子) rg_electron	88.02 Å
零角强度 I(0) i0	15548300000.00
分子量 molecular_weight	799770.0 kDa
排除体积 excluded_volume	891570 Å³
包络体积 envelope_volume	1755400 Å³
水化壳体积 shell_volume	168720 Å³
包络直径 envelope_diameter	319.5 Å
壳层 Rg shell_rg	79.97 Å
包络 Rg envelope_rg	87.80 Å
形状 Rg shape_rg	88.27 Å
总 Rg total_rg	87.34 Å
总原子数 total_atoms	55125
残基数 n_residues	6126
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	237.7 Å
Rg (实空间) rg_real	82.07 Å
Rg 误差 (实空间) rg_real_error	0.94 Å
I(0) (实空间) i0_real	1.4870e+10
I(0) 误差 (实空间) i0_real_error	2.9250e+08
Rg (倒空间) rg_reciprocal	82.97 Å
I(0) (倒空间) i0_reciprocal	15390000000.0000
解质量估计 total_estimate	0.9131
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	79.2 Å
偏度 Skewness skewness	0.382
峰度 Kurtosis kurtosis	-0.639
角度范围 angular_range	— – 0.0900 Å⁻¹
当前正则化参数 α current_alpha	1.0670
最高正则化参数 α highest_alpha	535800000.0000
实空间数据点数 n_real_points	19
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.987; Stabil: 0.976; Sysdev: 1.000; Positv: 1.000; Valcen: 0.980; Smooth: 0.002

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (30)

Entity 1 polymer

描述 description	Ribosome biogenesis protein MAK21
分子量 formula_weight	116832.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	5
原子数 atom_count	55125

MSENNGNPLDLSSLRNKISSKLRDNNSKKAKKTHKGKDVKASSNSKKVNEDIRREALALGASEEDLKLIQGLSDDDDAKSEQEFDAVADEDADDKGFKNDLQNFMKNVGFDQHKLEDVDDDDIEEESTSSKESKIPAQEKEHAQSNIASSTIEKTSQESIDNGSEQEENTVEEANLSSDQEPESESAEKEKKEEKDGGLITQTTIISSDKLIIPYDKPWYEIPLDPQVGQNDDVEELSKEQIEKLFERGKQTLEADNQTYYEEFTKDSSQAKFMSQILSDGTLNDKISAVTLLIQDSPLHNTKSLETLVSYCGKKSRNSALQSLNALKDLFLNGLLPNRKLRYFKNQPGLSMMLNKKTLAIFYFEDYLKKLFFRVLEVLEVLSHDPIIHVRLQILNHVFDLLTNQPEQEFNLLRLGVNKIGDIDSKVSSKASYLLLKLEQAHPNMKSIVIDAIVDIALRPNADYHTTYYSVITLNQTILKRSEDSVANKLVKTYFTLFEKFLINTDKDNTNGVVKSNSKSYEEKRKKNFKKGKHGGKSVKIEKTENEVLDEKNSKLFSALLTGINRAFPFAQIPASVYEVHMETLFKITHSSNFNTSIQALVLINQVTVKAKLNSDRYYRTLYESLFDPRLVNSSKQGIYLNLLYKSLKQDALNVERVEAFVKRILQVCSHWLNVGTITGFFFLLIQLAKTVPQIKNLLTNTPVDYEYESDAEEEQGDKDIKRKEYDGRKRDPKFANAEKSSLWEINNFINHFHPTVKTYANAYVTGETEQIAKPDLGLFTLSHFLDRFVYRSAKQTNTARGTSIMQPLFSGSRVNDSVLVKASDIMHDQGPVNTEDWLTKKVEDIKPEDKFFYQYFTTKKTADGKGKKSNKASNFDSDDEMDENEIWSALVKSRPDVEDDSDDSELDFAEDDFSDSTSDDEPKLDAIDDEDAKSEGSQESDQEEGLDEDIFYSFDGEQDNSDKKRSFAESSEEDESSEEEKEEEENKEVSAKRAKKKQRKNMLKSLPVFASADDYAQYLDQDSD

Entity 2 polymer

描述 description	NOC2 isoform 1
分子量 formula_weight	81719.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	6

MGKVSKSTKKFQSKHLKHTLDQRRKEKIQKKRIQGRRGNKTDQEKADAAGTREQQQLKKSAKEEVFKDMSVETFFEKGIEIPKENKKLKKKTTKEQSDEDSSSSEEEEDMGQSMAKLAEKDPEFYKYLEENDKDLLDFAGTNPLDGIDSQDEGEDAERNSNIEEKSEQMELEKEKIELSLKLVRKWKKQLHDSPSLKLLRNIISAFKVAVNLNKEENIEDYKYAITDEKAFHELMFMVLKDVPQAIQKMAPYKIVKGARTLPNGGNVSRVSSIVKSHAGSLLILLNDITNTETAALVLHSVNELMPYLLSYRRILKELIKSIVGVWSTTRELETQIASFAFLINTTKEFKKSMLETTLKTTYSTFIKSCRKTNMRSMPLINFQKNSAAELFGIDEVLGYQVGFEYIRQLAIHLRNTMNATTKKSSKINSAEAYKIVYNWQFCHSLDFWSRVLSFACQPEKENGSESPLRQLIYPLVQVTLGVIRLIPTPQFFPLRFYLIKSLIRLSQNSGVFIPIYPLLSEILTSTAFTKAPKKSPNLAAFDFEHNIKCTQAYLNTKIYQEGLSEQFVDLLGDYFALYCKNIAFPELVTPVIISLRRYIKTSTNVKLNKRLSTVVEKLNQNSTFIQEKRSDVEFGPTNKSEVSRFLNDVAWNKTPLGSYVAVQREVKEEKARLMRESMEEQDKERETEEAKLLNSLESDDDNEDVEMSDA

Entity 3 polymer

描述 description	60S ribosomal protein L4-A
分子量 formula_weight	39159.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C

MSRPQVTVHSLTGEATANALPLPAVFSAPIRPDIVHTVFTSVNKNKRQAYAVSEKAGHQTSAESWGTGRAVARIPRVGGGGTGRSGQGAFGNMCRGGRMFAPTKTWRKWNVKVNHNEKRYATASAIAATAVASLVLARGHRVEKIPEIPLVVSTDLESIQKTKEAVAALKAVGAHSDLLKVLKSKKLRAGKGKYRNRRWTQRRGPLVVYAEDNGIVKALRNVPGVETANVASLNLLQLAPGAHLGRFVIWTEAAFTKLDQVWGSETVASSKVGYTLPSHIISTSDVTRIINSSEIQSAIRPAGQATQKRTHVLKKNPLKNKQVLLRLNPYAKVFAAEKLGSKKAEKTGTKPAAVFTETLKHD

Entity 4 polymer

描述 description	Protein MAK16
分子量 formula_weight	35754.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D

MSDEIVWQVINQSFCSHRIKAPNGQNFCRNEYNVTGLCTRQSCPLANSKYATVKCDNGKLYLYMKTPERAHTPAKLWERIKLSKNYTKALQQIDEHLLHWSKFFRHKCKQRFTKLTQVMITERRLALREEERHYVGVAPKVKRREQNRERKALVAAKIEKAIEKELMDRLKSGAYGDKPLNVDEKVWKKIMGQMEEENSQDEEEDWDEEEESDDGEVEYVADDGEGEYVDVDDLEKWLADSDREASSASESESDSESESDSDSDEENKNSAKRRKKGTSAKTKRPKVEIEYEEEHEVQNAEQEVAQ

Entity 5 polymer

描述 description	60S ribosomal protein L6-A
分子量 formula_weight	20000.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E

MSAQKAPKWYPSEDVAALKKTRKAARPQKLRASLVPGTVLILLAGRFRGKRVVYLKHLEDNTLLISGPFKVNGVPLRRVNARYVIATSTKVSVEGVNVEKFNVEYFAKEKLTKKEKKEANLFPEQQNKEIKAERVEDQKVVDKALIAEIKKTPLLKQYLSASFSLKNGDKPHMLKF

Entity 6 polymer

描述 description	60S ribosomal protein L7-A
分子量 formula_weight	27686.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	F

MAAEKILTPESQLKKSKAQQKTAEQVAAERAARKAANKEKRAIILERNAAYQKEYETAERNIIQAKRDAKAAGSYYVEAQHKLVFVVRIKGINKIPPKPRKVLQLLRLTRINSGTFVKVTKATLELLKLIEPYVAYGYPSYSTIRQLVYKRGFGKINKQRVPLSDNAIIEANLGKYGILSIDDLIHEIITVGPHFKQANNFLWPFKLSNPSGGWGVPRKFKHFIQGGSFGNREEFINKLVKSMN

Entity 7 polymer

描述 description	60S ribosomal protein L8-A
分子量 formula_weight	28175.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	G

MAPGKKVAPAPFGAKSTKSNKTRNPLTHSTPKNFGIGQAVQPKRNLSRYVKWPEYVRVQRQKKILSIRLKVPPTIAQFQYTLDRNTAAETFKLFNKYRPETAAEKKERLTKEAAAVAEGKSKQDASPKPYAVKYGLNHVVALIENKKAKLVLIANDVDPIELVVFLPALCKKMGVPYAIVKGKARLGTLVNQKTSAVAALTEVRAEDEAALAKLVSTIDANFADKYDEVKKHWGGGILGNKAQAKMDKRAKNSDSA

Entity 8 polymer

描述 description	Proteasome-interacting protein CIC1
分子量 formula_weight	42596.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	K

MAKKSNSKKSTPVSTPSKEKKKVIEKKSSTAIPRERVIKAVNELIKFTSKPQDENNEEGNNGKKNLLEDDEEELKKDLQLIVVNNKSFTGTSKSFKLKLLNVKHSFYKPWKEASATAVKDFKVLLILKDSDIKKVSEDDLFDQLDSEGIKVDEIICGKDLKTVYKAYEARNAFISQFSLILADDSIVTSLPKLMGGKAYNKVETTPISIRTHANKEFSLTTLTNNIKKVYMNQLPVKLPRGTTLNVHLGNLEWLRPEEFVDNVELISEQLIKAYQIRSIFIKTNRSPVLPLYYNQDVLDELEAKKDKIEETHEDDMVTIDGVQVHLSTFNKGLMEIANPSELGSIFSKQINNAKKRSSSELEKESSESEAVKKAKS

Entity 9 polymer

描述 description	60S ribosomal protein L13-A
分子量 formula_weight	22604.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L

MAISKNLPILKNHFRKHWQERVKVHFDQAGKKVSRRNARATRAAKIAPRPLDLLRPVVRAPTVKYNRKVRAGRGFTLAEVKAAGLTAAYARTIGIAVDHRRQNRNQEIFDANVQRLKEYQSKIIVFPRNGKAPEAEQVLSAAATFPIAQPATDVEARAVQDNGESAFRTLRLARSEKKFRGIREKRAREKAEAEAEKKK

Entity 10 polymer

描述 description	60S ribosomal protein L14-A
分子量 formula_weight	15195.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	M

MSTDSIVKASNWRLVEVGRVVLIKKGQSAGKLAAIVEIIDQKKVLIDGPKAGVPRQAINLGQVVLTPLTFALPRGARTATVSKKWAAAAVCEKWAASSWAKKIAQRERRAALTDFERFQVMVLRKQKRYTVKKALAKA

Entity 11 polymer

描述 description	60S ribosomal protein L15-A
分子量 formula_weight	24482.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	N

MGAYKYLEELQRKKQSDVLRFLQRVRVWEYRQKNVIHRAARPTRPDKARRLGYKAKQGFVIYRVRVRRGNRKRPVPKGATYGKPTNQGVNELKYQRSLRATAEERVGRRAANLRVLNSYWVNQDSTYKYFEVILVDPQHKAIRRDARYNWICDPVHKHREARGLTATGKKSRGINKGHKFNNTKAGRRKTWKRQNTLSLWRYRK

Entity 12 polymer

描述 description	60S ribosomal protein L18-A
分子量 formula_weight	20609.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Q

MGIDHTSKQHKRSGHRTAPKSDNVYLKLLVKLYTFLARRTDAPFNKVVLKALFLSKINRPPVSVSRIARALKQEGAANKTVVVVGTVTDDARIFEFPKTTVAALRFTAGARAKIVKAGGECITLDQLAVRAPKGQNTLILRGPRNSREAVRHFGMGPHKGKAPRILSTGRKFERARGRRRSKGFKV

Entity 13 polymer

描述 description	60S ribosomal protein L20-A
分子量 formula_weight	20478.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	S

MAHFKEYQVIGRRLPTESVPEPKLFRMRIFASNEVIAKSRYWYFLQKLHKVKKASGEIVSINQINEAHPTKVKNFGVWVRYDSRSGTHNMYKEIRDVSRVAAVETLYQDMAARHRARFRSIHILKVAEIEKTADVKRQYVKQFLTKDLKFPLPHRVQKSTKTFSYKRPSTFY

Entity 14 polymer

描述 description	Ribosome biogenesis protein BRX1
分子量 formula_weight	33585.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	b

MSSIYKALAGKSKDNKSEKKQGNVKQFMNKQRTLLISSRGVNYRHRHLIQDLSGLLPHSRKEPKLDTKKDLQQLNEIAELYNCNNVLFFEARKHQDLYLWLSKPPNGPTIKFYIQNLHTMDELNFTGNCLKGSRPVLSFDQRFESSPHYQLIKELLVHNFGVPPNARKSKPFIDHVMSFSIVDDKIWVRTYEISHSTKNKEEYEDGEEDISLVEIGPRFVMTVILILEGSFGGPKIYENKQYVSPNVVRAQIKQQAAEEAKSRAEAAVERKIKRRENVLAADPLSNDALFK

Entity 15 polymer

描述 description	60S ribosomal protein L32
分子量 formula_weight	14809.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	e

MASLPHPKIVKKHTKKFKRHHSDRYHRVAENWRKQKGIDSVVRRRFRGNISQPKIGYGSNKKTKFLSPSGHKTFLVANVKDLETLTMHTKTYAAEIAHNISAKNRVVILARAKALGIKVTNPKGRLALEA

Entity 16 polymer

描述 description	60S ribosomal protein L33-A
分子量 formula_weight	12177.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	f

MAESHRLYVKGKHLSYQRSKRVNNPNVSLIKIEGVATPQDAQFYLGKRIAYVYRASKEVRGSKIRVMWGKVTRTHGNSGVVRATFRNNLPAKTFGASVRIFLYPSNI

Entity 17 polymer

描述 description	60S ribosomal protein L36-A
分子量 formula_weight	11151.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	i

MTVKTGIAIGLNKGKKVTSMTPAPKISYKKGAASNRTKFVRSLVREIAGLSPYERRLIDLIRNSGEKRARKVAKKRLGSFTRAKAKVEEMNNIIAASRRH

Entity 18 polymer

描述 description	rRNA-processing protein EBP2
分子量 formula_weight	49842.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	m

MAKGFKLKELLSHQKEIEKAEKLENDLKKKKSQELKKEEPTIVTASNLKKLEKKEKKADVKKEVAADTEEYQSQALSKKEKRKLKKELKKMQEQDATEAQKHMSGDEDESGDDREEEEEEEEEEEGRLDLEKLAKSDSESEDDSESENDSEEDEDVVAKEESEEKEEQEEEQDVPLSDVEFDSDADVVPHHKLTVNNTKAMKHALERVQLPWKKHSFQEHQSVTSETNTDEHIKDIYDDTERELAFYKQSLDAVLVARDELKRLKVPFKRPLDYFAEMVKSDEHMDKIKGKLIEEASDKKAREEARRQRQLKKFGKQVQNATLQKRQLEKRETLEKIKSLKNKRKHNEIDHSEFNVGVEEEVEGKRFDRGRPNGKRAAKNAKYGQGGMKRFKRKNDATSSADVSGFSSRKMKGKTNRPGKSRRARRF

Entity 19 polymer

描述 description	Pescadillo homolog
分子量 formula_weight	69984.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	n

MRIKKKNTRGNARNFITRSQAVRKLQVSLADFRRLCIFKGIYPREPRNKKKANKGSTAPTTFYYAKDIQYLMHEPVLAKFREHKTFARKLTRALGRGEVSSAKRLEENRDSYTLDHIIKERYPSFPDAIRDIDDALNMLFLFSNLPSTNQVSSKIINDAQKICNQWLAYVAKERLVRKVFVSIKGVYYQANIKGEEVRWLVPFKFPENIPSDVDFRIMLTFLEFYSTLLHFVLYKLYTDSGLIYPPKLDLKKDKIISGLSSYILESRQEDSLLKLDPTEIEEDVKVESLDASTLKSALNADEANTDETEKEEEQEKKQEKEQEKEQNEETELDTFEDNNKNKGDILIQPSKYDSPVASLFSAFVFYVSREVPIDILEFLILSCGGNVISEAAMDQIENKKDIDMSKVTHQIVDRPVLKNKVAGRTYIQPQWIFDCINKGELVPANKYLPGEALPPHLSPWGDAIGYDPTAPVEEGEEEESESESESEDQVEEEDQEVVAGEEDDDDDEELQAQKELELEAQGIKYSETSEADKDVNKSKNKKRKVDEEEEEKKLKMIMMSNKQKKLYKKMKYSNAKKEEQAENLKKKKKQIAKQKAKLNKLDSKK

Entity 20 polymer

描述 description	Ribosome biogenesis protein 15
分子量 formula_weight	25499.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	o

MVKSTSKTSTKETVTKQPTEEKPIQEKEELALETSSSSSDEEDEKDEDEIEGLAASDDEQSGTHKIKRLNPKKQANEKKSKDKKTLEEYSGIIYVSRLPHGFHEKELSKYFAQFGDLKEVRLARNKKTGNSRHYGFLEFVNKEDAMIAQESMNNYLLMGHLLQVRVLPKGAKIEKLYKYKKRVLVEKGITKPVKQLKDNMKQKHEERIKKLAKSGIEFKW

Entity 21 polymer

描述 description	ATP-dependent RNA helicase HAS1
分子量 formula_weight	56798.3 kDa
EC 编号 ec_number	3.6.4.13
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	p

MATPSNKRSRDSESTEEPVVDEKSTSKQNNAAPEGEQTTCVEKFEELKLSQPTLKAIEKMGFTTMTSVQARTIPPLLAGRDVLGAAKTGSGKTLAFLIPAIELLHSLKFKPRNGTGIIVITPTRELALQIFGVARELMEFHSQTFGIVIGGANRRQEAEKLMKGVNMLIATPGRLLDHLQNTKGFVFKNLKALIIDEADRILEIGFEDEMRQIIKILPNEDRQSMLFSATQTTKVEDLARISLRPGPLFINVVPETDNSTADGLEQGYVVCDSDKRFLLLFSFLKRNQKKKIIVFLSSCNSVKYYAELLNYIDLPVLELHGKQKQQKRTNTFFEFCNAERGILICTDVAARGLDIPAVDWIIQFDPPDDPRDYIHRVGRTARGTKGKGKSLMFLTPNELGFLRYLKASKVPLNEYEFPENKIANVQSQLEKLIKSNYYLHQTAKDGYRSYLQAYASHSLKTVYQIDKLDLAKVAKSYGFPVPPKVNITIGASGKTPNTKRRKTHK

Entity 22 polymer

描述 description	Ribosome biogenesis protein ERB1
分子量 formula_weight	91830.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	s

MMAKNNKTTEAKMSKKRAASEESDVEEDEDKLLSVDGLIDAEASESDEDDDEYESAVEEKESSSDKEAQDDSDDDSDAELNKLLAEEEGDGEEDYDSSEFSDDTTSLTDRLSGVKLQTIVDPNIYSKYADGSDRIIKPEINPVYDSDDSDAETQNTIGNIPLSAYDEMPHIGYDINGKRIMRPAKGSALDQLLDSIELPEGWTGLLDKNSGSSLNLTKEELELISKIQRNEQTDDSINPYEPLIDWFTRHEEVMPLTAVPEPKRRFVPSKNEAKRVMKIVRAIREGRIIPPKKLKEMKEKEKIENYQYDLWGDSTETNDHVMHLRAPKLPPPTNEESYNPPEEYLLSPEEKEAWENTEYSERERNFIPQKYSALRKVPGYGESIRERFERSLDLYLAPRVRKNKLNIDPNSLIPELPSPKDLRPFPIRCSTIYAGHKGKVRTLSIDPSGLWLATGSDDGTVRVWEILTGREVYRTTLIDDEENPDYHIECIEWNPDANNGILAVAVGENIHLIVPPIFGYDIENNGKTKIEDGFGYDTFGTVKKSNLEVNENGDGDEDGENESAKNAVKKQVAQWNKPSQKQLEKDICITISCKKTVKKLSWHRKGDYFVTVQPDSGNTSVLIHQVSKHLTQSPFKKSKGIIMDAKFHPFKPQLFVCSQRYVRIYDLSQQILVKKLLPGARWLSKIDIHPRGDNLIASSFDKRVLWHDLDLASTPYKTLRYHEKAVRSVNFHKKLPLFSSAADDGTIHVFHATVYDDMMKNPMIVPLKKLTGHKVINSLGVLDAIWHPREAWLFSAGADNTARLWTT

Entity 23 polymer

描述 description	Ribosome biogenesis protein RLP7
分子量 formula_weight	36621.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	t

MSSTQDSKAQTLNSNPEILLRKRRNADRTRIERQELAKKKREEQIKKKRSNKNKFVRAESIVAKTLATSREKERIKRVSILEDKKAKNETQHIASGKDFILKITEKANGAEENSVDLEETEEEEDDGLIREKTTYDGKPALLFIVRVRGPLAVNIPNKAFKILSLLRLVETNTGVFVKLTKNVYPLLKVIAPYVVIGKPSLSSIRSLIQKRGRIIYKGENEAEPHEIVLNDNNIVEEQLGDHGIICVEDIIHEIATMGESFSVCNFFLQPFKLNREVSGFGSLNRLRKIKQREAESRTRQFSNAATAPVIEVDIDSLLAKLN

Entity 24 polymer

描述 description	Ribosomal RNA-processing protein 1
分子量 formula_weight	33250.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	z

METSNFVKQLSSNNRKTRVNALEALKKYLTAKQFKENKQIEFNKLWKGLYYAMWFSDRPRPQQRLANELGELHGLYFDPKDNSTADELTTNDKAFIKFSRGFWKVMCFEWFNIDRYRLDKYLLLIRRVLFSQLKYLQSRNWDKKLVDEYIKKVLRWLPLSGSPKVYTGIPIHIVDILLDEWERLLKDGDEDDEDEENKEEEMRKIAESAKKTPLADVIAIFQDIVADYNNSKVLREKIKEDLFSDTRLVSWDILEGETQHNDSSNESEEEEEEEWKGF

Entity 25 polymer

描述 description	60S ribosomal protein L16-A
分子量 formula_weight	22247.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	O

MSVEPVVVIDGKGHLVGRLASVVAKQLLNGQKIVVVRAEELNISGEFFRNKLKYHDFLRKATAFNKTRGPFHFRAPSRIFYKALRGMVSHKTARGKAALERLKVFEGIPPPYDKKKRVVVPQALRVLRLKPGRKYTTLGKLSTSVGWKYEDVVAKLEAKRKVSSAEYYAKKRAFTKKVASANATAAESDVAKQLAALGY

Entity 26 polymer

描述 description	25S ribosomal RNA
分子量 formula_weight	1097493.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	1

GUUUGACCUCAAAUCAGGUAGGAGUACCCGCUGAACUUAAGCAUAUCAAUAAGCGGAGGAAAAGAAACCAACCGGGAUUGCCUUAGUAACGGCGAGUGAAGCGGCAAAAGCUCAAAUUUGAAAUCUGGUACCUUCGGUGCCCGAGUUGUAAUUUGGAGAGGGCAACUUUGGGGCCGUUCCUUGUCUAUGUUCCUUGGAACAGGACGUCAUAGAGGGUGAGAAUCCCGUGUGGCGAGGAGUGCGGUUCUUUGUAAAGUGCCUUCGAAGAGUCGAGUUGUUUGGGAAUGCAGCUCUAAGUGGGUGGUAAAUUCCAUCUAAAGCUAAAUAUUGGCGAGAGACCGAUAGCGAACAAGUACAGUGAUGGAAAGAUGAAAAGAACUUUGAAAAGAGAGUGAAAAAGUACGUGAAAUUGUUGAAAGGGAAGGGCAUUUGAUCAGACAUGGUGUUUUGUGCCCUCUGCUCCUUGUGGGUAGGGGAAUCUCGCAUUUCACUGGGCCAGCAUCAGUUUUGGUGGCAGGAUAAAUCCAUAGGAAUGUAGCUUGCCUCGGUAAGUAUUAUAGCCUGUGGGAAUACUGCCAGCUGGGACUGAGGACUGCGACGUAAGUCAAGGAUGCUGGCAUAAUGGUUAUAUGCCGCCCGUCUUGAAACACGGACCAAGGAGUCUAACGUCUAUGCGAGUGUUUGGGUGUAAAACCCAUACGCGUAAUGAAAGUGAACGUAGGUUGGGGCCUCGCAAGAGGUGCACAAUCGACCGAUCCUGAUGUCUUCGGAUGGAUUUGAGUAAGAGCAUAGCUGUUGGGACCCGAAAGAUGGUGAACUAUGCCUGAAUAGGGUGAAGCCAGAGGAAACUCUGGUGGAGGCUCGUAGCGGUUCUGACGUGCAAAUCGAUCGUCGAAUUUGGGUAUAGGGGCGAAAGACUAAUCGAACCAUCUAGUAGCUGGUUCCUGCCGAAGUUUCCCUCAGGAUAGCAGAAGCUCGUAUCAGUUUUAUGAGGUAAAGCGAAUGAUUAGAGGUUCCGGGGUCGAAAUGACCUUGACCUAUUCUCAAACUUUAAAUAUGUAAGAAGUCCUUGUUACUUAAUUGAACGUGGACAUUUGAAUGAAGAGCUUUUAGUGGGCCAUUUUUGGUAAGCAGAACUGGCGAUGCGGGAUGAACCGAACGUAGAGUUAAGGUGCCGGAAUACACGCUCAUCAGACACCACAAAAGGUGUUAGUUCAUCUAGACAGCCGGACGGUGGCCAUGGAAGUCGGAAUCCGCUAAGGAGUGUGUAACAACUCACCGGCCGAAUGAACUAGCCCUGAAAAUGGAUGGCGCUCAAGCGUGUUACCUAUACUCUACCGUCAGGGUUGAUAUGAUGCCCUGACGAGUAGGCAGGCGUGGAGGUCAGUGACGAAGCCUAGACCGUAAGGUCGGGUCGAACGGCCUCUAGUGCAGAUCUUGGUGGUAGUAGCAAAUAUUCAAAUGAGAACUUUGAAGACUGAAGUGGGGAAAGGUUCCACGUCAACAGCAGUUGGACGUGGGUUAGUCGAUCCUAAGAGAUGGGGAAGCUCCGUUUCAAAGGCCUGAUUUUAUGCAGGCCACCAUCGAAAGGGAAUCCGGUUAAGAUUCCGGAACCUGGAUAUGGAUUCUUCACGGUAACGUAACUGAAUGUGGAGACGUCGGCGCGAGCCCUGGGAGGAGUUAUCUUUUCUUCUUAACAGCUUAUCACCCCGGAAUUGGUUUAUCCGGAGAUGGGGUCUUAUGGCUGGAAGAGGCCAGCACCUUUGCUGGCUCCGGUGCGCUUGUGACGGCCCGUGAAAAUCCACAGGAAGGAAUAGUUUUCAUGCCAGGUCGUACUGAUAACCGCAGCAGGUCUCCAAGGUGAACAGCCUCUAGUUGAUAGAAUAAUGUAGAUAAGGGAAGUCGGCAAAAUAGAUCCGUAACUUCGGGAUAAGGAUUGGCUCUAAGGGUCGGGUAGUGAGGGCCUUGGUCAGACGCAGCGGGCGUGCUUGUGGACUGCUUGGUGGGGCUUGCUCUGCUAGGCGGACUACUUGCGUGCCUUGUUGUAGACGGCCUUGGUAGGUCUCUUGUAGACCGUCGCUUGCUACAAUUAACGAUCAACUUAGAACUGGUACGGACAAGGGGAAUCUGACUGUCUAAUUAAAACAUAGCAUUGCGAUGGUCAGAAAGUGAUGUUGACGCAAUGUGAUUUCUGCCCAGUGCUCUGAAUGUCAAAGUGAAGAAAUUCAACCAAGCGCGGGUAAACGGCGGGAGUAACUAUGACUCUCUUAAGGUAGCCAAAUGCCUCGUCAUCUAAUUAGUGACGCGCAUGAAUGGAUUAACGAGAUUCCCACUGUCCCUAUCUACUAUCUAGCGAAACCACAGCCAAGGGAACGGGCUUGGCAGAAUCAGCGGGGAAAGAAGACCCUGUUGAGCUUGACUCUAGUUUGACAUUGUGAAGAGACAUAGAGGGUGUAGAAUAAGUGGGAGCUUCGGCGCCAGUGAAAUACCACUACCUUUAUAGUUUCUUUACUUAUUCAAUGAAGCGGAGCUGGAAUUCAUUUUCCACGUUCUAGCAUUCAAGGUCCCAUUCGGGGCUGAUCCGGGUUGAAGACAUUGUCAGGUGGGGAGUUUGGCUGGGGCGGCACAUCUGUUAAACGAUAACGCAGAUGUCCUAAGGGGGGCUCAUGGAGAACAGAAAUCUCCAGUAGAACAAAAGGGUAAAAGCCCCCUUGAUUUUGAUUUUCAGUGUGAAUACAAACCAUGAAAGUGUGGCCUAUCGAUCCUUUAGUCCCUCGGAAUUUGAGGCUAGAGGUGCCAGAAAAGUUACCACAGGGAUAACUGGCUUGUGGCAGUCAAGCGUUCAUAGCGACAUUGCUUUUUGAUUCUUCGAUGUCGGCUCUUCCUAUCAUACCGAAGCAGAAUUCGGUAAGCGUUGGAUUGUUCACCCACUAAUAGGGAACGUGAGCUGGGUUUAGACCGUCGUGAGACAGGUUAGUUUUACCCUACUGAUGAAUGUUACCGCAAUAGUAAUUGAACUUAGUACGAGAGGAACAGUUCAUUCGGAUAAUUGGUUUUUGCGGCUGUCUGAUCAGGCAUUGCCGCGAAGCUACCAUCCGCUGGAUUAUGGCUGAACGCCUCUAAGUCAGAAUCCAUGCUAGAACGCGGUGAUUUCUUUGCUCCACACAAUAUAGAUGGAUACGAAUAAGGCGUCCUUGUGGCGUCGCUGAACCAUAGCAGGCUAGCAACGGUGCACUUGGCGGAAAGGCCUUGGGUGCUUGCUGGCGAAUUGCAAUGUCAUUUUGCGUGGGGAUAAAUCAUUUGUAUACGACUUAGAUGUACAACGGGGUAUUGUAAGCAGUAGAGUAGCCUUGUUGUUACGAUCUGCUGAGAUUAAGCCUUUGUUGUCUGAUUUGU

Entity 27 polymer

描述 description	5.8S ribosomal RNA
分子量 formula_weight	51012.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	2

AAAACUUUCAACAACGGAUCUCUUGGUUCUCGCAUCGAUGAAGAACGCAGCGAAAUGCGAUACGUAAUGUGAAUUGCAGAAUUCCGUGAAUCAUCGAAUCUUUGAACGCACAUUGCGCCCCUUGGUAUUCCAGGGGGCAUGCCUGUUUGAGCGUCAUUU

Entity 28 polymer

描述 description	ITS2 ribosomal RNA
分子量 formula_weight	74308.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	3

CCUUCUCAAACAUUCUGUUUGGUAGUGAGUGAUACUCUUUGGAGUUAACUUGAAAUUGCUGGCCUUUUCAUUGGAUGUUUUUUUUCCAAAGAGAGGUUUCUCUGCGUGCUUGAGGUAUAAUGCAAGUACGGUCGUUUUAGGUUUUACCAACUGCGGCUAAUCUUUUUUUAUACUGAGCGUAUUGGAACGUUAUCGAUAAGAAGAGAGCGUCUAGGCGAACAAUGUUCUUAAA

Entity 29 non-polymer

描述 description	MAGNESIUM ION
分子量 formula_weight	24.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	33

Entity 30 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

▼

6. 折叠分类 (SCOP + CATH) 2 domains

CATH v4.4 (2 domains)

结构域编号 domain_id	8e5tD01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	390 — Enolase-like; domain 1
同源超家族 H-superfamily homologous superfamily	110 —

结构域编号 domain_id	8e5tN01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	1120 — Ribosomal protein L15e
同源超家族 H-superfamily homologous superfamily	10 — Ribosomal protein L15

▶

7. 引用文献 (1)

▶

分辨率 resolution	4.00 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	158915

fit	/app/data/saxs_computation/e5/8e5t/8e5t.fit
pddf	/app/data/pr_computation/e5/8e5t/8e5t.pr.out
profile	/app/data/saxs_computation/e5/8e5t/8e5t.dat

Yeast co-transcriptional Noc1-Noc2 RNP assembly checkpoint intermediate

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

1. 结构基本信息 1. Structure Basics

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

4. 晶体学与实验 4. Crystallography & Experiment

冷冻电镜 EM 3D

5. 实体与聚合体信息 (30)

Entity 1 polymer

聚合体 Polymer

Entity 2 polymer

聚合体 Polymer

Entity 3 polymer

聚合体 Polymer

Entity 4 polymer

聚合体 Polymer

Entity 5 polymer

聚合体 Polymer

Entity 6 polymer

聚合体 Polymer

Entity 7 polymer

聚合体 Polymer

Entity 8 polymer

聚合体 Polymer

Entity 9 polymer

聚合体 Polymer

Entity 10 polymer

聚合体 Polymer

Entity 11 polymer

聚合体 Polymer

Entity 12 polymer

聚合体 Polymer

Entity 13 polymer

聚合体 Polymer

Entity 14 polymer

聚合体 Polymer

Entity 15 polymer

聚合体 Polymer

Entity 16 polymer

聚合体 Polymer

Entity 17 polymer

聚合体 Polymer

Entity 18 polymer

聚合体 Polymer

Entity 19 polymer

聚合体 Polymer

Entity 20 polymer

聚合体 Polymer

Entity 21 polymer

聚合体 Polymer

Entity 22 polymer

聚合体 Polymer

Entity 23 polymer

聚合体 Polymer

Entity 24 polymer

聚合体 Polymer

Entity 25 polymer

聚合体 Polymer

Entity 26 polymer

聚合体 Polymer

Entity 27 polymer

聚合体 Polymer

Entity 28 polymer

聚合体 Polymer

Entity 29 non-polymer

Entity 30 non-polymer

6. 折叠分类 (SCOP + CATH) 2 domains

CATH v4.4 (2 domains)

7. 引用文献 (1)

8. 文件与曲线 (10)

Files (7)

Curves (3)
