SAXSdb — 9kq0

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Tol-Pal system protein TolQ

Escherichia coli K-12

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 12	Tol-Pal system protein TolR × 2 （P0ABV6） Ubiquitin-like protein SMT3,Tol-Pal system protein TolA × 5 （P19934,Q12306）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TOLQ_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 4–232； UniProt 2–230 Author chain B； PDBConstruct 4–232； UniProt 2–230 Author chain C； PDBConstruct 4–232； UniProt 2–230 Author chain D； PDBConstruct 4–232； UniProt 2–230 Author chain E； PDBConstruct 4–232； UniProt 2–230

Tol-Pal system protein TolR

Escherichia coli K-12

UniProt P0ABV6

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 12	Tol-Pal system protein TolQ × 5 （P0ABU9） Ubiquitin-like protein SMT3,Tol-Pal system protein TolA × 5 （P19934,Q12306）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TOLR_ECOLI
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain F； PDBConstruct 1–142； UniProt 1–142 Author chain G； PDBConstruct 1–142； UniProt 1–142

Ubiquitin-like protein SMT3,Tol-Pal system protein TolA

Escherichia coli K-12

UniProt P19934

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 12	Tol-Pal system protein TolQ × 5 （P0ABU9） Tol-Pal system protein TolR × 2 （P0ABV6）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TOLA_ECOLI
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain H； PDBConstruct 138–557； UniProt 2–421 Author chain I； PDBConstruct 138–557； UniProt 2–421 Author chain J； PDBConstruct 138–557； UniProt 2–421 Author chain K； PDBConstruct 138–557； UniProt 2–421 Author chain L； PDBConstruct 138–557； UniProt 2–421

Ubiquitin-like protein SMT3,Tol-Pal system protein TolA

Escherichia coli K-12

UniProt Q12306

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 12	Tol-Pal system protein TolQ × 5 （P0ABU9） Tol-Pal system protein TolR × 2 （P0ABV6）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SMT3_YEAST
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain H； PDBConstruct 15–111； UniProt 3–99 Author chain I； PDBConstruct 15–111； UniProt 3–99 Author chain J； PDBConstruct 15–111； UniProt 3–99 Author chain K； PDBConstruct 15–111； UniProt 3–99 Author chain L； PDBConstruct 15–111； UniProt 3–99

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9kq0
Deposition date deposition_date	2024-11-24
Structure title title	Structure of TolQRA complex at pH 8.0 from E.coli
Keywords keywords	TolQRA, TolQ, TolR, TolA, Tol-Pal complex, Proton motive force, proton transporter, MEMBRANE PROTEIN; MEMBRANE PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9kq0__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

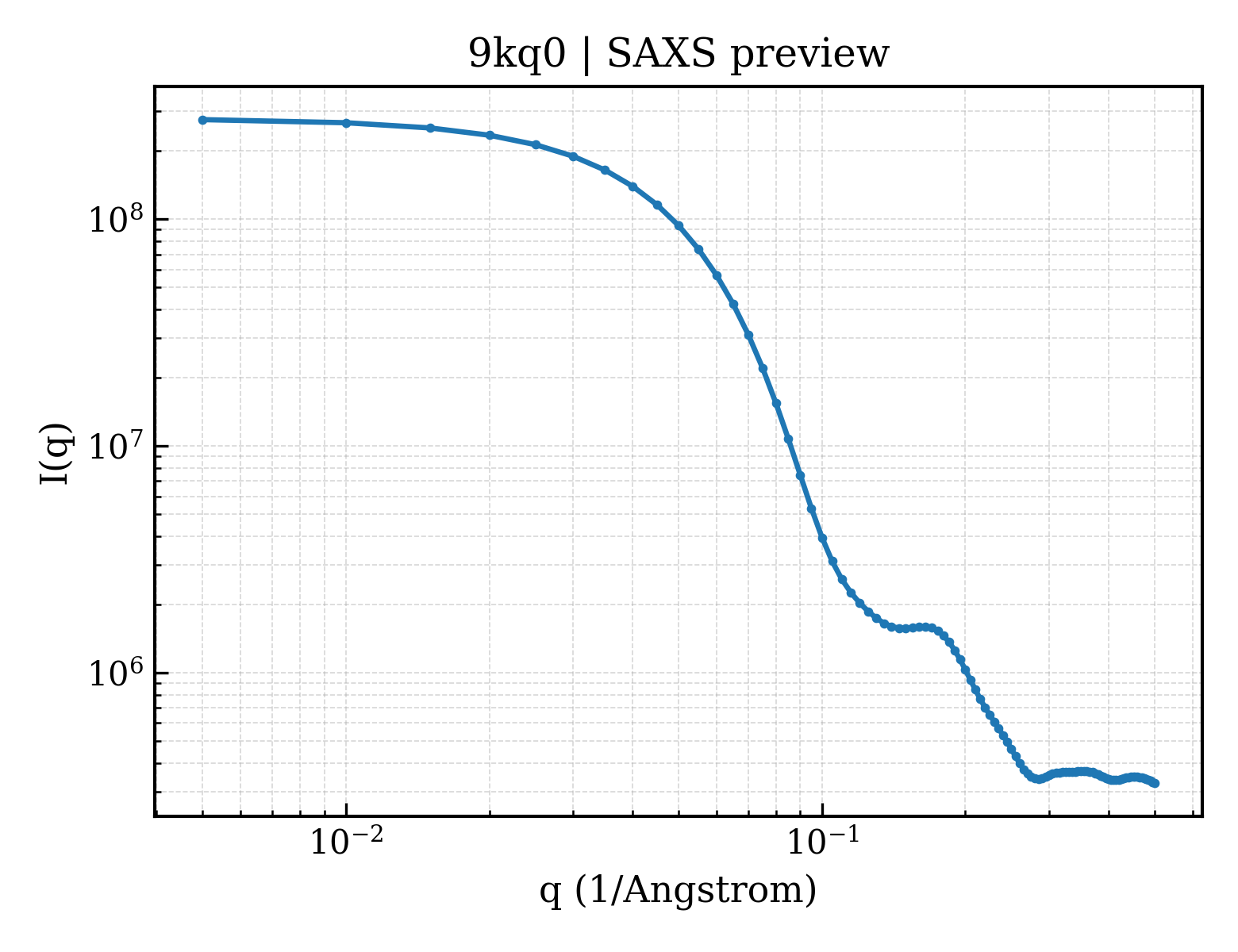

9kq0__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

9kq0__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	35.61 Å
Rg (electron density)	34.84 Å
Total Rg	35.47 Å
Atom count	10048
Residues	1289
Excluded volume	182080 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9kq0__assembly_1__model_1`	dodecameric （12）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Tol-Pal system protein TolQ
Molecular weight formula_weight	25779.8 kDa
Source method src_method	man
Copy count entity_count	5

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E
Atom count atom_count	10048

MGVTDMNILDLFLKASLLVKLIMLILIGFSIASWAIIIQRTRILNAAAREAEAFEDKFWSGIELSRLYQESQGKRDNLTGSEQIFYSGFKEFVRLHRANSHAPEAVVEGASRAMRISMNRELENLETHIPFLGTVGSISPYIGLFGTVWGIMHAFIALGAVKQATLQMVAPGIAEALIATAIGLFAAIPAVMAYNRLNQRVNKLELNYDNFMEEFTAILHRQAFTVSESNKG

Source Source

Source organism organism	Escherichia coli K-12
NCBI taxonomy ID ncbi_taxonomy_id	83333
Host organism host_organism	Escherichia coli BL21

Entity 2 Entity 2 polymer

Description description	Tol-Pal system protein TolR
Molecular weight formula_weight	15398.9 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	F,G

MARARGRGRRDLKSEINIVPLLDVLLVLLLIFMATAPIITQSVEVDLPDATESQAVSSNDNPPVIVEVSGIGQYTVVVEKDRLERLPPEQVVAEVSSRFKANPKTVFLIGGAKDVPYDEIIKALNLLHSAGVKSVGLMTQPI

Source Source

Source organism organism	Escherichia coli K-12
NCBI taxonomy ID ncbi_taxonomy_id	83333
Host organism host_organism	Escherichia coli BL21

Entity 3 Entity 3 polymer

Description description	Ubiquitin-like protein SMT3,Tol-Pal system protein TolA
Molecular weight formula_weight	58492.6 kDa
Source method src_method	man
Copy count entity_count	5

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H,I,J,K,L

MGHHHHHHHHGSLQDSEVNQEAKPEVKPEVKPETHINLKVSDGSSEIFFKIKKTTPLRRLMEAFAKRQGKEMDSLRFLYDGIRIQADQTPEDLDMEDNDIIEAHREQIGGAAADYGGDIPTTENLYFQGAAADIGSVSKATEQNDKLKRAIIISAVLHVILFAALIWSSFDENIEASAGGGGGSSIDAVMVDSGAVVEQYKRMQSQESSAKRSDEQRKMKEQQAAEELREKQAAEQERLKQLEKERLAAQEQKKQAEEAAKQAELKQKQAEEAAAKAAADAKAKAEADAKAAEEAAKKAAADAKKKAEAEAAKAAAEAQKKAEAAAAALKKKAEAAEAAAAEARKKAATEAAEKAKAEAEKKAAAEKAAADKKAAAEKAAADKKAAEKAAAEKAAADKKAAAEKAAADKKAAAAKAAAEKAAAAKAAAEADDIFGELSSGKNAPKTGGGAKGNNASPAGSGNTKNNGASGADINNYAGQIKSAIESKFYDASSYAGKTCTLRIKLAPDGMLLDIKPEGGDPALCQAALAAAKLAKIPKPPSQAVYEVFKNAPLDFKP

Source Source

Source organism organism	Escherichia coli K-12
NCBI taxonomy ID ncbi_taxonomy_id	83333
Host organism host_organism	Escherichia coli BL21

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.600 Å
Low-resolution limit resolution_low	— Å
R factor r_factor	—
R_work r_work	—
R_free r_free	—

Resolution resolution	3.60 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	160613
