9s3b

NMT1-NAC bound human RNC with 58 amino acid ARF1-linker - State 1

Method: ELECTRON MICROSCOPY Dmax: 245.4 Å Quality: EXCELLENT

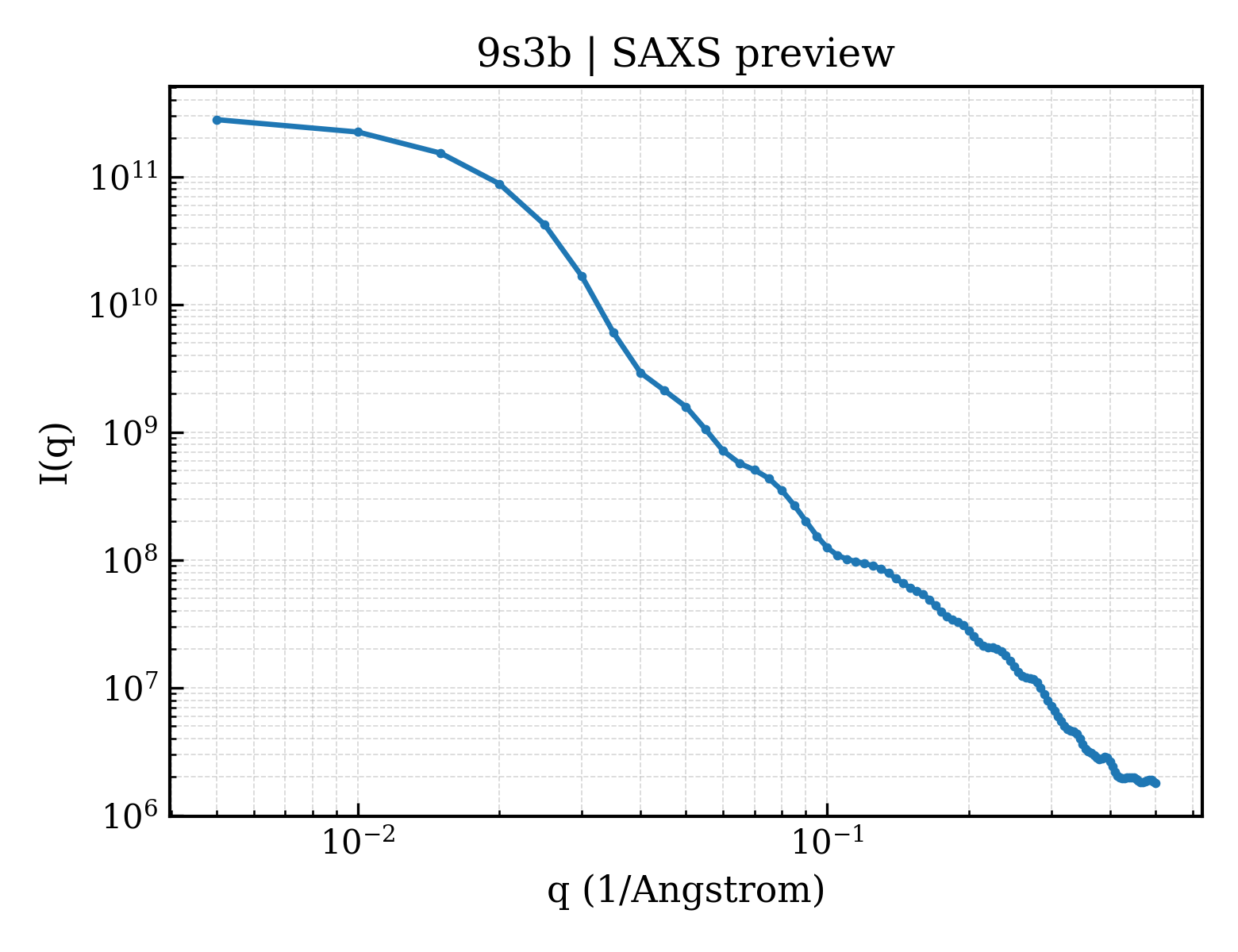

SAXS Profile

SAXS profile for 9s3b

P(r) Distribution

P(r) distribution for 9s3b

1. Structure Basics

entry_id9s3b
deposition_date2025-07-24
titleNMT1-NAC bound human RNC with 58 amino acid ARF1-linker - State 1
keywordsco-translational, N-terminal myristoylation, myristoylation, NAC, ARF1, NMT1, RIBOSOME; RIBOSOME
methodELECTRON MICROSCOPY

Download Data

2. SAXS Parameters (CRYSOL)

rg_guinier94.34
rg_electron95.47
i0301524000000.00
molecular_weight3279200.0 kDa
excluded_volume3521100 ų
envelope_volume5885300 ų
shell_volume462850 ų
envelope_diameter318.7
shell_rg112.60
envelope_rg95.24
shape_rg95.57
total_rg95.30
total_atoms222347
n_residues18467
n_harmonics20
q_range— – 0.5000 −1
n_points101
shell_typedirectional
solvent_density0.3340 e/ų
contrast_shell0.0300 e/ų
crysol_version4.1.3

3. P(r) Analysis (GNOM)

dmax245.4
rg_real91.75
rg_real_error0.37
i0_real2.8870e+11
i0_real_error4.9380e+09
rg_reciprocal96.00
i0_reciprocal303200000000.0000
total_estimate0.9104
solution_quality EXCELLENT a EXCELLENT solution
n_peaks1
r_peak_primary107.4
skewness0.125
kurtosis-0.584
angular_range— – 0.0800 −1
current_alpha1.0020
highest_alpha18640000000.0000
n_real_points17
gnom_version4.1.3
quality_criteria AN1: 0.000; Oscil: 1.000; Stabil: 0.951; Sysdev: 1.000; Positv: 1.000; Valcen: 0.986; Smooth: 0.000

4. Crystallography & Experiment

5. Entities & Polymer Info (91)

6. Citations (2)

7. Files & Curves (10)
