9s3d

NAC bound human RNC with 58 amino acid ARF1-linker

Method: ELECTRON MICROSCOPY Dmax: 239.7 Å Quality: EXCELLENT

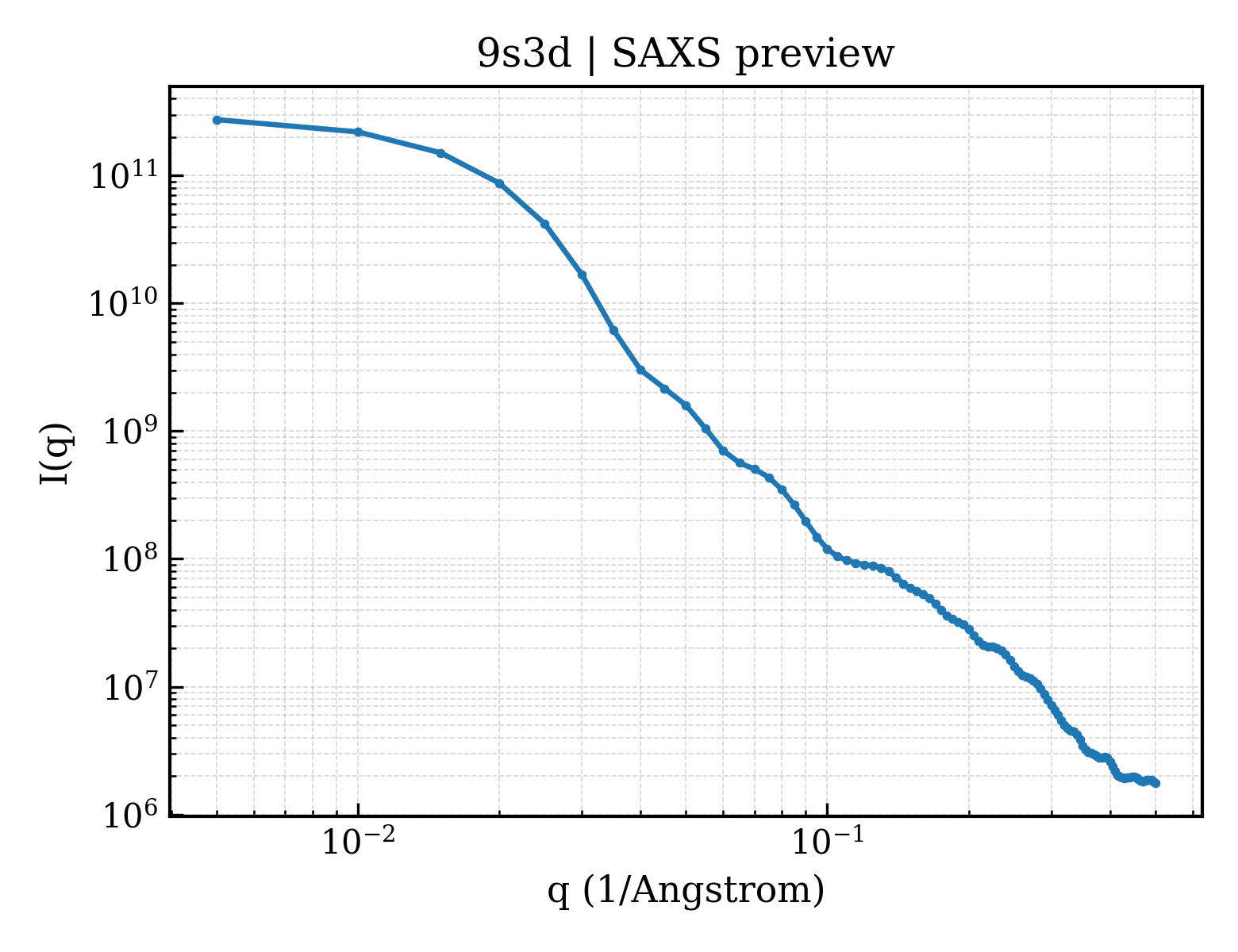

SAXS Profile

SAXS profile for 9s3d

P(r) Distribution

P(r) distribution for 9s3d

1. Structure Basics

entry_id9s3d
deposition_date2025-07-24
titleNAC bound human RNC with 58 amino acid ARF1-linker
keywordsco-translational, N-terminal myristoylation, myristoylation, NAC, ARF1, NMT1, RIBOSOME; RIBOSOME
methodELECTRON MICROSCOPY

Download Data

2. SAXS Parameters (CRYSOL)

rg_guinier93.88
rg_electron94.78
i0295269000000.00
molecular_weight3229100.0 kDa
excluded_volume3458000 ų
envelope_volume5766700 ų
shell_volume456910 ų
envelope_diameter312.1
shell_rg112.00
envelope_rg94.43
shape_rg94.86
total_rg94.66
total_atoms218805
n_residues18014
n_harmonics20
q_range— – 0.5000 −1
n_points101
shell_typedirectional
solvent_density0.3340 e/ų
contrast_shell0.0300 e/ų
crysol_version4.1.3

3. P(r) Analysis (GNOM)

dmax239.7
rg_real91.17
rg_real_error0.37
i0_real2.8330e+11
i0_real_error4.3650e+09
rg_reciprocal95.52
i0_reciprocal296900000000.0000
total_estimate0.9145
solution_quality EXCELLENT a EXCELLENT solution
n_peaks1
r_peak_primary112.8
skewness0.121
kurtosis-0.603
angular_range— – 0.0850 −1
current_alpha0.6169
highest_alpha20410000000.0000
n_real_points18
gnom_version4.1.3
quality_criteria AN1: 0.000; Oscil: 0.996; Stabil: 0.976; Sysdev: 1.000; Positv: 1.000; Valcen: 0.976; Smooth: 0.000

4. Crystallography & Experiment

5. Entities & Polymer Info (90)

6. Citations (1)

7. Files & Curves (10)
