1c9s

CRYSTAL STRUCTURE OF A COMPLEX OF TRP RNA-BINDING ATTENUATION PROTEIN WITH A 53-BASE SINGLE STRANDED RNA CONTAINING ELEVEN GAG TRIPLETS SEPARATED BY AU DINUCLEOTIDES

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

TRP RNA-BINDING ATTENUATION PROTEIN

Geobacillus stearothermophilus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 11	TRYPTOPHAN × 12 water × 11	Consistent with protein count
2	Protein–RNA	Homooligomer	Protein 11 RNA 1	SINGLE STRANDED RNA (55-MER) × 1 TRYPTOPHAN × 11 water × 12	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MTRB_BACST
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain A； PDBConstruct 1–74； UniProt 1–74 Author chain B； PDBConstruct 1–74； UniProt 1–74 Author chain C； PDBConstruct 1–74； UniProt 1–74 Author chain D； PDBConstruct 1–74； UniProt 1–74 Author chain E； PDBConstruct 1–74； UniProt 1–74 Author chain F； PDBConstruct 1–74； UniProt 1–74 Author chain G； PDBConstruct 1–74； UniProt 1–74 Author chain H； PDBConstruct 1–74； UniProt 1–74 Author chain I； PDBConstruct 1–74； UniProt 1–74 Author chain J； PDBConstruct 1–74； UniProt 1–74 Author chain K； PDBConstruct 1–74； UniProt 1–74 Author chain L； PDBConstruct 1–74； UniProt 1–74 Author chain M； PDBConstruct 1–74； UniProt 1–74 Author chain N； PDBConstruct 1–74； UniProt 1–74 Author chain O； PDBConstruct 1–74； UniProt 1–74 Author chain P； PDBConstruct 1–74； UniProt 1–74 Author chain Q； PDBConstruct 1–74； UniProt 1–74 Author chain R； PDBConstruct 1–74； UniProt 1–74 Author chain S； PDBConstruct 1–74； UniProt 1–74 Author chain T； PDBConstruct 1–74； UniProt 1–74 Author chain U； PDBConstruct 1–74； UniProt 1–74 Author chain V； PDBConstruct 1–74； UniProt 1–74

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1c9s
Deposition date deposition_date	1999-08-03
Structure title title	CRYSTAL STRUCTURE OF A COMPLEX OF TRP RNA-BINDING ATTENUATION PROTEIN WITH A 53-BASE SINGLE STRANDED RNA CONTAINING ELEVEN GAG TRIPLETS SEPARATED BY AU DINUCLEOTIDES
Keywords keywords	TRAP, PROTEIN-RNA COMPLEX, TRANSCRIPTION, SINGLE STRANDED RNA, RNA BINDING PROTEIN-RNA COMPLEX; RNA BINDING PROTEIN/RNA
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1c9s__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

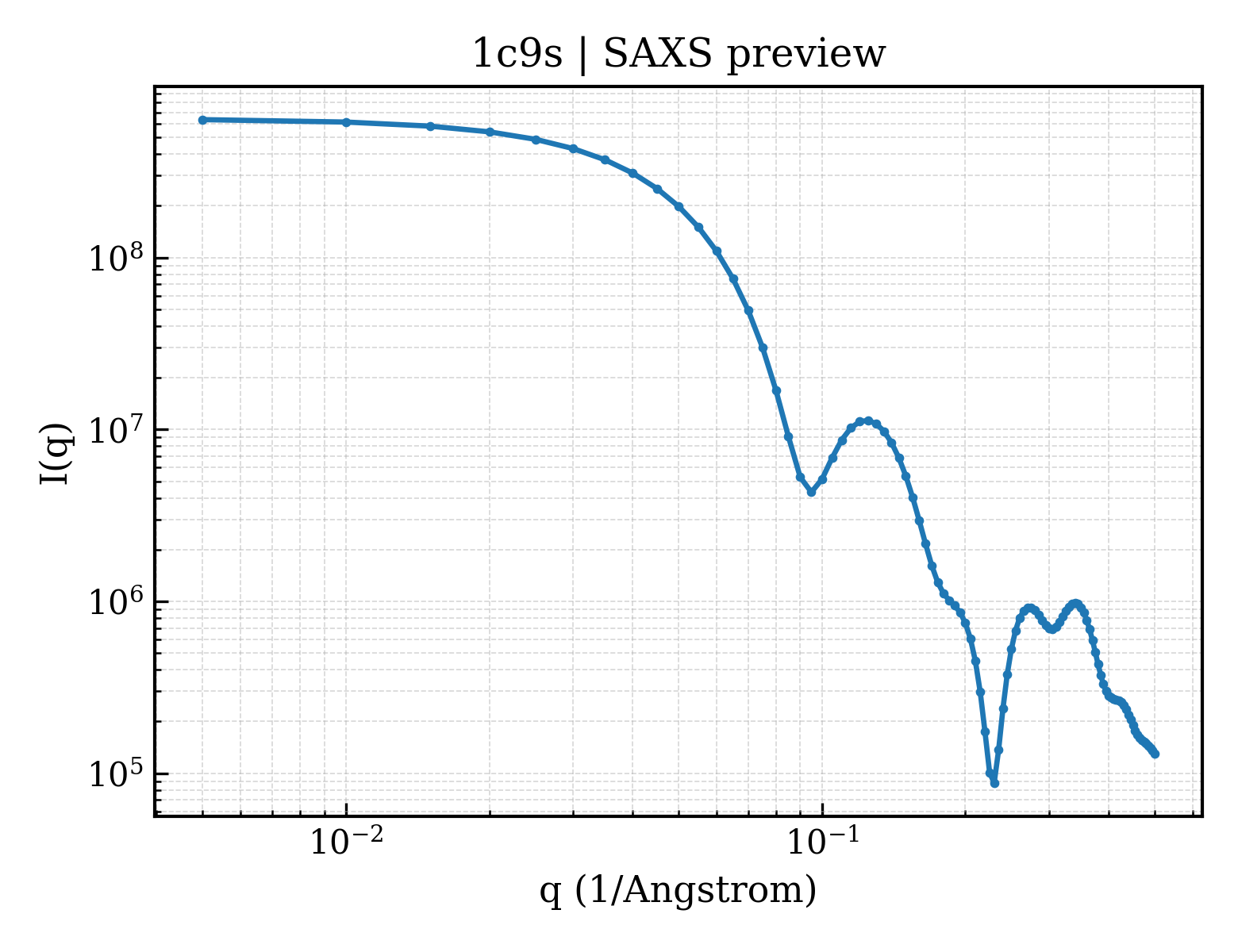

1c9s__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

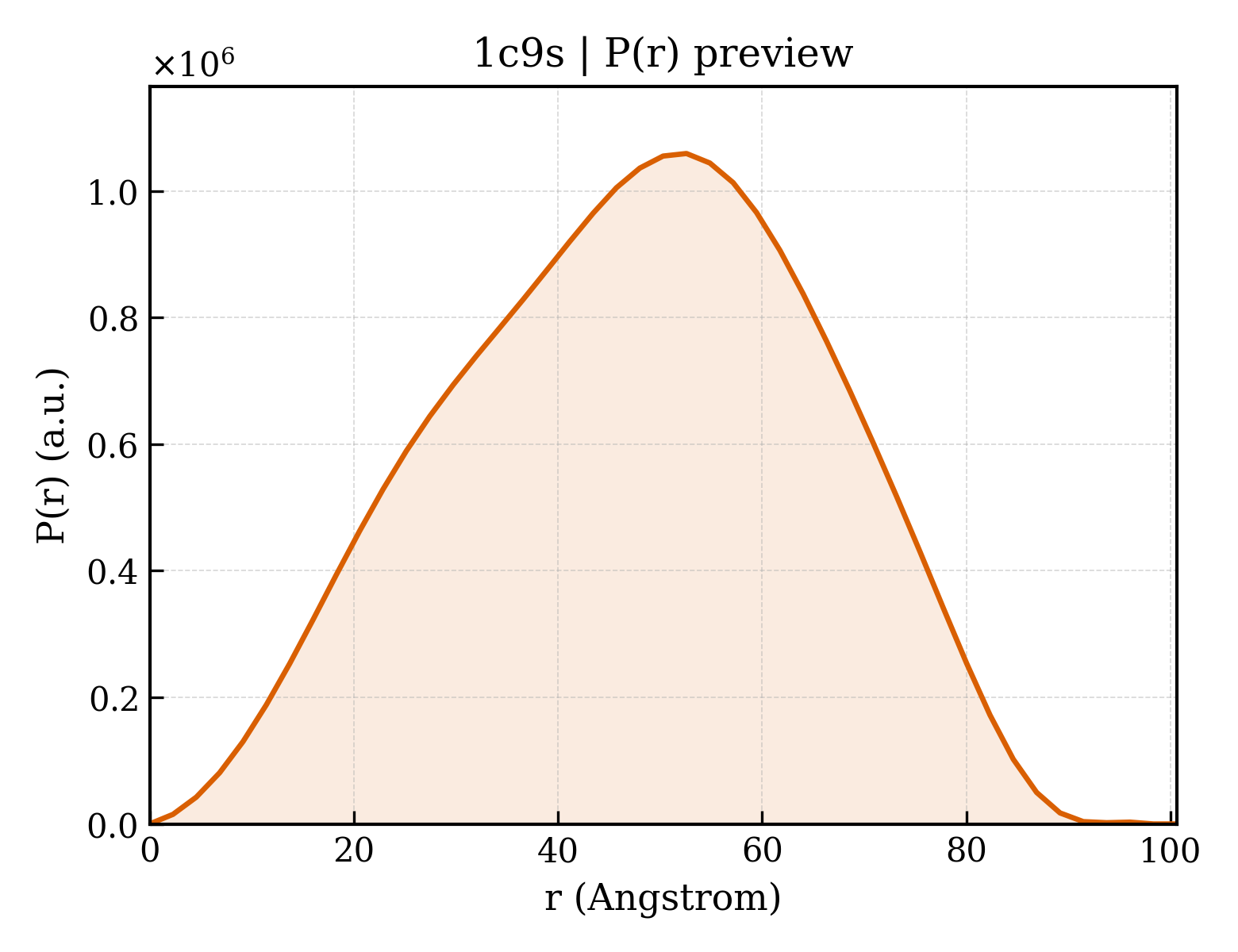

1c9s__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	30.90 Å
Rg (electron density)	29.79 Å
Total Rg	30.77 Å
Atom count	6052
Residues	756
Excluded volume	107200 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1c9s__assembly_1__model_1`	undecameric （11）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1c9s__assembly_2__model_1`	dodecameric （12）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	SINGLE STRANDED RNA (55-MER)
Molecular weight formula_weight	18159.9 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polyribonucleotide
Chain IDs strand_id	W
Atom count atom_count	14731

GAUGAGAUGAGAUGAGAUGAGAUGAGAUGAGAUGAGAUGAGAUGAGAUGAGAUGA

Entity 2 Entity 2 polymer

Description description	TRP RNA-BINDING ATTENUATION PROTEIN
Molecular weight formula_weight	8257.4 kDa
Source method src_method	man
Copy count entity_count	22

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F,G,H,I,J,K,L,M,N,O,P,Q,R,S,T,U,V

MYTNSDFVVIKALEDGVNVIGLTRGADTRFHHSEKLDKGEVLIAQFTEHTSAIKVRGKAYIQTRHGVIESEGKK

Source Source

Source organism organism	Geobacillus stearothermophilus
NCBI taxonomy ID ncbi_taxonomy_id	1422
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 non-polymer

Description description	TRYPTOPHAN
Molecular weight formula_weight	204.2 kDa
Source method src_method	syn
Copy count entity_count	23

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	1264

▼

6. Fold Classification (SCOP + CATH) 44 domains

SCOP 2.08 (22 domains)

Domain ID domain_id	d1c9sa_
Class class	b — All beta proteins
Fold Fold fold	b.82 — Double-stranded beta-helix
Superfamily Superfamily superfamily	b.82.5 — TRAP-like
Family Family family	b.82.5.1 — Trp RNA-binding attenuation protein (TRAP)

Domain ID domain_id	d1c9sb_
Class class	b — All beta proteins
Fold Fold fold	b.82 — Double-stranded beta-helix
Superfamily Superfamily superfamily	b.82.5 — TRAP-like
Family Family family	b.82.5.1 — Trp RNA-binding attenuation protein (TRAP)

Domain ID domain_id	d1c9sc_
Class class	b — All beta proteins
Fold Fold fold	b.82 — Double-stranded beta-helix
Superfamily Superfamily superfamily	b.82.5 — TRAP-like
Family Family family	b.82.5.1 — Trp RNA-binding attenuation protein (TRAP)

Domain ID domain_id	d1c9sd_
Class class	b — All beta proteins
Fold Fold fold	b.82 — Double-stranded beta-helix
Superfamily Superfamily superfamily	b.82.5 — TRAP-like
Family Family family	b.82.5.1 — Trp RNA-binding attenuation protein (TRAP)

Domain ID domain_id	d1c9se_
Class class	b — All beta proteins
Fold Fold fold	b.82 — Double-stranded beta-helix
Superfamily Superfamily superfamily	b.82.5 — TRAP-like
Family Family family	b.82.5.1 — Trp RNA-binding attenuation protein (TRAP)

Domain ID domain_id	d1c9sf_
Class class	b — All beta proteins
Fold Fold fold	b.82 — Double-stranded beta-helix
Superfamily Superfamily superfamily	b.82.5 — TRAP-like
Family Family family	b.82.5.1 — Trp RNA-binding attenuation protein (TRAP)

Domain ID domain_id	d1c9sg_
Class class	b — All beta proteins
Fold Fold fold	b.82 — Double-stranded beta-helix
Superfamily Superfamily superfamily	b.82.5 — TRAP-like
Family Family family	b.82.5.1 — Trp RNA-binding attenuation protein (TRAP)

Domain ID domain_id	d1c9sh_
Class class	b — All beta proteins
Fold Fold fold	b.82 — Double-stranded beta-helix
Superfamily Superfamily superfamily	b.82.5 — TRAP-like
Family Family family	b.82.5.1 — Trp RNA-binding attenuation protein (TRAP)

Domain ID domain_id	d1c9si_
Class class	b — All beta proteins
Fold Fold fold	b.82 — Double-stranded beta-helix
Superfamily Superfamily superfamily	b.82.5 — TRAP-like
Family Family family	b.82.5.1 — Trp RNA-binding attenuation protein (TRAP)

Domain ID domain_id	d1c9sj_
Class class	b — All beta proteins
Fold Fold fold	b.82 — Double-stranded beta-helix
Superfamily Superfamily superfamily	b.82.5 — TRAP-like
Family Family family	b.82.5.1 — Trp RNA-binding attenuation protein (TRAP)

Domain ID domain_id	d1c9sk_
Class class	b — All beta proteins
Fold Fold fold	b.82 — Double-stranded beta-helix
Superfamily Superfamily superfamily	b.82.5 — TRAP-like
Family Family family	b.82.5.1 — Trp RNA-binding attenuation protein (TRAP)

Domain ID domain_id	d1c9sl_
Class class	b — All beta proteins
Fold Fold fold	b.82 — Double-stranded beta-helix
Superfamily Superfamily superfamily	b.82.5 — TRAP-like
Family Family family	b.82.5.1 — Trp RNA-binding attenuation protein (TRAP)

Domain ID domain_id	d1c9sm_
Class class	b — All beta proteins
Fold Fold fold	b.82 — Double-stranded beta-helix
Superfamily Superfamily superfamily	b.82.5 — TRAP-like
Family Family family	b.82.5.1 — Trp RNA-binding attenuation protein (TRAP)

Domain ID domain_id	d1c9sn_
Class class	b — All beta proteins
Fold Fold fold	b.82 — Double-stranded beta-helix
Superfamily Superfamily superfamily	b.82.5 — TRAP-like
Family Family family	b.82.5.1 — Trp RNA-binding attenuation protein (TRAP)

Domain ID domain_id	d1c9so_
Class class	b — All beta proteins
Fold Fold fold	b.82 — Double-stranded beta-helix
Superfamily Superfamily superfamily	b.82.5 — TRAP-like
Family Family family	b.82.5.1 — Trp RNA-binding attenuation protein (TRAP)

Domain ID domain_id	d1c9sp_
Class class	b — All beta proteins
Fold Fold fold	b.82 — Double-stranded beta-helix
Superfamily Superfamily superfamily	b.82.5 — TRAP-like
Family Family family	b.82.5.1 — Trp RNA-binding attenuation protein (TRAP)

Domain ID domain_id	d1c9sq_
Class class	b — All beta proteins
Fold Fold fold	b.82 — Double-stranded beta-helix
Superfamily Superfamily superfamily	b.82.5 — TRAP-like
Family Family family	b.82.5.1 — Trp RNA-binding attenuation protein (TRAP)

Domain ID domain_id	d1c9sr_
Class class	b — All beta proteins
Fold Fold fold	b.82 — Double-stranded beta-helix
Superfamily Superfamily superfamily	b.82.5 — TRAP-like
Family Family family	b.82.5.1 — Trp RNA-binding attenuation protein (TRAP)

Domain ID domain_id	d1c9ss_
Class class	b — All beta proteins
Fold Fold fold	b.82 — Double-stranded beta-helix
Superfamily Superfamily superfamily	b.82.5 — TRAP-like
Family Family family	b.82.5.1 — Trp RNA-binding attenuation protein (TRAP)

Domain ID domain_id	d1c9st_
Class class	b — All beta proteins
Fold Fold fold	b.82 — Double-stranded beta-helix
Superfamily Superfamily superfamily	b.82.5 — TRAP-like
Family Family family	b.82.5.1 — Trp RNA-binding attenuation protein (TRAP)

Domain ID domain_id	d1c9su_
Class class	b — All beta proteins
Fold Fold fold	b.82 — Double-stranded beta-helix
Superfamily Superfamily superfamily	b.82.5 — TRAP-like
Family Family family	b.82.5.1 — Trp RNA-binding attenuation protein (TRAP)

Domain ID domain_id	d1c9sv_
Class class	b — All beta proteins
Fold Fold fold	b.82 — Double-stranded beta-helix
Superfamily Superfamily superfamily	b.82.5 — TRAP-like
Family Family family	b.82.5.1 — Trp RNA-binding attenuation protein (TRAP)

CATH v4.4 (22 domains)

Domain ID domain_id	1c9sA00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	50 — TRAP-like

Domain ID domain_id	1c9sB00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	50 — TRAP-like

Domain ID domain_id	1c9sC00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	50 — TRAP-like

Domain ID domain_id	1c9sD00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	50 — TRAP-like

Domain ID domain_id	1c9sE00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	50 — TRAP-like

Domain ID domain_id	1c9sF00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	50 — TRAP-like

Domain ID domain_id	1c9sG00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	50 — TRAP-like

Domain ID domain_id	1c9sH00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	50 — TRAP-like

Domain ID domain_id	1c9sI00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	50 — TRAP-like

Domain ID domain_id	1c9sJ00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	50 — TRAP-like

Domain ID domain_id	1c9sK00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	50 — TRAP-like

Domain ID domain_id	1c9sL00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	50 — TRAP-like

Domain ID domain_id	1c9sM00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	50 — TRAP-like

Domain ID domain_id	1c9sN00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	50 — TRAP-like

Domain ID domain_id	1c9sO00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	50 — TRAP-like

Domain ID domain_id	1c9sP00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	50 — TRAP-like

Domain ID domain_id	1c9sQ00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	50 — TRAP-like

Domain ID domain_id	1c9sR00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	50 — TRAP-like

Domain ID domain_id	1c9sS00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	50 — TRAP-like

Domain ID domain_id	1c9sT00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	50 — TRAP-like

Domain ID domain_id	1c9sU00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	50 — TRAP-like

Domain ID domain_id	1c9sV00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	50 — TRAP-like

▶

Unit-cell length a length_a	150.970 Å
Unit-cell length b length_b	111.670 Å
Unit-cell length c length_c	138.680 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	117.77 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	88

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	1.900 Å
Low-resolution limit resolution_low	30.000 Å
R factor r_factor	0.2300
R_work r_work	0.1880
R_free r_free	0.2350

CRYSTAL STRUCTURE OF A COMPLEX OF TRP RNA-BINDING ATTENUATION PROTEIN WITH A 53-BASE SINGLE STRANDED RNA CONTAINING ELEVEN GAG TRIPLETS SEPARATED BY AU DINUCLEOTIDES

1. Protein Identity and Related Structures Protein Identity & Related Structures

TRP RNA-BINDING ATTENUATION PROTEIN

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1c9s__assembly_1__model_1

1c9s__assembly_1__model_1 | I(q)

1c9s__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Polymer Polymer

Entity 2 Entity 2 polymer

Polymer Polymer

Source Source

Entity 3 Entity 3 non-polymer

Entity 4 Entity 4 water

6. Fold Classification (SCOP + CATH) 44 domains

SCOP 2.08 (22 domains)

CATH v4.4 (22 domains)

7. Citations (1)

CRYSTAL STRUCTURE OF A COMPLEX OF TRP RNA-BINDING ATTENUATION PROTEIN WITH A 53-BASE SINGLE STRANDED RNA CONTAINING ELEVEN GAG TRIPLETS SEPARATED BY AU DINUCLEOTIDES

1. Protein Identity and Related Structures Protein Identity & Related Structures

TRP RNA-BINDING ATTENUATION PROTEIN

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1c9s__assembly_1__model_1

1c9s__assembly_1__model_1 | I(q)

1c9s__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Polymer Polymer

Entity 2 Entity 2 polymer

Polymer Polymer

Source Source

Entity 3 Entity 3 non-polymer

Entity 4 Entity 4 water

6. Fold Classification (SCOP + CATH) 44 domains

SCOP 2.08 (22 domains)

CATH v4.4 (22 domains)

7. Citations (1)
