5eew

RADIATION DAMAGE TO THE TRAP-RNA COMPLEX: DOSE (DWD) 6.45 MGy

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Transcription attenuation protein MtrB

Geobacillus stearothermophilus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 11	TRYPTOPHAN × 11 water × 11	Consistent with protein count
2	Protein–RNA	Homooligomer	Protein 11 RNA 1	(GAGUU)10GAG 53-NUCLEOTIDE RNA × 1 TRYPTOPHAN × 11 water × 12	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MTRB_GEOSE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–74； UniProt 1–74 Author chain B； PDBConstruct 1–74； UniProt 1–74 Author chain C； PDBConstruct 1–74； UniProt 1–74 Author chain D； PDBConstruct 1–74； UniProt 1–74 Author chain E； PDBConstruct 1–74； UniProt 1–74 Author chain F； PDBConstruct 1–74； UniProt 1–74 Author chain G； PDBConstruct 1–74； UniProt 1–74 Author chain H； PDBConstruct 1–74； UniProt 1–74 Author chain I； PDBConstruct 1–74； UniProt 1–74 Author chain J； PDBConstruct 1–74； UniProt 1–74 Author chain K； PDBConstruct 1–74； UniProt 1–74 Author chain L； PDBConstruct 1–74； UniProt 1–74 Author chain M； PDBConstruct 1–74； UniProt 1–74 Author chain N； PDBConstruct 1–74； UniProt 1–74 Author chain O； PDBConstruct 1–74； UniProt 1–74 Author chain P； PDBConstruct 1–74； UniProt 1–74 Author chain Q； PDBConstruct 1–74； UniProt 1–74 Author chain R； PDBConstruct 1–74； UniProt 1–74 Author chain S； PDBConstruct 1–74； UniProt 1–74 Author chain T； PDBConstruct 1–74； UniProt 1–74 Author chain U； PDBConstruct 1–74； UniProt 1–74 Author chain V； PDBConstruct 1–74； UniProt 1–74

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	5eew
Deposition date deposition_date	2015-10-23
Structure title title	RADIATION DAMAGE TO THE TRAP-RNA COMPLEX: DOSE (DWD) 6.45 MGy
Keywords keywords	protein-RNA complex, radiation damage, RNA BINDING PROTEIN; RNA BINDING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

5eew__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

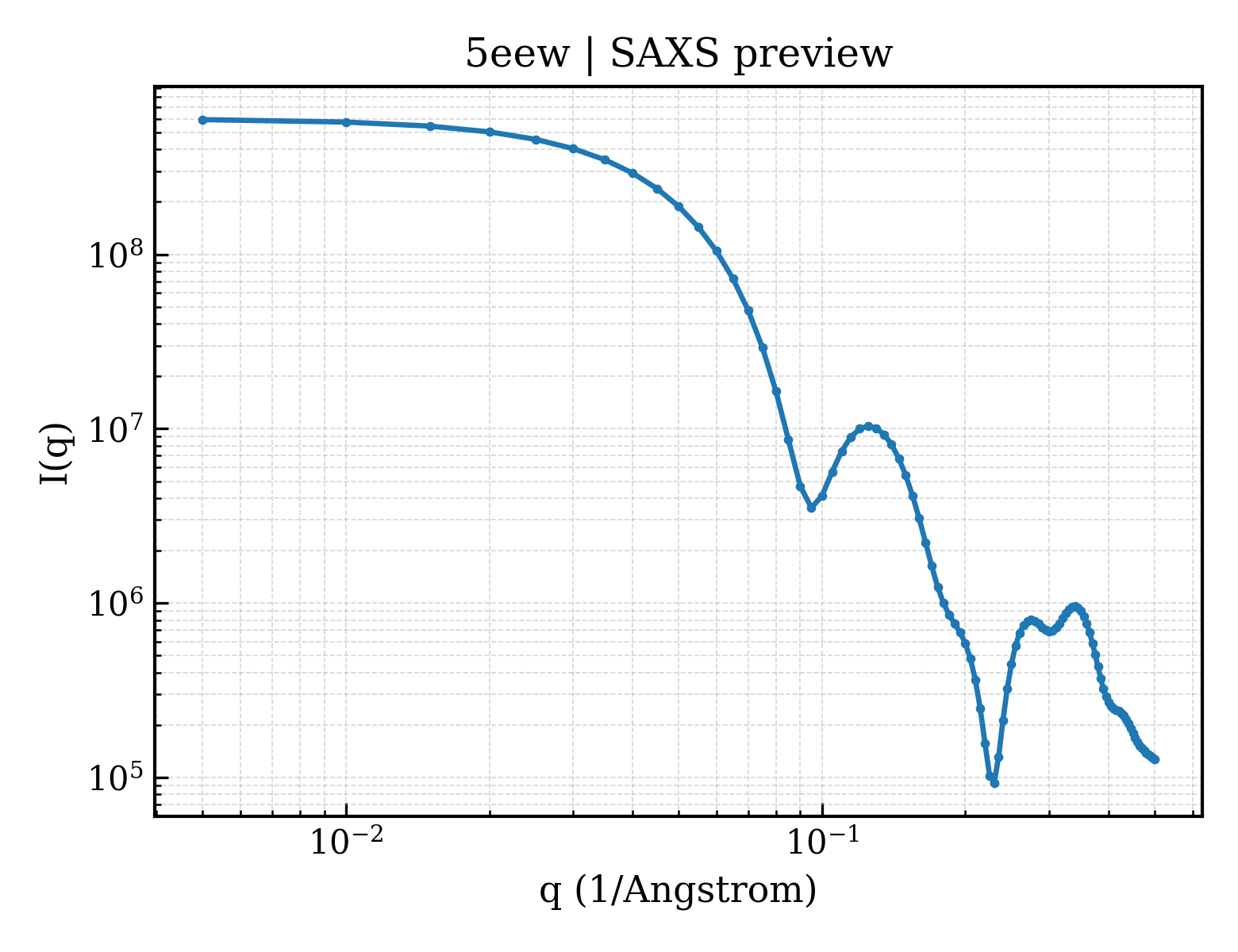

5eew__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

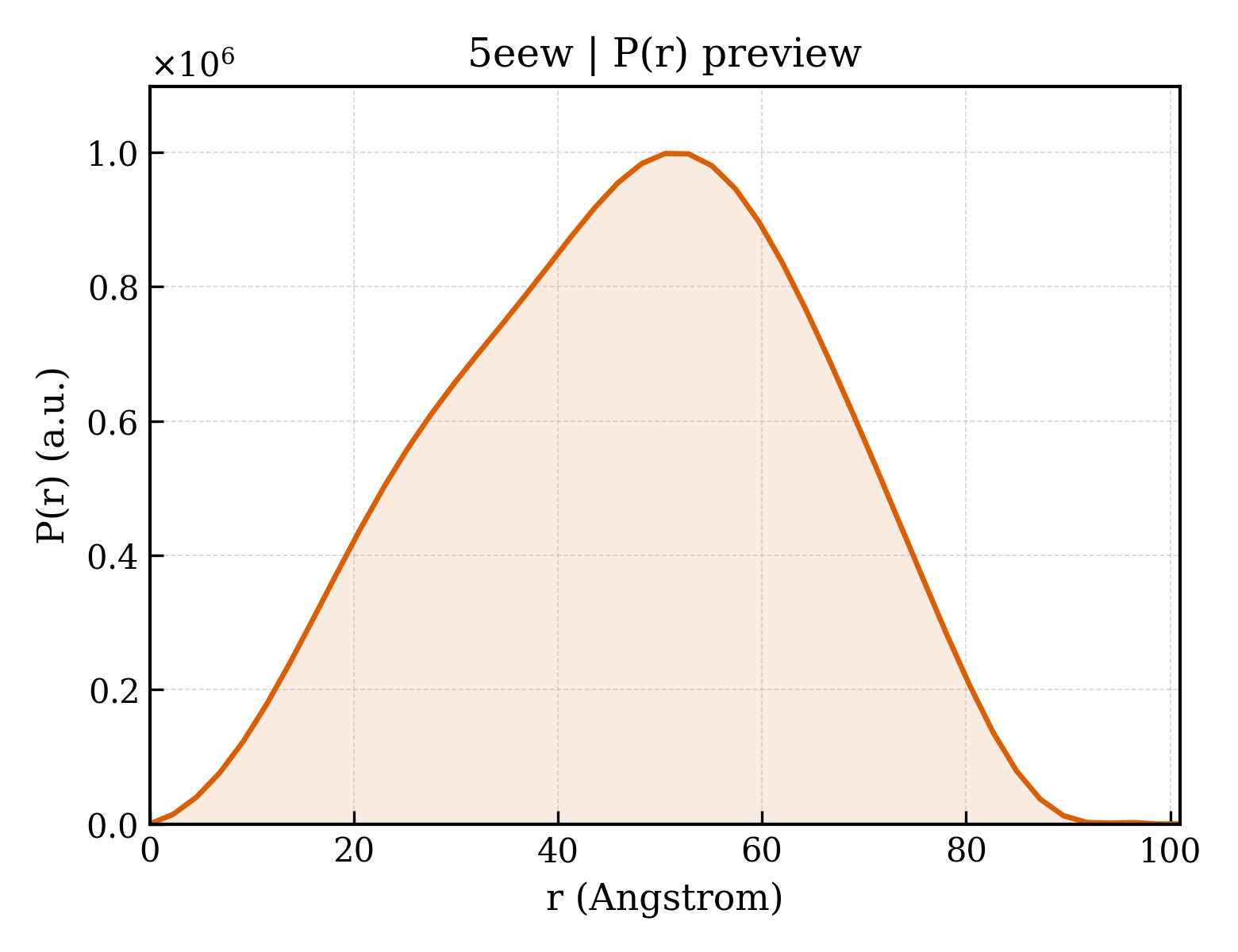

5eew__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	30.79 Å
Rg (electron density)	29.66 Å
Total Rg	30.62 Å
Atom count	5992
Residues	751
Excluded volume	106030 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`5eew__assembly_1__model_1`	undecameric （11）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`5eew__assembly_2__model_1`	dodecameric （12）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Transcription attenuation protein MtrB
Molecular weight formula_weight	8257.4 kDa
Source method src_method	man
Copy count entity_count	22

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F,G,H,I,J,K,L,M,N,O,P,Q,R,S,T,U,V
Atom count atom_count	13846

MYTNSDFVVIKALEDGVNVIGLTRGADTRFHHSEKLDKGEVLIAQFTEHTSAIKVRGKAYIQTRHGVIESEGKK

Source Source

Source organism organism	Geobacillus stearothermophilus
NCBI taxonomy ID ncbi_taxonomy_id	1422
Host organism host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 polymer

Description description	(GAGUU)10GAG 53-NUCLEOTIDE RNA
Molecular weight formula_weight	17906.5 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polyribonucleotide
Chain IDs strand_id	W

GAGUUGAGUUGAGUUGAGUUGAGUUGAGUUGAGUUGAGUUGAGUUGAGUUGAGUU

Entity 3 Entity 3 non-polymer

Description description	TRYPTOPHAN
Molecular weight formula_weight	204.2 kDa
Source method src_method	syn
Copy count entity_count	22

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	743

▼

6. Fold Classification (SCOP + CATH) 22 domains

CATH v4.4 (22 domains)

Domain ID domain_id	5eewA00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	50 — TRAP-like

Domain ID domain_id	5eewB00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	50 — TRAP-like

Domain ID domain_id	5eewC00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	50 — TRAP-like

Domain ID domain_id	5eewD00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	50 — TRAP-like

Domain ID domain_id	5eewE00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	50 — TRAP-like

Domain ID domain_id	5eewF00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	50 — TRAP-like

Domain ID domain_id	5eewG00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	50 — TRAP-like

Domain ID domain_id	5eewH00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	50 — TRAP-like

Domain ID domain_id	5eewI00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	50 — TRAP-like

Domain ID domain_id	5eewJ00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	50 — TRAP-like

Domain ID domain_id	5eewK00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	50 — TRAP-like

Domain ID domain_id	5eewL00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	50 — TRAP-like

Domain ID domain_id	5eewM00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	50 — TRAP-like

Domain ID domain_id	5eewN00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	50 — TRAP-like

Domain ID domain_id	5eewO00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	50 — TRAP-like

Domain ID domain_id	5eewP00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	50 — TRAP-like

Domain ID domain_id	5eewQ00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	50 — TRAP-like

Domain ID domain_id	5eewR00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	50 — TRAP-like

Domain ID domain_id	5eewS00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	50 — TRAP-like

Domain ID domain_id	5eewT00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	50 — TRAP-like

Domain ID domain_id	5eewU00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	50 — TRAP-like

Domain ID domain_id	5eewV00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	50 — TRAP-like

▶

Unit-cell length a length_a	141.040 Å
Unit-cell length b length_b	111.020 Å
Unit-cell length c length_c	137.990 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	117.41 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	88

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	1.980 Å
Low-resolution limit resolution_low	58.578 Å
R factor r_factor	0.2106
R_work r_work	0.2089
R_free r_free	0.2432
