SAXSdb — 2zd0

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Transcription attenuation protein mtrB

Geobacillus stearothermophilus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 12	TRYPTOPHAN × 12 water × 12	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MTRB_BACST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–74； UniProt 1–74 Author chain B； PDBConstruct 1–74； UniProt 1–74 Author chain C； PDBConstruct 1–74； UniProt 1–74

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2zd0
Deposition date deposition_date	2007-11-15
Structure title title	Crystal structures and thermostability of mutant TRAP3 A5 (ENGINEERED TRAP)
Keywords keywords	LINKER, ARTIFICIAL, ENGINEERED, RING PROTEIN, 12-mer, RNA BINDING PROTEIN; RNA BINDING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2zd0__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

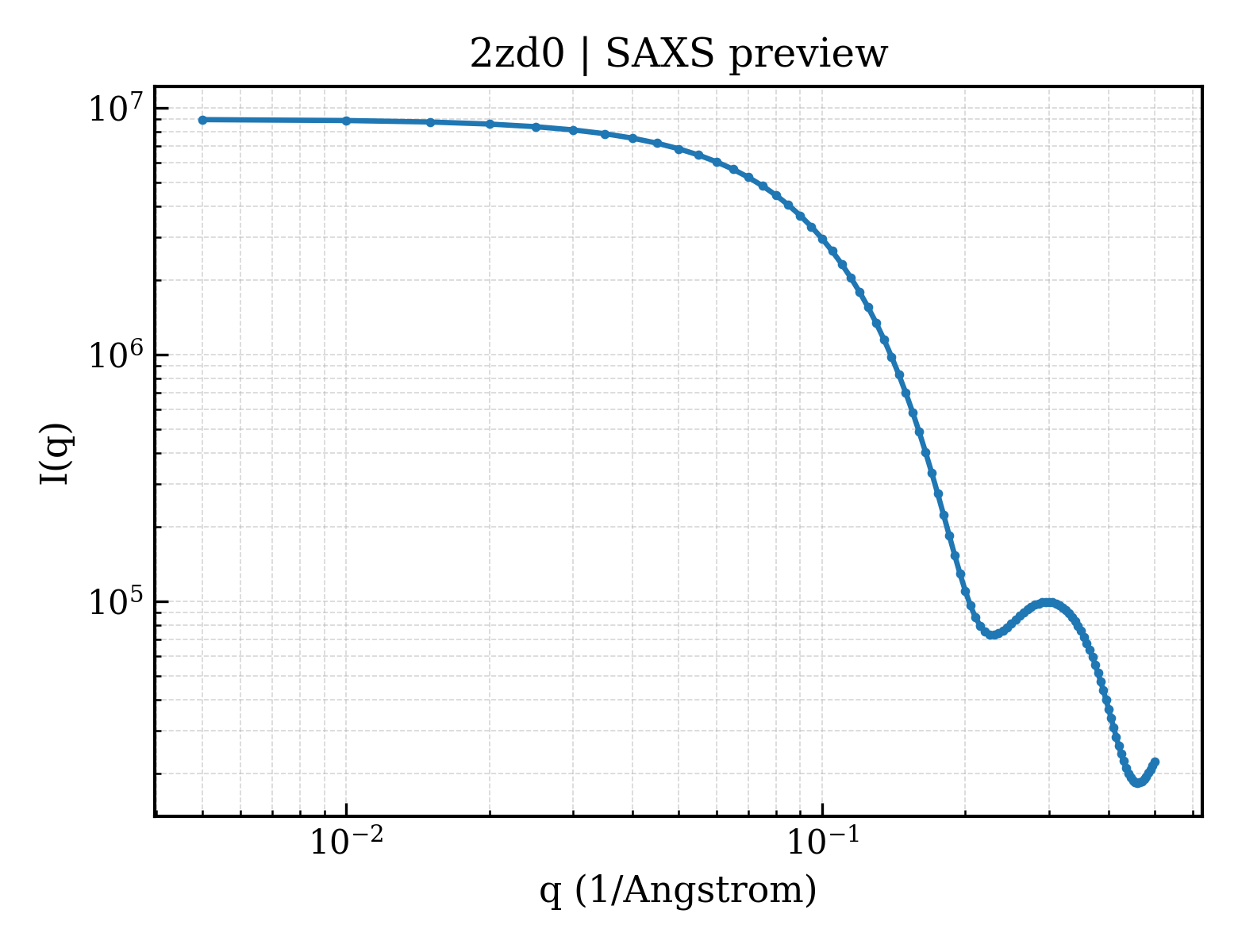

2zd0__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

2zd0__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	32.32 Å
Rg (electron density)	31.22 Å
Total Rg	32.15 Å
Atom count	6256
Residues	780
Excluded volume	111030 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2zd0__assembly_1__model_1`	dodecameric （12）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Transcription attenuation protein mtrB
Molecular weight formula_weight	8612.8 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C
Atom count atom_count	1603

MYTNSDFVVIKALEDGVNVIGLTRGADTRFHHSEKLDKGEVLIAQFTEHTSAIKVRGKAYIQTRHGVIESEGKKAAAAA

Source Source

Source organism organism	Geobacillus stearothermophilus
NCBI taxonomy ID ncbi_taxonomy_id	1422
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	TRYPTOPHAN
Molecular weight formula_weight	204.2 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	39

▼

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (3 domains)

Domain ID domain_id	d2zd0a_
Class class	b — All beta proteins
Fold Fold fold	b.82 — Double-stranded beta-helix
Superfamily Superfamily superfamily	b.82.5 — TRAP-like
Family Family family	b.82.5.1 — Trp RNA-binding attenuation protein (TRAP)

Domain ID domain_id	d2zd0b_
Class class	b — All beta proteins
Fold Fold fold	b.82 — Double-stranded beta-helix
Superfamily Superfamily superfamily	b.82.5 — TRAP-like
Family Family family	b.82.5.1 — Trp RNA-binding attenuation protein (TRAP)

Domain ID domain_id	d2zd0c_
Class class	b — All beta proteins
Fold Fold fold	b.82 — Double-stranded beta-helix
Superfamily Superfamily superfamily	b.82.5 — TRAP-like
Family Family family	b.82.5.1 — Trp RNA-binding attenuation protein (TRAP)

CATH v4.4 (3 domains)

Domain ID domain_id	2zd0A00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	50 — TRAP-like

Domain ID domain_id	2zd0B00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	50 — TRAP-like

Domain ID domain_id	2zd0C00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	50 — TRAP-like

▶

Unit-cell length a length_a	109.676 Å
Unit-cell length b length_b	109.676 Å
Unit-cell length c length_c	36.756 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	24

Space group space_group	P 4 21 2
Space-group number int_tables_number	90
Crystal system crystal_system	—

Resolution resolution	2.500 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.1997
R_work r_work	0.1969
R_free r_free	0.2565
