Crystal structure of HIV-1 reverse transcriptase (RT) with DNA and the nonnucleoside inhibitor nevirapine

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

HIV-1 Reverse Transcriptase P66 subunit

Human immunodeficiency virus type 1 BH10

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Homooligomer	Protein 2 DNA 2	;DNA (5'-D(APTPGPGPAPAPGPGPCPGPCPCPCPGPAPAPCPAPGPGPGPAPCPTPGPTPG)-3') ; × 1 ;DNA (5'-D(ACPAPGPTPCPCPCPTPGPTPTPCPGPGP(MRG)PCPGPCPCP(ATM))-3') ; × 1 11-CYCLOPROPYL-5,11-DIHYDRO-4-METHYL-6H-DIPYRIDO[3,2-B:2',3'-E][1,4]DIAZEPIN-6-ONE × 1	Consistent with all polymers
2	Protein–DNA	Homooligomer	Protein 2 DNA 2	;DNA (5'-D(APTPGPGPAPAPGPGPCPGPCPCPCPGPAPAPCPAPGPGPGPAPCPTPGPTPG)-3') ; × 1 ;DNA (5'-D(ACPAPGPTPCPCPCPTPGPTPTPCPGPGP(MRG)PCPGPCPCP(ATM))-3') ; × 1 11-CYCLOPROPYL-5,11-DIHYDRO-4-METHYL-6H-DIPYRIDO[3,2-B:2',3'-E][1,4]DIAZEPIN-6-ONE × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	POL_HV1B1
Isoform	—
PDB entities	1, 2
Chains and sequence ranges	Author chain A； PDBConstruct 3–556； UniProt 600–1153 Author chain C； PDBConstruct 3–556； UniProt 600–1153 Author chain B； PDBConstruct 1–428； UniProt 600–1027 Author chain D； PDBConstruct 1–428； UniProt 600–1027

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3v81
Deposition date deposition_date	2011-12-22
Structure title title	Crystal structure of HIV-1 reverse transcriptase (RT) with DNA and the nonnucleoside inhibitor nevirapine
Keywords keywords	;P51/P66, hetero dimer, NNRTI, nonnucleoside inhibitor, AIDS, DNA, recombination, RNA-directed DNA polymerase, viramune, DNA polymerase, endonuclease, hydrolase, multifunctional enzyme, transferase, TRANSFERASE-DNA complex, AZT, ZIDOVUDINE ;; TRANSFERASE/DNA
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

3v81__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

3v81__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

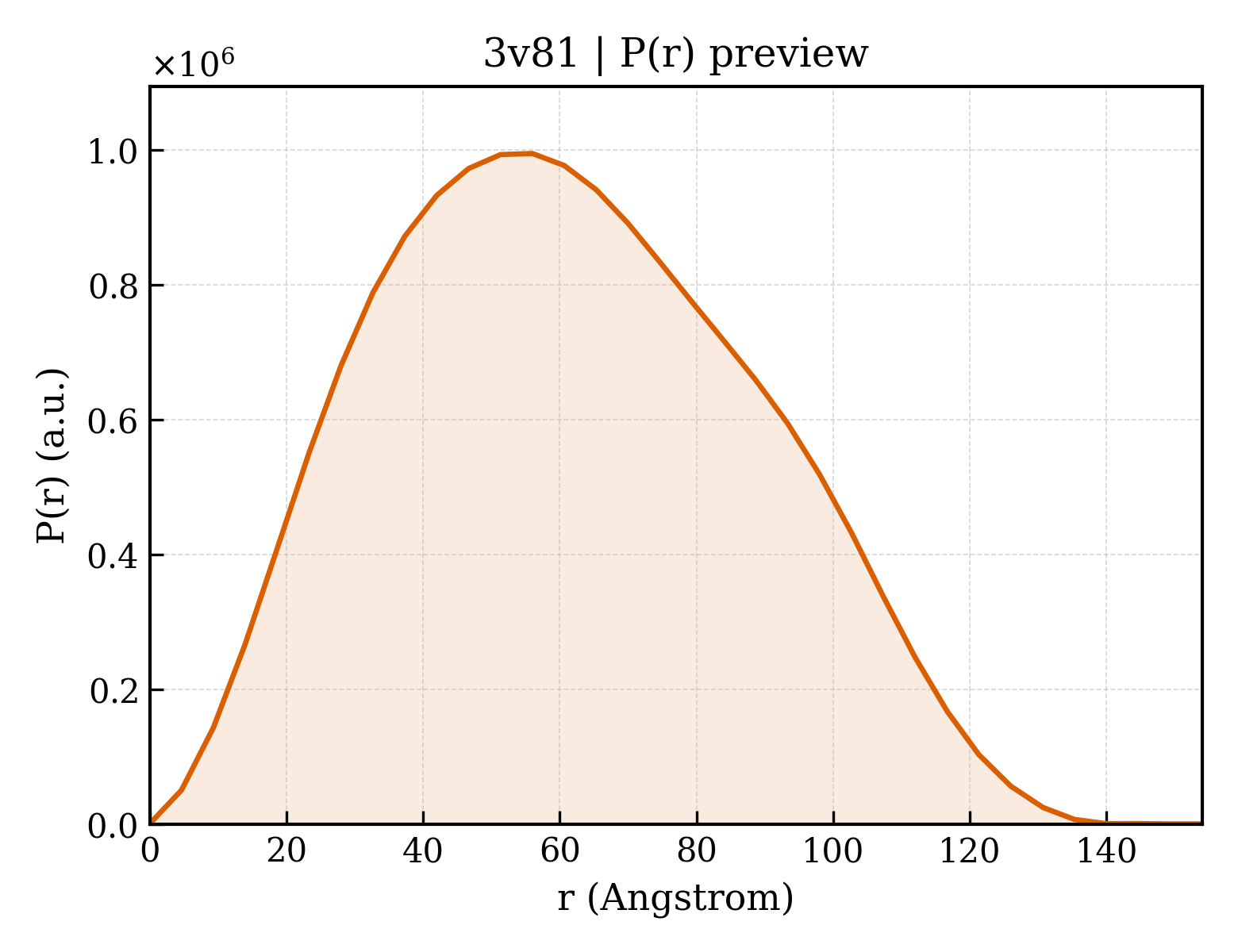

3v81__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	33.92 Å
Rg (electron density)	33.71 Å
Total Rg	34.32 Å
Atom count	8755
Residues	1005
Excluded volume	154750 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`3v81__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`3v81__assembly_2__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	HIV-1 Reverse Transcriptase P66 subunit
Molecular weight formula_weight	64022.4 kDa
EC 编号 ec_number	2.7.7.49, 2.7.7.7
Mutation mutation	Q258C, C280S, D498N
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C
Atom count atom_count	17510

MVPISPIETVPVKLKPGMDGPKVKQWPLTEEKIKALVEICTEMEKEGKISKIGPENPYNTPVFAIKKKDSTKWRKLVDFRELNKRTQDFWEVQLGIPHPAGLKKKKSVTVLDVGDAYFSVPLDEDFRKYTAFTIPSINNETPGIRYQYNVLPQGWKGSPAIFQSSMTKILEPFKKQNPDIVIYQYMDDLYVGSDLEIGQHRTKIEELRQHLLRWGLTTPDKKHQKEPPFLWMGYELHPDKWTVQPIVLPEKDSWTVNDICKLVGKLNWASQIYPGIKVRQLSKLLRGTKALTEVIPLTEEAELELAENREILKEPVHGVYYDPSKDLIAEIQKQGQGQWTYQIYQEPFKNLKTGKYARMRGAHTNDVKQLTEAVQKITTESIVIWGKTPKFKLPIQKETWETWWTEYWQATWIPEWEFVNTPPLVKLWYQLEKEPIVGAETFYVDGAANRETKLGKAGYVTNKGRQKVVPLTNTTNQKTELQAIYLALQDSGLEVNIVTNSQYALGIIQAQPDKSESELVNQIIEQLIKKEKVYLAWVPAHKGIGGNEQVDKLVSA

Source Source

Source organism organism	Human immunodeficiency virus type 1 BH10
Common name common_name	HIV-1
NCBI taxonomy ID ncbi_taxonomy_id	11678
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	HIV-1 Reverse Transcriptase P51 subunit
Molecular weight formula_weight	50039.5 kDa
EC 编号 ec_number	2.7.7.49, 2.7.7.7
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D

PISPIETVPVKLKPGMDGPKVKQWPLTEEKIKALVEICTEMEKEGKISKIGPENPYNTPVFAIKKKDSTKWRKLVDFRELNKRTQDFWEVQLGIPHPAGLKKKKSVTVLDVGDAYFSVPLDEDFRKYTAFTIPSINNETPGIRYQYNVLPQGWKGSPAIFQSSMTKILEPFKKQNPDIVIYQYMDDLYVGSDLEIGQHRTKIEELRQHLLRWGLTTPDKKHQKEPPFLWMGYELHPDKWTVQPIVLPEKDSWTVNDIQKLVGKLNWASQIYPGIKVRQLSKLLRGTKALTEVIPLTEEAELELAENREILKEPVHGVYYDPSKDLIAEIQKQGQGQWTYQIYQEPFKNLKTGKYARMRGAHTNDVKQLTEAVQKITTESIVIWGKTPKFKLPIQKETWETWWTEYWQATWIPEWEFVNTPPLVKLWYQ

Source Source

Source organism organism	Human immunodeficiency virus type 1 BH10
Common name common_name	HIV-1
NCBI taxonomy ID ncbi_taxonomy_id	11678
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	;DNA (5'-D(APTPGPGPAPAPGPGPCPGPCPCPCPGPAPAPCPAPGPGPGPAPCPTPGPTP*G)-3') ;
Molecular weight formula_weight	8416.4 kDa
Source method src_method	syn
Copy count entity_count	2

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	T,E

ATGGAAGGCGCCCGAACAGGGACTGTG

Entity 4 Entity 4 polymer

Description description	;DNA (5'-D(ACPAPGPTPCPCPCPTPGPTPTPCPGPGP(MRG)PCPGPCPCP*(ATM))-3') ;
Molecular weight formula_weight	6490.3 kDa
Source method src_method	syn
Copy count entity_count	2

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	P,F

ACAGTCCCTGTTCGGGCGCCT

Entity 5 Entity 5 non-polymer

Description description	11-CYCLOPROPYL-5,11-DIHYDRO-4-METHYL-6H-DIPYRIDO[3,2-B:2',3'-E][1,4]DIAZEPIN-6-ONE
Molecular weight formula_weight	266.3 kDa
Source method src_method	syn
Copy count entity_count	2

▼

6. Fold Classification (SCOP + CATH) 18 domains

CATH v4.4 (18 domains)

Domain ID domain_id	3v81A01
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	10 — HIV Type 1 Reverse Transcriptase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — HIV Type 1 Reverse Transcriptase, subunit A, domain 1

Domain ID domain_id	3v81A02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	270 — Reverse transcriptase/Diguanylate cyclase domain

Domain ID domain_id	3v81A03
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	270 — Reverse transcriptase/Diguanylate cyclase domain

Domain ID domain_id	3v81A04
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	270 — Reverse transcriptase/Diguanylate cyclase domain

Domain ID domain_id	3v81A05
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	420 — Nucleotidyltransferase; domain 5
Homologous superfamily homologous superfamily	10 — Ribonuclease H-like superfamily/Ribonuclease H

Domain ID domain_id	3v81B01
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	10 — HIV Type 1 Reverse Transcriptase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — HIV Type 1 Reverse Transcriptase, subunit A, domain 1

Domain ID domain_id	3v81B02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	270 — Reverse transcriptase/Diguanylate cyclase domain

Domain ID domain_id	3v81B03
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	270 — Reverse transcriptase/Diguanylate cyclase domain

Domain ID domain_id	3v81B04
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	270 — Reverse transcriptase/Diguanylate cyclase domain

Domain ID domain_id	3v81C01
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	10 — HIV Type 1 Reverse Transcriptase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — HIV Type 1 Reverse Transcriptase, subunit A, domain 1

Domain ID domain_id	3v81C02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	270 — Reverse transcriptase/Diguanylate cyclase domain

Domain ID domain_id	3v81C03
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	270 — Reverse transcriptase/Diguanylate cyclase domain

Domain ID domain_id	3v81C04
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	270 — Reverse transcriptase/Diguanylate cyclase domain

Domain ID domain_id	3v81C05
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	420 — Nucleotidyltransferase; domain 5
Homologous superfamily homologous superfamily	10 — Ribonuclease H-like superfamily/Ribonuclease H

Domain ID domain_id	3v81D01
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	10 — HIV Type 1 Reverse Transcriptase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — HIV Type 1 Reverse Transcriptase, subunit A, domain 1

Domain ID domain_id	3v81D02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	270 — Reverse transcriptase/Diguanylate cyclase domain

Domain ID domain_id	3v81D03
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	270 — Reverse transcriptase/Diguanylate cyclase domain

Domain ID domain_id	3v81D04
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	270 — Reverse transcriptase/Diguanylate cyclase domain

▶

7. Citations (7)

HIV-1 reverse transcriptase complex with DNA and nevirapine reveals non-nucleoside inhibition mechanism.

Nat.Struct.Mol.Biol. (2012)

PMID: 22266819 · DOI: 10.1038/nsmb.2223 PRIMARY

Structural basis of HIV-1 resistance to AZT by excision.

Nat.Struct.Mol.Biol. (2010)

PMID: 20852643 · DOI: 10.1038/nsmb.1908

;Structural basis for the role of the K65R mutation in HIV-1 reverse transcriptase polymerization, excision antagonism, and tenofovir resistance. ;

J.Biol.Chem. (2009)

PMID: 19812032 · DOI: 10.1074/jbc.M109.022525

;High-resolution structures of HIV-1 reverse transcriptase/TMC278 complexes: strategic flexibility explains potency against resistance mutations. ;

Proc.Natl.Acad.Sci.USA (2008)

PMID: 18230722 · DOI: 10.1073/pnas.0711209105

;Roles of conformational and positional adaptability in structure-based design of TMC125-R165335 (etravirine) and related non-nucleoside reverse transcriptase inhibitors that are highly potent and effective against wild-type and drug-resistant HIV-1 variants. ;

J.Med.Chem. (2004)

PMID: 15115397 · DOI: 10.1021/jm030558s

Structure of a covalently trapped catalytic complex of HIV-1 reverse transcriptase: implications for drug resistance.

Science (1998)

PMID: 9831551

High resolution structures of HIV-1 RT from four RT-inhibitor complexes.

Nat.Struct.Biol. (1995)

PMID: 7540934 · DOI: 10.1038/NSB0495-293

Unit-cell length a length_a	89.822 Å
Unit-cell length b length_b	132.052 Å
Unit-cell length c length_c	142.732 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	100.84 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.850 Å
Low-resolution limit resolution_low	38.413 Å
R factor r_factor	0.2520
R_work r_work	0.2505
R_free r_free	0.2980

Crystal structure of HIV-1 reverse transcriptase (RT) with DNA and the nonnucleoside inhibitor nevirapine

1. Protein Identity and Related Structures Protein Identity & Related Structures

HIV-1 Reverse Transcriptase P66 subunit

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

3v81__assembly_1__model_1

3v81__assembly_1__model_1 | I(q)

3v81__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 polymer

Polymer Polymer

Source Source

Entity 3 Entity 3 polymer

Polymer Polymer

Entity 4 Entity 4 polymer

Polymer Polymer

Entity 5 Entity 5 non-polymer

6. Fold Classification (SCOP + CATH) 18 domains

CATH v4.4 (18 domains)

7. Citations (7)

Crystal structure of HIV-1 reverse transcriptase (RT) with DNA and the nonnucleoside inhibitor nevirapine

1. Protein Identity and Related Structures Protein Identity & Related Structures

HIV-1 Reverse Transcriptase P66 subunit

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

3v81__assembly_1__model_1

3v81__assembly_1__model_1 | I(q)

3v81__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 polymer

Polymer Polymer

Source Source

Entity 3 Entity 3 polymer

Polymer Polymer

Entity 4 Entity 4 polymer

Polymer Polymer

Entity 5 Entity 5 non-polymer

6. Fold Classification (SCOP + CATH) 18 domains

CATH v4.4 (18 domains)

7. Citations (7)
