SAXSdb — 3wsp

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Bifunctional P-450/NADPH-P450 reductase

Bacillus megaterium

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	PROTOPORPHYRIN IX CONTAINING FE × 1 N-(2,2,3,3,4,4,5,5,6,6,7,7,8,8,9,9,9-heptadecafluorononanoyl)-L-tryptophan × 1 DIMETHYL SULFOXIDE × 1 water × 1	Consistent with protein count
2	Protein monomer	Monomer	Protein 1	PROTOPORPHYRIN IX CONTAINING FE × 1 N-(2,2,3,3,4,4,5,5,6,6,7,7,8,8,9,9,9-heptadecafluorononanoyl)-L-tryptophan × 1 DIMETHYL SULFOXIDE × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CPXB_BACME
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–456； UniProt 1–456 Author chain B； PDBConstruct 1–456； UniProt 1–456

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3wsp
Deposition date deposition_date	2014-03-20
Structure title title	Crystal Structure of P450BM3 with N-perfluorononanoyl-L-tryptophan
Keywords keywords	Cytochrome P450, Oxidoreductase; OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

3wsp__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

3wsp__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

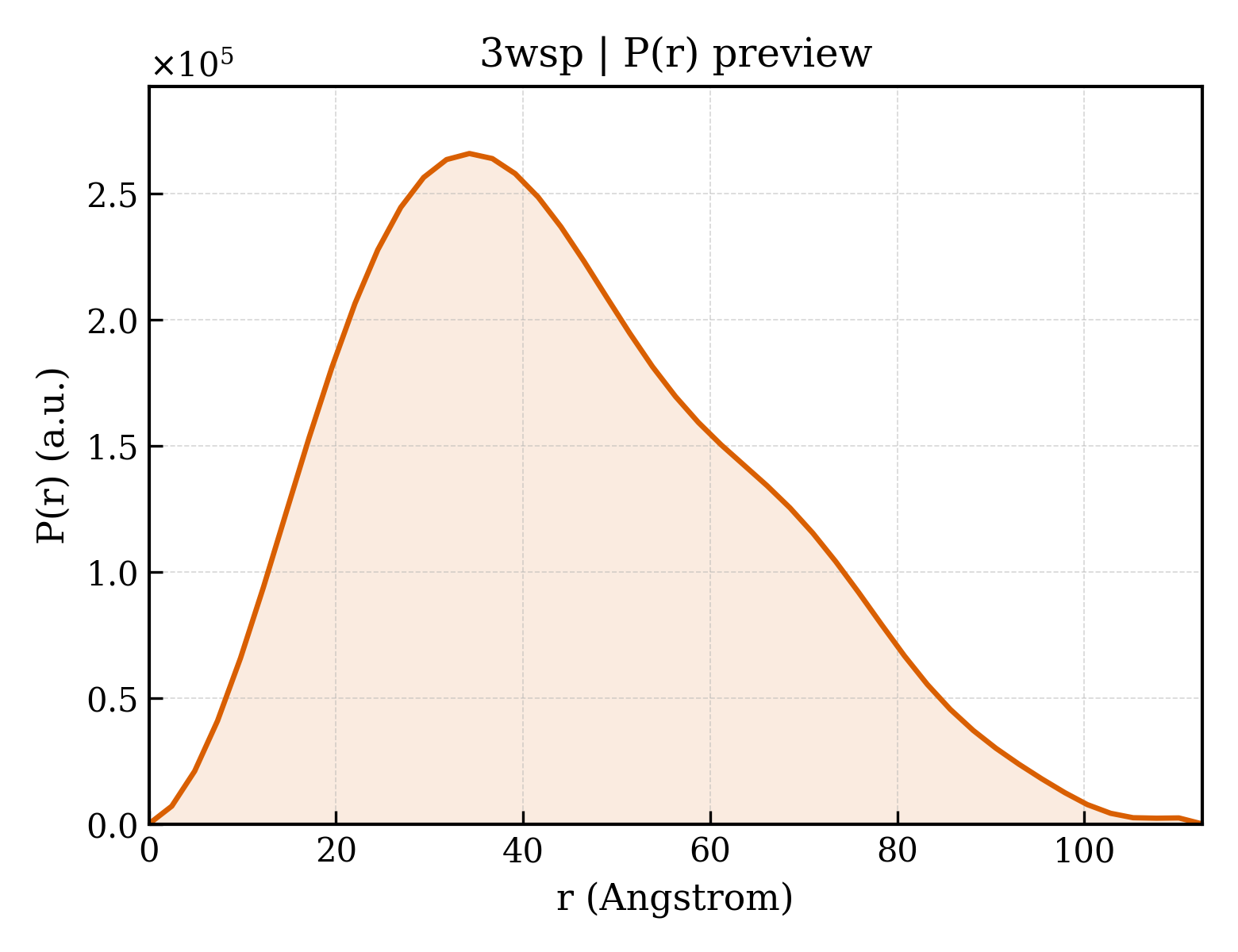

3wsp__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	23.33 Å
Rg (electron density)	22.05 Å
Total Rg	22.92 Å
Atom count	3744
Residues	453
Excluded volume	66762 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`3wsp__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`3wsp__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Bifunctional P-450/NADPH-P450 reductase
Molecular weight formula_weight	52300.7 kDa
EC 编号 ec_number	1.14.14.1, 1.6.2.4
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	8174

MTIKEMPQPKTFGELKNLPLLNTDKPVQALMKIADELGEIFKFEAPGRVTRYLSSQRLIKEACDESRFDKNLSQALKFVRDFAGDGLFTSWTHEKNWKKAHNILLPSFSQQAMKGYHAMMVDIAVQLVQKWERLNADEHIEVPEDMTRLTLDTIGLCGFNYRFNSFYRDQPHPFITSMVRALDEAMNKLQRANPDDPAYDENKRQFQEDIKVMNDLVDKIIADRKASGEQSDDLLTHMLNGKDPETGEPLDDENIRYQIITFLIAGHETTSGLLSFALYFLVKNPHVLQKAAEEAARVLVDPVPSYKQVKQLKYVGMVLNEALRLWPTAPAFSLYAKEDTVLGGEYPLEKGDELMVLIPQLHRDKTIWGDDVEEFRPERFENPSAIPQHAFKPFGNGQRACIGQQFALHEATLVLGMMLKHFDFEDHTNYELDIKETLTLKPEGFVVKAKSKKIPL

Source Source

Source organism organism	Bacillus megaterium
NCBI taxonomy ID ncbi_taxonomy_id	1404
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	PROTOPORPHYRIN IX CONTAINING FE
Molecular weight formula_weight	616.5 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	N-(2,2,3,3,4,4,5,5,6,6,7,7,8,8,9,9,9-heptadecafluorononanoyl)-L-tryptophan
Molecular weight formula_weight	650.3 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	DIMETHYL SULFOXIDE
Molecular weight formula_weight	78.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	556

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d3wspa_
Class class	a — All alpha proteins
Fold Fold fold	a.104 — Cytochrome P450
Superfamily Superfamily superfamily	a.104.1 — Cytochrome P450
Family Family family	a.104.1.1 — Cytochrome P450

Domain ID domain_id	d3wspb_
Class class	a — All alpha proteins
Fold Fold fold	a.104 — Cytochrome P450
Superfamily Superfamily superfamily	a.104.1 — Cytochrome P450
Family Family family	a.104.1.1 — Cytochrome P450

CATH v4.4 (2 domains)

Domain ID domain_id	3wspA00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	630 — Cytochrome p450
Homologous superfamily homologous superfamily	10 — Cytochrome P450

Domain ID domain_id	3wspB00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	630 — Cytochrome p450
Homologous superfamily homologous superfamily	10 — Cytochrome P450

▶

Unit-cell length a length_a	58.875 Å
Unit-cell length b length_b	145.392 Å
Unit-cell length c length_c	63.029 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	97.06 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	1.800 Å
Low-resolution limit resolution_low	19.960 Å
R factor r_factor	0.1760
R_work r_work	0.1741
R_free r_free	0.2122
