SAXSdb — 6iao

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Bifunctional cytochrome P450/NADPH--P450 reductase

Bacillus megaterium

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	PROTOPORPHYRIN IX CONTAINING FE × 2 2,3-DIHYDROXY-1,4-DITHIOBUTANE × 3 CHLORIDE ION × 11 GLYCEROL × 3 DI(HYDROXYETHYL)ETHER × 1 water × 2	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 2	PROTOPORPHYRIN IX CONTAINING FE × 2 2,3-DIHYDROXY-1,4-DITHIOBUTANE × 2 CHLORIDE ION × 9 GLYCEROL × 1 DI(HYDROXYETHYL)ETHER × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CPXB_BACMB
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 35–507； UniProt 1–473 Author chain B； PDBConstruct 35–507； UniProt 1–473 Author chain C； PDBConstruct 35–507； UniProt 1–473 Author chain D； PDBConstruct 35–507； UniProt 1–473

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6iao
Deposition date deposition_date	2018-11-27
Structure title title	Structure of Cytochrome P450 BM3 M11 mutant in complex with DTT at resolution 2.16A
Keywords keywords	Cytochrome P450 BM3, mutant M11, DTT, OXIDOREDUCTASE; OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

6iao__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

6iao__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

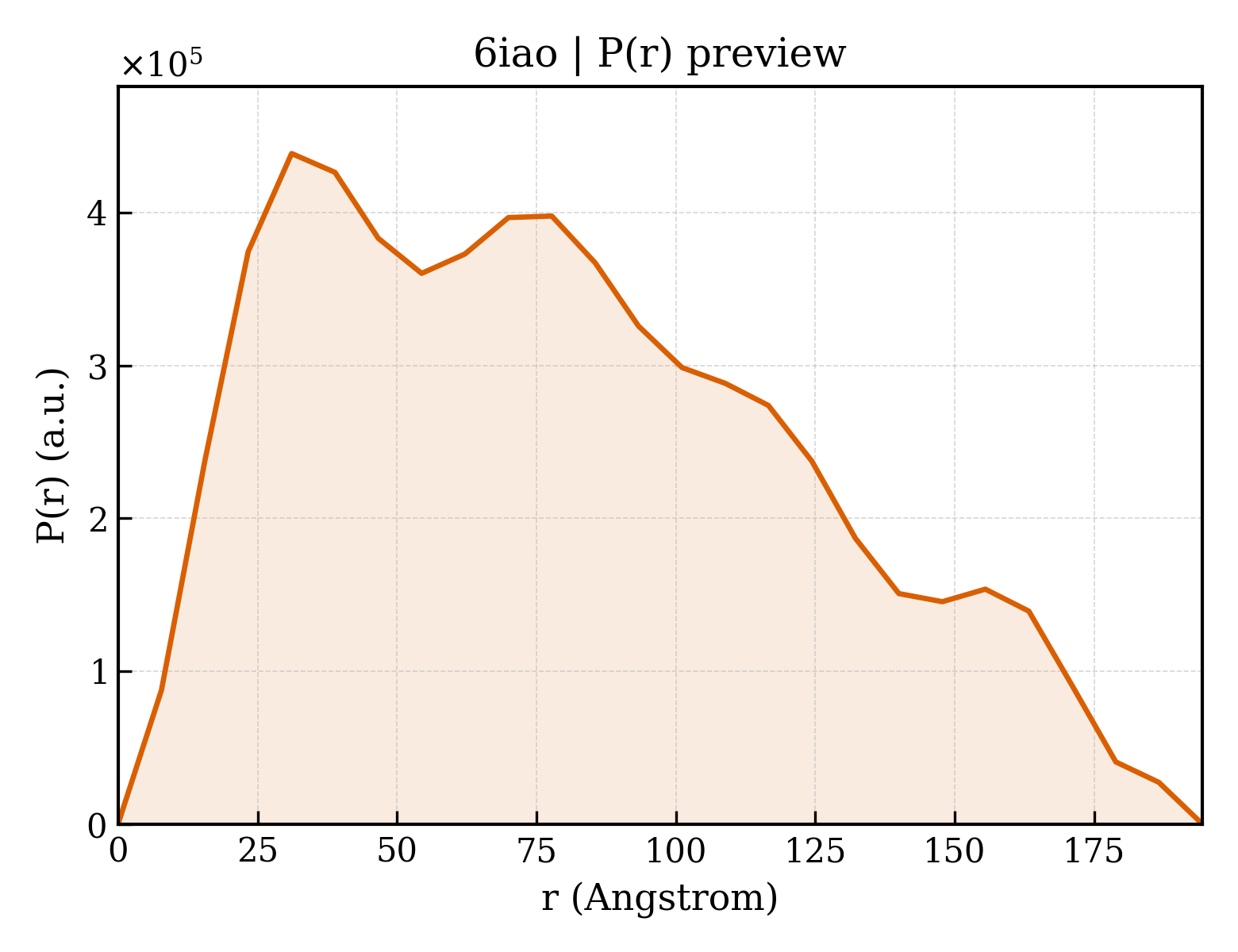

6iao__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	35.98 Å
Rg (electron density)	35.69 Å
Total Rg	36.05 Å
Atom count	7404
Residues	907
Excluded volume	132530 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`6iao__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`6iao__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	Bifunctional cytochrome P450/NADPH--P450 reductase
Molecular weight formula_weight	57319.4 kDa
EC 编号 ec_number	1.14.14.1,1.6.2.4
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	16073

MGSSHHHHHHSSGLVPRGSHMASMTGGQQMGRGSMTIKEMPQPKTFGELKNLPLLNTDKPVQALMKIADELGEIFKFEAPGLVTRYLSSQRLIKEACDGSRFDKNLSQALKFVRDIAGDGLVTSWTHEKNWKKAHNILLPSFSQQAMKGYHAMMVDIAVQLVQKWERLNADEHIEVPGDMTRLTLDTIGLCGFNYRFNSFYRDQPHPFITSMVRALDEAMNKQQRANPDDPACDENKRQFQEDIKVMNDLVDKIIADRKASGEQSDDLLTHMLNGKDPETGEPLDDENIRYQIITFLIAGHVTTSGLLSFALYFLVKNPYVLQKAAEEAARVLVDPVPSYKQVKQLKYVGMVLNEALRLWPTAPAFSLYAKEDTVLGGEYPLEKGDELMVLIPQLHRDKTIWGDDVEEFRPERFENPSAIPQHAFKPFGNGQRACIGQQFALHEATLVLSMMLKHFDFEDHTNYELDIKETLTLKPEGFVVKAKSKKIPLGGIPSPSTEQSAKKVRK

Source Source

Source organism organism	Bacillus megaterium
NCBI taxonomy ID ncbi_taxonomy_id	1404
Host organism host_organism	Escherichia coli BL21

Entity 2 Entity 2 non-polymer

Description description	PROTOPORPHYRIN IX CONTAINING FE
Molecular weight formula_weight	616.5 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 3 Entity 3 non-polymer

Description description	2,3-DIHYDROXY-1,4-DITHIOBUTANE
Molecular weight formula_weight	154.3 kDa
Source method src_method	syn
Copy count entity_count	5

Entity 4 Entity 4 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	20

Entity 5 Entity 5 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 6 Entity 6 non-polymer

Description description	DI(HYDROXYETHYL)ETHER
Molecular weight formula_weight	106.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 7 Entity 7 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	1245

▼

6. Fold Classification (SCOP + CATH) 9 domains

SCOP 2.08 (5 domains)

Domain ID domain_id	d6iaoa_
Class class	a — All alpha proteins
Fold Fold fold	a.104 — Cytochrome P450
Superfamily Superfamily superfamily	a.104.1 — Cytochrome P450
Family Family family	a.104.1.1 — Cytochrome P450

Domain ID domain_id	d6iaob_
Class class	a — All alpha proteins
Fold Fold fold	a.104 — Cytochrome P450
Superfamily Superfamily superfamily	a.104.1 — Cytochrome P450
Family Family family	a.104.1.1 — Cytochrome P450

Domain ID domain_id	d6iaoc1
Class class	a — All alpha proteins
Fold Fold fold	a.104 — Cytochrome P450
Superfamily Superfamily superfamily	a.104.1 — Cytochrome P450
Family Family family	a.104.1.1 — Cytochrome P450

Domain ID domain_id	d6iaoc2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d6iaod_
Class class	a — All alpha proteins
Fold Fold fold	a.104 — Cytochrome P450
Superfamily Superfamily superfamily	a.104.1 — Cytochrome P450
Family Family family	a.104.1.1 — Cytochrome P450

CATH v4.4 (4 domains)

Domain ID domain_id	6iaoA00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	630 — Cytochrome p450
Homologous superfamily homologous superfamily	10 — Cytochrome P450

Domain ID domain_id	6iaoB00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	630 — Cytochrome p450
Homologous superfamily homologous superfamily	10 — Cytochrome P450

Domain ID domain_id	6iaoC00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	630 — Cytochrome p450
Homologous superfamily homologous superfamily	10 — Cytochrome P450

Domain ID domain_id	6iaoD00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	630 — Cytochrome p450
Homologous superfamily homologous superfamily	10 — Cytochrome P450

▶

Unit-cell length a length_a	377.933 Å
Unit-cell length b length_b	59.937 Å
Unit-cell length c length_c	95.456 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	95.74 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	2.160 Å
Low-resolution limit resolution_low	47.177 Å
R factor r_factor	0.1611
R_work r_work	0.1589
R_free r_free	0.2021
