SAXSdb — 4hug

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Ribonuclease H

Bacillus halodurans

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Monomer	Protein 1 DNA 2	;DNA (5'-D(CPGPCPGPAPAP(UCL)P(UCL)PCPGPCPG)-3') ; × 2 MAGNESIUM ION × 1 GLYCEROL × 1 water × 3	Consistent with all polymers
2	Protein–DNA	Monomer	Protein 1 DNA 2	;DNA (5'-D(CPGPCPGPAPAP(UCL)P(UCL)PCPGPCPG)-3') ; × 2 MAGNESIUM ION × 1 GLYCEROL × 1 1,2-ETHANEDIOL × 2 water × 3	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RNH1_BACHD
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–134； UniProt 61–194 Author chain B； PDBConstruct 1–134； UniProt 61–194

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	4hug
Deposition date deposition_date	2012-11-02
Structure title title	Structure of 5-chlorouracil modified A:U base pairs
Keywords keywords	;5-chloro-2'-deoxyuridine, W-C base pair, Wobble base pair, double helix, Watson-Crick base pairing pattern, Hydrolase-DNA complex ;; Hydrolase/DNA
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

4hug__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

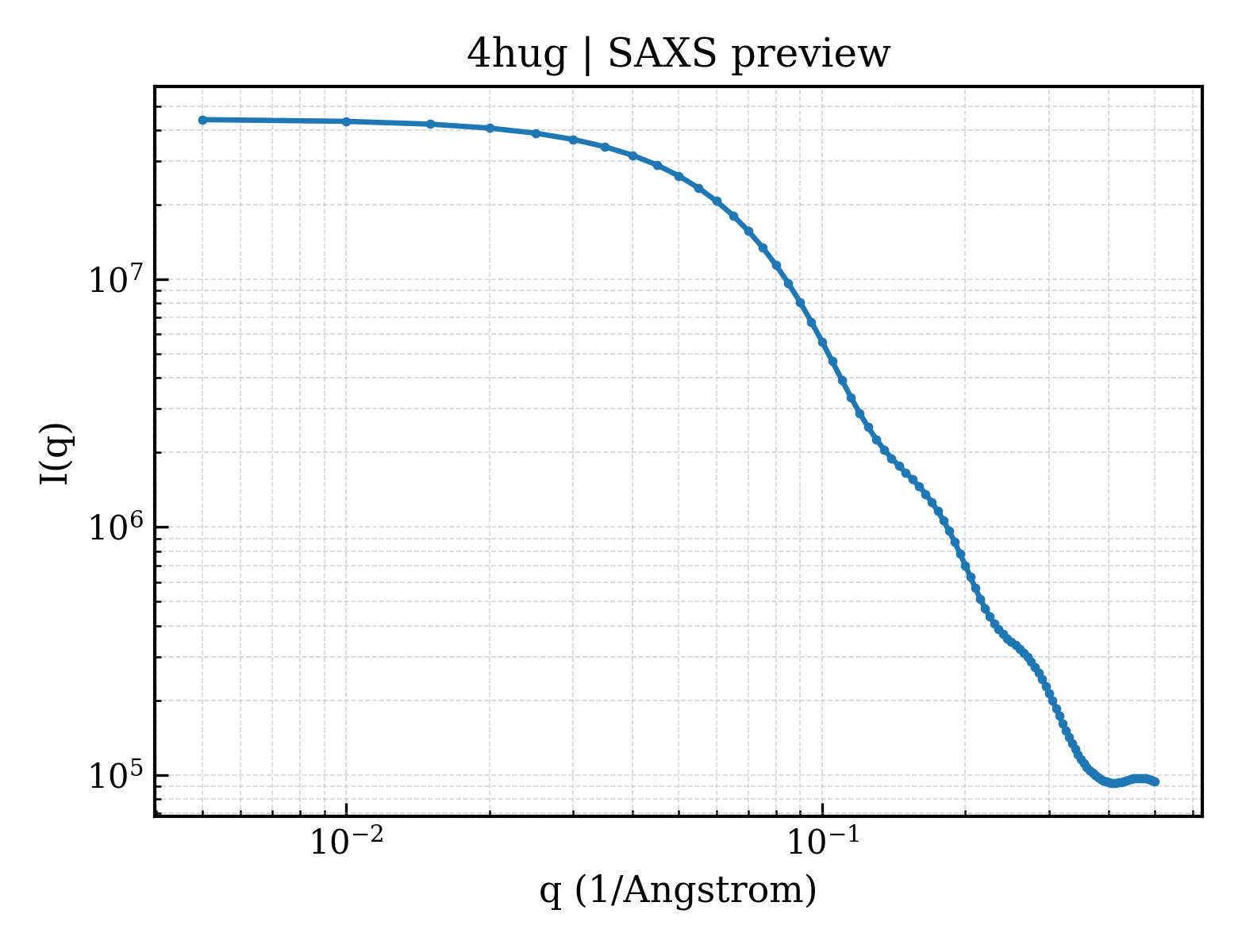

4hug__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

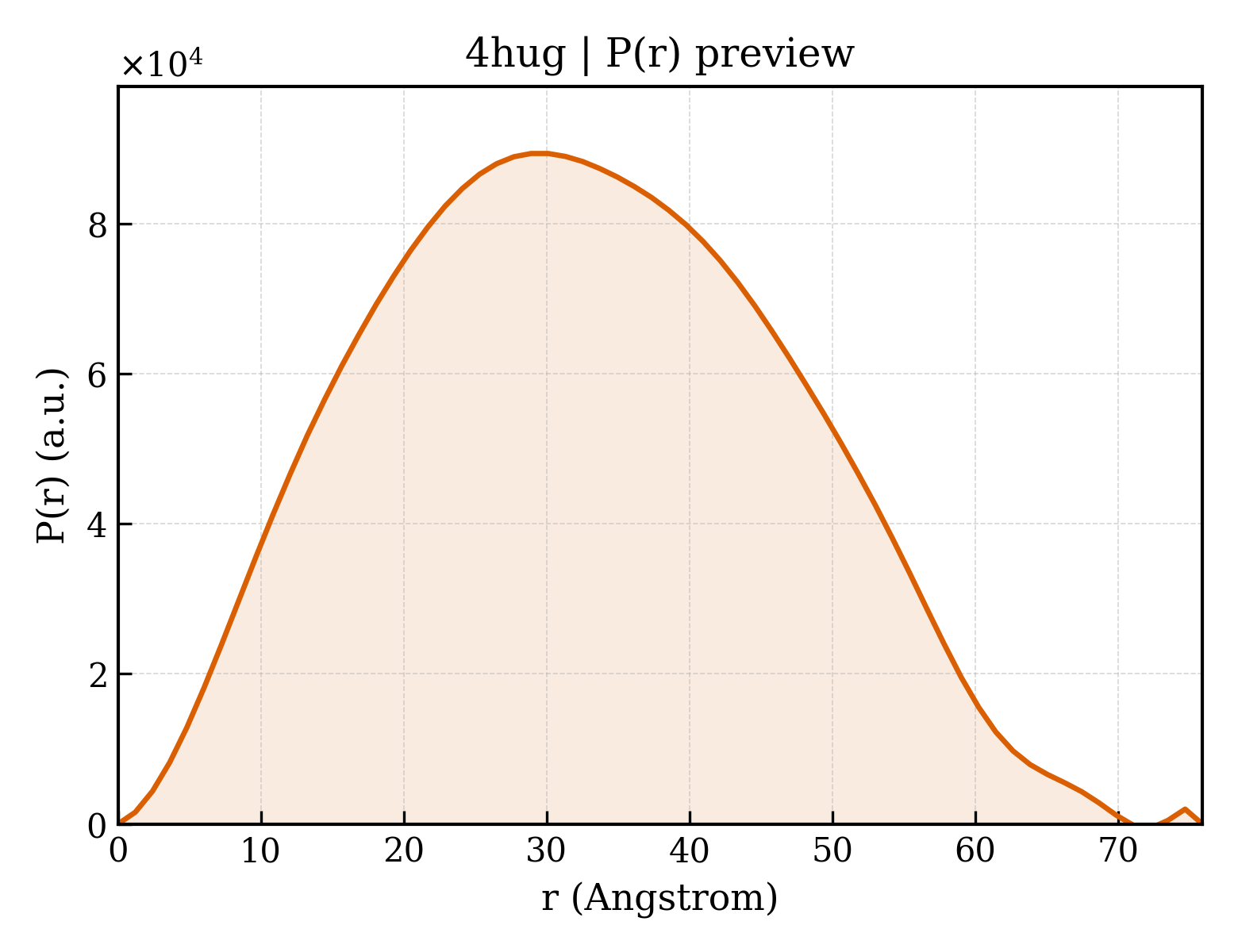

4hug__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	19.99 Å
Rg (electron density)	18.96 Å
Total Rg	19.81 Å
Atom count	1582
Residues	154
Excluded volume	26592 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`4hug__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`4hug__assembly_2__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Ribonuclease H
Molecular weight formula_weight	15429.4 kDa
EC 编号 ec_number	3.1.26.4
Mutation mutation	D132N
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	3500

EEIIWESLSVDVGSQGNPGIVEYKGVDTKTGEVLFEREPIPIGTNNMGEFLAIVHGLRYLKERNSRKPIYSNSQTAIKWVKDKKAKSTLVRNEETALIWKLVDEAEEWLNTHTYETPILKWQTDKWGEIKADYG

Source Source

Source organism organism	Bacillus halodurans
NCBI taxonomy ID ncbi_taxonomy_id	272558
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	;DNA (5'-D(CPGPCPGPAPAP(UCL)P(UCL)PCPGPCPG)-3') ;
Molecular weight formula_weight	3704.2 kDa
Source method src_method	syn
Copy count entity_count	4

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	C,D,E,F

CGCGAAUUCGCG

Entity 3 Entity 3 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 non-polymer

Description description	1,2-ETHANEDIOL
Molecular weight formula_weight	62.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	428

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d4huga_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.55 — Ribonuclease H-like motif
Superfamily Superfamily superfamily	c.55.3 — Ribonuclease H-like
Family Family family	c.55.3.1 — Ribonuclease H

Domain ID domain_id	d4hugb_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.55 — Ribonuclease H-like motif
Superfamily Superfamily superfamily	c.55.3 — Ribonuclease H-like
Family Family family	c.55.3.1 — Ribonuclease H

CATH v4.4 (2 domains)

Domain ID domain_id	4hugA00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	420 — Nucleotidyltransferase; domain 5
Homologous superfamily homologous superfamily	10 — Ribonuclease H-like superfamily/Ribonuclease H

Domain ID domain_id	4hugB00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	420 — Nucleotidyltransferase; domain 5
Homologous superfamily homologous superfamily	10 — Ribonuclease H-like superfamily/Ribonuclease H

▶

Unit-cell length a length_a	63.829 Å
Unit-cell length b length_b	64.638 Å
Unit-cell length c length_c	116.286 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.640 Å
Low-resolution limit resolution_low	43.228 Å
R factor r_factor	0.1945
R_work r_work	0.1931
R_free r_free	0.2218
